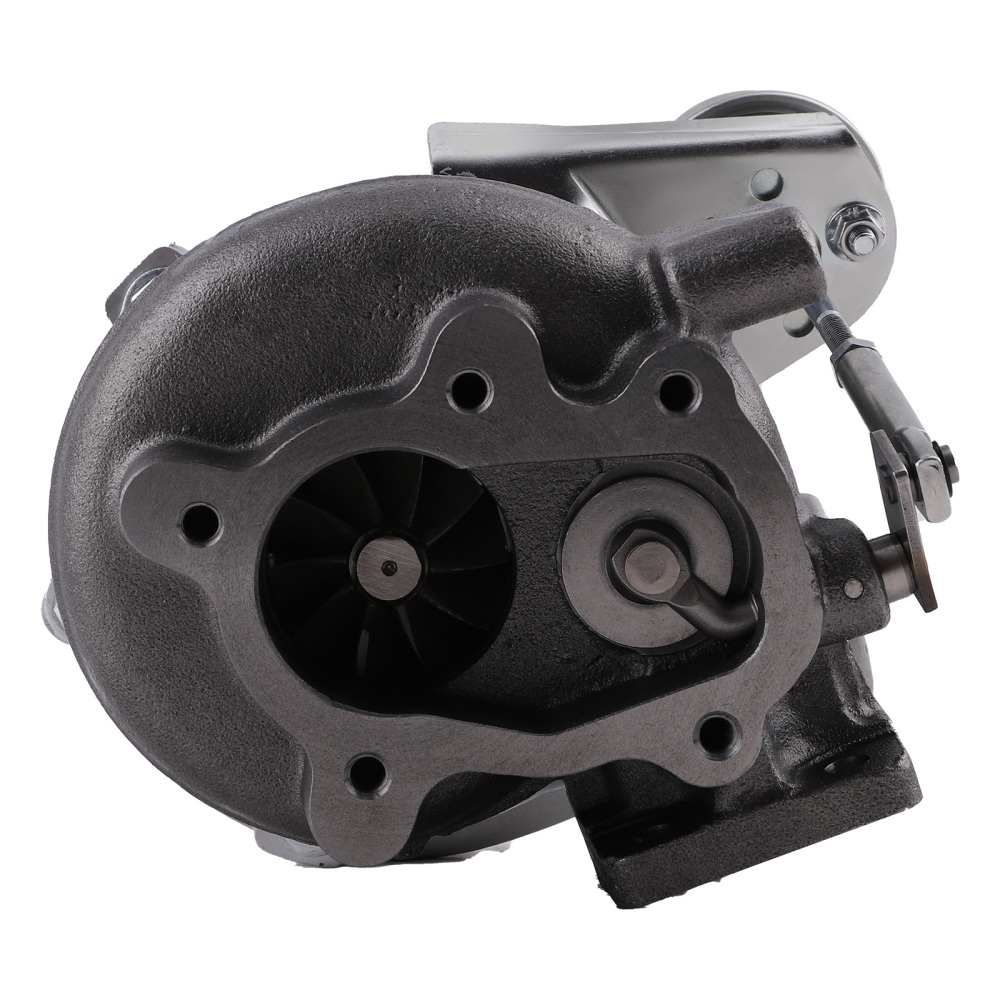

Water Cooling Compressor 0.60 A/R Universal Turbo Turbocharger for all 1.5L-2.0L engine,for all 4 cylinder

Application

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine，for all 4 cylinder

Specification

Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Internal Wastegate: Yes
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M18*1.5
Horse Power: Boost Horse Power up to 350BHP
Turbo Type: Individual
Condition: New
Accessories: You will get exactly as shown as picture above
package size：26x24x22cm
package weight：7250g

Package included

1xTurbocharger
2xFlange gasket
1xOil port gaskets
5xBolts
5xNuts
1xOil restrictor
1x banjo bolt
1xManual
1xBrochure
1xSticker

Feature

*Product Material

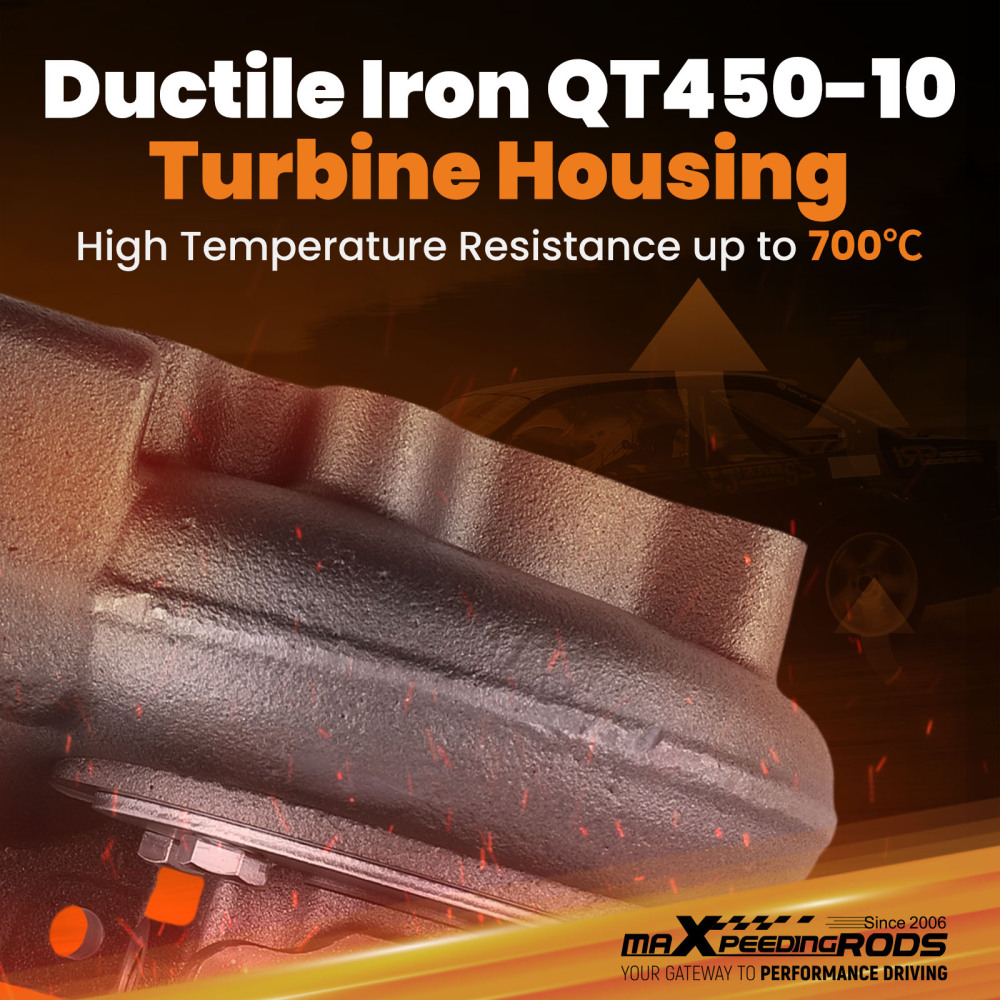

1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃

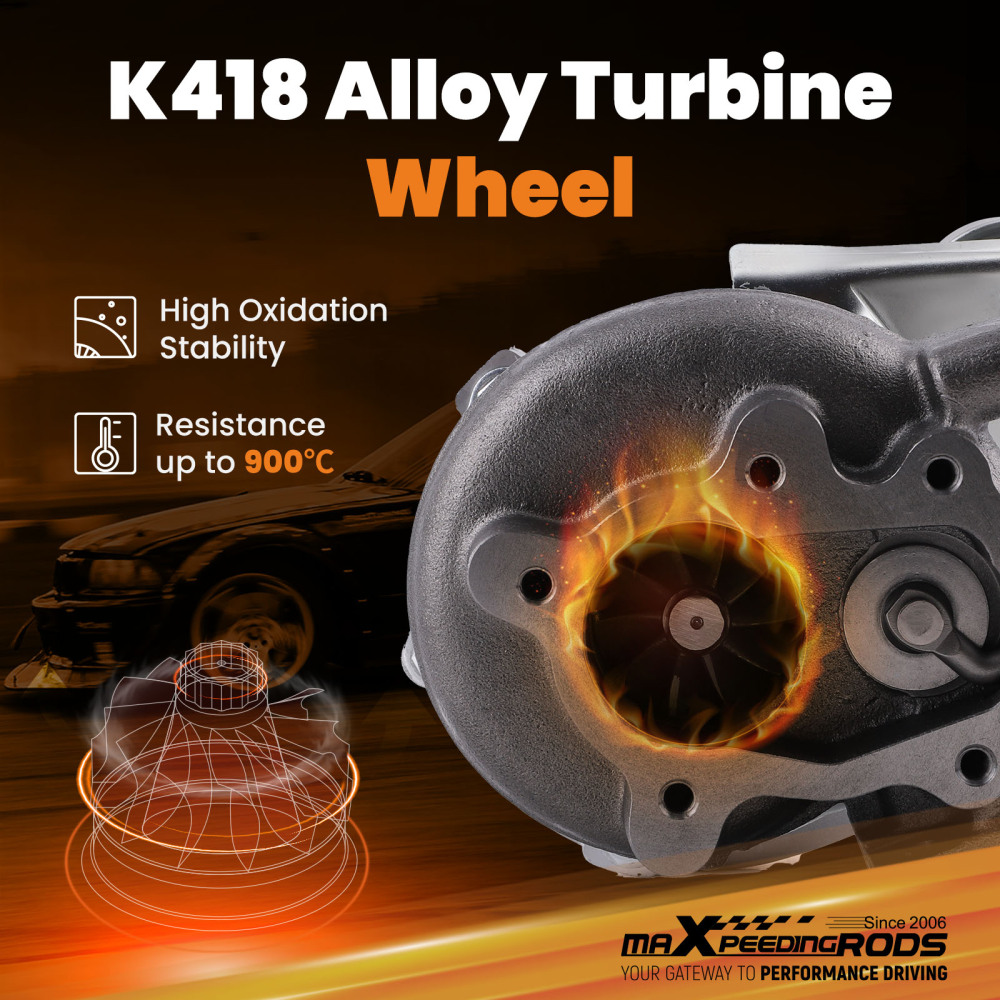

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

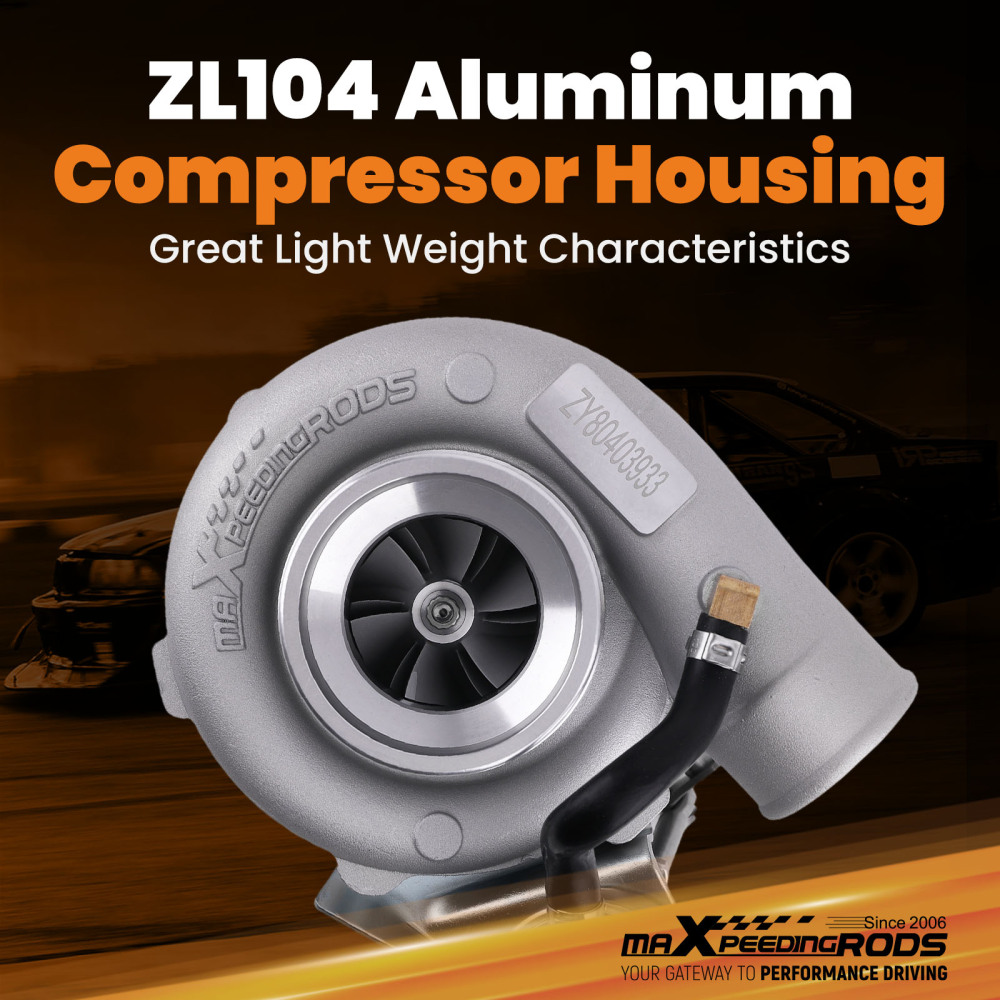

3. Compressor housing：ZL104 aluminum with lightweight

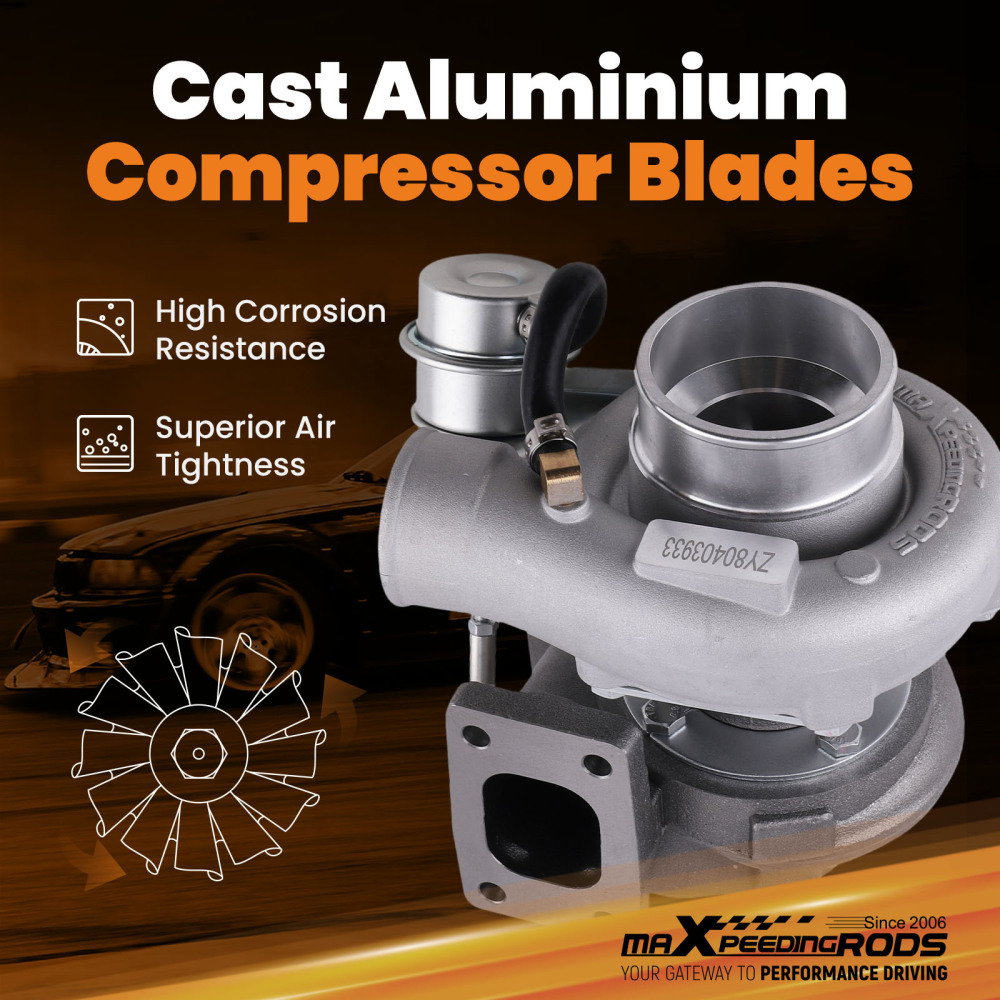

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

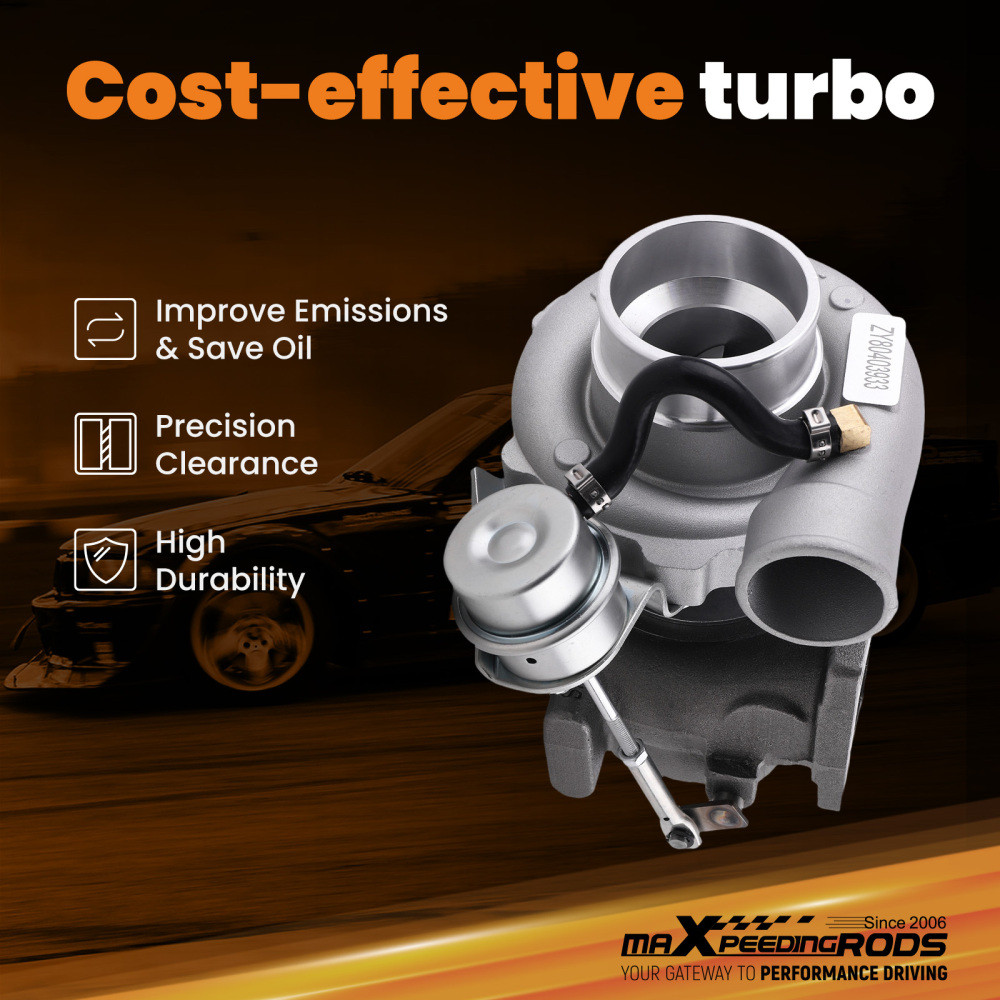

1. Cost-effective turbo increase 20-40% power for your car

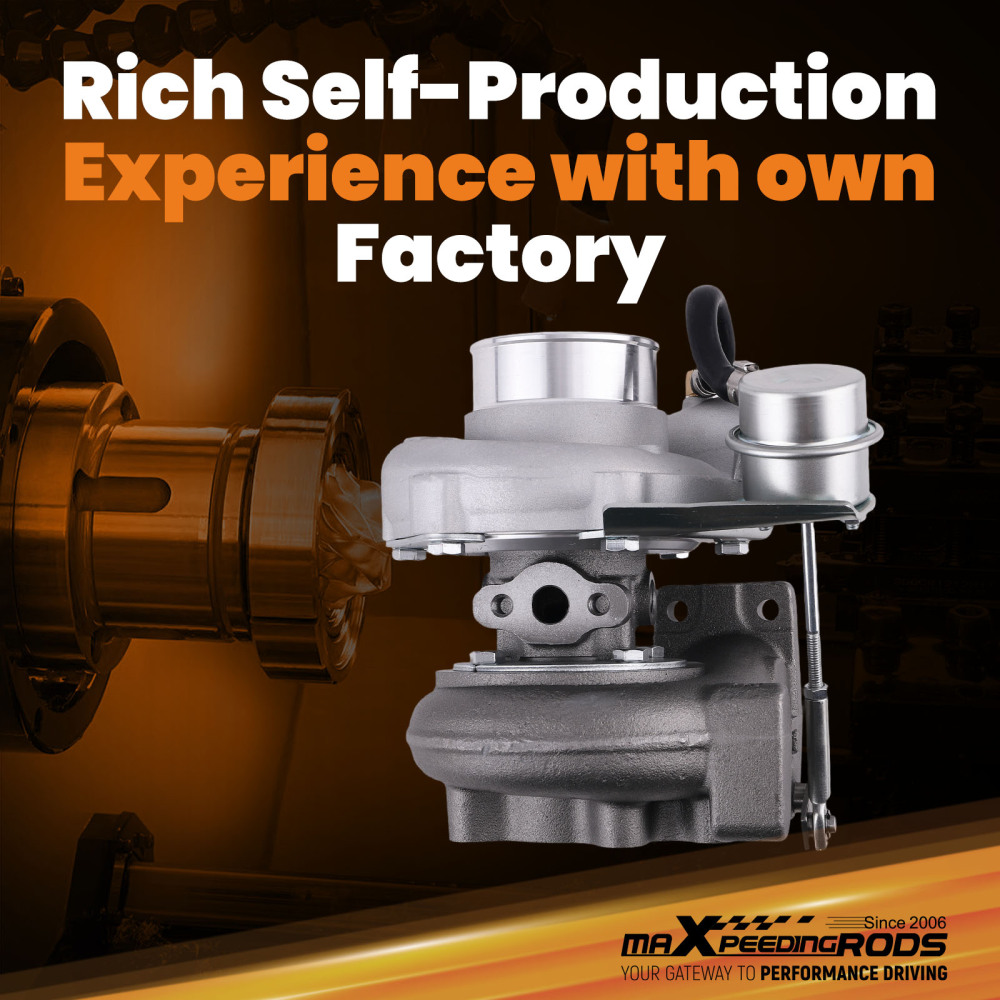

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

*Product Certification
TÜV ISO 9001 CERTIFIED

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
