Universal Turbo Kit Perfect For 2.5-6.0L engine for GT35 GT3582 Turbo compatible for Charger

Application

Universal Turbo Kit Perfect For 2.5-6.0L engine
This Kit Will be able to add 400+HP at 7.5-14.5 PSI.
(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)

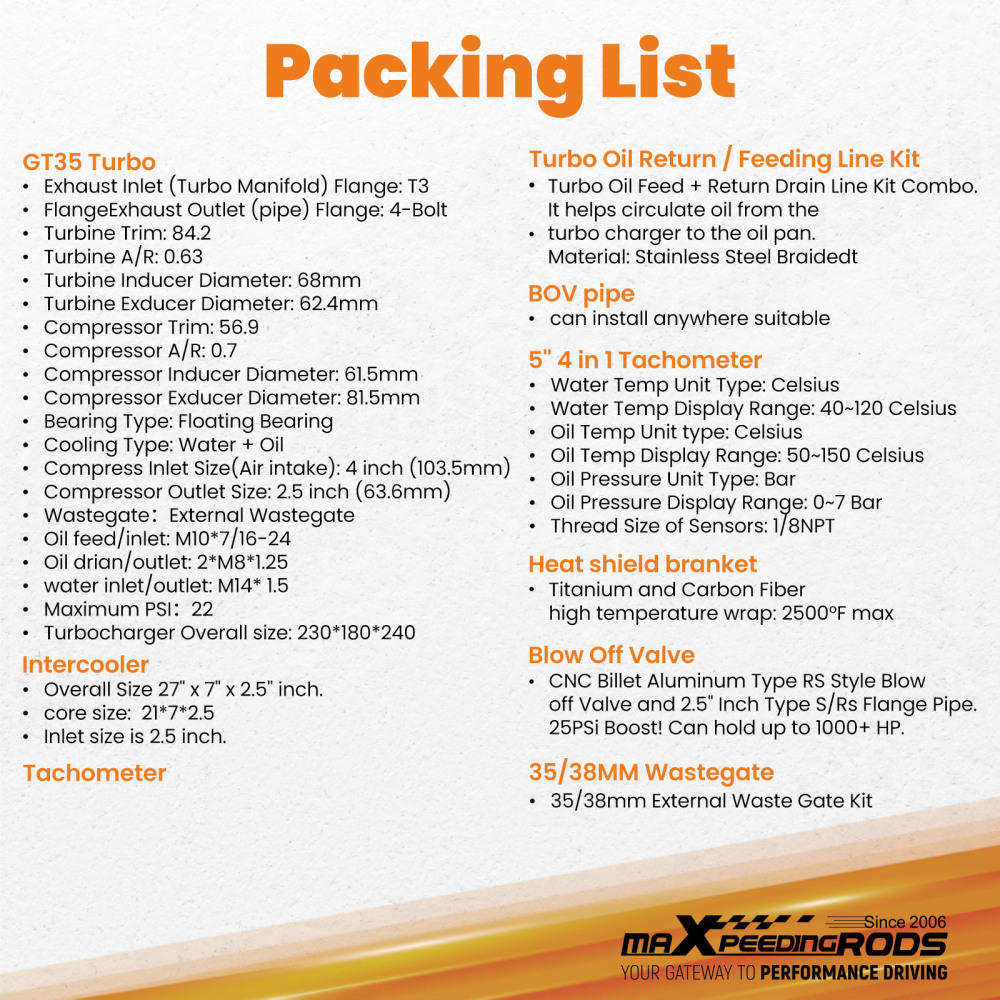

Specification

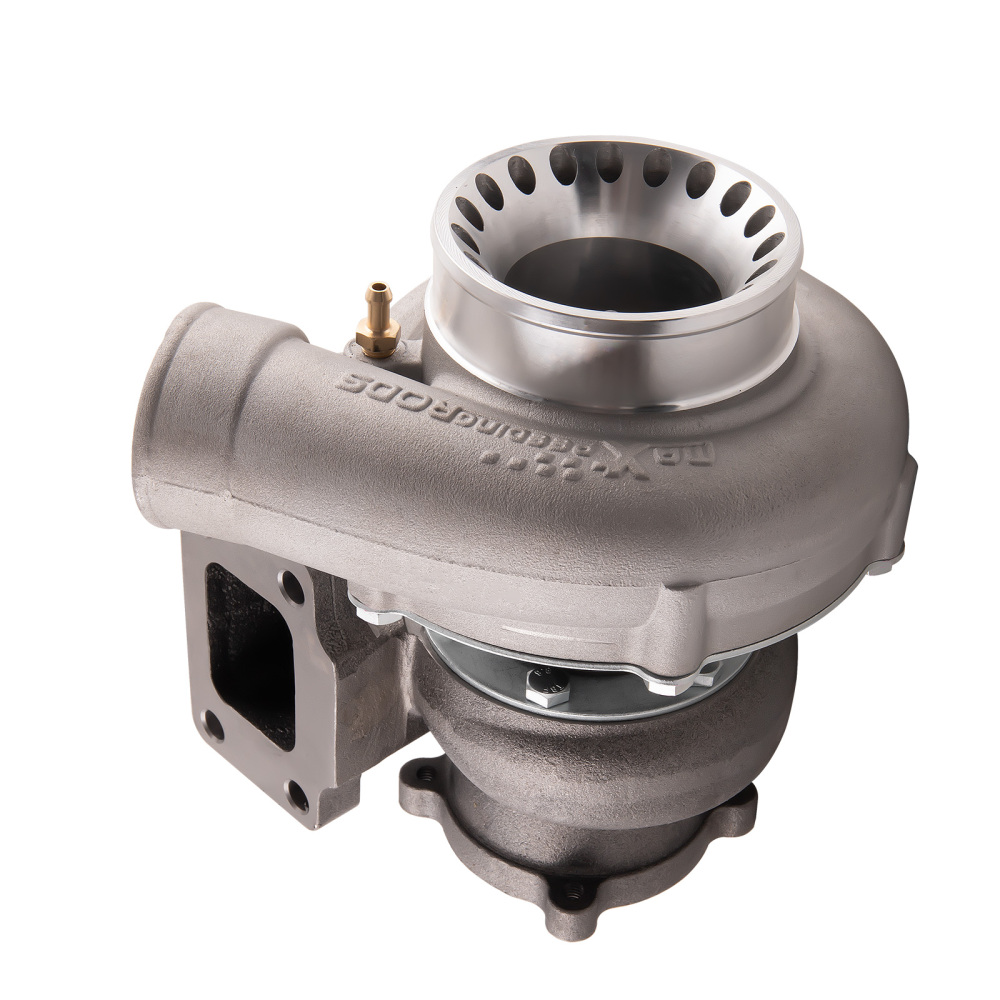

1x for GT35 Turbo compatible for charger
Exhaust Inlet (Turbo Manifold) Flange: T3
FlangeExhaust Outlet (pipe) Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Bearing Type: Floating Bearing
Cooling Type: Water + Oil
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Wastegate：External Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25
water inlet/outlet: M14* 1.5
Maximum PSI：22
Turbocompatible for charger Overall size: 230*180*240

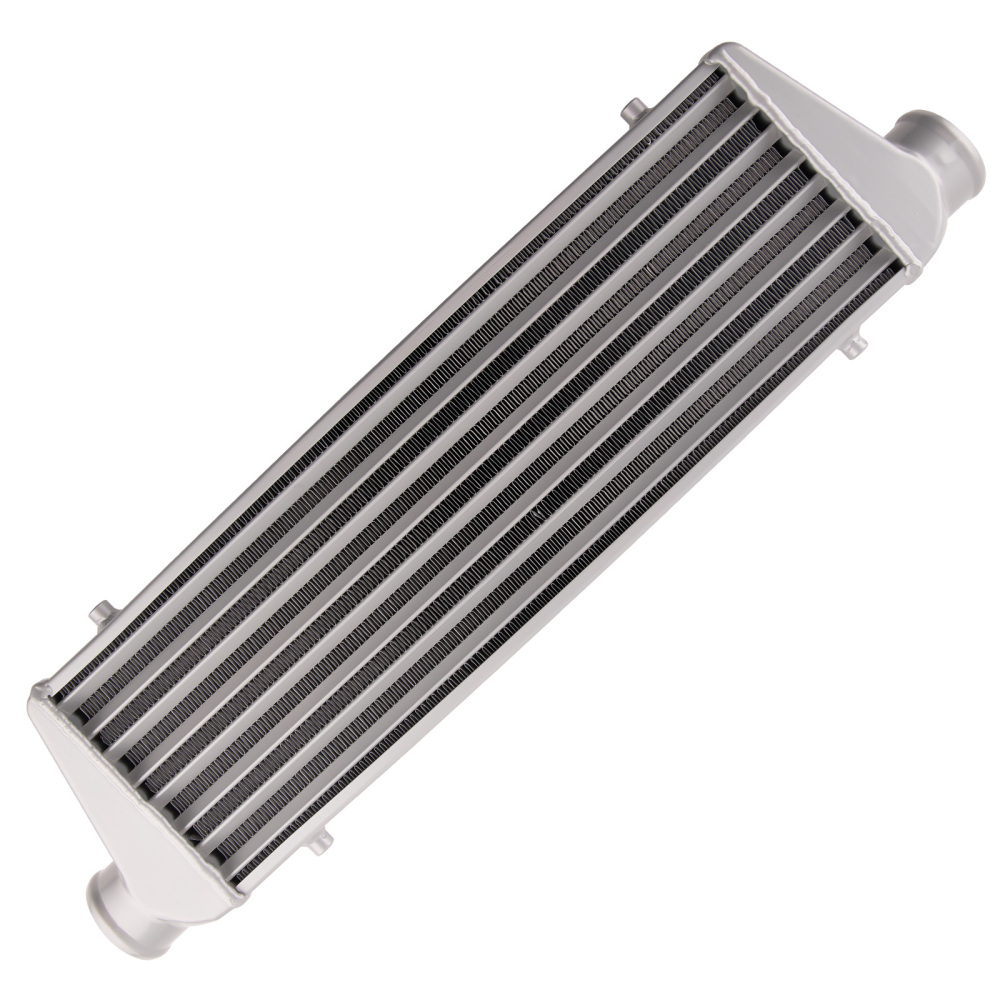

1x intercooler
Overall Size 27'' x 7'' x 2.5'' inch.
core size: 21*7*2.5
Inlet size is 2.5 inch.

1 x Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.

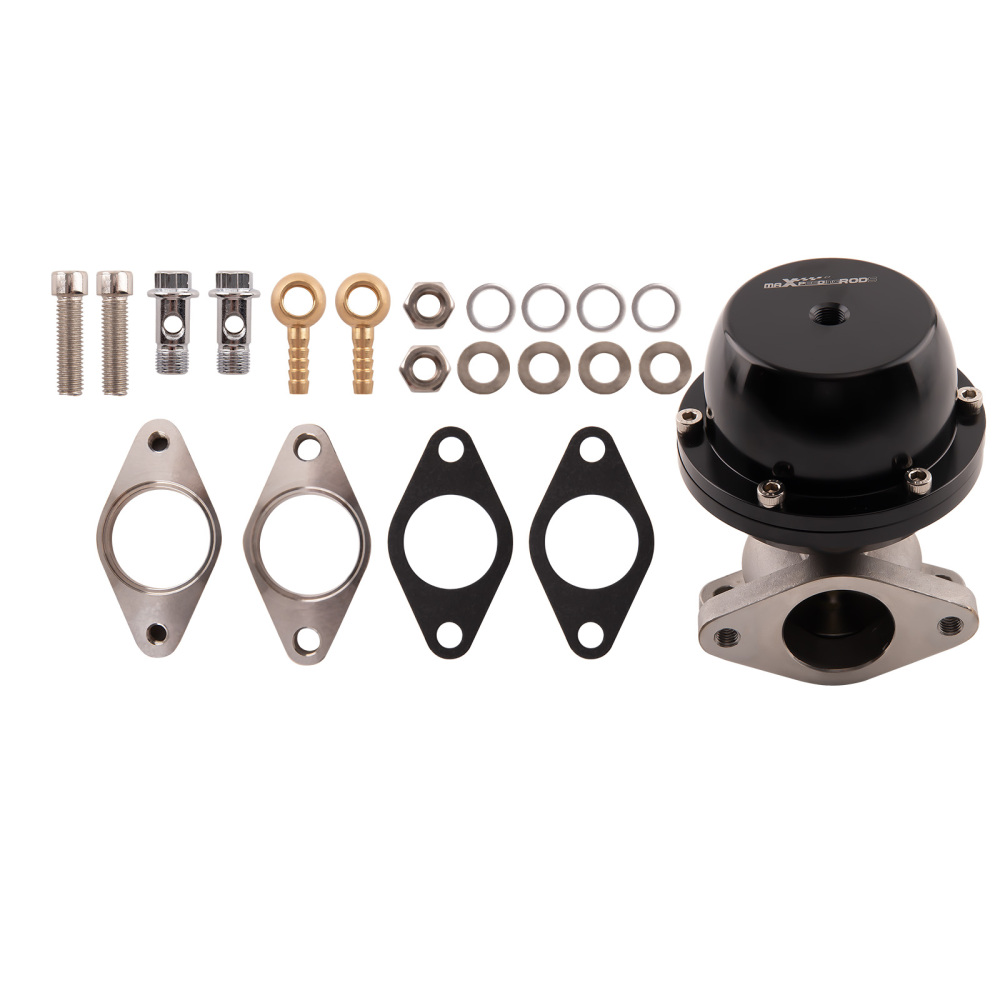

1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit

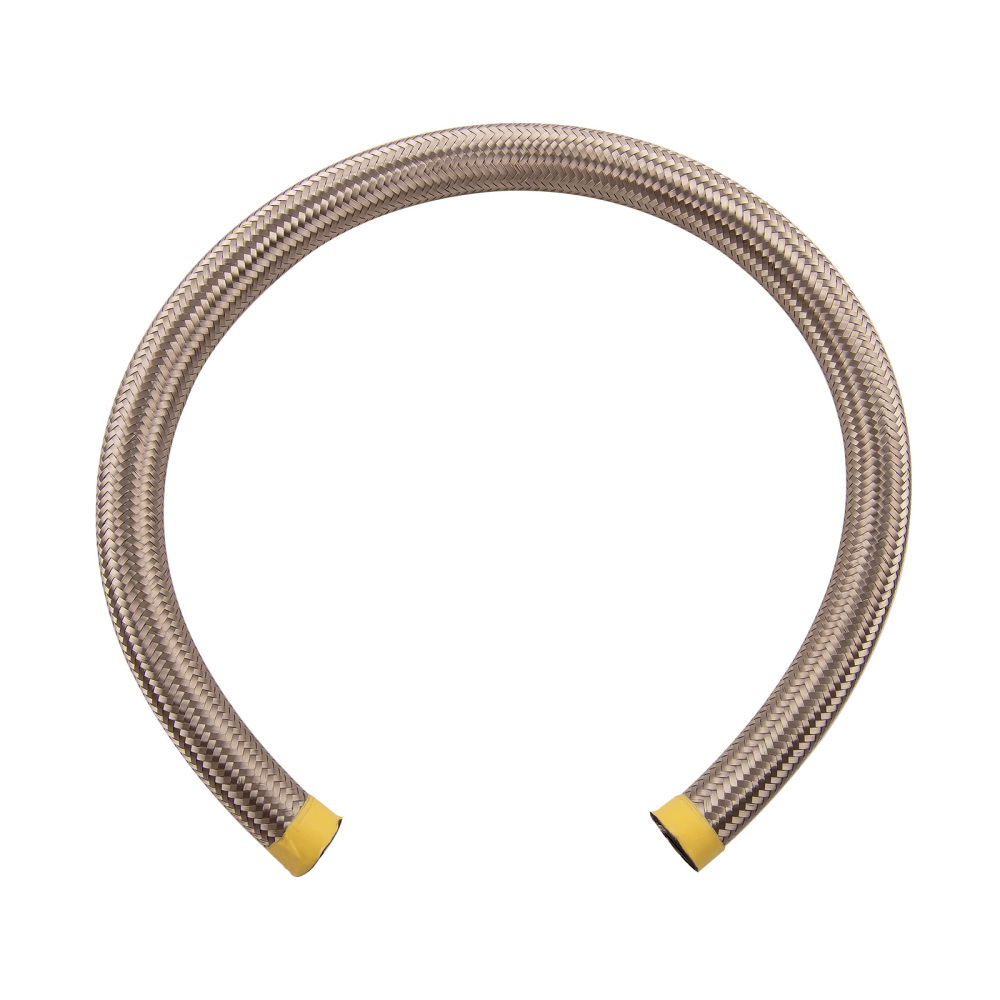

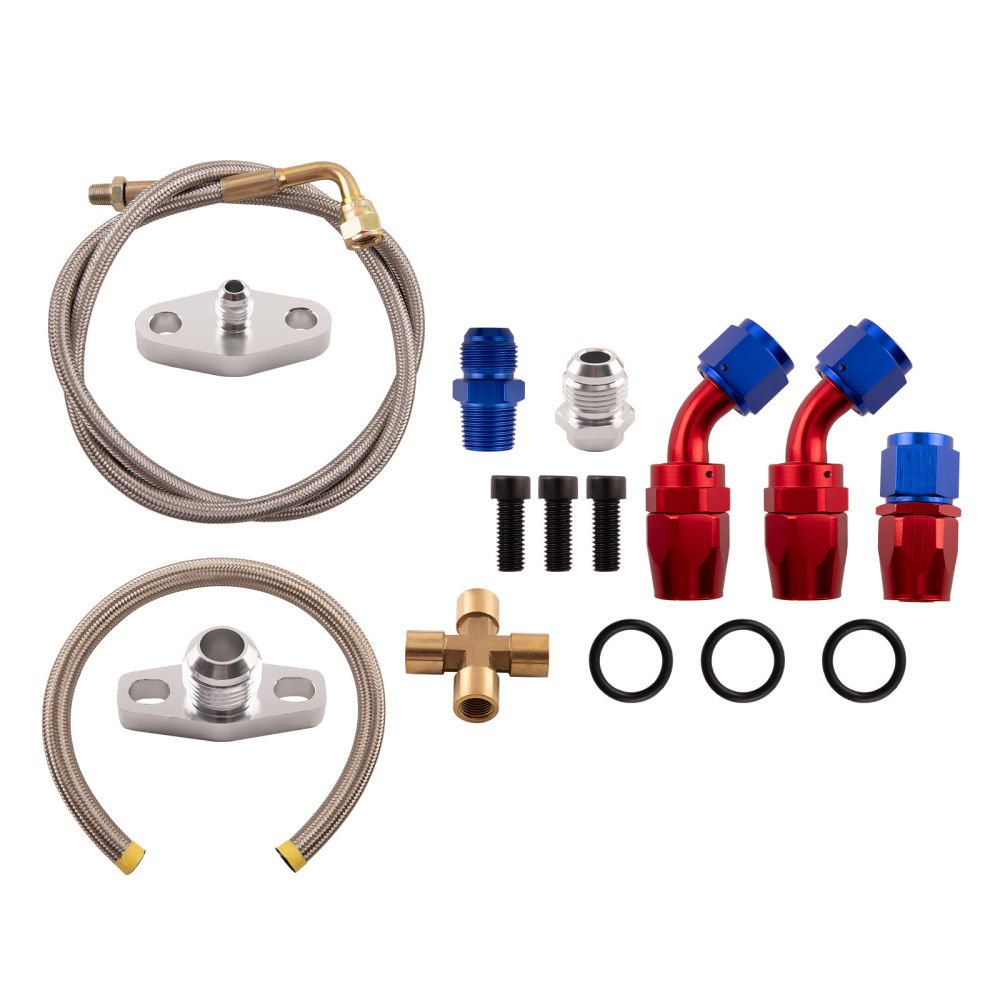

1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo compatible for charger to the oil pan.
Material: Stainless Steel Braided
1x Tachometer
1 X BOV pipe: can install anywhere suitable

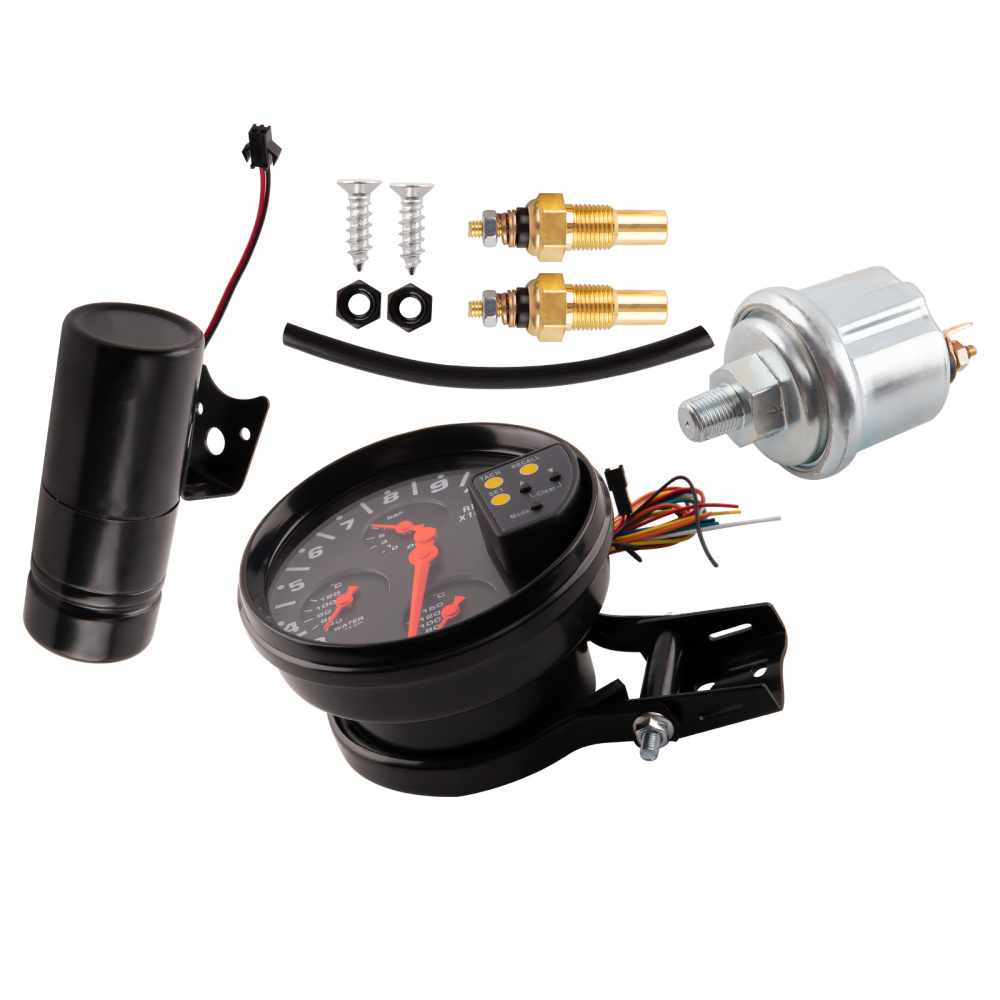

1x 5'' 4 in 1 Tachometer:
Water Temp Unit Type: Celsius
Water Temp Display Range: 40~120 Celsius
Oil Temp Unit type: Celsius
Oil Temp Display Range: 50~150 Celsius
Oil Pressure Unit Type: Bar
Oil Pressure Display Range: 0~7 Bar
Thread Size of Sensors: 1/8NPT
1x Heat shield branket
Titanium and Carbon Fiber high temperature wrap: 2500°F max

Package included

1x for GT35 Turbocompatible for charger
1x Turbo Intercooler
1x Oil Feed / Return Line
1x Blow Off Valve
1x 35/38mm Wastegate
1x Tachometer
1x BOV Adapter
1x 5" 4in1 Tachometer
1x Heat shield branket

Feature

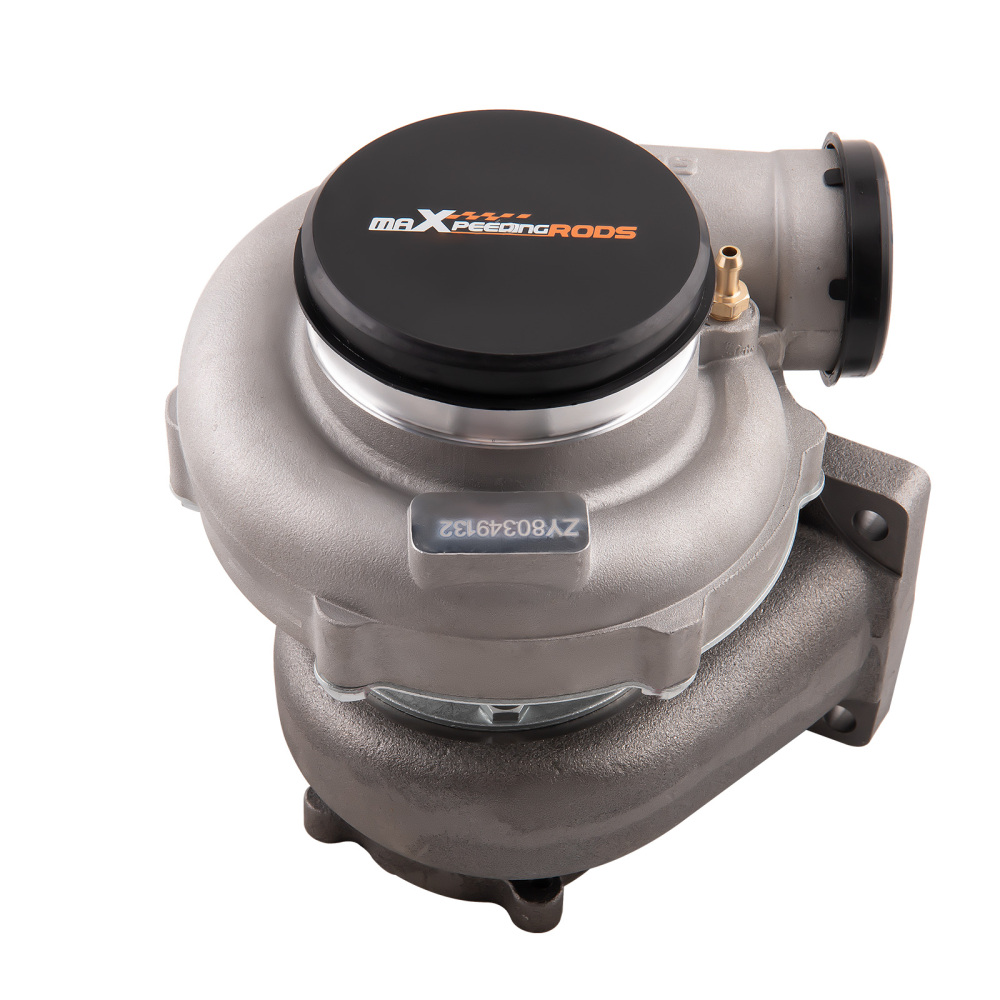

1.For GT35 Turbocompatible for charger:
* Capable of Boosting Horse Power up to 400+ HP
* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃
* Cast aluminium blades with good gas tightness and corrosion resistance.

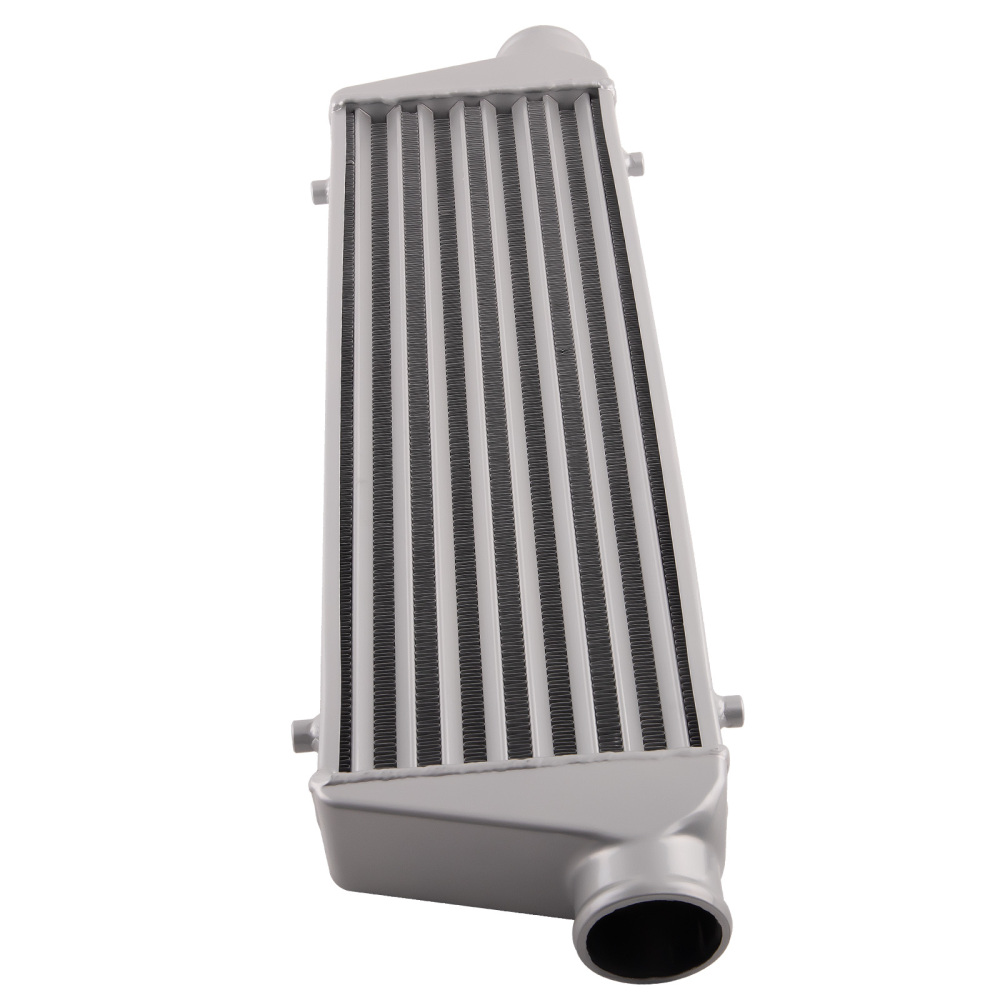

2. Intercooler
* core size:21*7*2.5 cools down the turbocharged air efficiently
* Lightweight aluminum racing intercooler，
* Strong TIG welds will support high PSI levels


3. Turbo Oil returen /Feeding line kit
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the turbo compatible for charger to the oil pan.
* The kit provides a anodized look

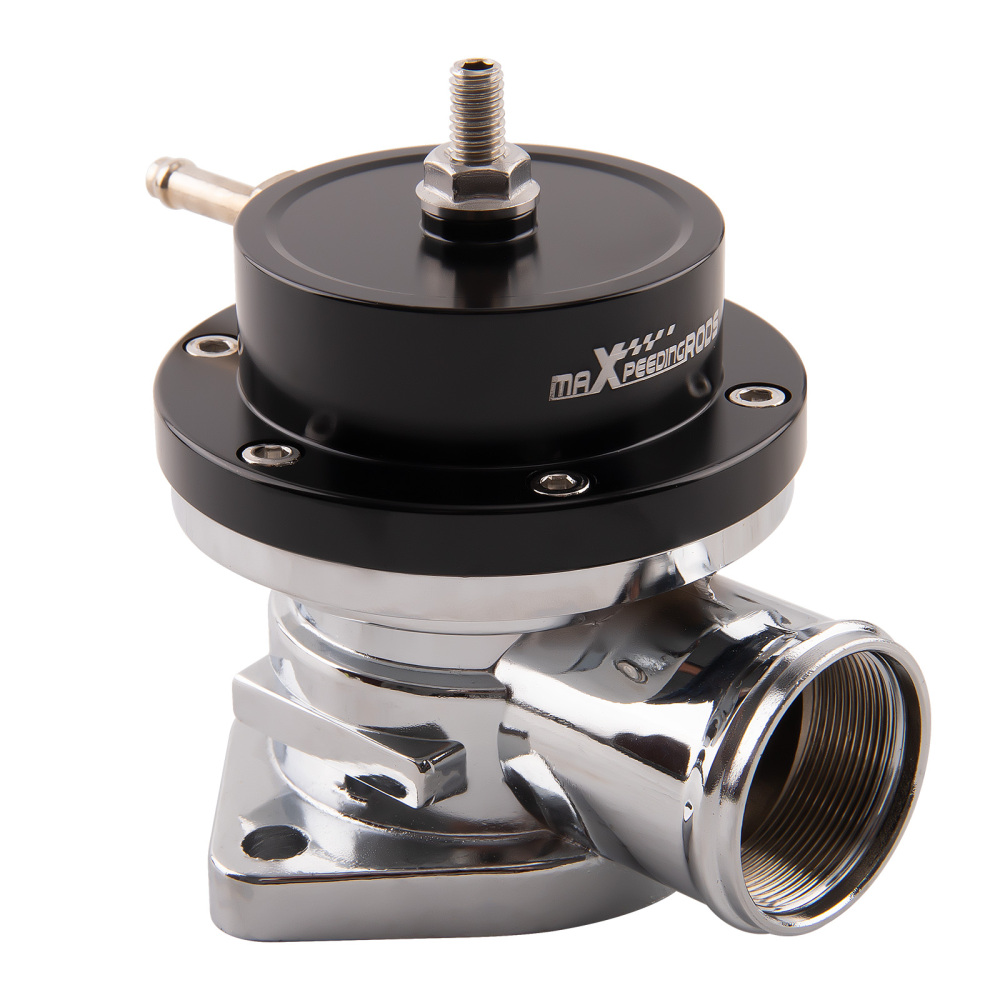

4.Blow Off Valve Kit
* CNC Billet Aluminum Type RS Style Blow off Valve
* Easy Mount Piping Set Included For Bolt-On.
* Including all necessary hardwares.
* easily adjustable to prevent both permature boost leakage and compressor surge.
* Fast response One For Low And High Boost Pressure.
* Quality design will not leak under high boost conditions
* Flanges can be installed at user discretion

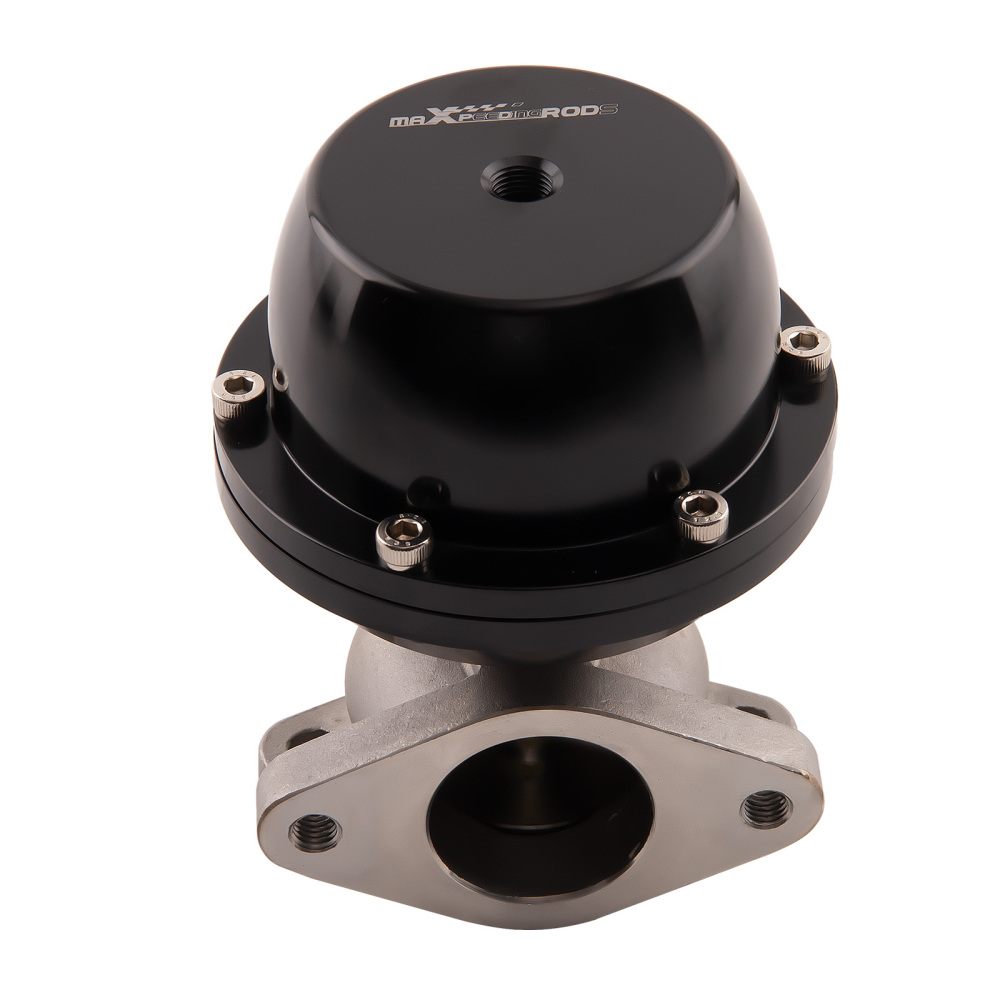

5. 38MM Wastegate
* Most reliable wastegates For competition vehicles.
* accurate boost control
* high quality appearance features Dual port design
* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.
6. Tachometer

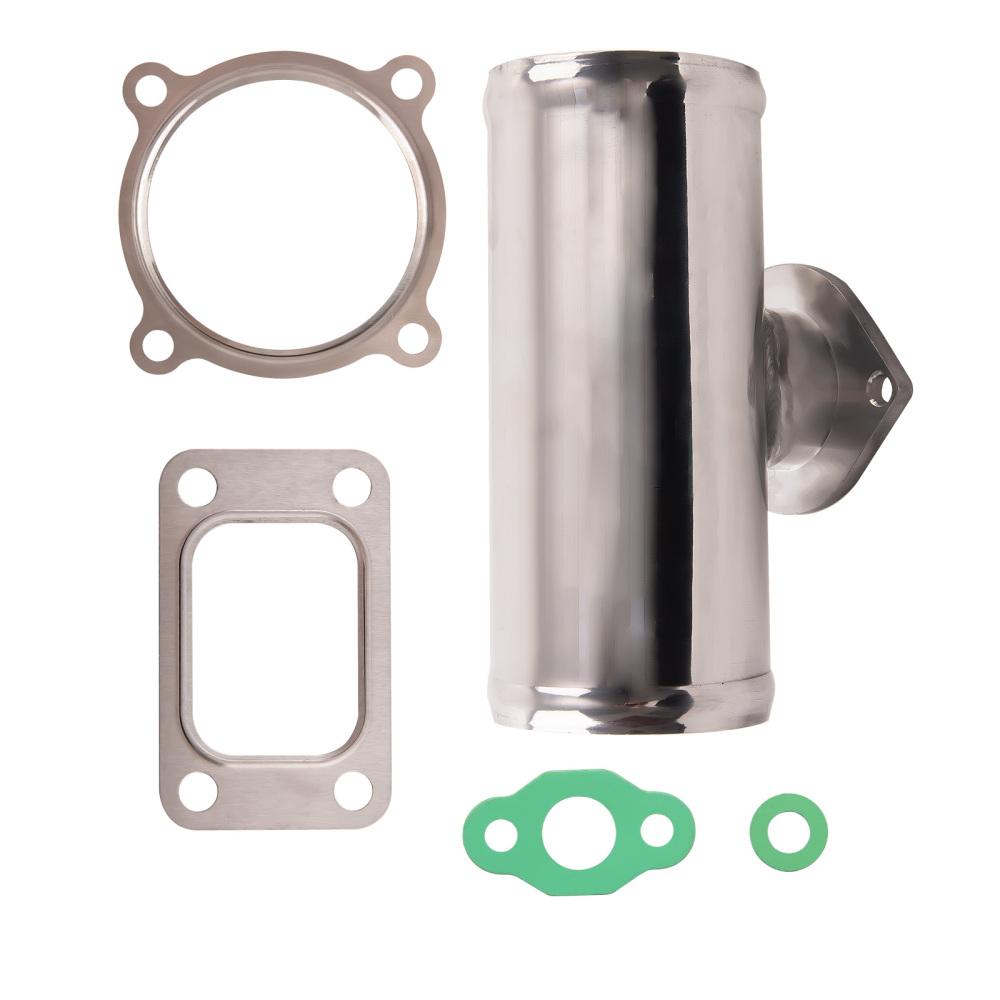

7. BOV Adapter
* can install anywhere suitable
8.5'' 4 in 1 Tachometer:
* Comes with All the Wiring Necessary for Installation.
* All Accessories are Included for Installation.
* Back lit for use at night time
9.Heat shield branket

Note

* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
* we will not be responsible compatible for man-made installation damage.
