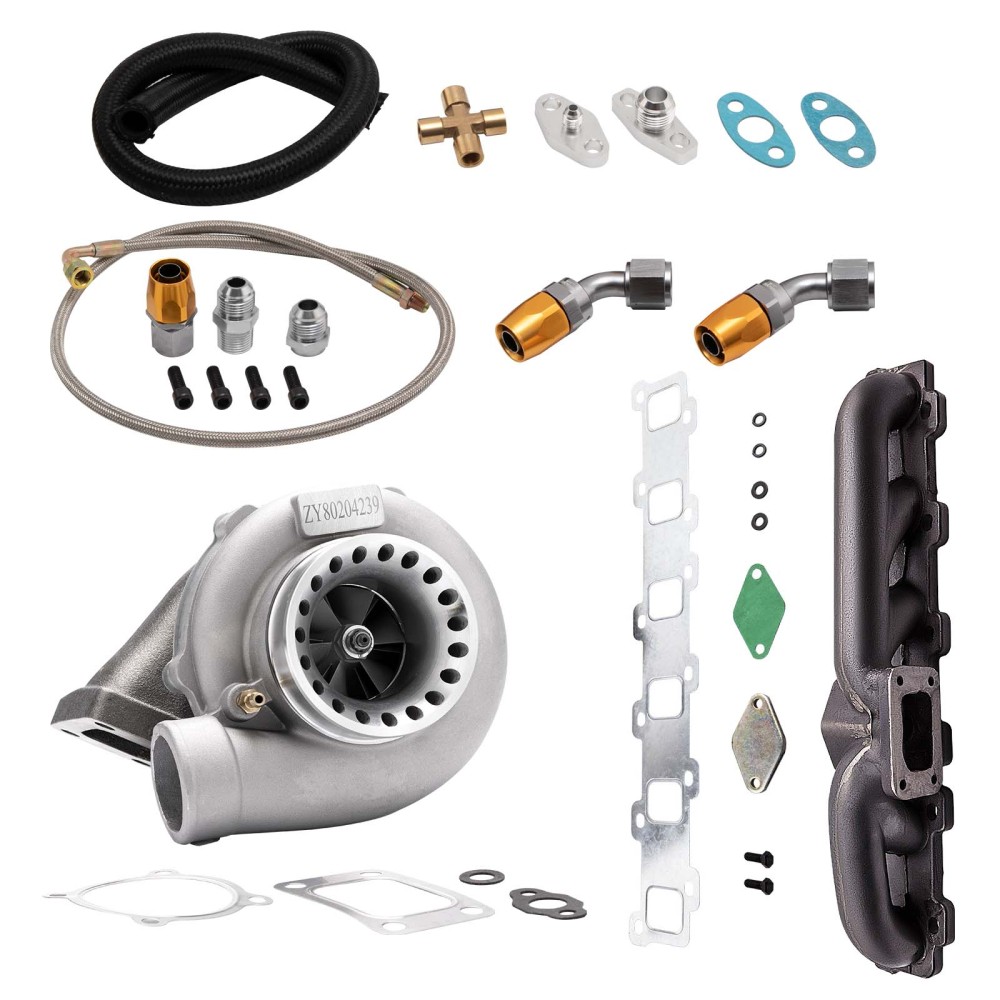

For GT3582 Oil Line Kit + Exhaust Manifold compatible for Nissan Safari 4.2L TD42 TB42 TB45

Features

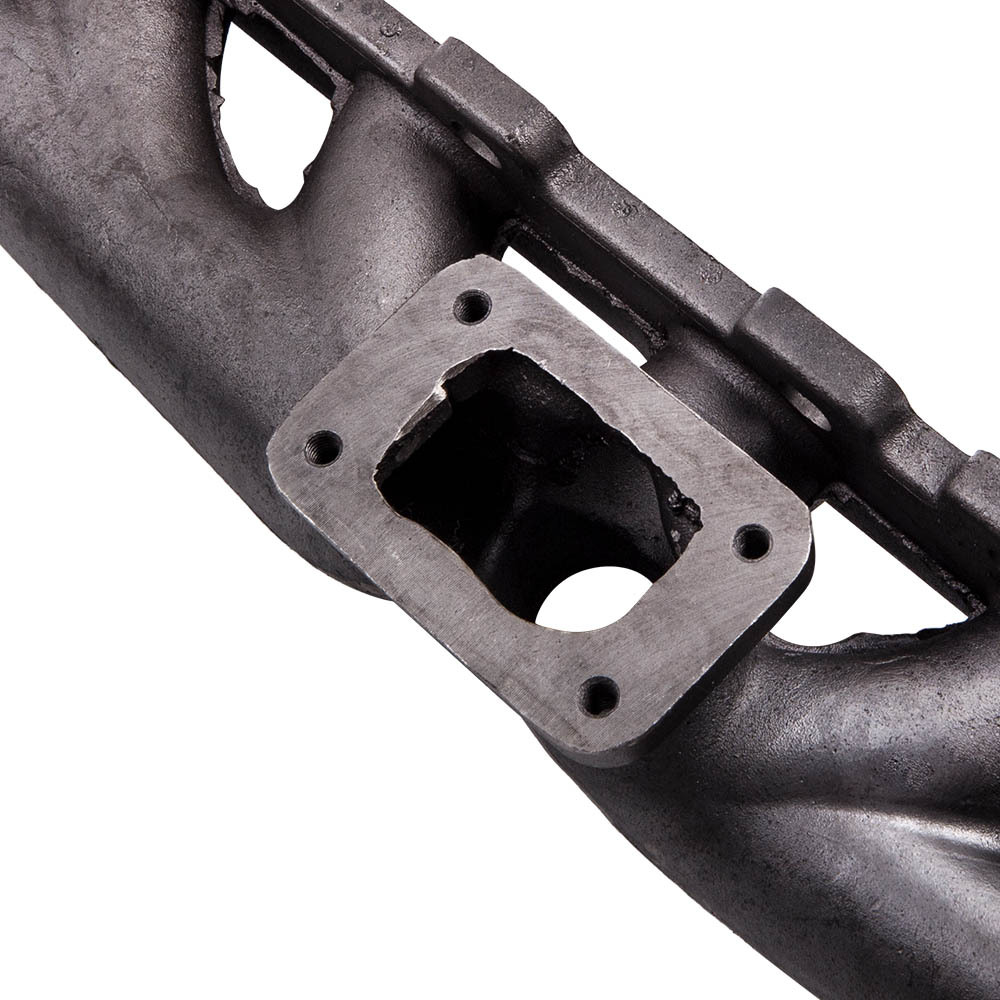

-Manufactured from high quality cast iron for durable usage and sound dampening-Dimensional accuracy, durability, application specific design and corrosion resistant features-Tubes sized and shaped to match cylinder-head exhaust port-Special surface treatment to resist corrosion for an increase in power and performance-Fully tests under extreme conditions to withstand high temperature and long-life use-Quality fully guaranteed and professional installation recommended.

Turbo flange: T3
Mount type: top mount / high mount

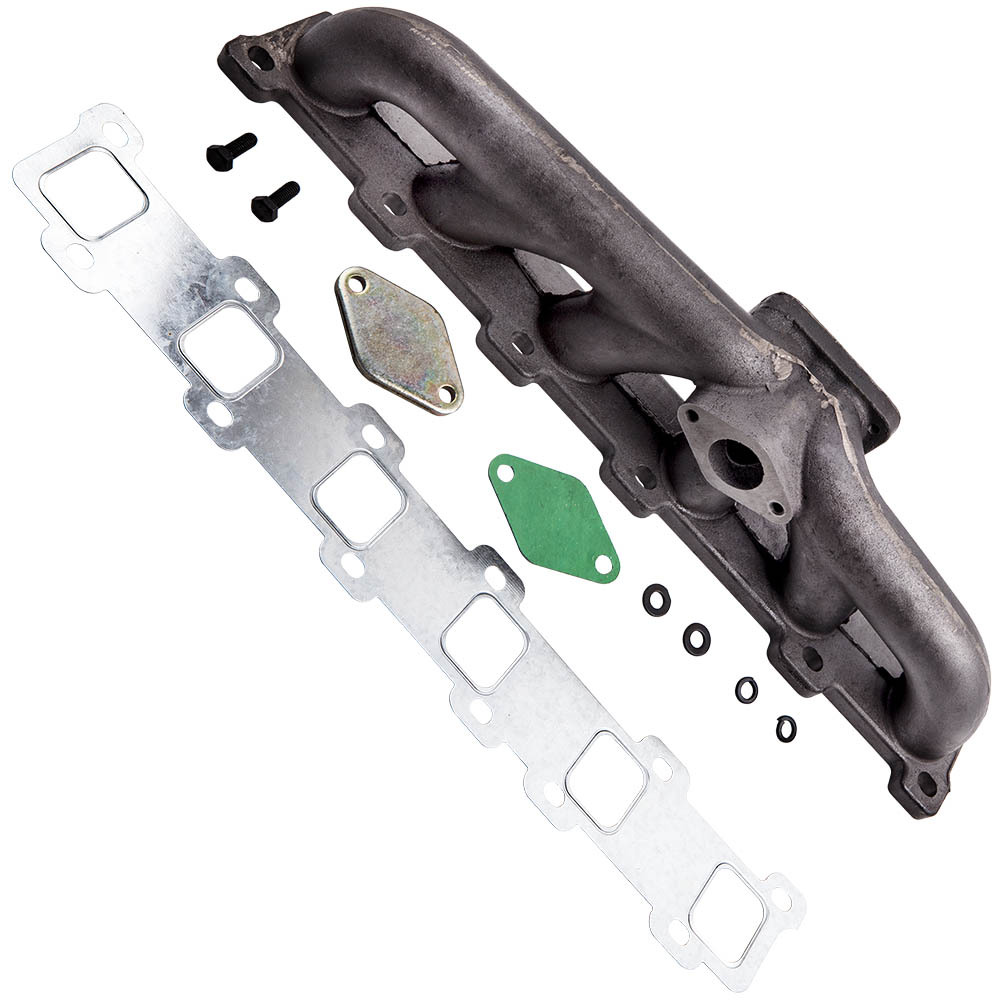

External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

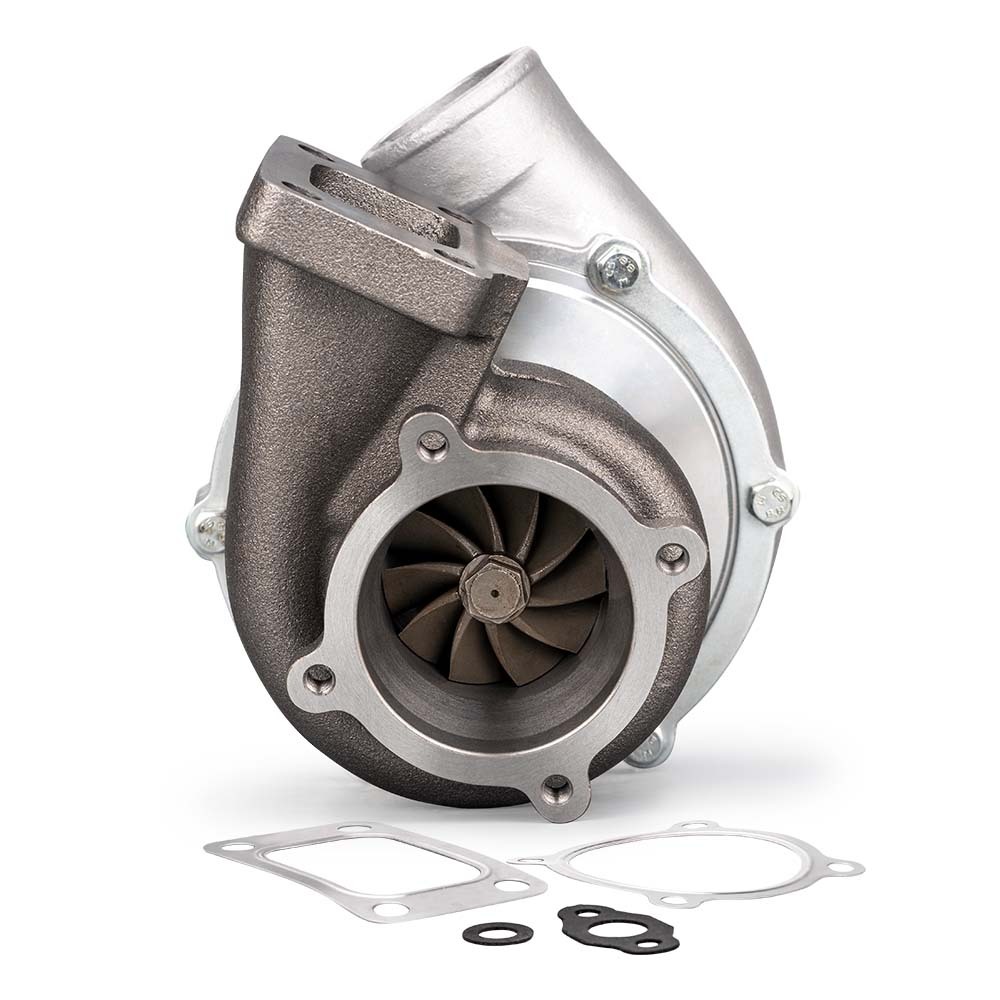

Turbo Details

HP: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet () Flange: 4 Bolt


Compressor
Trim: 57
Inducer Diamter: 61.5mm
Exducer Diamter: 81.5mm
A/R: 0.7
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Turbine
Trim: 84
Inducer Diamter: 68mm
Exducer Diamter: 62.4mm
A/R: 0.63

Bearing: Wet Float
Wastegate: External Wastegate
Oil Inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water: M14*1.5
Maximum PSI: 22
Internal Wastegate:    No

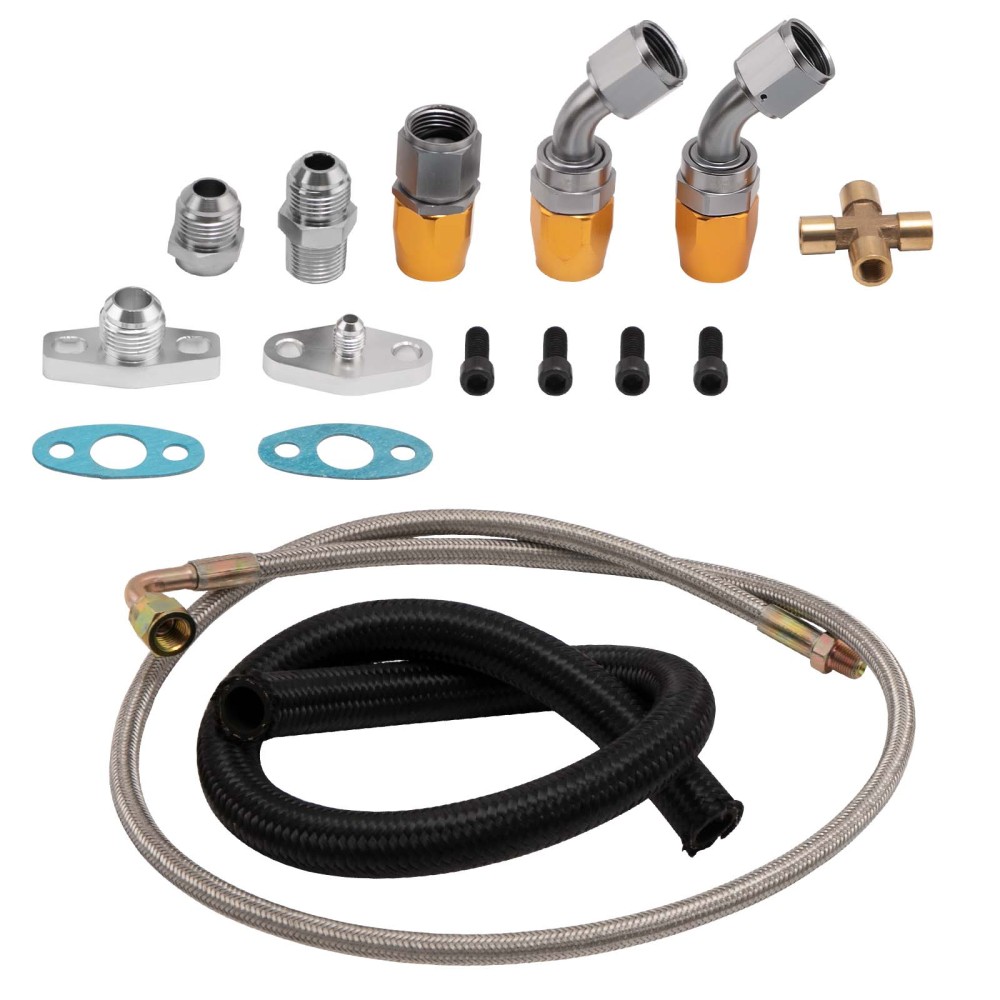

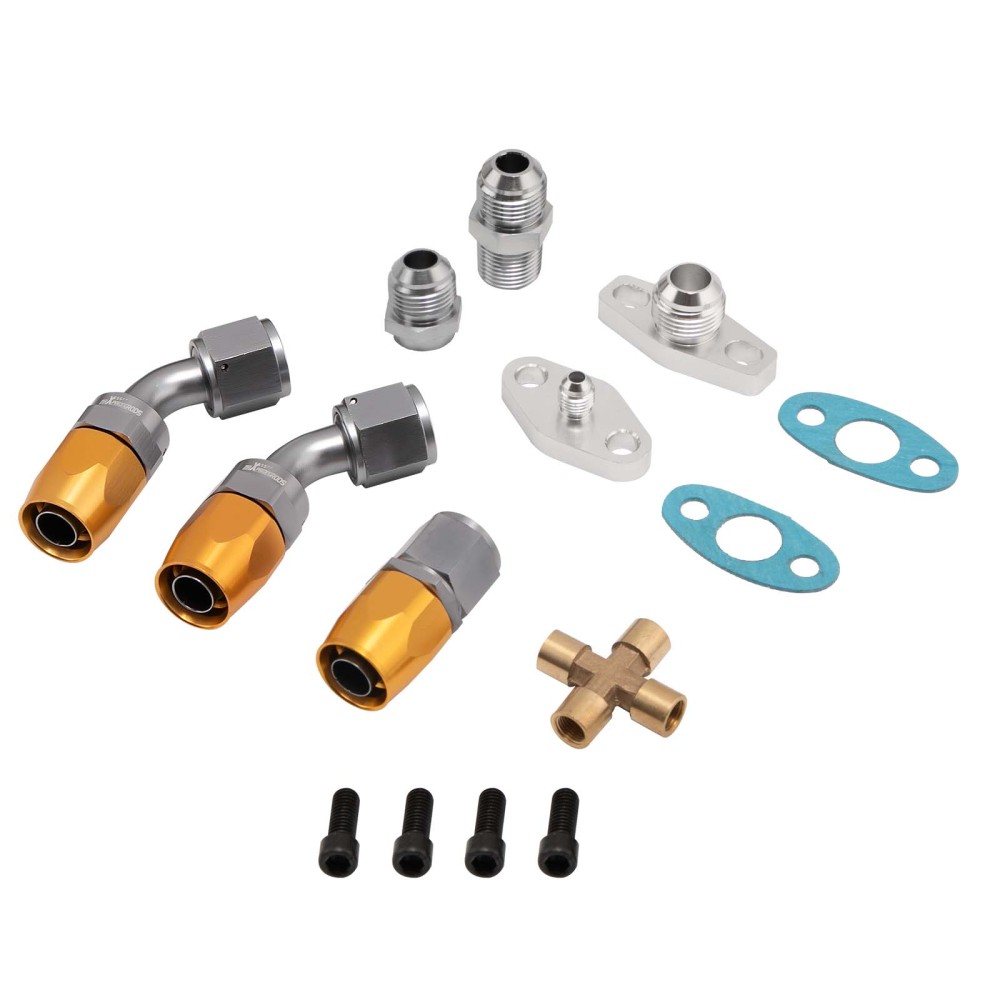

Oil Feed Oil Return Lines Details
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25

Other Details
Warranty    : one year for any manufacturing defect

Notice
- Many dealers and customers have bought this kit. According to their feedbacks, they match well. However, modification may be required.
- This oil line kit is an aftermarket kit. Not all the component parts will be direclt bolt on your car. You may still need some accessaries of your OEM oil line kit.
- No instruction will be included; professional installation and alignment is suggested.
- Please feel free to contact us for whatever we can help via eBay message.
