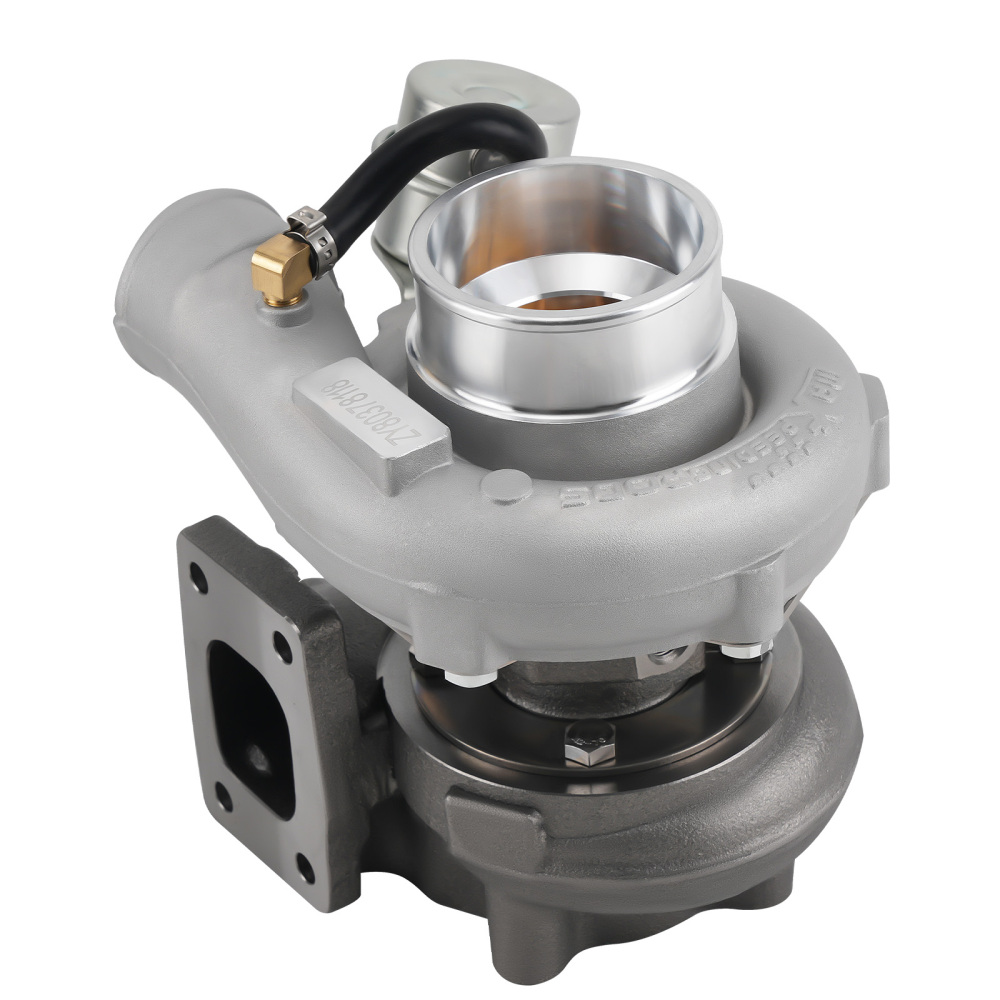

Street Turbo High quality GT25 GT28 GT2871 GT2860 AR.60 .64 Water+Oil Cooling billet compressor wheel

  • * Fitment: Perfect for all 1.6L-2.0L engines
  • * Horse Power: Capable of boosting horse power up to 250-400HP
  • * Turbine Housing Material: Silicon-Molybdenum; temperature resistant up to 850℃
  • * Turbine Impeller Material: K419 Alloy; high oxidation resistance & stability (resistance up to 1000℃)

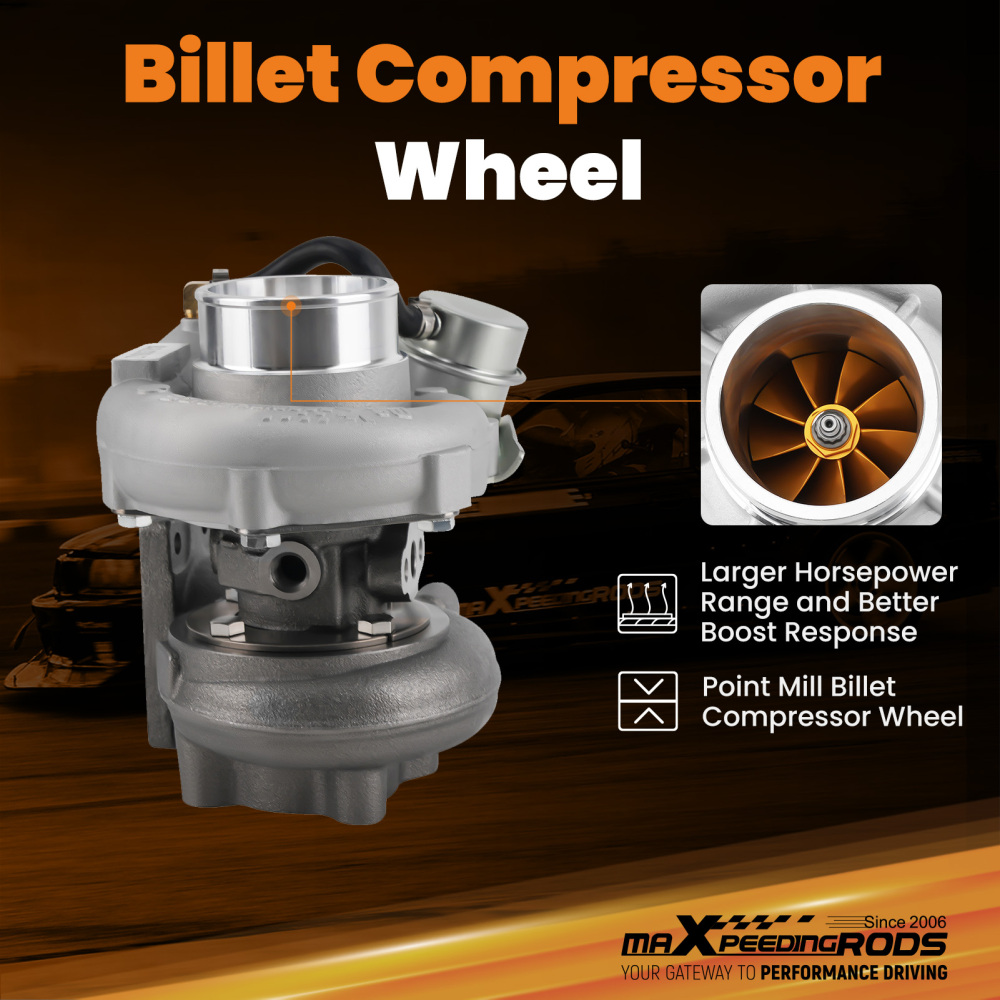

  • * Billet Compressor wheel: forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
  • * Excellent Design: Durable floating bearing structure & high-precision blade dynamic balance
  • * 100% Balancing Test: This turbocharger you will receive has been balanced using the VSR machine technology
Item Number 3002050576
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
GGT2871-JD
GGT2871-JD
1

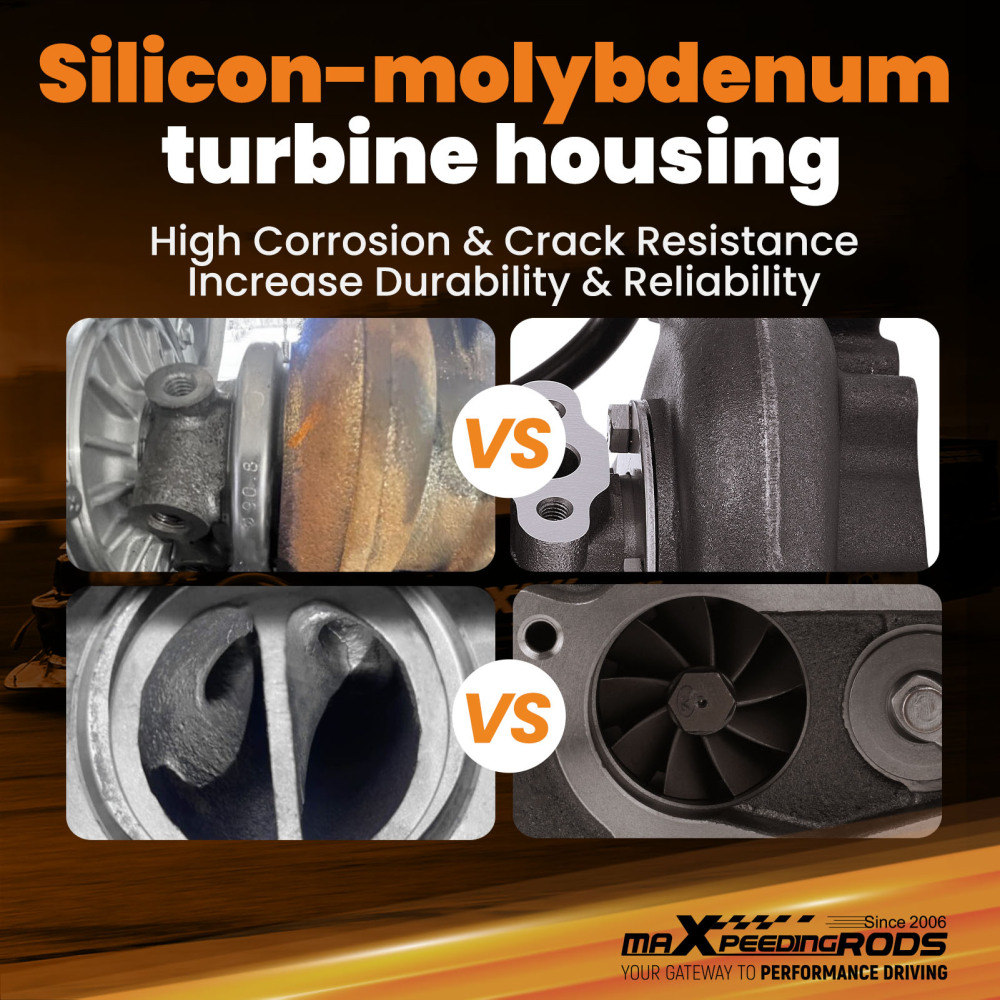

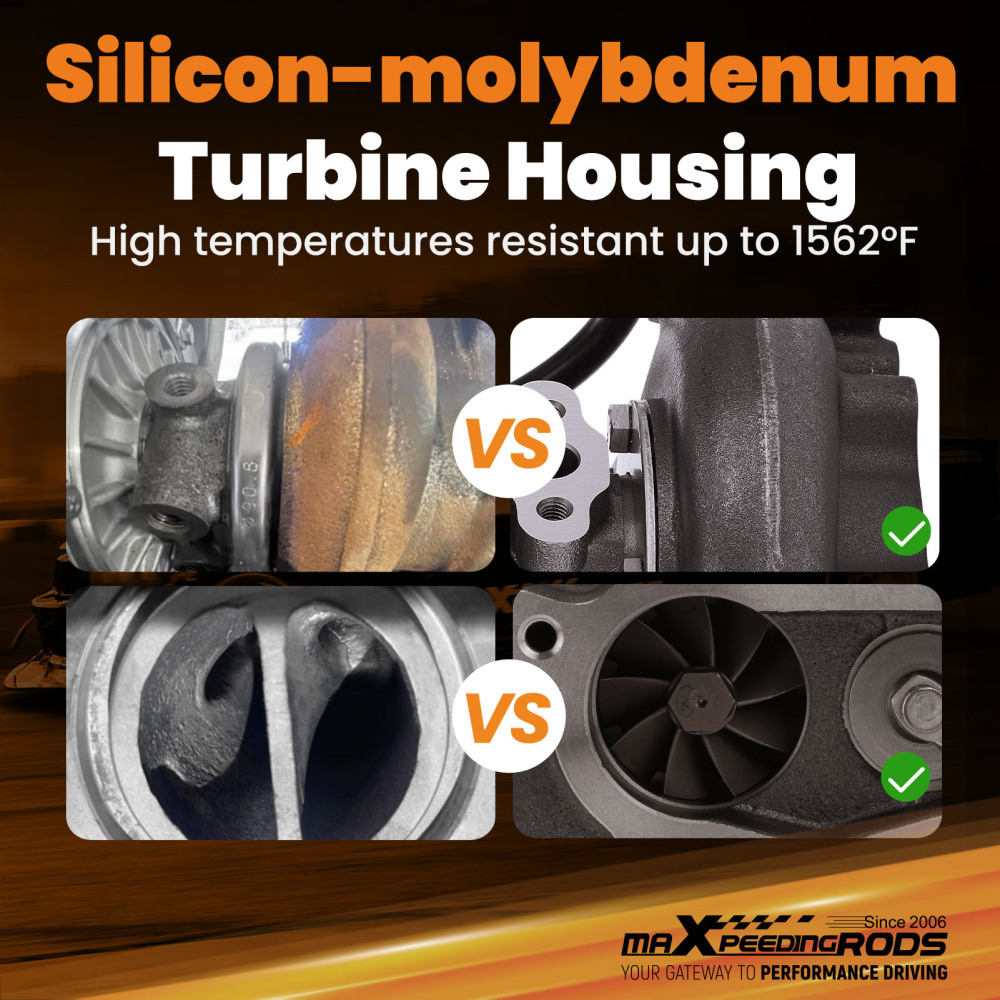

Silicon-Molybdenum, the material used for the turbine housing, is temperature resistant up to 850℃
2
Floating bearing structure and precise dynamic balance
3

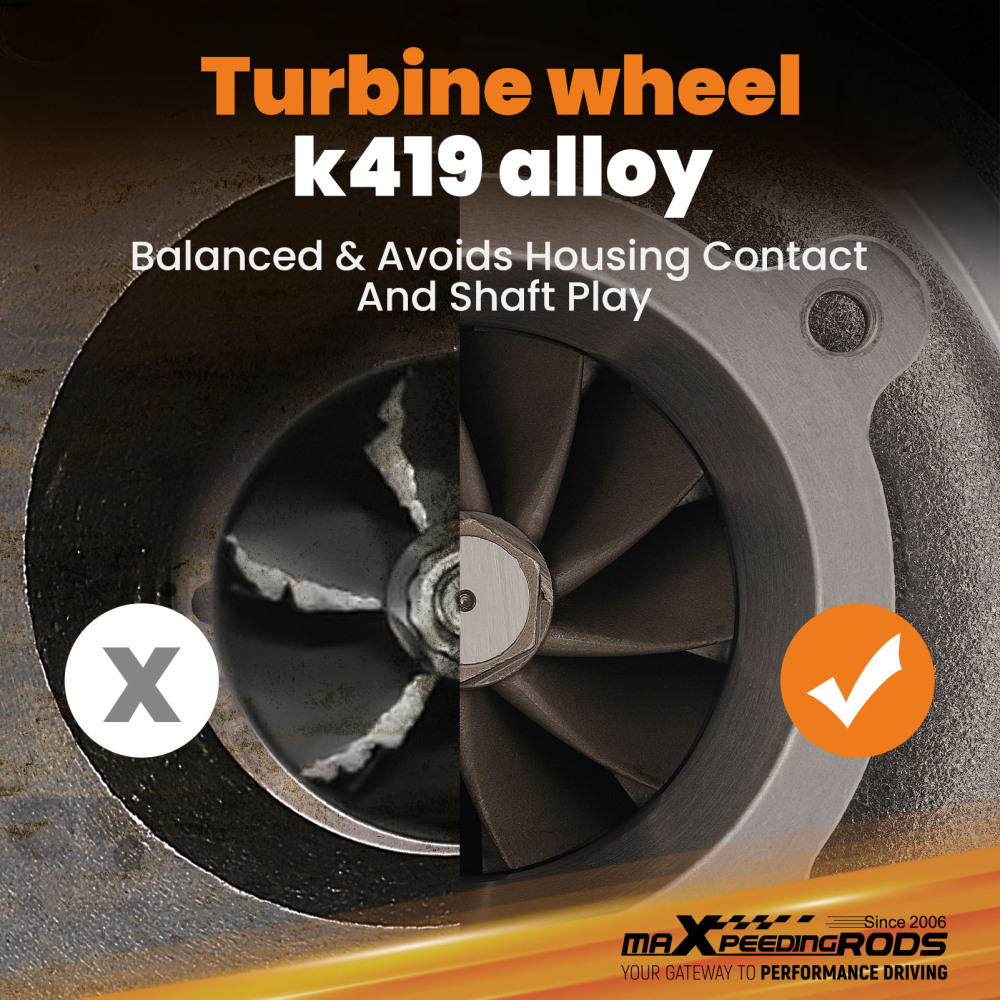

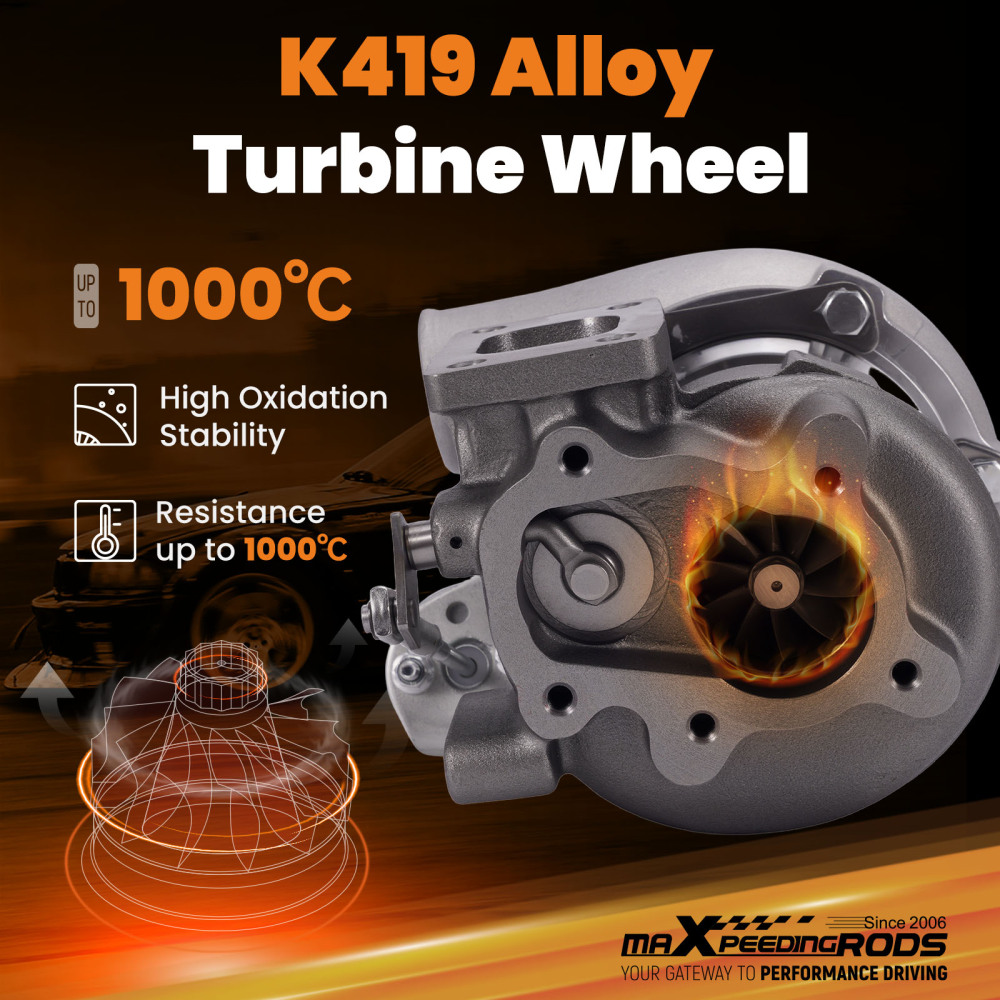

K419 Alloy, the material used for the turbine wheel, has high oxidation resistance & stability (resistance up to 1000℃)
4

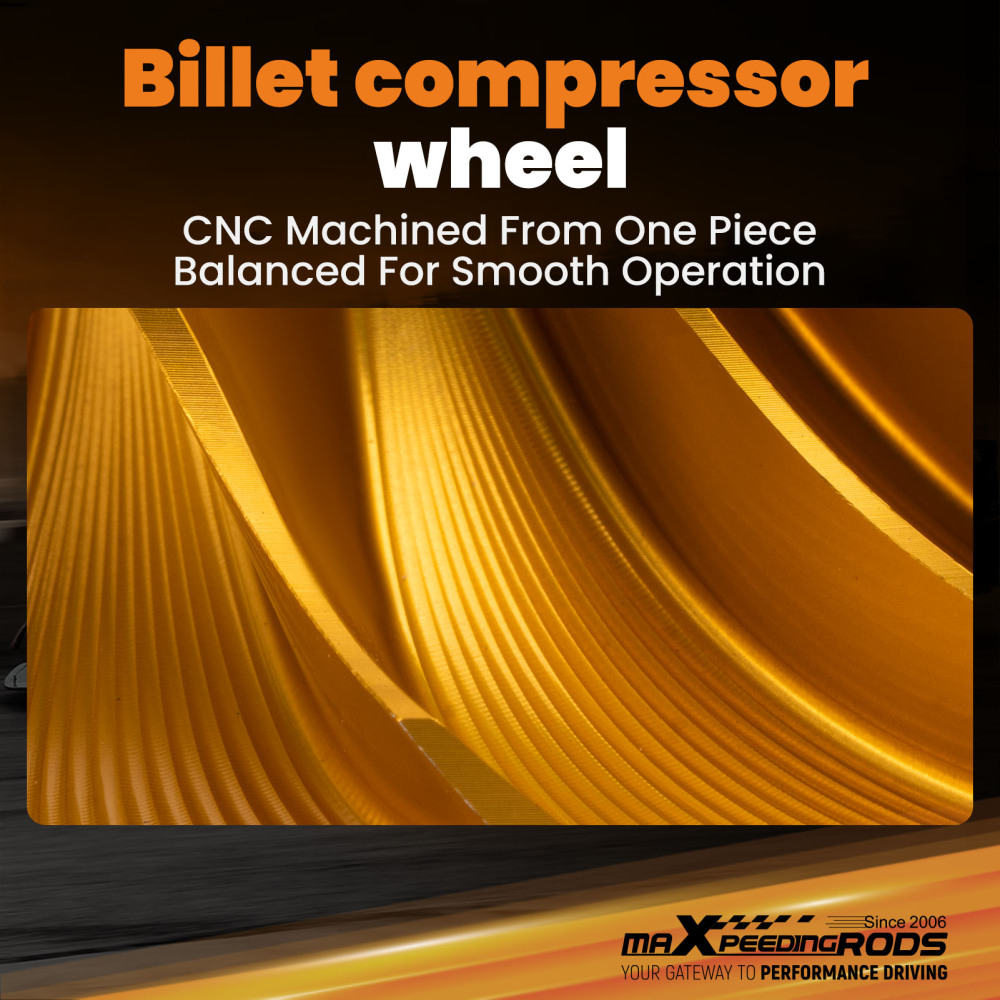

The aluminium blades are great light weight and high precision with precision machining forging and five-axis milling impeller

Application

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine,for all 4 cylinder engine

Specification

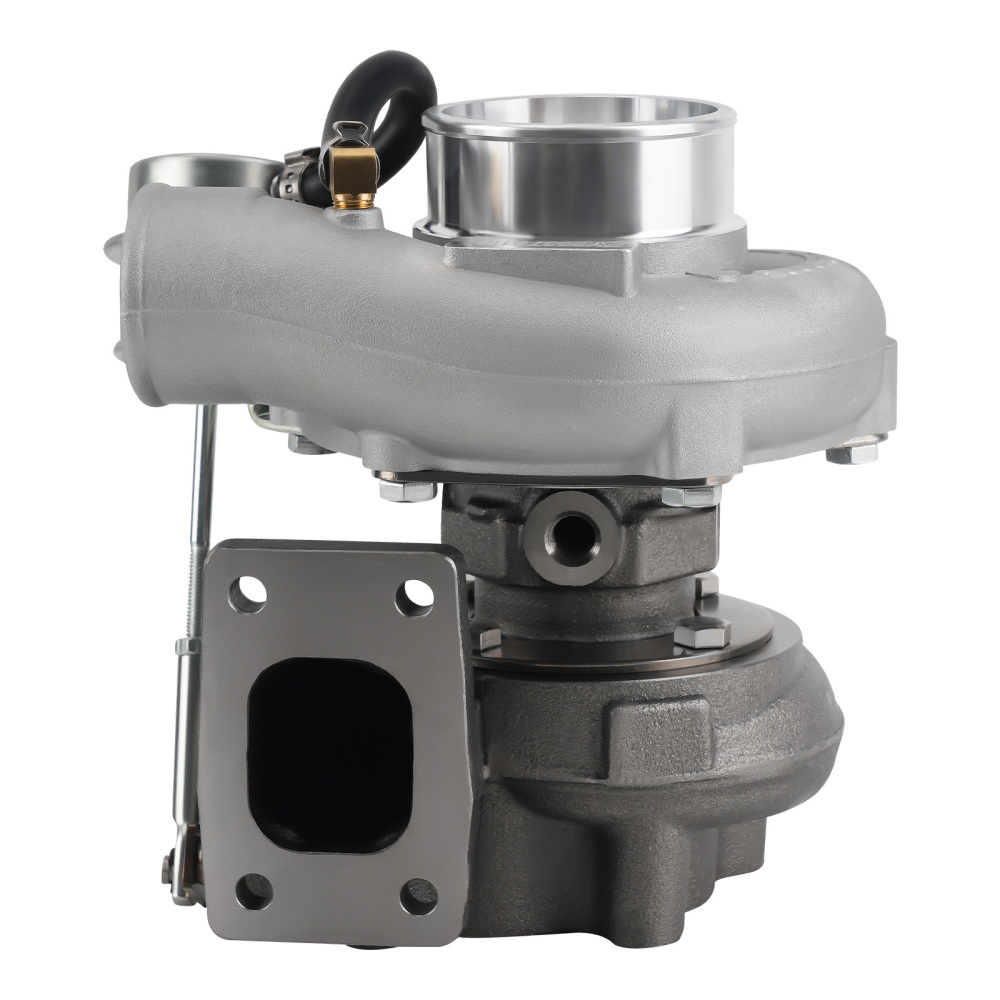

Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Thrust Bearing: 270 Degrees
Internal Wastegate: Yes
Oil Restrictor: Yes
Oil Restrictor size:inside diameter 2mm

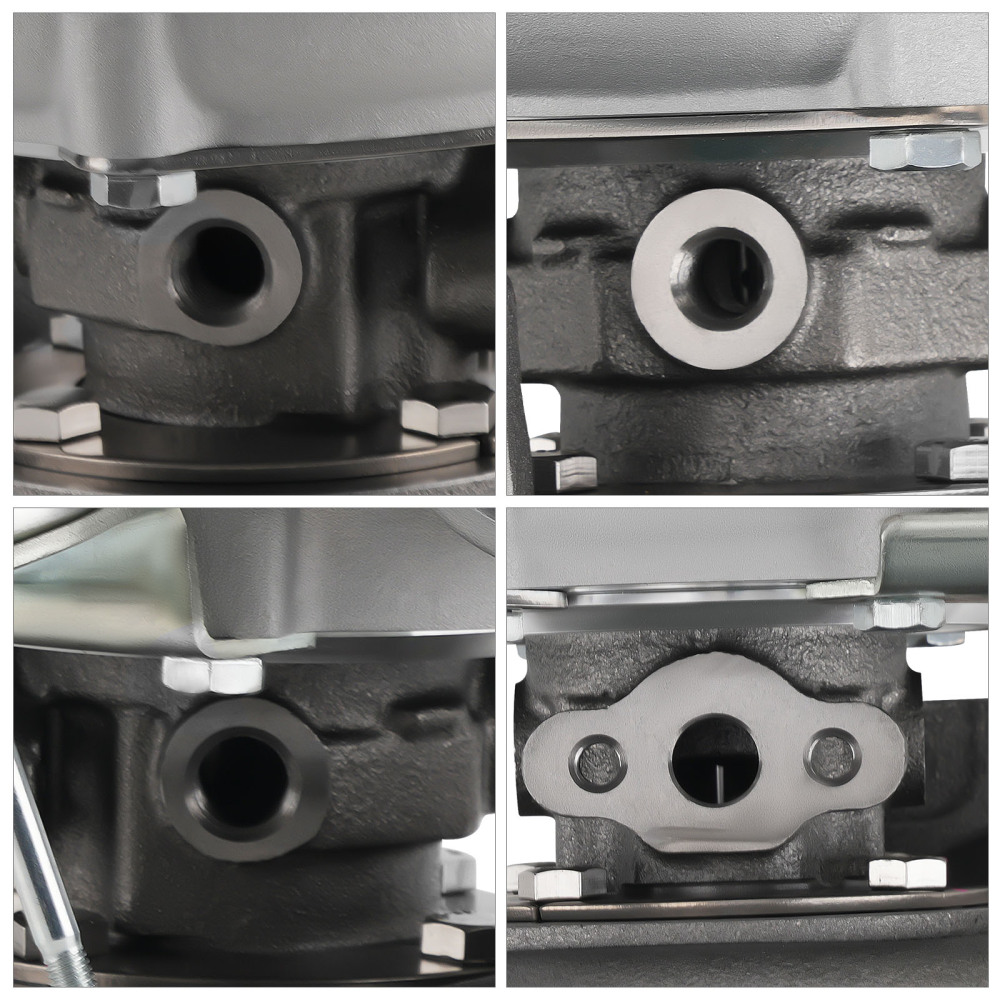

Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
package size:26x24x22cm
package weight:7250g

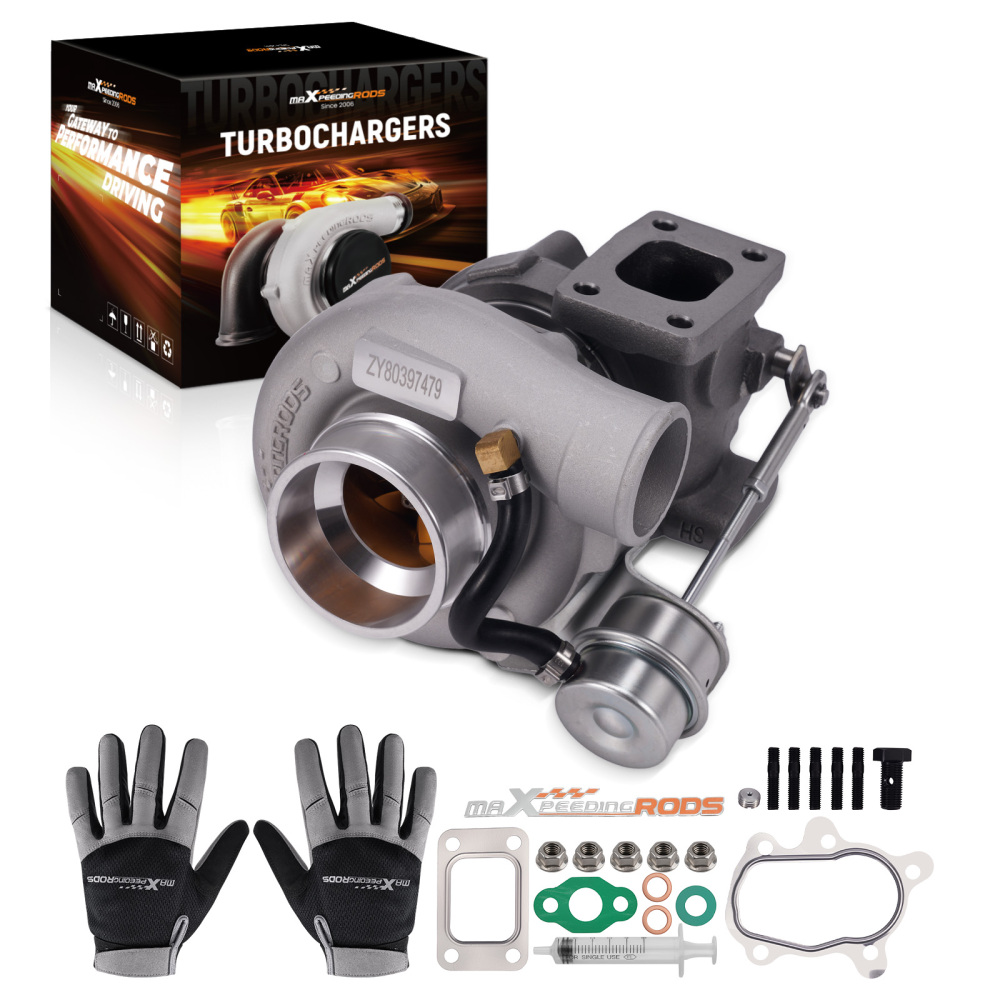

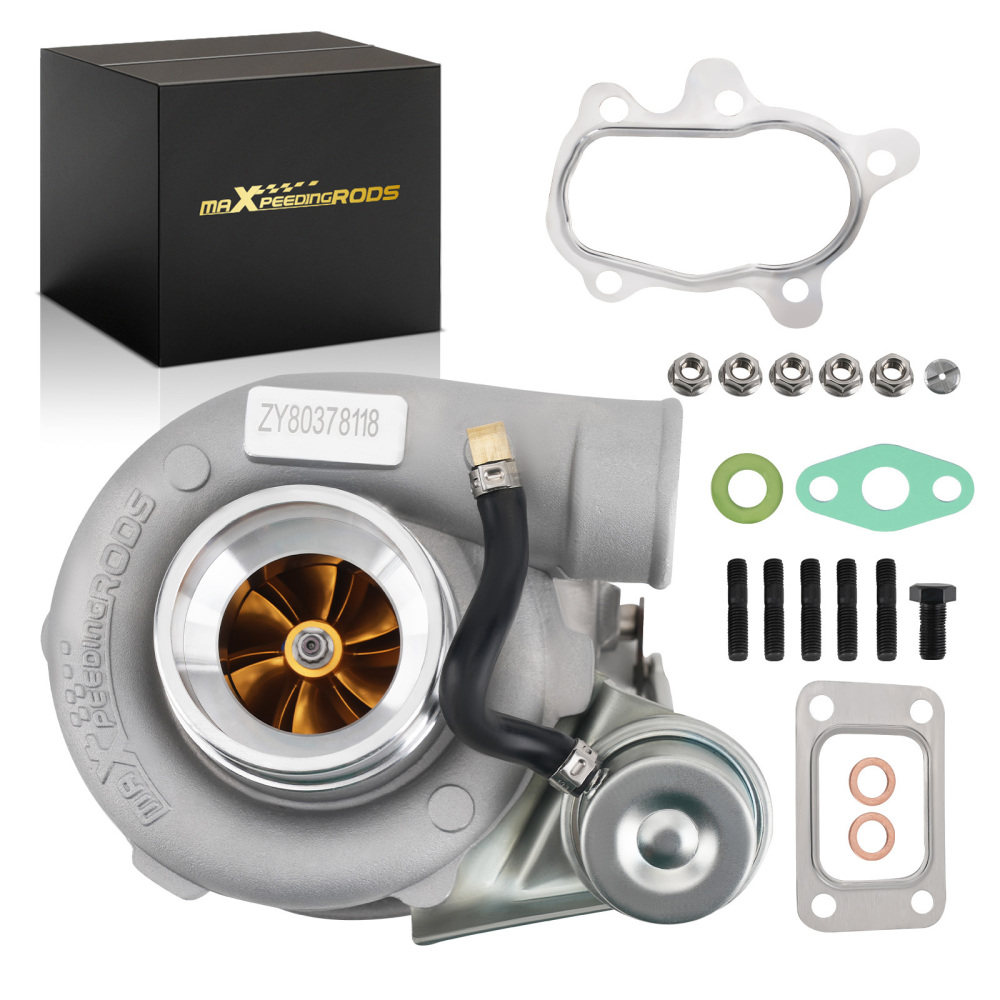

Package included

1xTurbocharger
1xFlange gasket
2xOil/Water port gaskets
1xBolt
1xOil restrictor
1xManual
1xBrochure
1xSticker

Feature

*Product Material
1. Turbine housing :Silicon-Molybdenum - temperature resistant up to 850℃

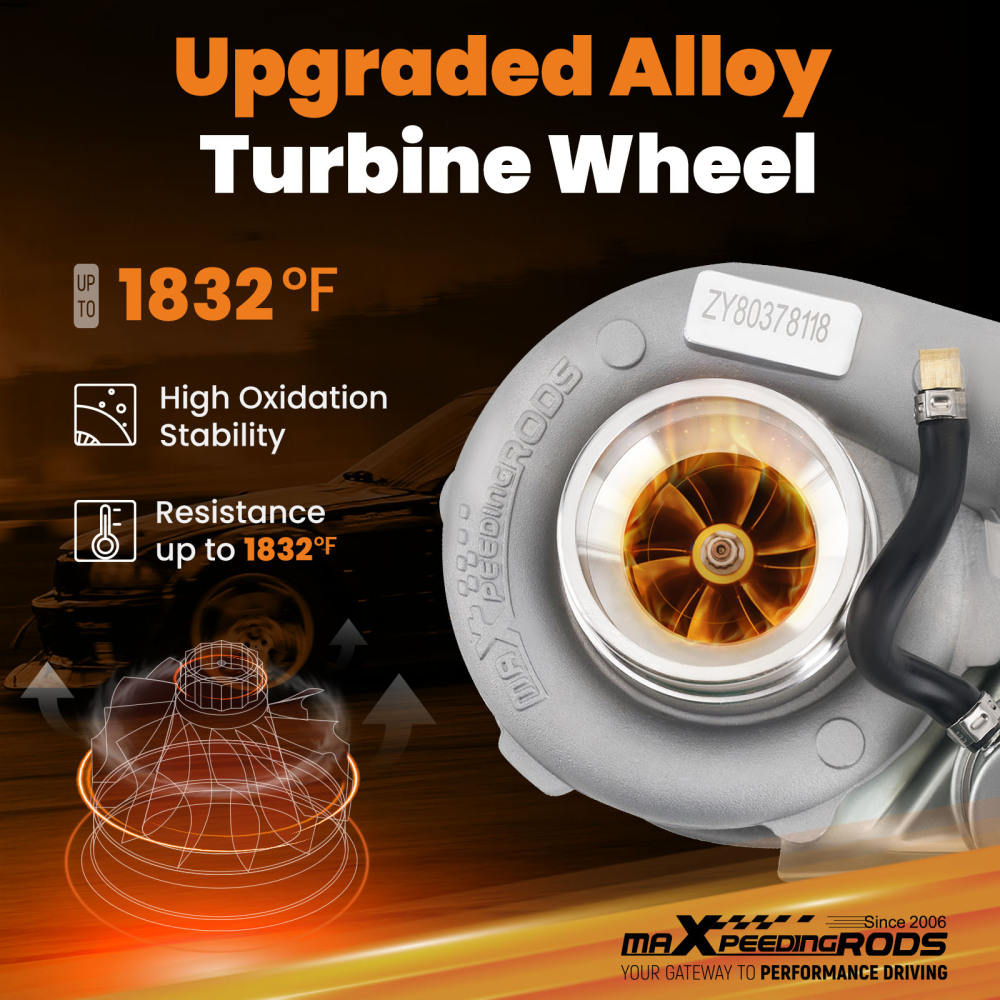

2. Steel Turbine Wheel:K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing:ZL104 aluminum with lightweight
4. Billet compressor wheel:forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product Performance
1. Increase 20-40% power for your car
2. Excellent high temperature resistance,high efficiency and durability
3. Rich experience in turbo production and own factory

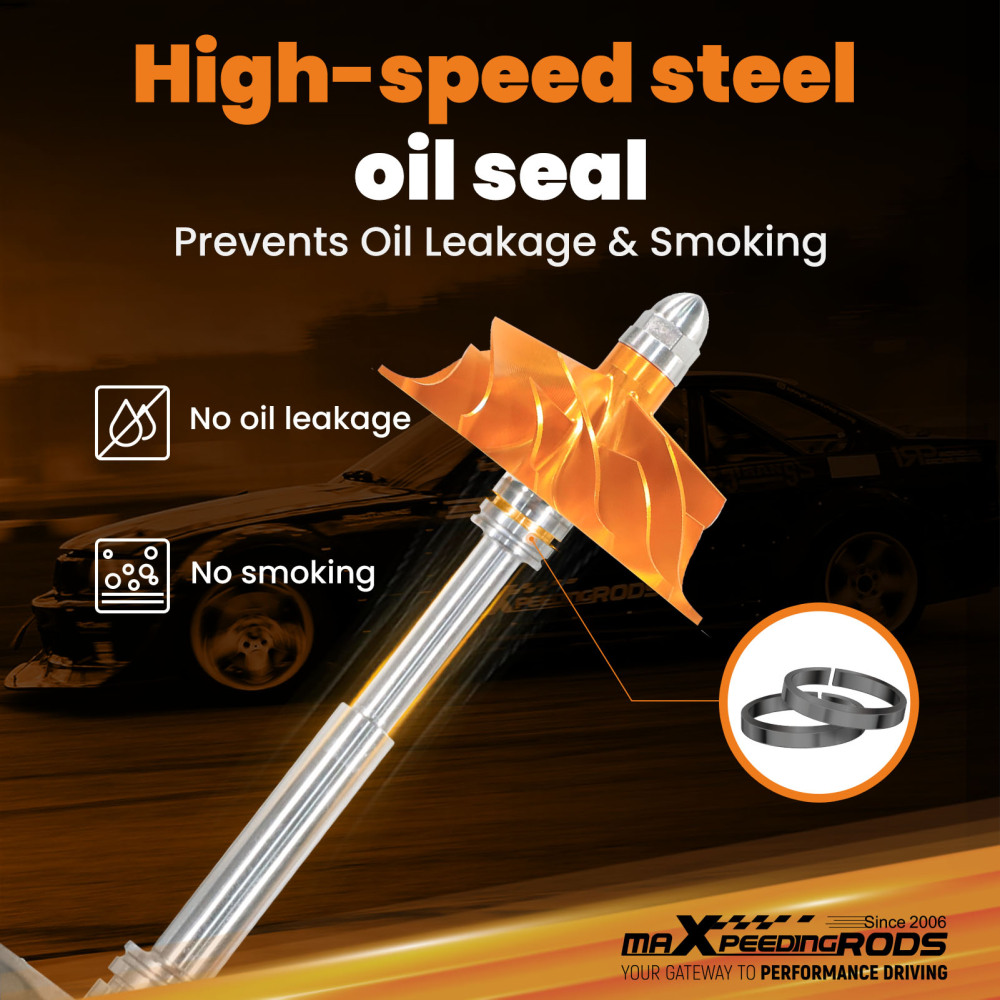

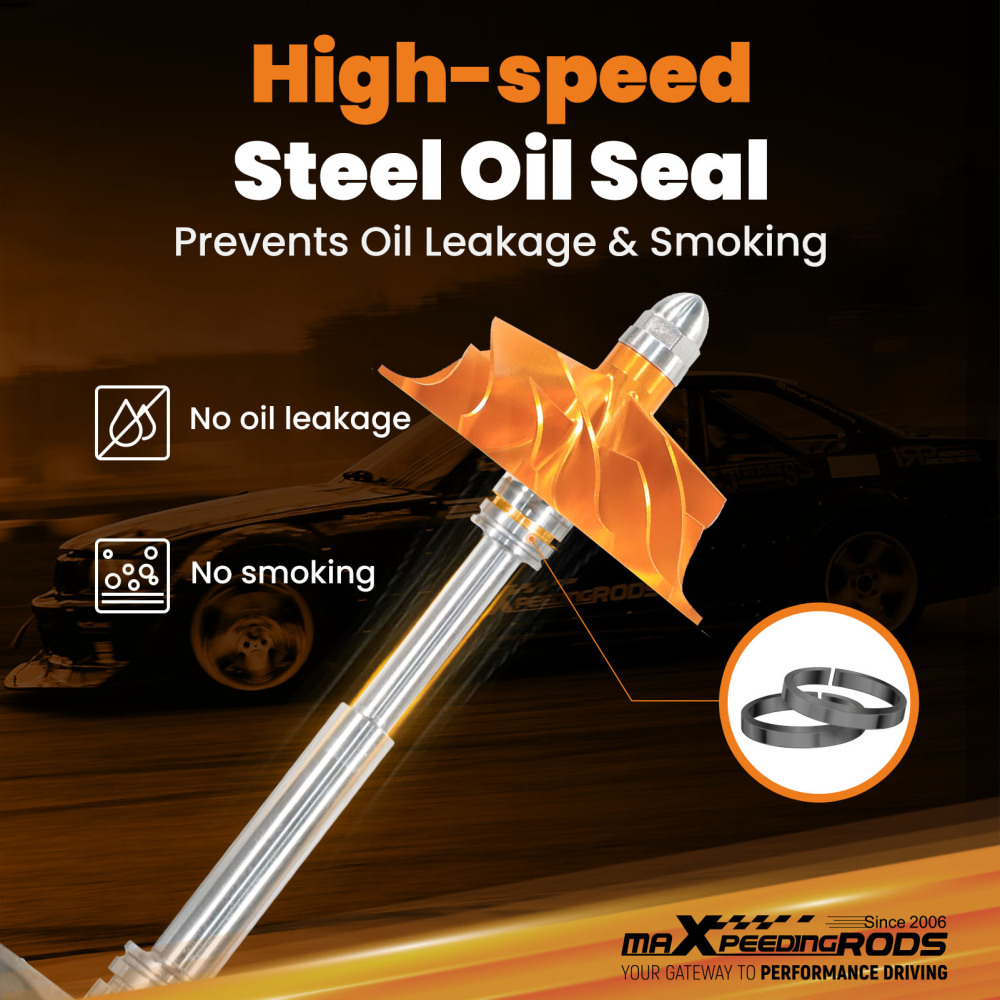

4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
