For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "For GT3582 GT35 T3 Turbo + Oil feedReturn Line Kit Universal Turbocharger A/R .63")
Combination offer
- A
- B
- C
- D
- E
- F
- G

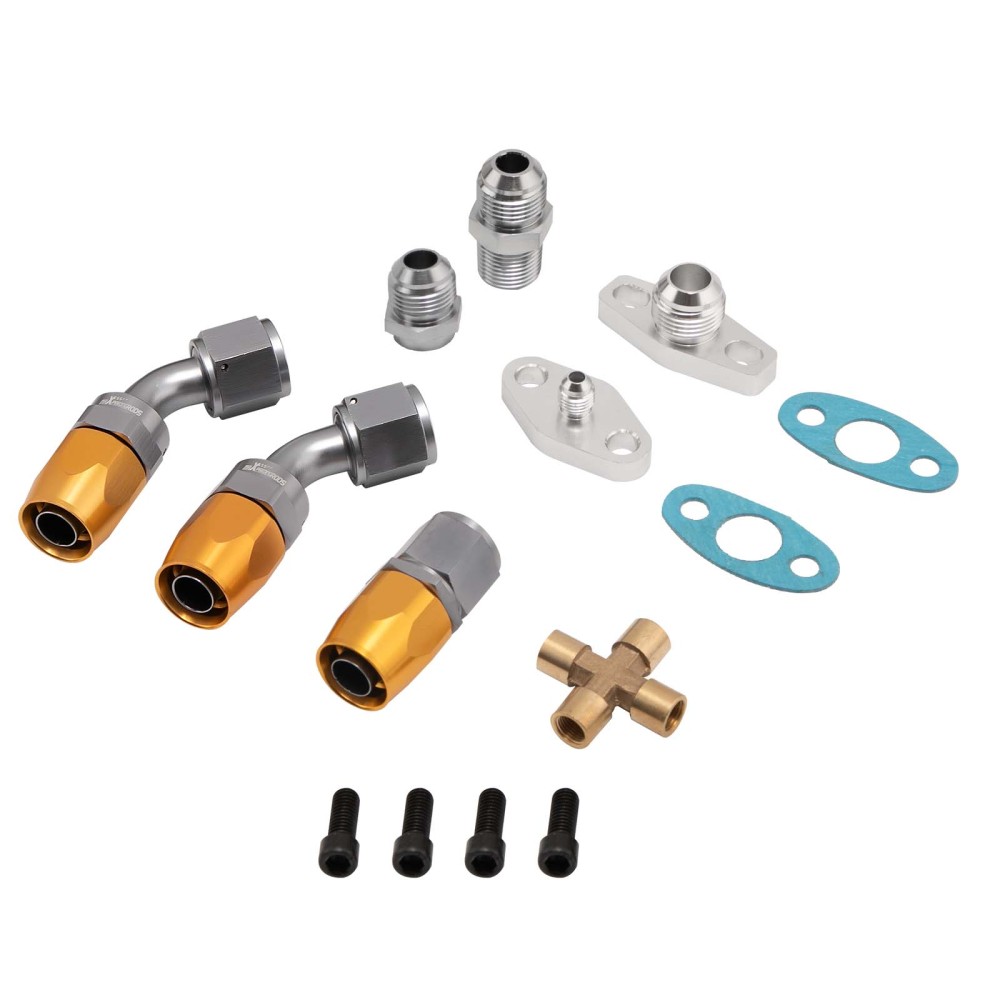

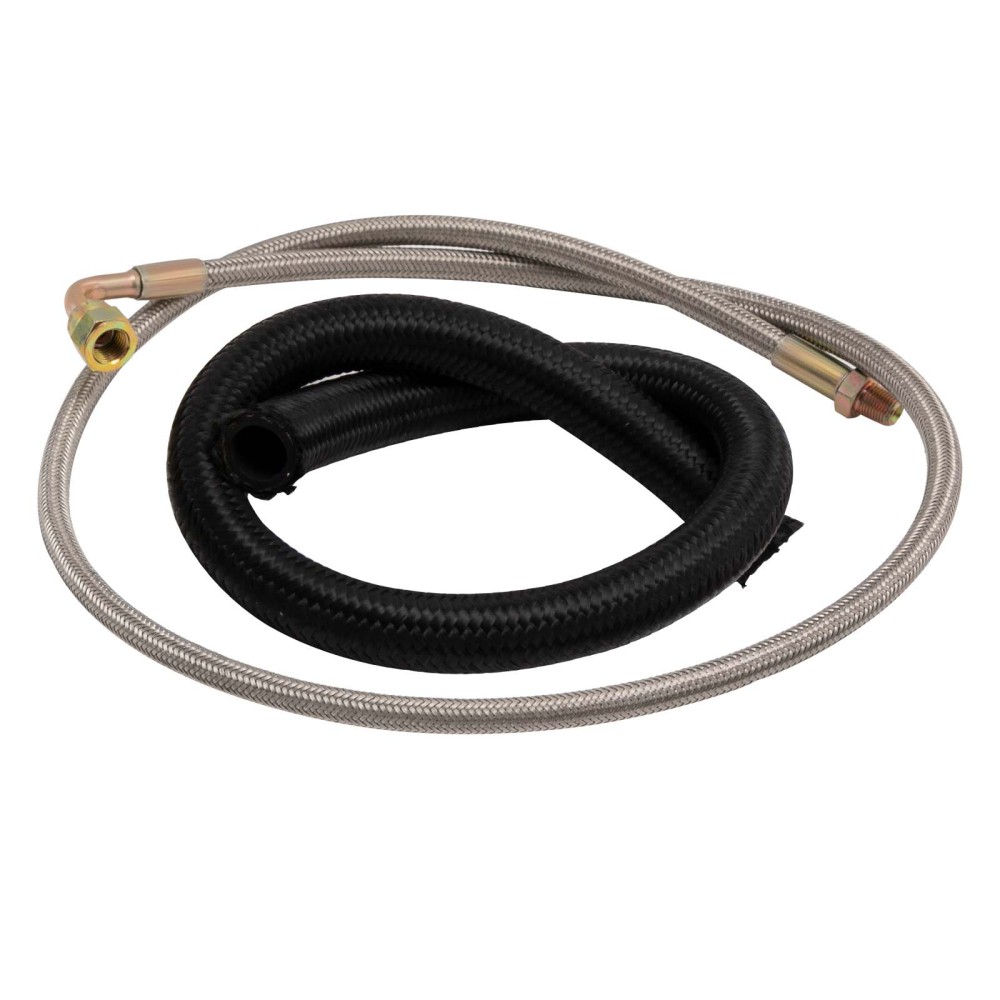

Oil Feed Oil Return Lines Details
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25
Turbocharger
Application
Bigger HP Applications, perfect for all 4/6 cylinder and 3.0L-6.0L engines
Specification
HP: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil

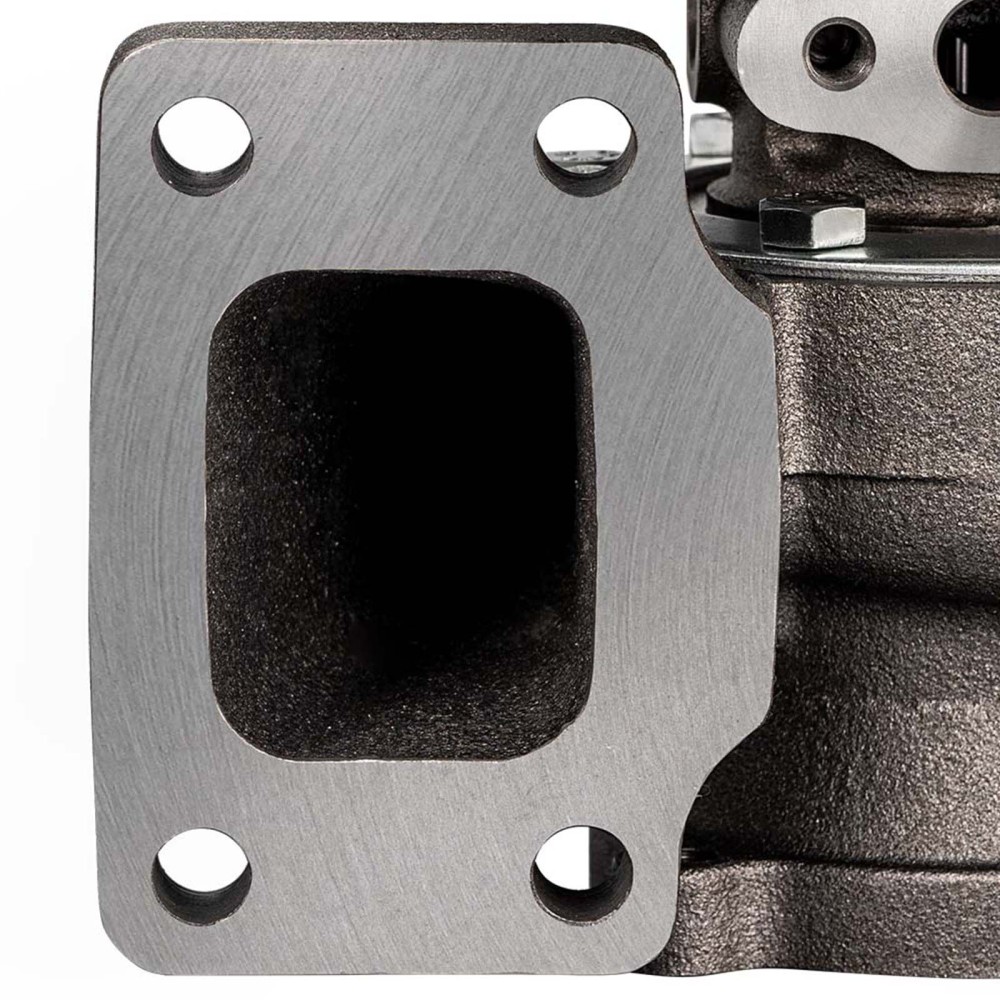

Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet Flange: 4 Bolt
Compressor
Trim: 57
Inducer Diamter: 61.5mm
Exducer Diamter: 81.5mm
A/R: 0.7
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Turbine
Trim: 84
Inducer Diamter: 68mm
Exducer Diamter: 62.4mm
A/R: 0.63
Additional Details:
Bearing: Wet Float
Wastegate: External Wastegate
Oil Inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water: M14*1.5
Maximum PSI: 22
Warranty: one year
Internal Wastegate: No
Accessories:You will get exactly as shown in the picture above
Notes
* Please check the specifications carefully before bidding.
* This is universal application turbo, so modification might be required for some vehicles.
