Application
Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP
Note:
1. Please confirm that there is enough space in your car to install this turbo before purchasing.
2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.
Specification

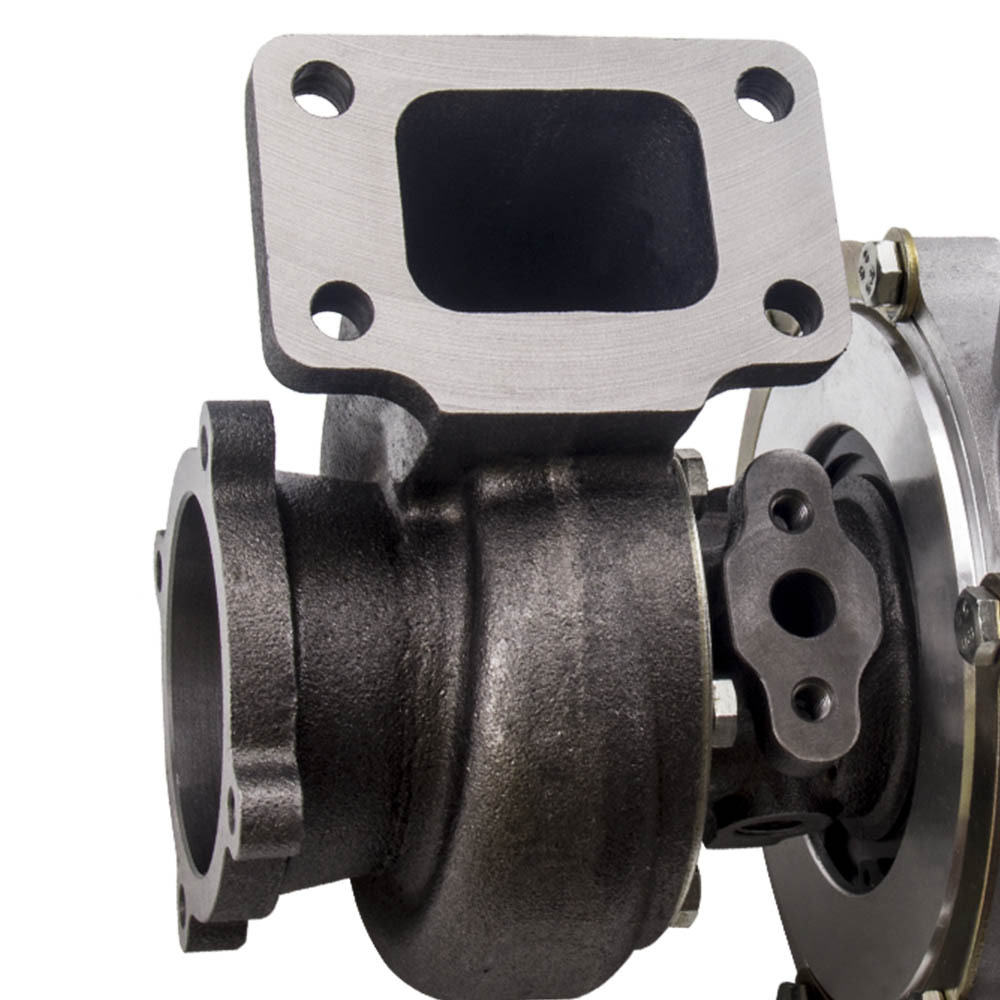

Turbo
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Oil Inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water: M14*1.5
Bearing: Wet Float
Warranty: one year
Internal Wastegate: No
Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
New Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
Condition
New
Package Including
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets
Notice
* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
