Universal for GT3076 Ball Bearing Turbo Turbocharger A/R 0.82 0.63 Water Oil Cooled

Application
Perfect for all 2.5L-3.0L engines, for all 4/6 cylinder
Horse Power: Boost Horse Power up to 500BHP

Here we get some data in our test for your reference:
The pressure control 1.0BAR-1.5BAR (14.5psi-21.75psi)
L4 2.0L engine, the horsepower around 400ps-500ps (395hp-495hp)
L4 2.5L  L6 2.5L  V6 2.5L engine, the horsepower around 450ps-600ps (445hp-590hp)
L6 3.0L  V6 3.0L or above engine, the horsepower around 500ps-600ps (495hp-595hp)
Note: Due to variaty of engine models, engine enhancement levels, engine brands, gasoline quality,  altitude and ECU tuning, different horsepower will be produced. This is the list of commonly used engines, not the data in non-limit condition.

Specification
Exhaust Inlet Flange: V-Band
Exhaust Outlet Flange: V-Band
Compressor housing: Anti-surge
Pressure Control: Handle up to 3.0 Bar(43.5psi)
Turbine Inducer Diameter: 60mm
Turbine Exducer Diameter: 55mm
Turbine Trim: 80.7
Turbine A/R: 0.82
Compressor Inducer Diameter: 55mm
Compressor Exducer Diameter: 76mm
Compressor Trim:52.2
Compressor A/R:0.63

Oil Inlet: 7/16"-24
Oil Outlet: M14.1 & 2*M8*1.25

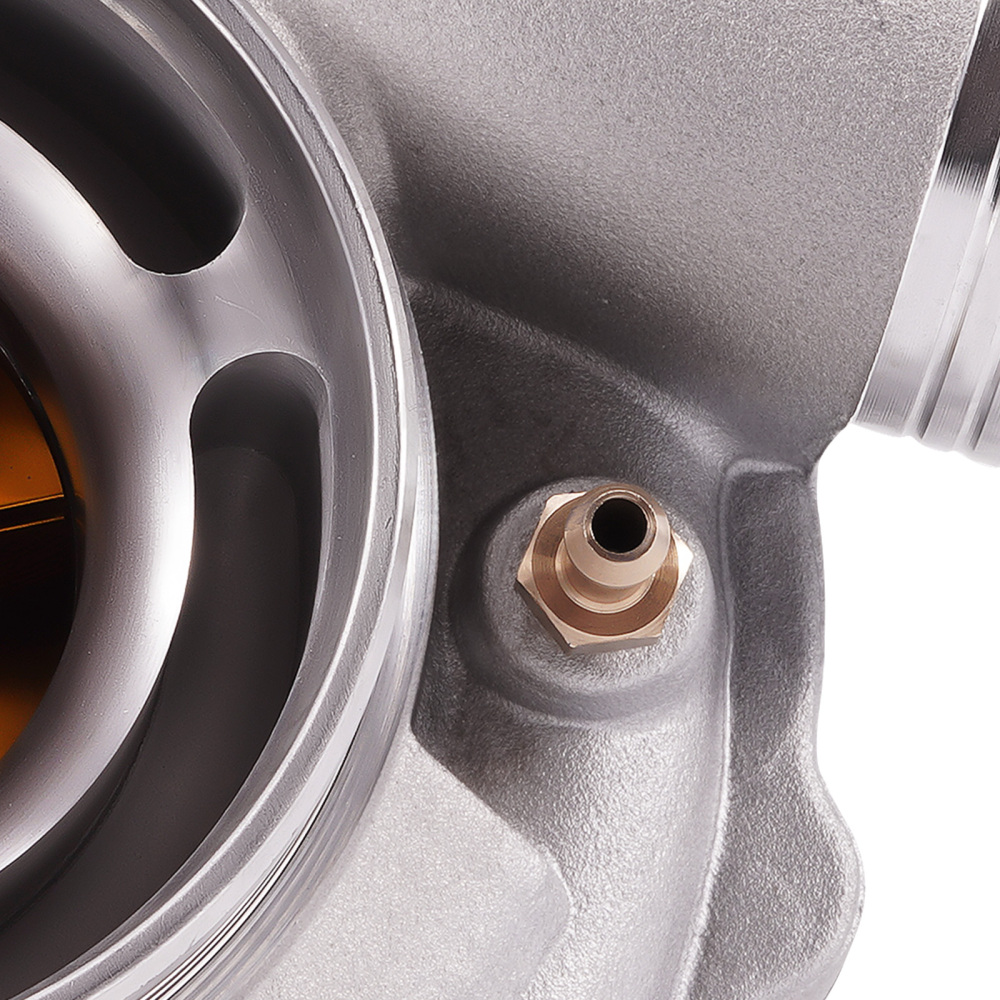

Water: M14*1.5

Cooling Type: Water + Oil cooled
Wastegate：Without Wastegate

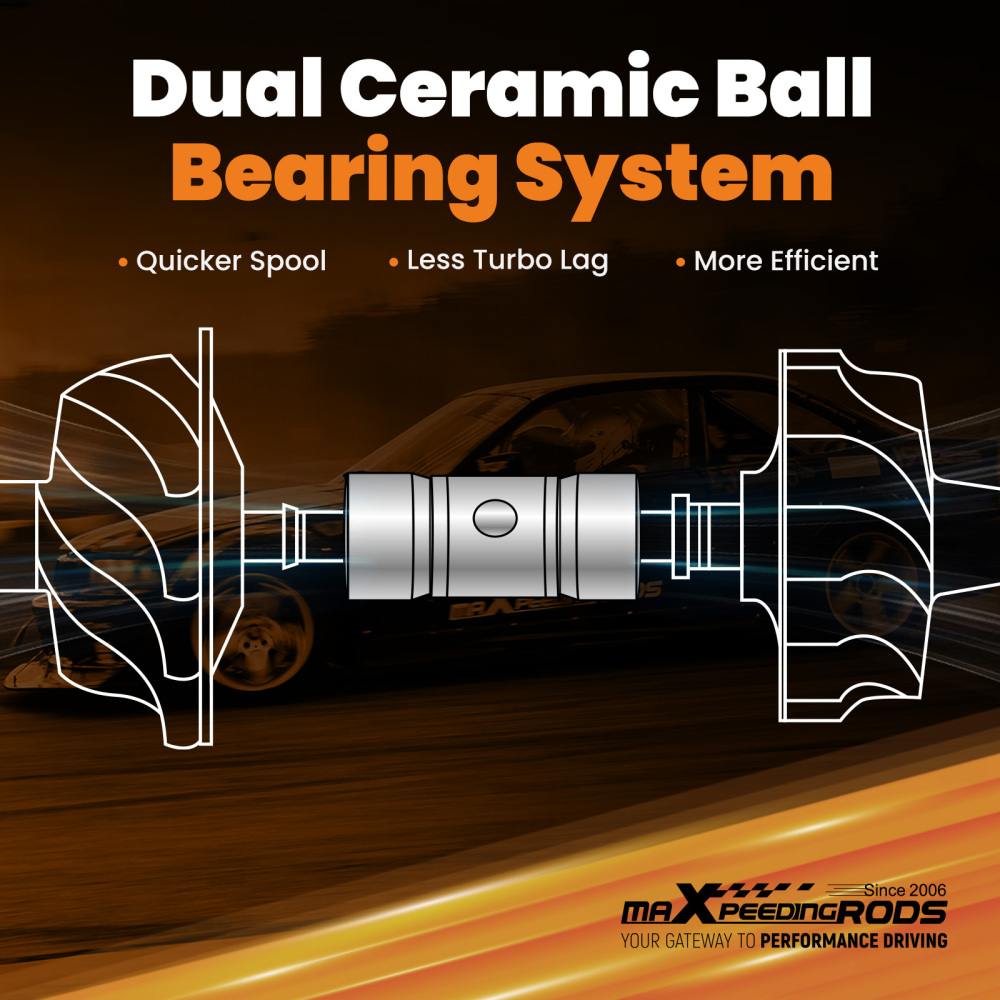

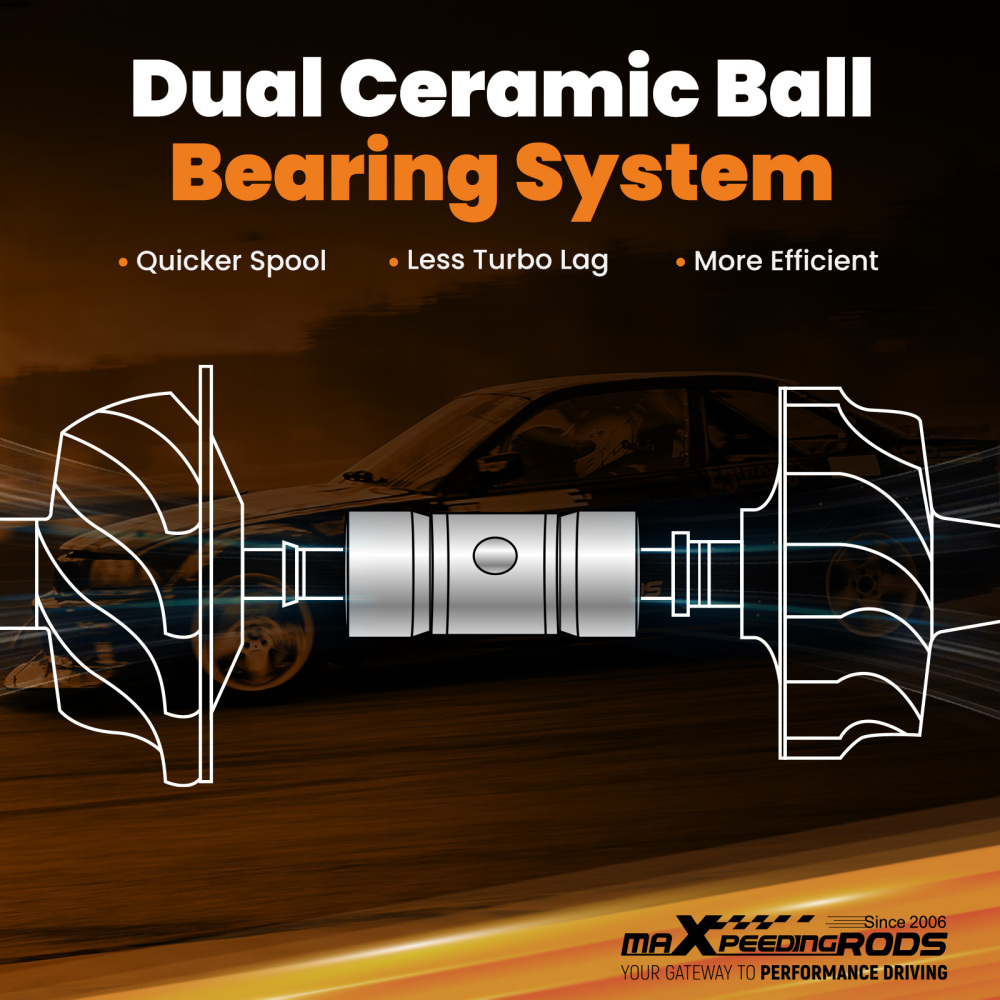

Bearing Type: Dual Ceramic Ball Bearing
Horsepower: 500HP
Turbo Type: Individual
Universal Fitment:Yes
Finish:Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size:31 x 28 x 25 cm
Package Weight: 7.5 kg

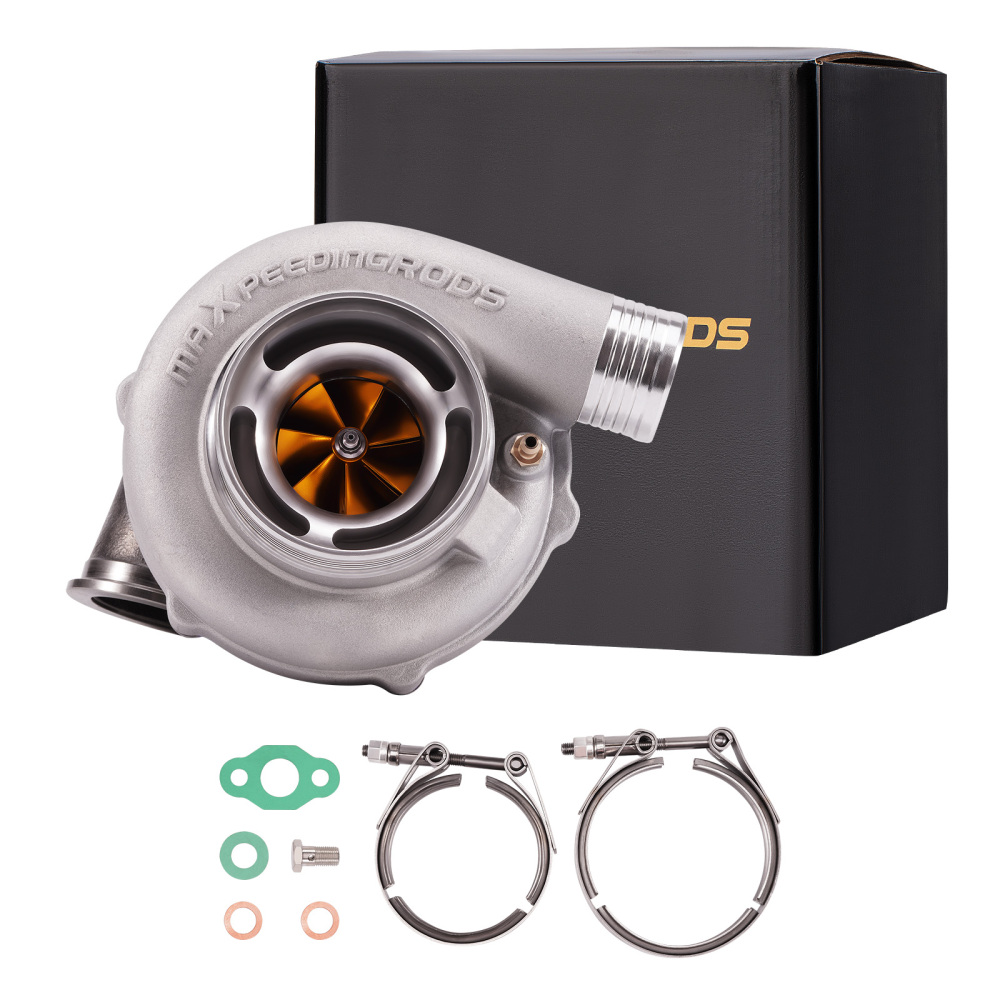

Package included
1x Turbocharger
2x Oil port gaskets
1x Bolt
2x Washers
1x Manual
1x Brochure
1x Sticker

Feature
*Product Material

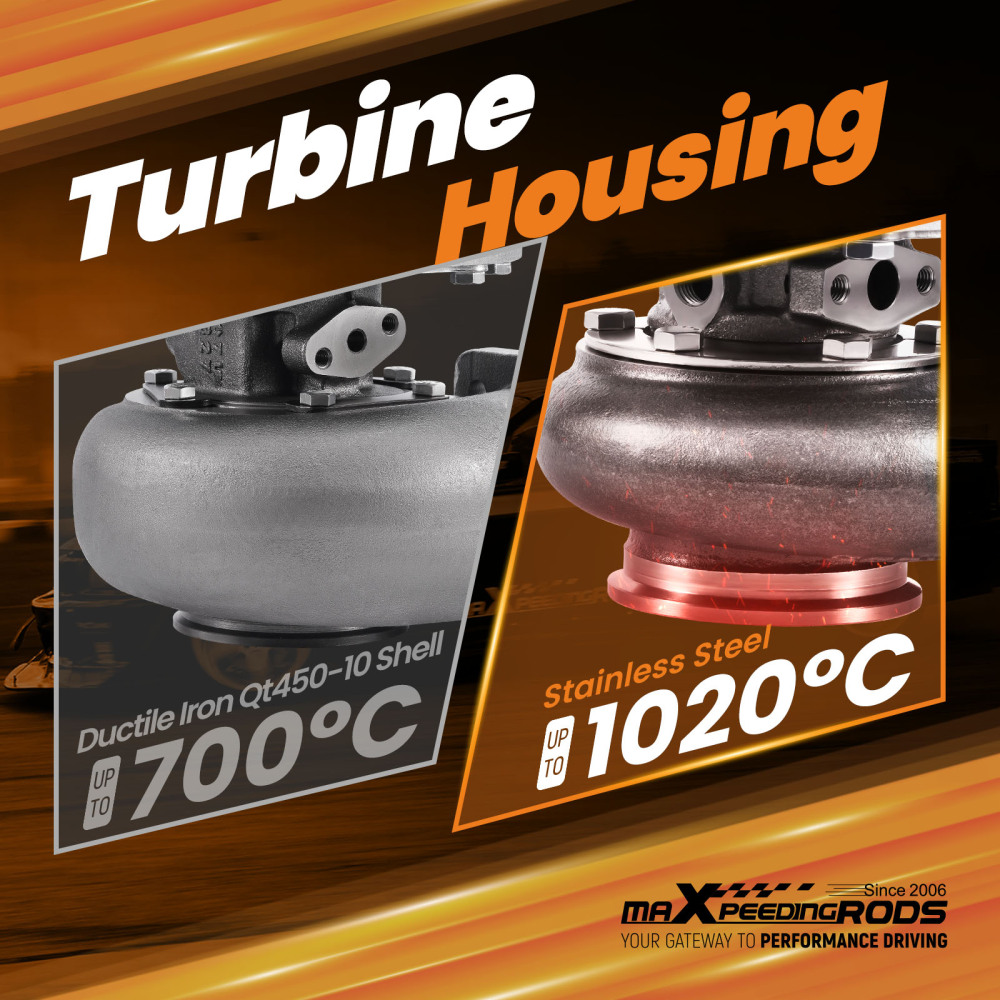

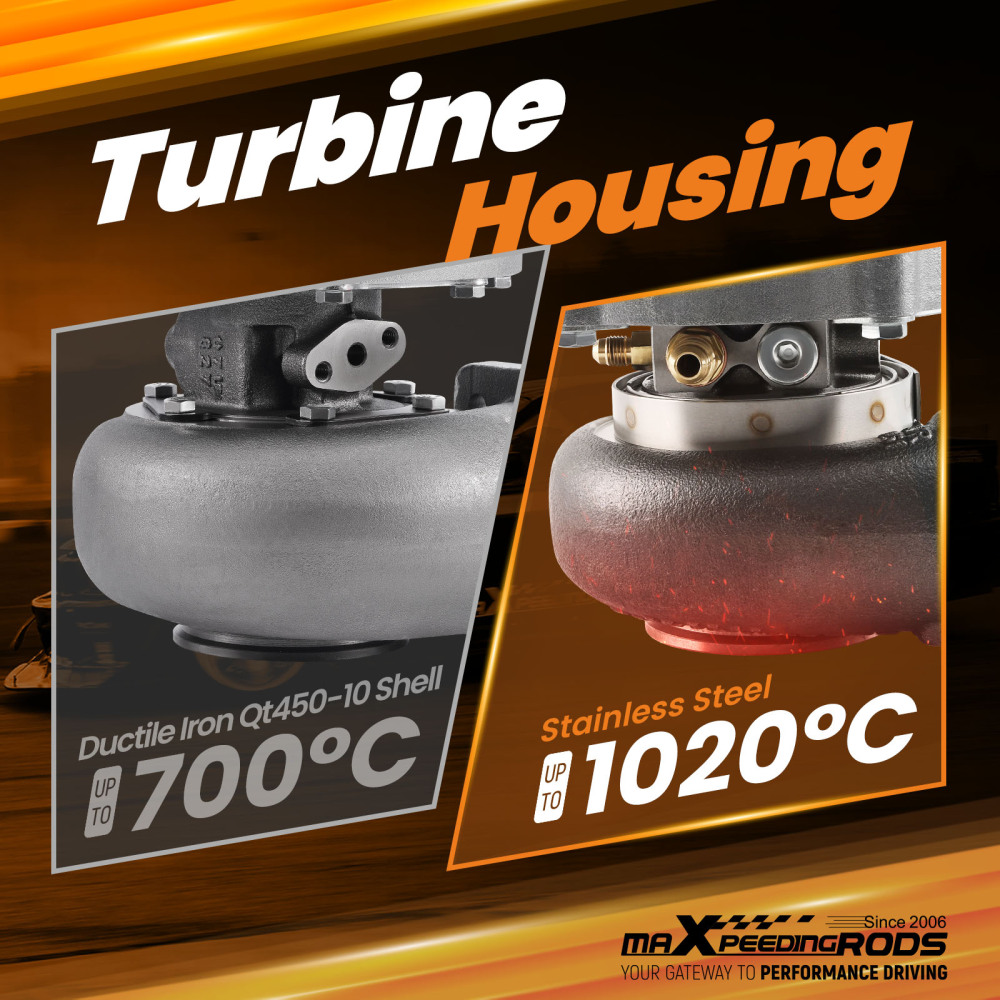

1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃

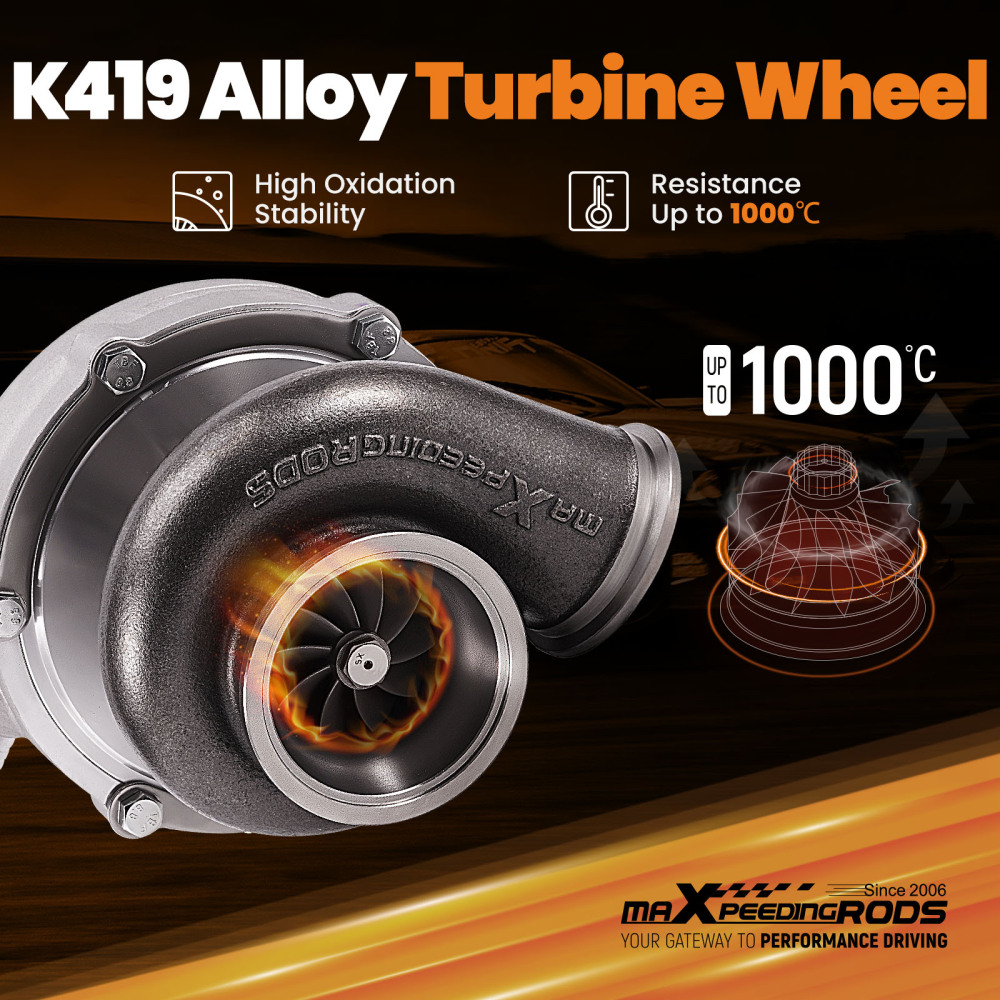

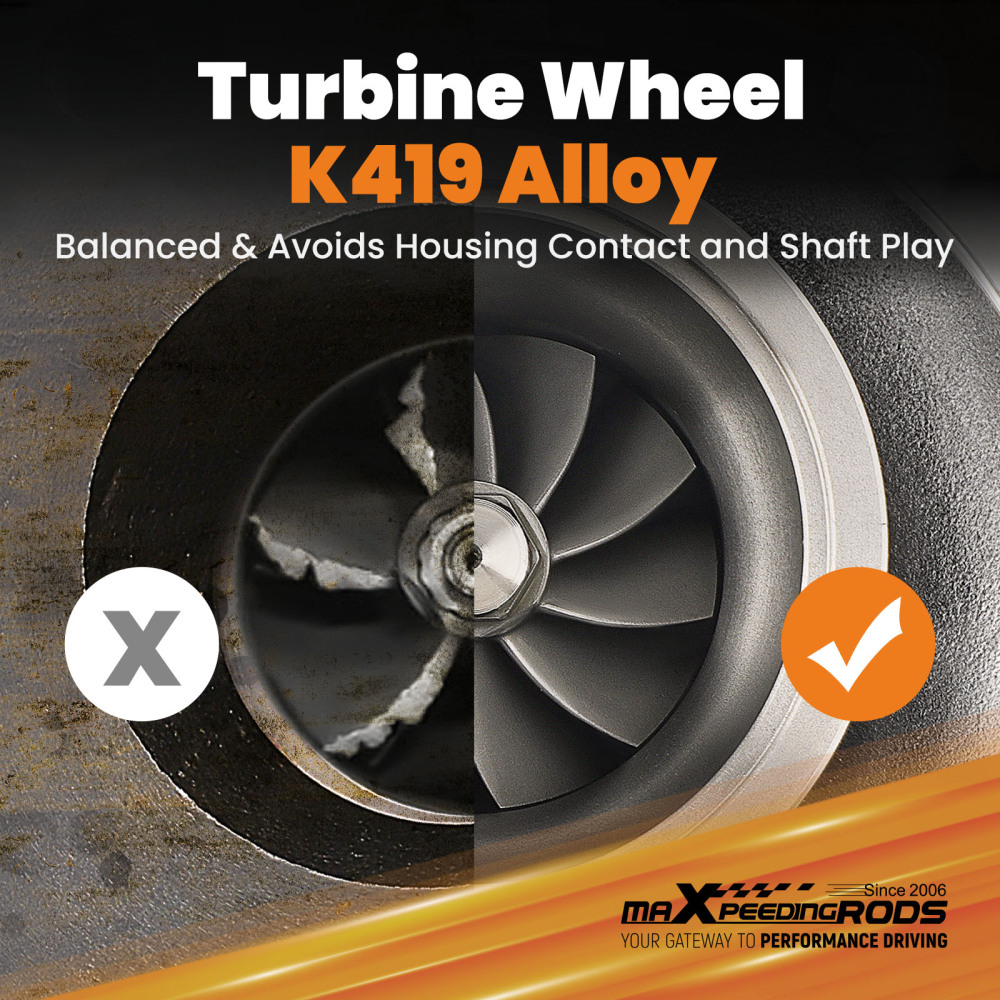

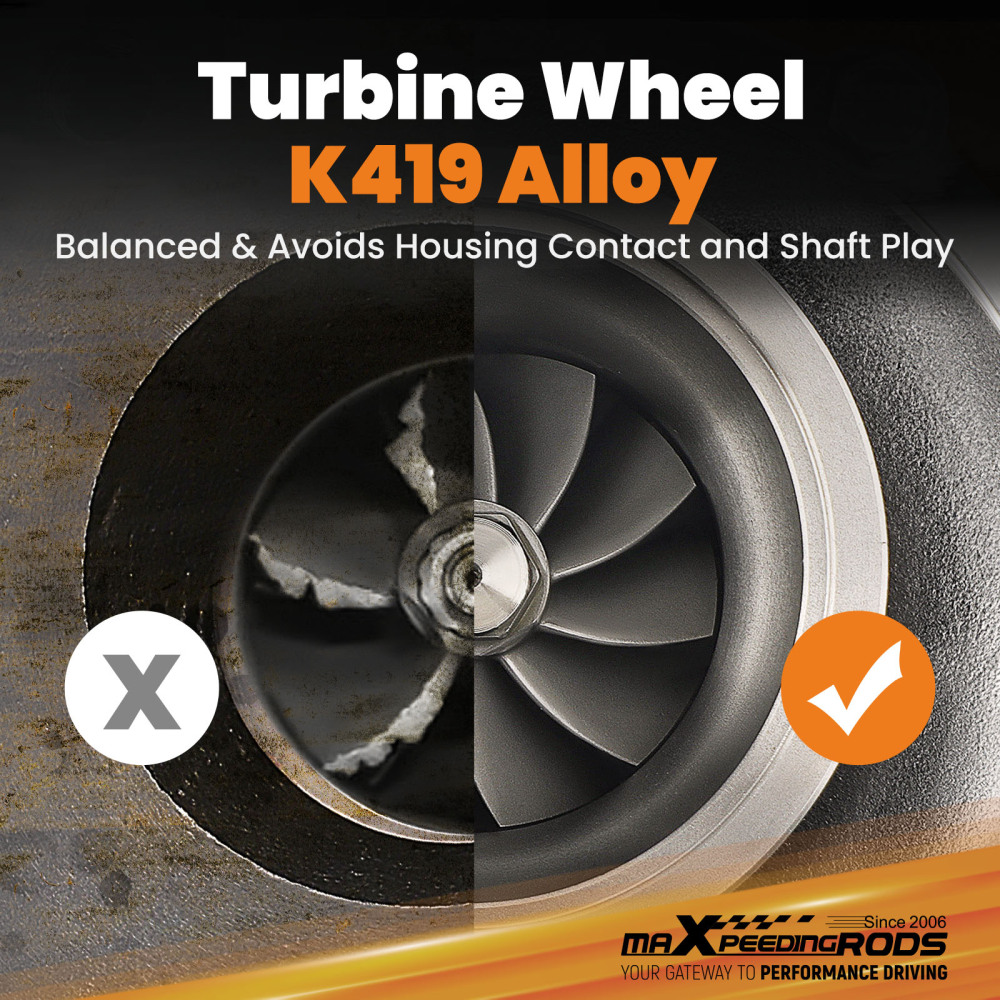

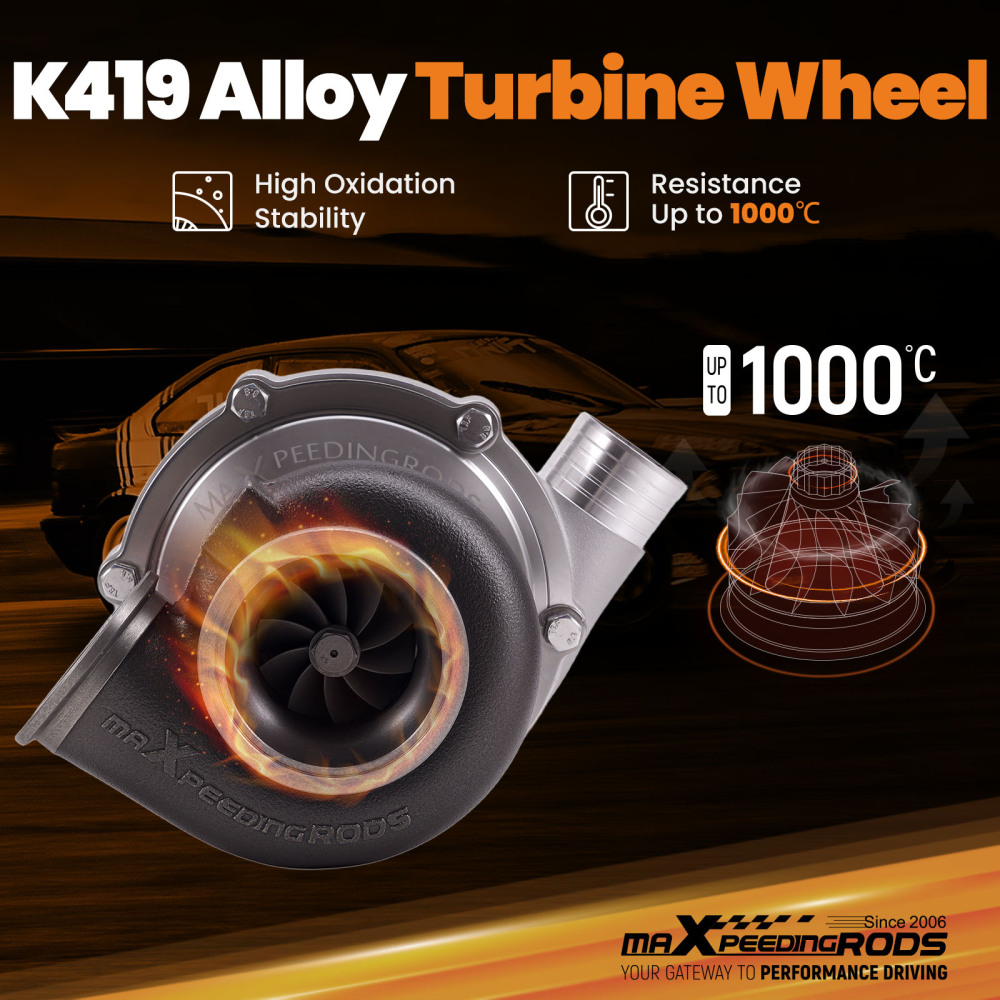

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

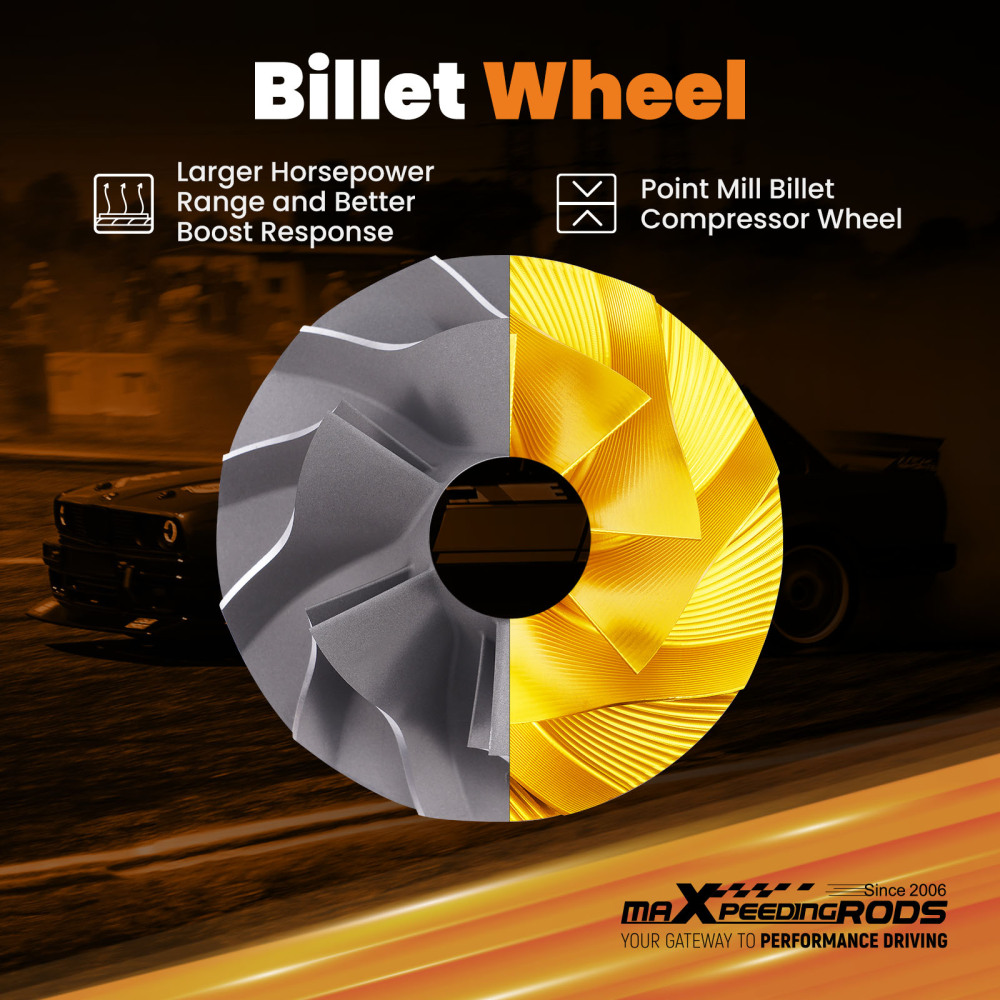

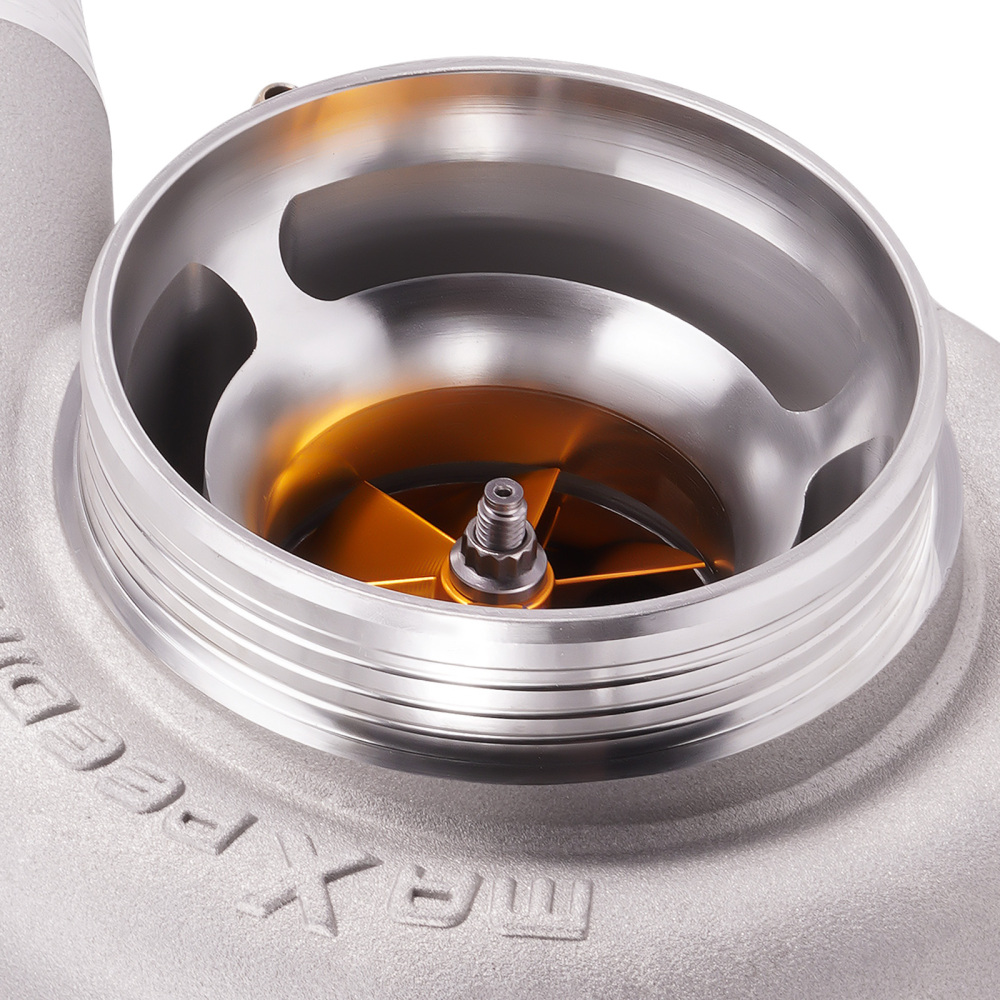

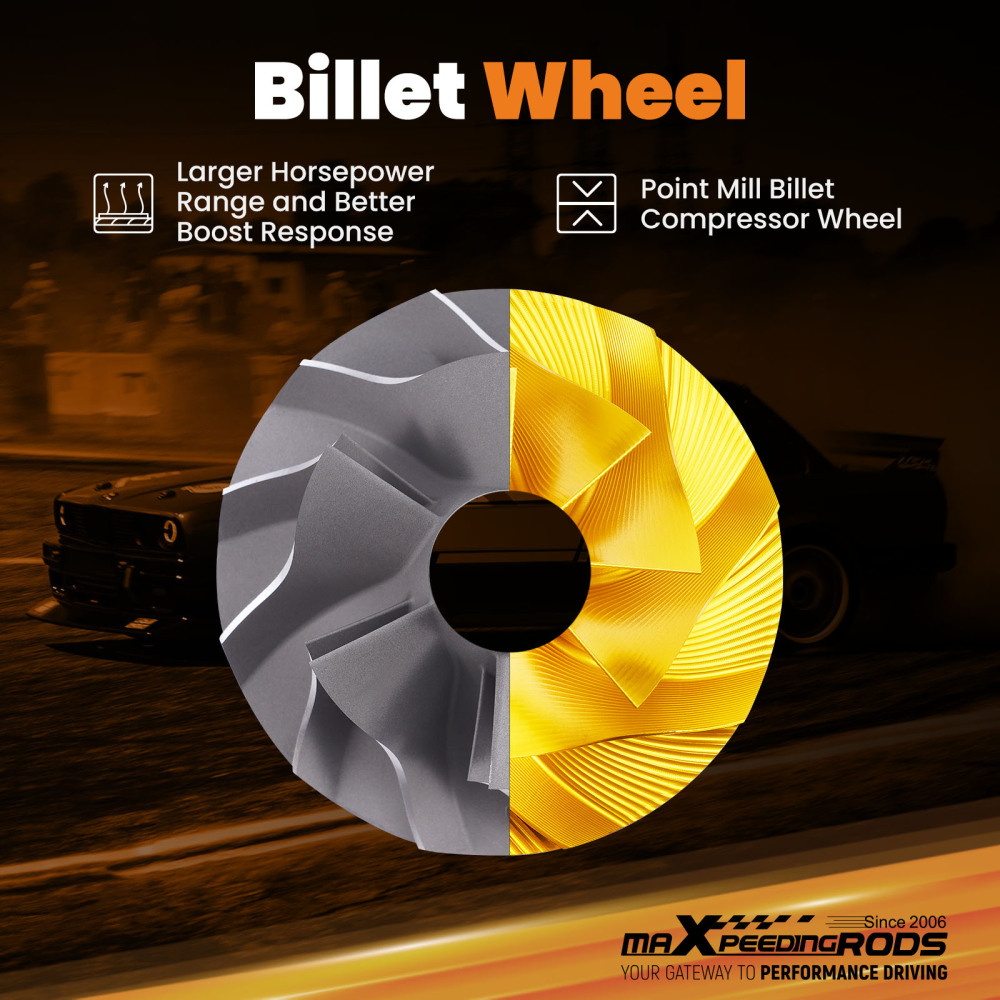

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

*Product
1. Racing turbocharger
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory

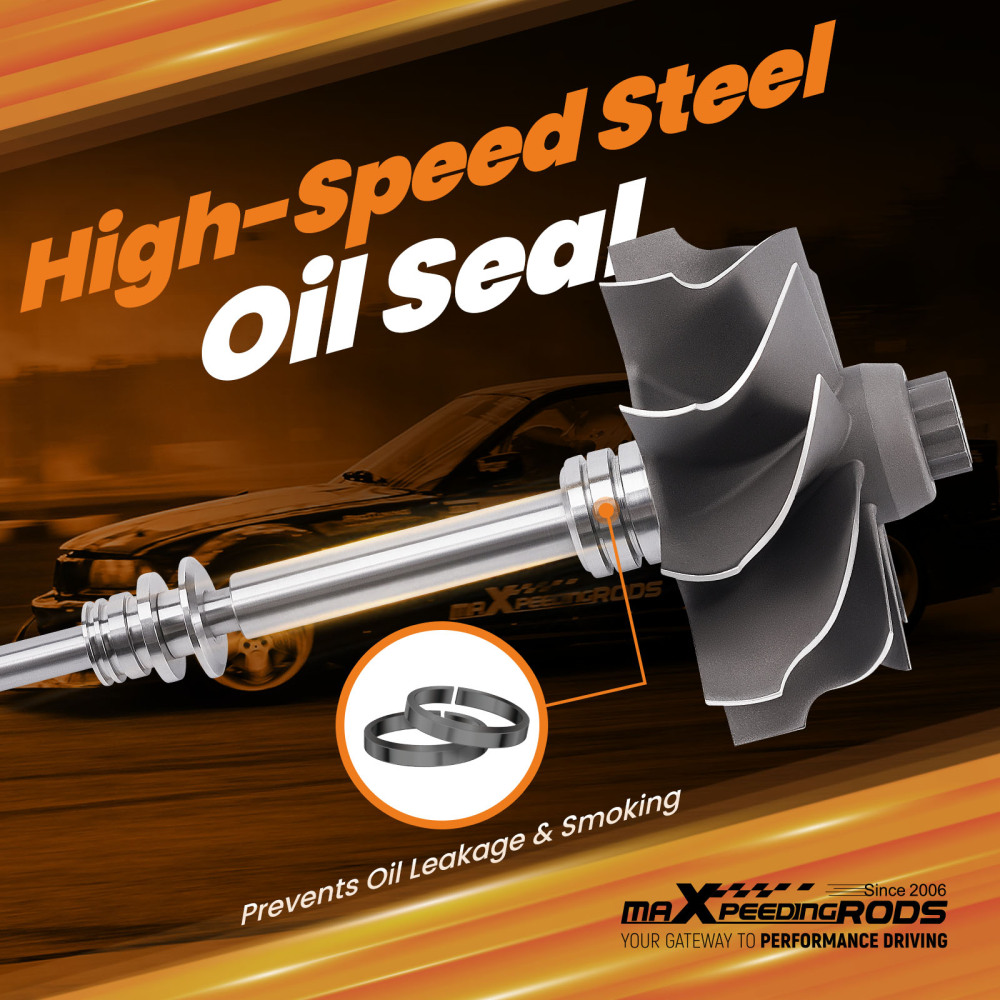

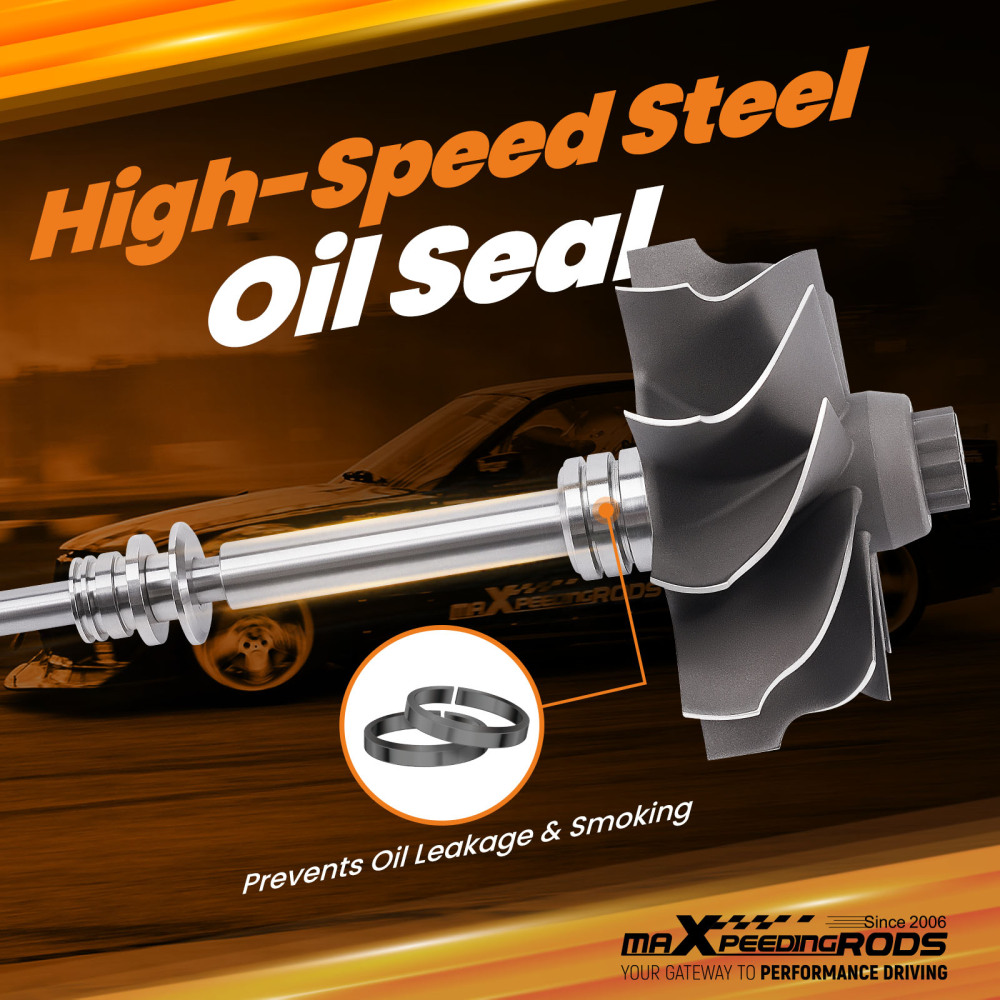

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Note
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle. Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
