For GT2860 Racing Turbo 1050 Degree Celsius Temperature Resistance For 1.6-2.5L Engine billet compressor wheel

Application

Perfect for all 1.5L-2.0L engines, for all 4 cylinder
Horse Power: Boost Horse Power up to 350+BHP

Specification

Exhaust Inlet Flange: T25 Flange
Exhaust Outlet Flange: 5-Bolt
Turbine Side:
Turbine Trim: 78.9
Turbine Inducer Diameter: 52.8mm
Turbine Exducer Diameter: 46.9mm
Turbine A/R: 0.64
Compressor Side:
Compressor Trim: 42.4
Compressor Inducer Diameter: 45.6 mm
Compressor Exducer Diameter: 70 mm
Compressor A/R: 0.6

Oil Inlet: M12*1.25
Oil Outlet: M14 & 2*M8*1.25
Water: M14*1.5

Cooling Type: Water + Oil cooled
Wastegate: With Wastegate
Bearing Type: Dual Ceramic Ball Bearing
Horse Power: 350HP

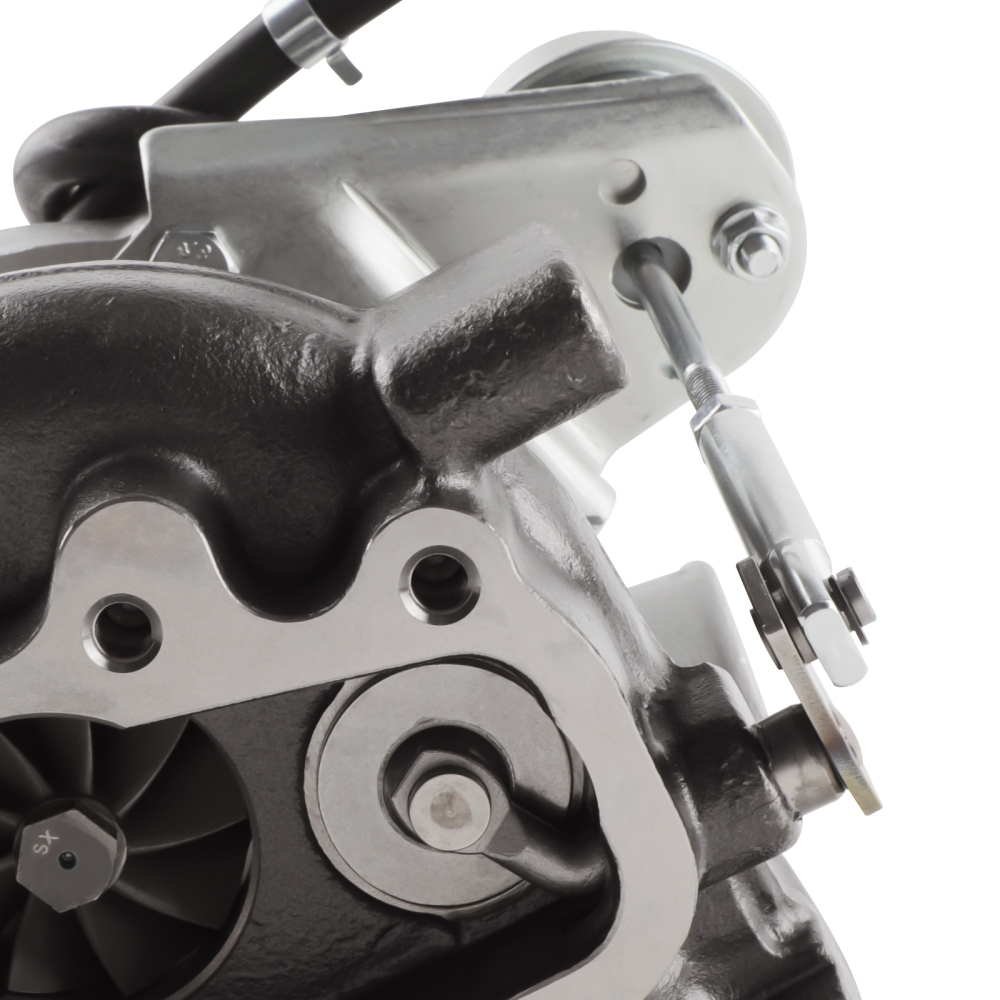

Actuator Type: Vacuum
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size: 26x 24 x 23 cm
Package Weight: 7700g

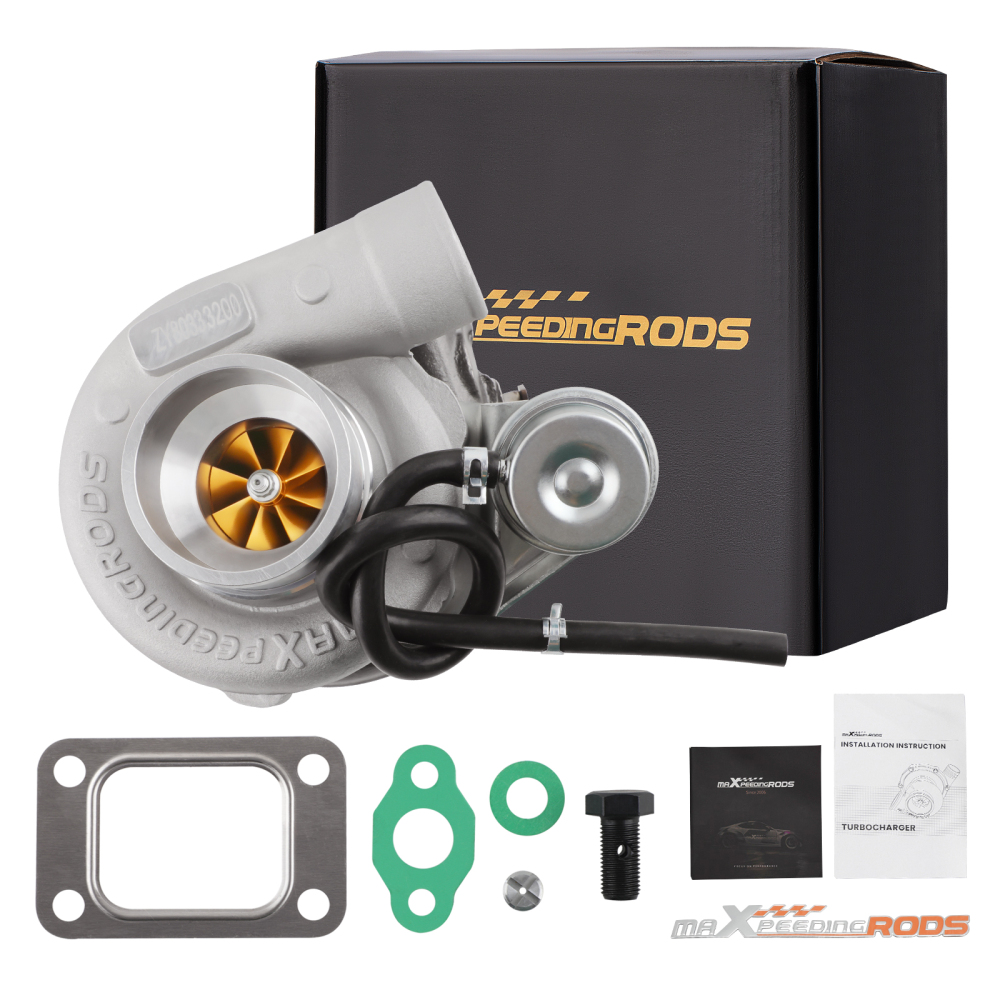

Package included

1x Turbocharger
1x Flange gasket
2x Oil feed/drain gaskets
1x Bolt
1x Oil restrictor
1x Manual
1x Brochure
1x Sticker

Feature

*Product Material
1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

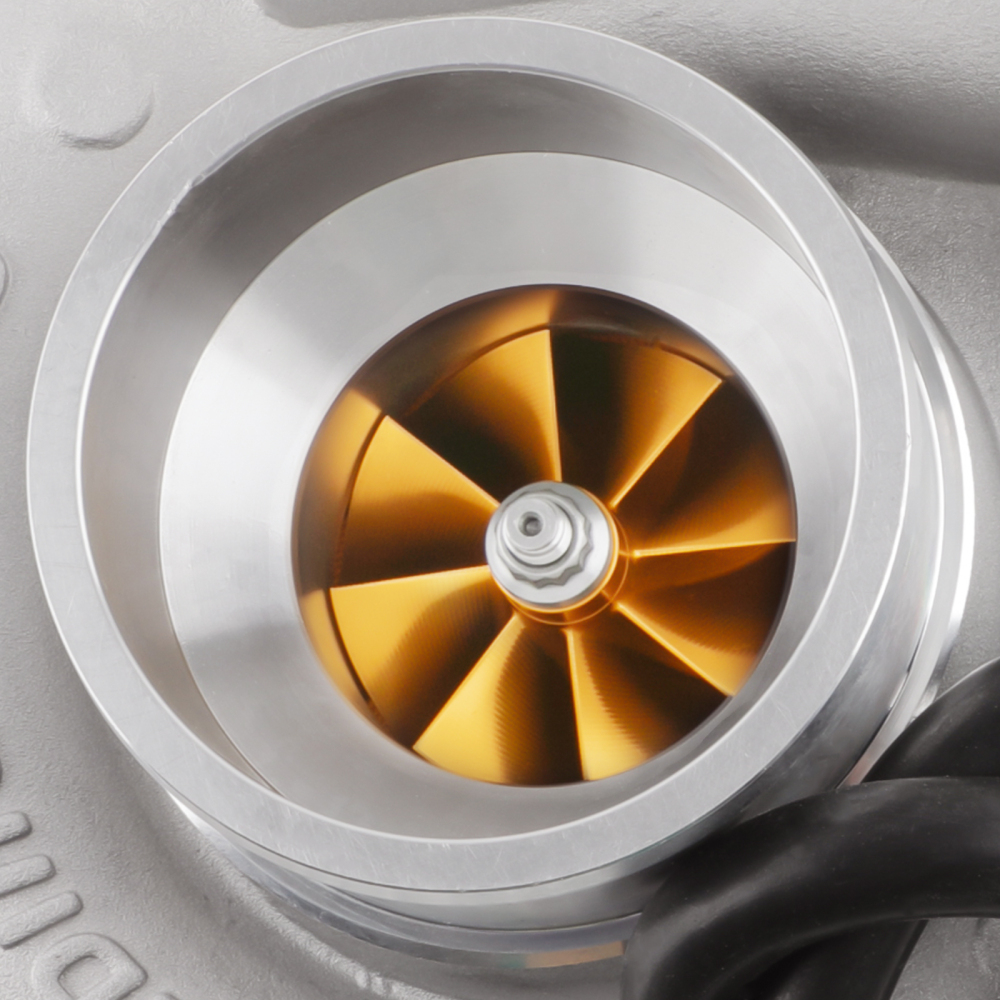

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

*Product
1. Racing turbocharger
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
