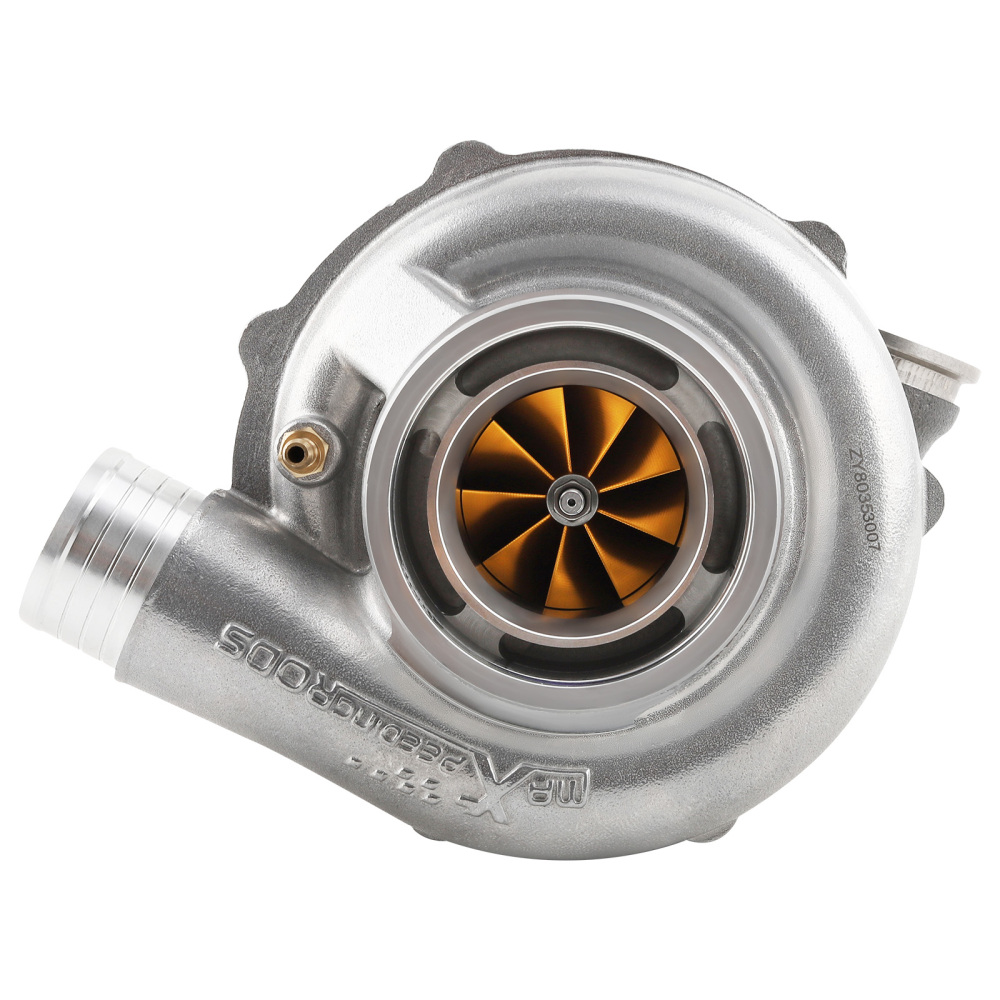

Billet Ball Bearing Universal Turbocharger 2.0L-3.5L engine 475HP-770HP V-BAND

Application

2.0L-3.5L engine displacements and capable of producing up to 770 horsepower

Specification

Horsepower: 475HP-770HP
Displacement: 2.0L-3.5L

Compressor
Compressor Inducer: 57.6mm
Compressor Exducer: 71.3mm
Compressor Trim: 65
Compressor A/R: 0.72

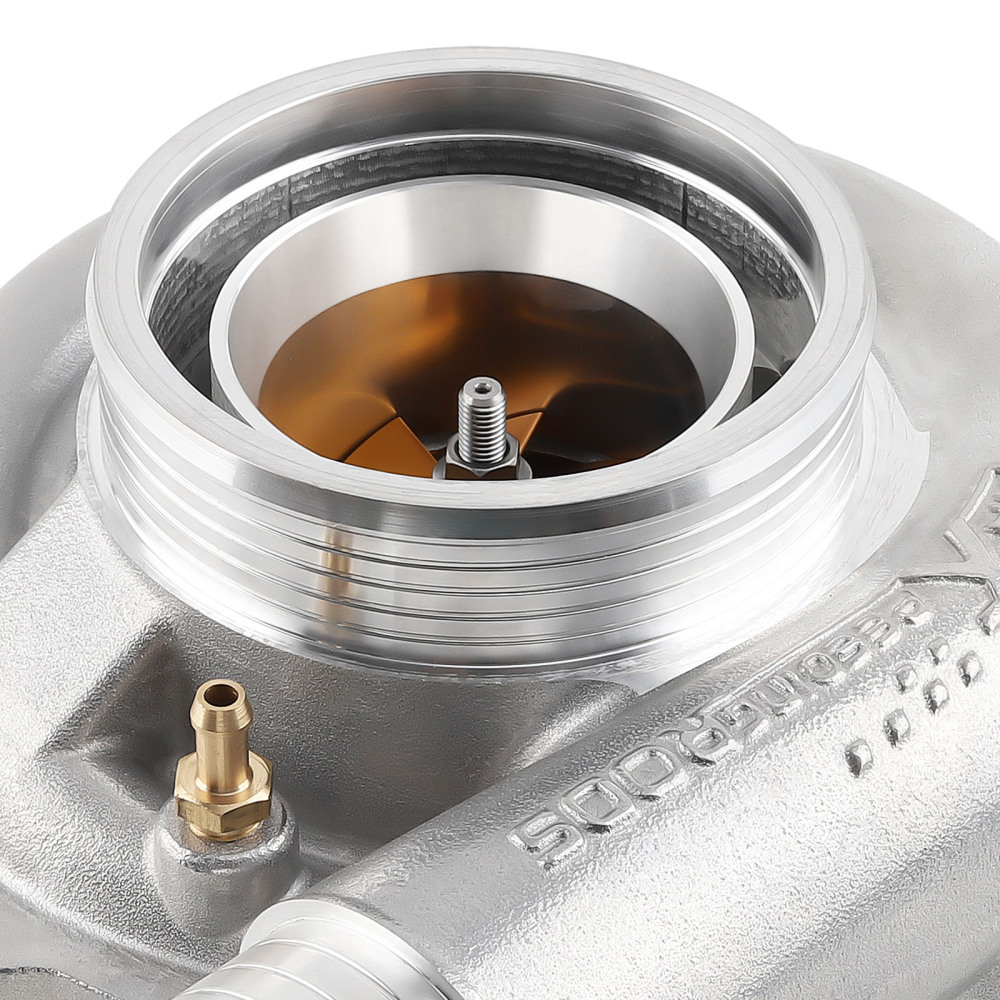

Compressor Air Inlet : 4 Inch
Compressor Air Outlet: 2 Inch

Turbine
Turbine Inducer: 60mm
Turbine Exducer: 55mm
Turbine Trim: 84
Turbine A/R: 0.61
Turbine Inlet : 3 Inch O.D. V-Band
Turbine Outlet: 3.55 Inch (90mm)O.D. w/81mm centering ring V-Band
Cooling Type: Water+Oil Cooling

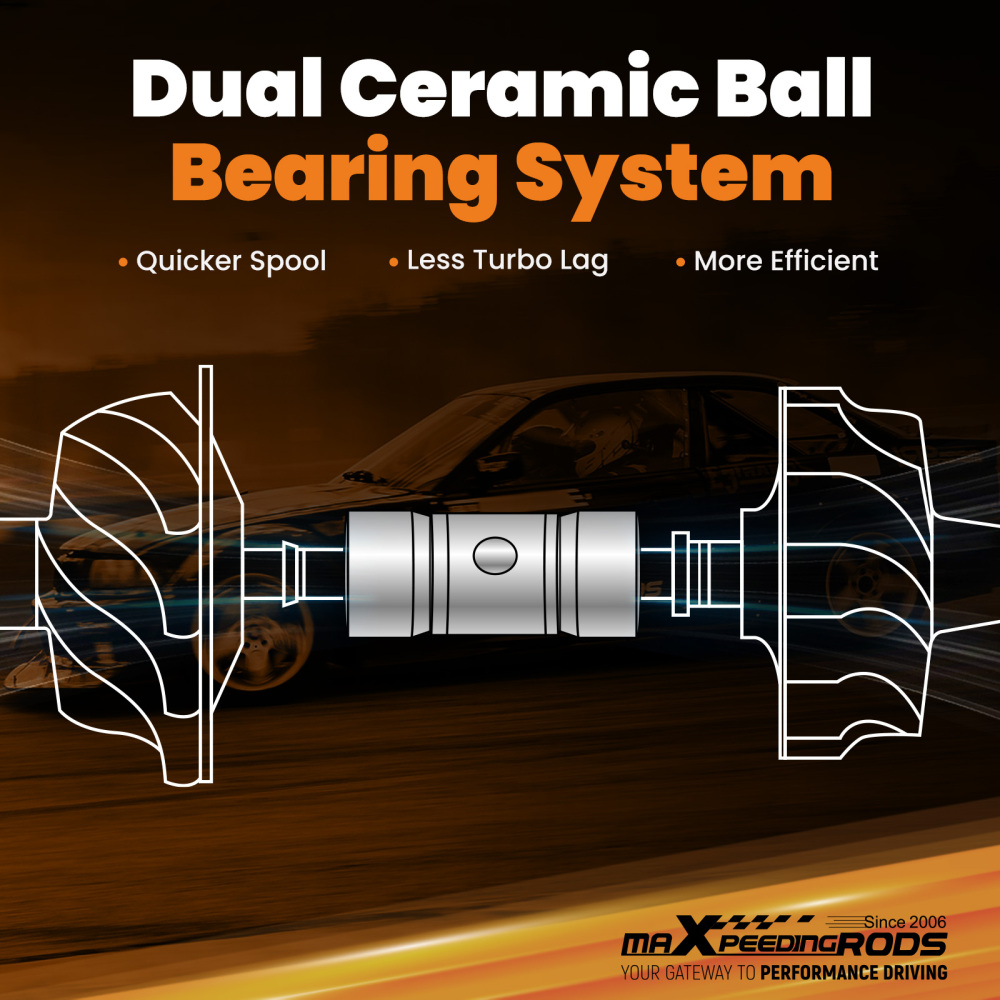

Bearing Type: Dual Ceramic Ball Bearing
Oil Restrictor Size: 1mm

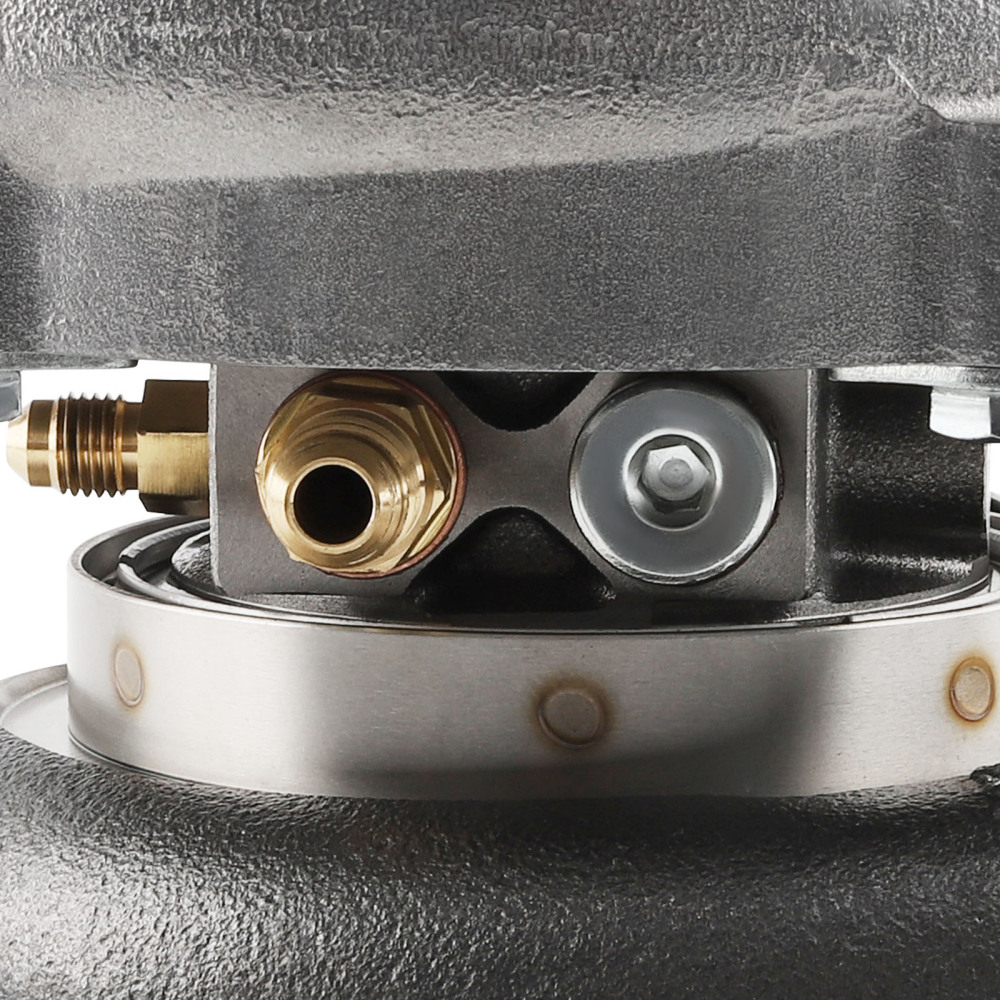

Oil Inlet Size: 7/16-24
Oil Outlet Size: φ13.5-2*M8*1.25
Water Thread Size: M14*1.5

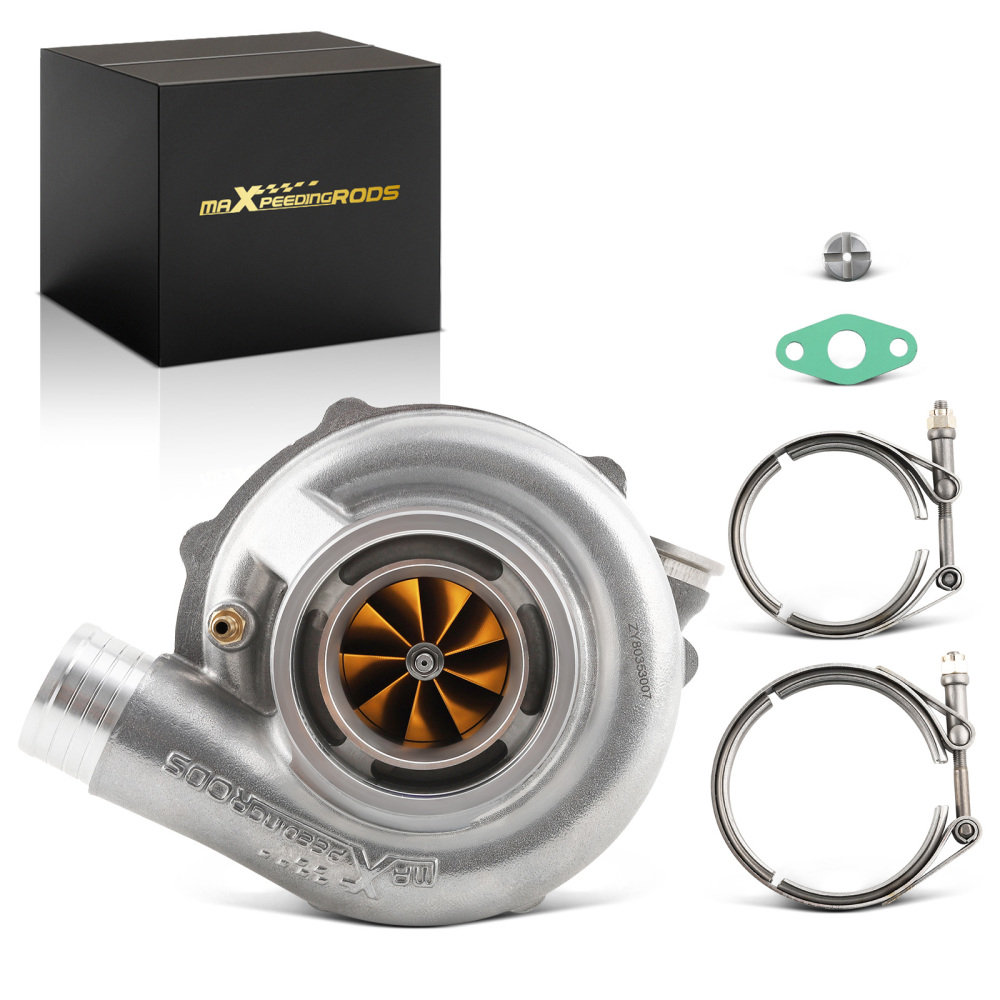

Package included

1x Turbocharger
1x Oil Gasket
2x V-BANDS
1x Restrictor
1x Manual
1x Brochure
1x Sticker

Feature

*Product Material
1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃

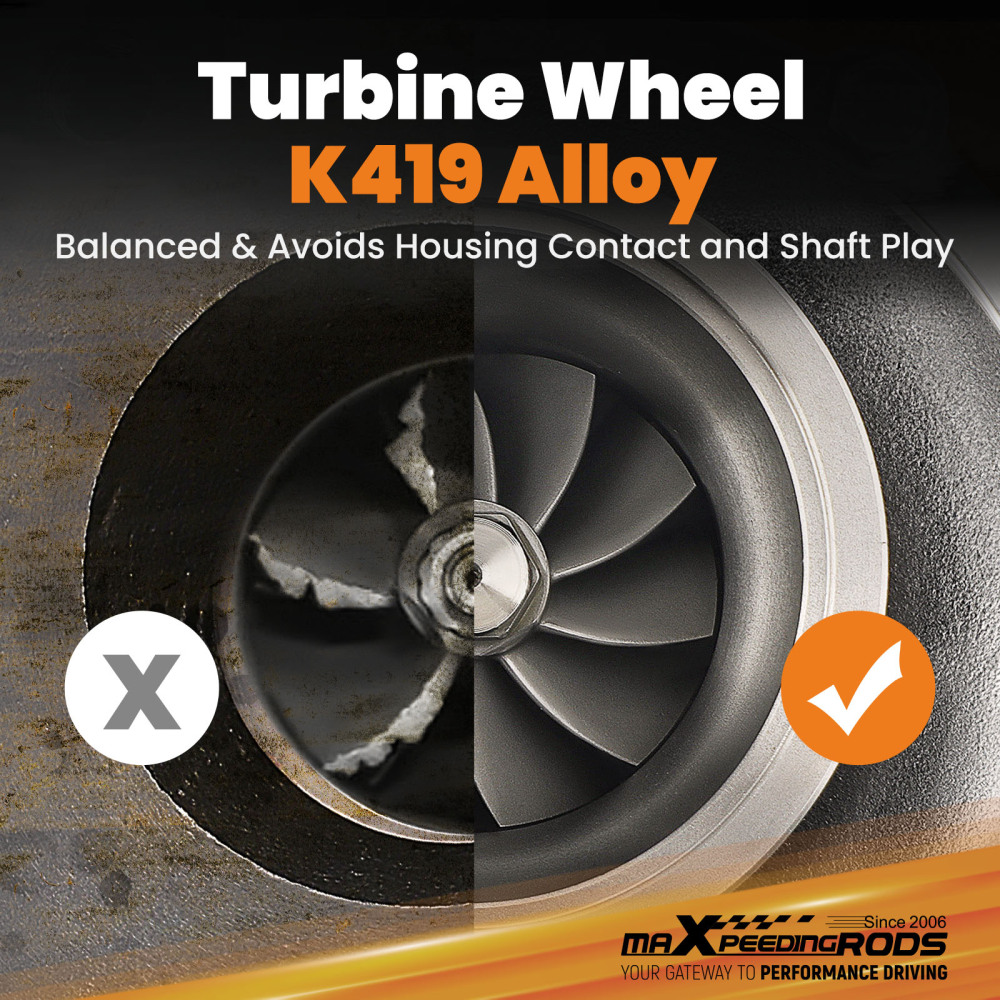

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

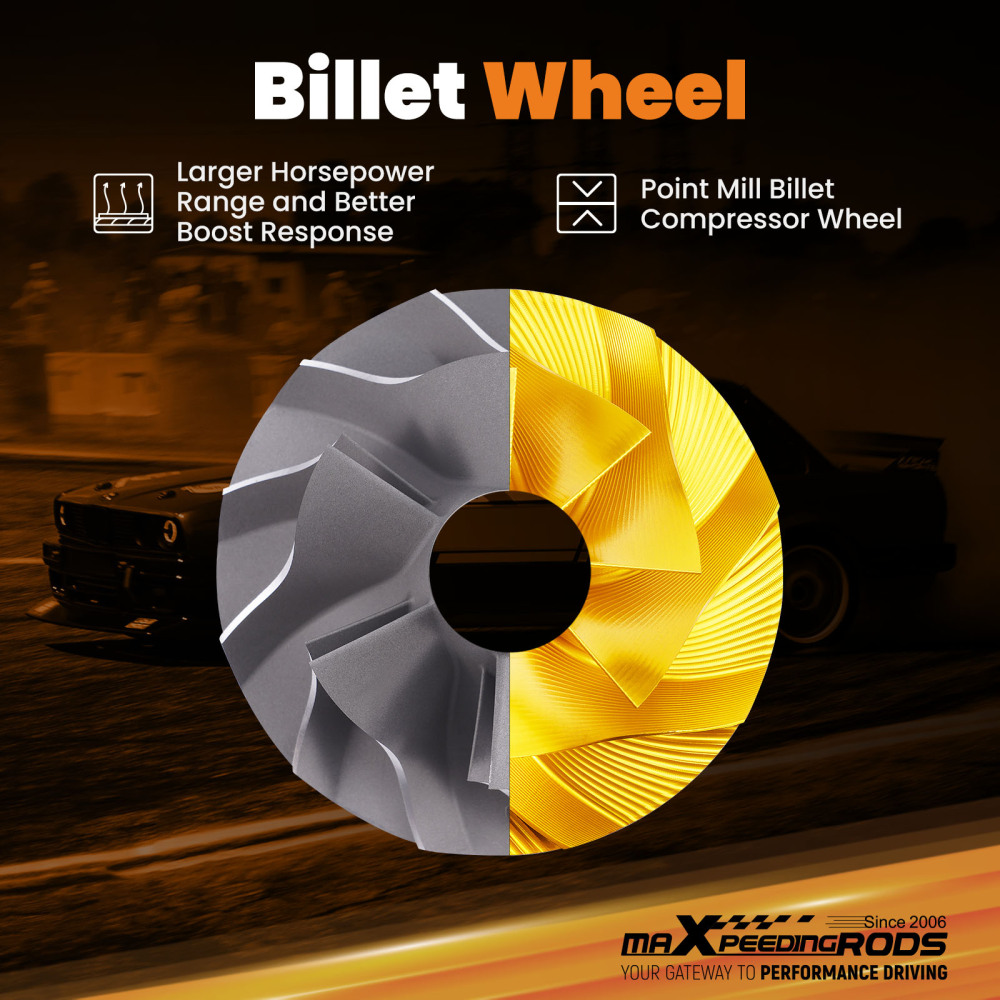

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response


1. Excellent high temperature resistance，high efficiency and durability
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

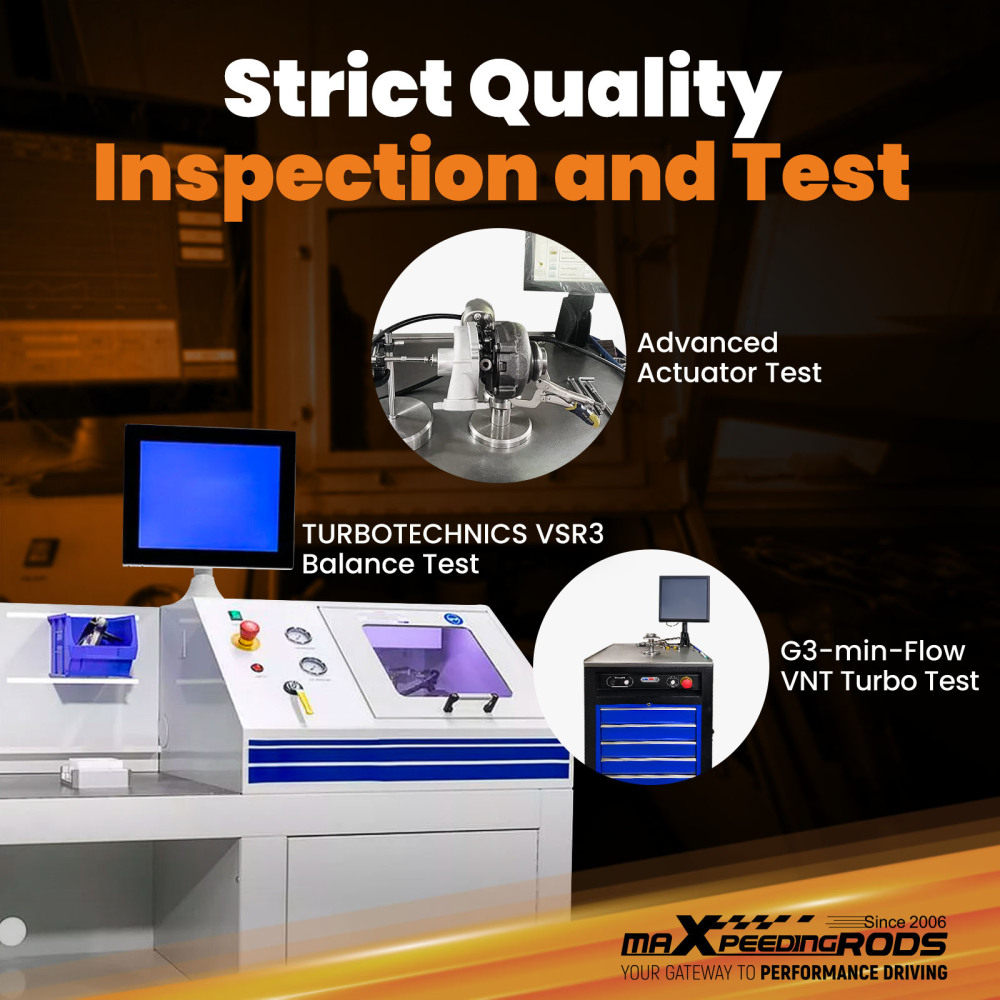

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
