Buy GT35 GT3582 Turbo compatible for Nissan Safari compatible for Patrol 4.2L TD422.5 64mm Intercooler Pipe-Maxpeedingrods performance auto parts for sale

GT35 GT3582 Turbo compatible for Nissan Safari compatible for Patrol 4.2L TD422.5 64mm Intercooler Pipe

( 0 reviews )

Item Number

Stock

Quantity:

MORE OPTIONS

SHOW MORE SHOW LESS

Add to wishlist
Add to compare

We Accept

MORE OPTIONS

Combination offer

Notice:

Pick up service is not available.

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

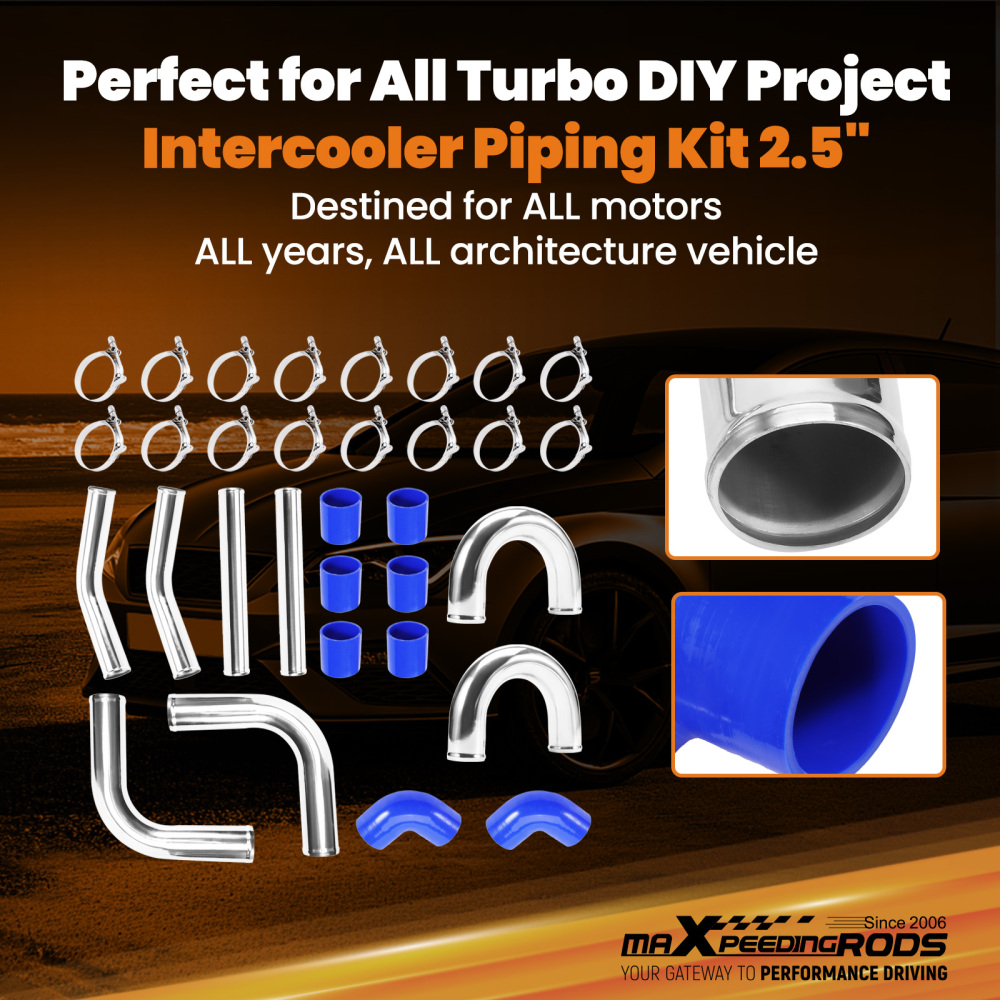

2.5" 64mm Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.

Application

Perfect for all 4/6 cylinder and 3.0L-6.0L engines

Specification

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm

Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Wastegate:Without Wastegate
Oil feed/inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: Brand New
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

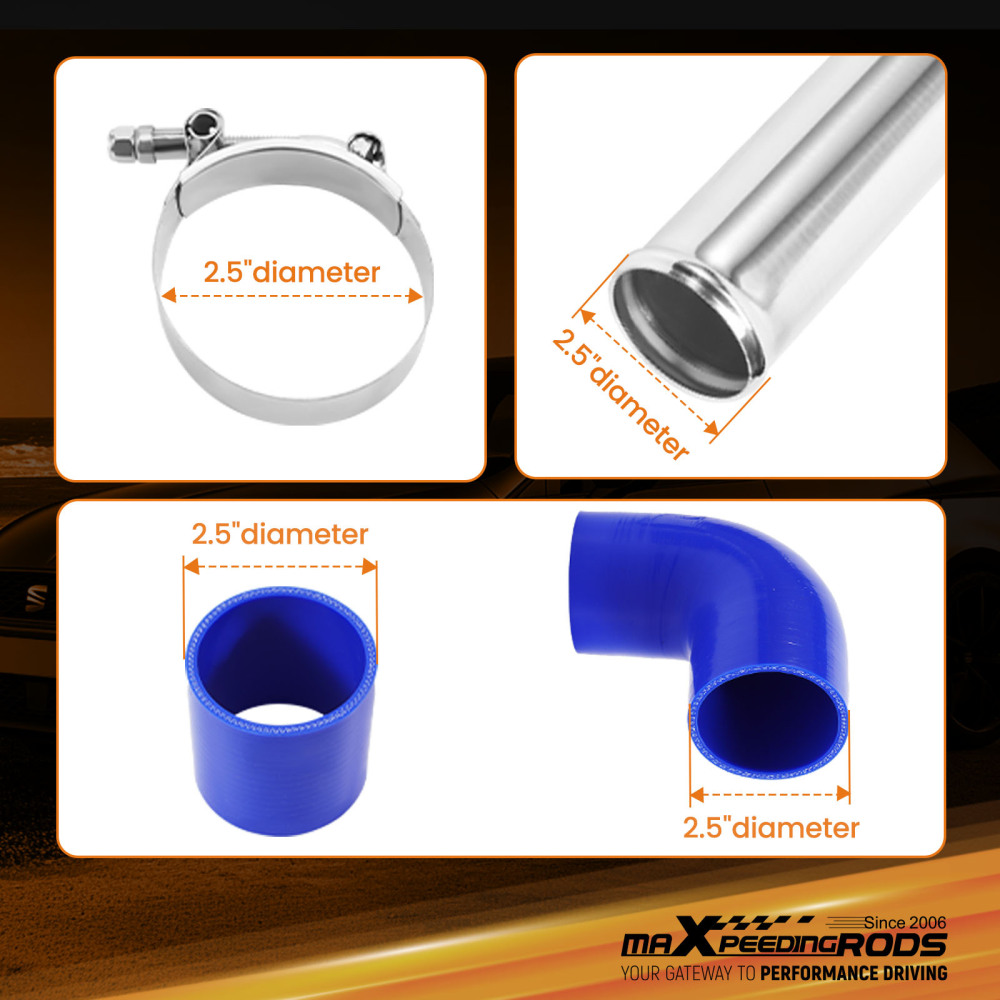

Piping Pipe Kit

Pipe Thickness: 1.8mm

Pipe length: 18''

brand new Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

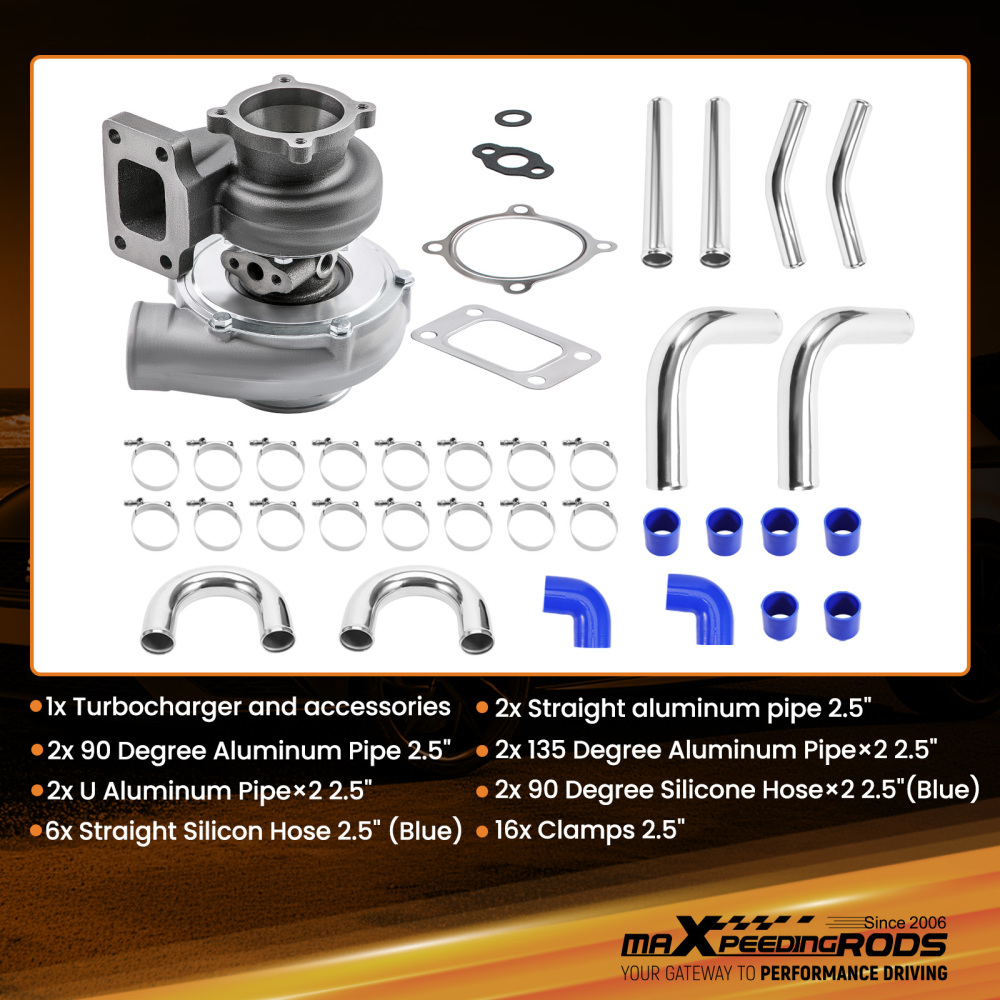

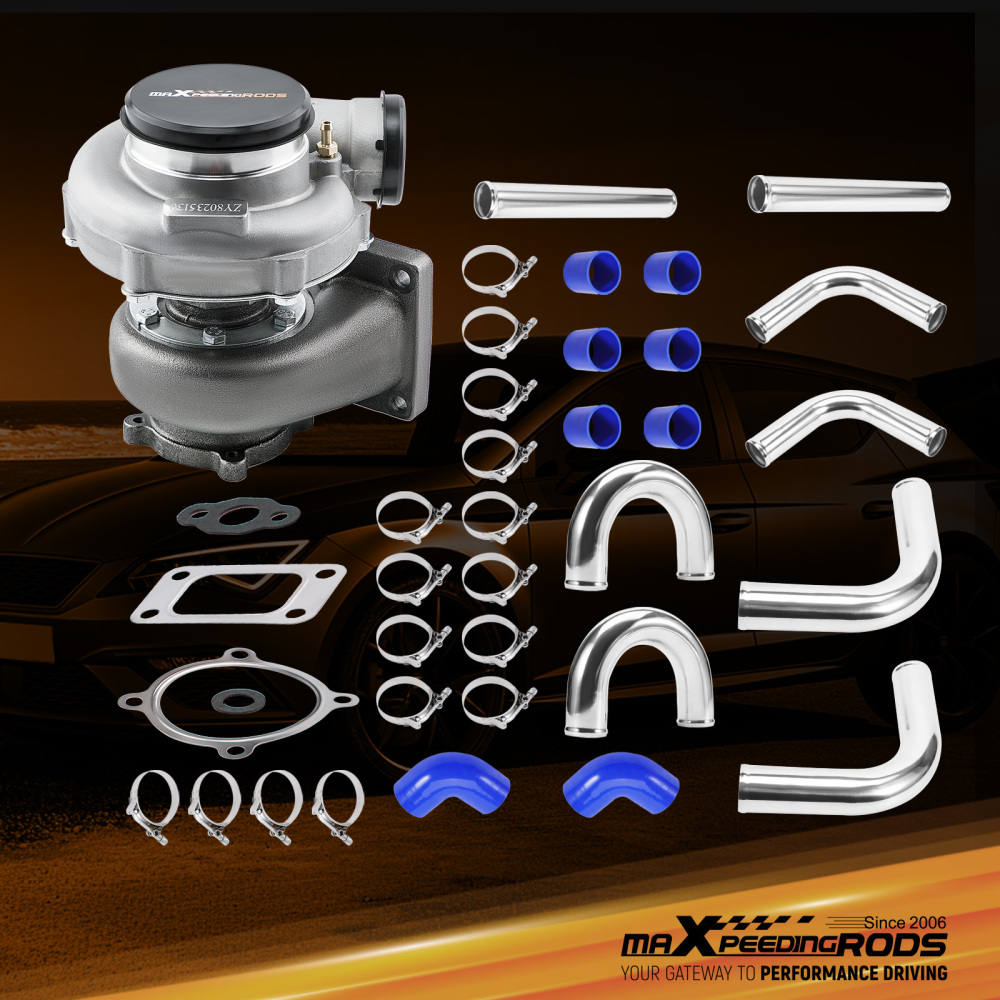

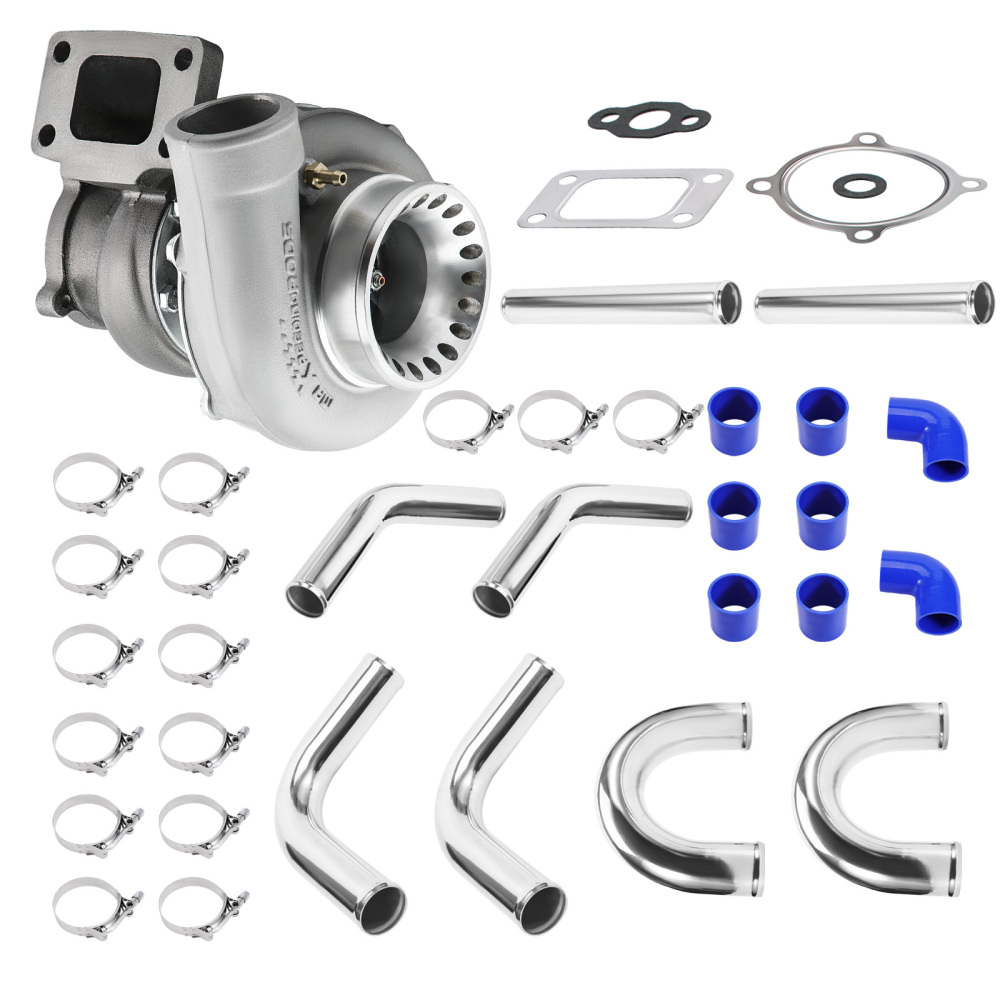

Package Including

2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

1x Turbo and gaskets

Condition

Brand New

Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
