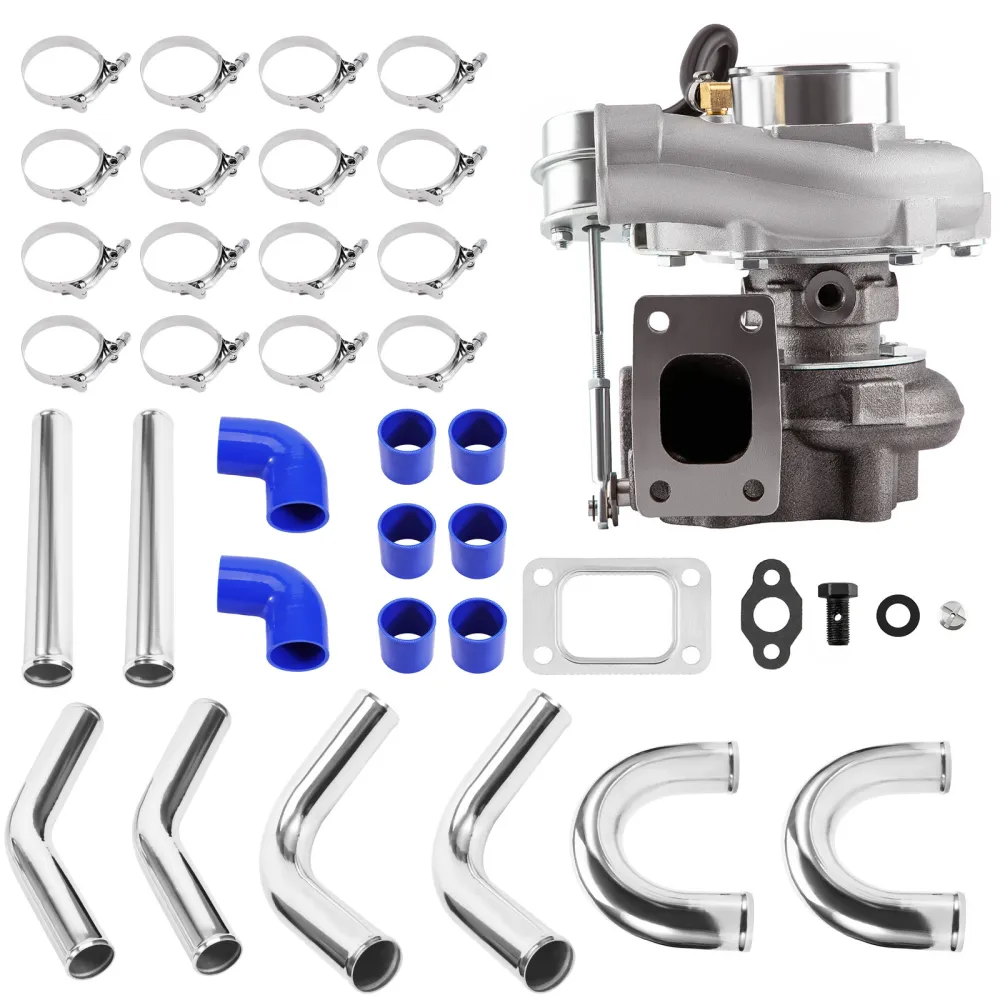

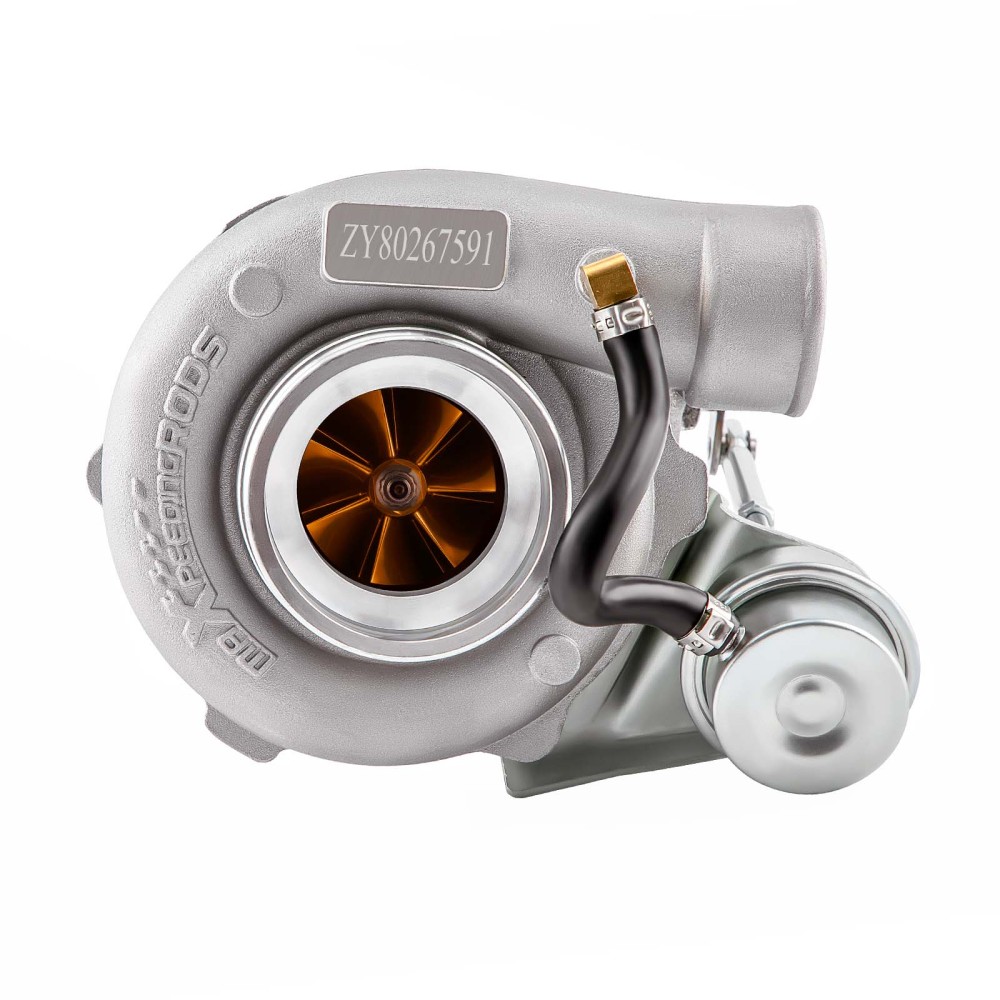

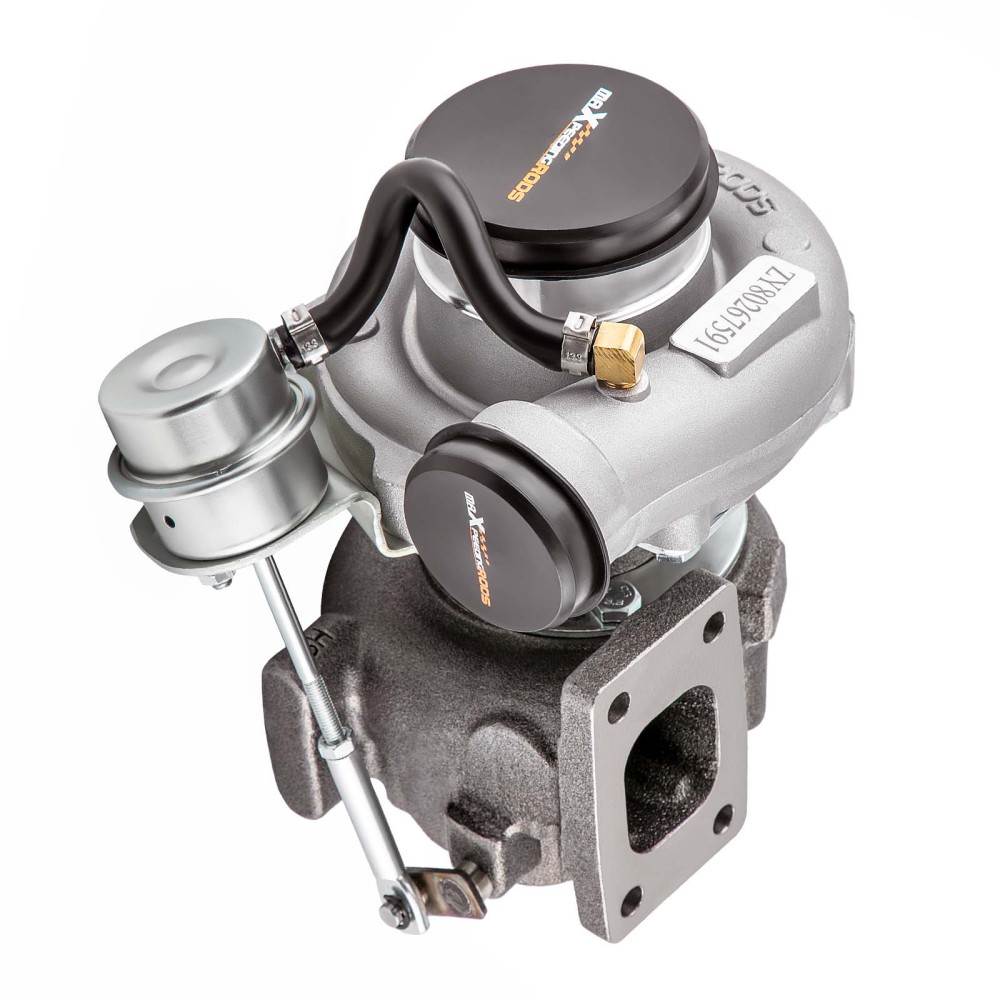

Billet Universal T25 T28 GT2871 Turbo +2.5 64mm Intercooler Piping Blue Hose

Street T25 T28 GT25 GT28 GT2860 GT2871 Turbocharger

Application:

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine, for all 4 cylinder engine

Specification:

Exhaust Inlet Flange: Standard T25 Flange
Exhaust Outlet  Flange: 5-Bolt
Turbine Side:
Turbine Trim: 76.3
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Side:
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Thrust Bearing: 270 Degrees

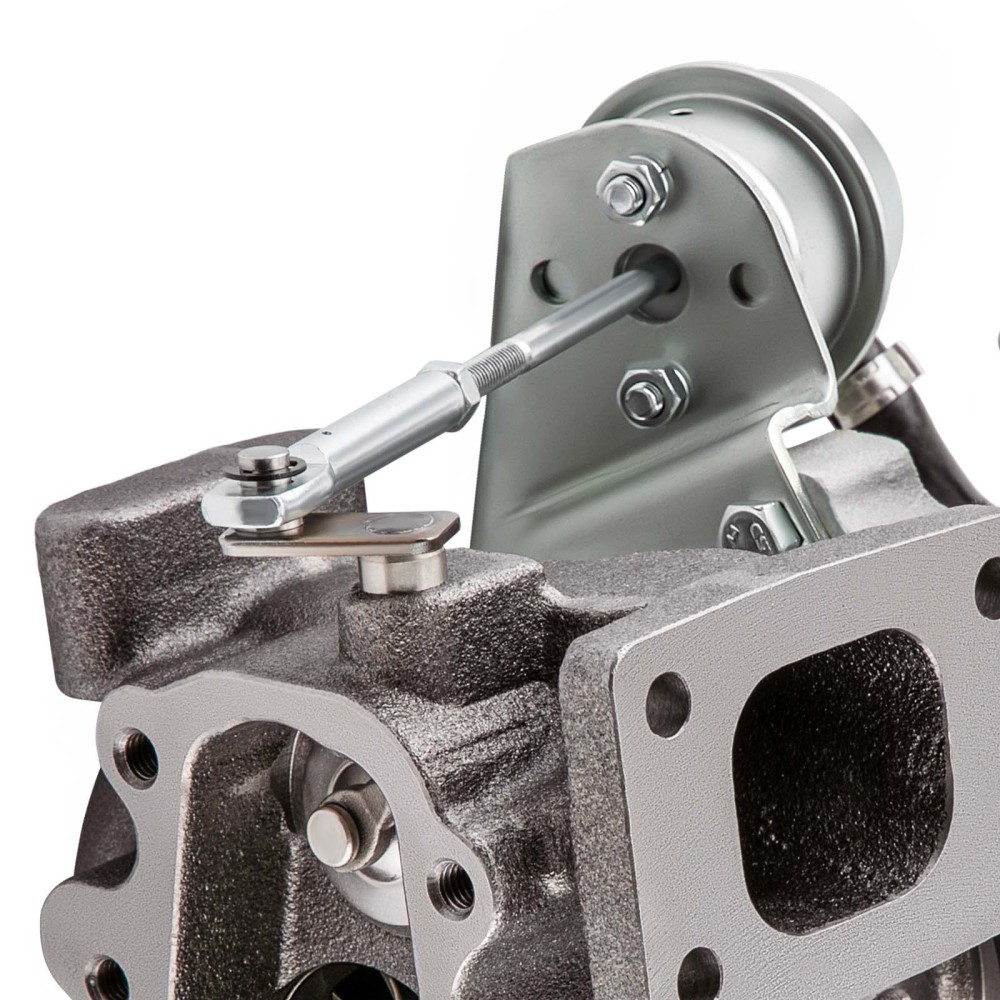

Wastegate: with Wastegate
Oil Restrictor: Yes
Oil Restrictor Size: inside diameter 2mm
Oil Feed Size: 12mm
Oil Inlet: M12*1.25
Oil Drain Size: 14mm

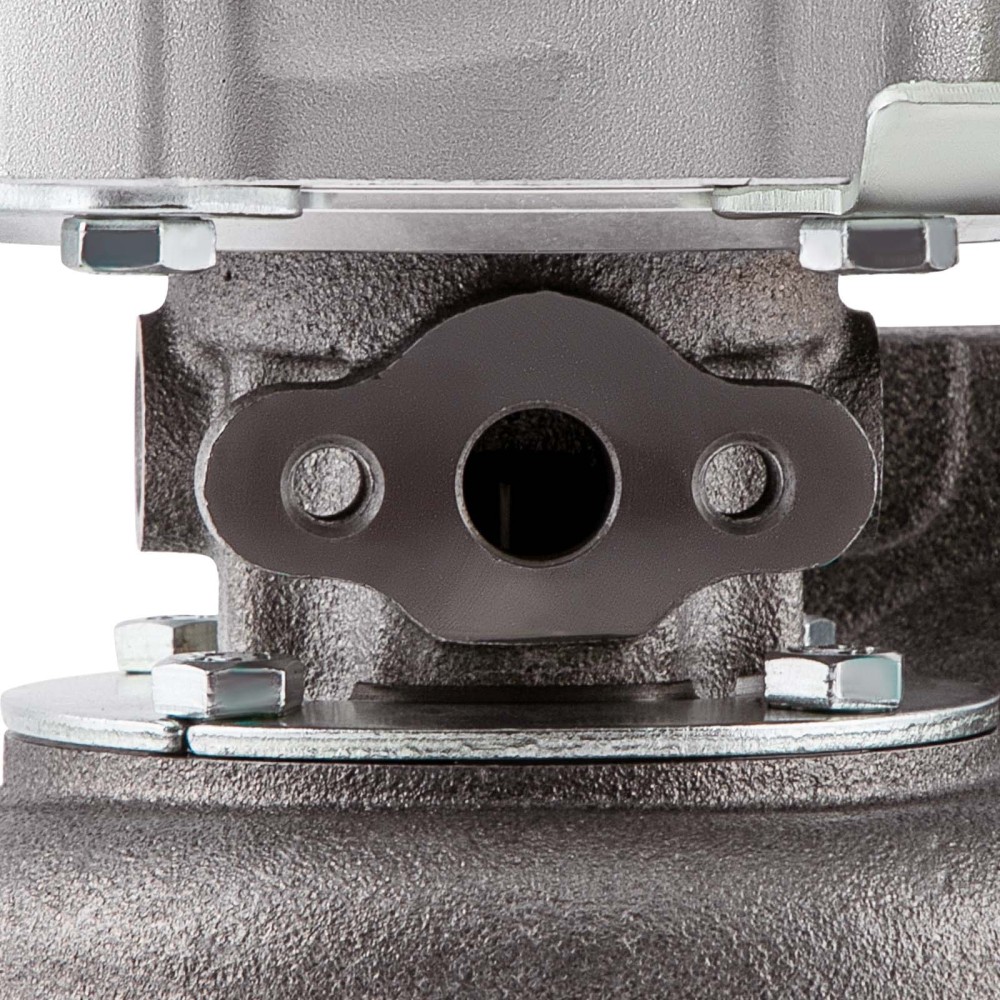

Oil Outlet: M14 & 2*M8*1.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New

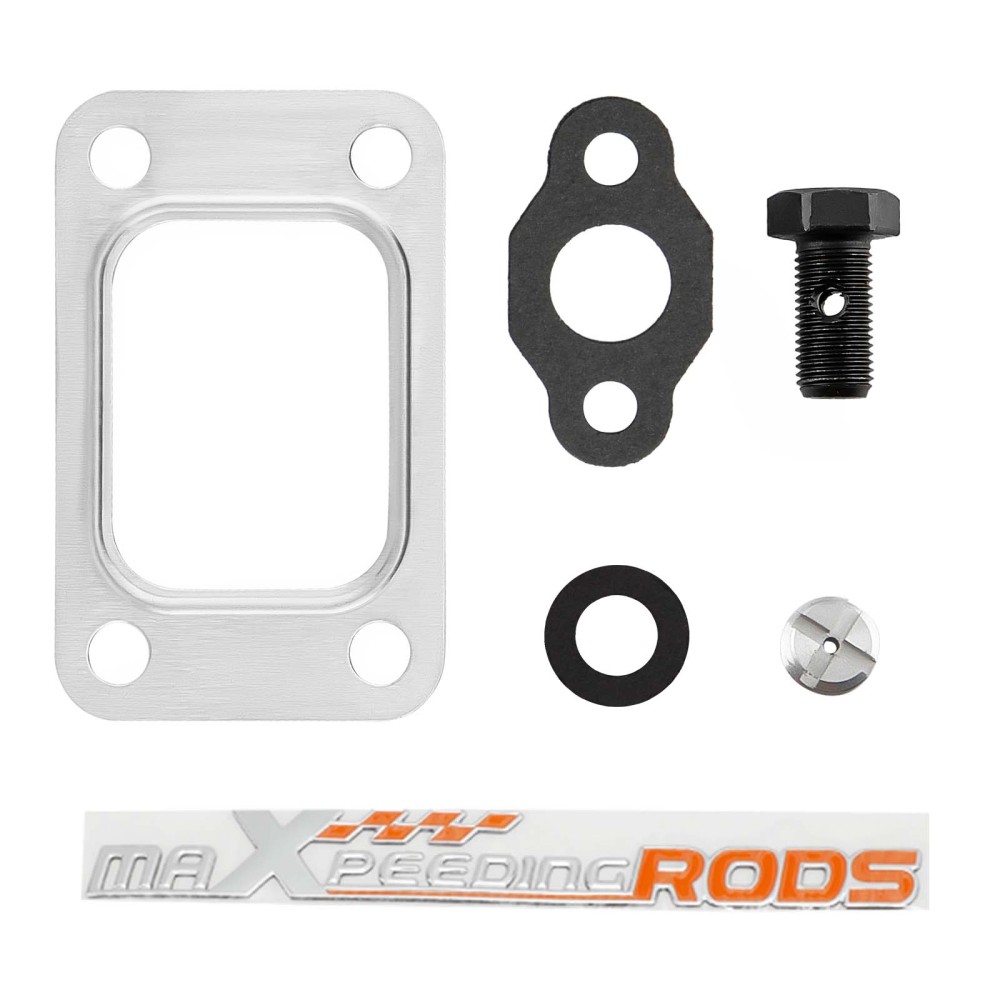

Accessories: You will get exactly as shown as picture above
package size: 26x24x22cm
package weight: 7250g

Features:

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Piping Pipe Kit

Application
Perfect for All Turbo DIY Project
INTERCOOLER PIPING PIPE KIT 2.5"
Destinated for ALL motors, ALL years, ALL architecture vehicle.
Those pipes in aluminium allow you to easily connect your intercooler from the bumper to the engine.

Specification
* 2x 90 Degree Aluminum Pipe 2.5"
* 2x Straight aluminum pipe 2.5"
* 2x 135 Degree Aluminum Pipe×2 2.5"
* 2x U Aluminum Pipe×2 2.5"
* 6x Straight Silicon Hose 2.5" (Blue )
* 2x 90 Degree Silicone Hose×2 2.5"(Blue )
* 16x Clamps 2.5"
* Pipe Thickness: 1.8mm
* Pipe length: 18''
* U Pipe distance：150mm
* Package size 44cm*50cm*17cm
* weight:6kg

Feature
1. 100% brand new  Never been tried or installed.
2. High quality of 6061 Lightweight Aluminum Piping
  Polished surface well protected cosmetic surface appearance.
  Rolled up end to prevent silicon hoses slip off
  Beaded ends: beaded ends available, very convenient for assembly or welding process.
3. Hoses are made of Premium Quality Silicone, with enhanced strength and durability
 8*Braided reinforced silicon blue hoses. High grip potential. Good flexibility, extremely resistant to the highest boost pressures.
4.Destinated for ALL motors, ALL years, ALL architecture vehicle.
 Those pipes in aluminium allow you to easily connect your intercooler from the bumper to the engine. Perfect for All Turbo DIY Project
5. Increase 65% Air Flow Comparing with other Standard Piping
