Application
Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine, for all 4 cylinder engine
Specification
Package Including
1x Turbo and gaskets
2x 90 Degree Aluminum Pipe 3"
2x Straight aluminum pipe 3"
2x 45 Degree Aluminum Pipe 3"
2x U Aluminum Pipe 3"
8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue
16x T-bolt Clamps
2x Straight aluminum pipe 3"
2x 45 Degree Aluminum Pipe 3"
2x U Aluminum Pipe 3"
8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue
16x T-bolt Clamps

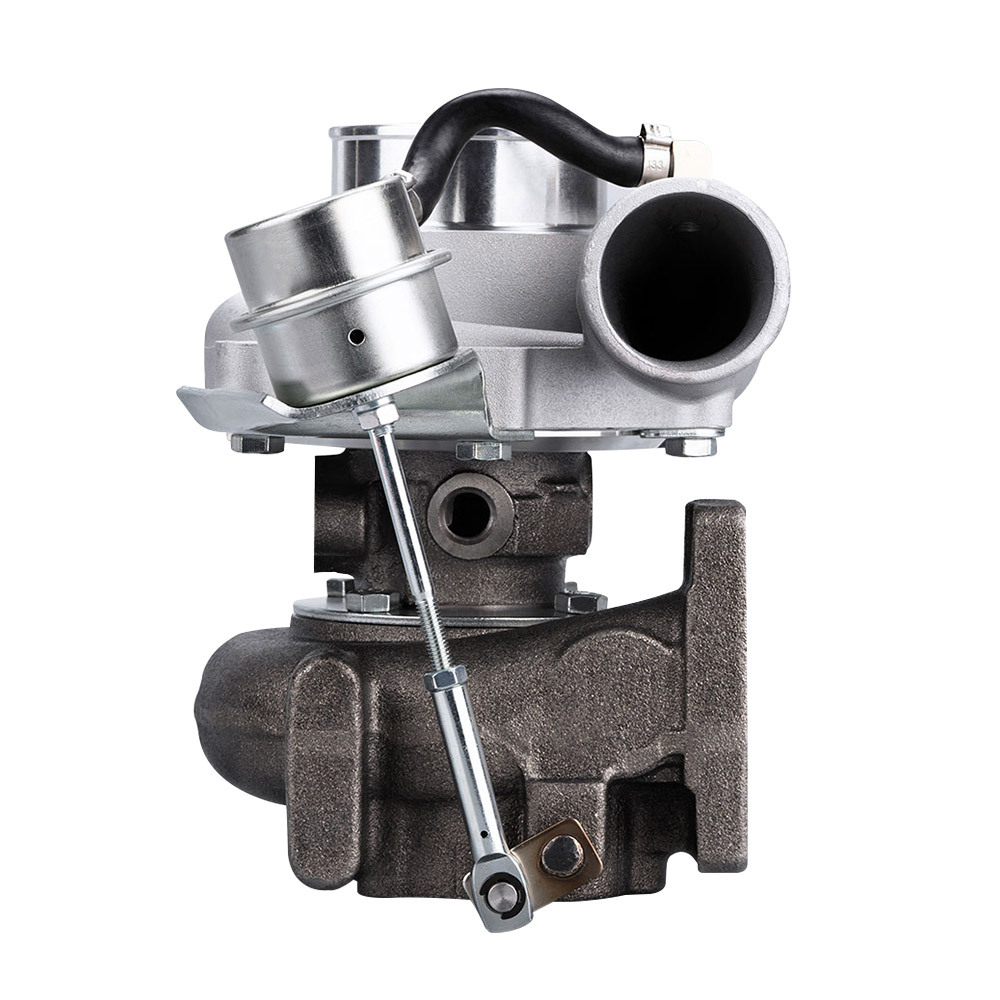

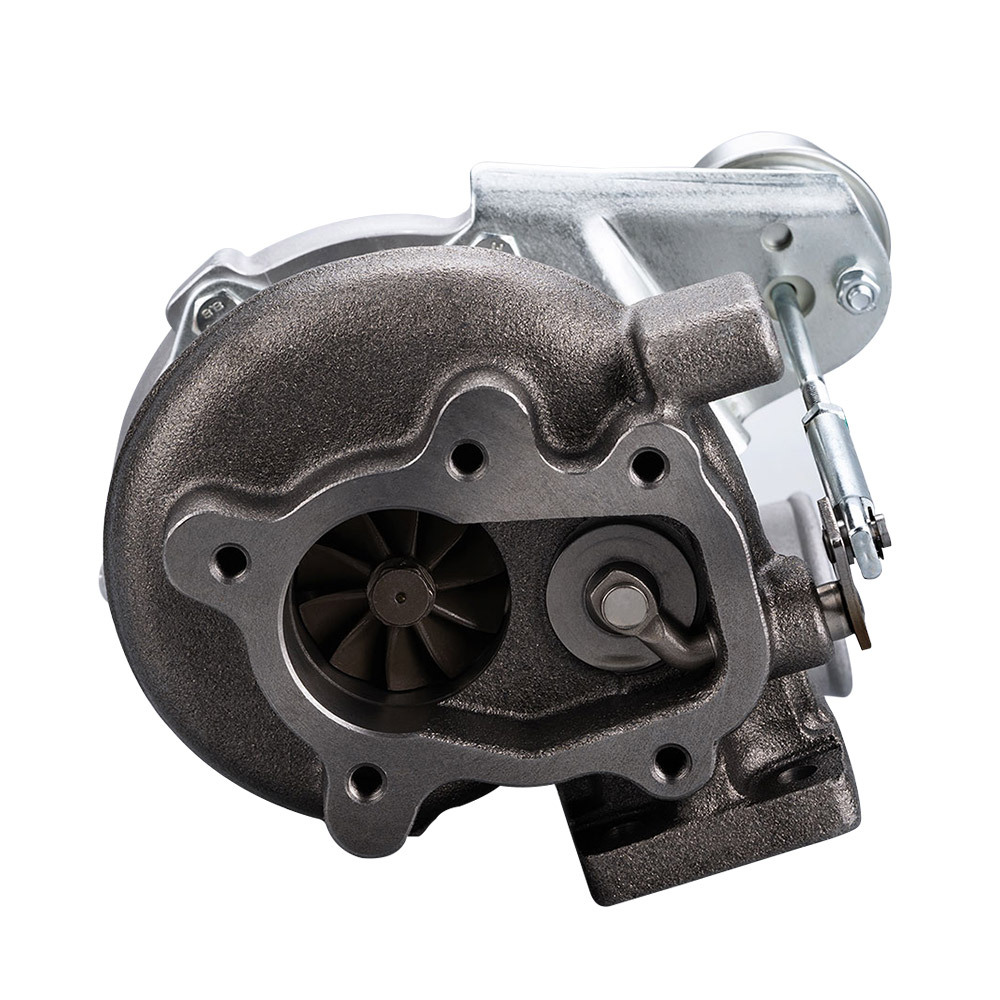

Turbo
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size:inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M18*1.5
Horse Power: Boost Horse Power up to 350BHP
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size:inside diameter 2mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M18*1.5
Horse Power: Boost Horse Power up to 350BHP

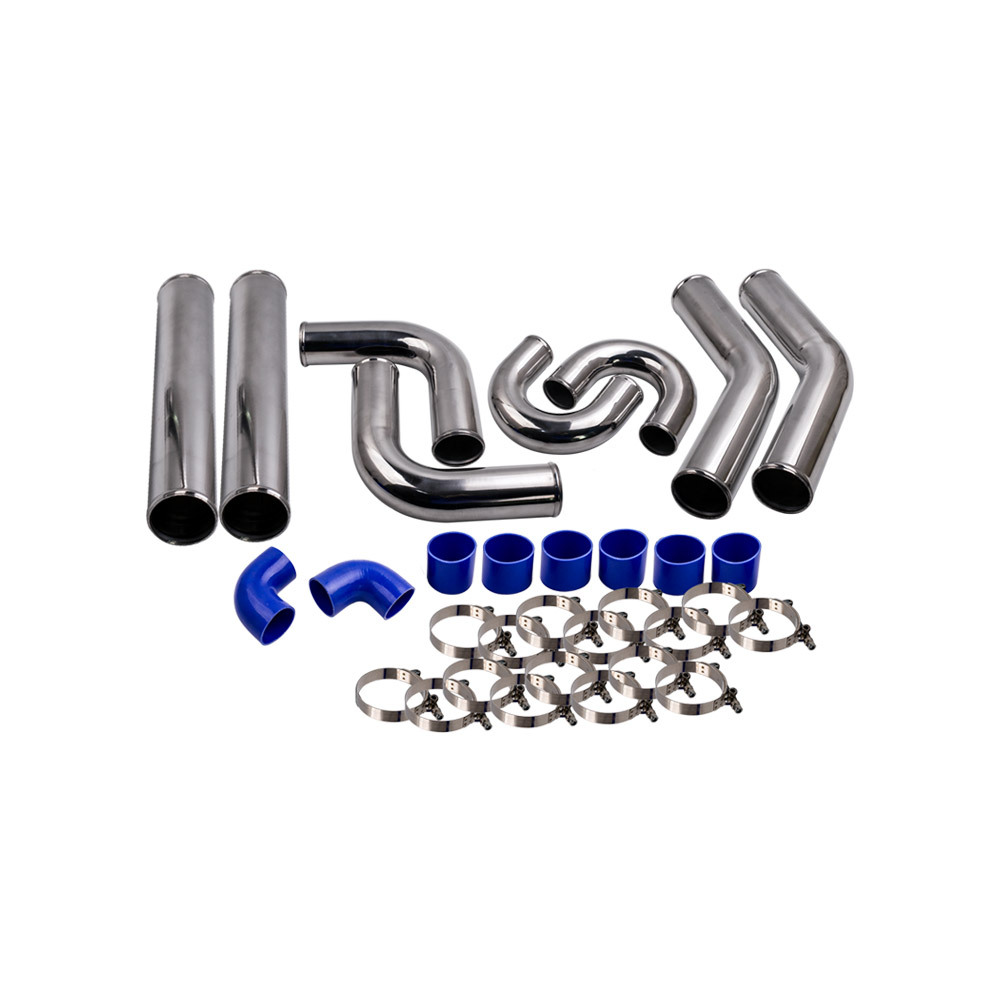

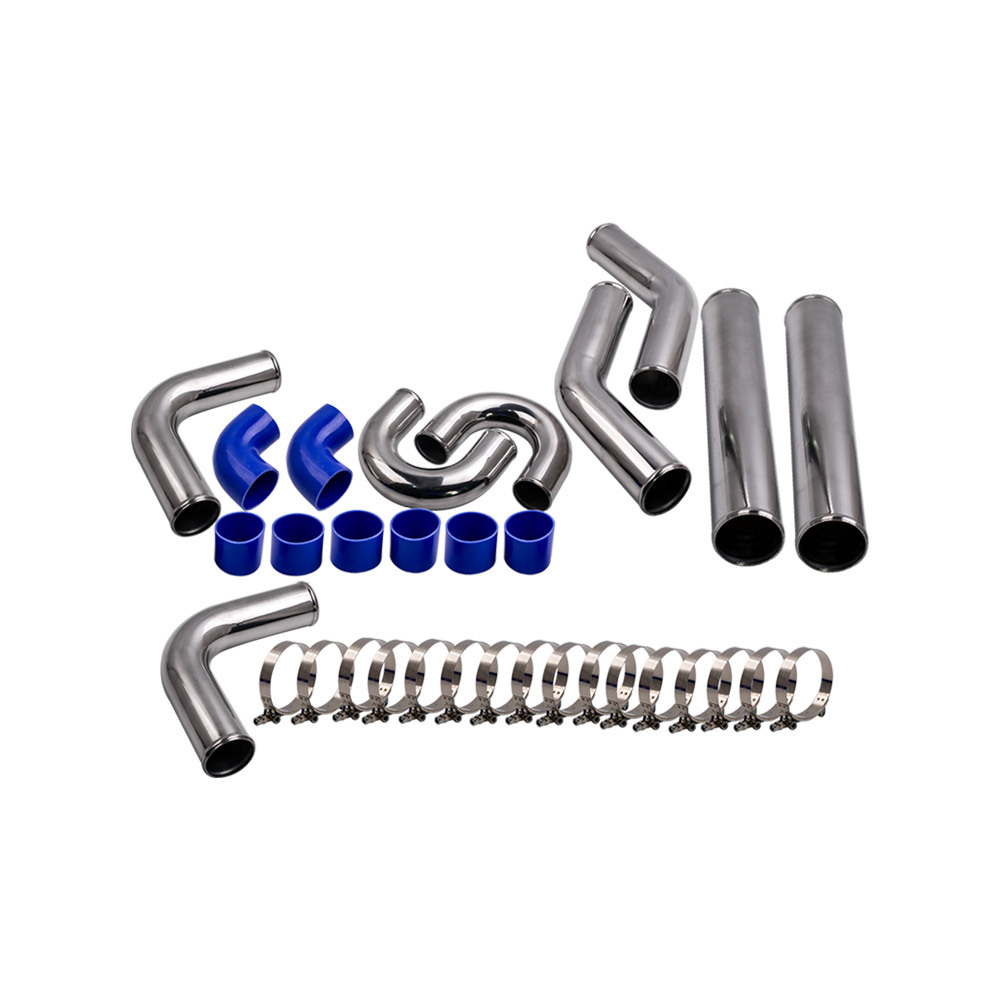

Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
Condition: New
Notice
* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
