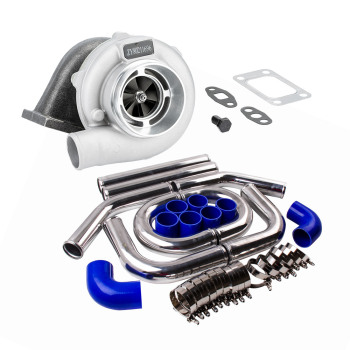

Universal 76mm 3 inch intercooler piping Kits amp; t3 t4 Turbo Oil V-Band A/R .63 .50

Universal 76mm 3 inch intercooler piping Kits amp; t3 t4 Turbo Oil V-Band A/R .63 .50

( 0 reviews )
Item Number 3002037256
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Application

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

*Note:

1. Please confirm that there is enough space in your car to install this turbo before purchasing.

2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Specification

Turbo
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 73
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 55
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: Yes

Piping Pipe Kit
Pipe length: 19.68''(500mm)
New  Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

Package Including
2x 180 degrees Pipes
2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes
8x 3" inch Straight Couplers
16x T-bolt Clamps
Turbo and gaskets

Notice

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
