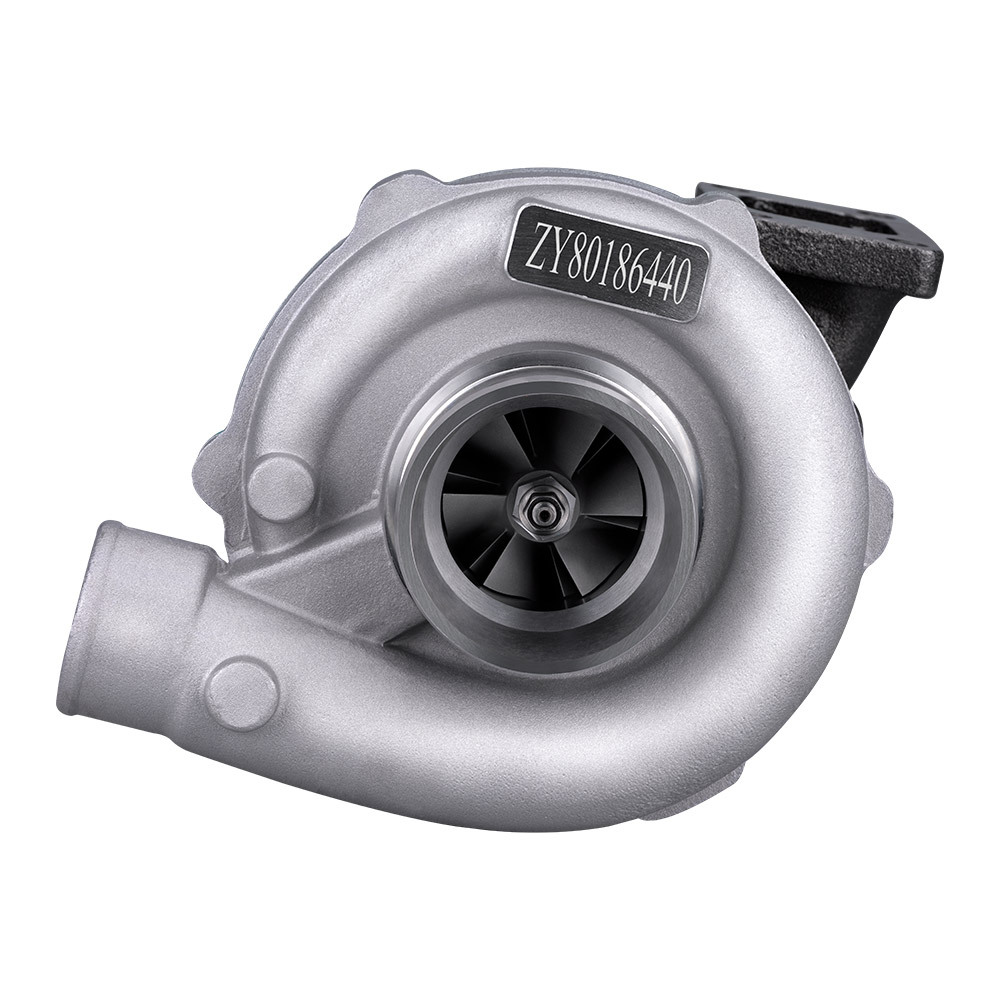

T04E T3/T4 .63A/R 57 Trim Turbo compatible for Charger 400+HP Boost + Oil Feed Lines gaskets

Application

Notice:Please confirm that your car's displacement is between 1.5-2.5L .Please check the size before purchasing and make sure that your car has enough space to install this turbo.

This item fits: Universal Application.

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

boost pressures are 7psi(.5 Bar) to 18psi(1.2 Bar)

Specification

Exhaust (Turbo Manifold) Flange    T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange    Standard T3 5 bolt downpipe flange pattern
Cooling Type    Oil Cooled
Wastegate     External wastegate
Oil Inlet: M12*1.25
Oil Outlet:2*M8*1.25
Horse Power    Boost Horse Power up to 300+HP

Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

​* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Condition: New
Bearing Type: Journal Bearing
Accessories :You will get exactly as shown in the picture above

Warranty:  one year

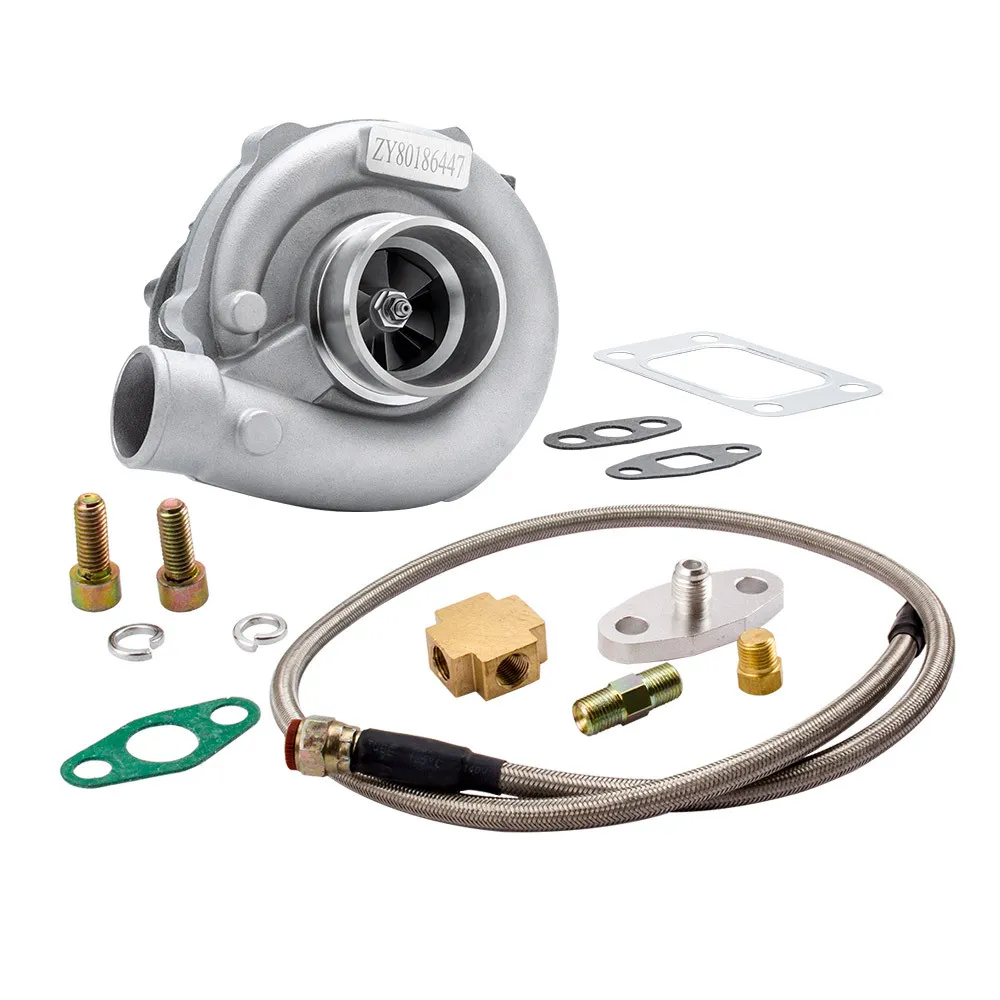

Includes:
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
Hardware as Shown in the Picture Above

Notice

* Professional installation is highly recommended (No Instruction Included).
* This is universal application turbo, so modification might be required for some vehicles.
* For any needs please contact us.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
