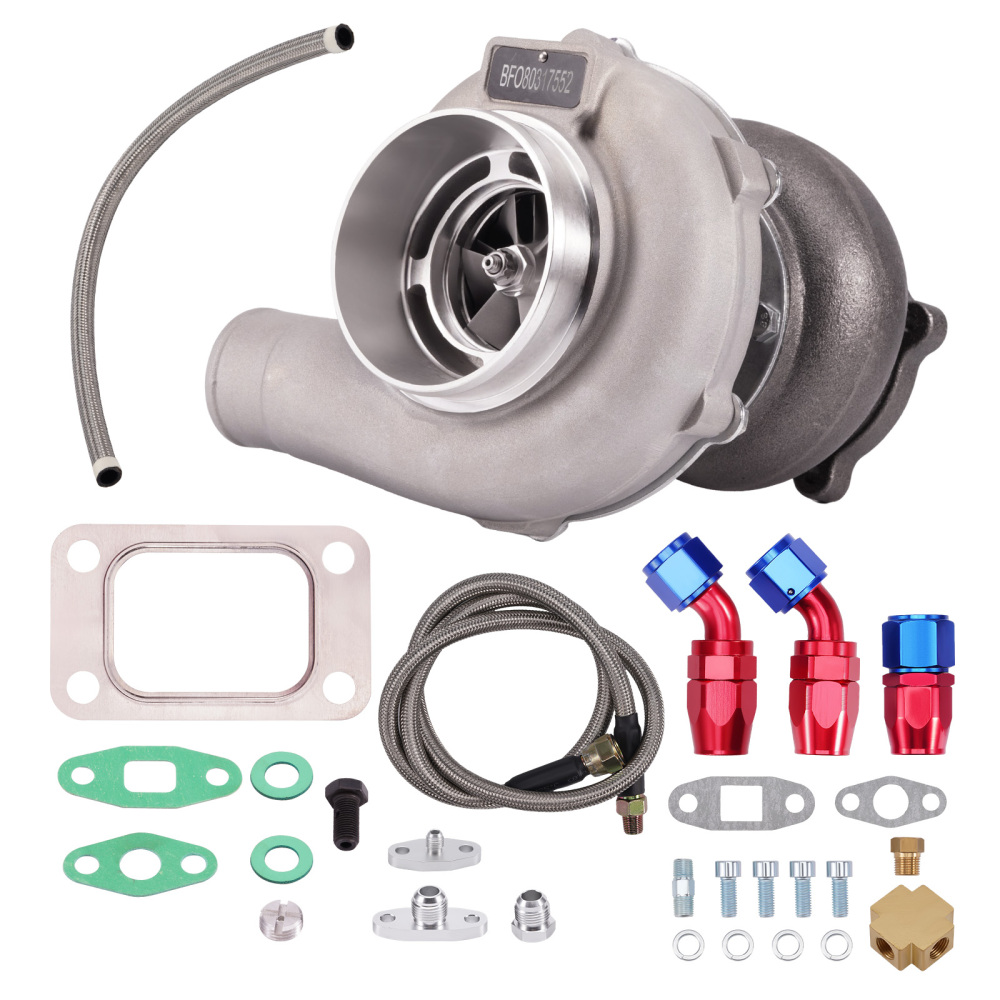

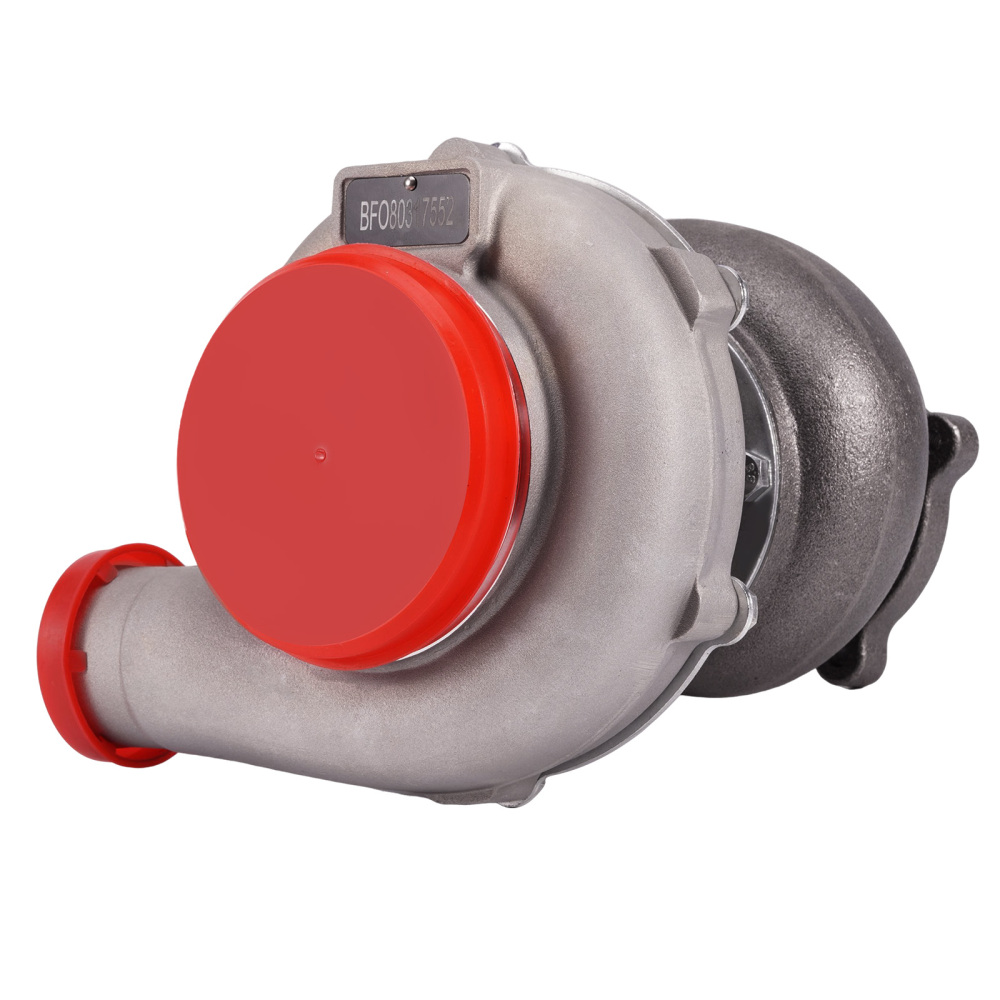

GT3076 GT30 GT3037 Turbocharger 500+HP T3 Turbo Kit Oil Drain Return / Feed Line

Notice:

Pick up service is not available.

Application
perfect for all 4/6 cyl 2.5L-3.0L engine
Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil

Specification

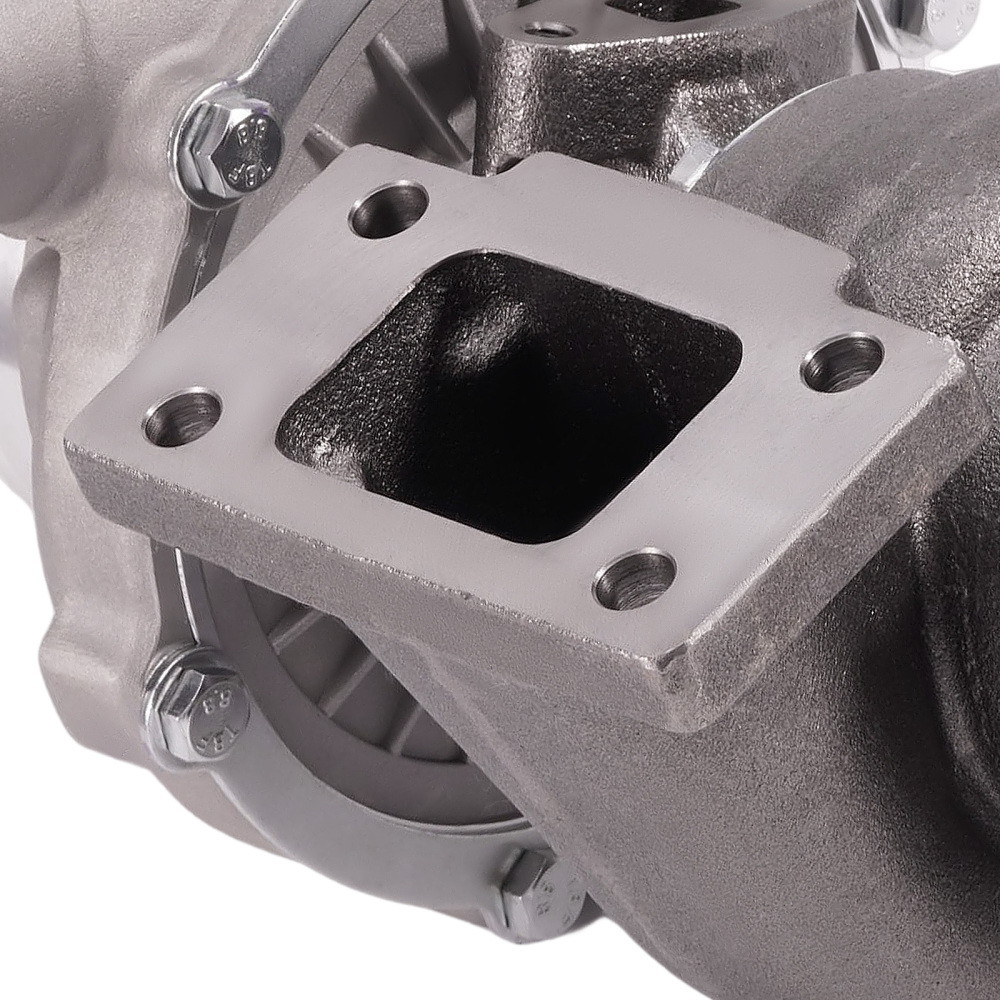

Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange

Exhaust (Downpipe) Flange: 4 Bolt

Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: No

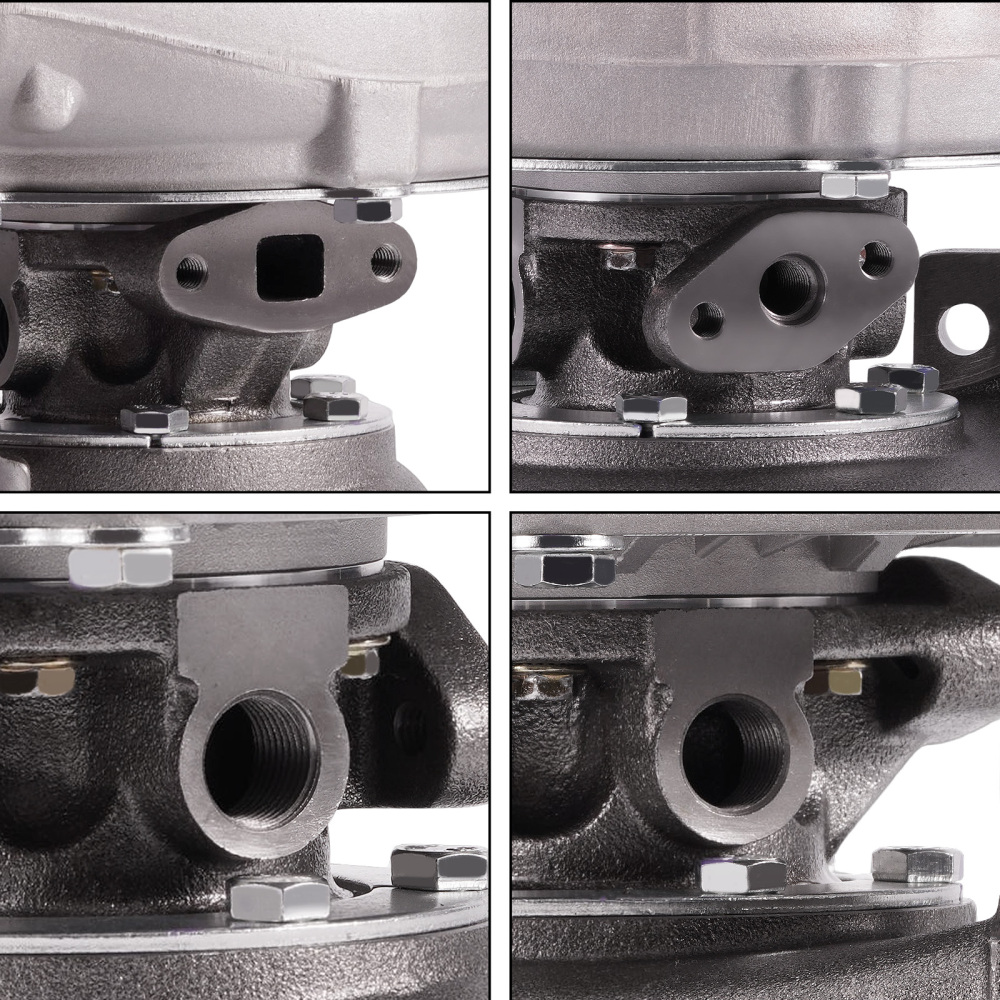

* Oil Return Line: Length: 550mm || Inner Diameter: 21mm
​* OIL Feed Line: Length: 1000mm || Inner Diameter: 14mm
* Notes  This is a universal oil line kit. Not all the component parts will be directly bolt on your car.

 You may still need some accessaries of your OEM oil line kit.

Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us:
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
