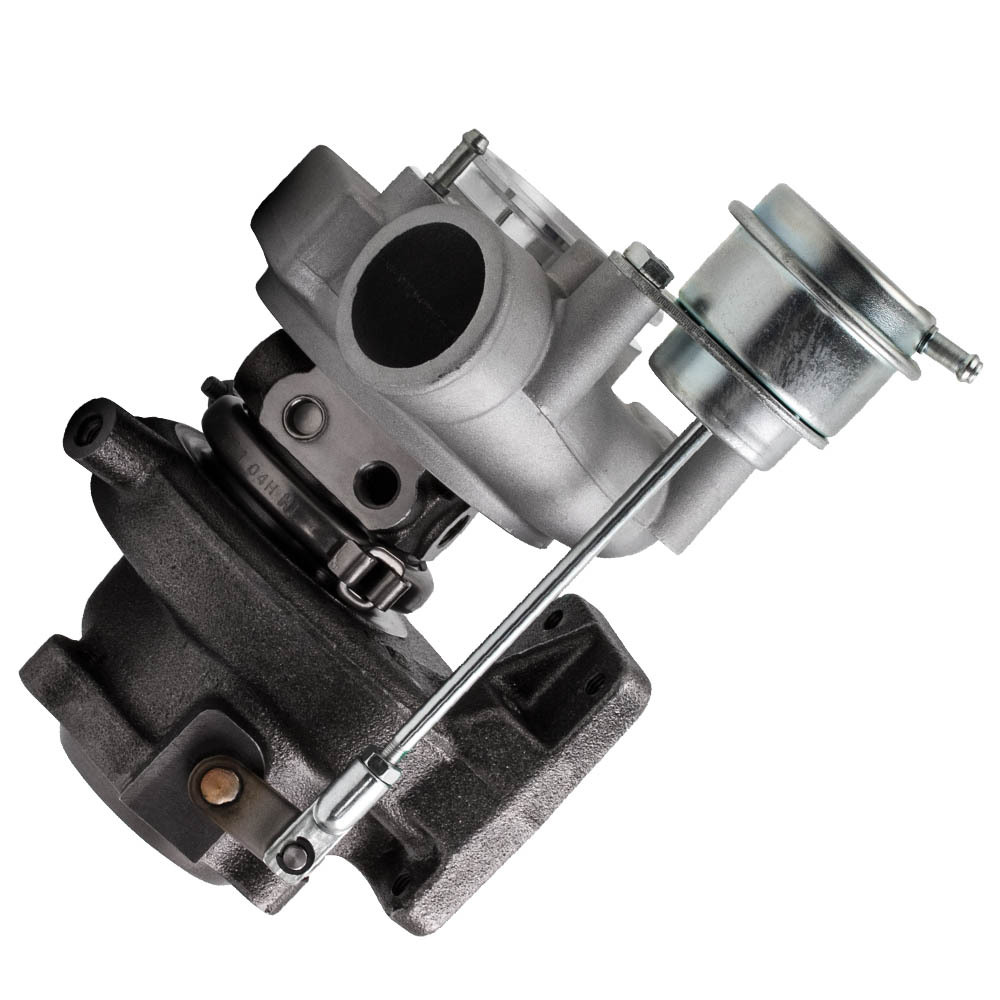

Compatible for Saab 9-3 9-5 TD04HL-15T 99-05 49189-01800 Turbo Charger Turbocharger

Application

Compatible for Saab 9-3 AERO 2.3L B205R 205HP 2000-2003
Compatible for Saab 9-3 2.3L B235R 230HP 1999-
Compatible for Saab 9-5 2.3L AERO B235R 2000-2005
Compatible for Saab 9-5 2.3L B235R 230HP 2000-2006
（ it does not compatible for Saab 9-5 2006-2009 model, please double confirm your car information)

OE/Part number

49189-01800, 49189-01830，49189-01810
49189-01820, 49189-01830, 49189-01850
9172180, 55561884，55559825，55560601, 55564966
HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Turbo Model: TD04, TD04HL-15T
Cooling Type: Water+Oil Cooled
Thrust Bearings: 270 Degrees
Engine Code: B235R,2.3L, 2290 compatible for ccm, 4 Cylinders
House Power：Up to 230 HP
Bearing Type: Journal Bearing
Package Size:26x 25 x 23 cm
Package Weight: 5400g
Condition: New
Accessories: You will get exactly as shown in the picture above

Feature

*Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
*Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. Quality assurance
4. High-Speed oil seal ring
5. Strict quality inspection
6. Precision clearance
*All necessary gaskets included for ease of installation

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.
3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* You may need to change your banjo bolt and other screws to install the turbocharger.
* Lacking of oil will casue turbocharger shaft play and damage , please adjust your oil pressure & make sure turbochager is fully lubricated. *Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
