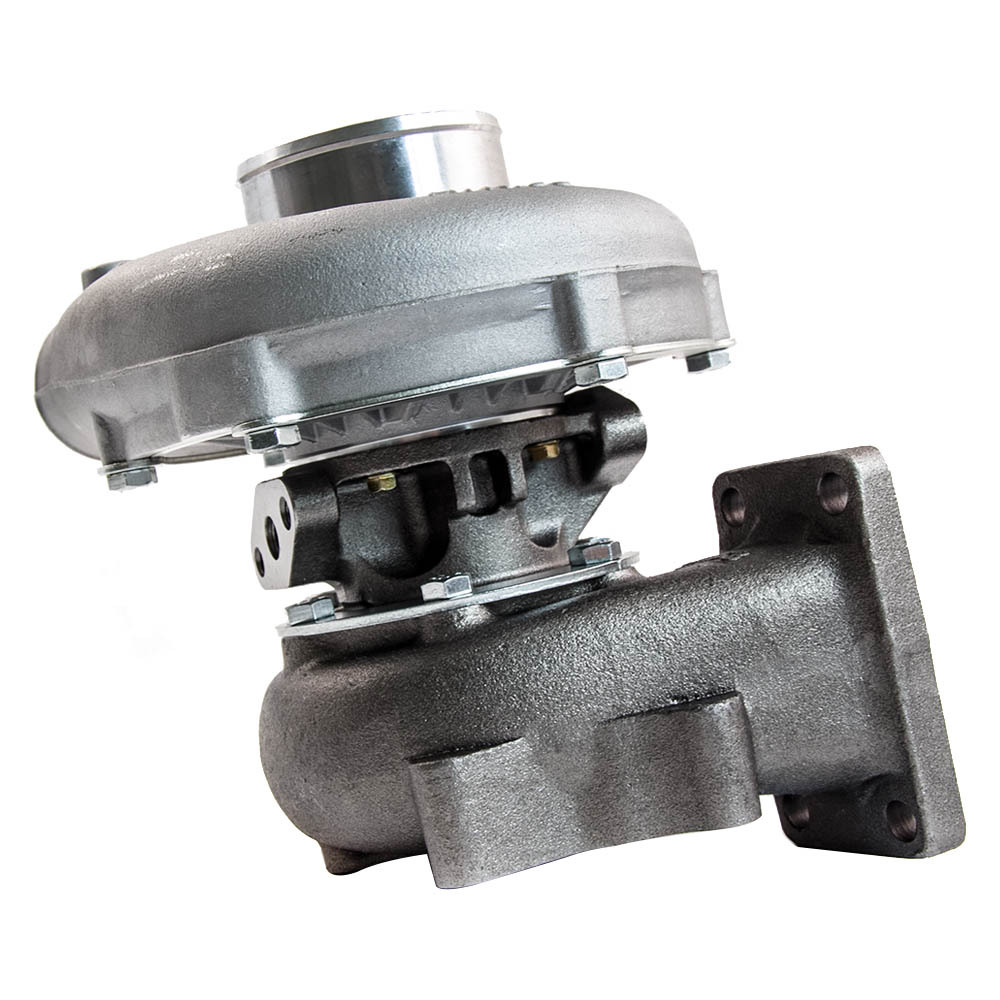

For GT30 GT3037 GT3076 Turbo Turbocharger 0.82 + Oil Drain Return Oil FEED Line CAC

Application

Perfect for all 6 / 8 cyl 3.0L-5.0L engine

Specification

Horse Power: Capable of Boosting Horse Power up to 500HP
Cooling Type: Water + Oil Cooled
Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Exhaust (Downpipe) Flange: Standard 4-Bolt

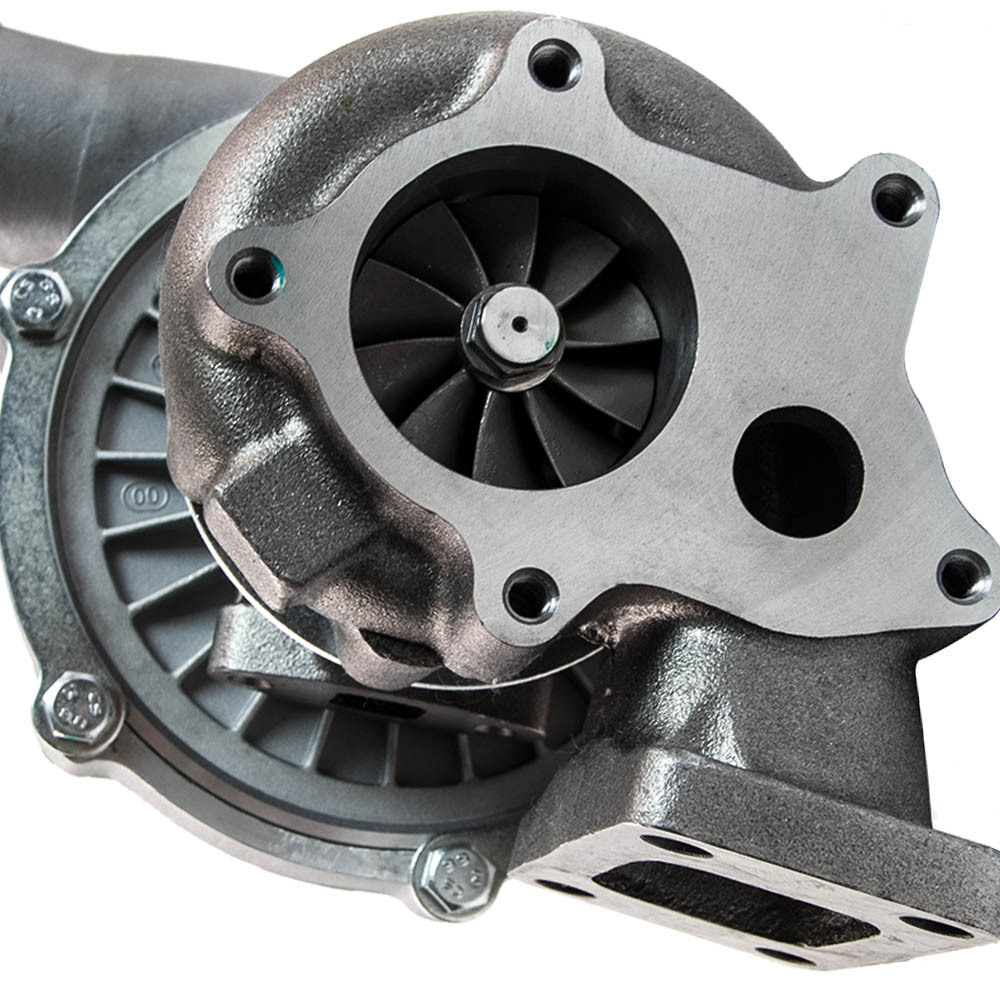

Turbine Trim: 51
Turbine Inducer Diameter: 84 mm
Turbine Exducer Diameter: 60mm
Turbine A/R: 0.82
Compressor Trim: 56
Compressor Inducer Diameter: 57mm
Compressor Exducer Diameter: 76.2 mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Warranty: one year

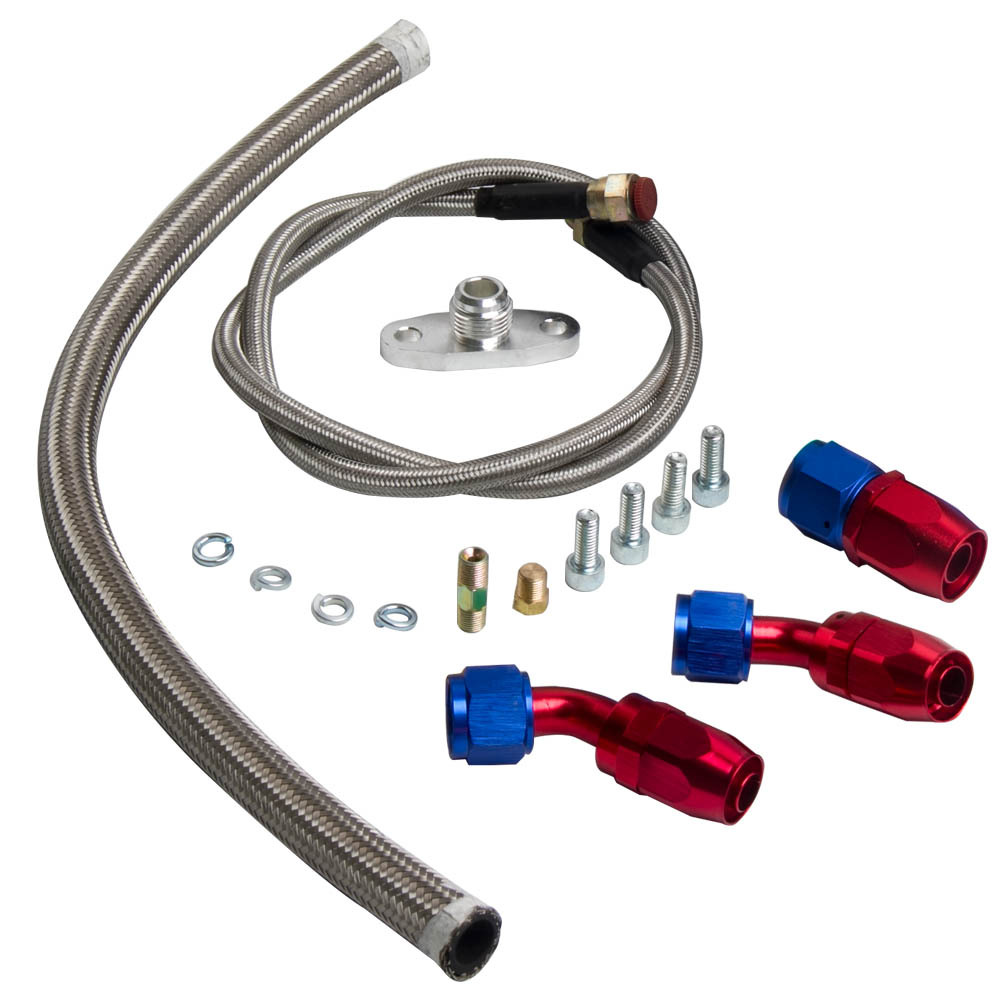

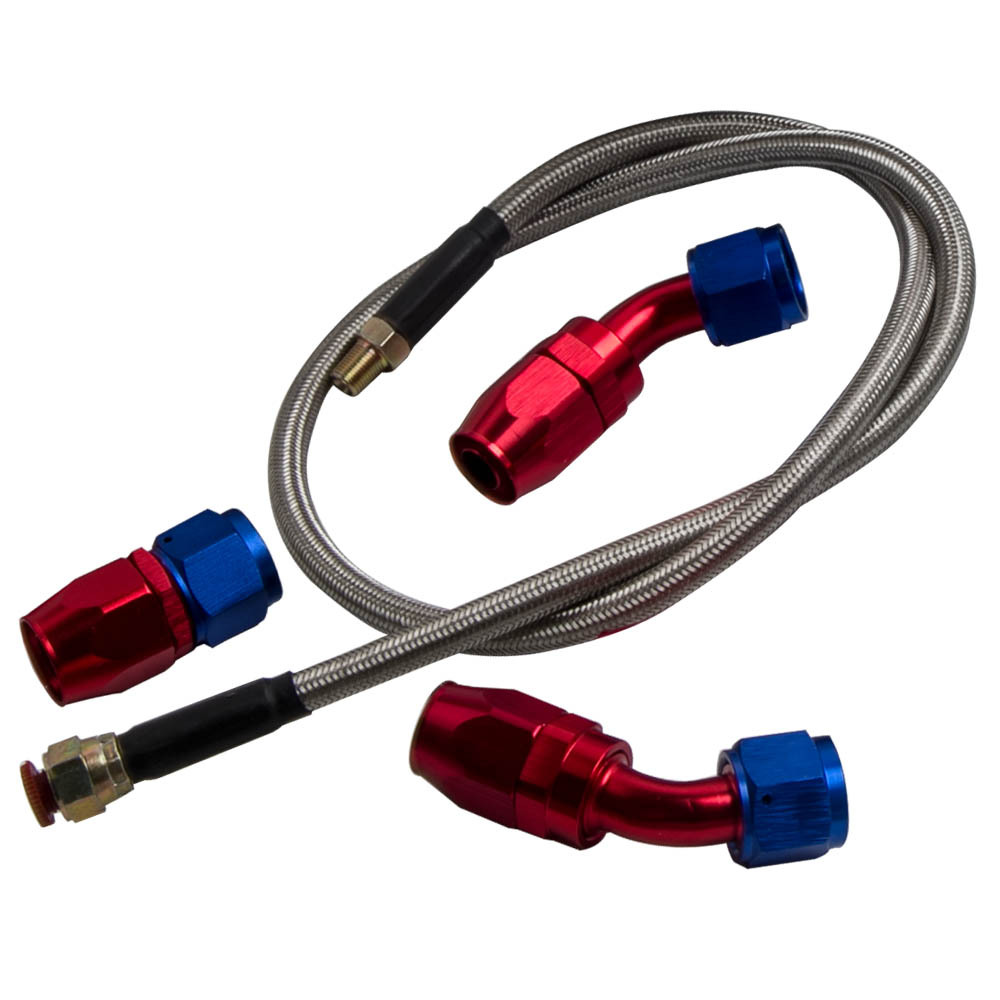

OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5

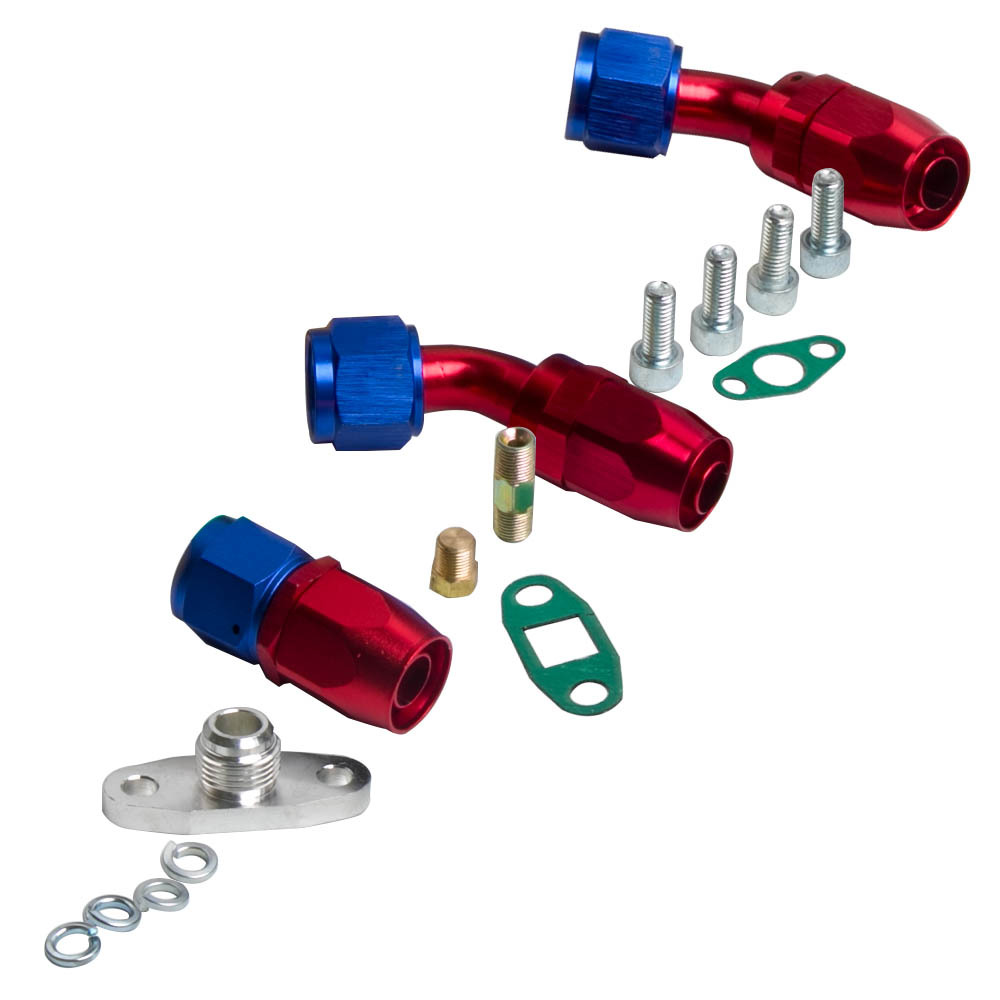

Accessories: You will get exactly as shown in the picture above
Condition: New
Warranty: one year warranty for any manufacturing defect

Notice

* Please confirm your old part number matches up with one of the part numbers above.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
