1998-2004 compatible for Subaru Legacy sedan Height Adjustable Coilover Suspension Kits Coilovers

Introduction

MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Subaru Legacy 2000-2004 BE sedan only

Specification

Top mounts: front - pillow ball top mount with camber plate
Rear - standard rubber top mount
Damping: non-adjustable
Spring rate Front: 9 kg/mm (504 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 460mm-520mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: golden

Package included

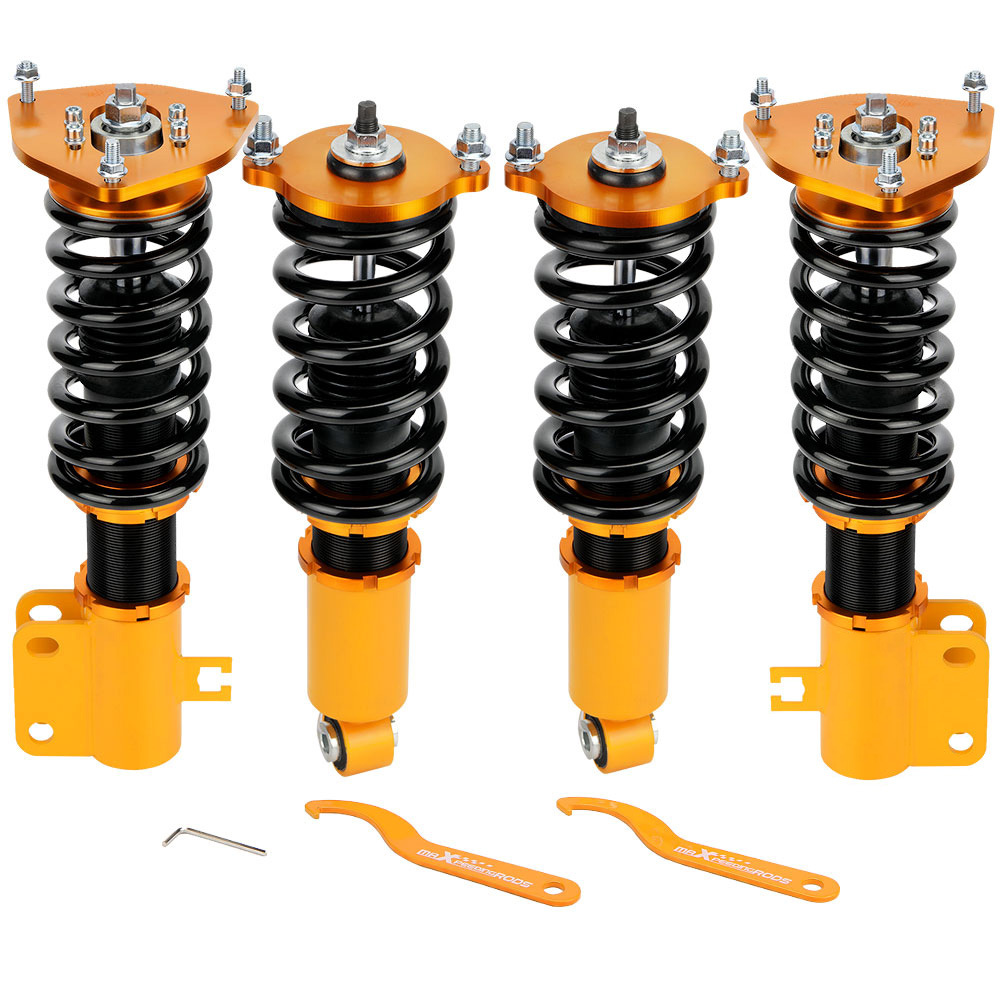

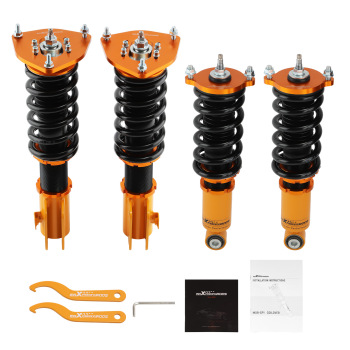

complete coilovers 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 25820g
size: 63*51*21 cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

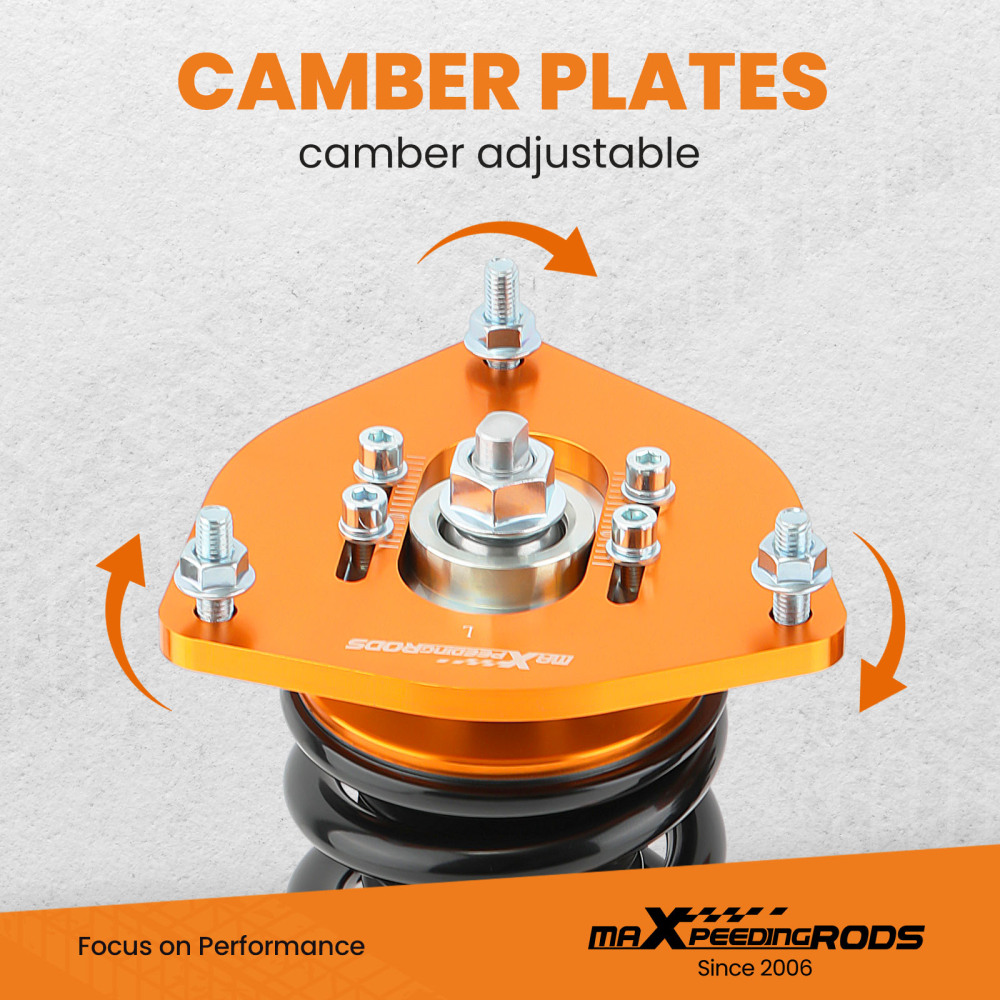

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

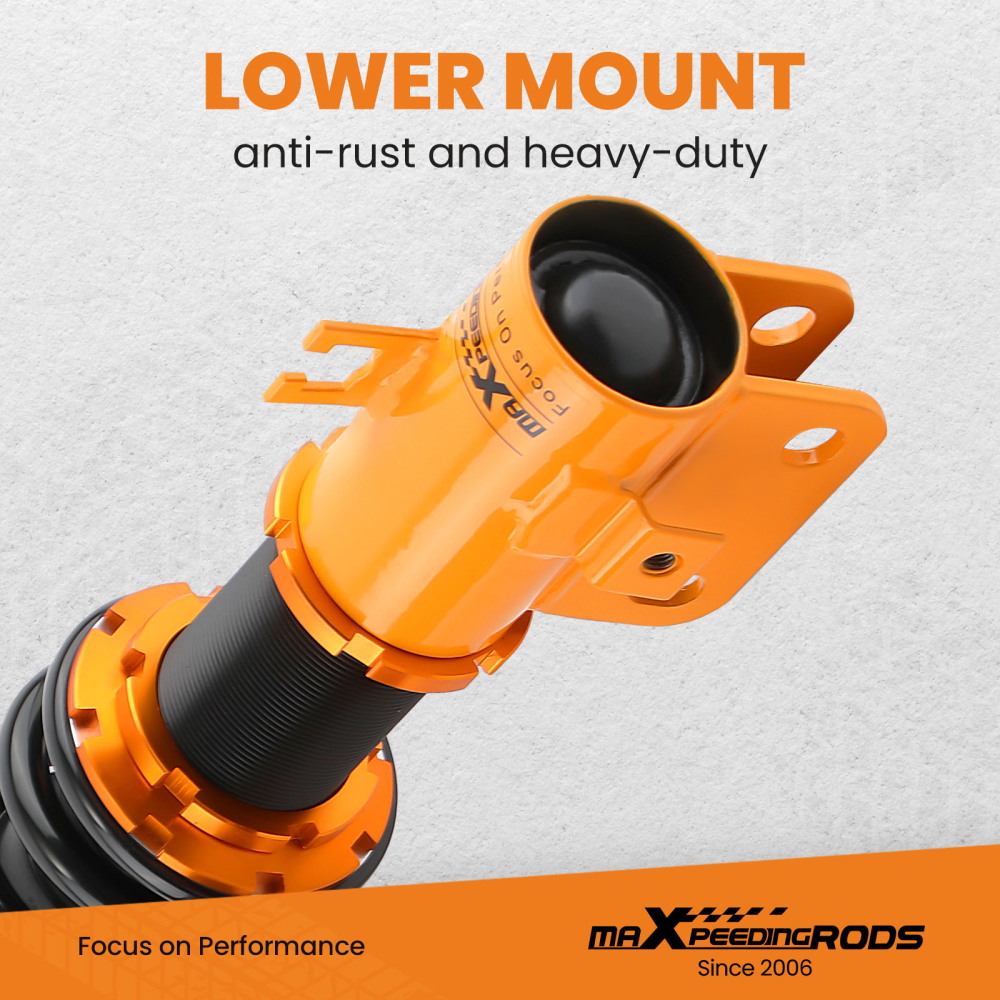

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
