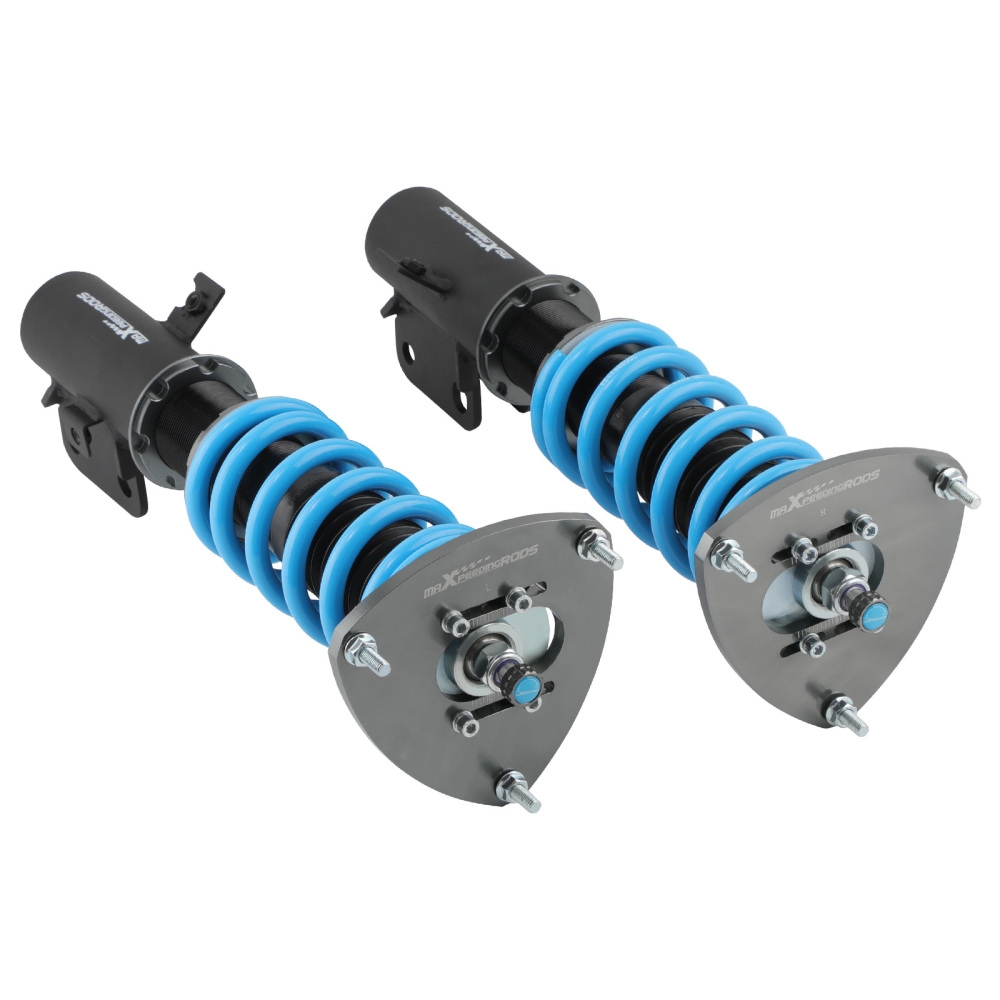

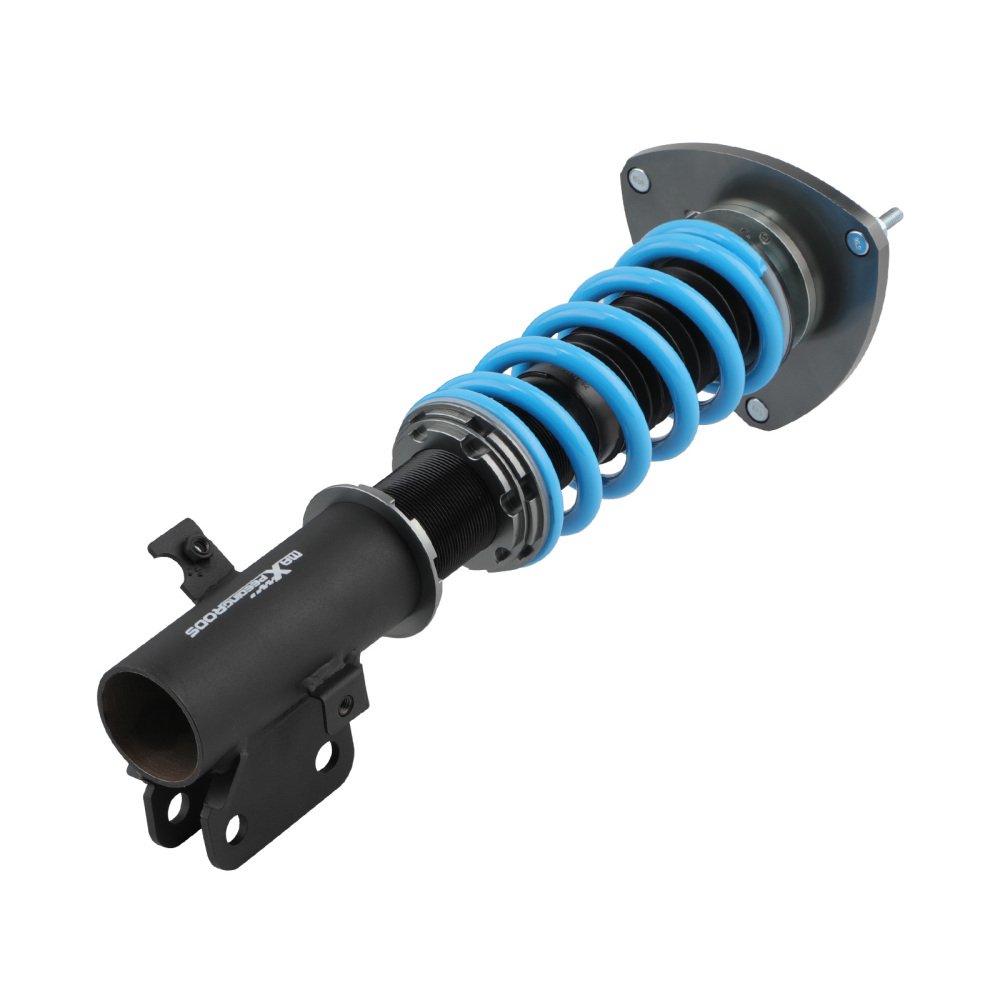

Coilovers compatible for Subaru Liberty 05-09 BL BP Chassis 24 Ways Adj. Coil Spring Strut

maXpeedingrods SP1 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle  more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.

Applications

Compatible for Subaru Legacy 2005-2009 (USA) BL9 BP9
Compatible for Subaru Legacy B4 2003.05-2009.04 (Japan) BLE BL5
Compatible for Subaru Legacy Touring Wagon 2003.05-2009.04 (Japan) BP5 BPE

Pls note Legacy is also known as Liberty in Australia

Specifications

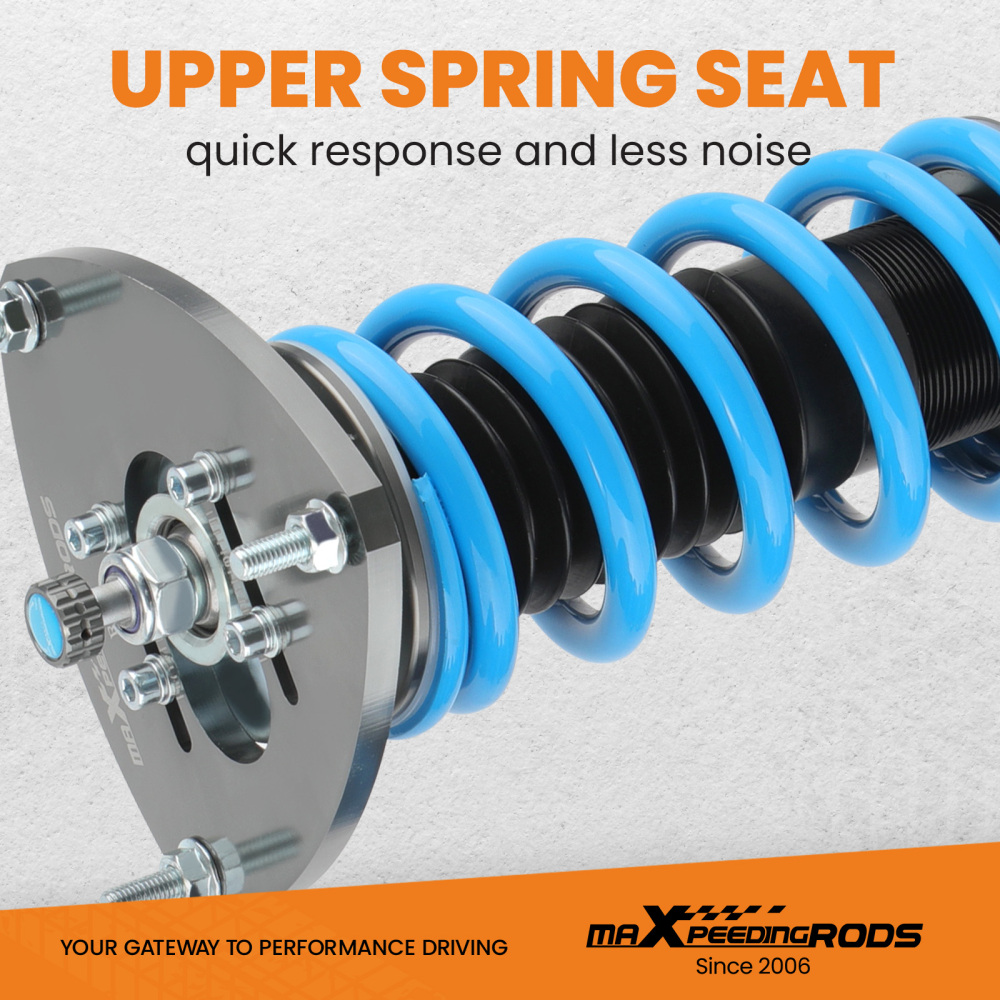

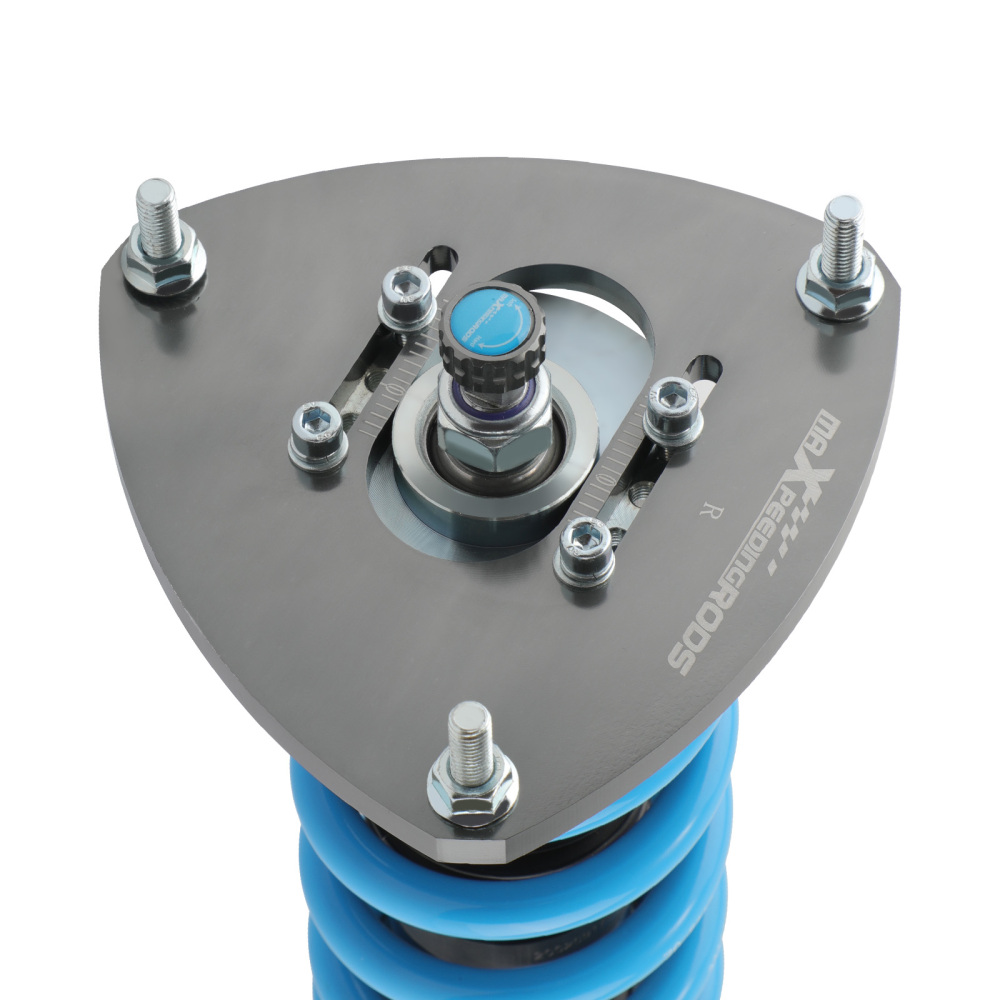

Top mounts: Front pillow ball top mount with camber plate
Damping: 24 levels rebound damping adjustable
Adjustable camber plate: Front only
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 200mm
Spring length Rear: 190mm

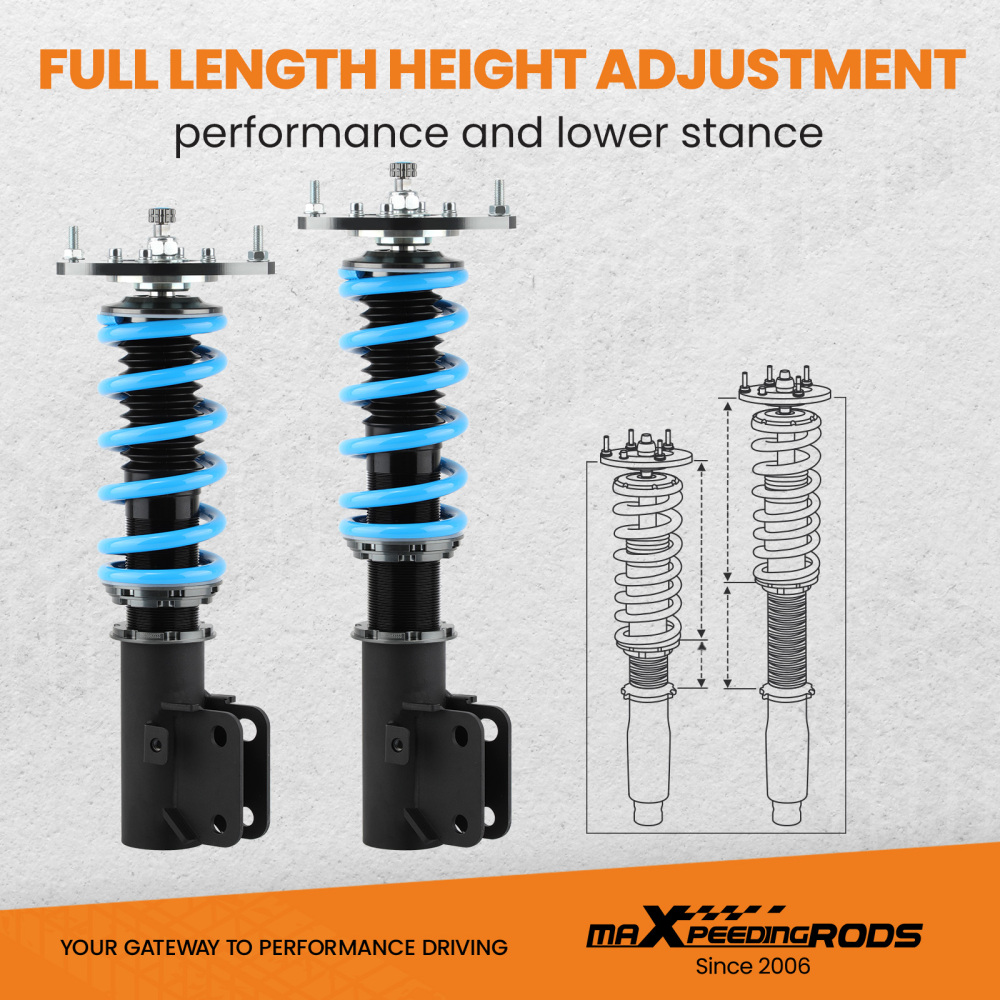

Adjustable height: lowering 1-3 inch
Coilover overall length Front: 460mm-550mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Black body + blue spring

Package included

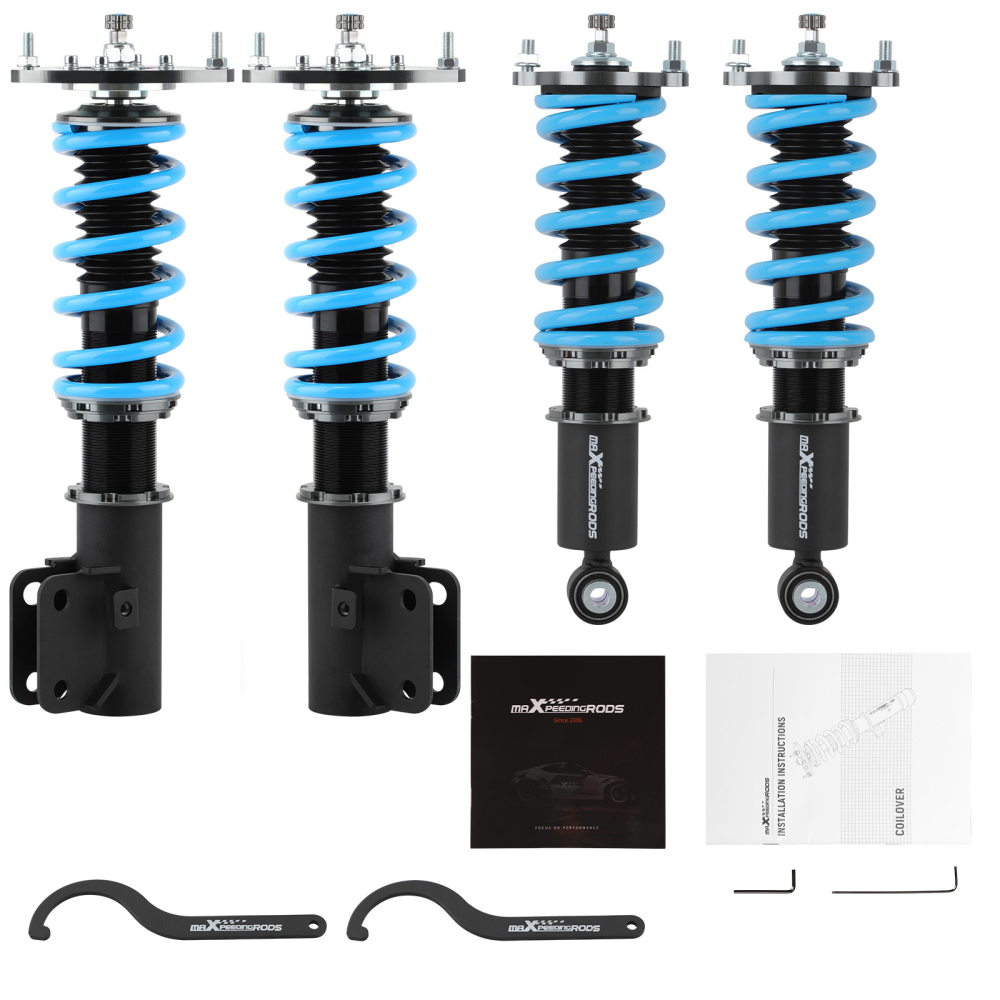

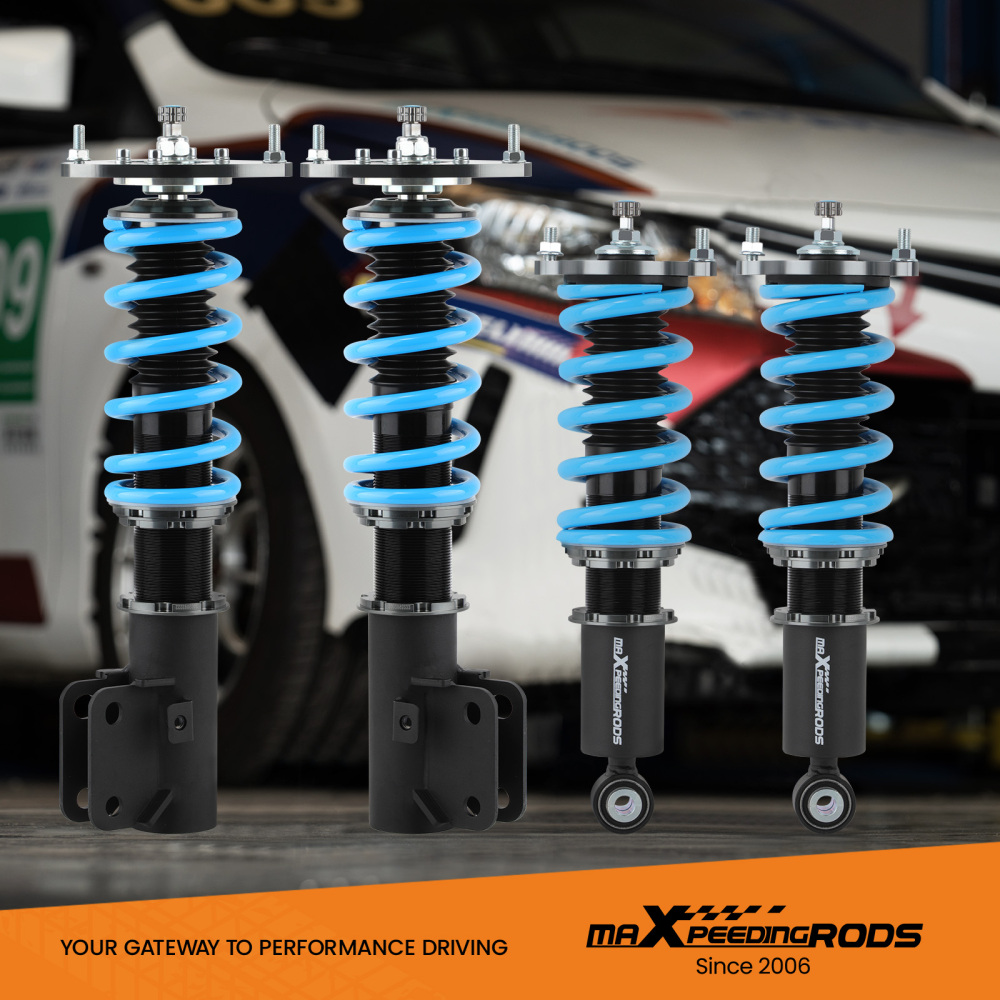

Complete coilover assembly kit for front and rear
A pair wrench for height adjustment

Dimension

Size: 63*51*21 cm
Weight: 24.92kg

Features

1. Lowered height adjustment from 1" - 3" which allows a lower center of gravity and also adds a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

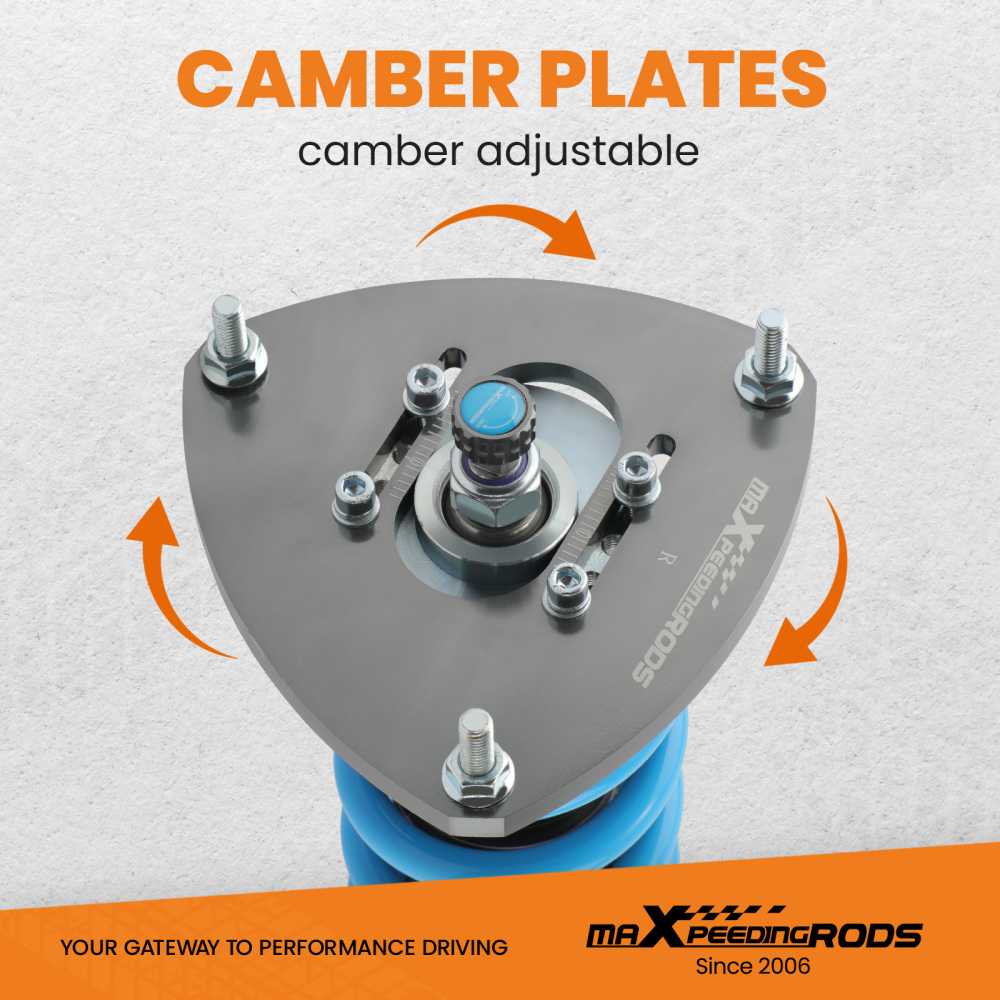

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

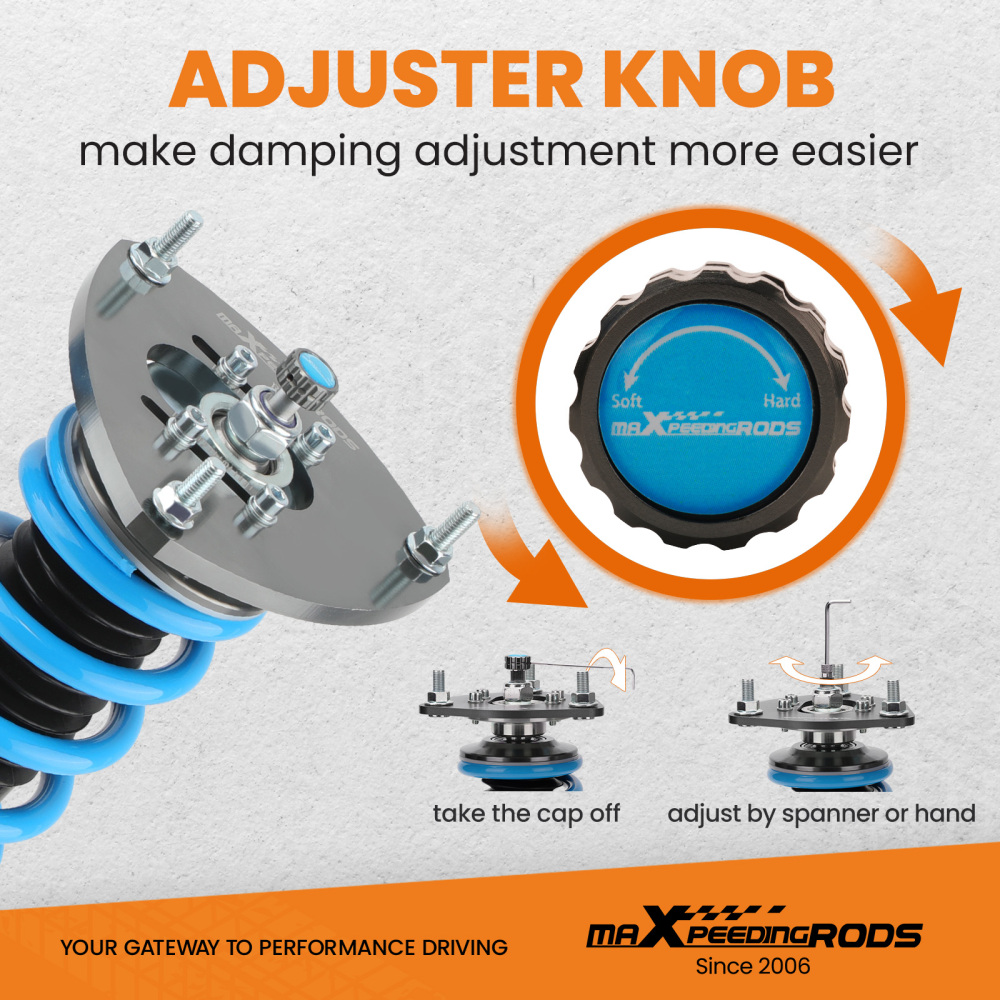

4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

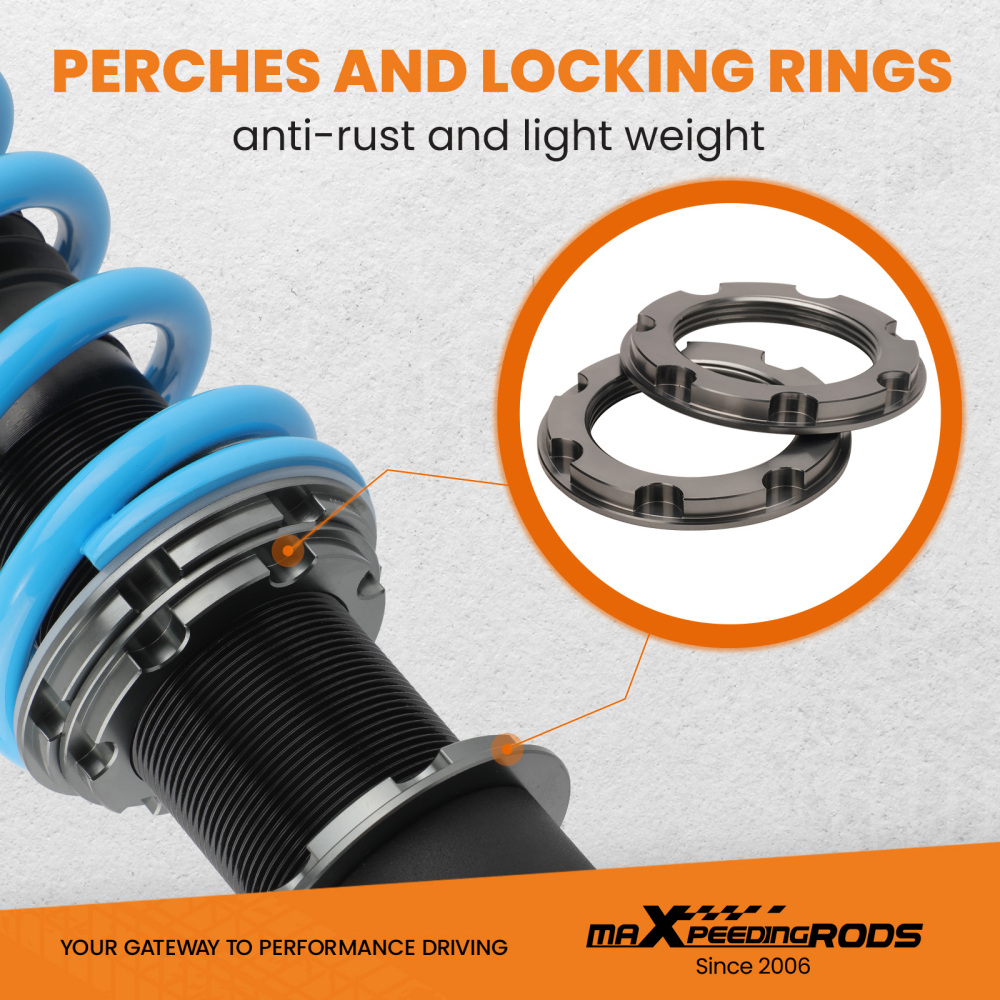

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

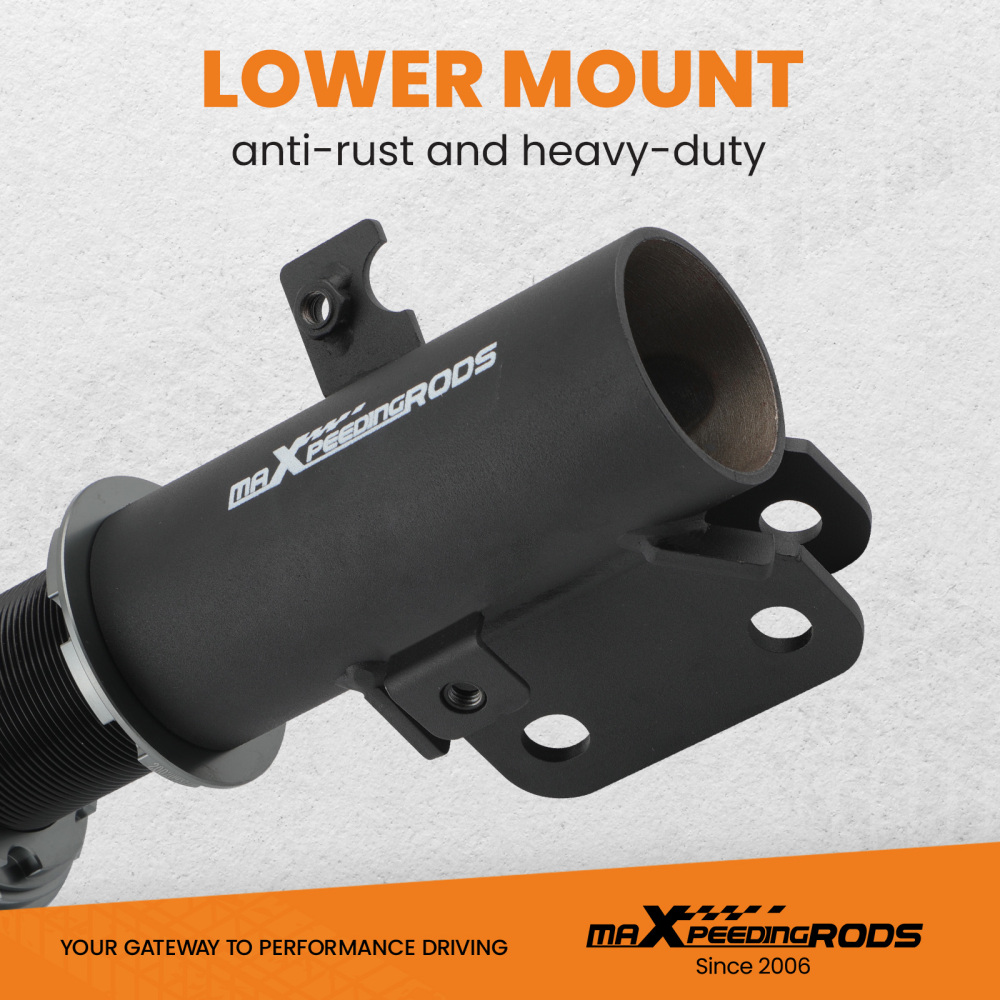

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

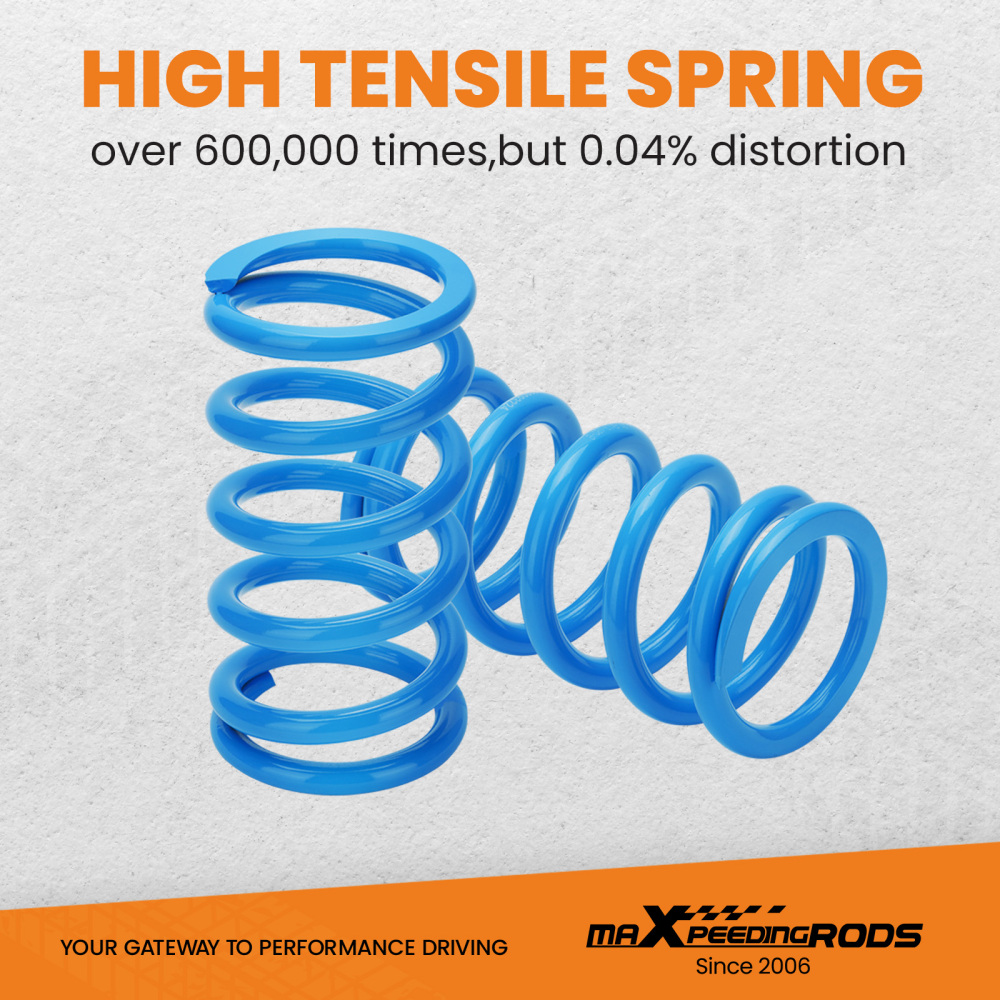

7. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.

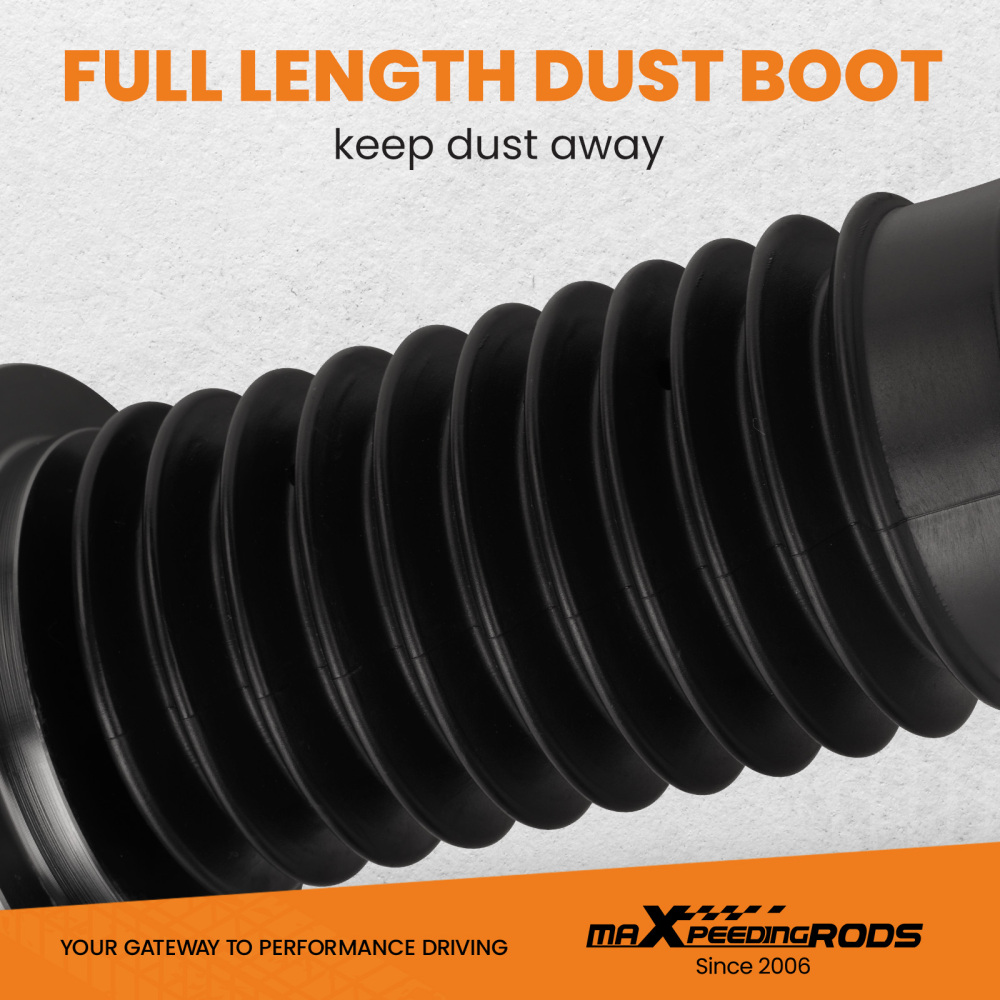

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
9. With a better-damping setting, you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on road.
13. Clean room assembled---maintain a higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Notice

* Professional installation & alignment suggested.
