Billet VF52 RHF55 Turbo Turbocharger compatible for Subaru WRX 14411-AA800 14411AA760

Billet VF52 RHF55 Turbo Turbocharger compatible for Subaru WRX 14411-AA800 14411AA760

( 1 reviews )
Item Number 3002914448
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
Application
Suitable for daily street use and junior track use.
Compatible for Subaru Legacy, for Outback GT 2.5L TD EJ25 2.5 GT 2008-2014
Compatible for Subaru WRX 2009-2014
Compatible for Subaru Legacy 2005-2009
Compatible for Forester 2.5XT 2007-2011
Compatible for Outback 2005-2009

OE/Part number
14411AA800,14411-AA800,1-4411-AA800,
14411AA760,14411-AA760,1-4411-AA760,
40-30186 R,VF52, VF55,
*Notice:DO NOT for 14411AA700, VF48

Specification
Compressor Wheel Diameter: 46/59mm
Turbine Wheel Diameter: 47/51 mm
Exjaust Inlet Flange: 3 Bolts
Exhaust Outlet Flange: 5 Bolt
Nozzle Area: 7cm
Turbo Model: RHF5H, RHF5H 09 098E
EngineCode: 6MT, EJ25 2.5 GT
Cooling Type:Water Cooling
Thrust Bearing: 360 Degrees
Horsepower: 320HP
Bearing Type: Floating Bearing
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight：6740g
Package Size：30*28*24cm

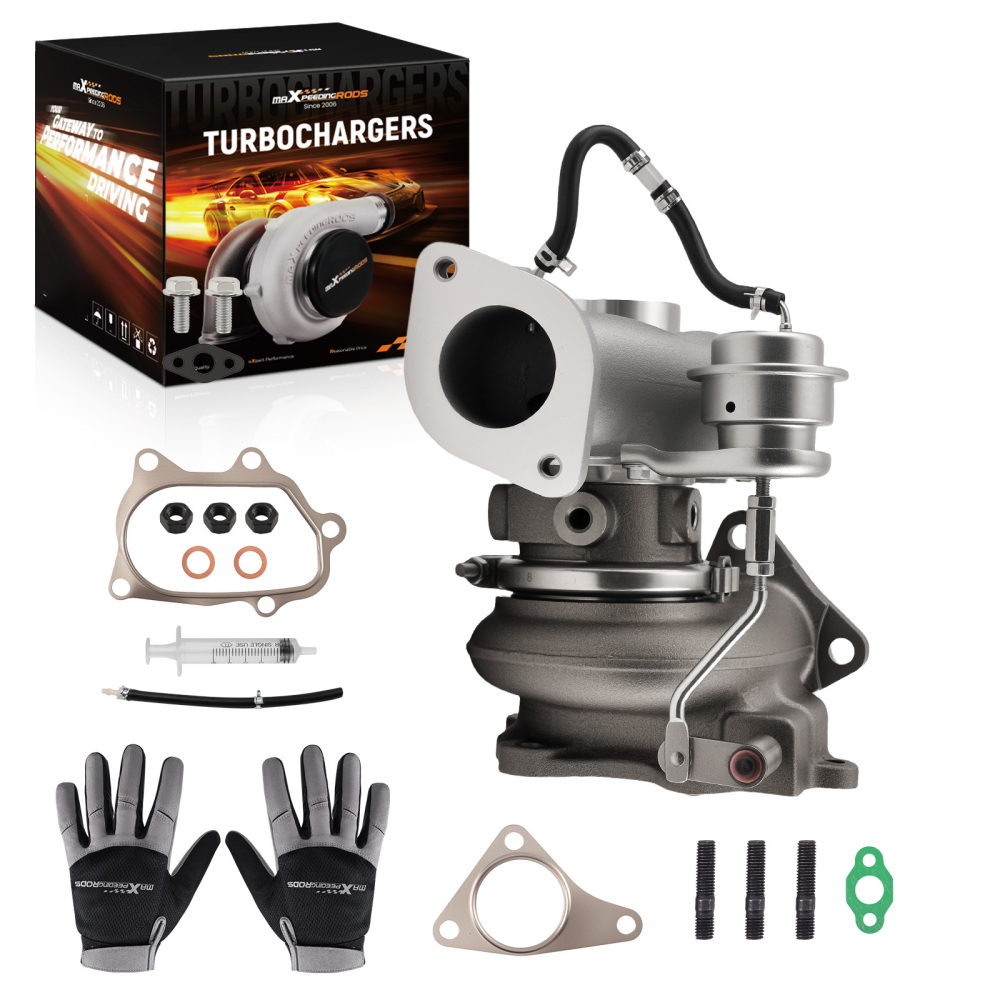

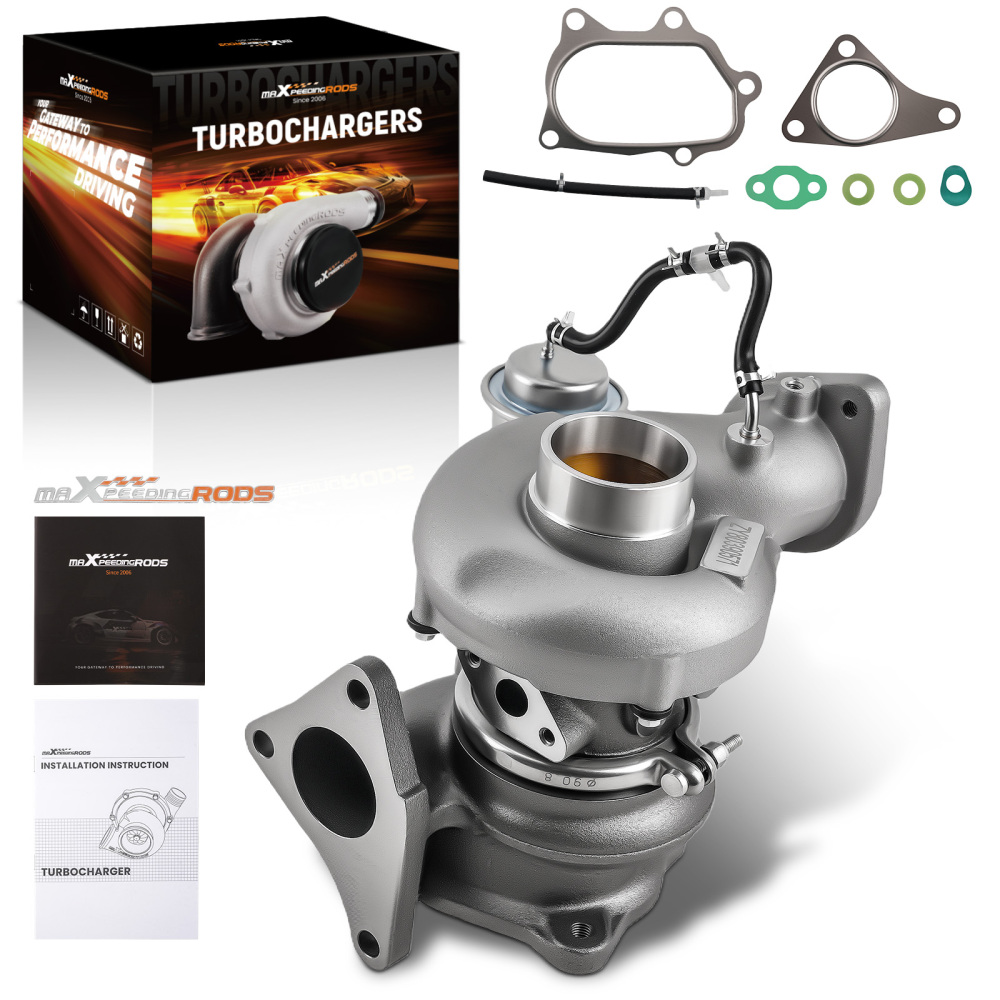

Package included
1x Turbocharger
2x Flange gaskets
2x Oil/Water port gaskets
1x Connecting pipe
1x Manual
1x Brochure
1x Sticker
Universal Fitment: No
Finish: Matte

Feature

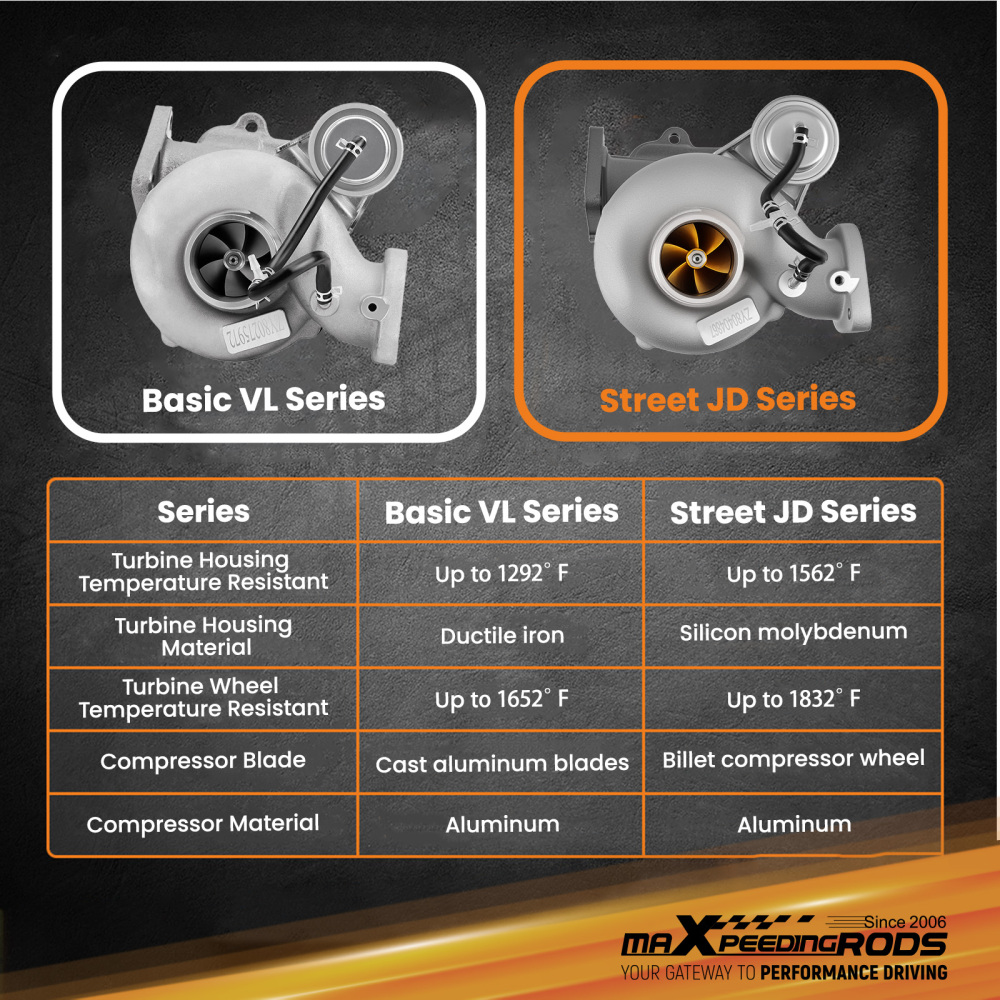

*Product Material

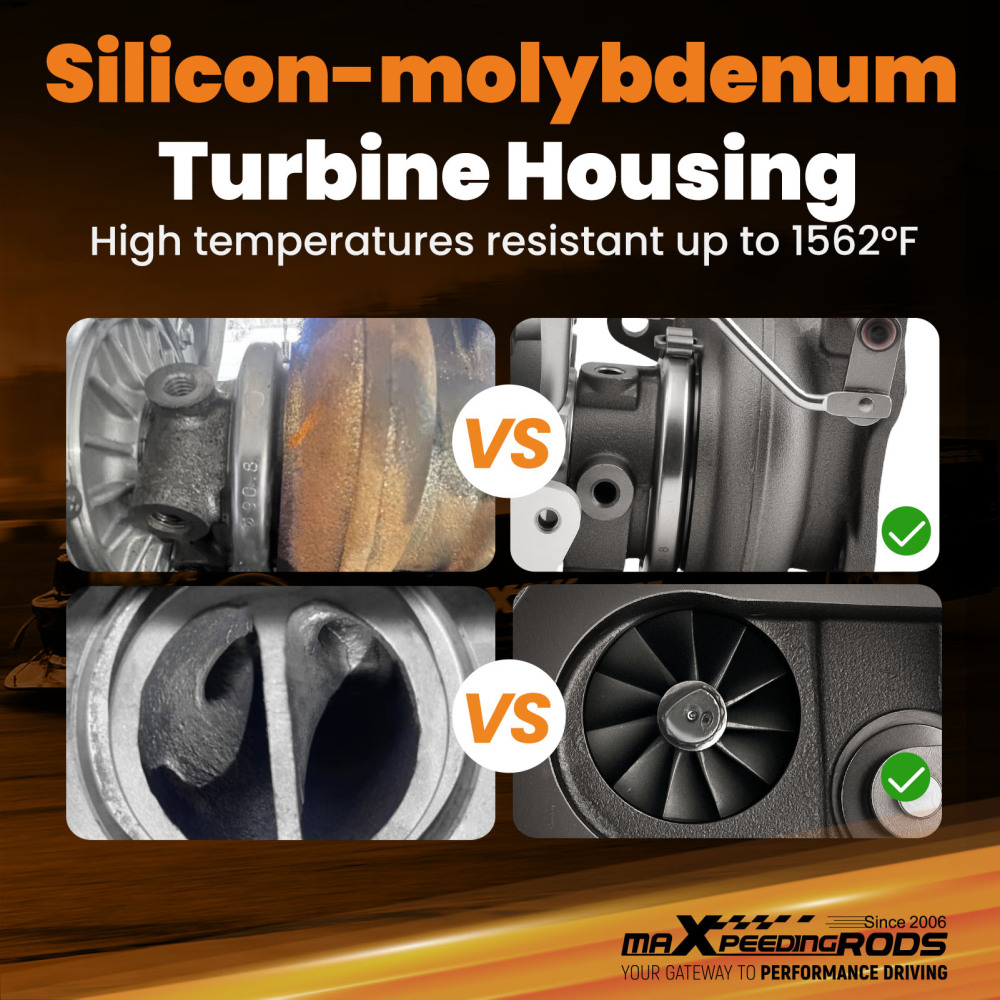

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

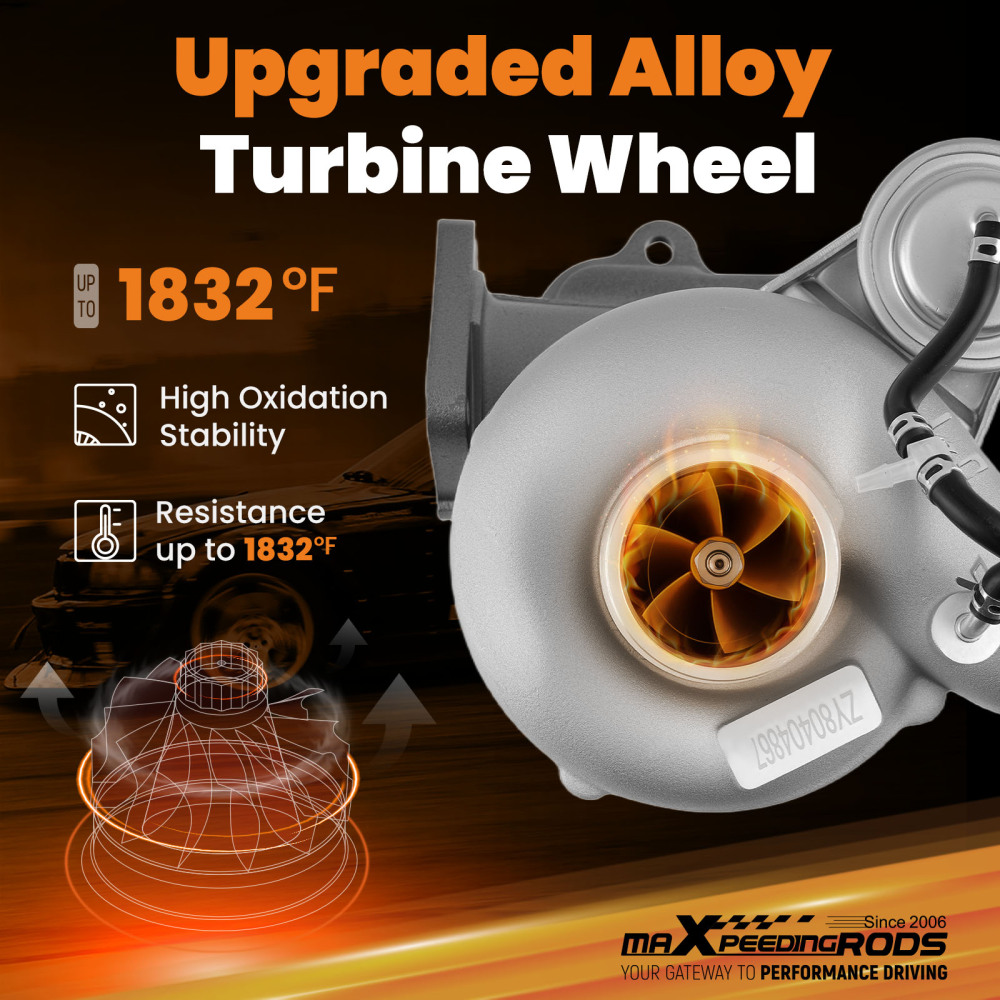

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

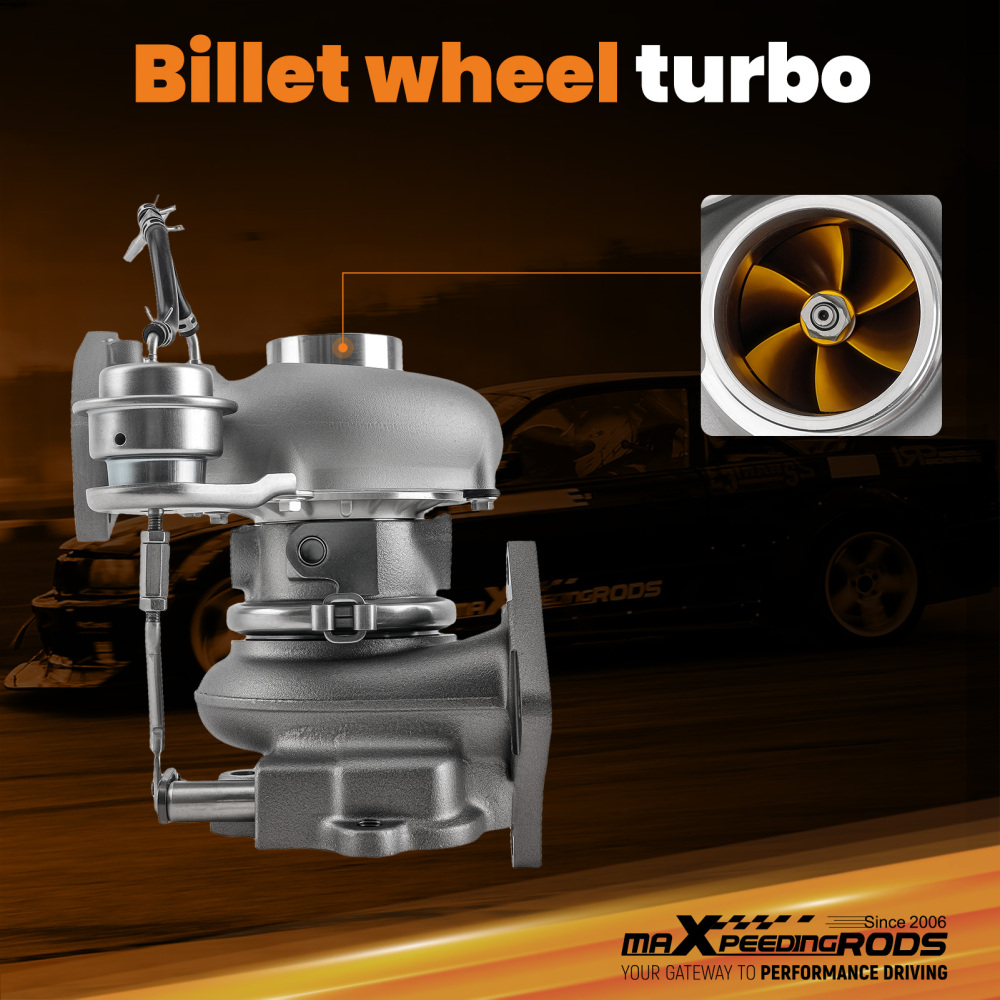

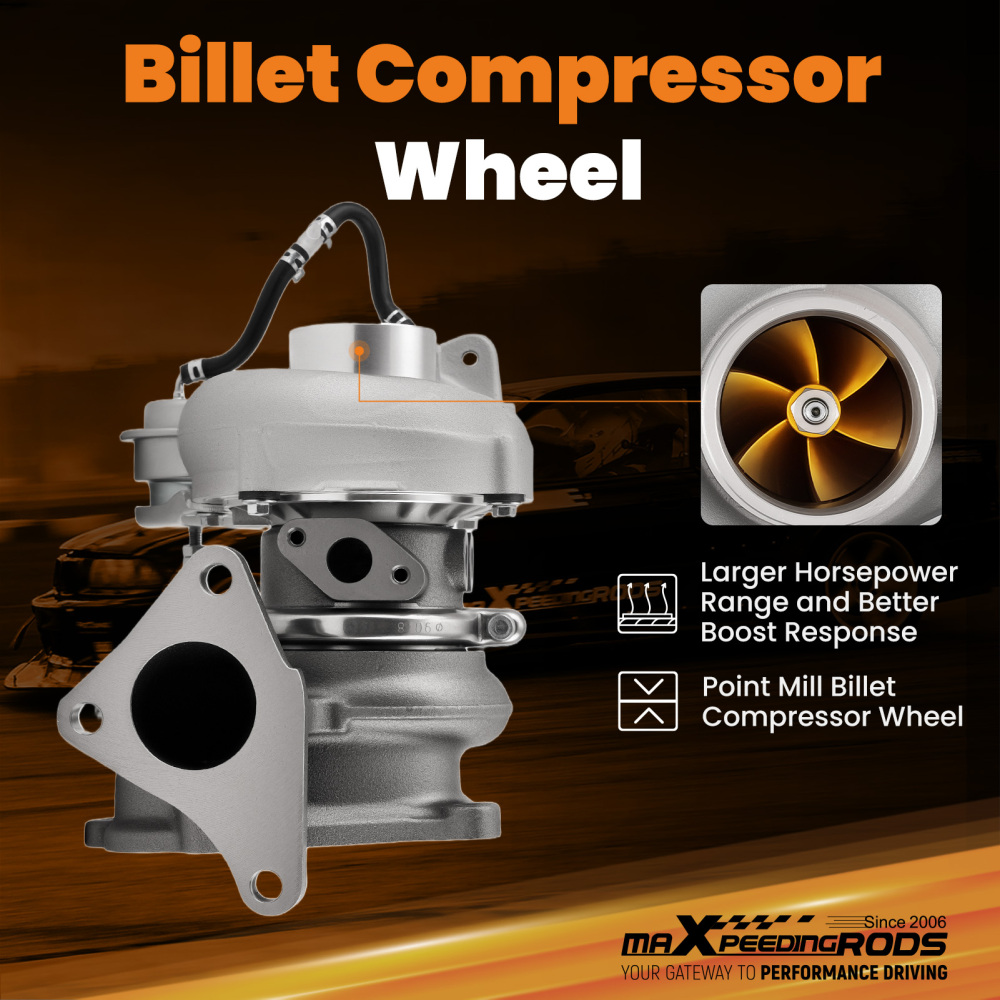

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response
*Product  Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory

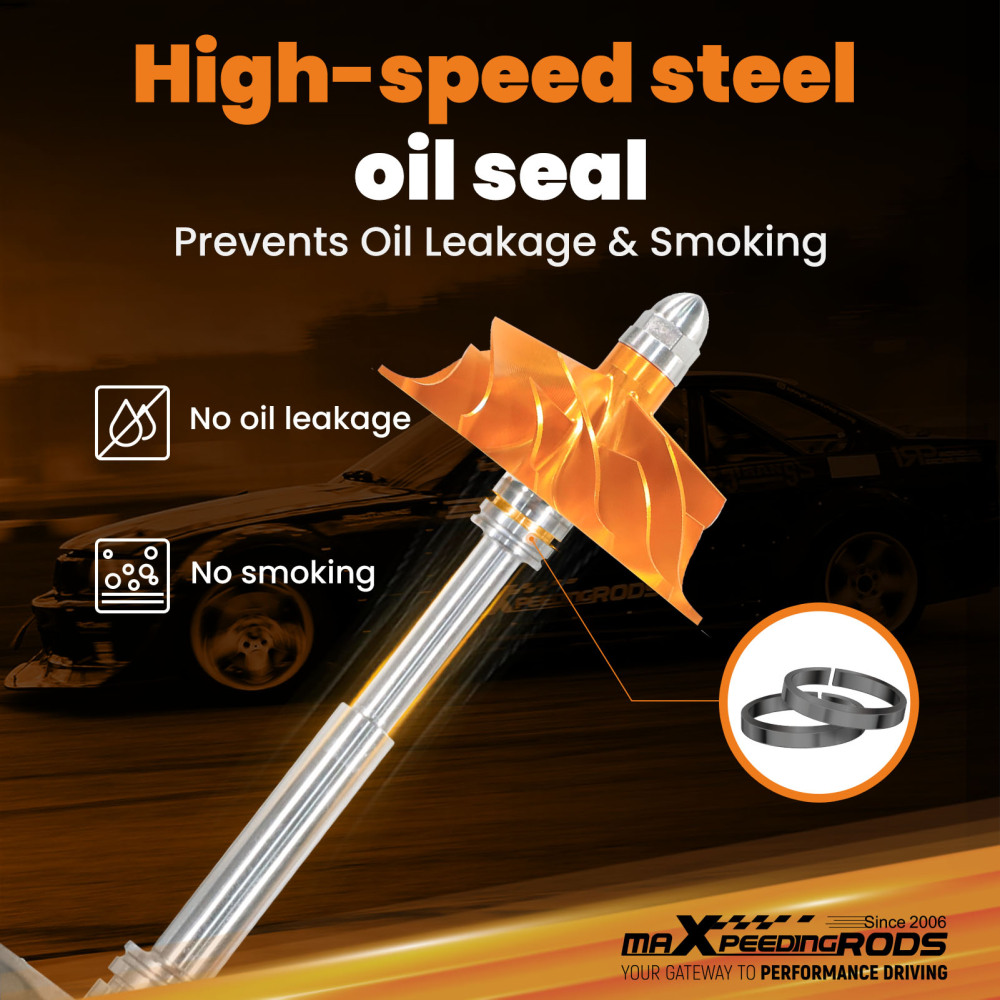

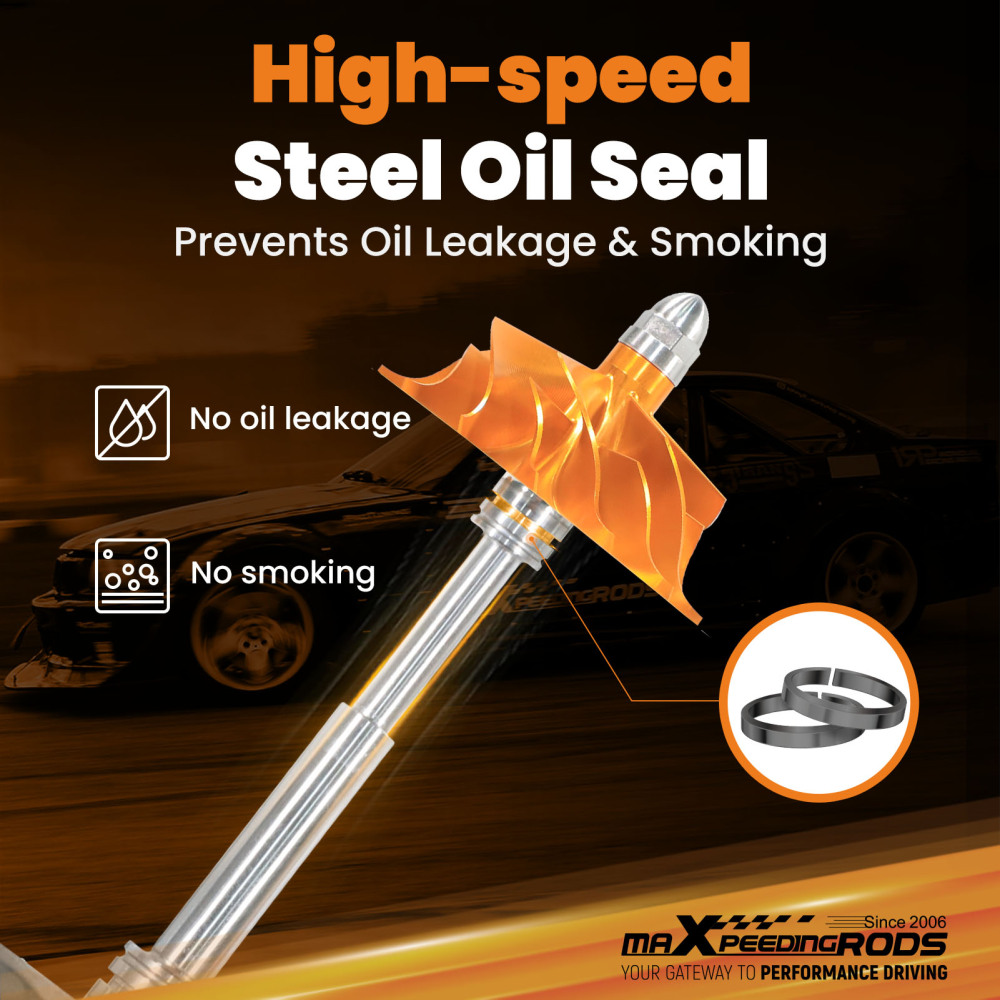

4. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Warranty: one year warranty for any manufacturing defect
