24 Way Adjustable Damper Coilover For Subaru Liberty BE Sedan 2000-2004 Absorber

Introduction

MaXpeedingRods-B3 series(also called MaXpeedingRods-SLC) based on MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for Subaru Legacy 2000-2004 BE sedan only

Specification

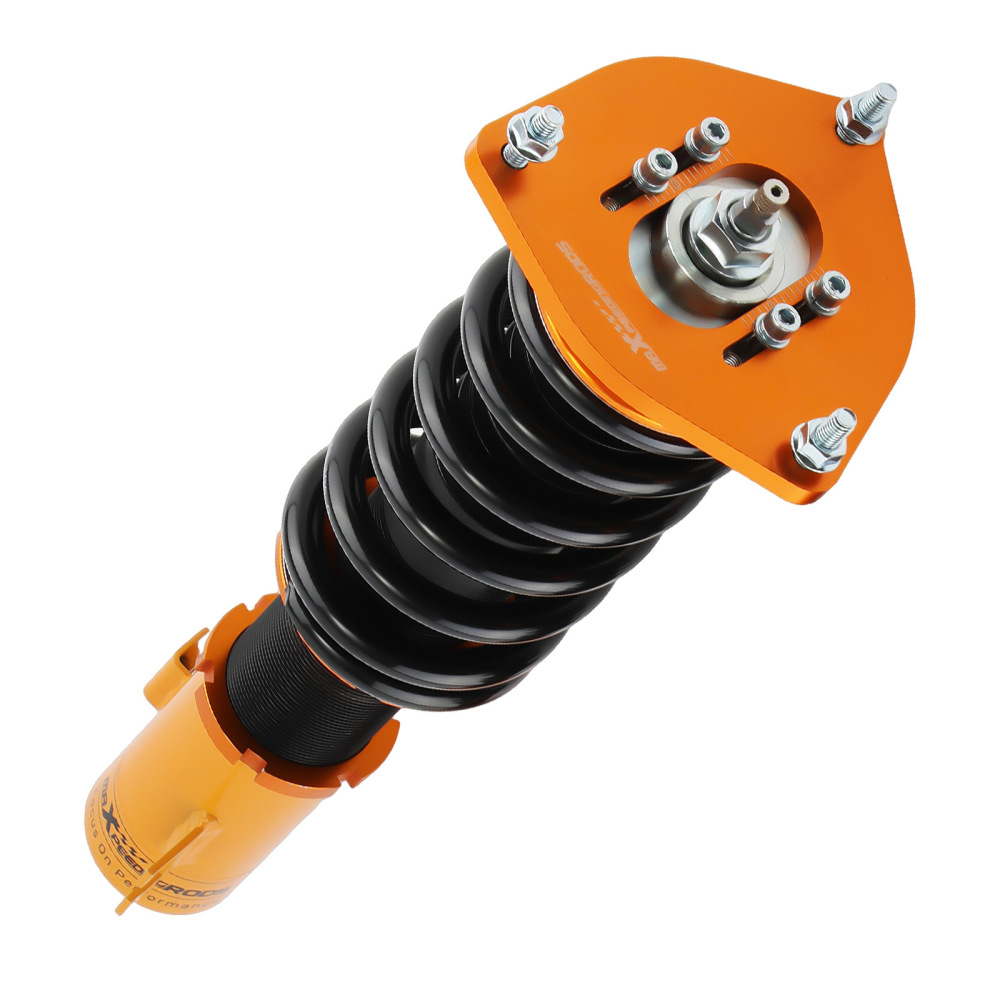

Top mounts: front - pillow ball top mount with camber plate
Rear - standard rubber top mount

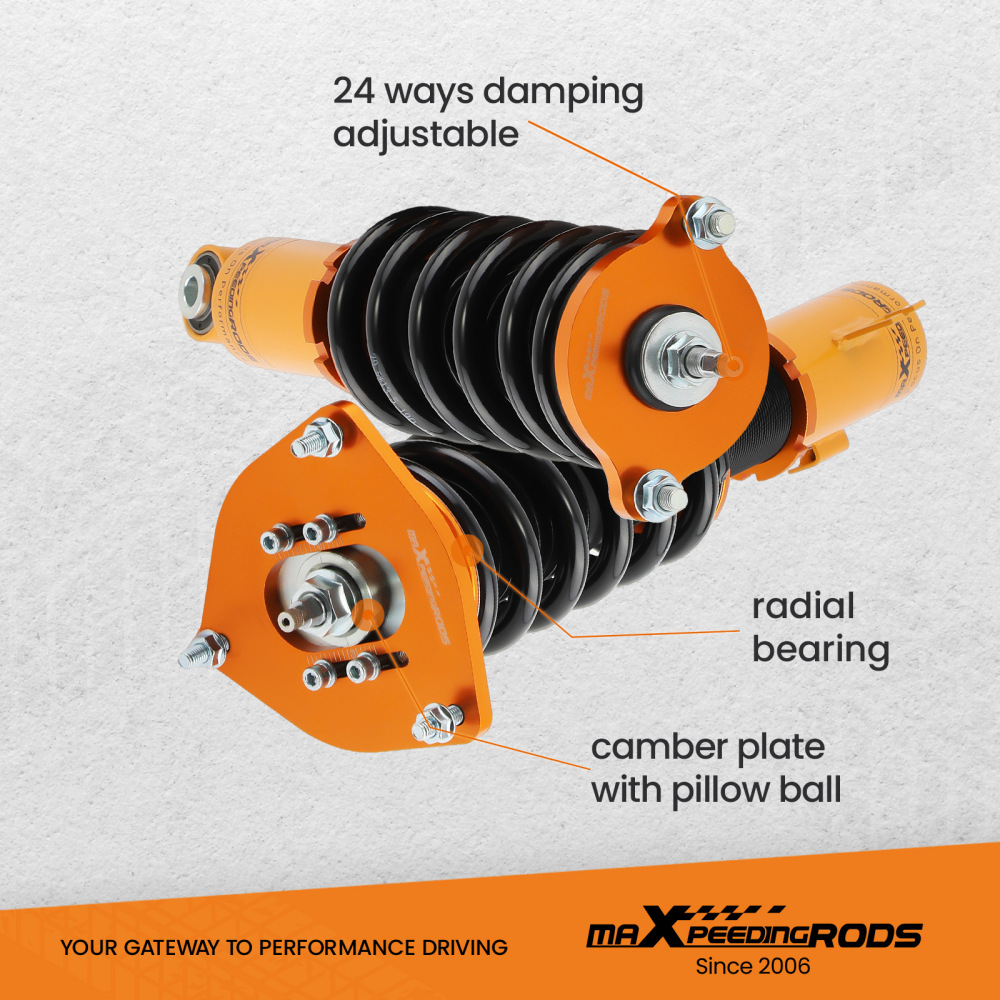

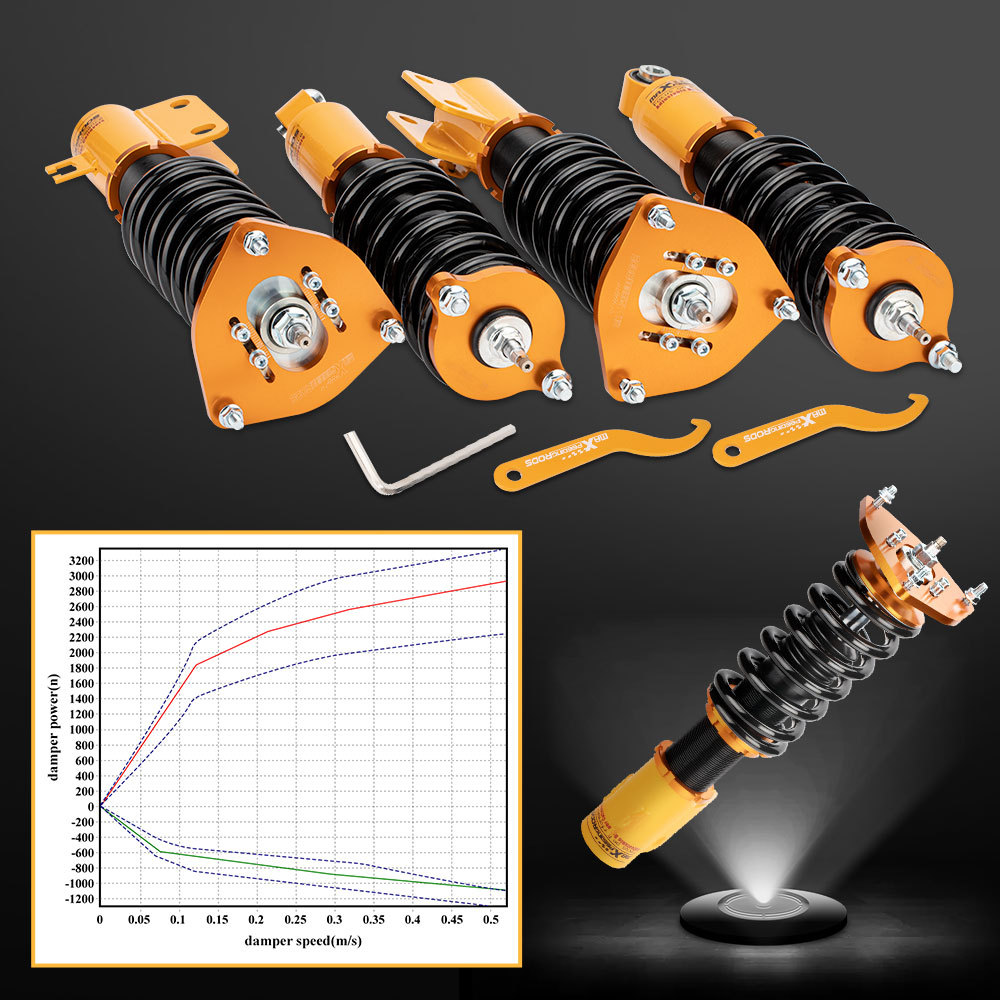

Damping: 24 ways damping adjustable
Spring rate Front: 9 kg/mm (504 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 460mm-520mm
Coilover overall length Rear: 400mm-450mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: golden

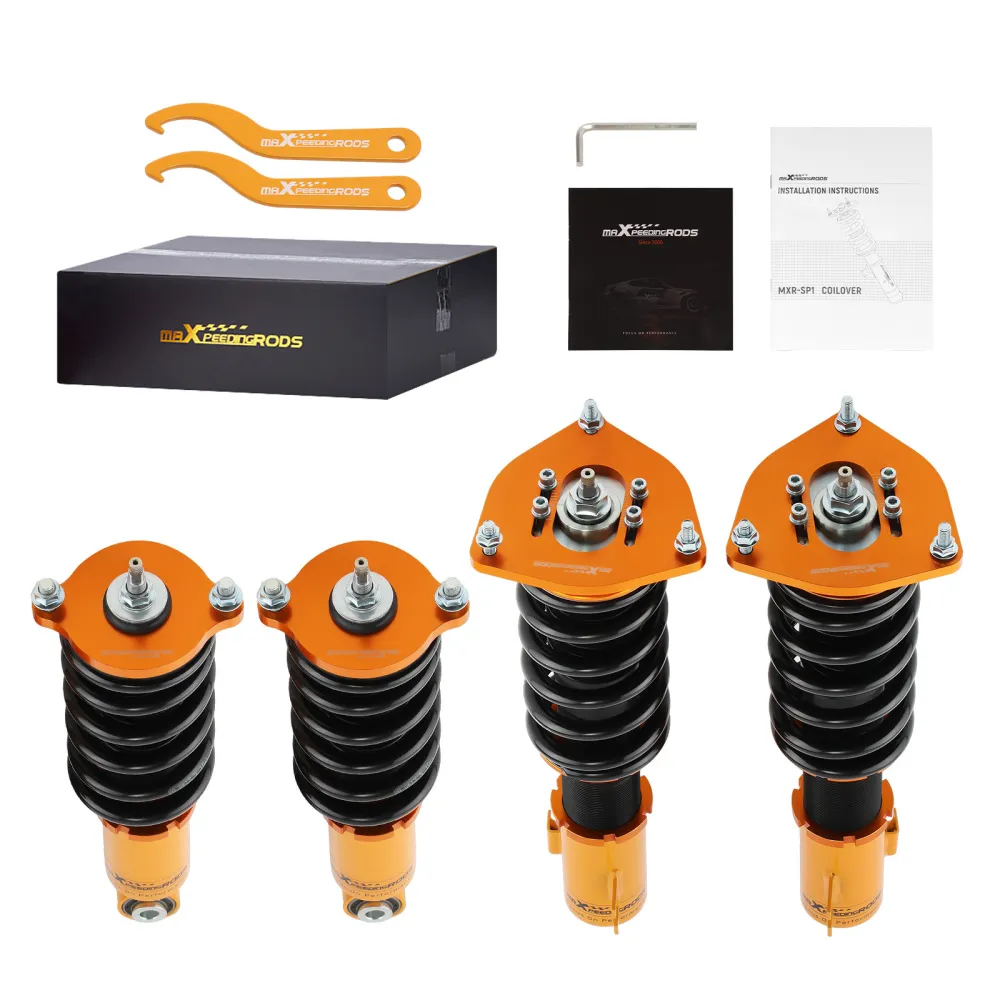

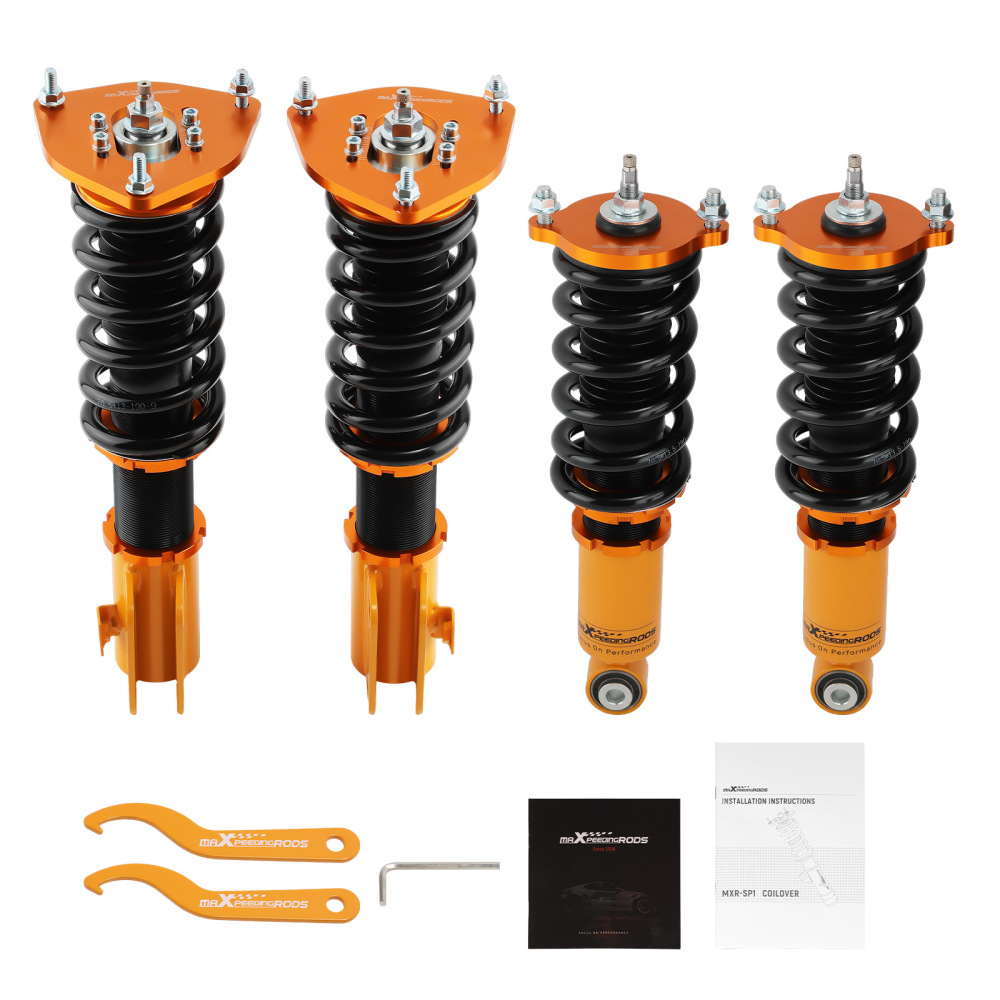

Package included

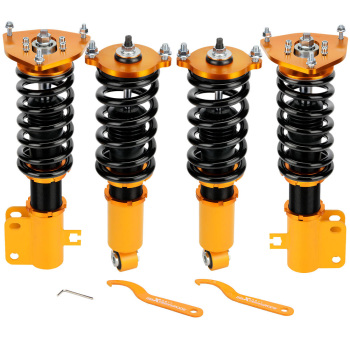

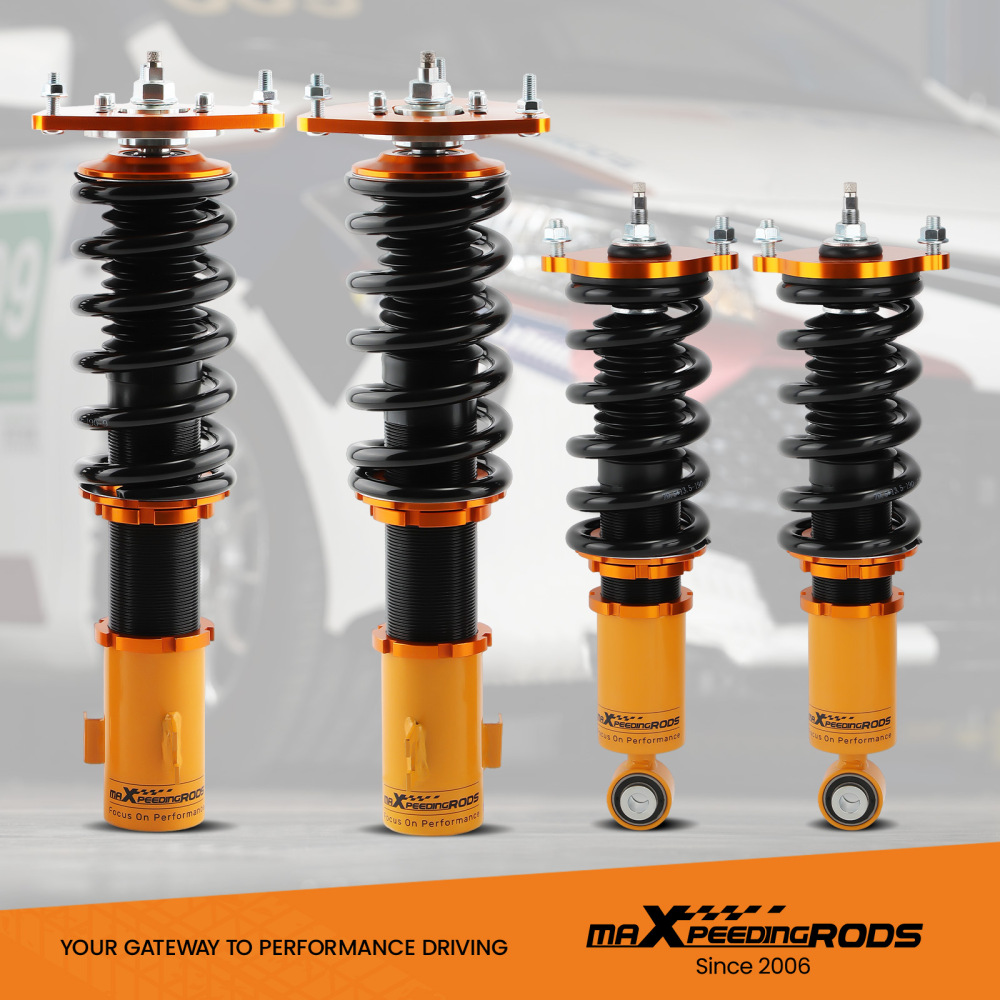

complete coilovers 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 25820g
size: 63*51*21 cm

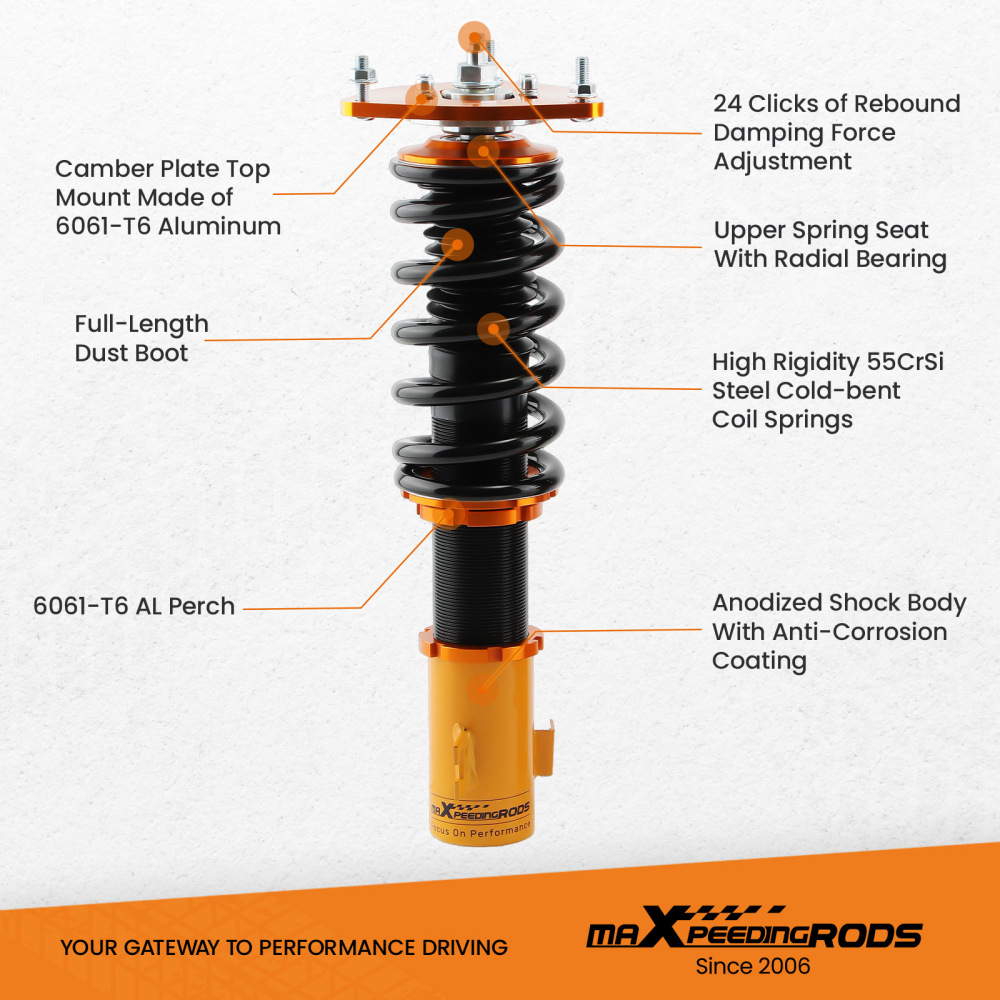

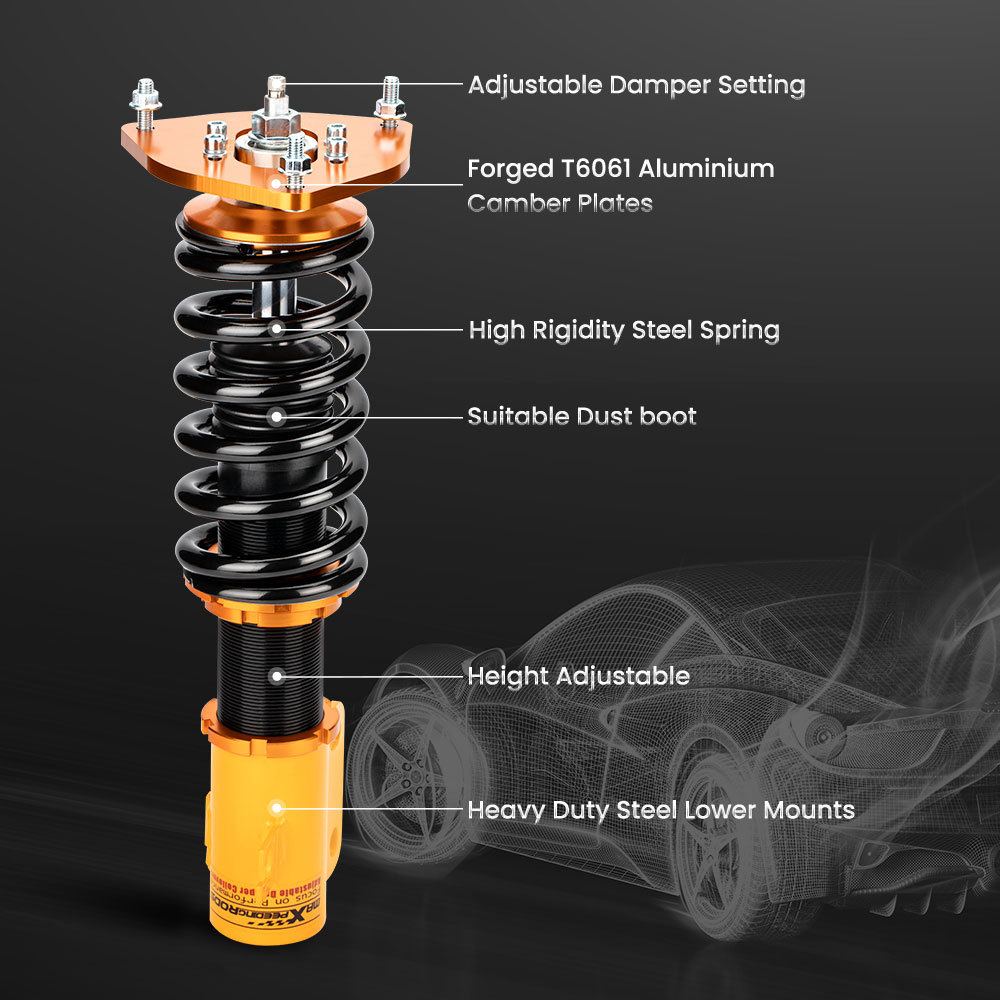

Feature

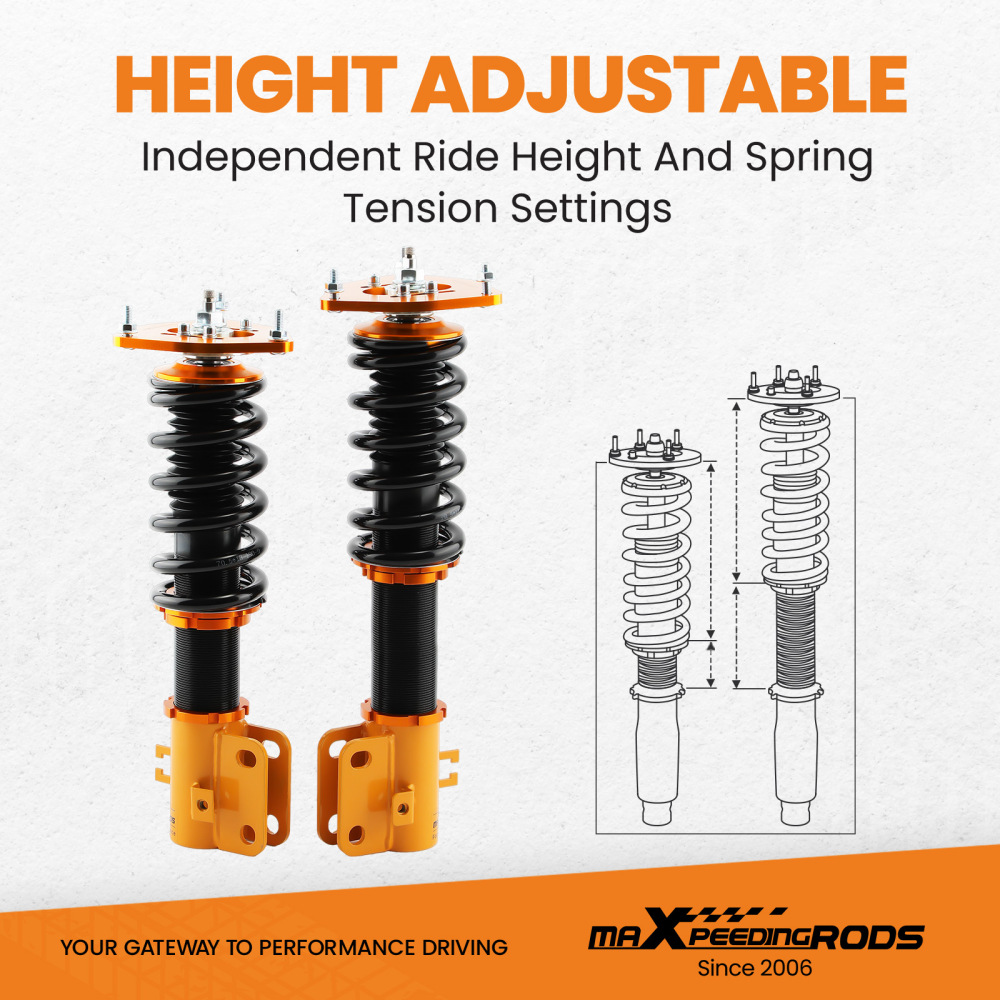

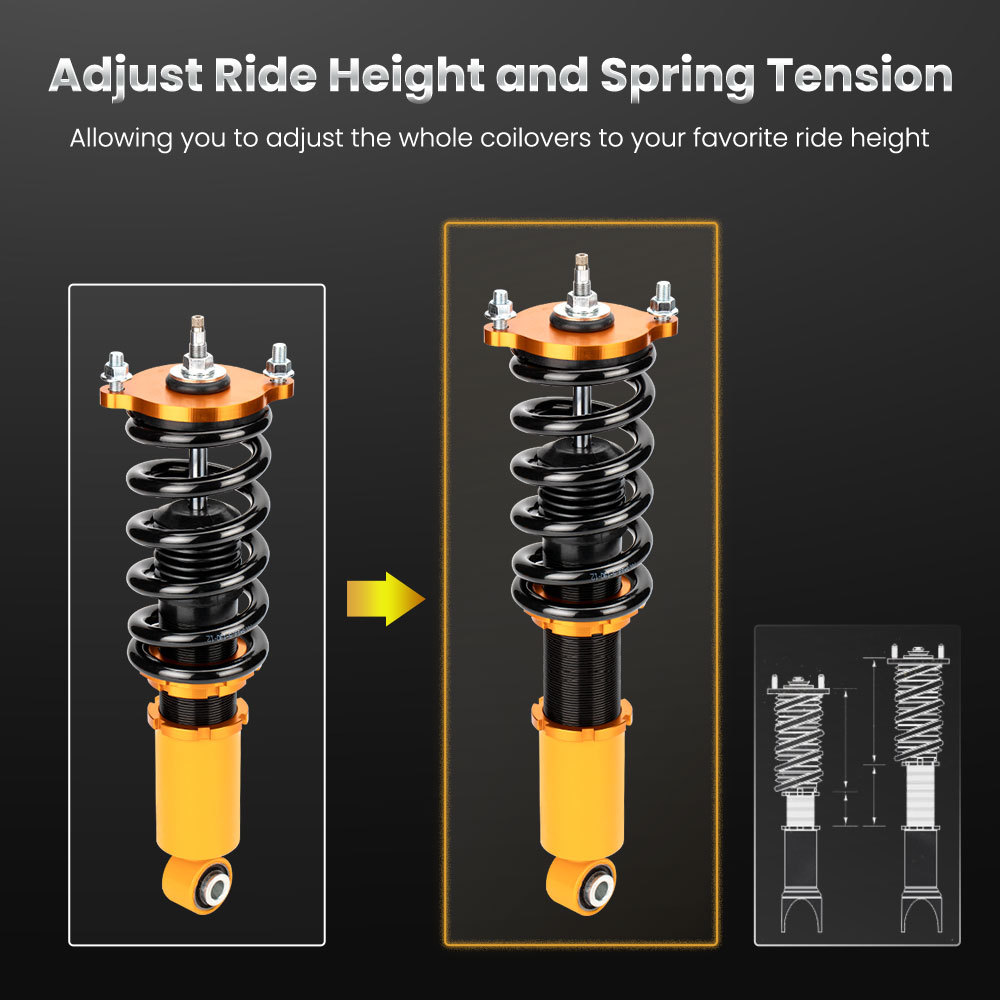

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

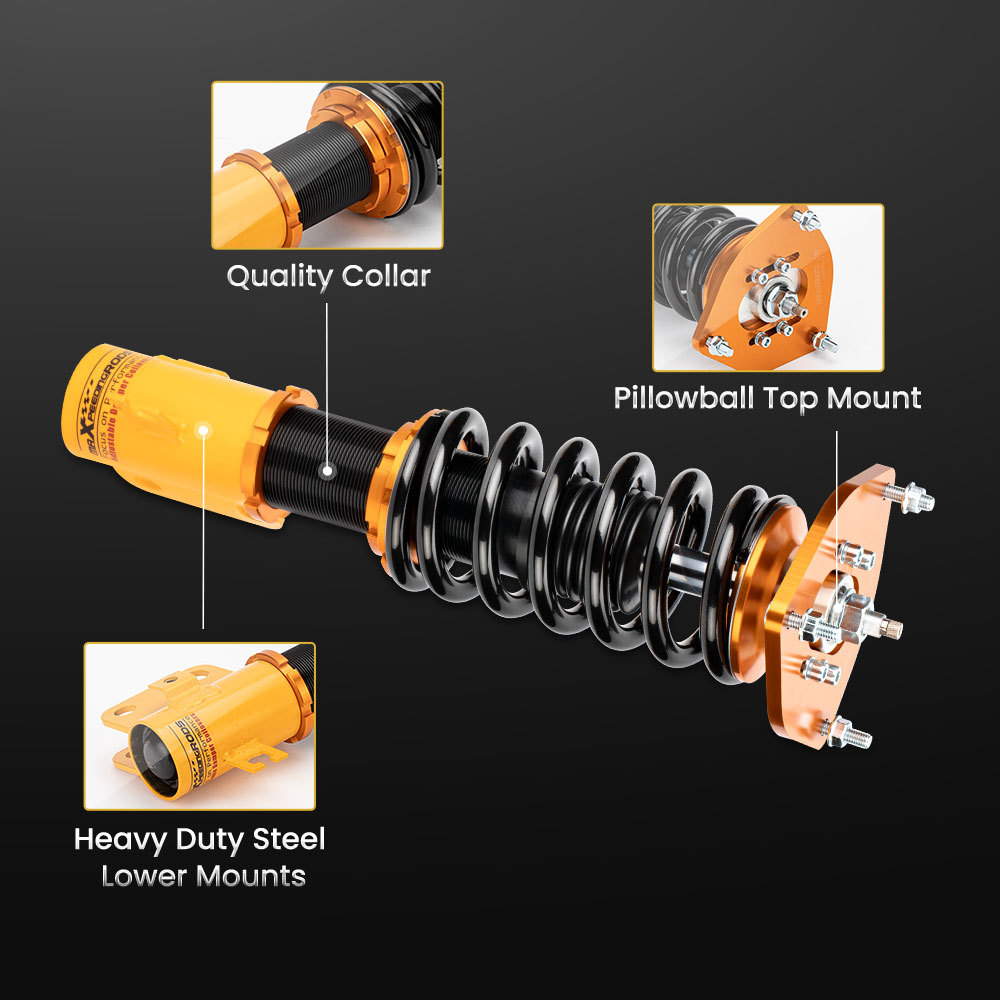

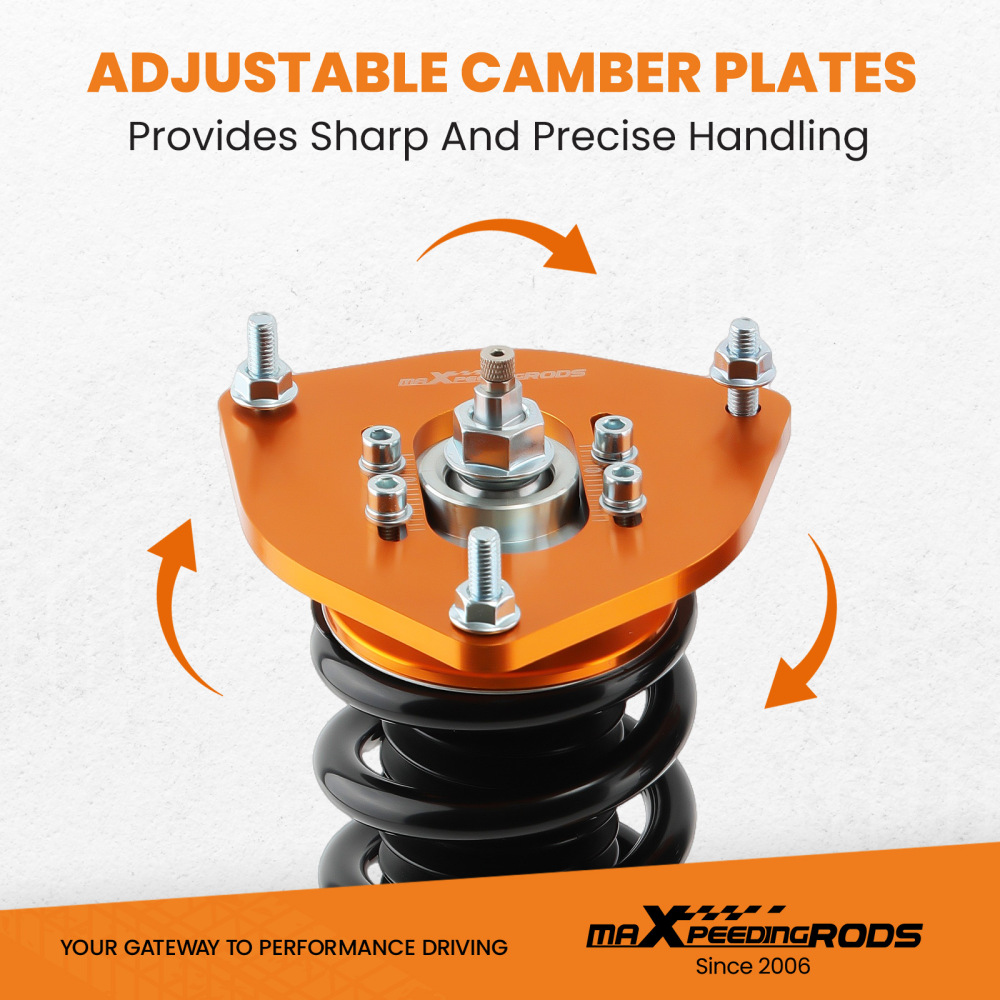

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

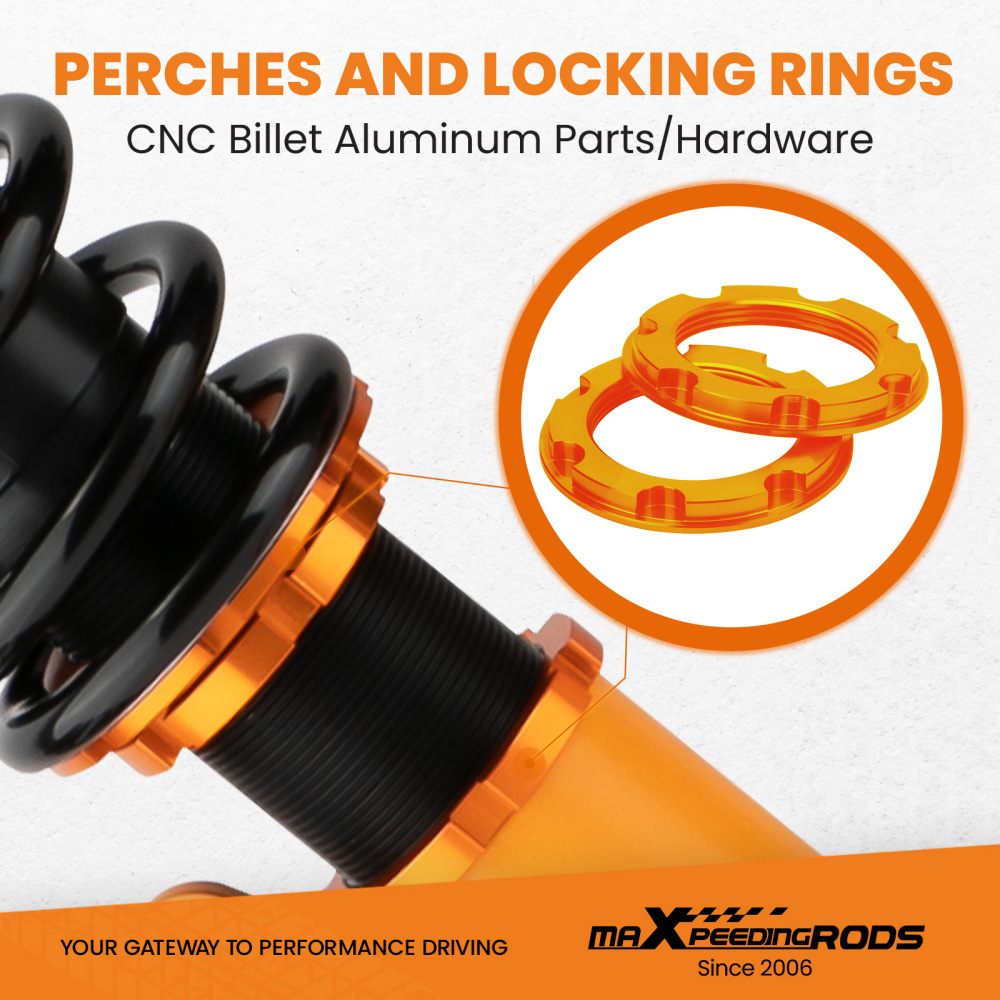

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

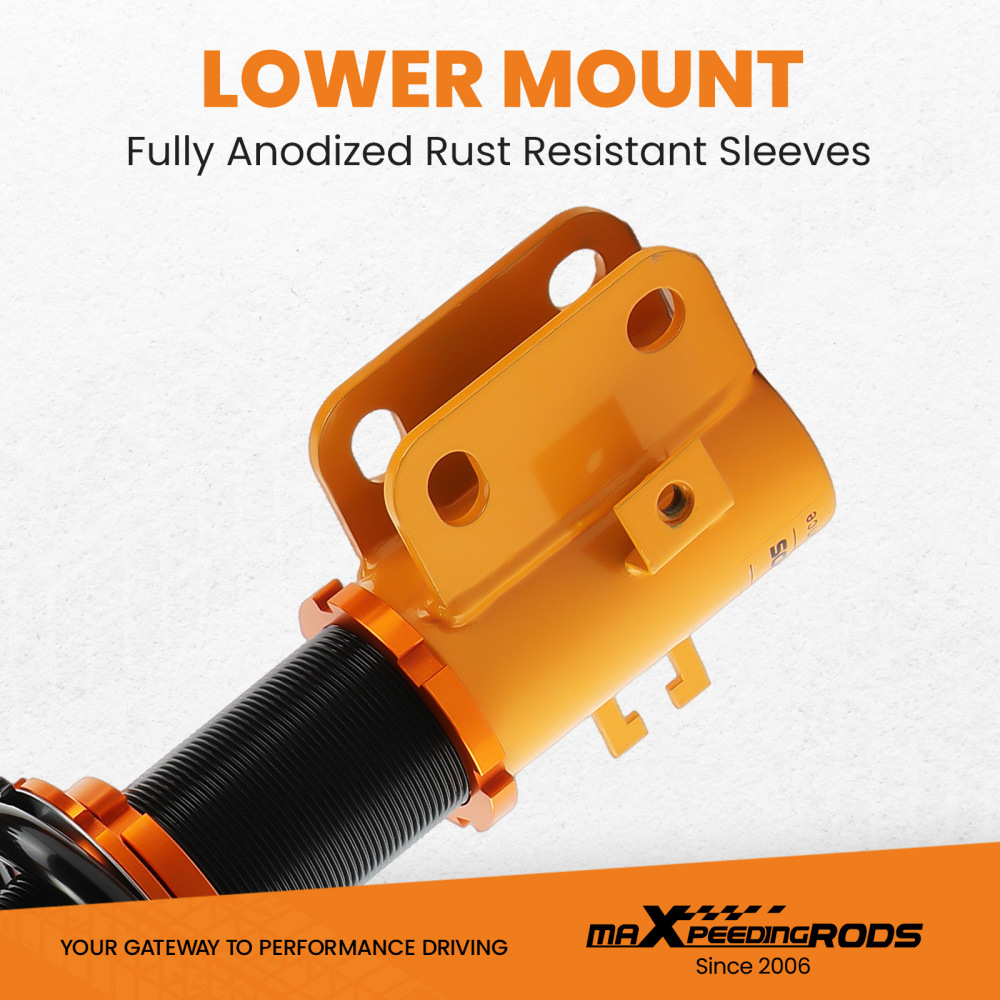

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

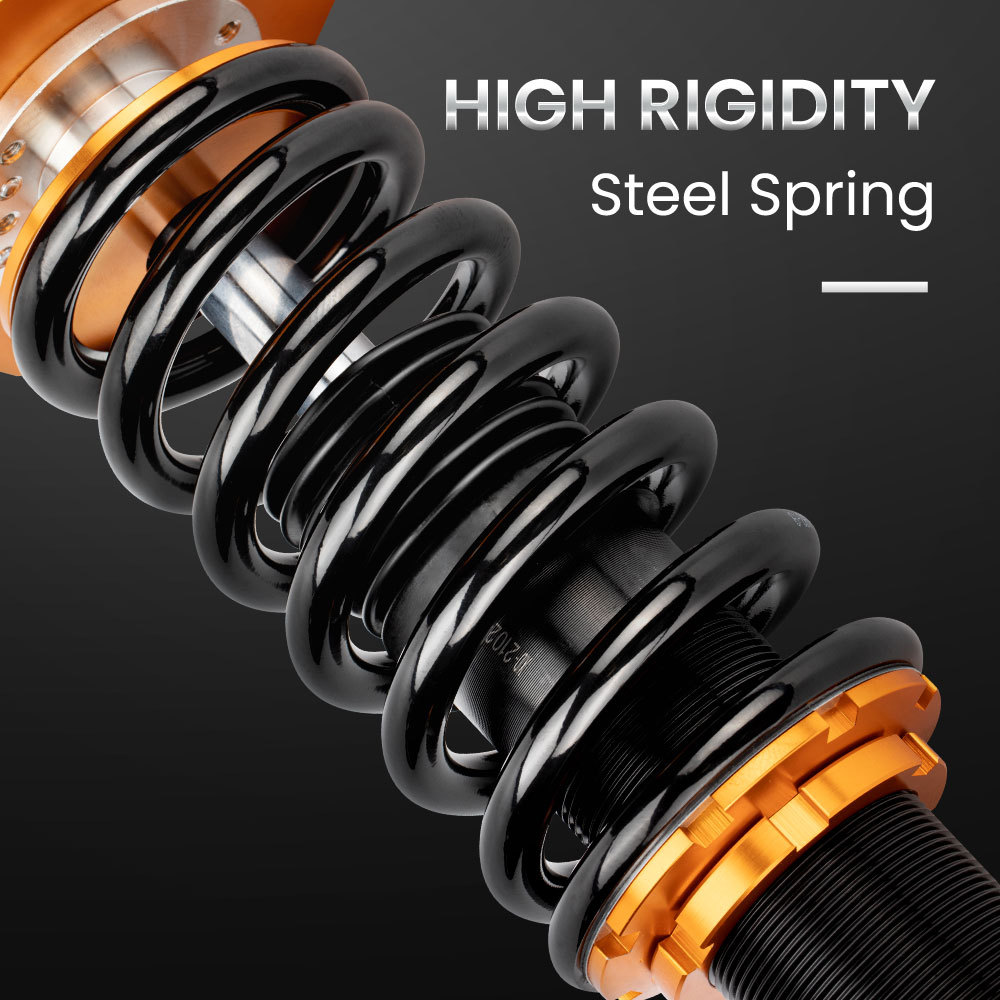

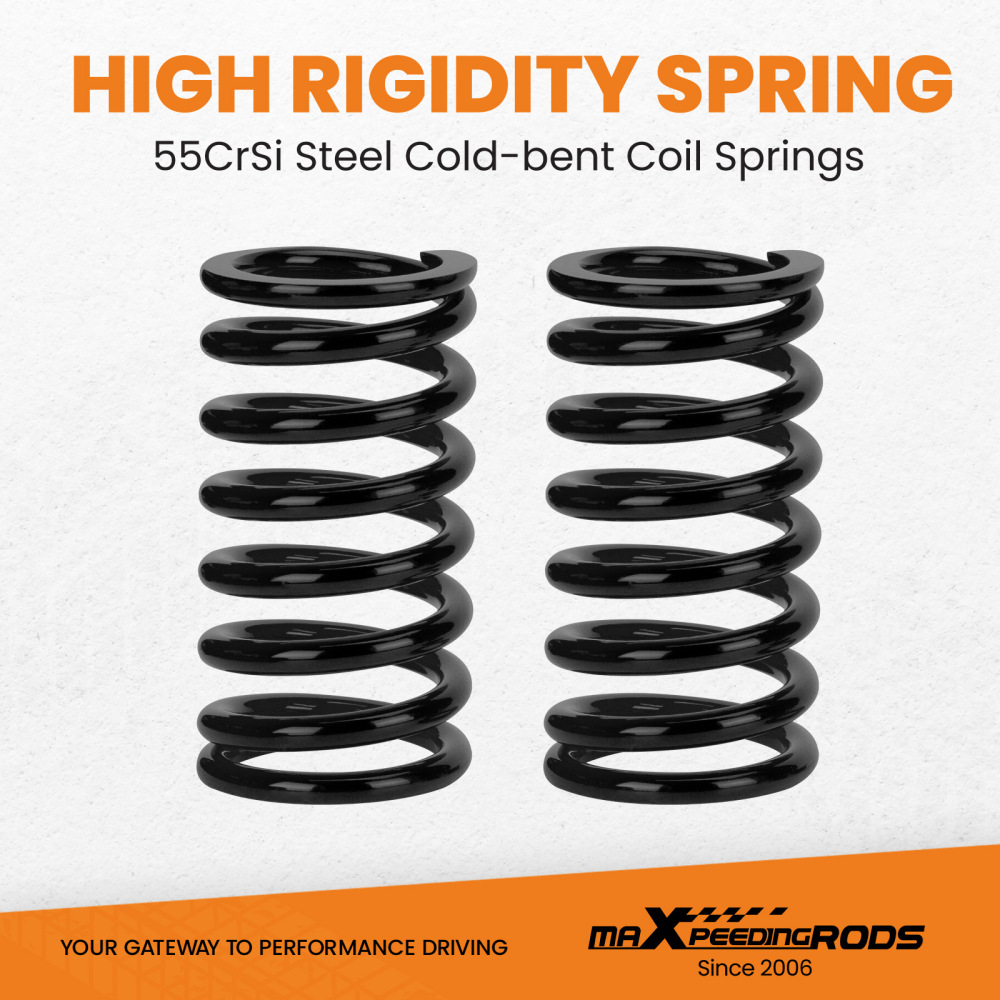

7. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.

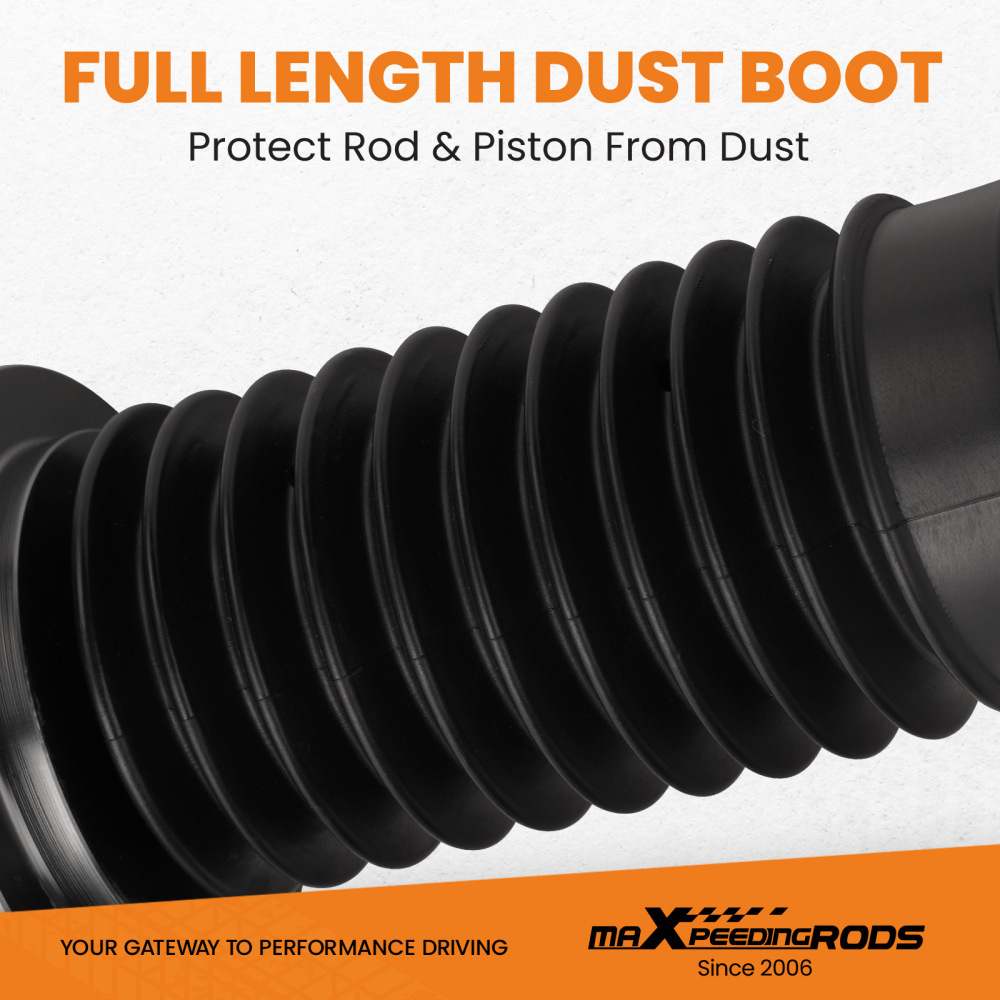

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.

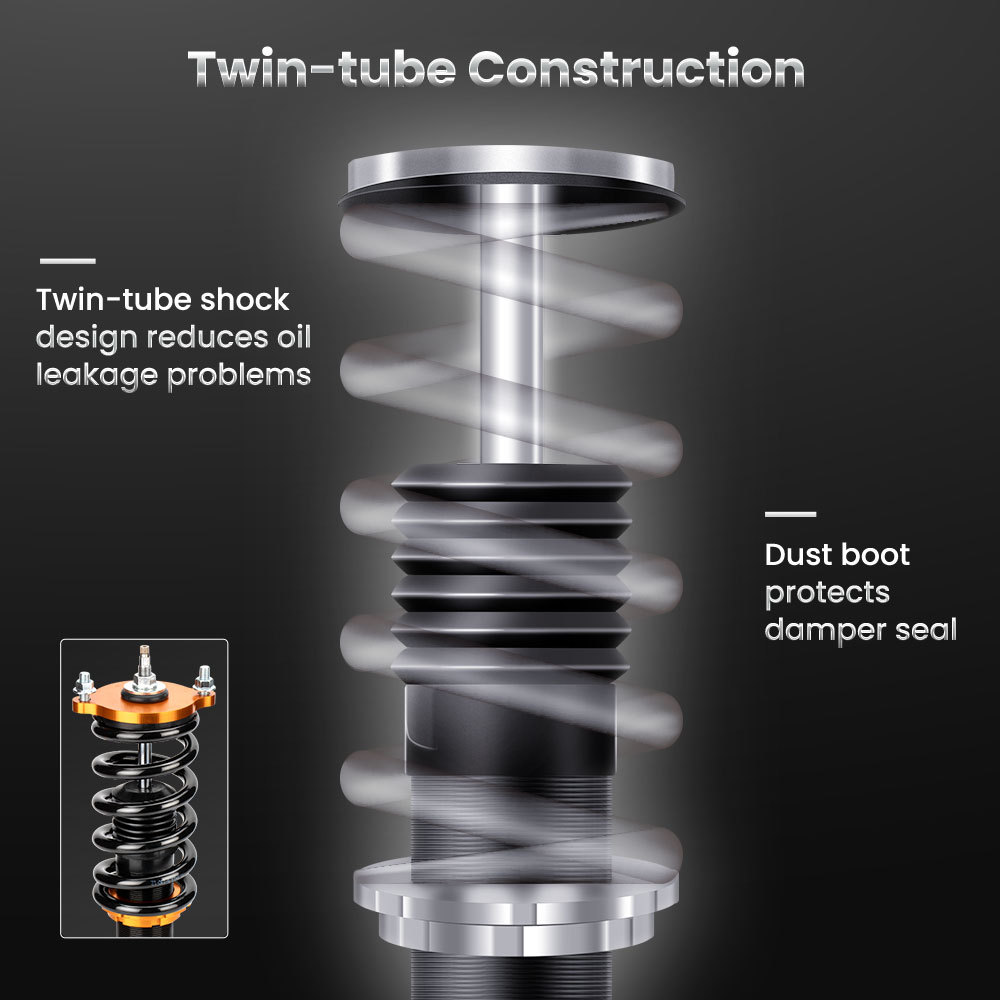

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
