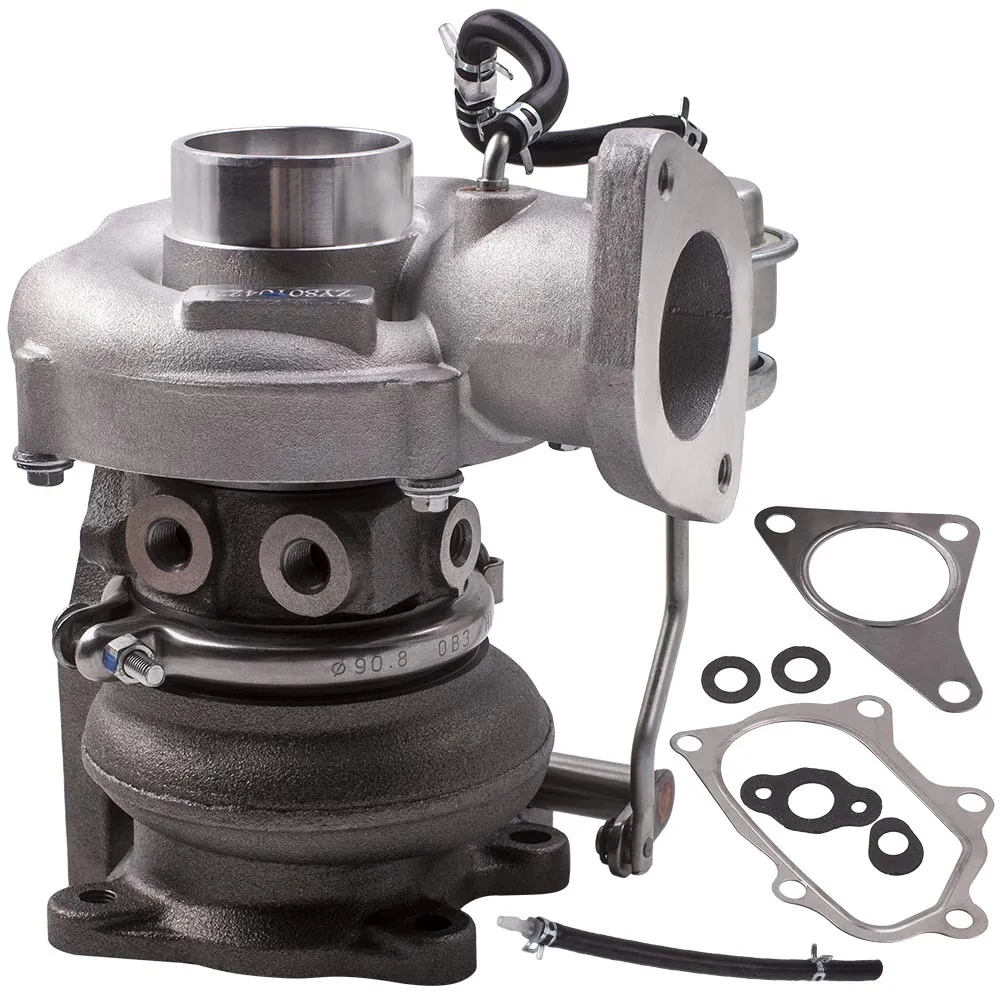

Compatible for Subaru 14411-AA80040-30186 R VF52 RHF55 Turbo Turbocharger

Application

Compatible for Subaru WRX 2009-2014,
compatible for Subaru Legacy 2005-2009,
compatible for Forester 2.5XT 2007-2011,
For Outback 2005-2009,

OE/Part number

14411AA800,14411-AA800,1-4411-AA800,

40-30186 R,VF52, VF55,

*Notice:DO NOT for 14411AA700, VF48

Specification

Compressor Wheel Diameter: 46/59mm
Turbine Wheel Diameter: 47/51 mm
Exjaust Inlet Flange: 3 Bolts
Exhaust Outlet Flange: 5 Bolt
Nozzle Area: 7cm

Turbo Model: RHF5H, RHF5H 09 098E
EngineCode: 6MT, EJ25 2.5 GT
Cooling Type:Water Cooling
Thrust Bearing: 360 Degrees
Horsepower: 320HP
Bearing Type: Floating Bearing
Turbo Type:Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight：6740g
Package Size：30*28*24cm

Package included

1xTurbocharger
2xFlange gaskets
4xOil/Water port gaskets
1xConnecting pipe

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

ebay站点新增参数

Universal Fitment: No
Finish: Matte
