24-Way Adj. Coilovers compatible for Nissan Skyline GTS GTS-T R33 RB25DET 2.5L 6cyl 93-98

Introduction

maXpeedingrods SP1 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.


Application

Compatible for Nissan Skyline 1993-1998 ECR33 GTS-25T TYPE M
Compatible for Nissan Skyline 1993-1998 ER33 GTS25 TYPE S
Compatible for Nissan Skyline 1993-1998 HR33 GTS, GTS TYPE S
Note: Rear Bottom Eye Bush Style Only.



Specification

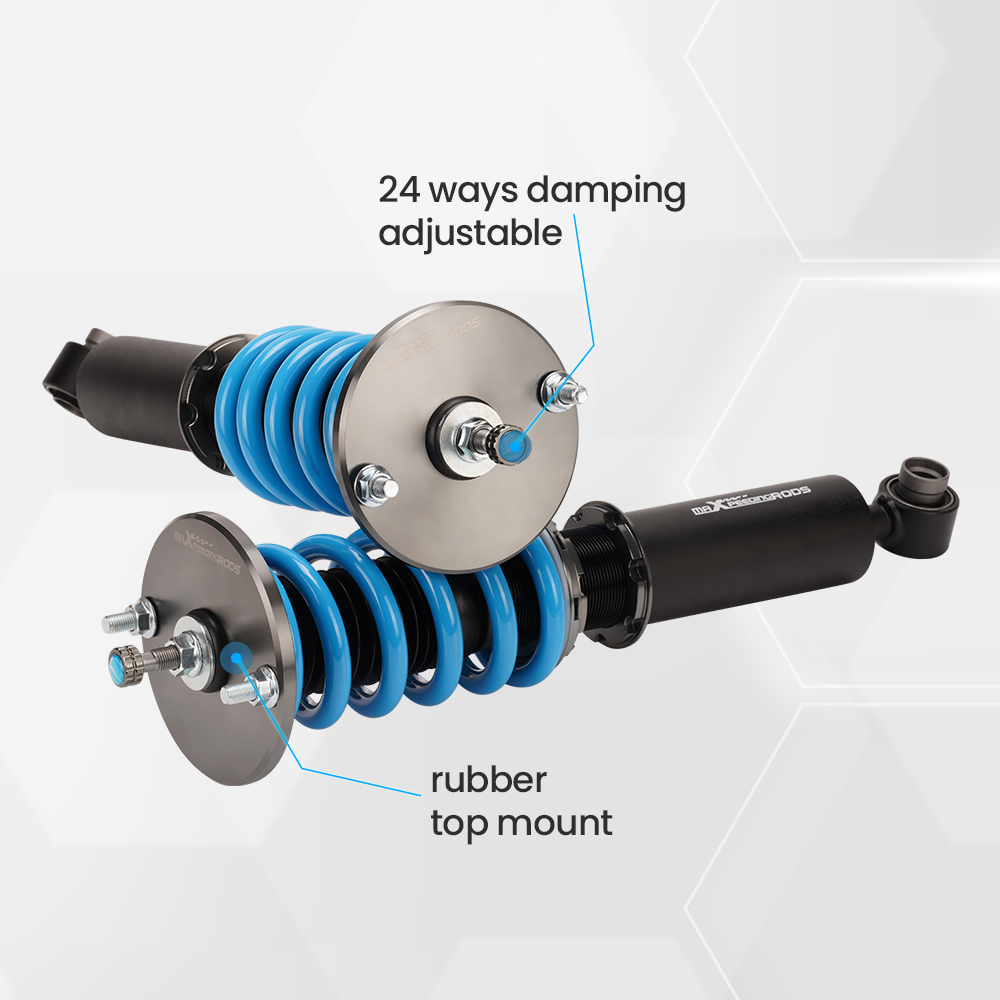

Top mounts: Standard rubber top mount front and rear
Damping: 24 levels rebound damping adjustable
Spring rate Front: 10 kg/mm (560lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)
Spring length Front: 180mm
Spring length Rear: 230mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 420mm-510mm
Coilover overall length Rear: 550mm-750mm
Shock type: Twin tube
Spring preload: 7-10 mm

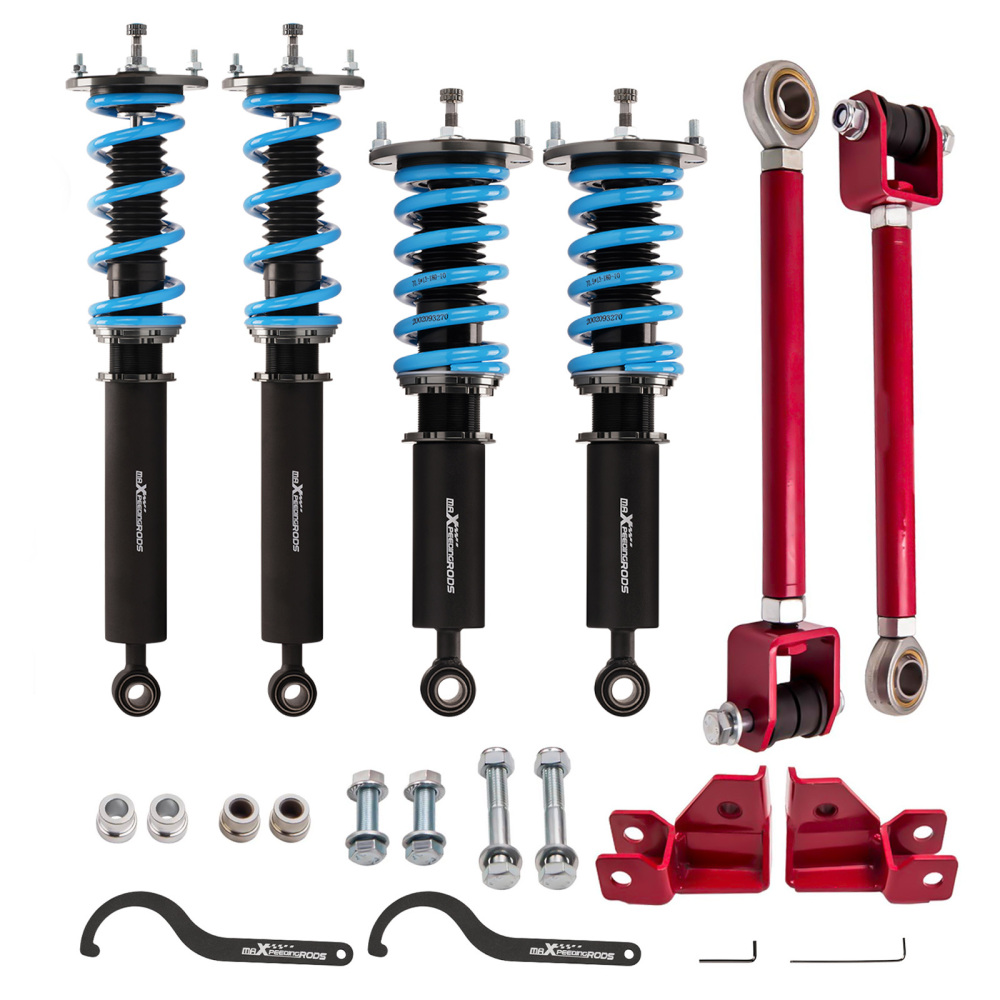

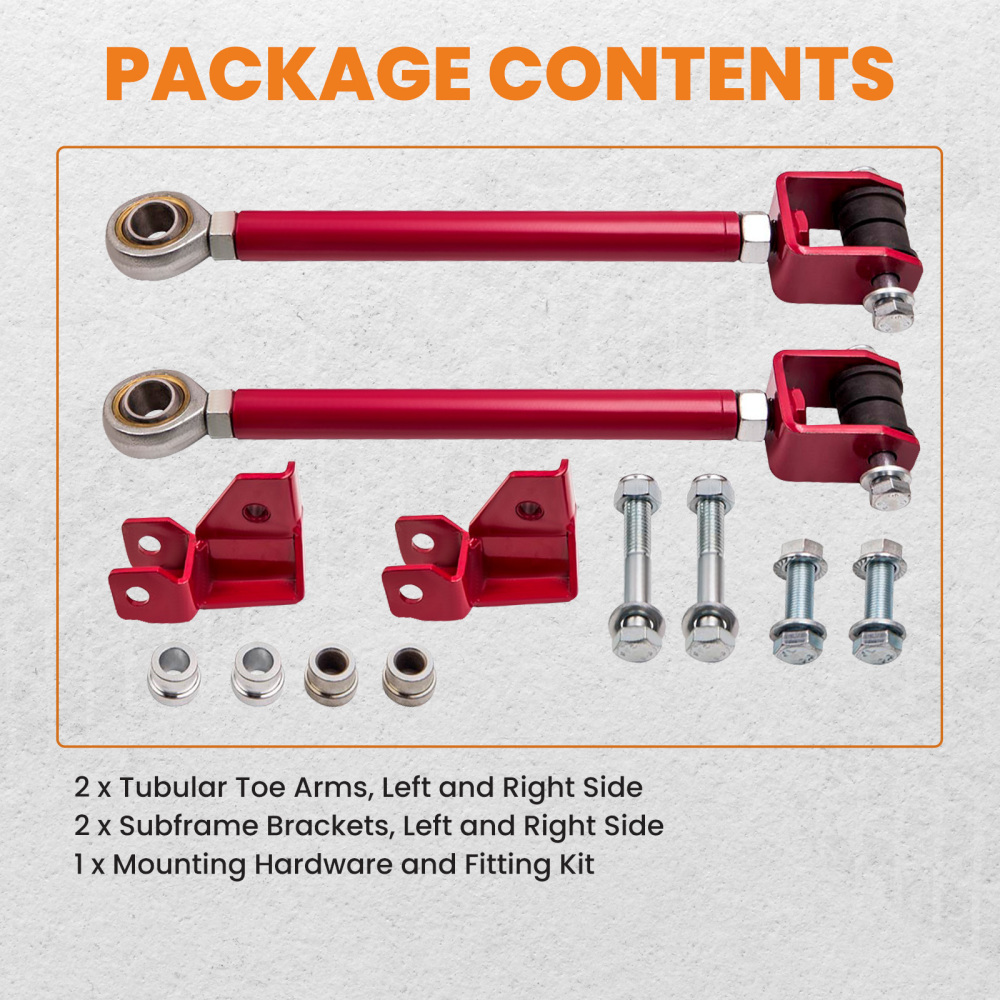

Package included

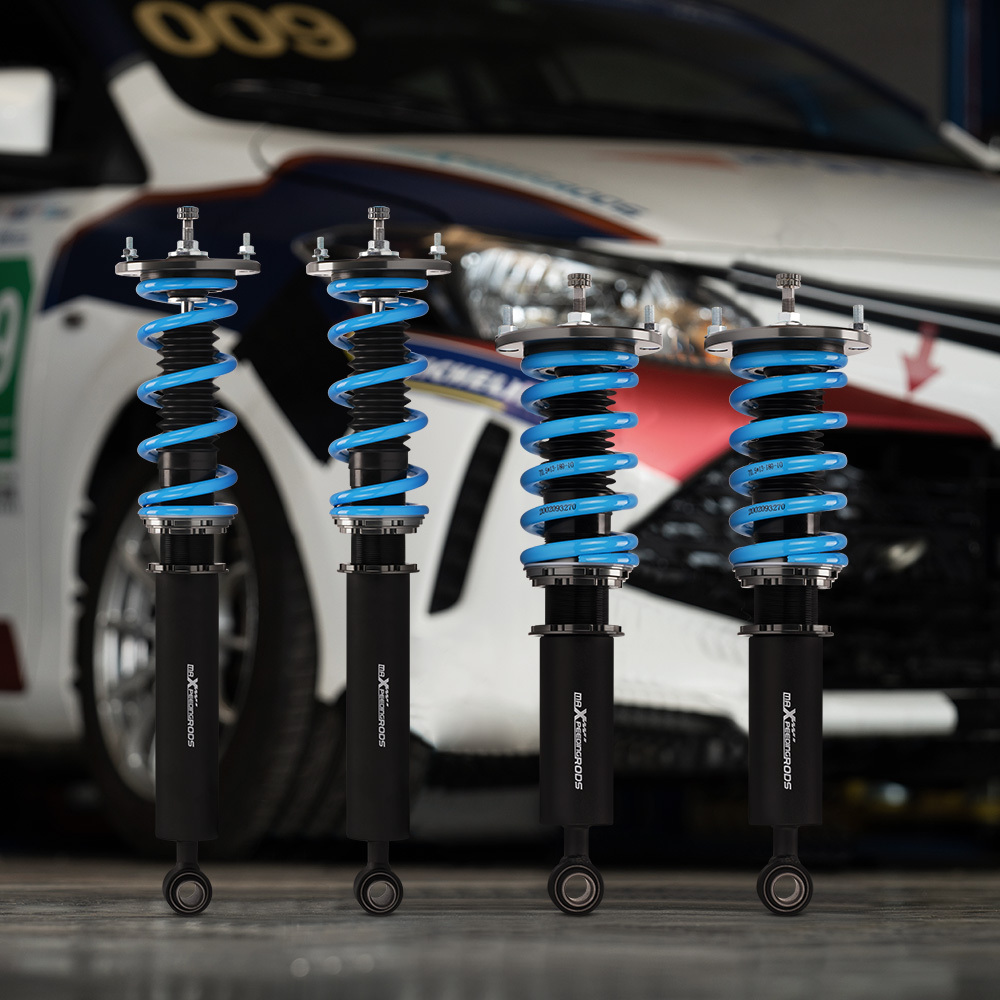

Complete coilovers 2 front and 2 rear

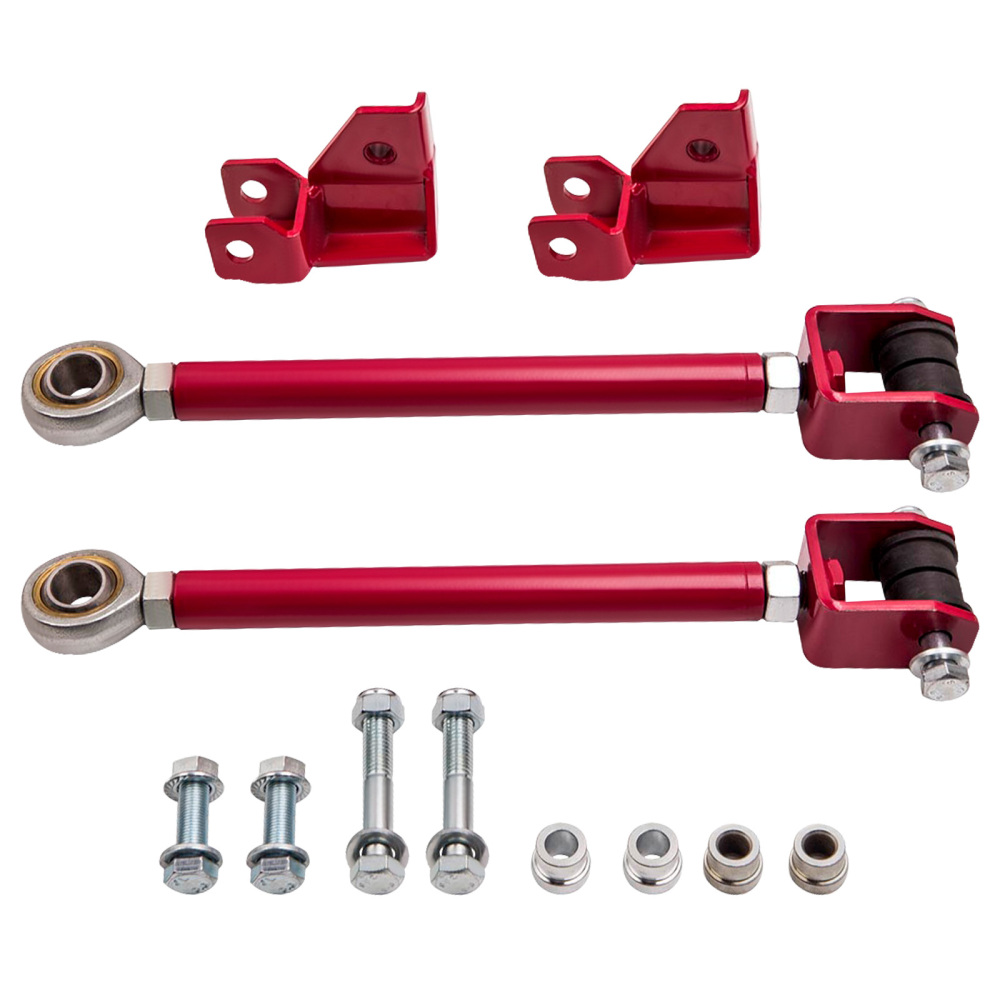

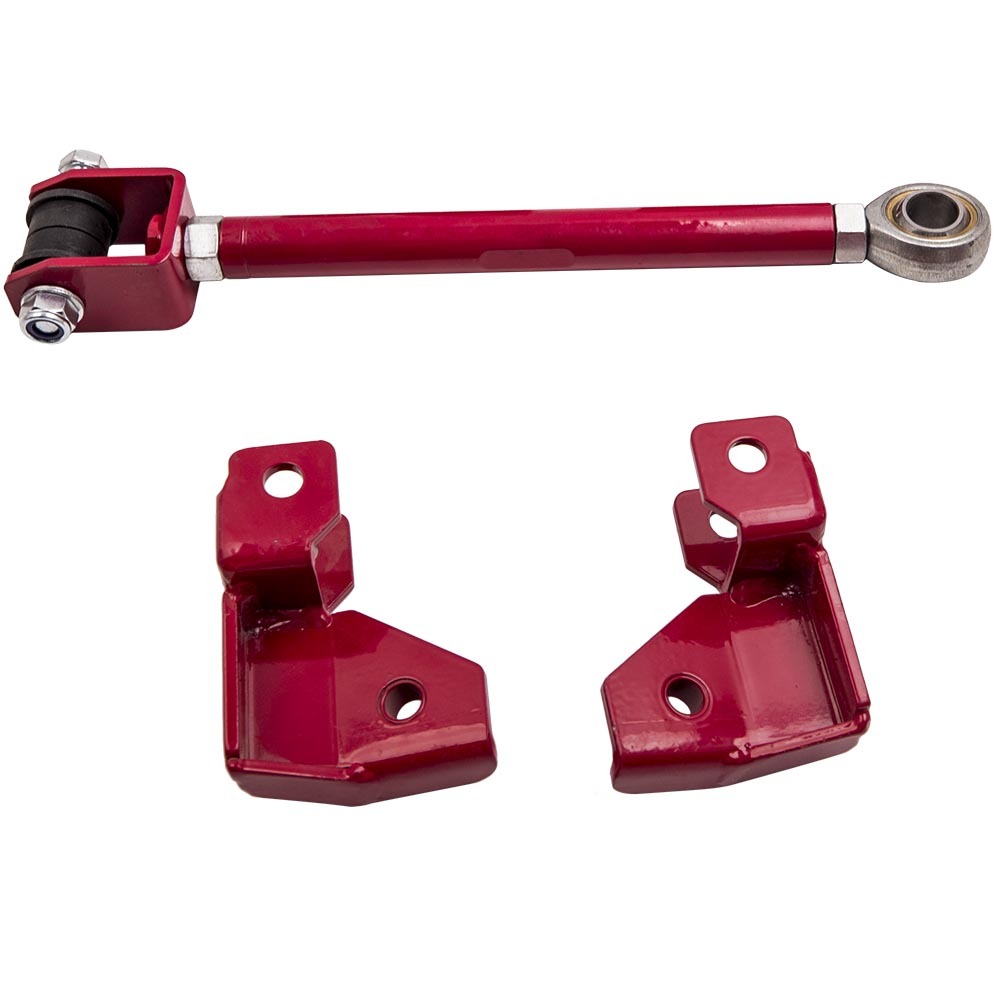

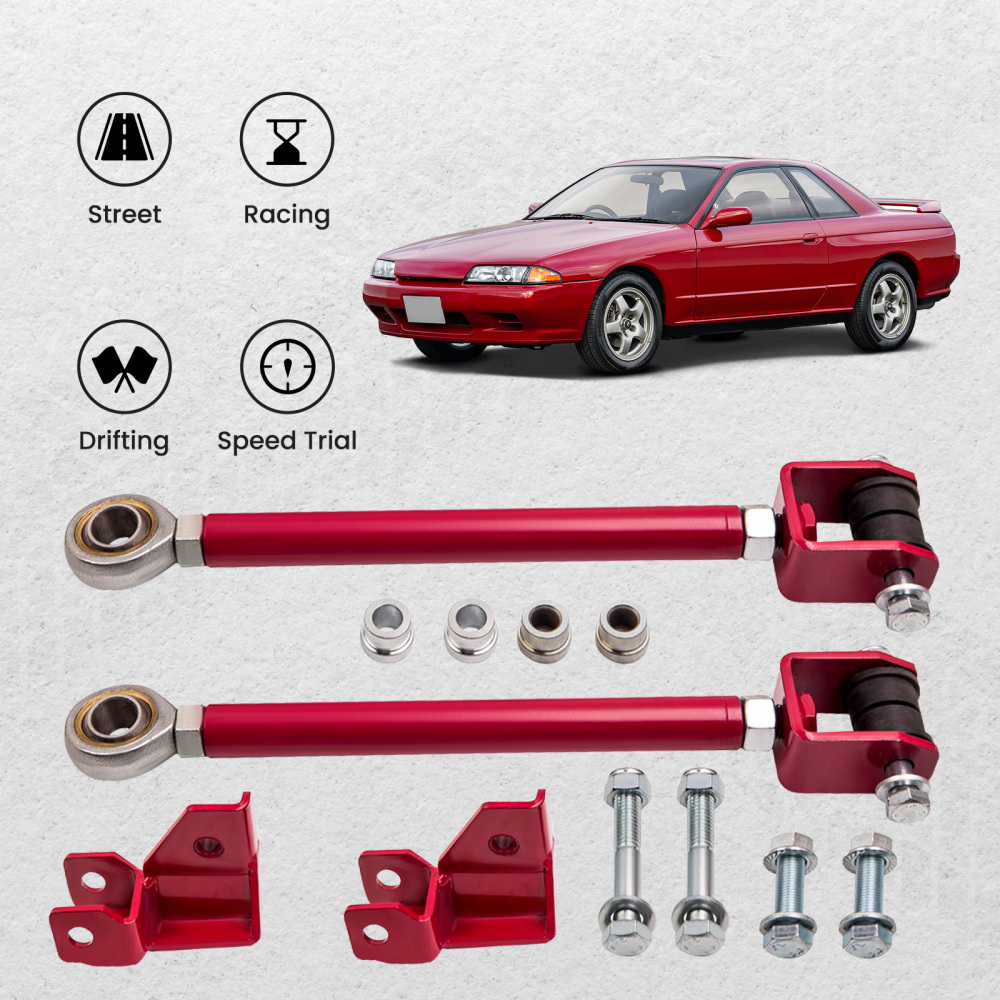

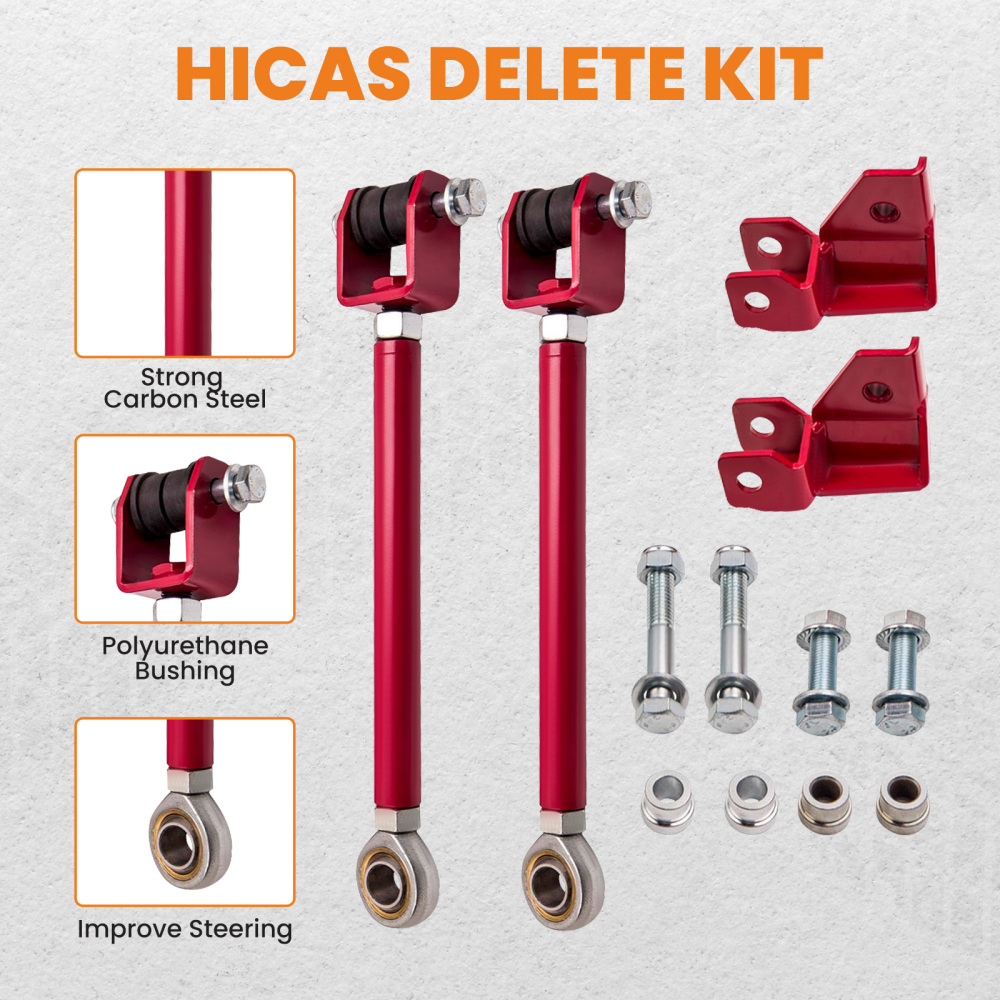

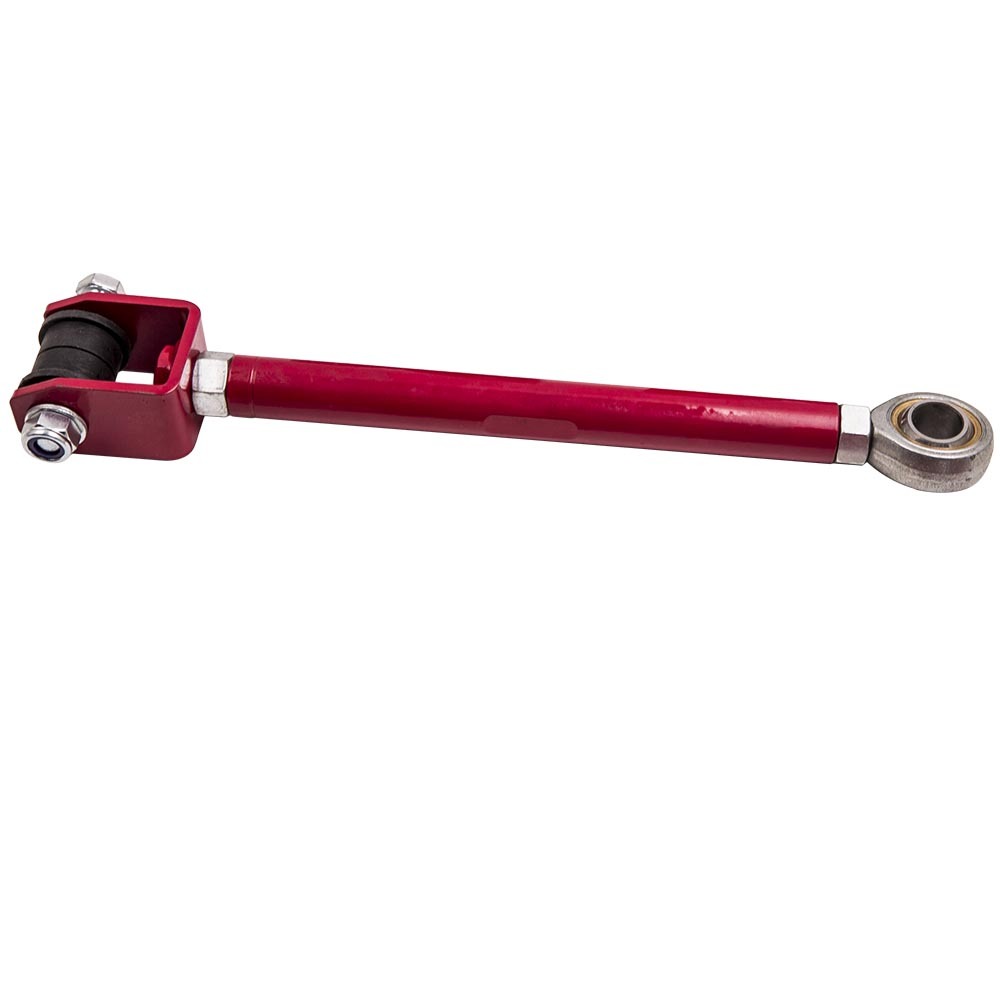

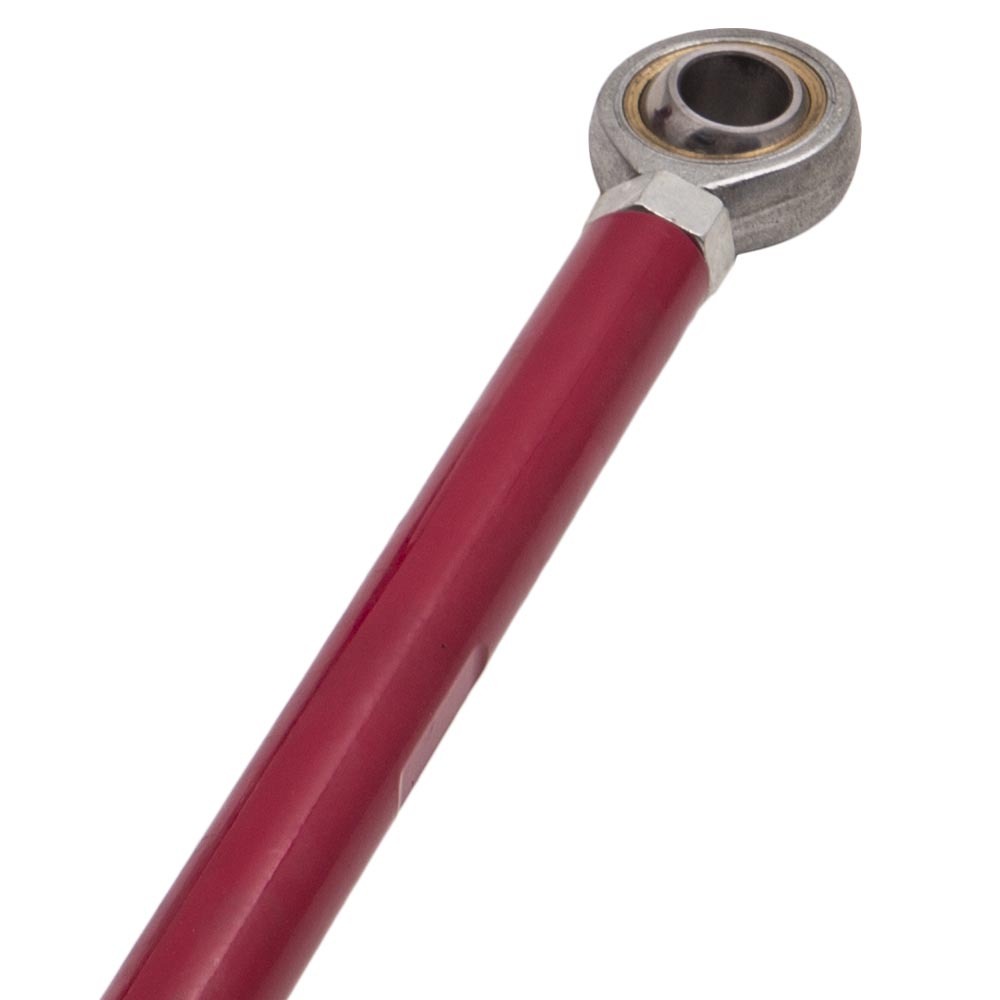

1 x Left Side Hicas Lock Arm
1 x Right Side Hicas Lock Arm
1 x Left Side Hicas Bracket
1 x Right Side Hicas Bracket
1 x Bush and Fitting Kit

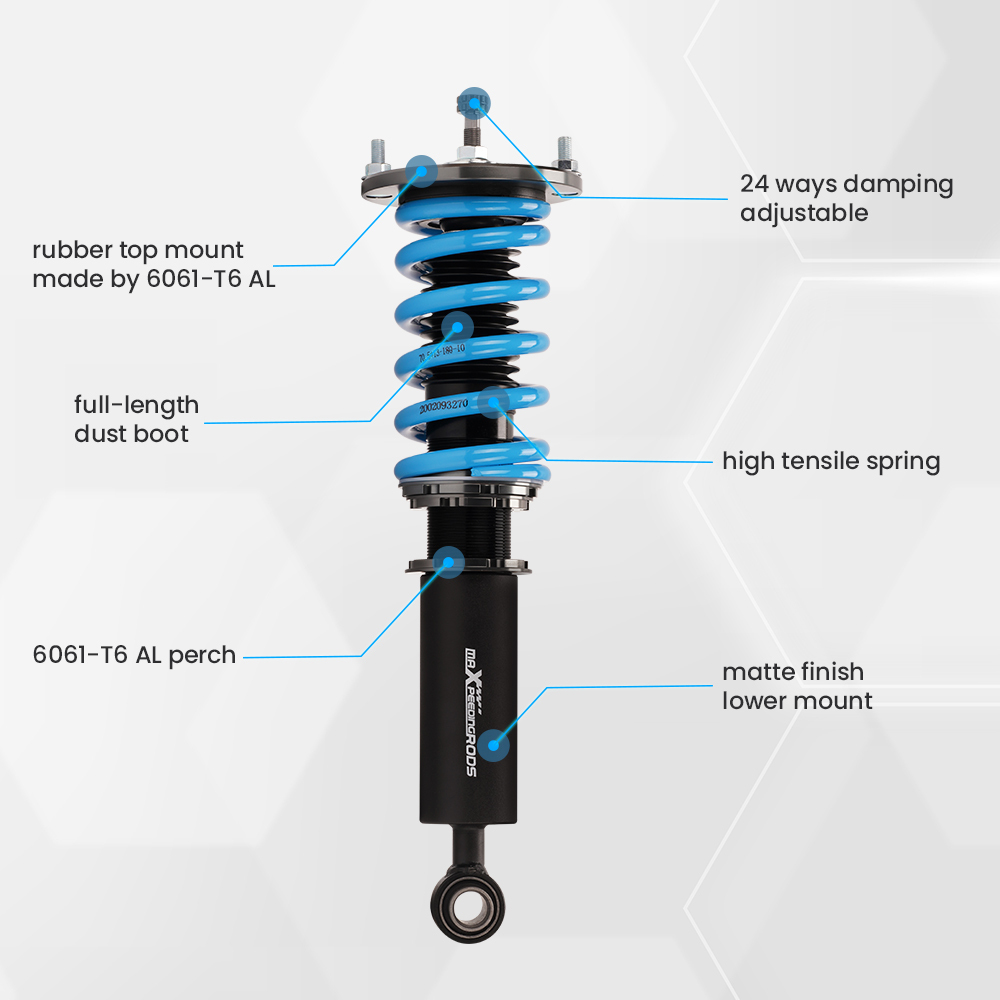

 Feature

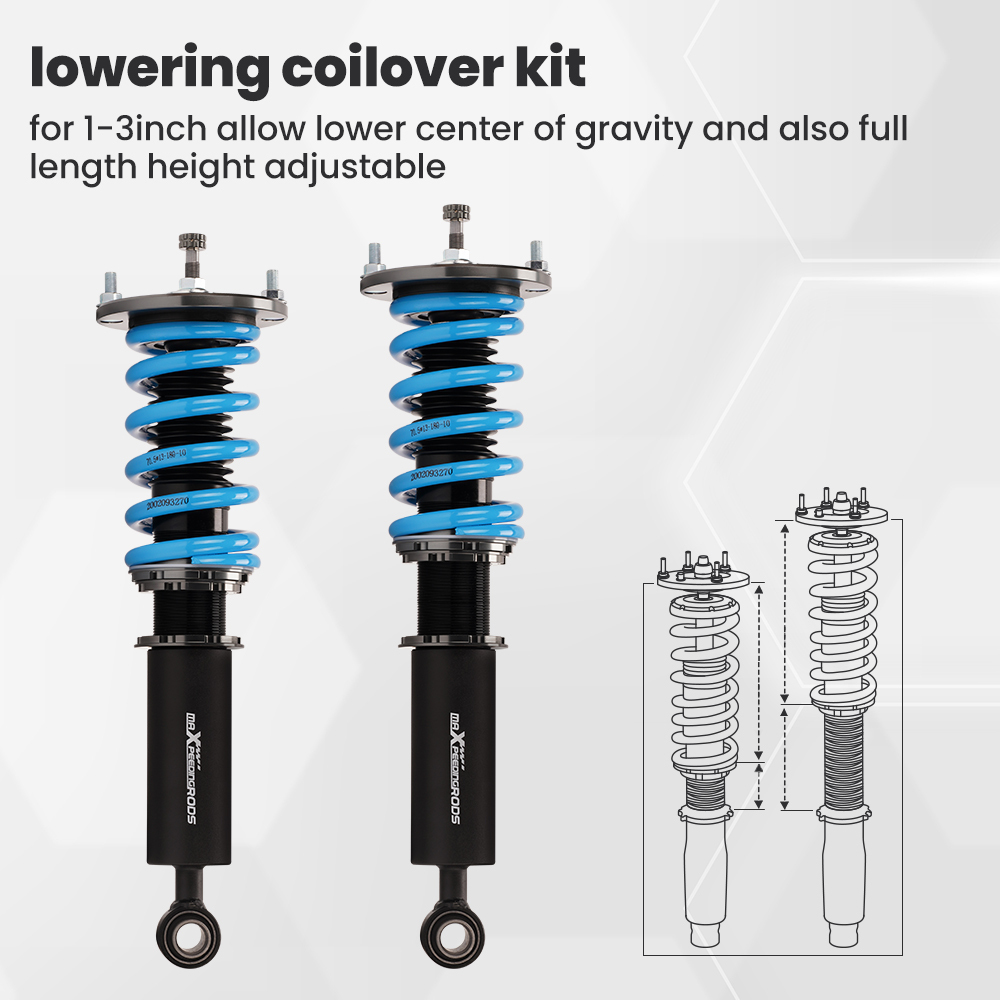

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent.

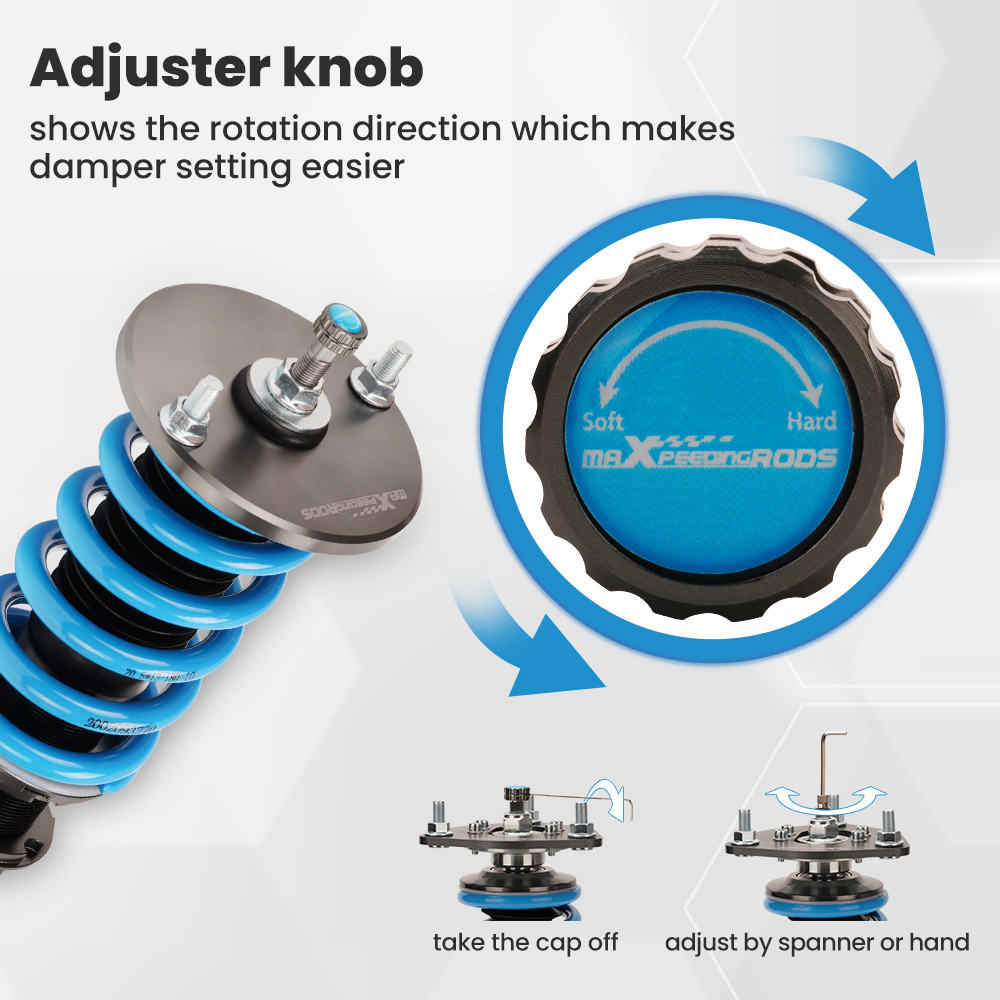

3. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

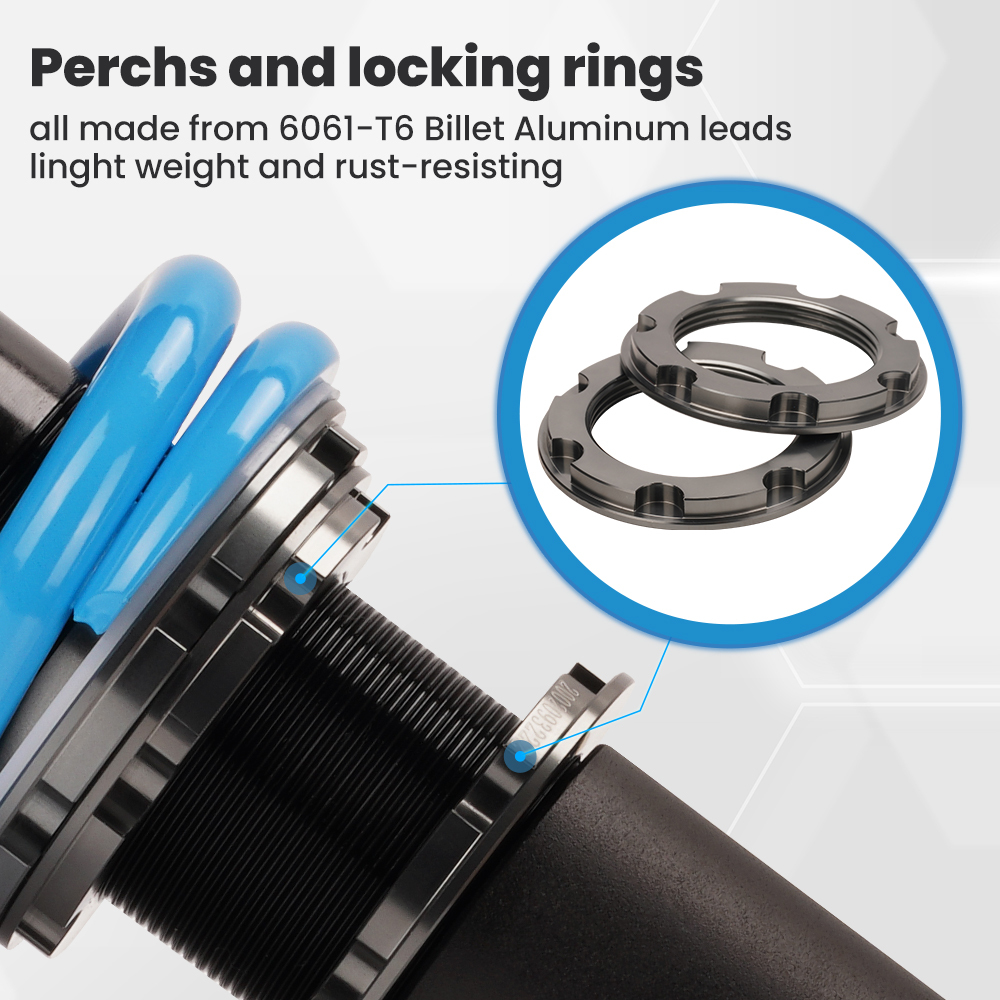

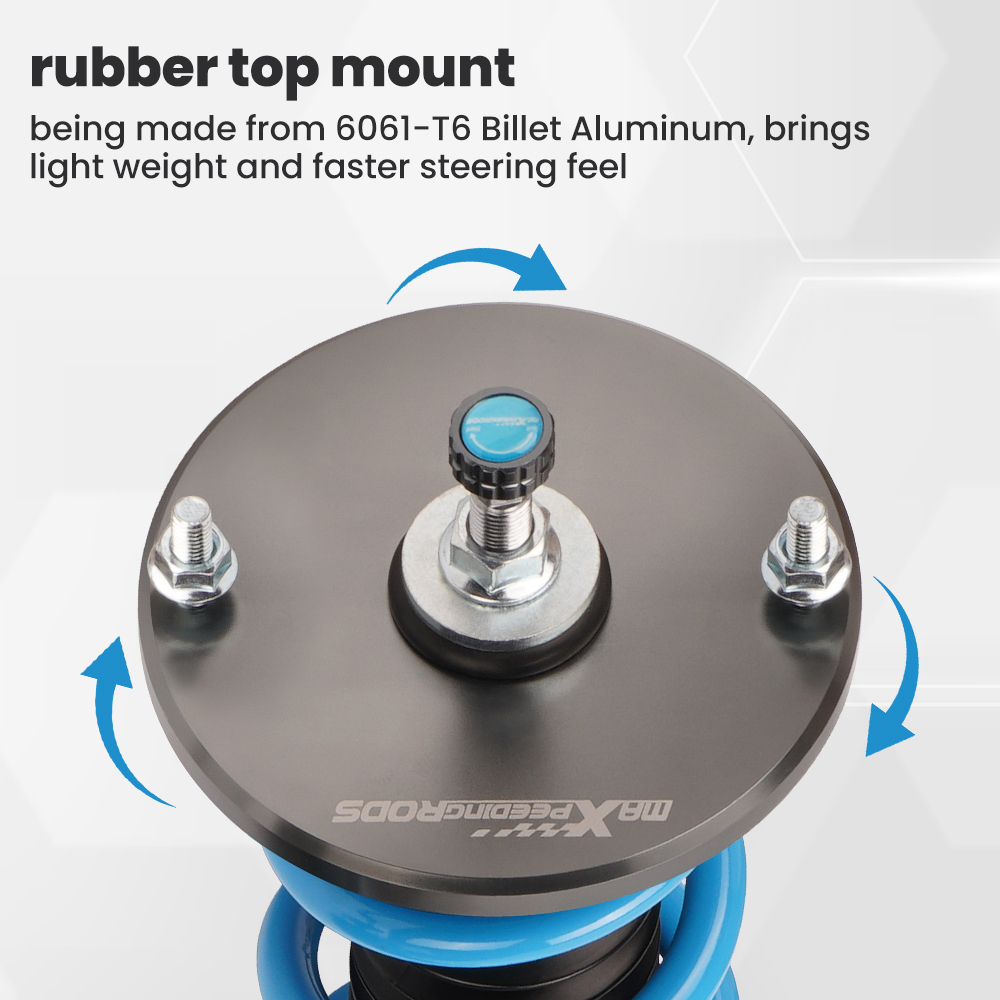

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight.

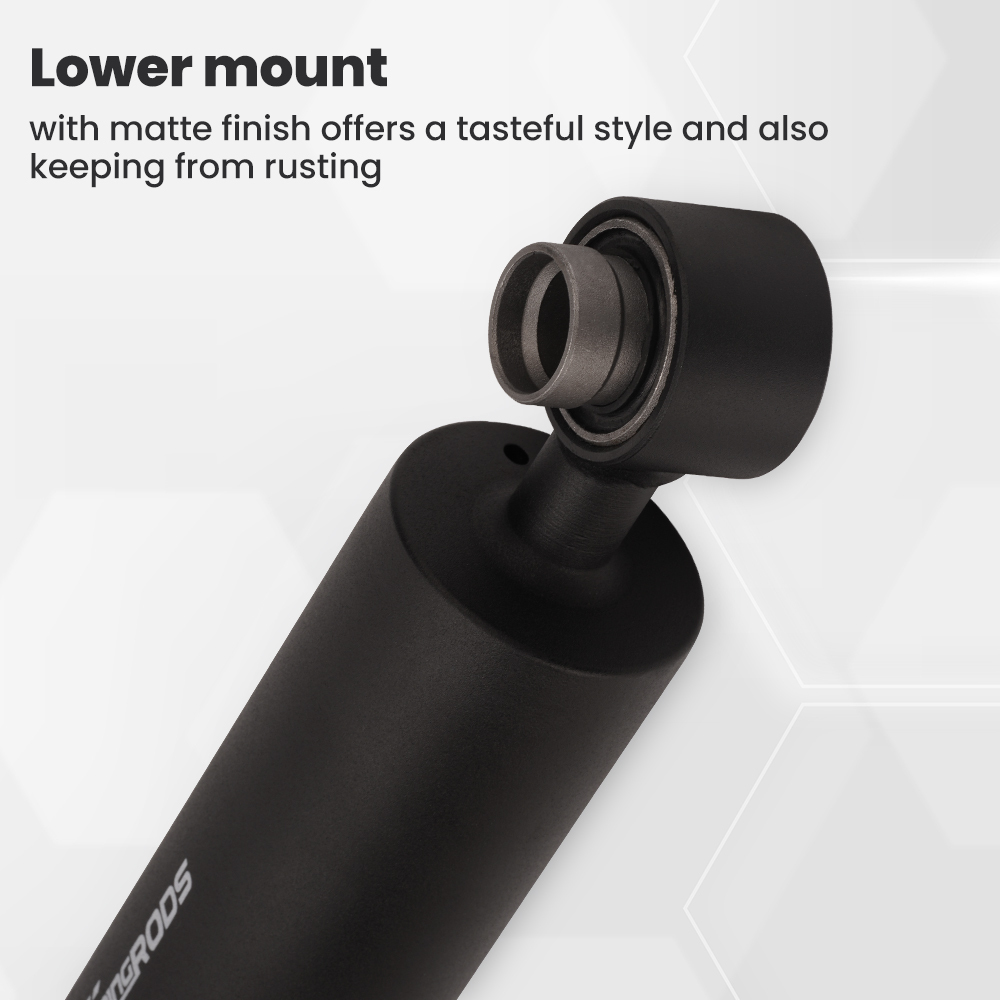

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable.

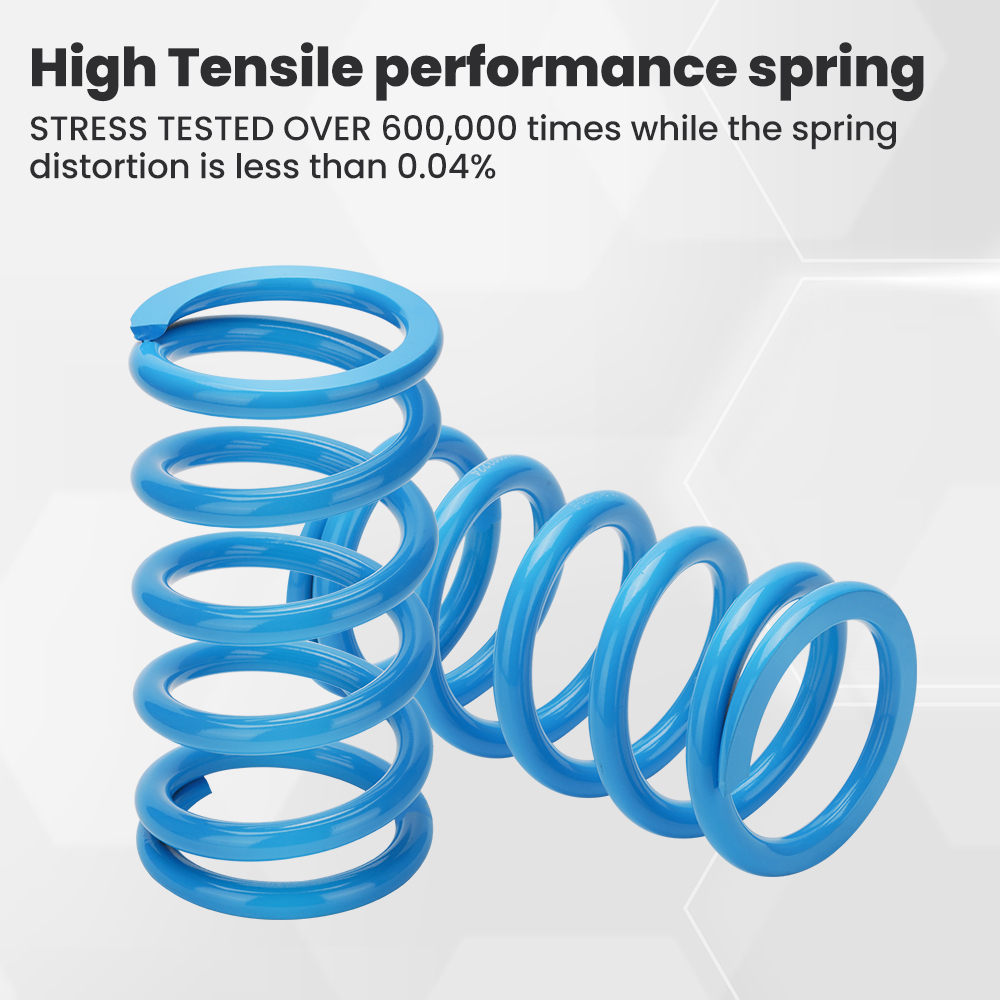

6. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.

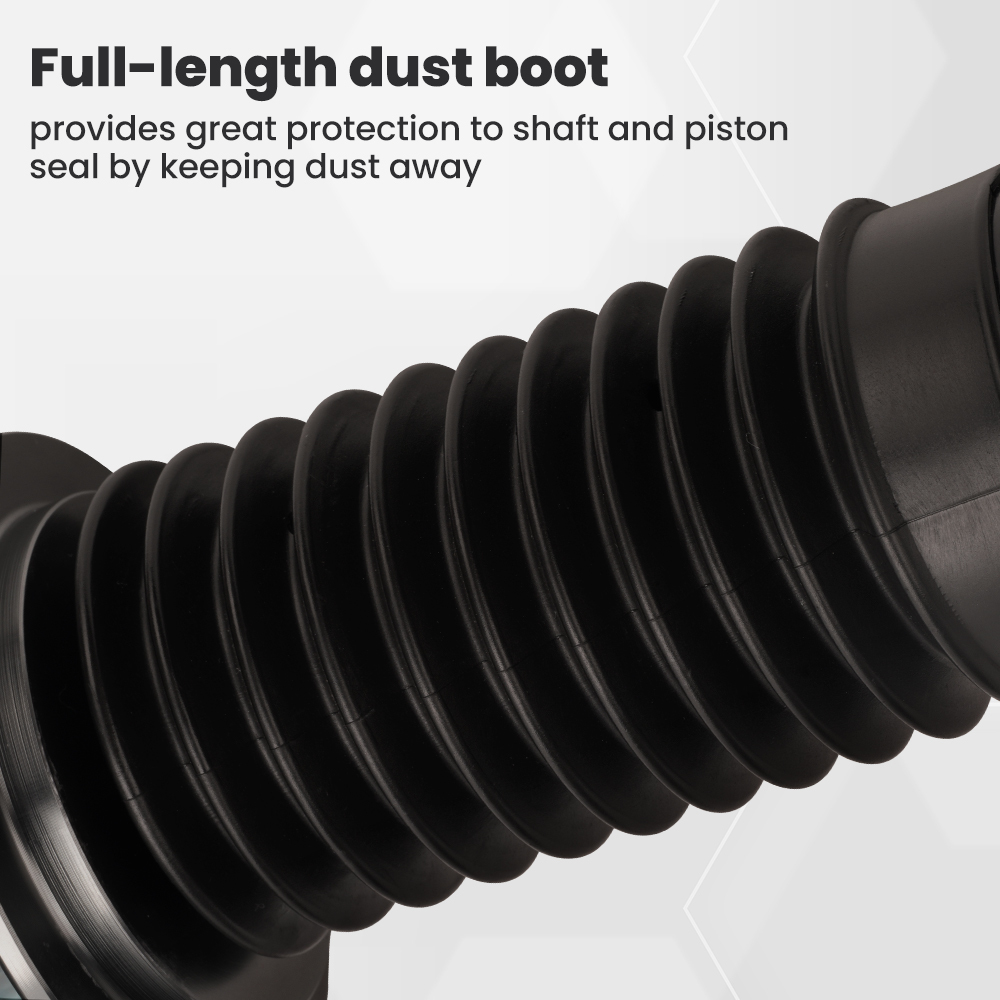

7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. With better damping setting,you will get better performance and comfort at the same time.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions.
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts.
11. Clean room assembled---maintain higher level of accuracy and reliability.
12. Upgraded damper oil---make damping more stable and smooth in wide temperature range.


 Notice
* No instruction included; Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
