Turbocharger compatible for Jeep Wrangler III 2.8L CRD 130Kw 177HP RA428RT 2007-10 771954-1

Application

Compatible for Jeep Wrangler III 2.8L CRD 130Kw 177HP RA428RT 2007-2010,
compatible for Dodge Nitro 2.8L CRD 130Kw 177HP RA428RT 2007-2012,
compatible for Lancia Voyager 2.8L CRD 120KW 161HP 2012-2016,
compatible for Lancia Voyager 2.8L CRD 131KW 176HP 2012-2016,

OE/Part number

771954-0001, 771954-5001S, 771954-1,
763148-0002, 763148-5002S, 763148-2,
796911-0002, 796911-5002S, 796911-2,
68092631AB, 68092631AA, 68033479AB,
68033479AA, RL033479AB, 35242127F,

Specification

Turbo Model: GTB1756VK
Engine: RA428RT, ENS RA428RT
Cooling Type: Oil Cooling
Fuel： Diesel

Bearing Type: Floating Bearing
Universal Fitment: No
Finish: Matte
Actuator Type: Electronic actuator
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 27*23*29cm
Package Weight: 8280g

Package included

1x Turbocharger
2x Oil Gaskets
2x Flange Gaskets
1x Manual
1x Brochure
1x Sticker

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

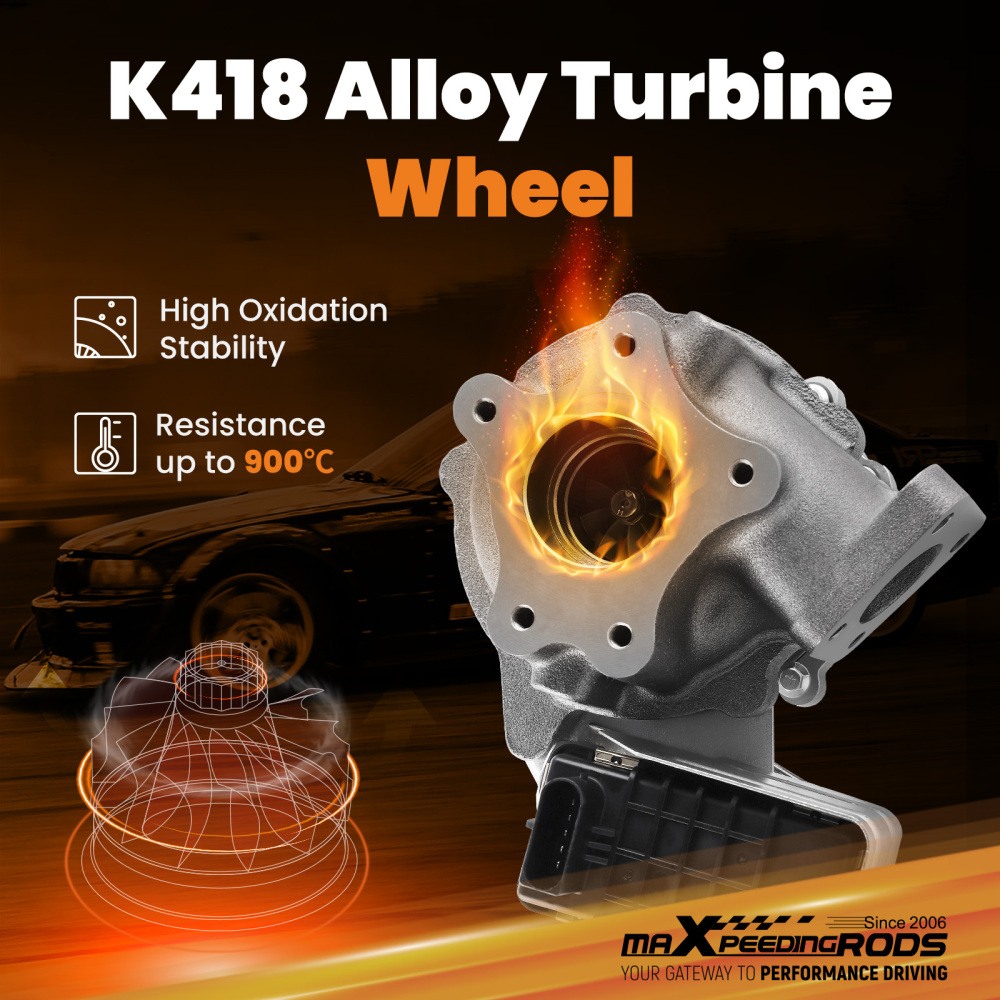

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

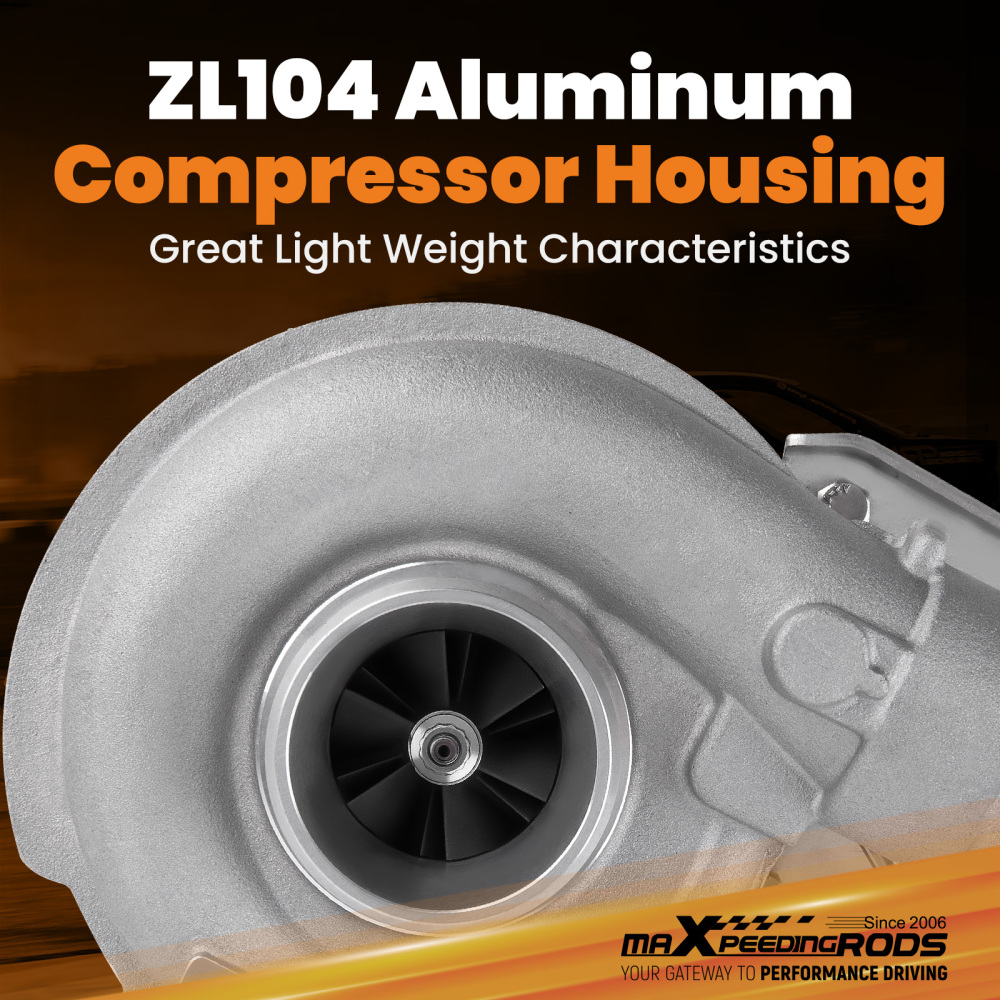

3. Compressor housing：ZL104 aluminum with lightweight

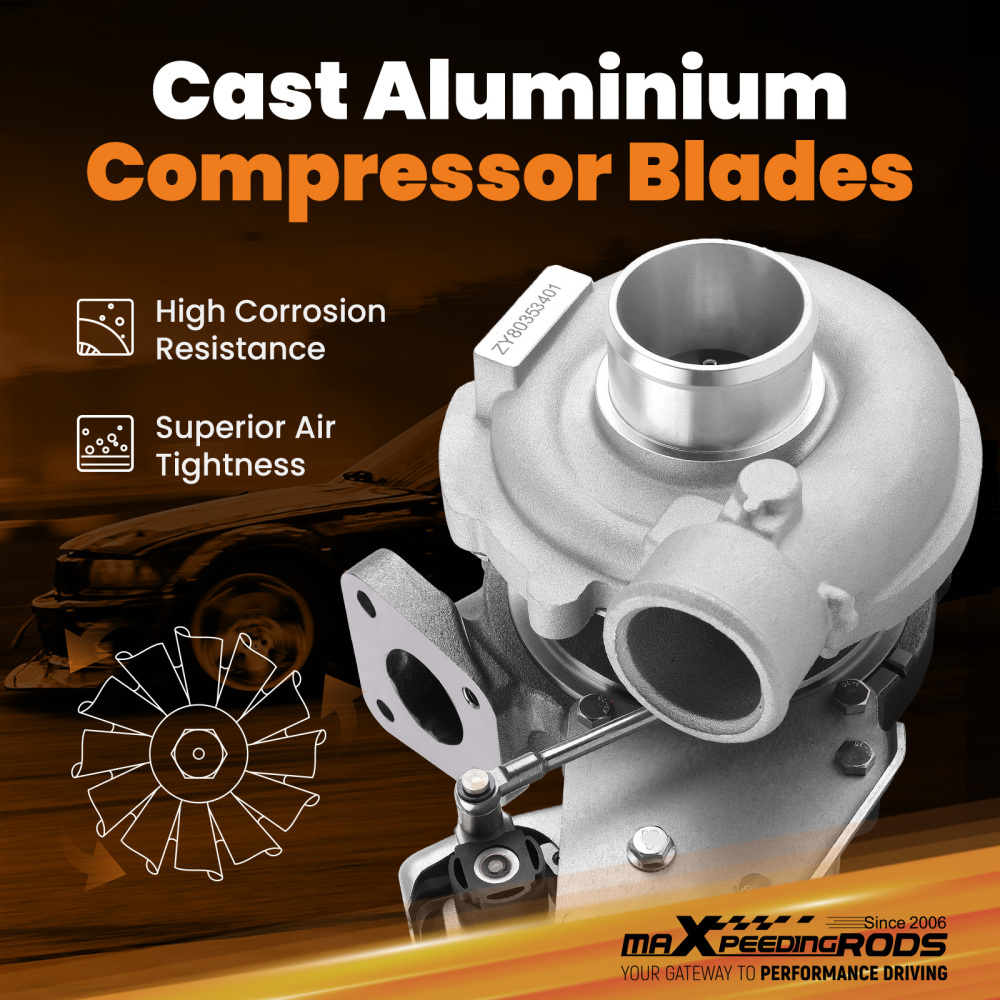

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification

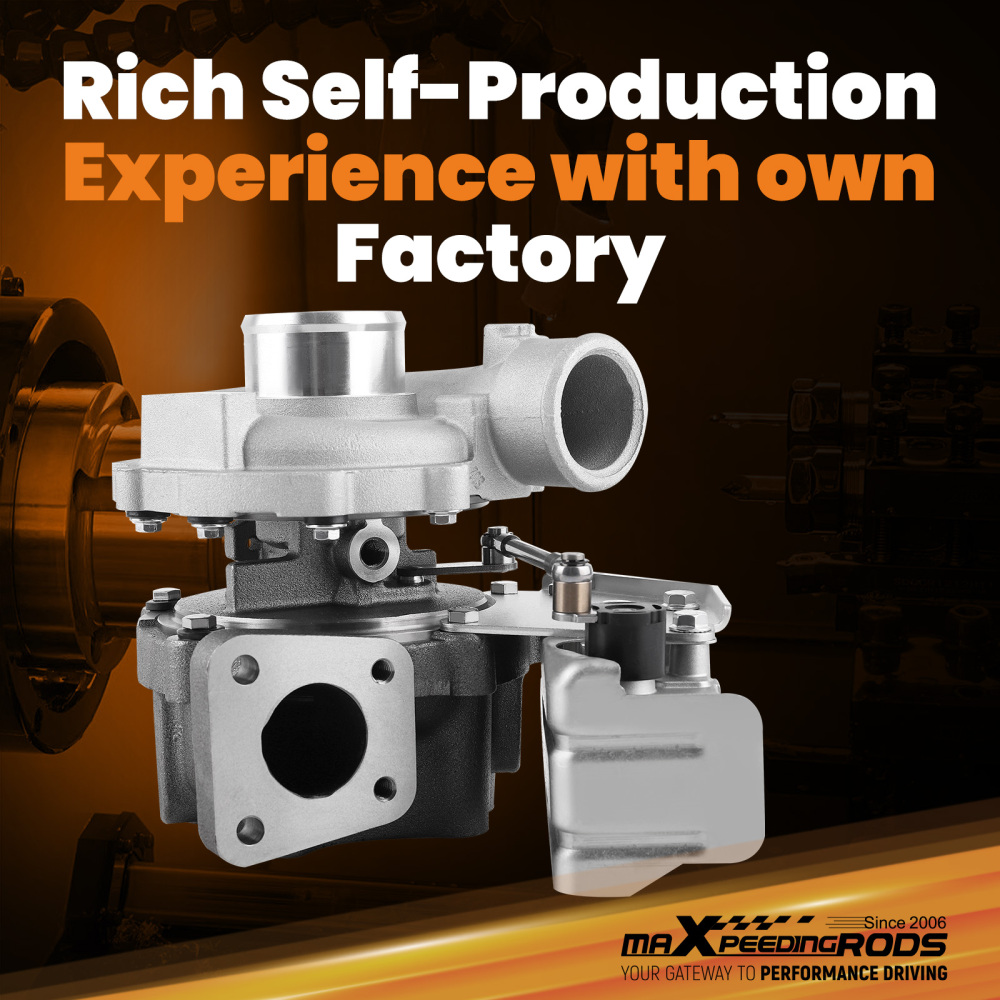

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
