Turbo compatible for Dodge Ram 2003-2007 2500/3500 compatible for Cummins 6BT 5.9L diesel I6 HY35W T3 TurboCharger

Introduction

Looking to boost your car's horsepower? Is your car's original turbocharger not performing well or need replacing? Maxpeedingrods stocks all the best OEM-quality turbochargers and turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbos provide the perfect solution by delivering a high-quality turbo at a budget-friendly price

Application

Compatible for Dodge Ram 6BT 5.9/ 5.9L 2003-2007
(Fits Models with 5.9L l6 OHV Turbocharged Diesel Calif. Emission Engines ONLY)

Part & OEM Number

3599810, 3599811, 4089392, 4035044，4955452，
3593075, 4033667, 4035044, 4089141，4089392NX, 408939200,
3599867，4033667, 4033667H， 4089392RX, 5086863, 5086863AA, 5086863AB
HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Turbo Model: HY35W, HY35W-E7755AQ/B10JX35
Engine Code: ISB, 6B
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees

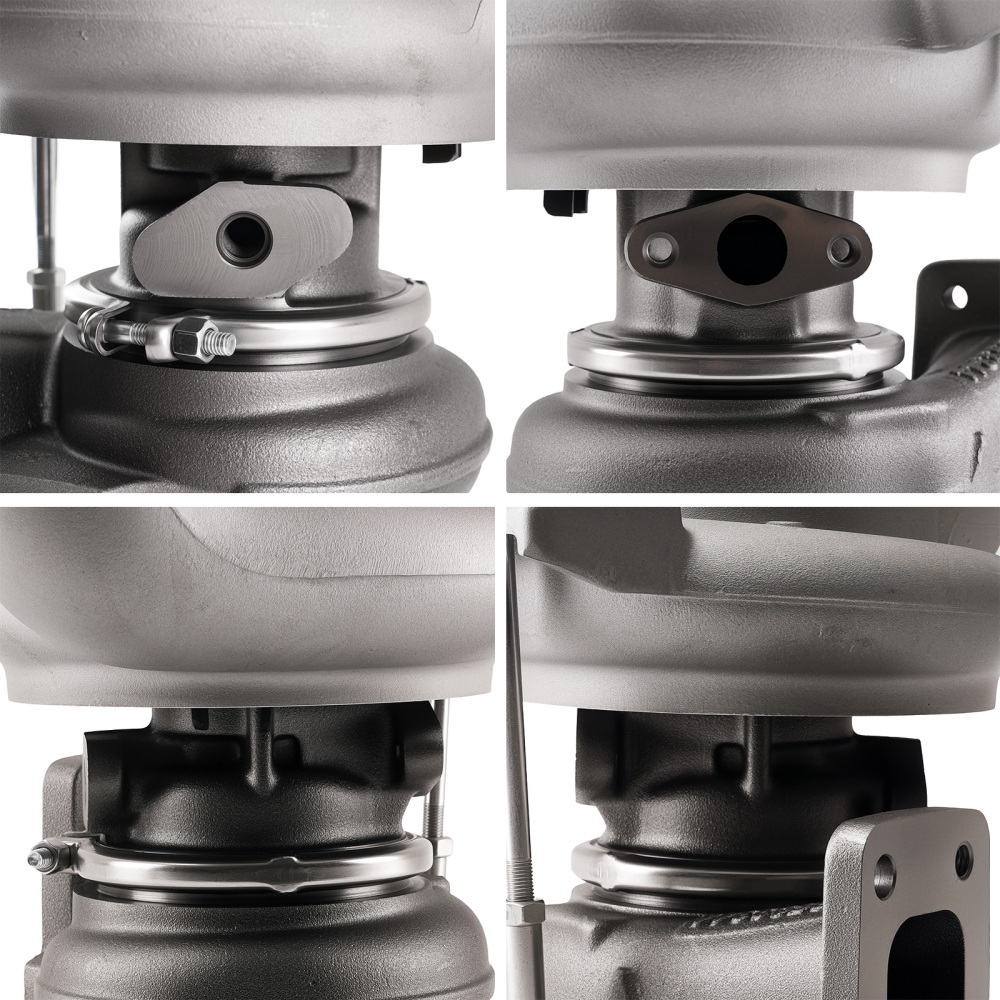

Exhaust (Turbo Manifold) Flange: Standard T3
Exhaust (Downpipe) Flange: Standard HY compatible for Dodge Cummins 4.375" Diameter V-Band
Condition: New
Package Size: 36x 33 x 33 cm
Package Weight:12000g

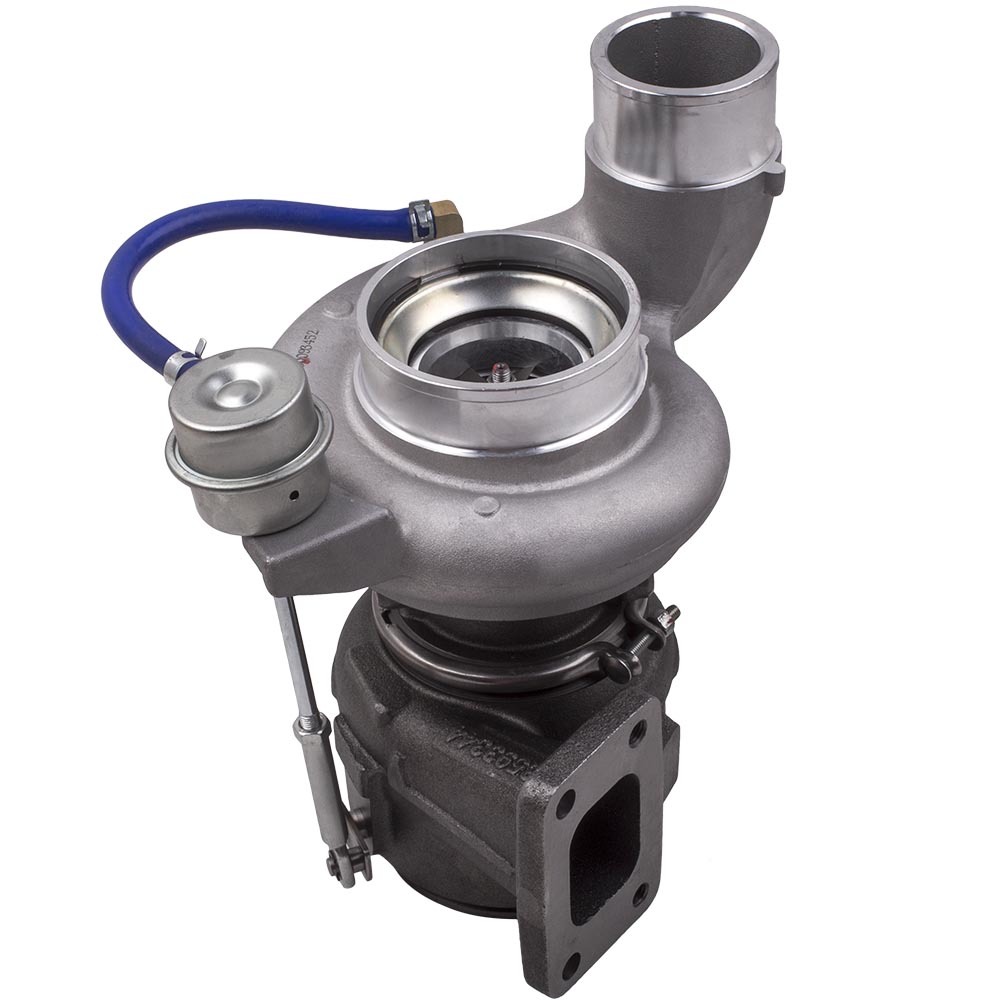

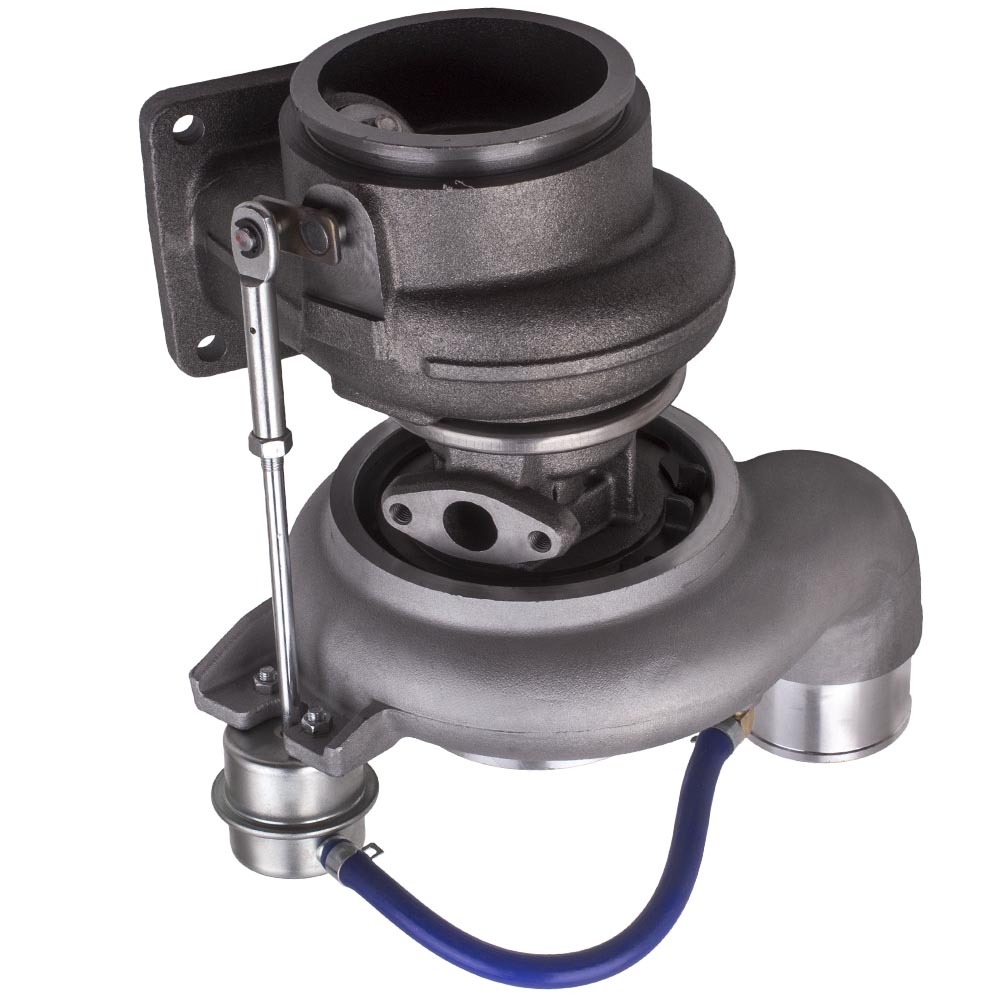

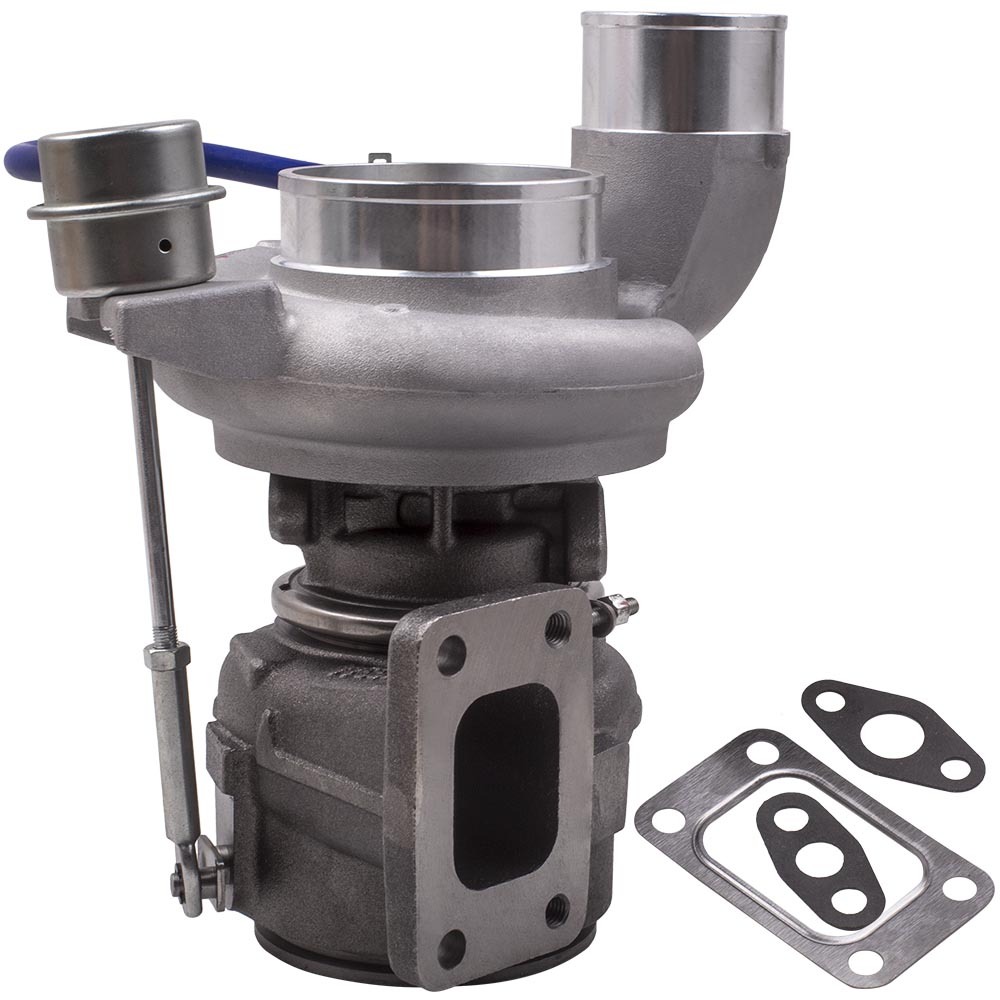

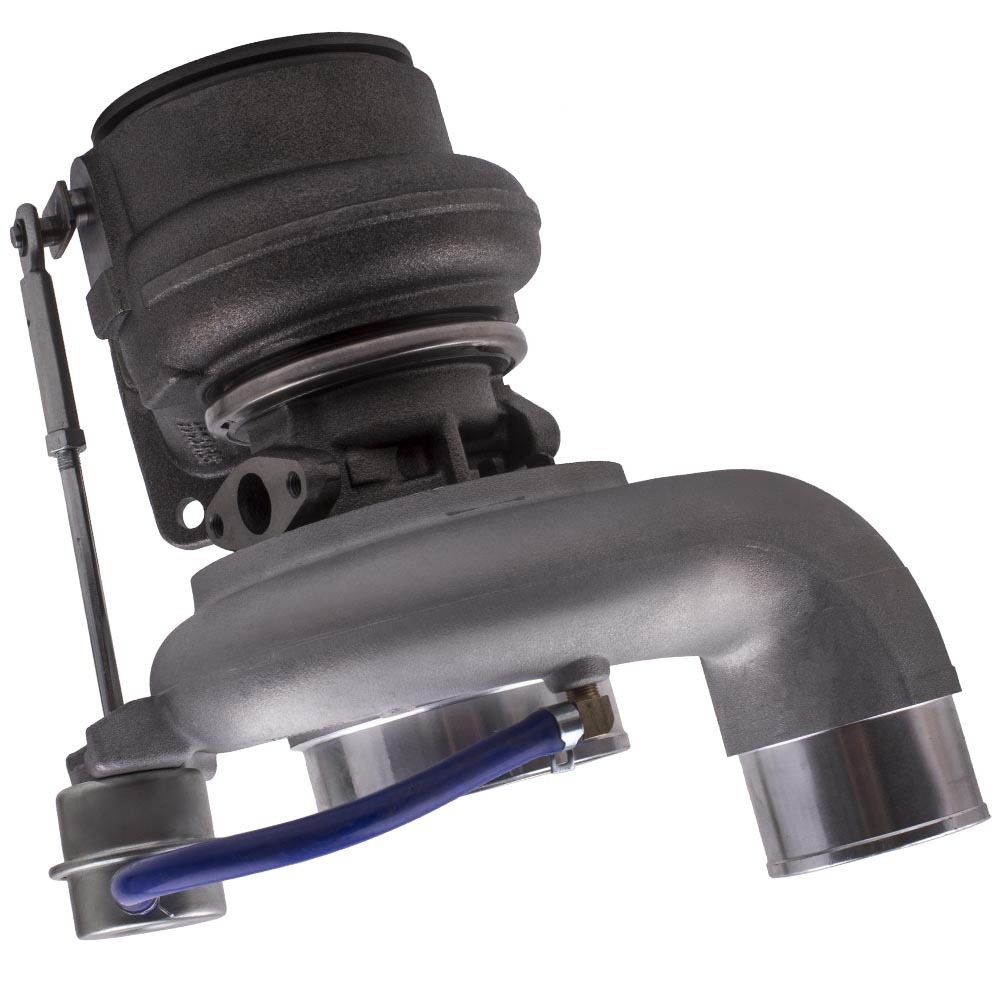

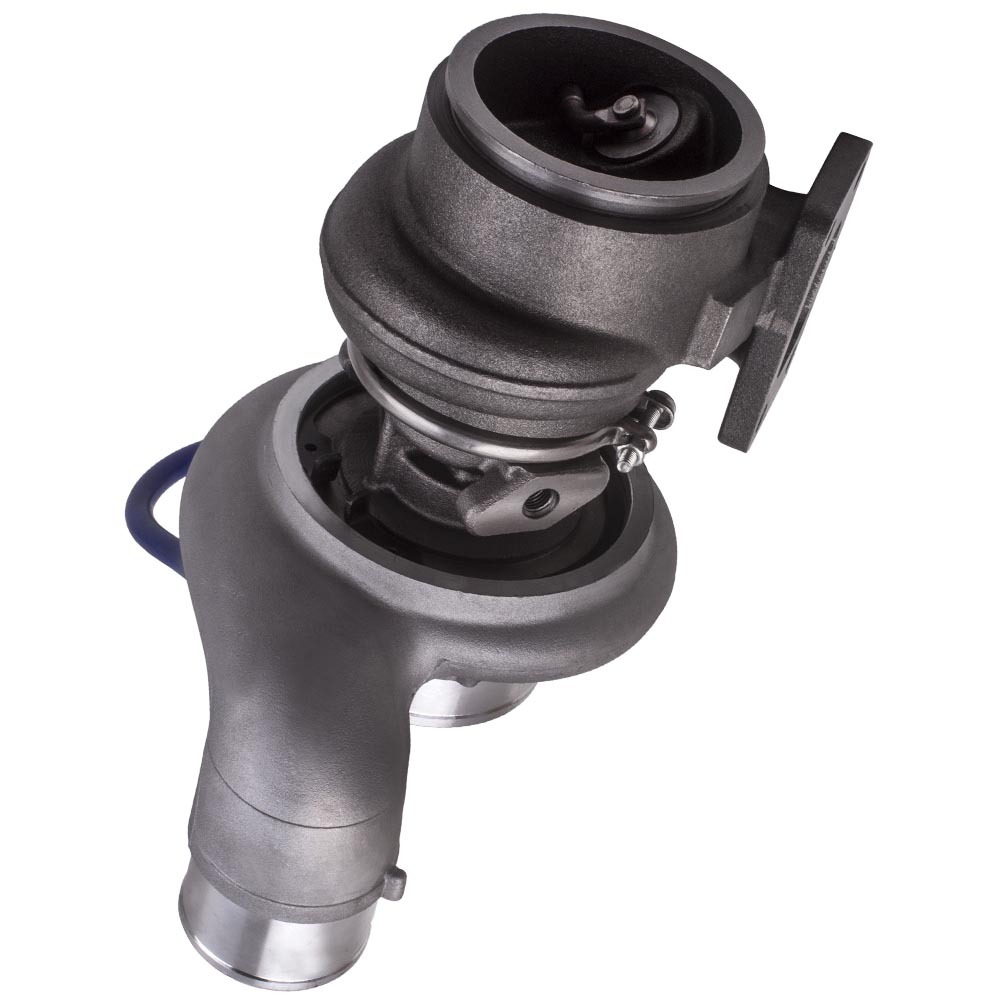

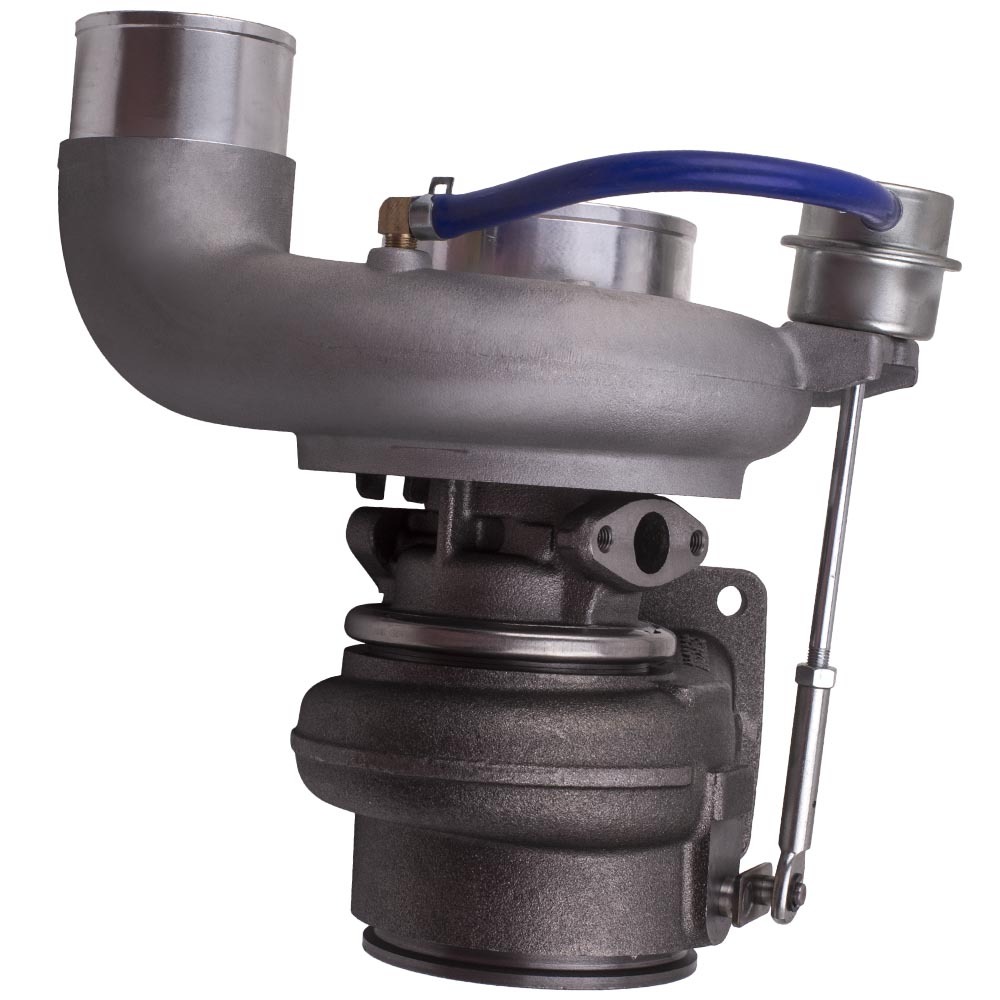

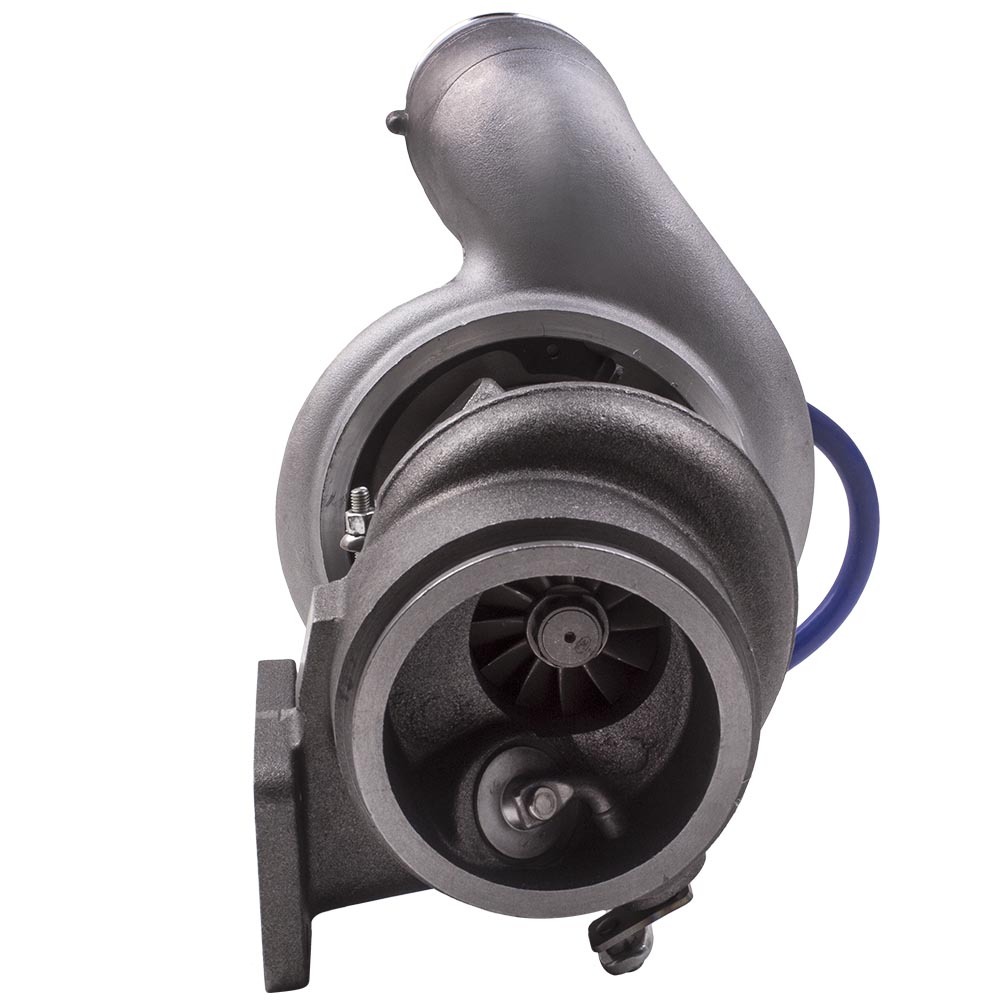

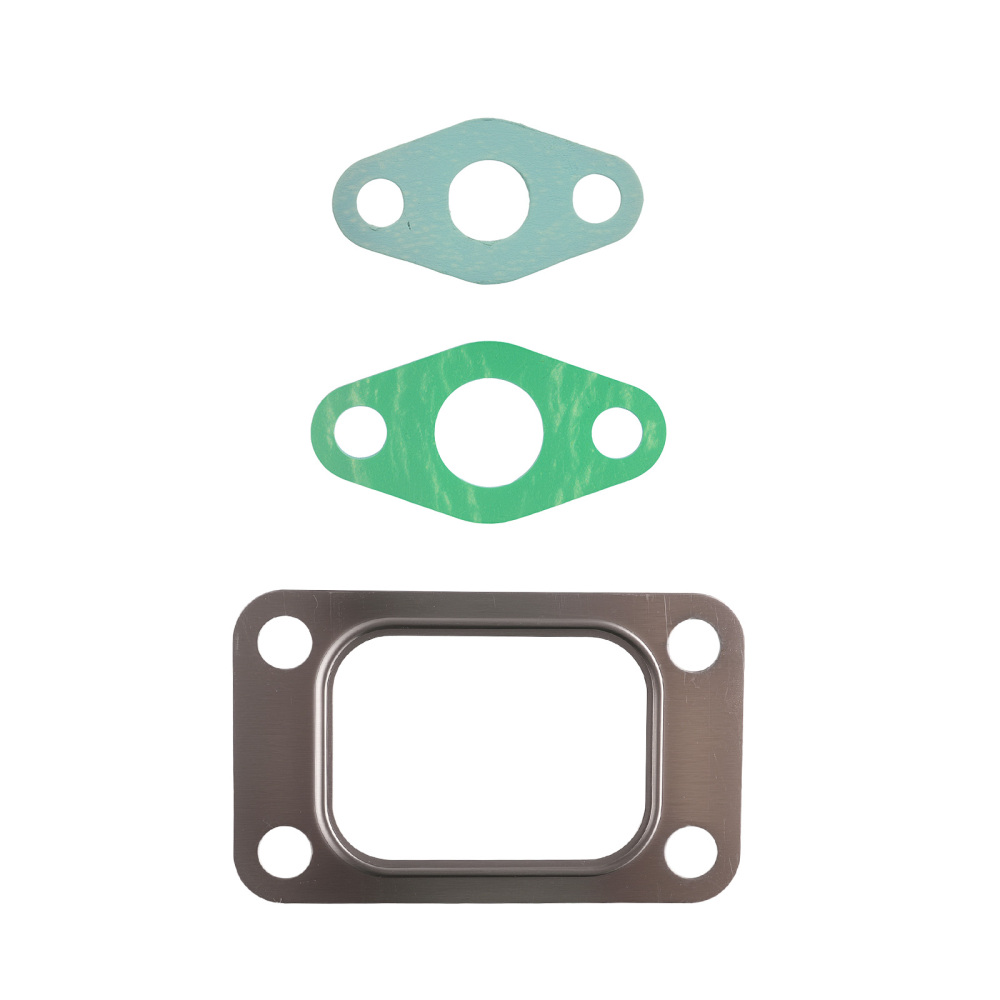

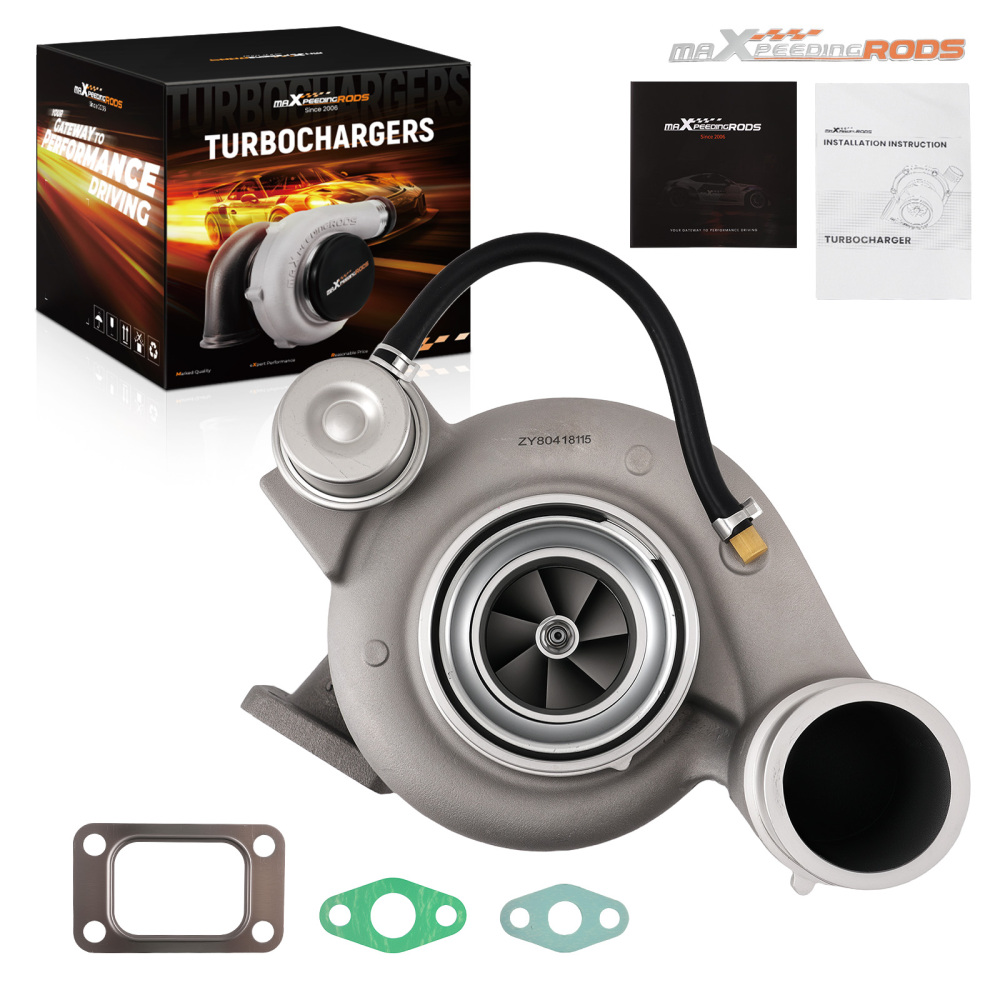

Accessories: You will receive the parts exactly as shown in the picture above

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.
3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.

Note

*Don't fit for HE351CW engine and not has sensor hole, please double check your old part before purchase
*Exhaust elbow is not Included
*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo of your cars, please feel free to contact us
* Exhaust elbow is not Included.
*Professional installation is highly recommended (No Instruction Included)
