Introduction
maXpeedingrods SP1 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate(for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.
Applications
Compatible for Nissan S14 Silvia 1994-1998 (Japan Market)
Compatible for Nissan S14 200SX BASE MODEL/ LE 1994-1998 (Europe / Australia/ New Zealand Market)
Compatible for Nissan S14 240SX BASE MODEL/ LE/SE 1995-1998 (USA Market)
Note: Don't compatible for Nissan 200SX SE /SE-R
Specifications
Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear
Damping: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 180mm
Spring length Rear: 255mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-470mm
Coilover overall length Rear: 550mm-700mm
Shock type: Twin tube.
Spring Preload: 7-10 mm.
Color: Black body + gold spring

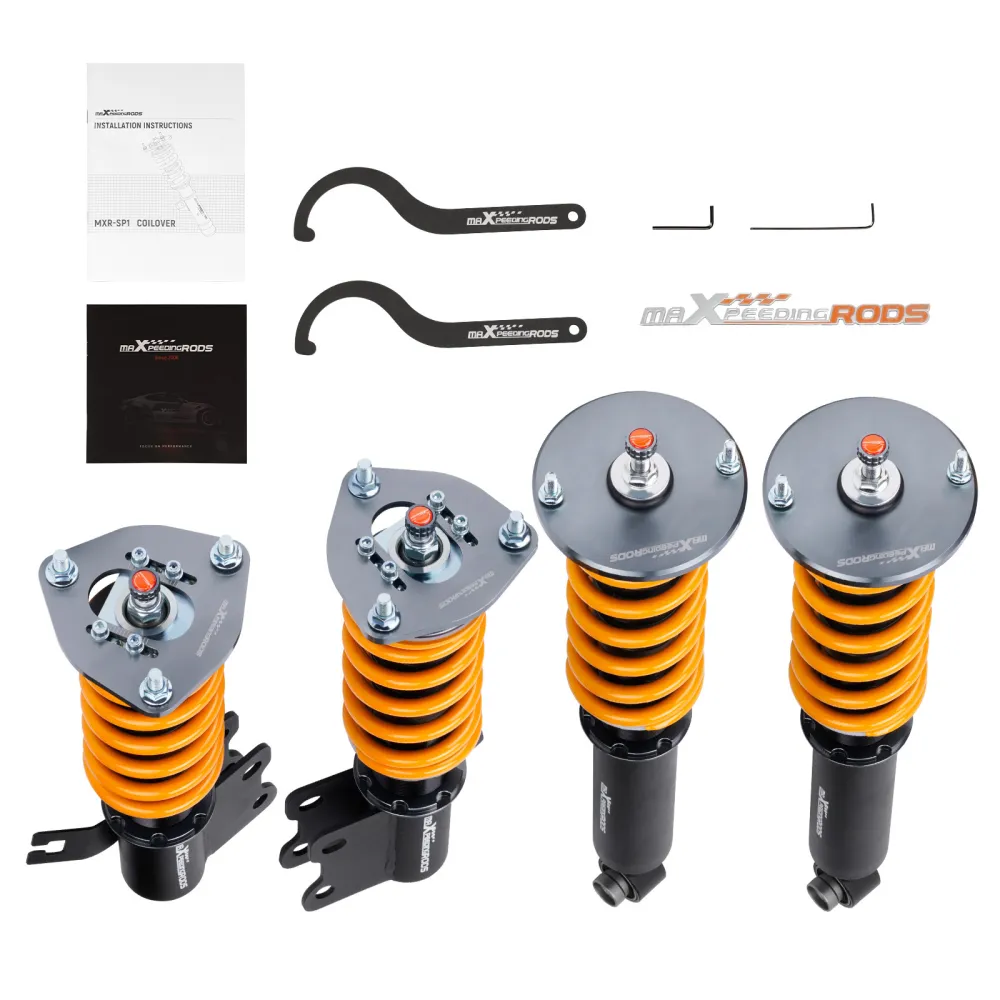

Package included
Complete coilovers 2 front and 2 rear
A pair wrench for height adjustment.
Dimension
Gross weight:26.06kg
Package size:71*51*21cm
Features
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. With better damping setting,you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
13. Clean room assembled---maintain higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.
Notice
* Instruction Included, Professional installation is highly recommended.
* Please check our store for other auto parts you may be interested in.
Warranty: one year warranty for any manufacturing defect
