Diesel Turbo compatible for Ford Transit Kasten 2.2L TDCi 155PS 2011- 786880-0012 Billet

Application:

For Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 92KW 2012-2015
For Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 74KW 2012-2015
For Ford Tourneo Custom V362 Bus (F3) 2.2 TDCi 114KW 2012-2015
For Ford Transit Van (FA_ _) 2.2 TDCi 103KW 2007-2014
For Ford Transit V363 Van (FCD, FDD) 2.2 TDC 114KWi 2013-2018
For Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 74KW 2013-2018
For Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 92KW 2013-2018
For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi 74KW 2011-2014
For Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi 74KW 2011-2014
For Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi 92KW 2011-2014
For Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2 TDCi 103KW 2007-2014
For Ford Transit Tourneo Bus 2.2 TDCi 103KW 2007-2014
For Ford Transit V363 Bus (FAD, FBD) 2.2 TDCi 92KW 2013-2018
For Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 74KW 2012-2016
For Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 114KW 2012-2015
For Ford Transit Custom V362 Bus (F3) 2.2 TDCi 92KW 2012-2015
For Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 114KW 2013-2018
For Ford Transit V363 Bus (FAD, FBD) 2.2 TDCi 74KW 2013-2018
For Ford Transit Custom V362 Van (FY, FZ) 2.2 TDCi 92KW 2012-2023
For Ford Transit Custom V362 Bus (F3) 2.2 TDCi 74KW 2012-2016
For Ford Transit Custom V362 Bus (F3) 2.2 TDCi 114KW 2012-2015
For Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 74KW 2013-2018
For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi 92KW 2011-2014
For Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi 103KW 2007-2014
For Ford Transit TOURNEO Bus 2.2 92KW 2011-2014
For Ford Transit Van (FA_ _) 2.2 TDCi 74KW 2011-2014
For Ford Transit Van (FA_ _) 2.2 TDCi 92KW 2011-2014
For Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 92KW 2013-2018

OE/Part number:

1741779，

1946738，

786880-0006,7868805006S,786880-5006S，

786880-0012,7868805012S,786880-5012S，

786880-0021,7868805021S,786880-5021S，

786880-6,786880-21,

786880-9006S,

786880-9012S,

BK206K682GA,BK20-6K682-GA，

BK2Q6K682CA,BK2Q-6K682-CA，

BK2Q6K682GA,BK2Q-6K682-GA，

BK2Q6K682GB,BK2Q-6K682-GB，



Specification:

Turbo Model:GTB1749VK

Engine:Duratorq EURO 5

Cooling Type:Oil Cooling

Fuel Type: Diesel



Bearing Type: Floating Bearing

Universal Fitment: No

Finish: Matte

Actuator Type: Electronic Actuator

Turbo Type: Variable Geometry

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

Package Size: 31*29*34cm

Package Weight: 8.45kg

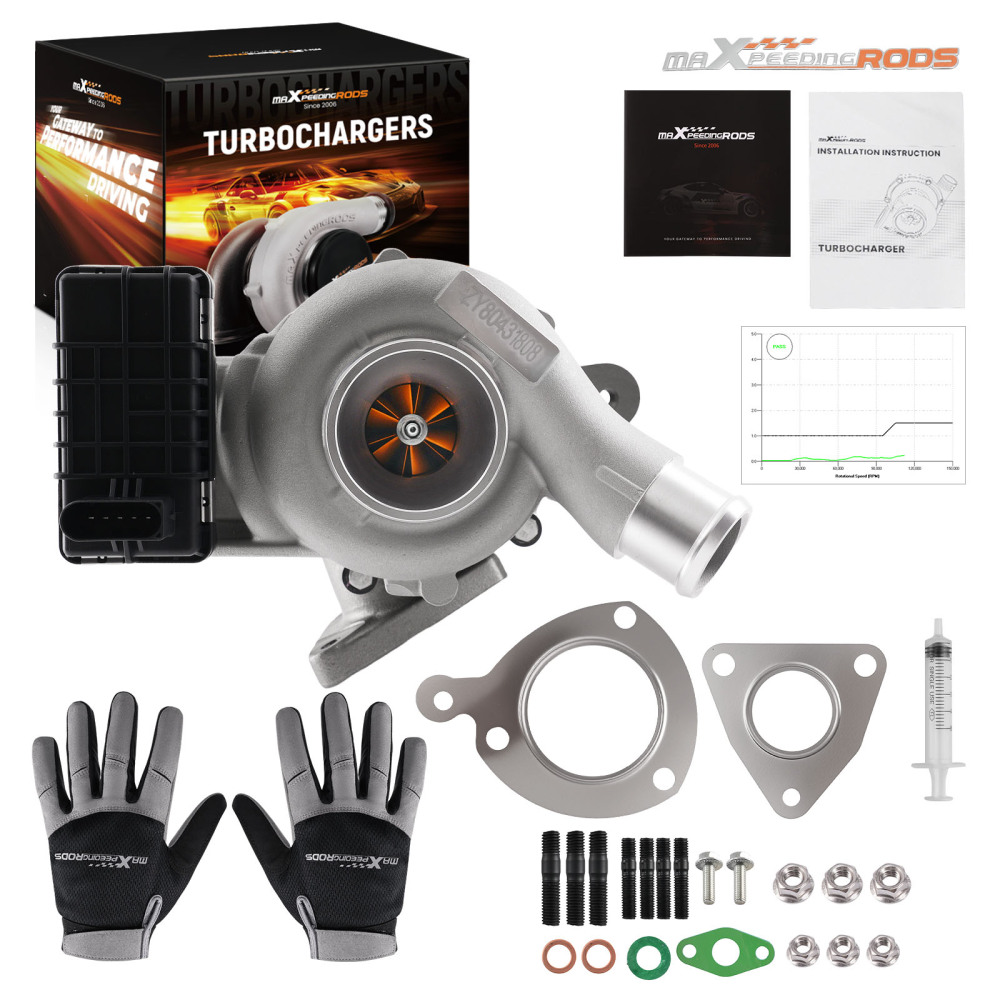

Package included:

1x Turbocharger

2x Oil Gaskets

2x Flange Gaskets

1x Manual

1x Brochure

1x Sticker



Feature:

* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance



* Product

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance



* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer



Note:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!



Note: This Turbo is for the front wheel drive cars (Compatible for FWD).
