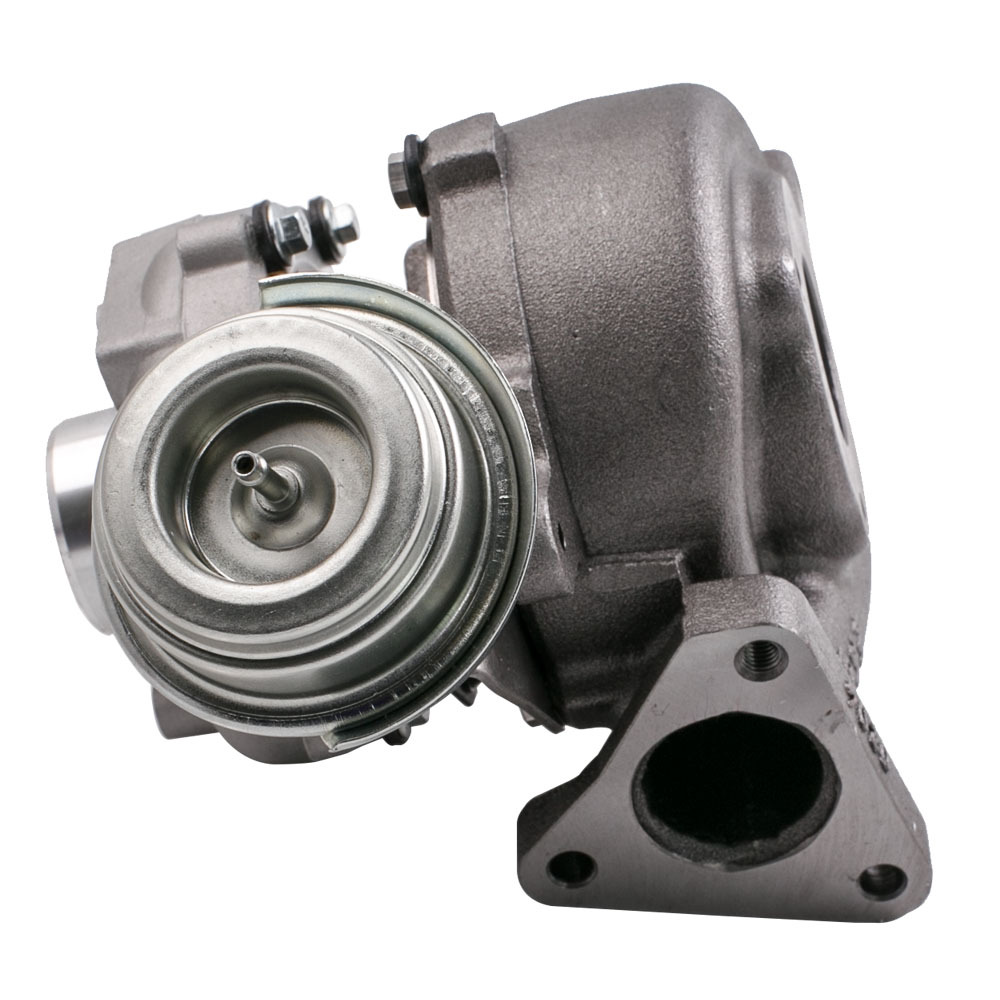

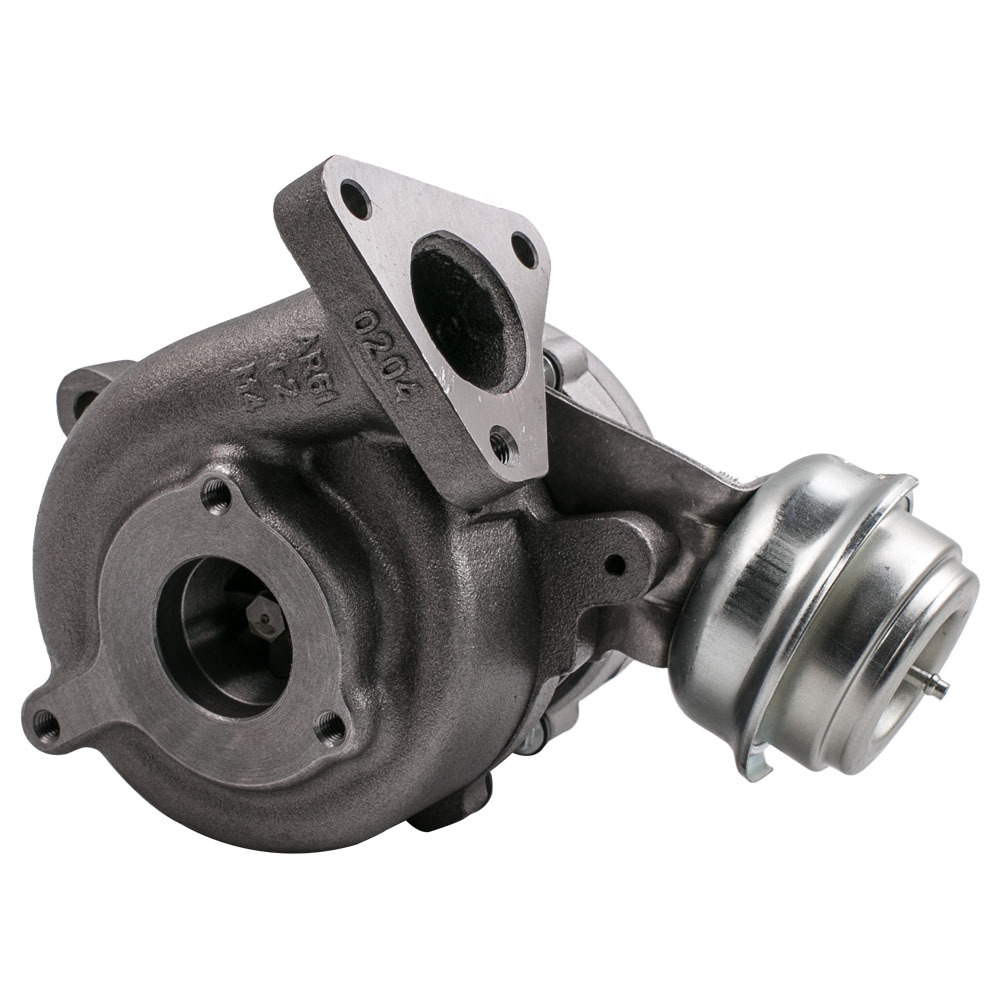

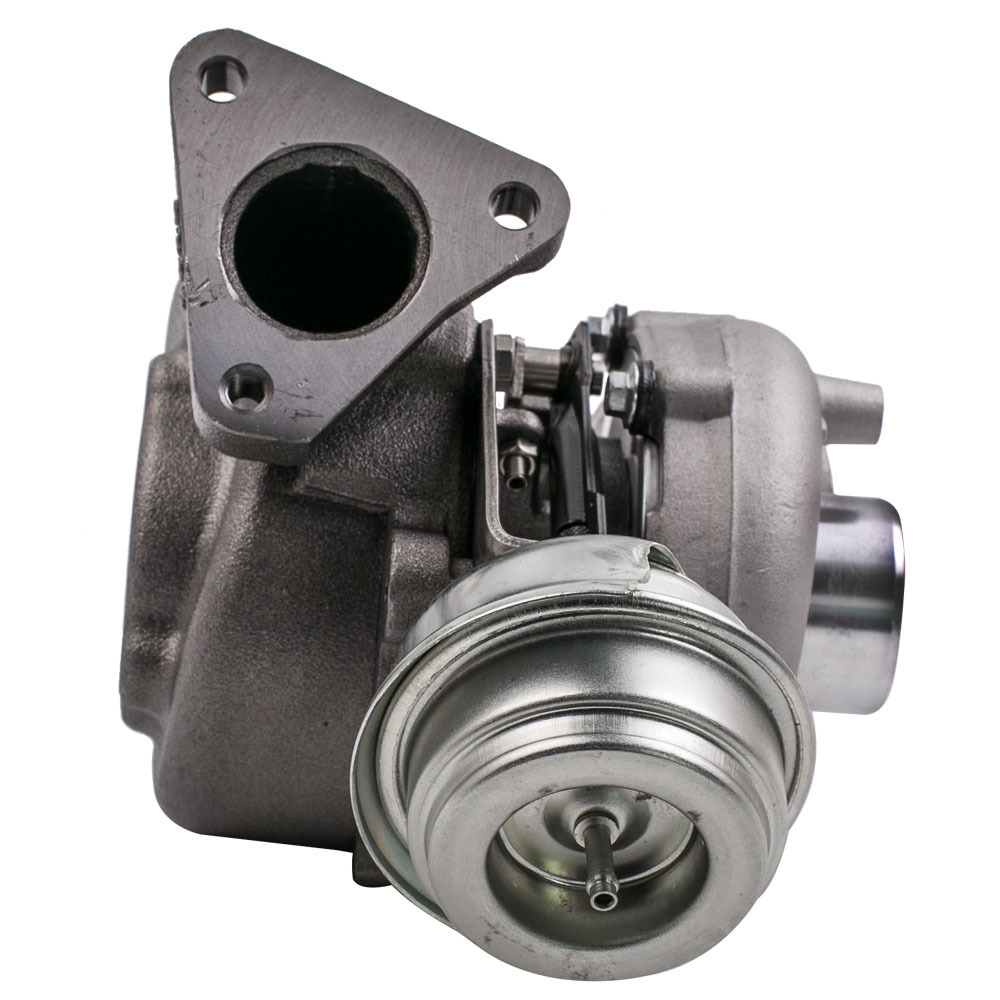

GT1749V 717858 Turbocharger compatible for Volkswagen Audi Skoda 1.9 2.0 AWX AVF TDI Engine

Application

Compatible for Audi A4 1.9 d  130HP  2000-2004  AVF, AWF, AWX, BPW, 8E2, 8E5, B6, TDI, 16V, Quattro

Compatible for Audi A4 2.0 d  136-140HP  2004-2009  BLB, BPW, 8EC, 8ED, 8H7, 8HE, B6, B7, TDI, 16V, Quattro

Compatible for Audi A6 1.9 d  130HP  2000-2004  AVF, AWX, 4B, C5, TDI

Compatible for Audi A6 2.0 d  136-140HP  2004-2008  BLB, BPW, 4F2, C6, TDI

Compatible for VW Passat 1.9 d  130HP  2000-2008  AVF, AWX, 3B3, 3B6, TDI, 4motion

Compatible for VW Passat 2.0 d  136HP  2000-2005  BLB, BPW, 3B3, 3B6, TDI

Compatible for Skoda Superb 1.9 d  130HP  2001-2008  AVF, AWX, 3U4, TDI

Compatible for Skoda Superb 2.0 d  140HP  2001-2008  AVF, AWX, 3U4, TDI

Features

1. OEM-quality and size with little modification

2. Turbine housing uses cast iron withstand temperatures up to 700

3. Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900

4. Cast aluminium blades with good gas tightness and corrosion resistance

5. The volute is made of nodular cast iron, which can withstand 700 degrees high temperature, and its tensile strength is as high as 450MPa.

6. 100% BALANCING TEST:

This Turbocharger you will receive has been balanced using the VSR machine technology.

Notice

*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the correct one for your engine. If you need assistance finding the correct turbo for your car, please feel free to contact us.

*Professional installation is highly recommended (No Instructions are Included)

Part and OEM Number

712077-0001,712077-5001S,

716215-0001,716215-5001S,

717858-1,717858-2,717858-3,717858-4

717858-0001,717858-0002,717858-0003,717858-0004,717858-0005,717858-0006,717858-0007,717858-0008,717858-0009

717858-5001S,717858-5002S,717858-5003S,717858-5004S,717858-5005S,717858-5006S,717858-5007S,717858-5008S,717858-5009S,

38145702,

038145702E, 038145702EX,038145702EV,038145702EV110,

038145702G, 038145702GX,038145702GV,

038145702GV105, 038145702GV500, 038145702GV505, 038145702GV550,

038145702J,038145702JX,038145702JV,

038145702N,038145702NX,038145702NV,

OE Confirmation:

To identify your turbocharger, you must know the original part number of the turbocharger manufacturer. It is usually engraved on a plate or simply knocked out on the compressor housing.

It is also possible to search for the original manufacturer's number (OEM, OE) of the vehicle in the catalog.

Part Number. This is the original turbocharger number, the number that is provided directly by the turbocharger manufacturer (Garrett, BorgWarner, IHI, compatible for Mitsubishi and so on).

OEM or shortly OE (original equipment manufacturer). This is the vehicle manufacturer number (Compatible for Mercedes, compatible for BMW, Audi, Ford, Toyota, Volvo, VW, and so on).

Both numbers are usually, but not always, present on the turbocharger. In our catalog both numbers are stored, but high priority is given to the turbo manufacturer number (Part Number). We recommend that you search for a suitable turbocharger for this particular number.

STEP ONE: Clean the plate or casing. It is very difficult to see the number, so the area needs to be washed or cleaned with a cleaner.

STEP TWO: Determine the original turbocharger number. Each brand of the turbocharger has its own number. Here are a few examples (select the manufacturer of your turbocharger).

Specification

Turbo Model:GT1749V

Engine Code:BLB/BPW/BHW/AVF/AWX( DO NOT FIT " BRE BMP"engine，and this turbo does not have SENSOR on the exhaust outlet side ）

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: Up to 130HP

Condition: Brand New

Warranty: one year warranty for any manufacturing defect

Accessories: You will receive the parts exactly as shown in the picture above.
