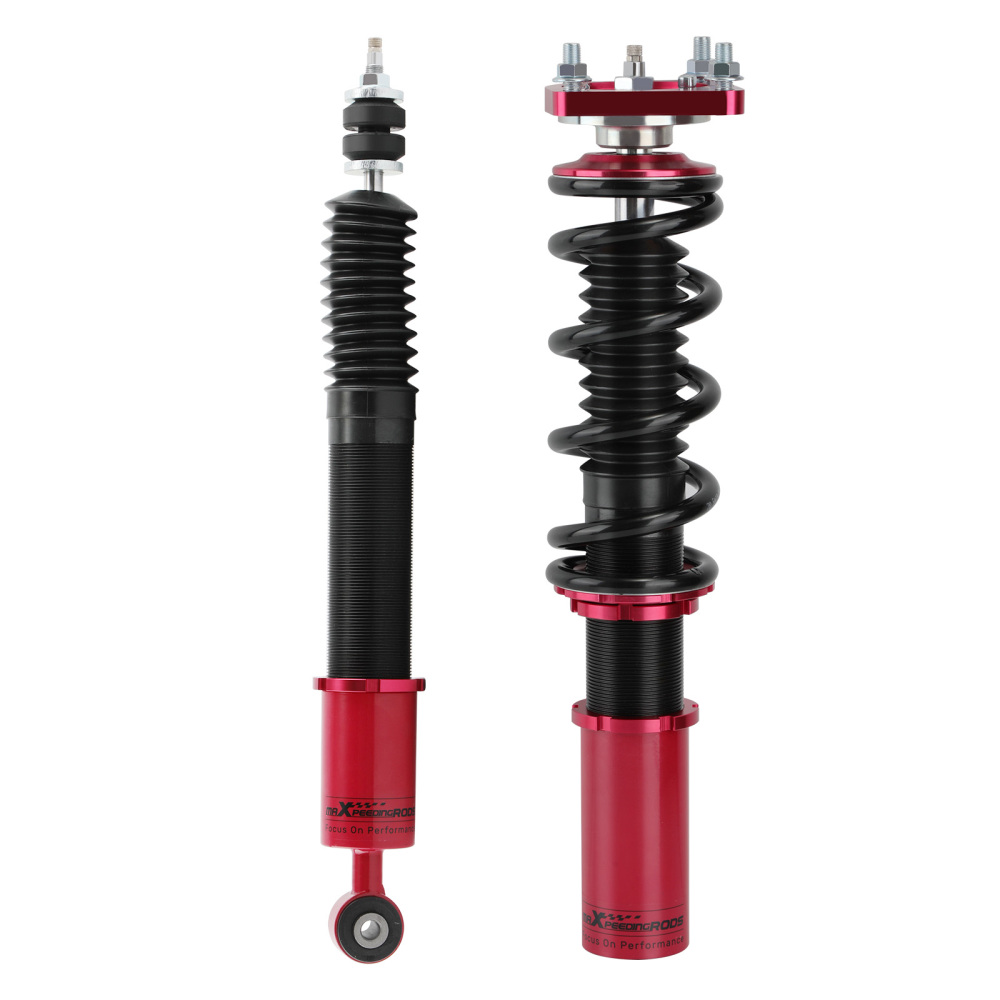

1994 - 2004 compatible for Ford Mustang GT Convertible 4th 24 Ways Adjustable Damper Coilovers Kits

Stock In Stock
Item Number 3002103684
Color

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Introduction

MXR-B3 series(also called MXR-SLC) based on MXR-B2 series(also called MXR-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for FORD Mustang Base SN95 Convertible/Coupe 1994-2004
Compatible for FORD Mustang GT SN95 Convertible/Coupe 1994-2004
Compatible for FORD Mustang SVT SN95 Cobra Convertible/Coupe 1994-2004

Specification

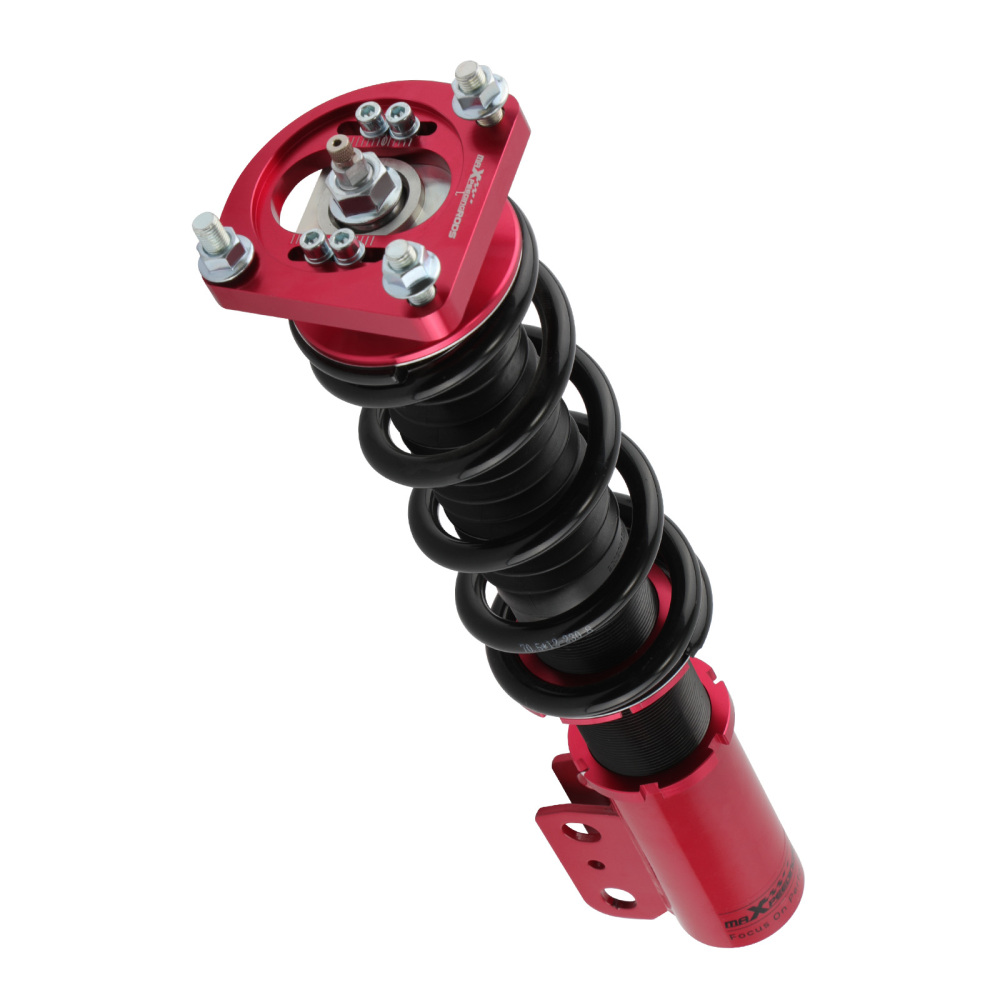

Top mount: Front camber plate
Damping: 24 ways damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 230mm
Spring length Rear: 180mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 485mm-575mm
Coilover overall length Rear: 550mm-600mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: red body with black spring

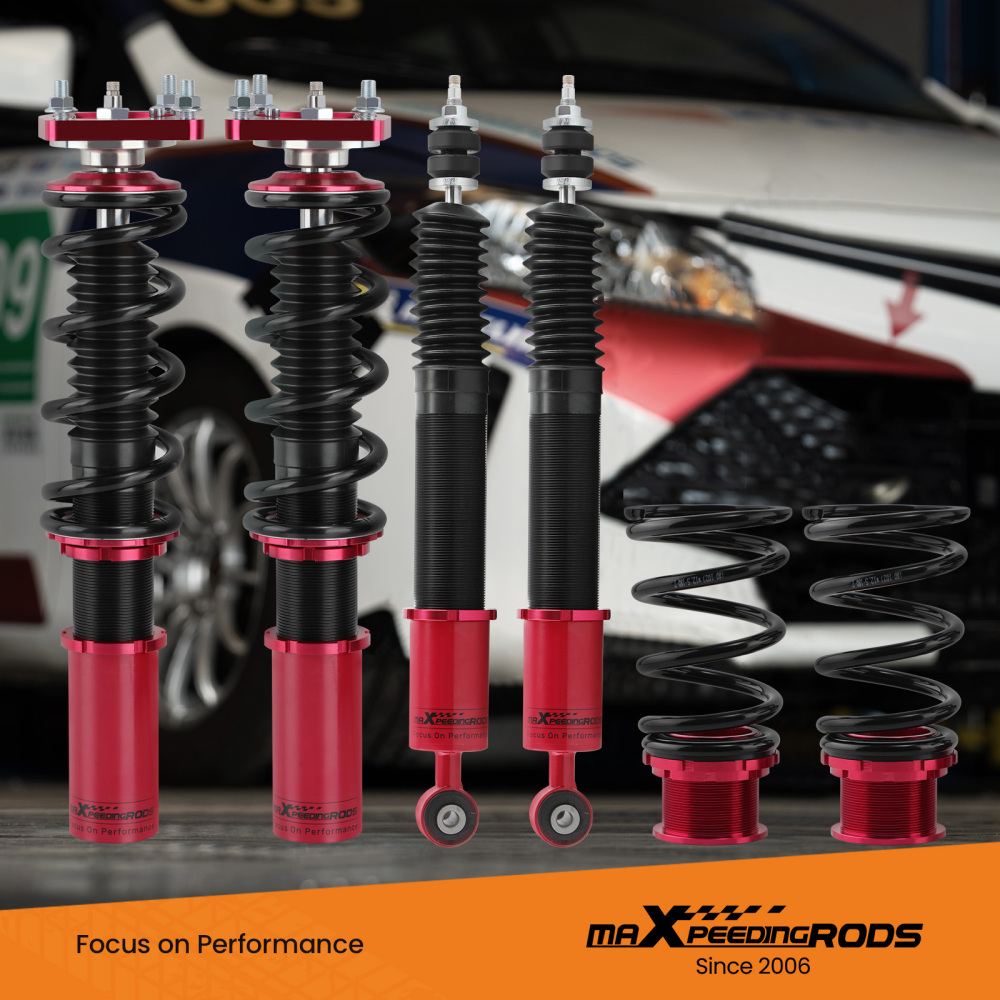

Package included

front complete coilover assembly
rear springs and spring adjusters and shocks
A pair wrench for height adjustment

Dimension

Package dimension : 71*51*21
Weight: 25540g

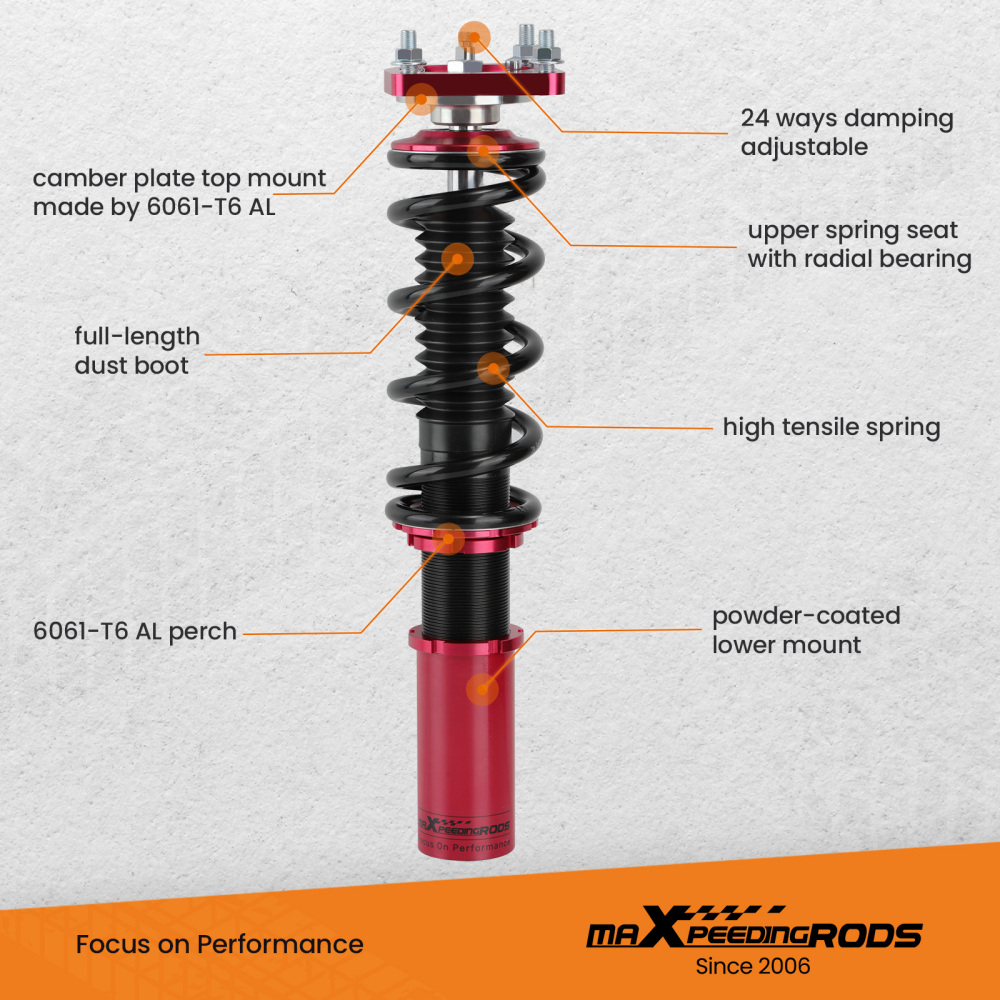

Feature

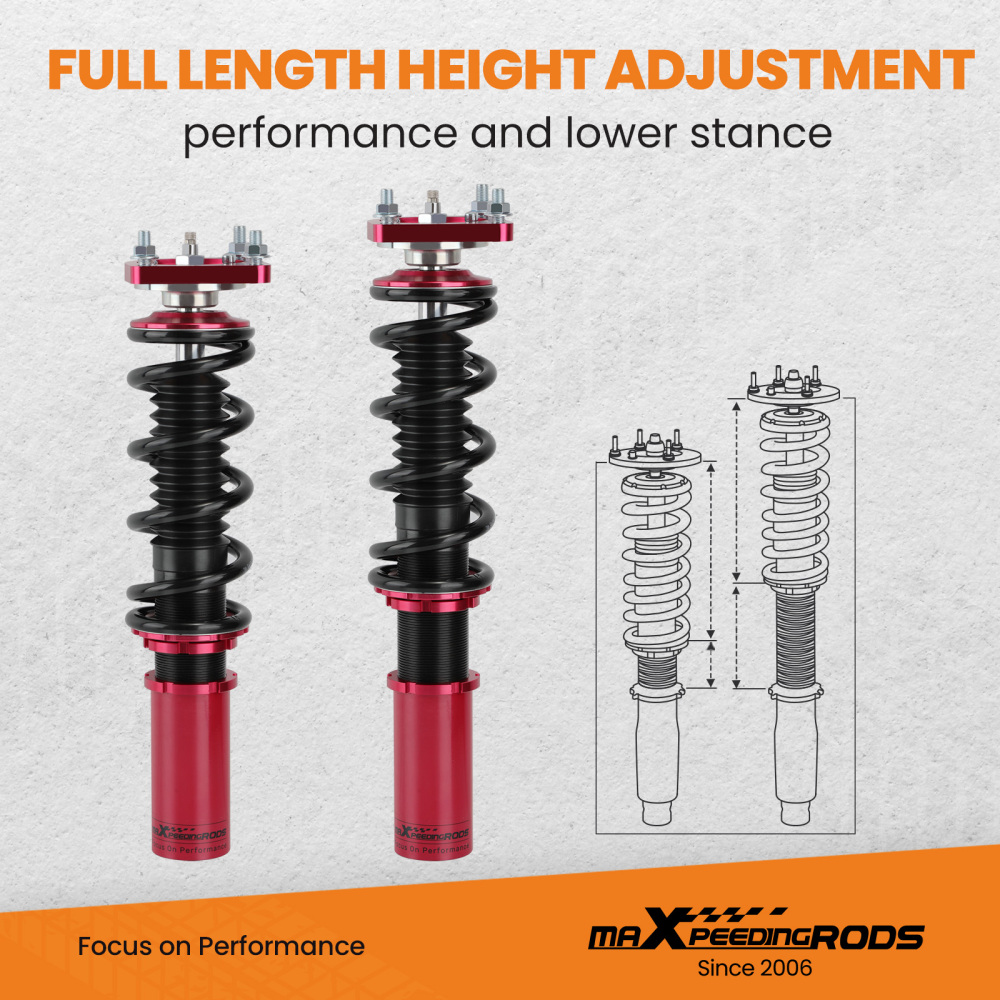

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

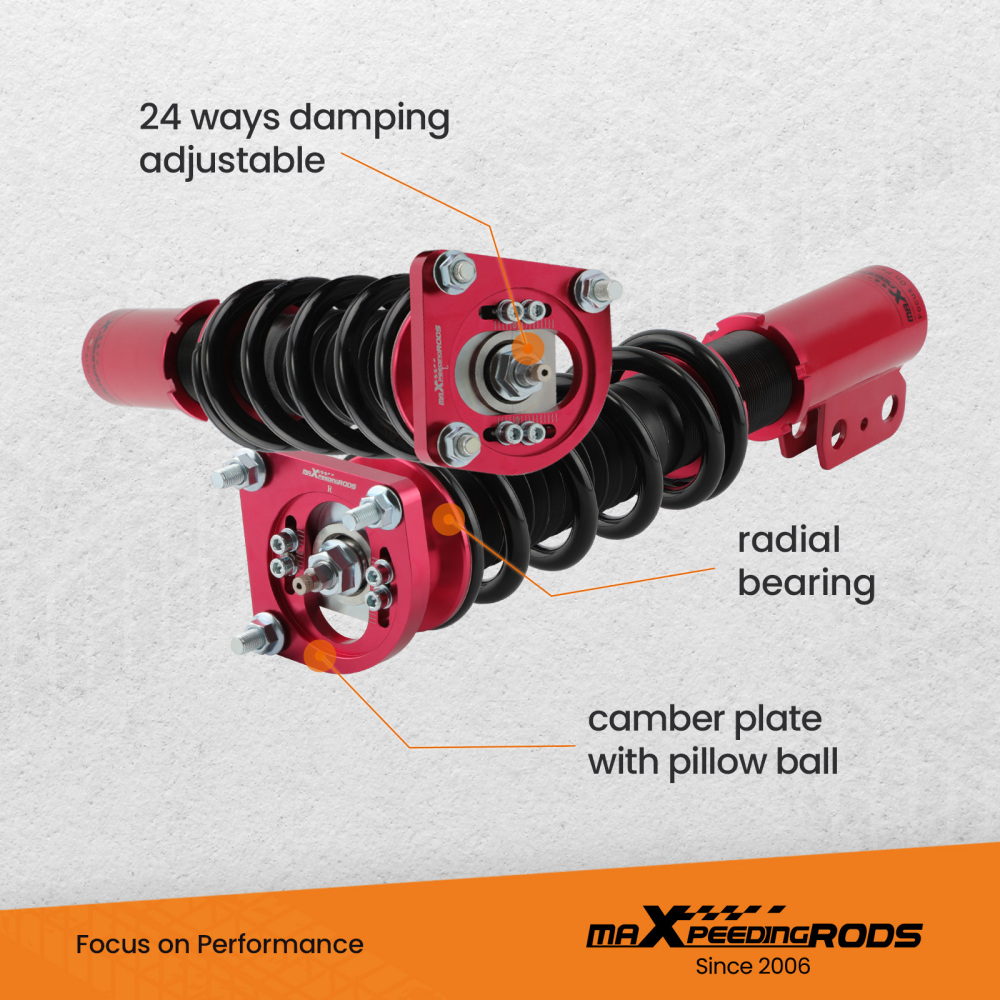

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

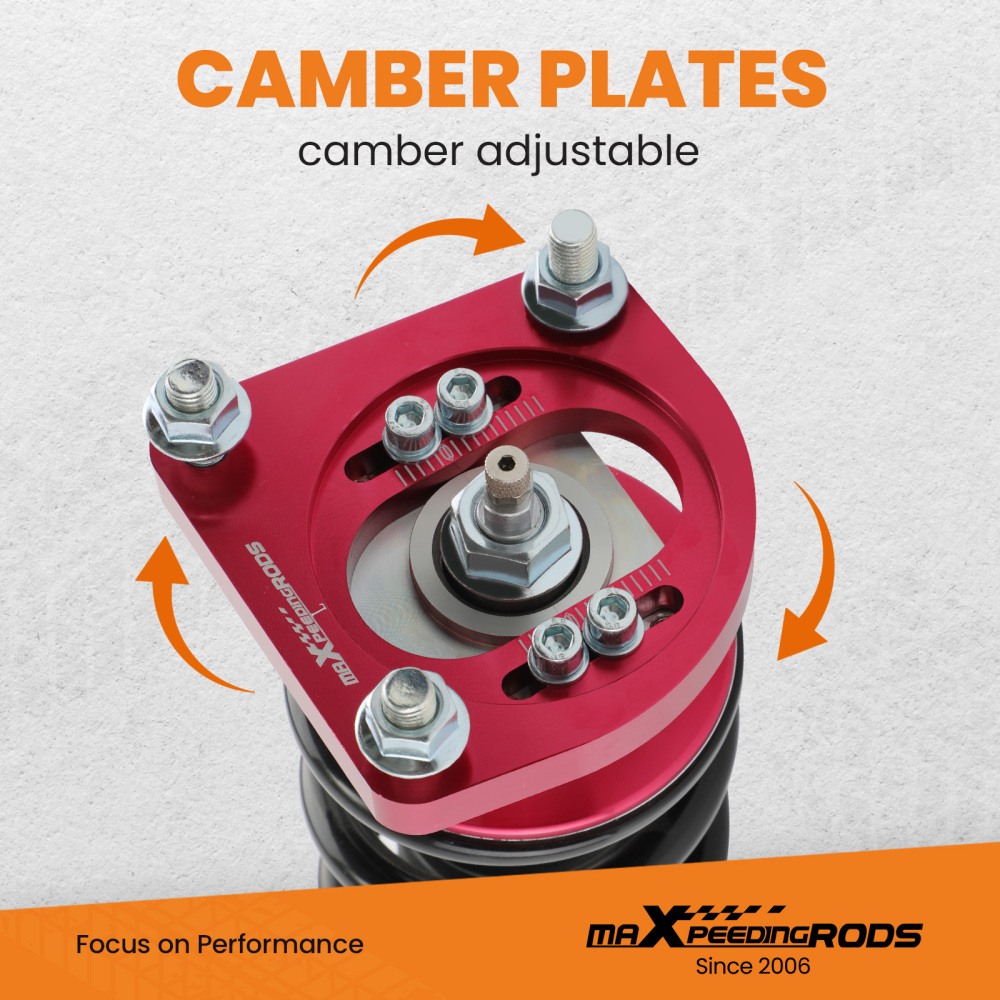

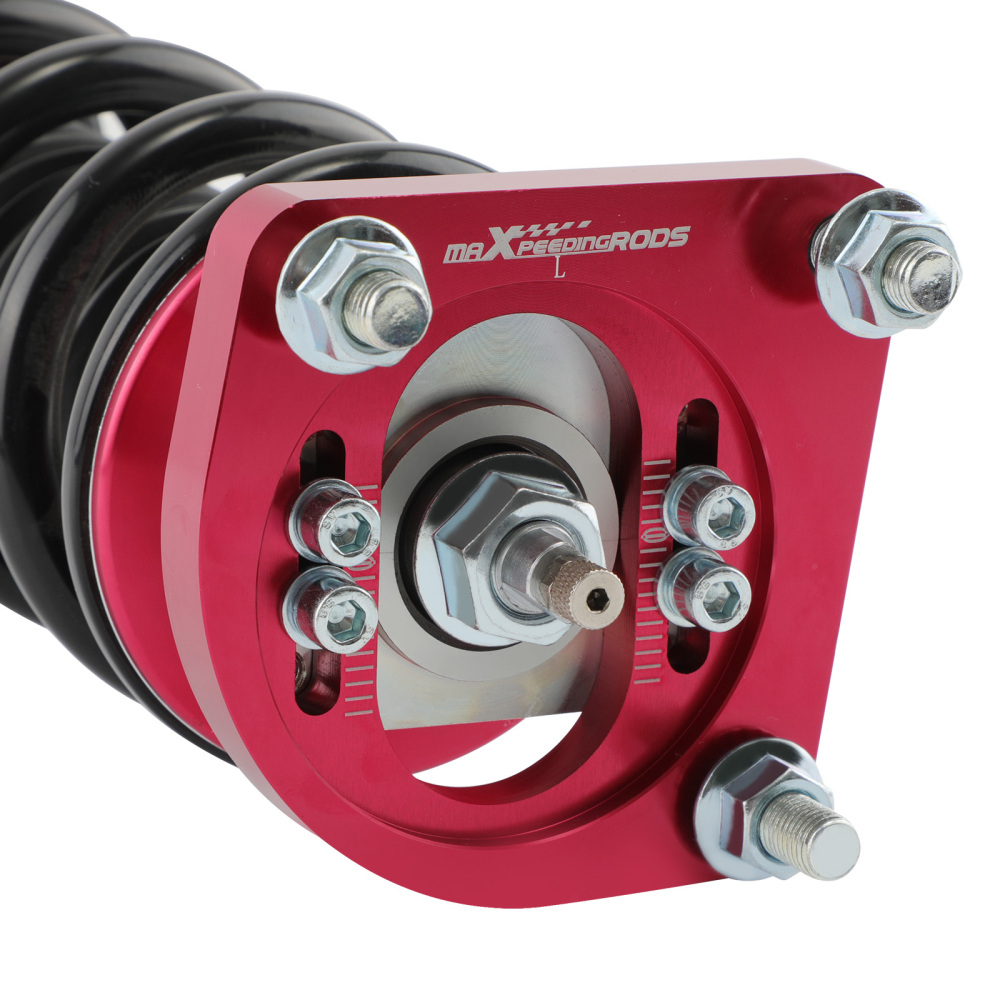

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

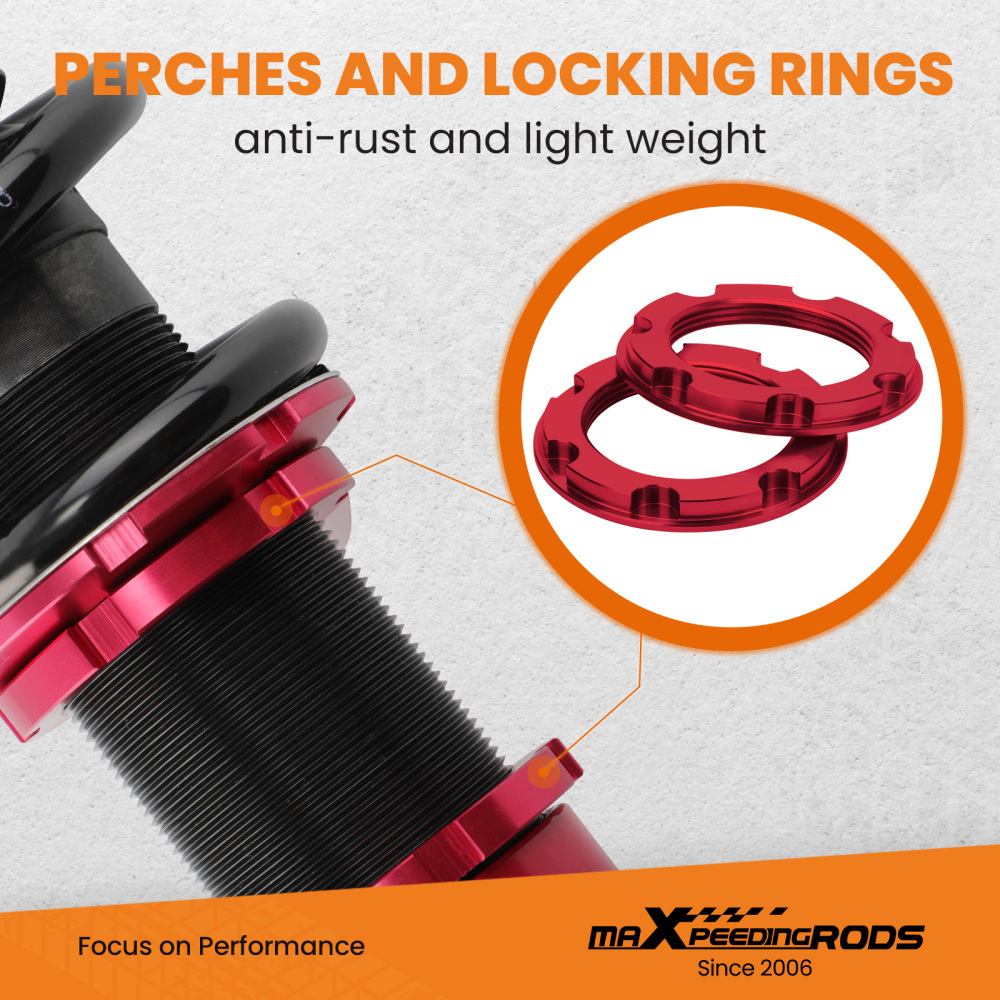

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

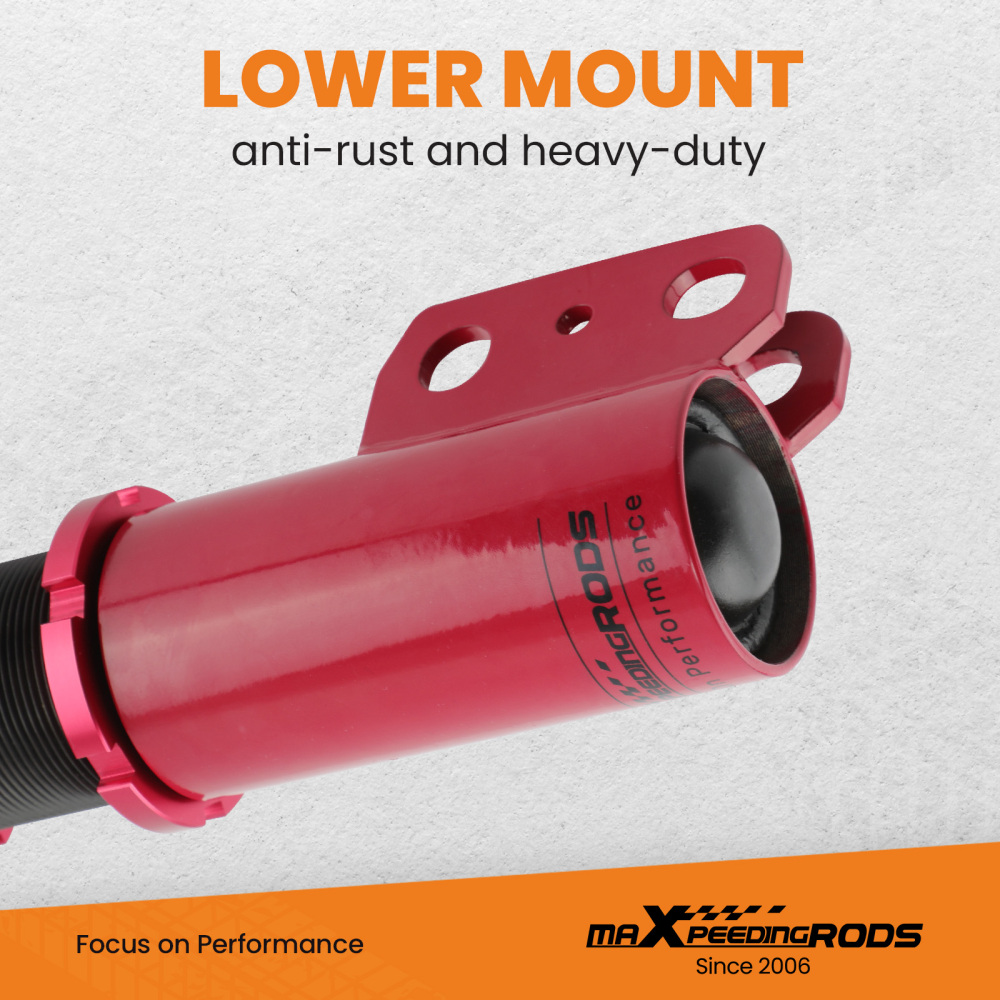

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

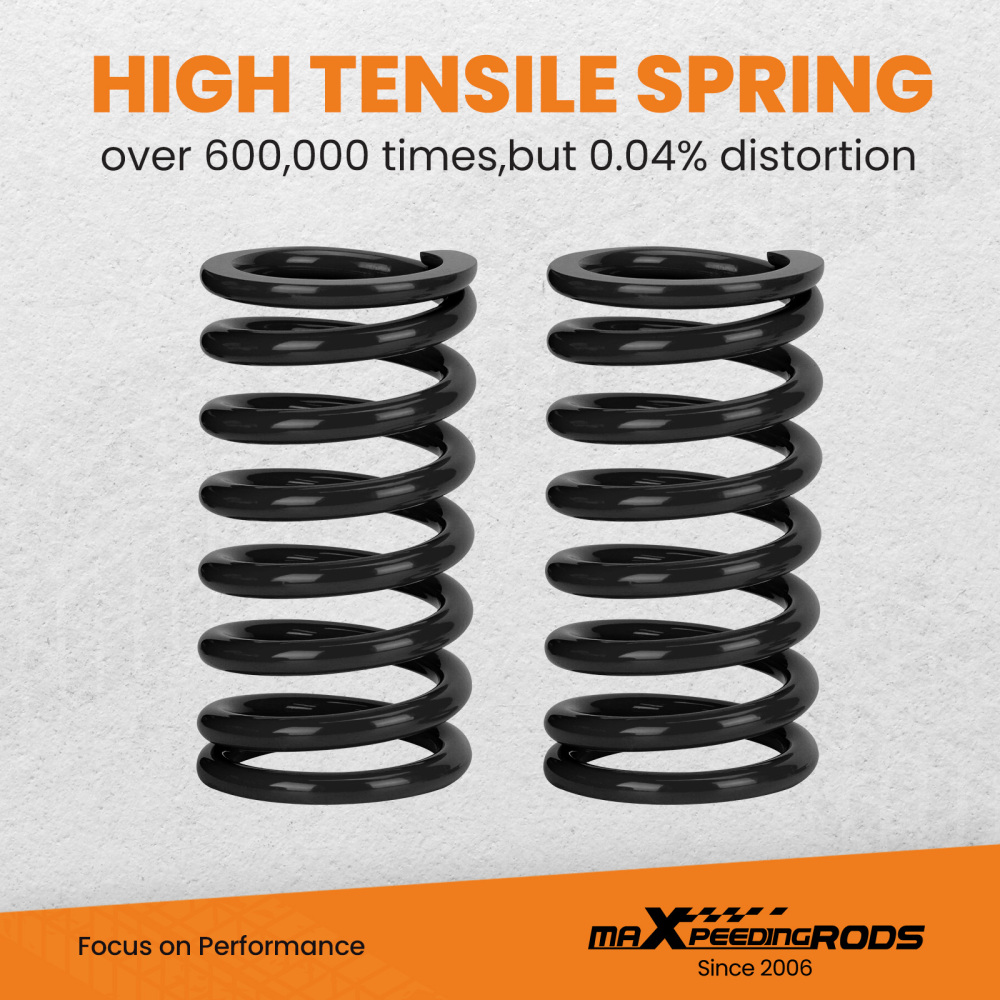

7. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.

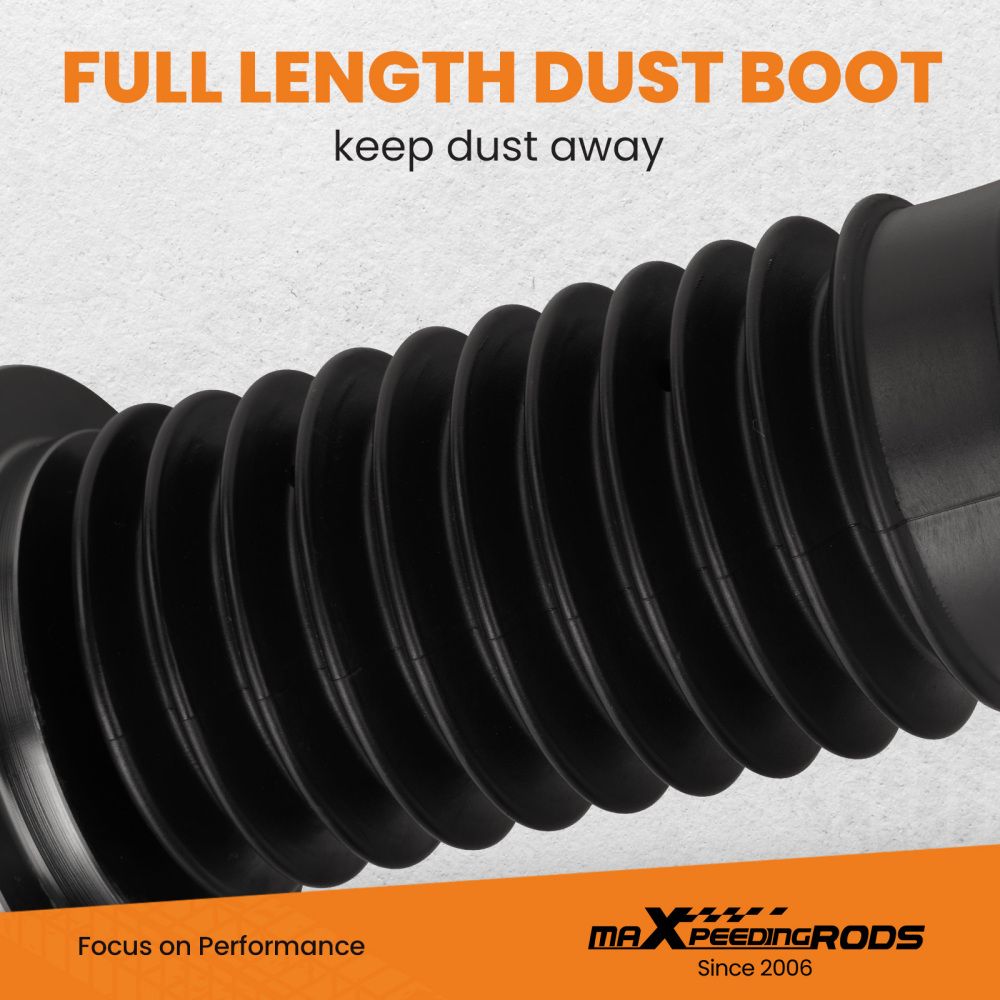

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts


Warranty: one year warranty for any manufacturing defect
