Coilover Suspension Struts compatible for Mercedes C-Class (W203) RWD 01-07 C230 C240 C280

Item Number 3002202320
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Introduction

MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for MERCEDES-BENZ C-CLASS (W203) (05/2000-12/2007)C 220 CDI/C 200 Kompressor/ C 180 Kompressor notchback/C 230 Kompressor/C 200 CGI Kompressor/C 180/C 55 AMG notchback V4 RWD
compatible for MERCEDES-BENZ C-CLASS T-Model (S203) (03/2001-08/2007) C 200 Kompressor /C 200 CDI/C 200 CGI Kompressor/C 230 Kompressor/C 180 Kompressor/C 180/C 230 Kompressor/C 230 Kompressor Station wagon V4 RWD
compatible for MERCEDES-BENZ CLC-CLASS (CL203) (05/2008-06/2011) CLC 200 Kompressor/CLC 160 coupe V4 RWD
compatible for MERCEDES-BENZ CLK (C209) (06/2002-05/2009) 200 Kompressor coupe V4 RWD
compatible for MERCEDES-BENZ CLK (A209) (02/2003-03/2010) CLK 200 Kompressor Convertible V4 RWD
compatible for MERCEDES-BENZ CLC-CLASS (CL203) (05/2008-06/2011) CLC 180 Kompressor /CLC 200 CDI /CLC 220 CDI coupe V4 RWD
compatible for MERCEDES-BENZ CLC-CLASS (CL203) (05/2008-06/2011) CLC 350 /CLC 230 coupe V6 RWD
compatible for MERCEDES-BENZ CLK (C209) (06/2002-05/2009) 500/55 AMG coupe V8 RWD
compatible for MERCEDES-BENZ CLK (A209) (02/2003-03/2010) CLK 500/CLK 55 AMG Convertible V8 RWD

Specification

Front and Rear top mount: not included. OEM top mounts are needed.
Spring rate: Front :  10kg/mm (560 lb/in)
Rear : 10kg/mm (560 lb/in)​
Adjustable height: Yes lowering 1" to 3"
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold body with black spring

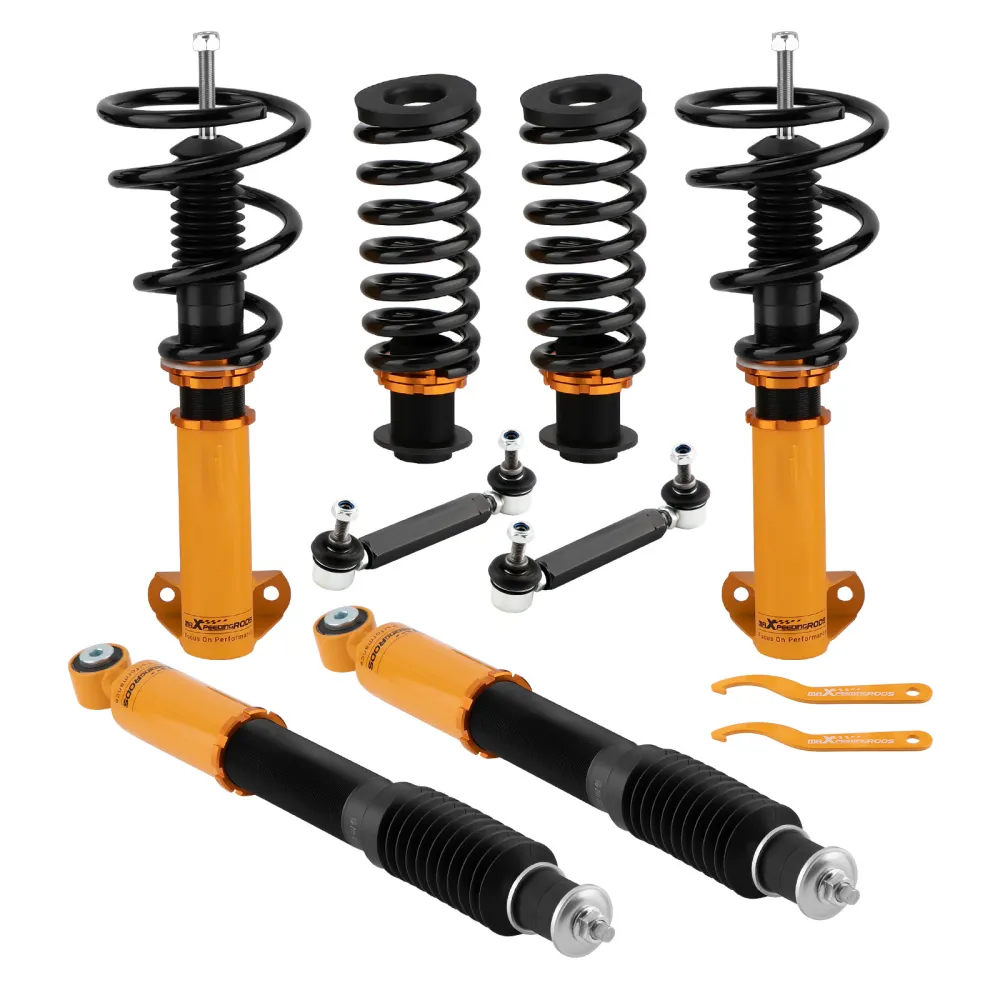

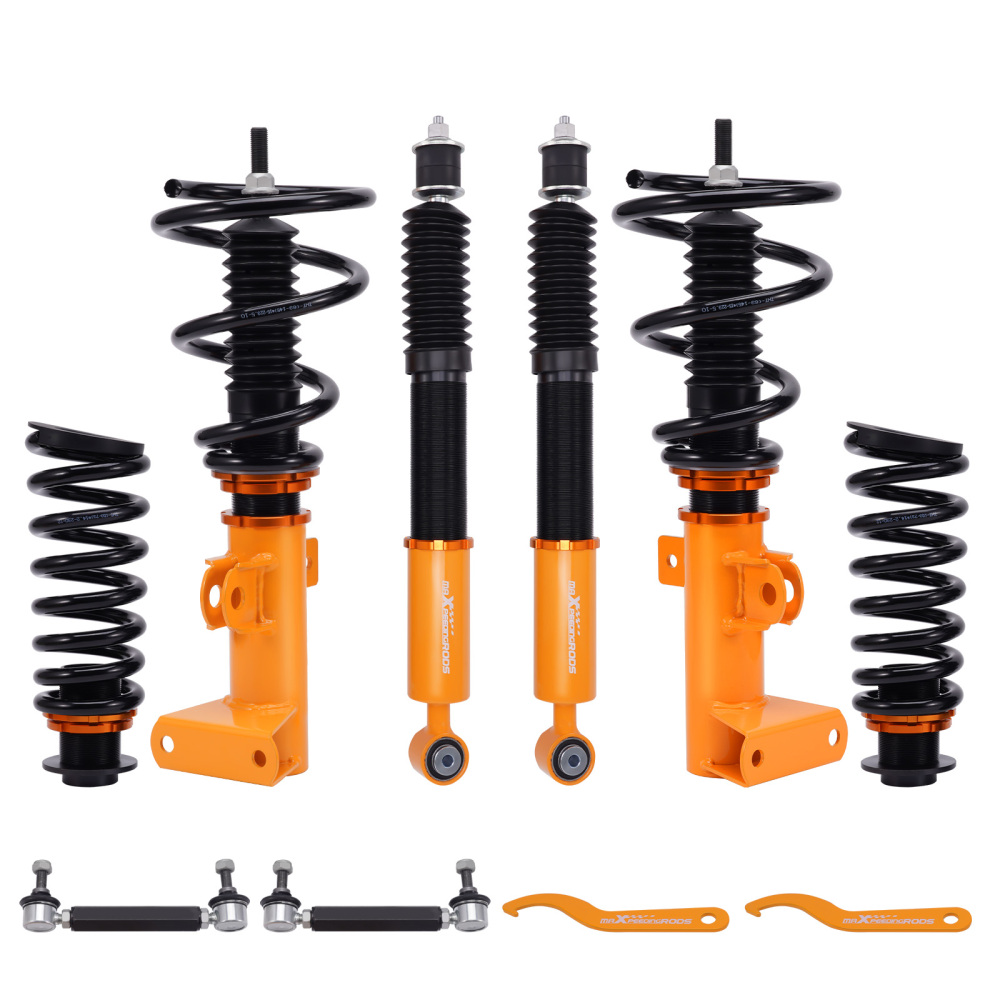

Package included

2 front and 2 rear struts
A pair of sway bar link
A pair wrench for height adjustment

Dimension

Package dimension : 71*51*21
Weight: 27680g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber.
3. Separate height adjustment does not affect damper stroke.
4. Height can be adjusted with coilovers installed on the vehicle.
5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
6. Height Adjustment tools included.

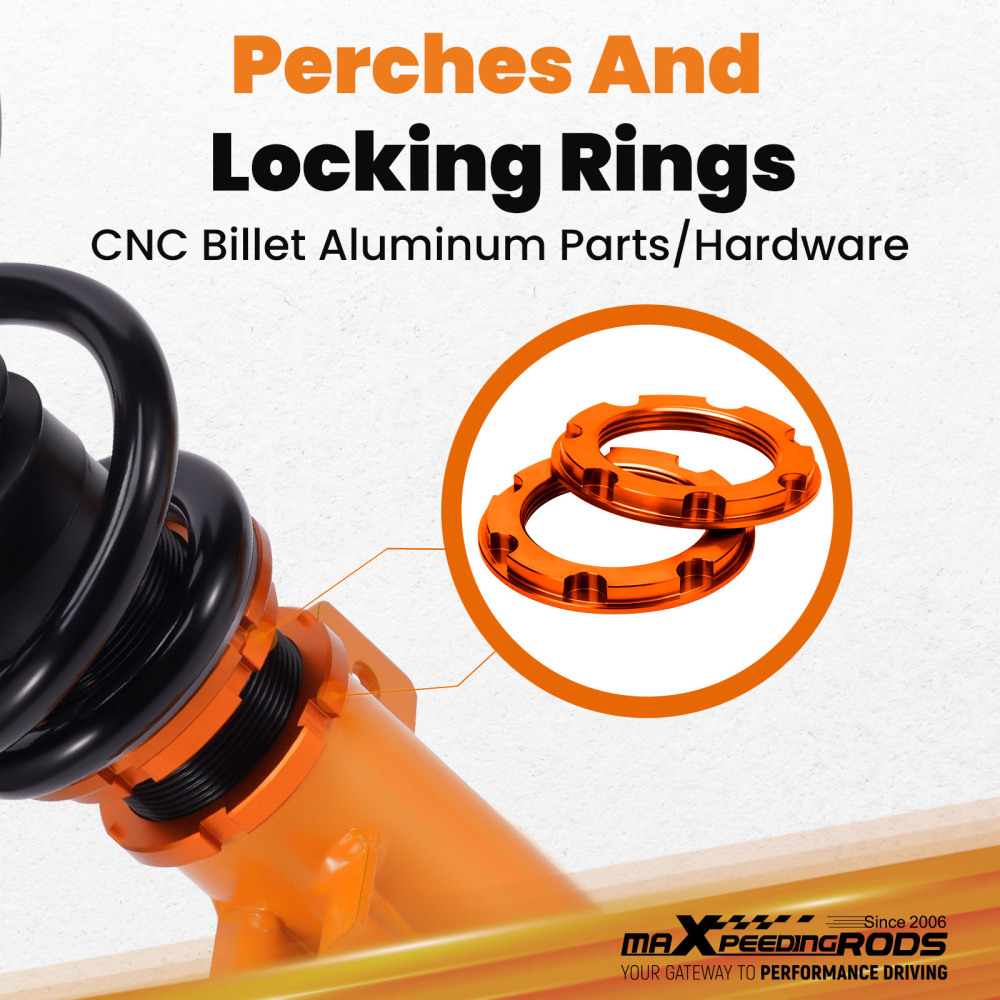

7. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8. Steel shock bodies with special surface treatment to improve the durability.
9. Full rebuildable.


Warranty: one year warranty for any manufacturing defect
