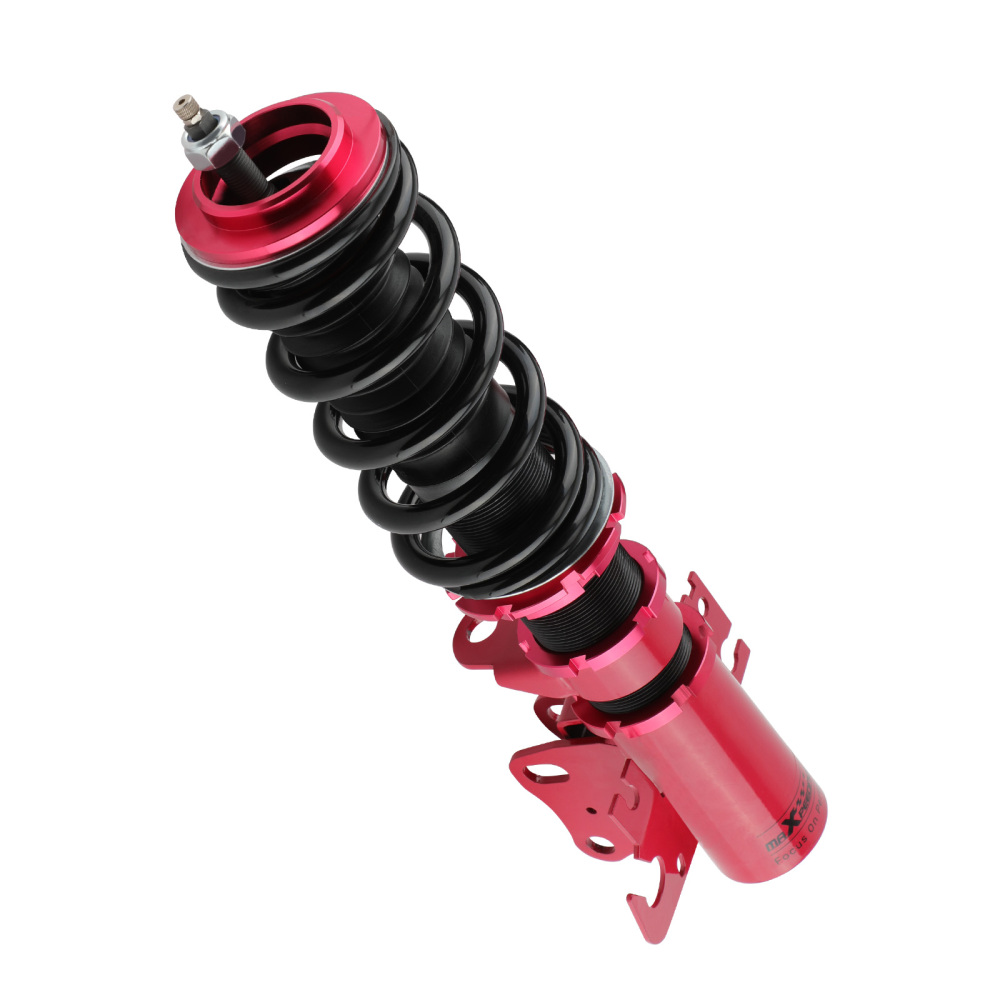

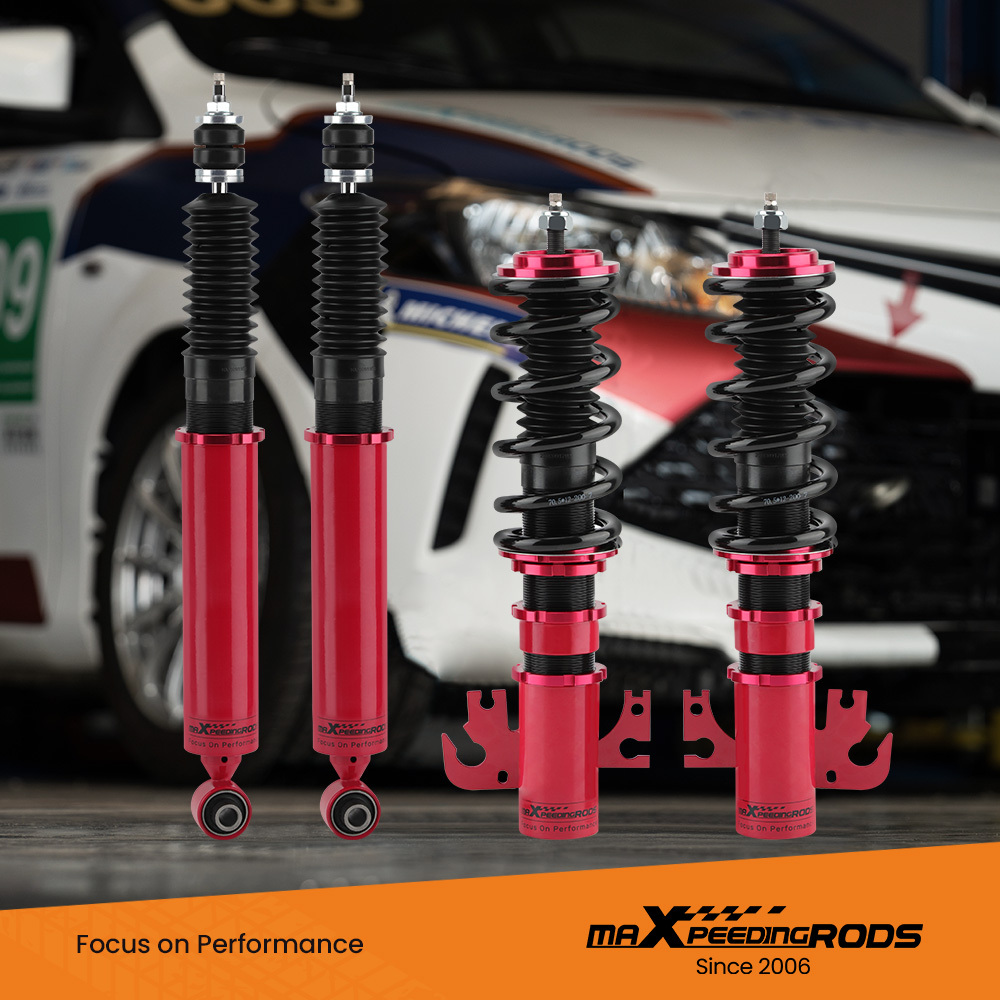

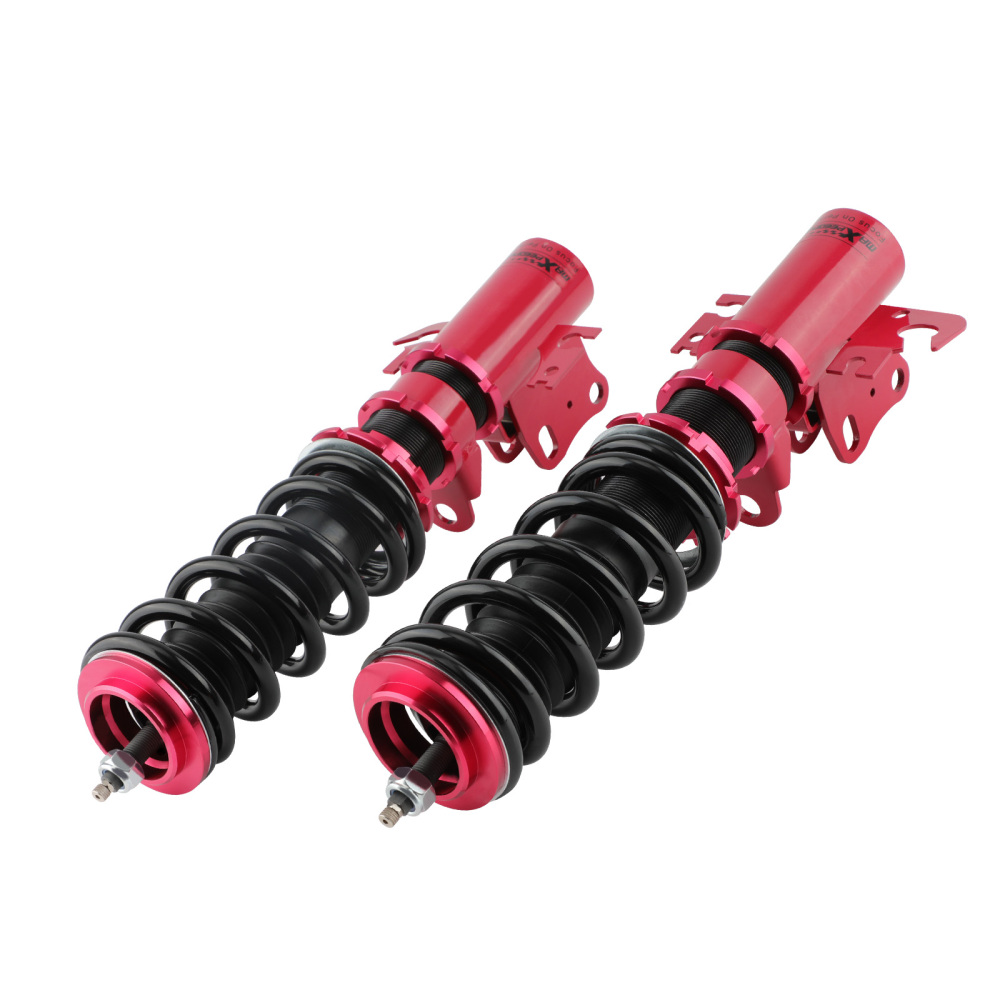

Coilovers Coilover compatible for Holden Commodore VY VT VZ VX WH 24Ways Adjustable Damper

Item Number 3002050306
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G


Compatible for Holden Commodore Third generation 1997-2007

Compatible for Holden Commodore VT / VT II Sedan Wagon 1997-2000

Compatible for Holden VX Commodore Berlina Calais Sedan Wagon 2000-2002  (Not fit vx executive sedan 3.8l v6)

Compatible for Holden VY Commodore Sedan Wagon 2002-2004

Compatible for Holden VZ Commodore Sedan Wagon 2004-2007

These coilovers are not compatible for Holden VZ 3.6L V6 Model, including SV6, SV8, Executive model

NOTE: for VT II , VX I series and some VZ, where the drop link connect to the suspension have different style, please check before place an order.

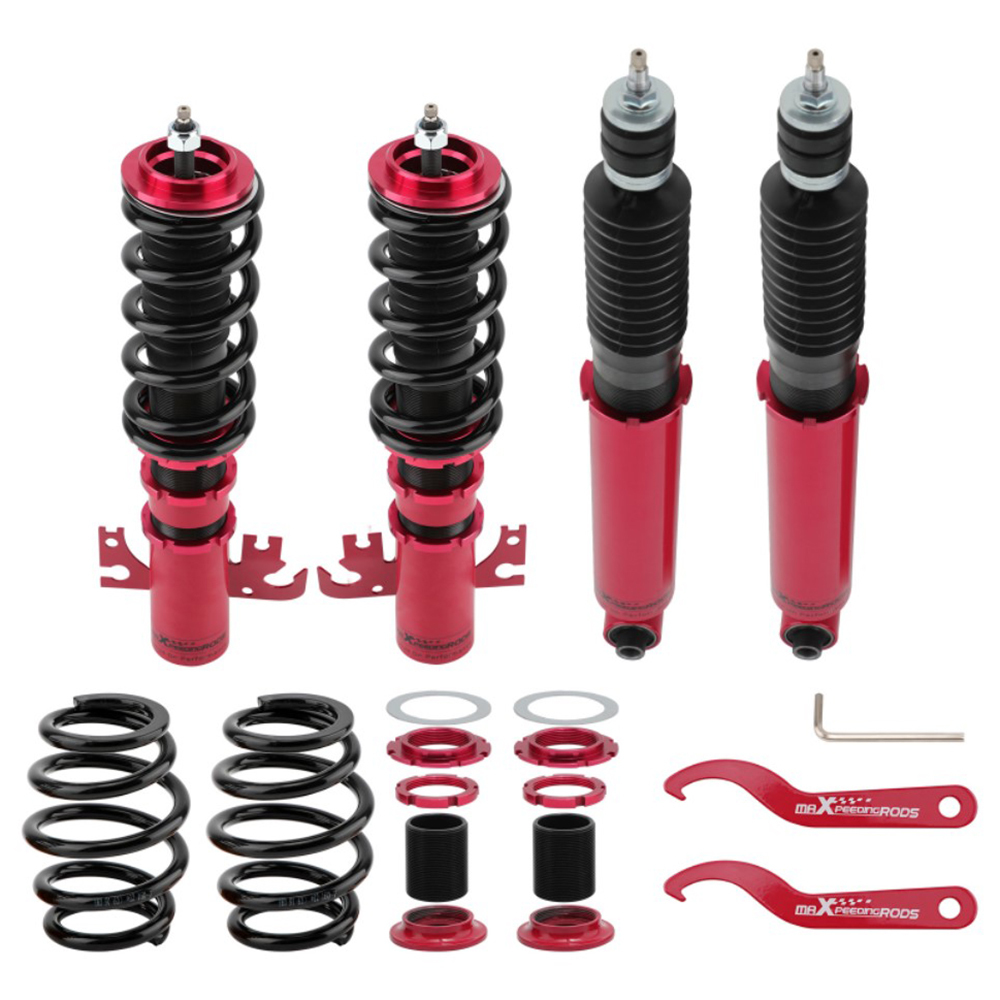

Product included: Springs and shocks for front and rear, no top mounts included

Top mounts: Front and rear OE top mounts reused

Adjustable damper: 24 levels rebound dampening adjustable

Adjustable height: Yes, loweing 1'' to 3''

Spring rate front: 7 kg/mm (392 lbs/in)

Spring rate rear: 13 kg/mm (728 lbs/in)

Shock type: Twin tube

Spring preload: 7-10 mm

Color: Red

Warranty: one year warranty for any manufacturing defect

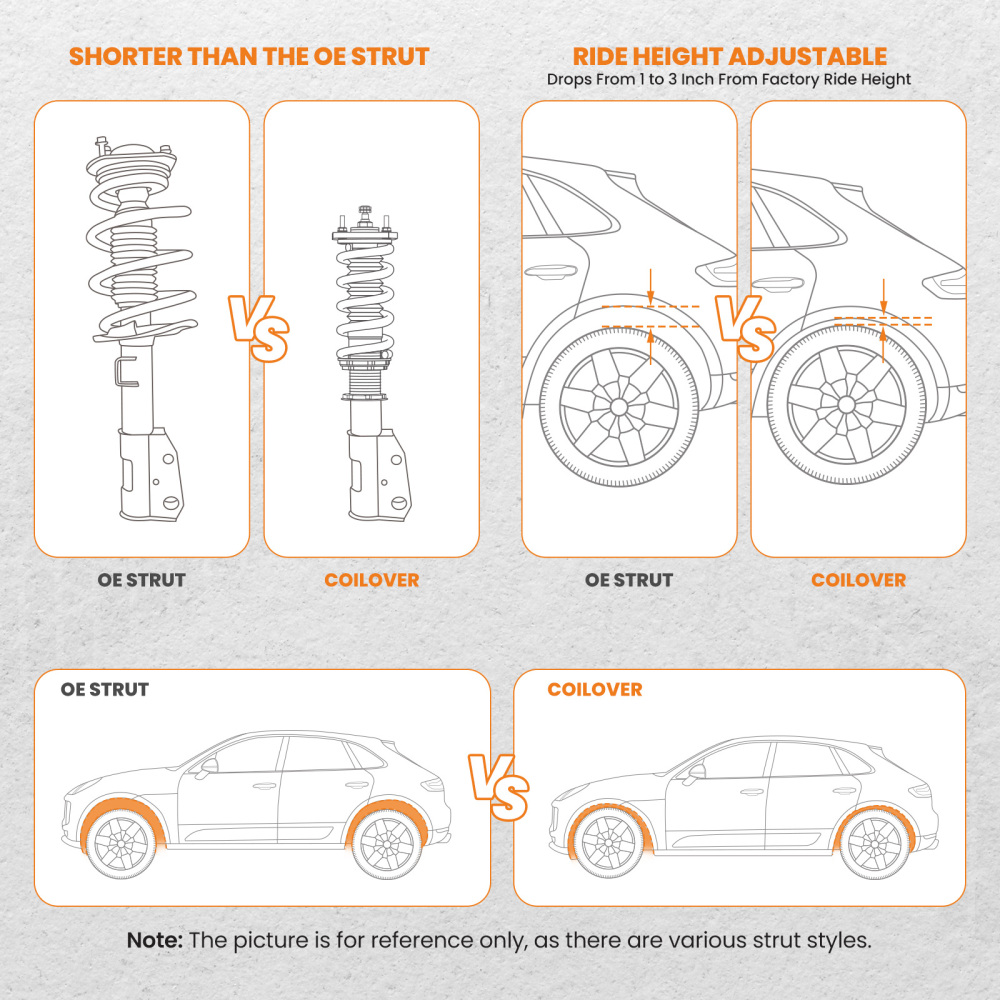

- Lowering height 1''-3''  allows you to have more aggressive stance.

- Adjustable pre-load spring tension.

- 24 levels of damping rebound adjustment allow you to perfectly dial in your coilover system for both handling and comfort.

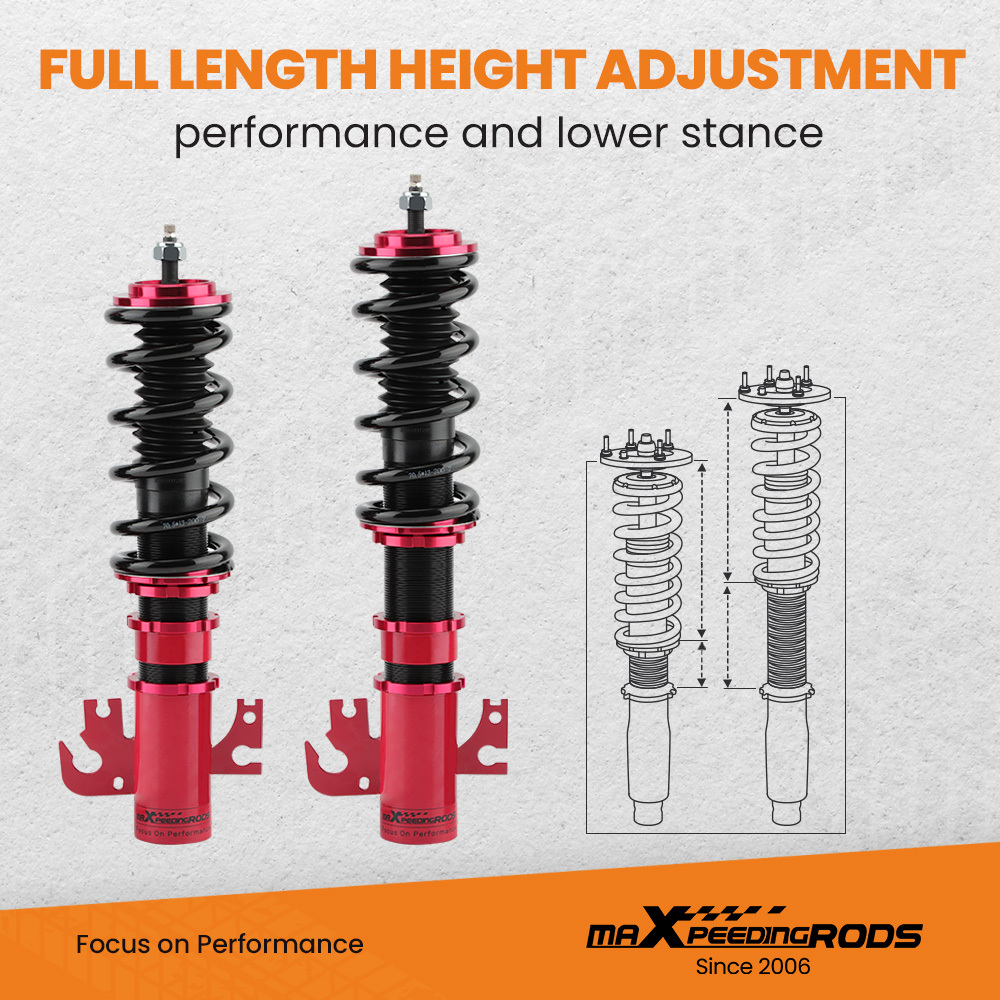

- Separate height adjustment without sacrifice of damper stroke & without removing the coilover out from the car.

- Dust boot included to protect damper seal.

- Twin-Tube Structure - For Low Resiliency & Securing Sufficient Stroke.

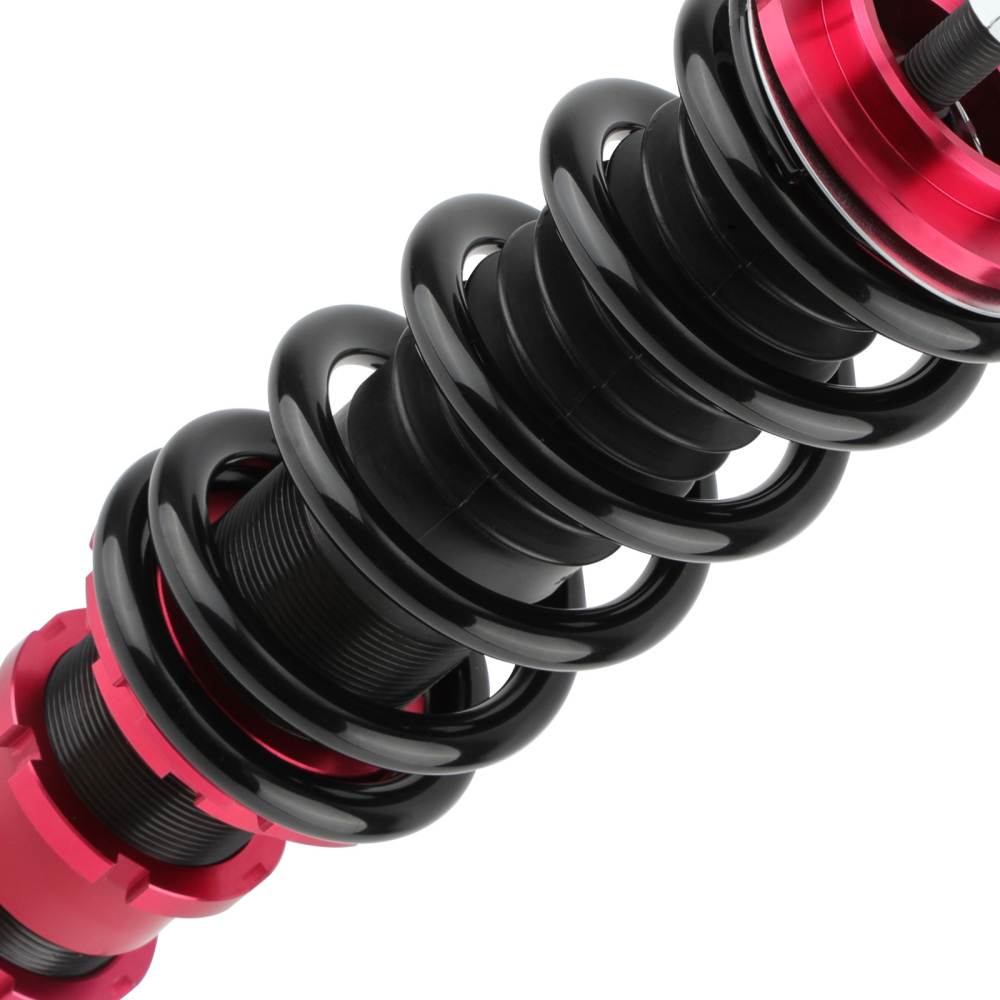

- High Tensile performance spring - Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance.

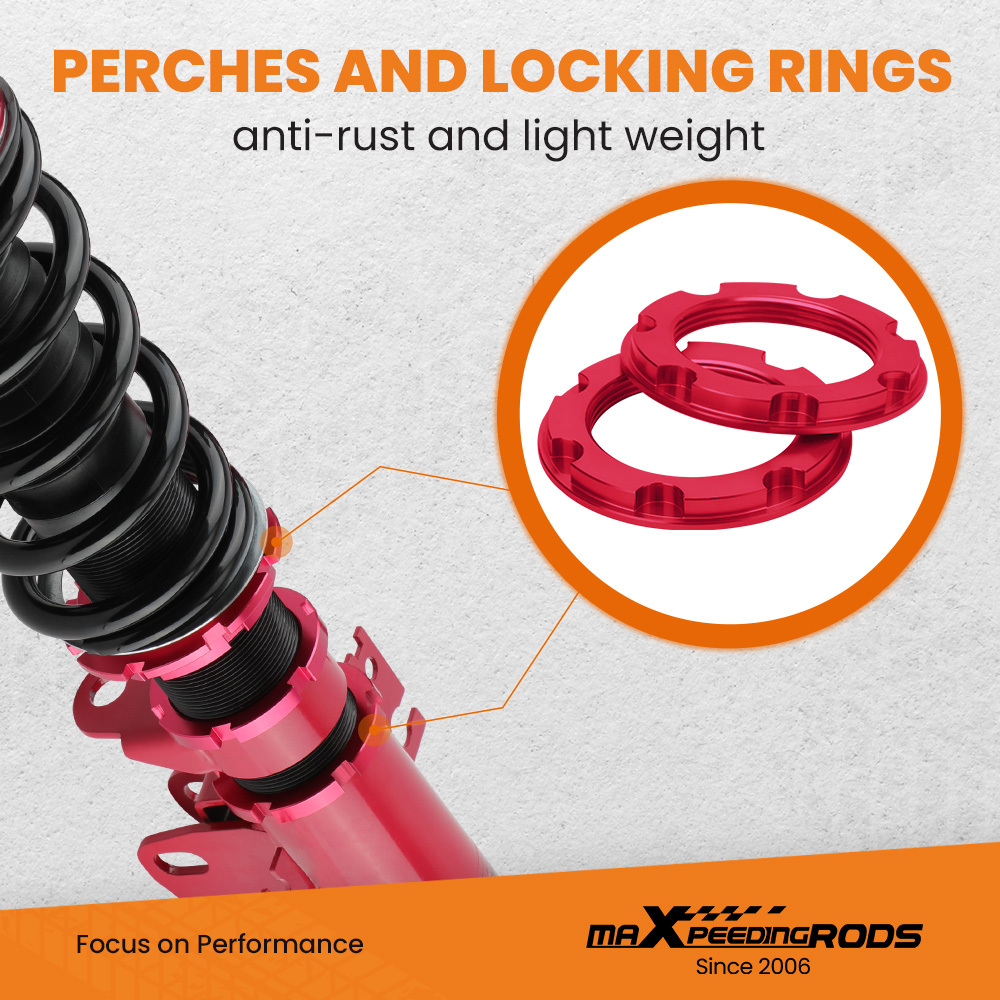

- Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

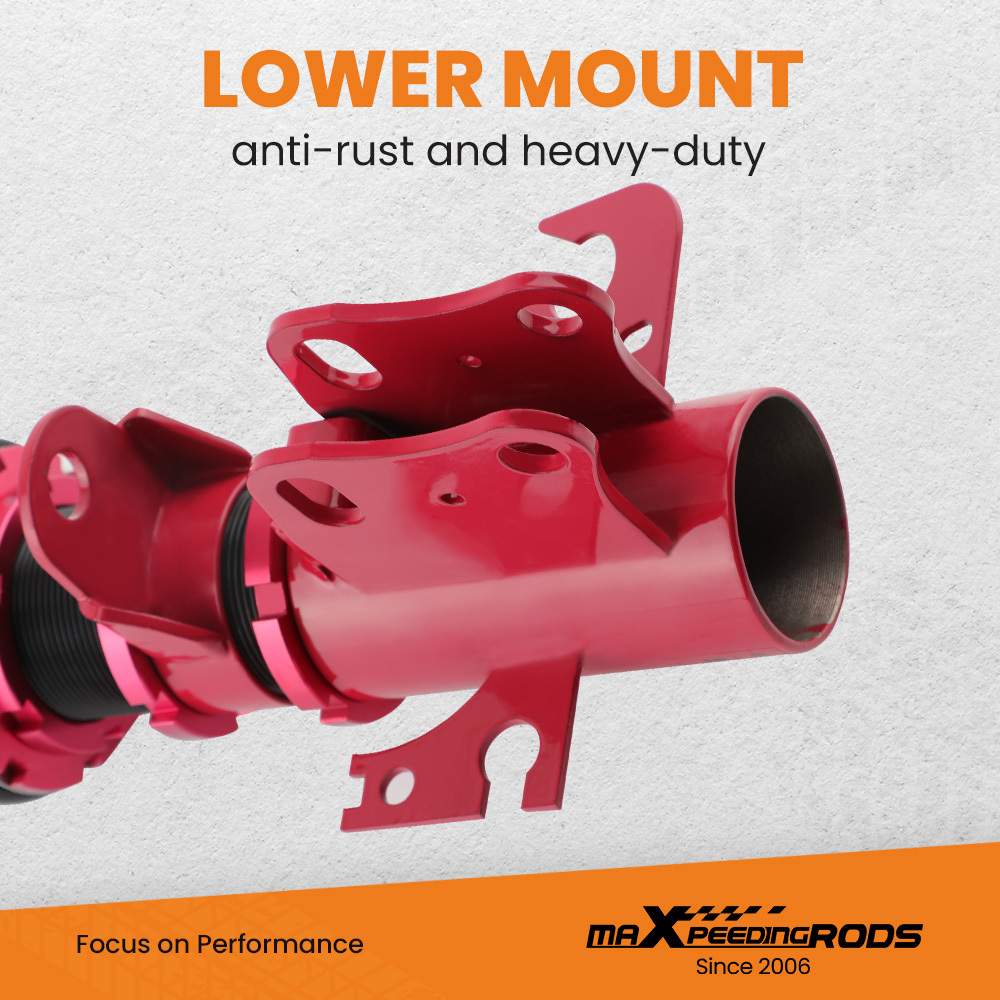

- Steel shock bodies are electroplated with Zinc  for anti Anti-corrosion.

- Full rebuildable.

- For those seeking a lowered stance as well as improved handling and response at a high value.


* No instruction included; professional installation suggested.

* For any needs please contact us.
