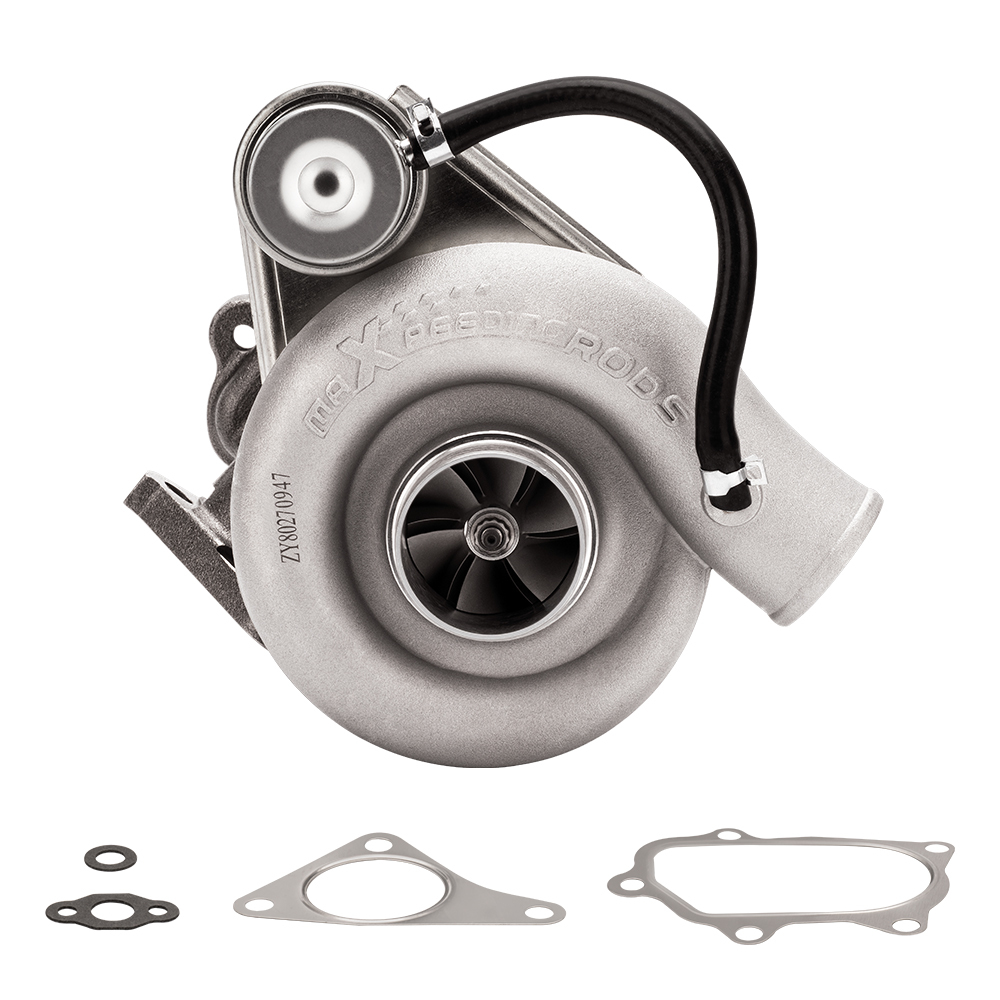

Water Turbo TD05-20G-8 compatible for Subaru Impreza WRX STI EJ20 EJ25 with gaskets 02-06

description

Notice:

Pick up service is not available.

* It's a upgraded Turbo for advanced drivers. Maxpeedingrods TD05 20G Turbo customizes a unique specification that replaces the TD04 for a TD05H turbine wheel. Furthermore, maxpeedingrods also enlarges the turbine housing area to 7 square cm to improve the exhaust efficiency. so expect to gain more power than stock turbo.

* All for WRX Wagon engines and automatic sedan engines came with a TD04,all manual for WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.





Application

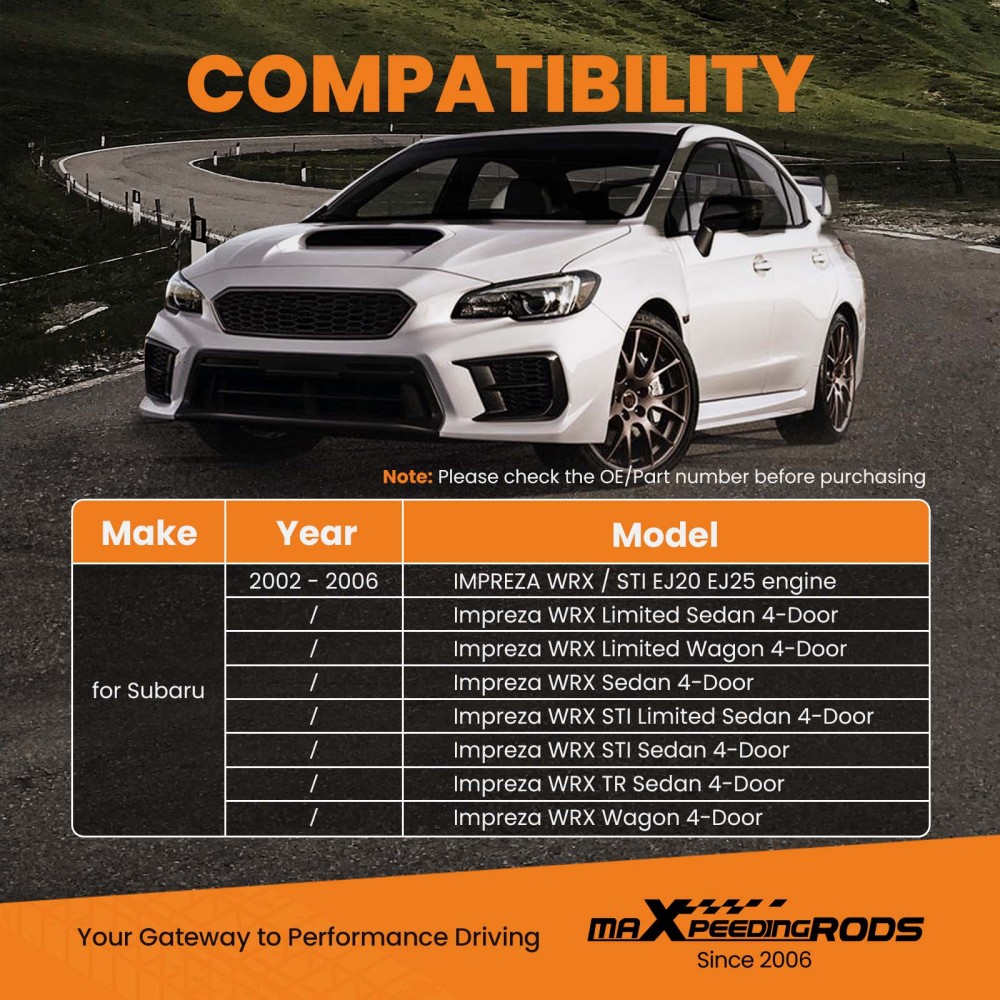

TD05 20G Upgraded Turbo compatible for Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006




Specification

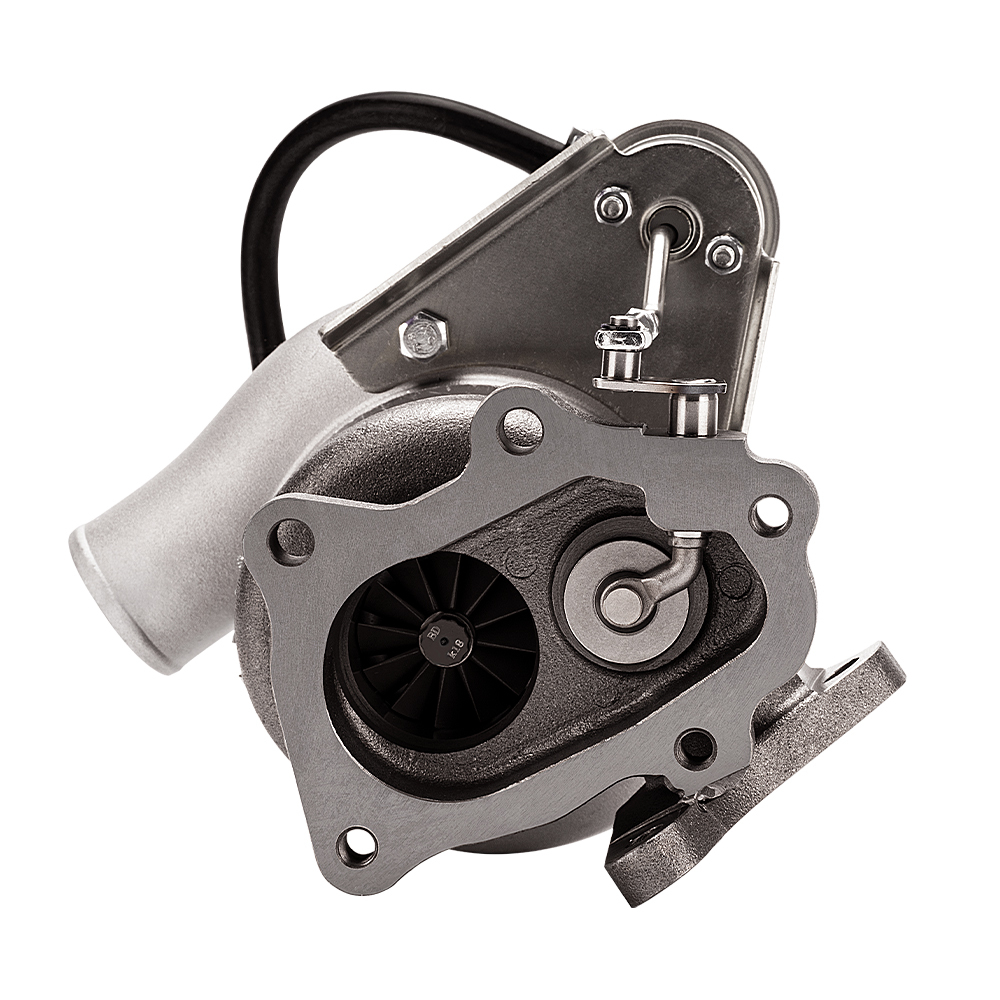

Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

Oil Inlet: M10*1.5
Oil Outlet: M15 & 2*M6H
Water: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing Type: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Wastegate：With Wastegate
Turbo Model: TD05 20G
Thrust Bearing: 270 degree
Hosepower: Up to 380 HP
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g





Features

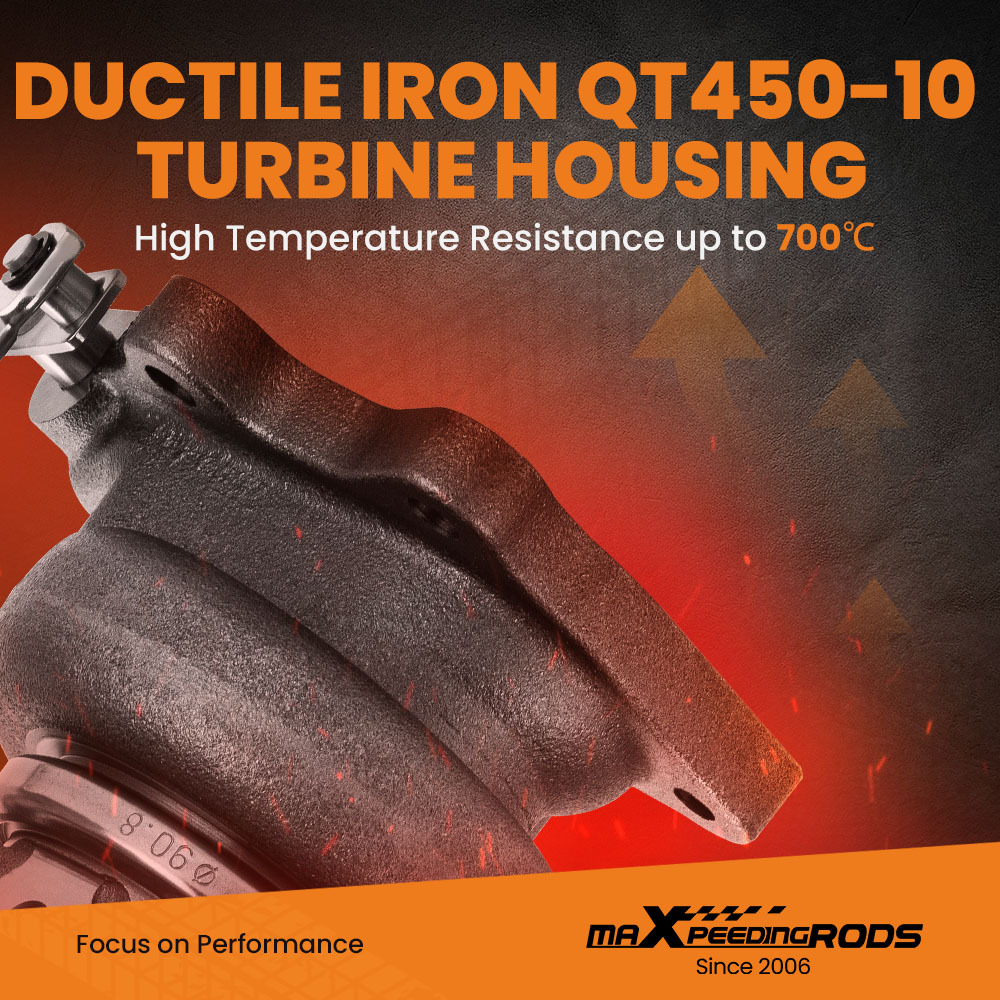

1. Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700℃

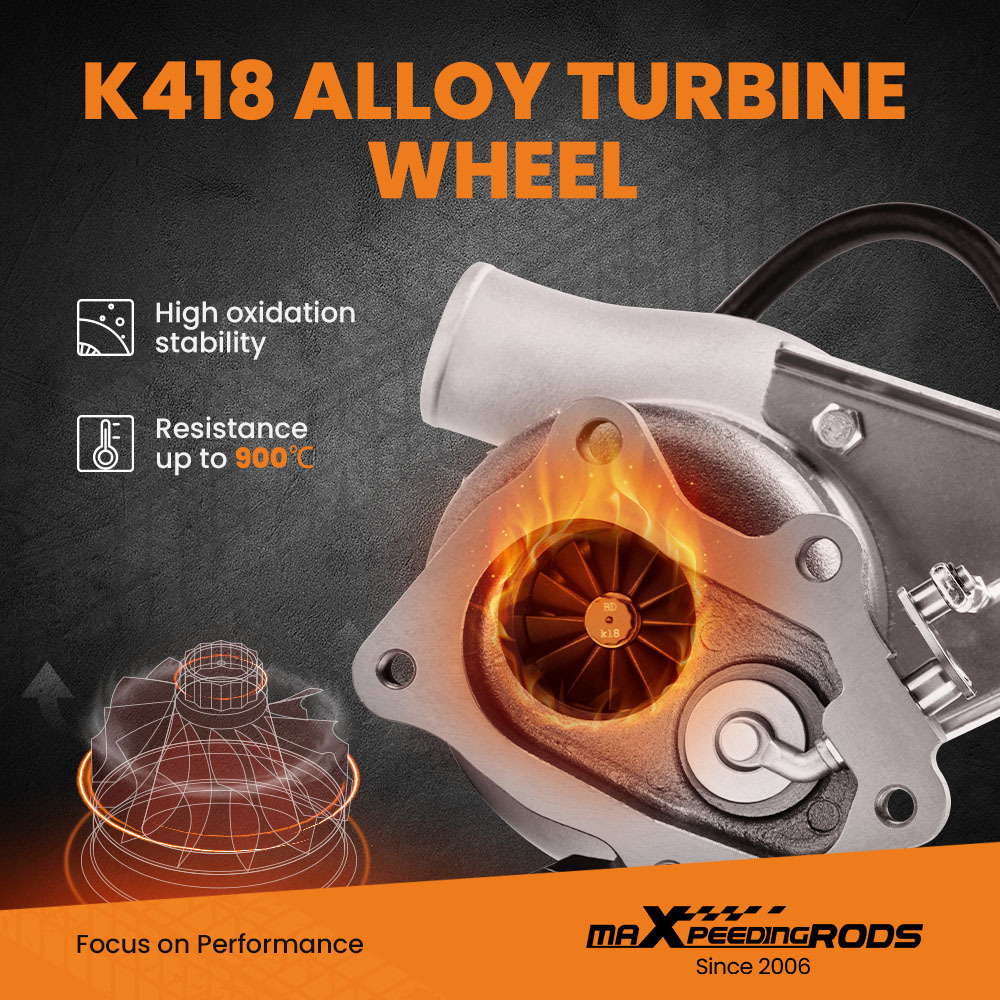

2. Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃

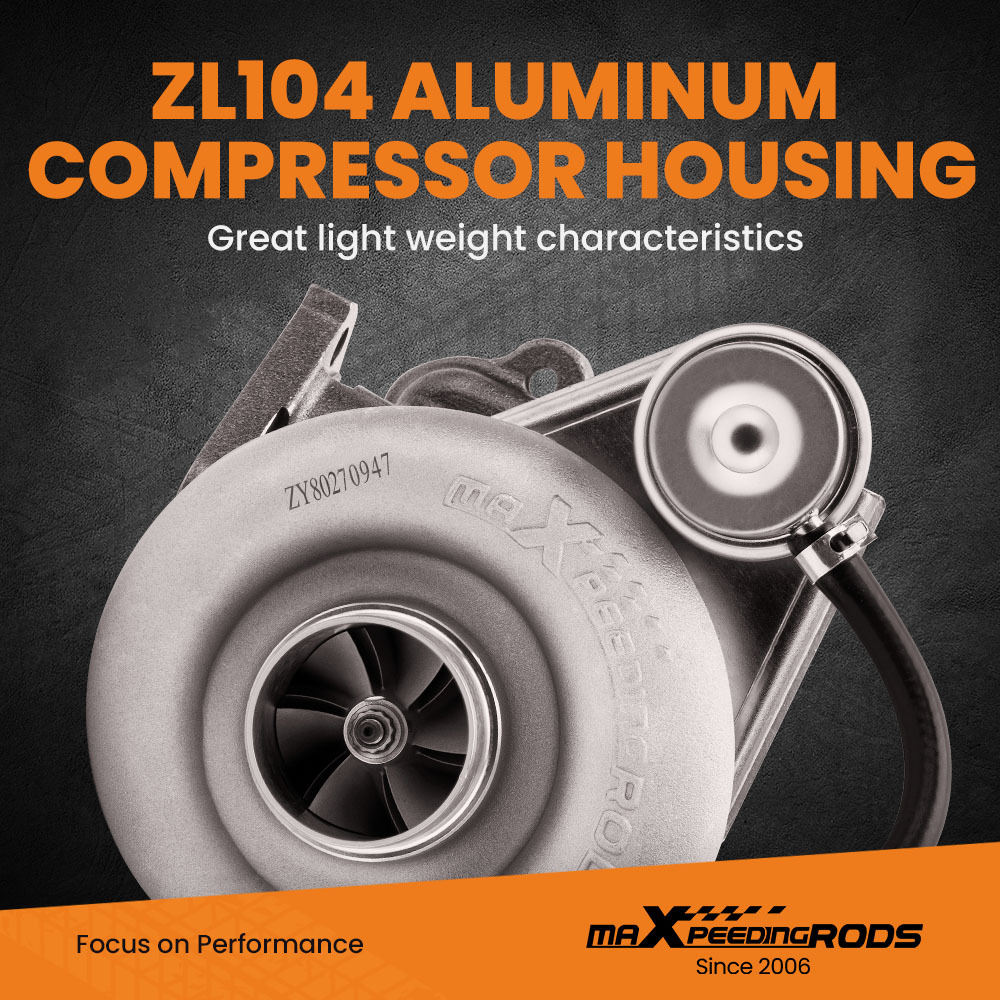

3. Compressor housing：ZL104 aluminum

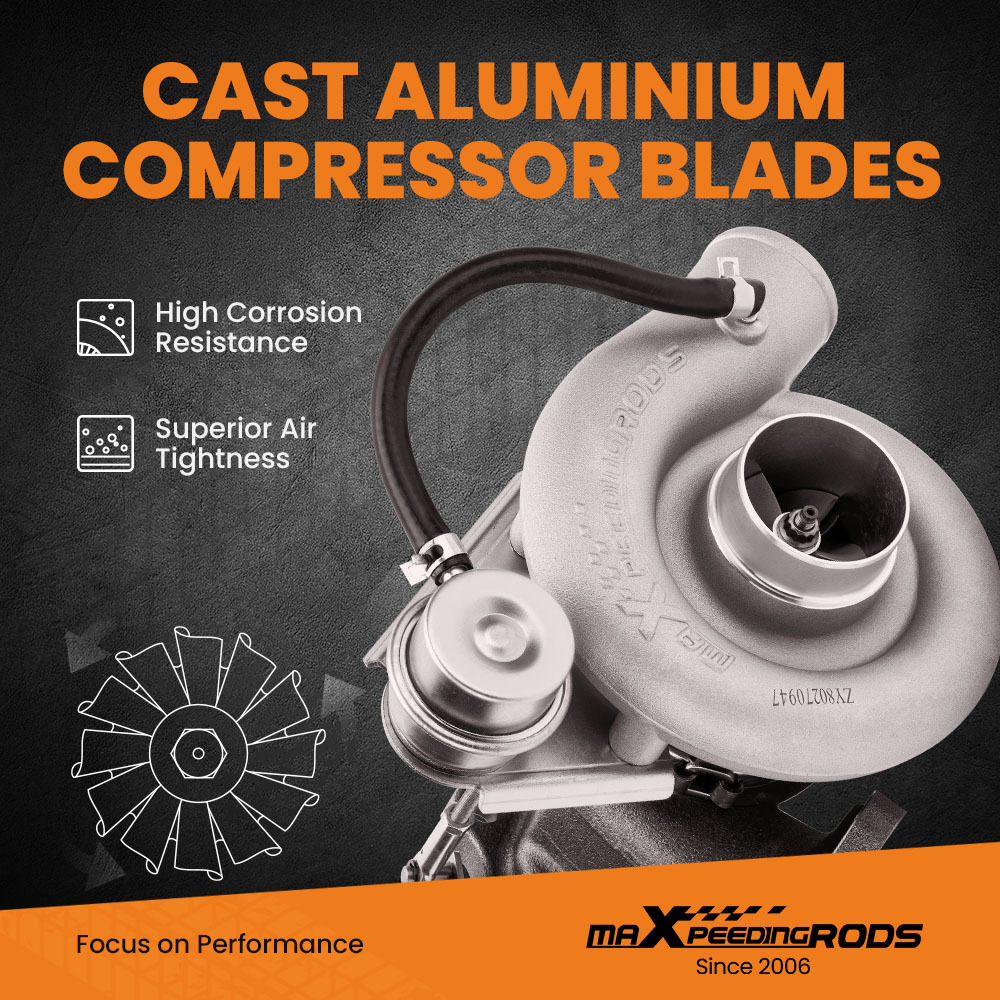

4.Cast aluminium blades with good gas tightness and corrosion resistance.
5. MAX HP：420 HP.

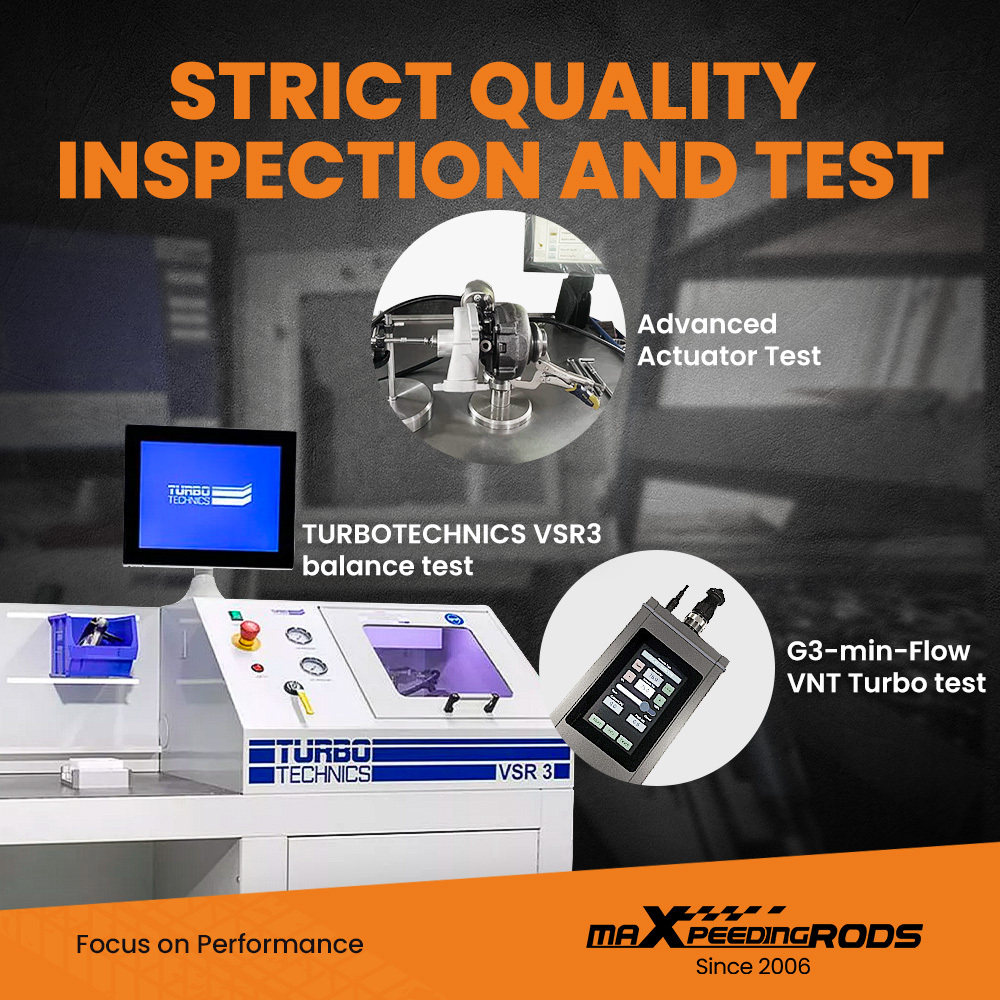

6.100% BALANCING TEST:  VSR machine technology.




Notice

* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* All for WRX Wagon engines and automatic sedan engines came with a TD04,all manual for WRX sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo.
* It's a direct bolt-on so nothing else would be required. But, to get it's full potential you'd need some additional upgrades. Intake, exhaust, more fuel, etc. it will also require custom tuning.
* Professional installation is highly recommended(No Instruction Included)
