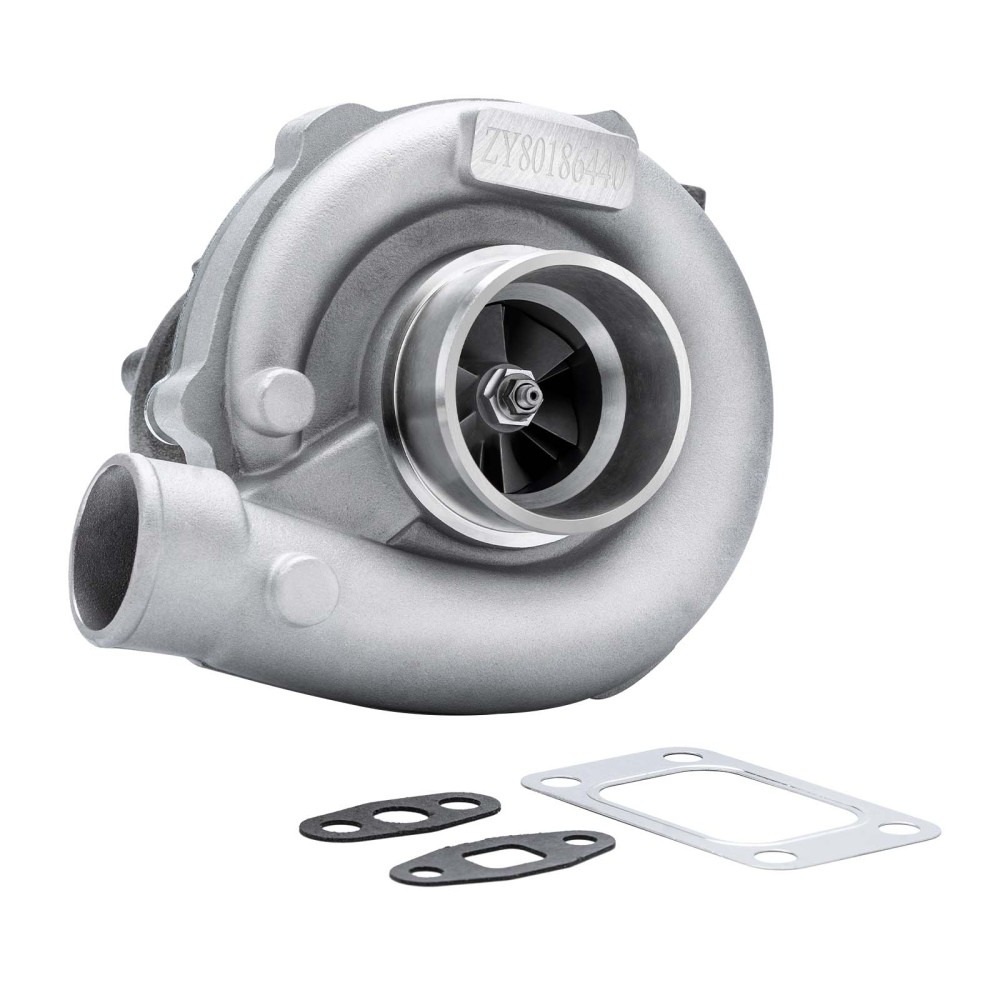

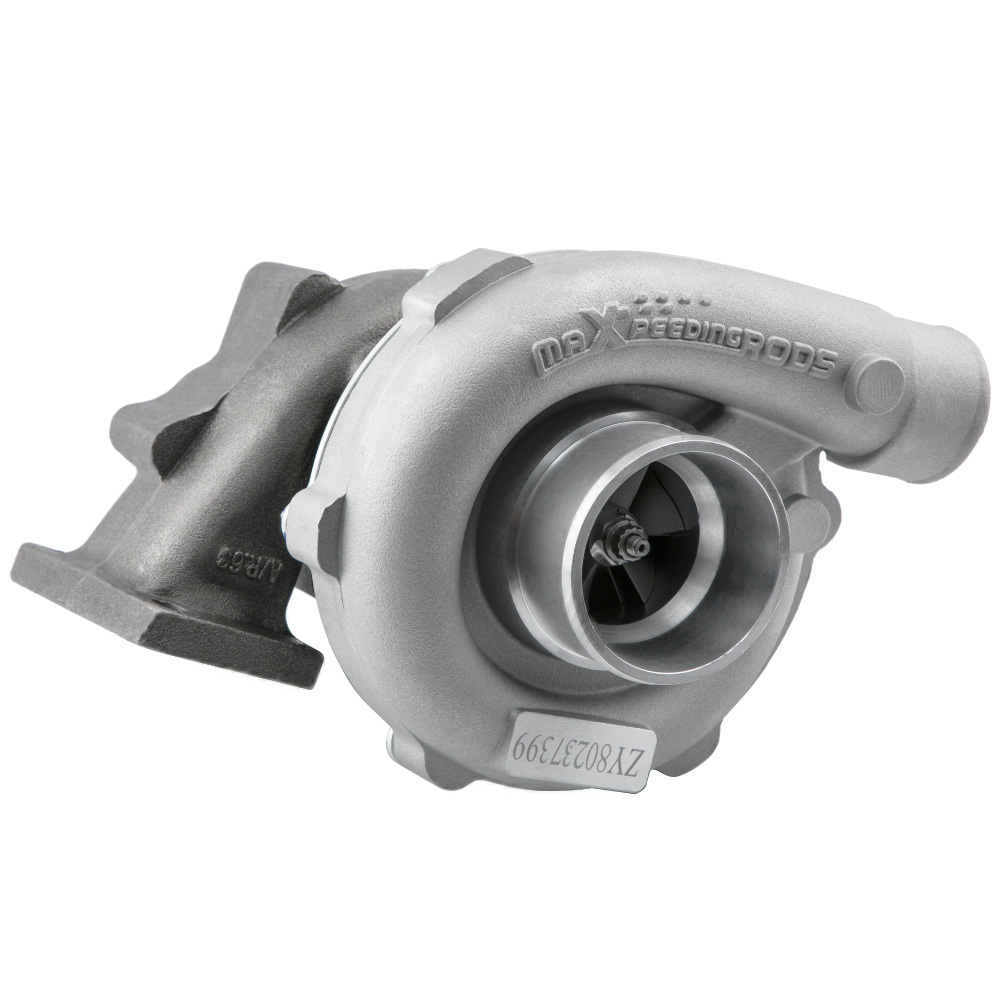

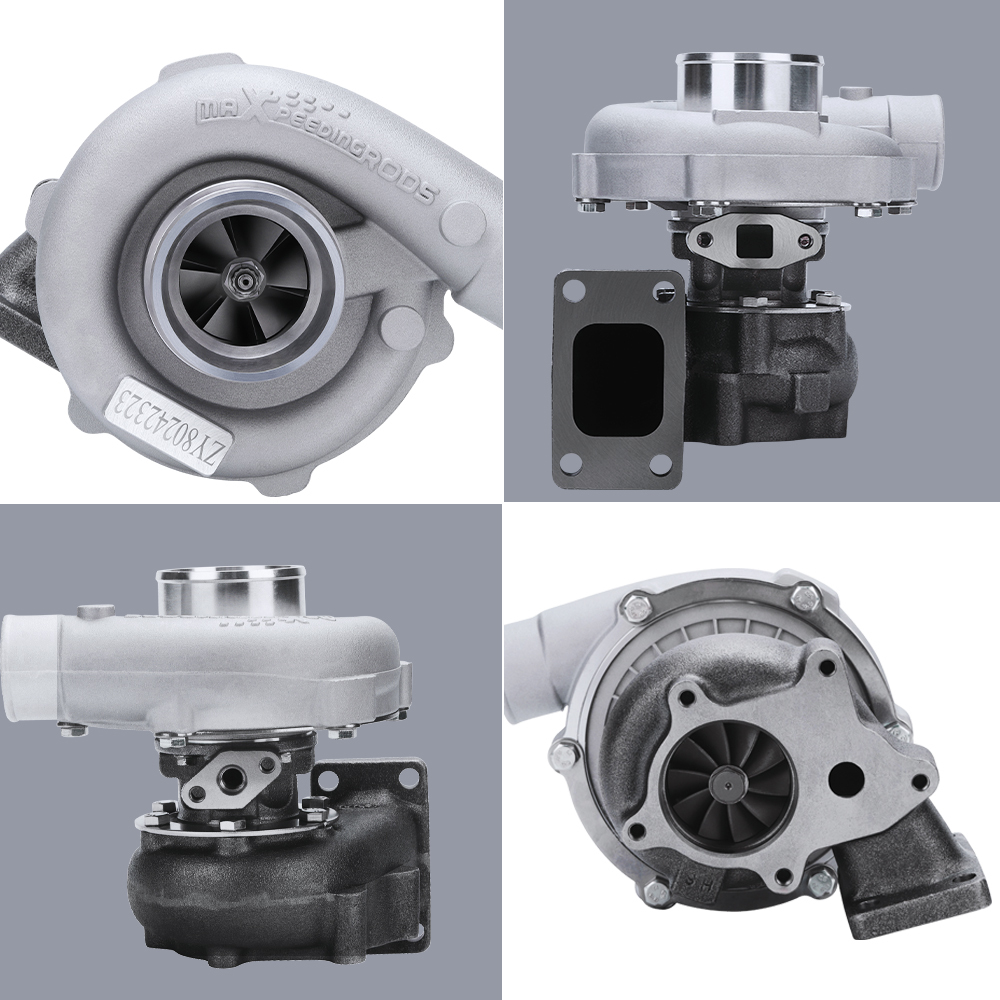

Universal Turbocharger Water Cooled T3T4 T04E T3 .63 A/R for 1.5L to 2.5L 400HP

Description

This turbo is an aftermarket application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.Please confirm that your car's displacement is between 1.5-2.5L .Please check the size before pirchasing and make sure that your car has enough space to install this turbo.



Application

Compatible for 1.5L to 2.5L any 4/6 cylinder

Horse Power: Capable of Boosting Horse Power up to 400HP

Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)



Specification

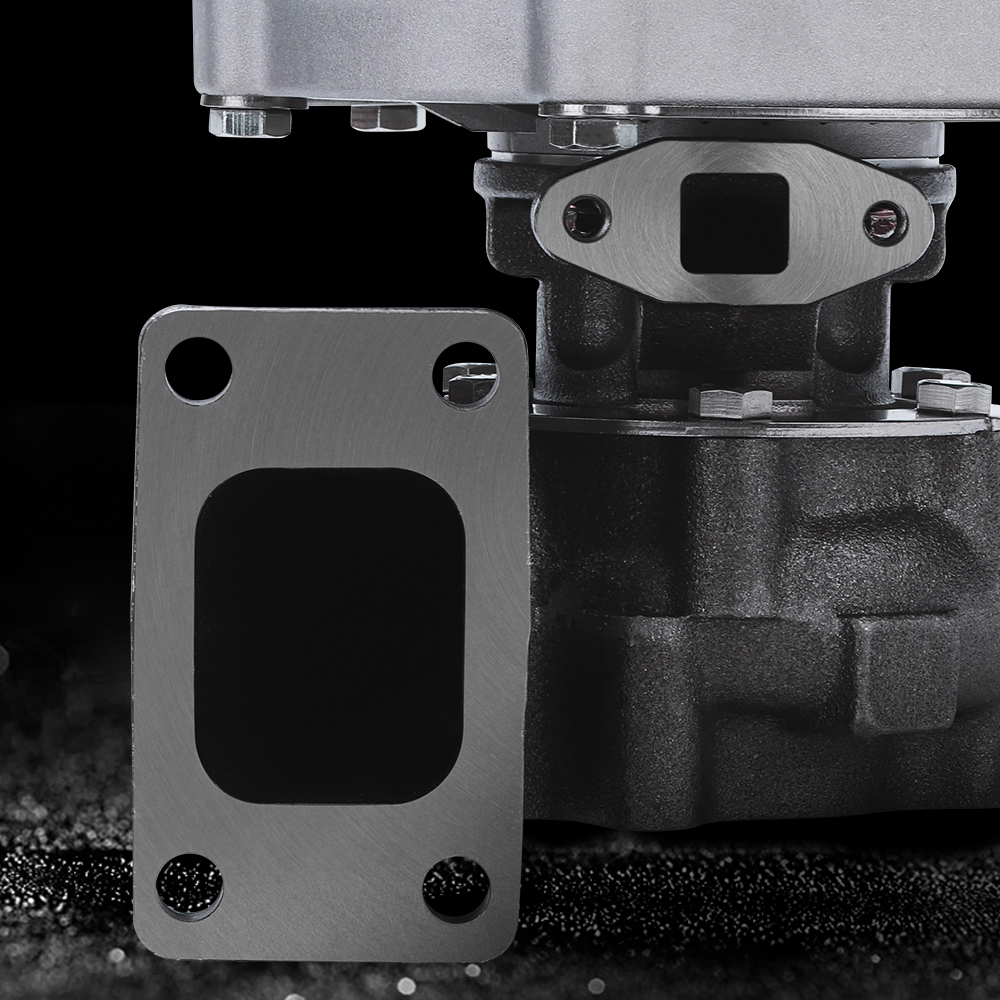

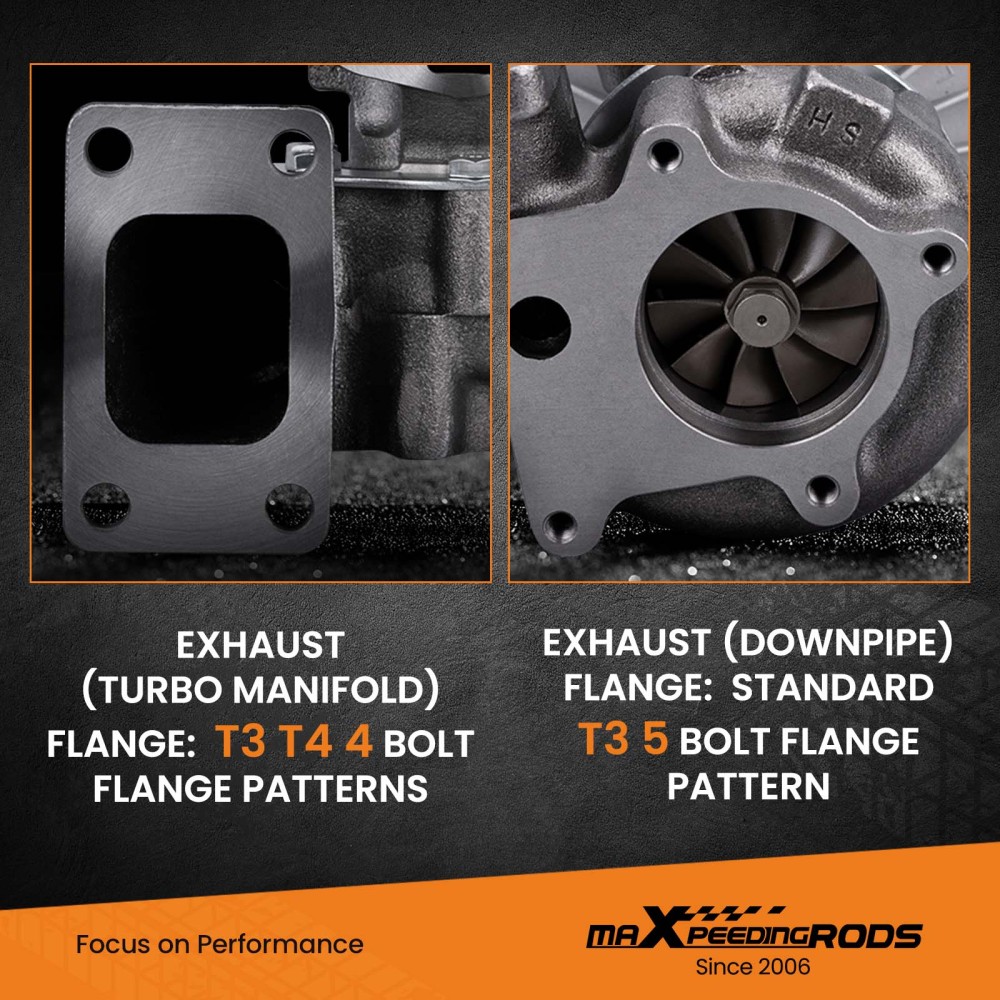

Exhaust (Turbo Manifold) Flange:  T3 T4 4 bolt Flange Patterns

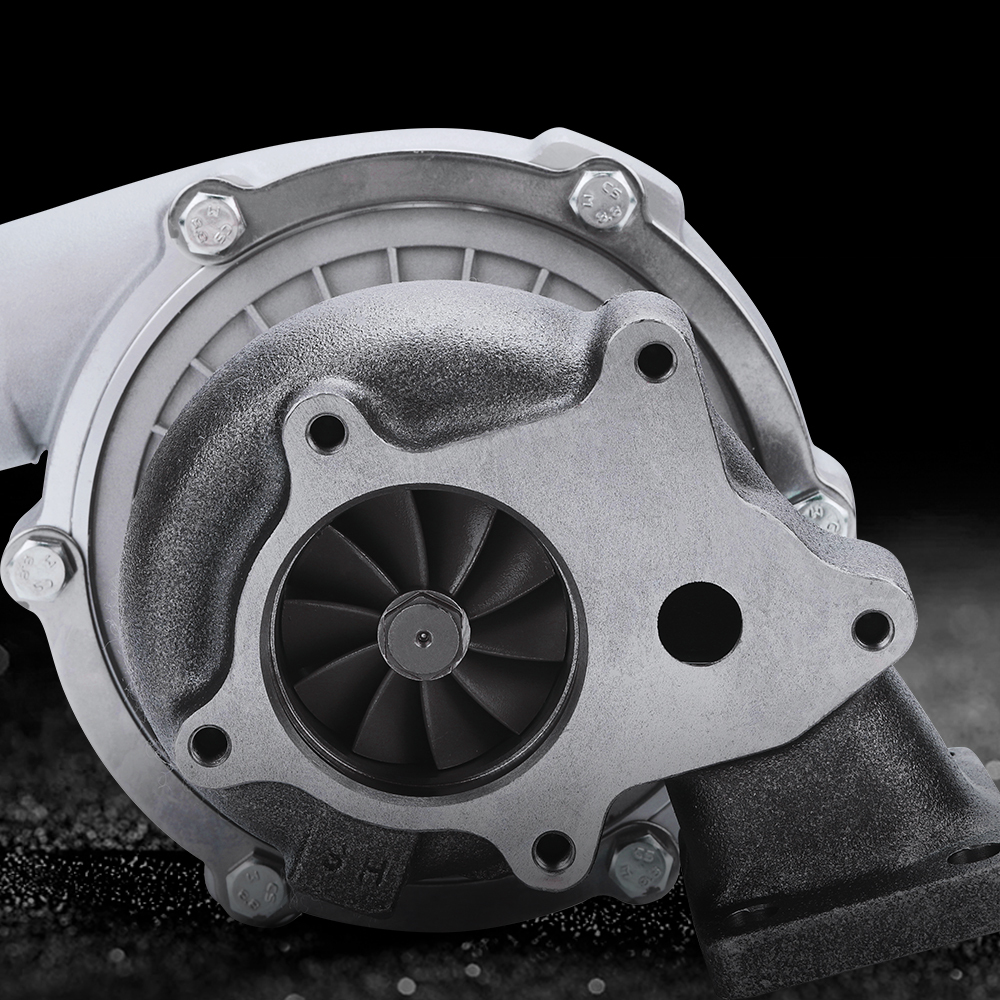

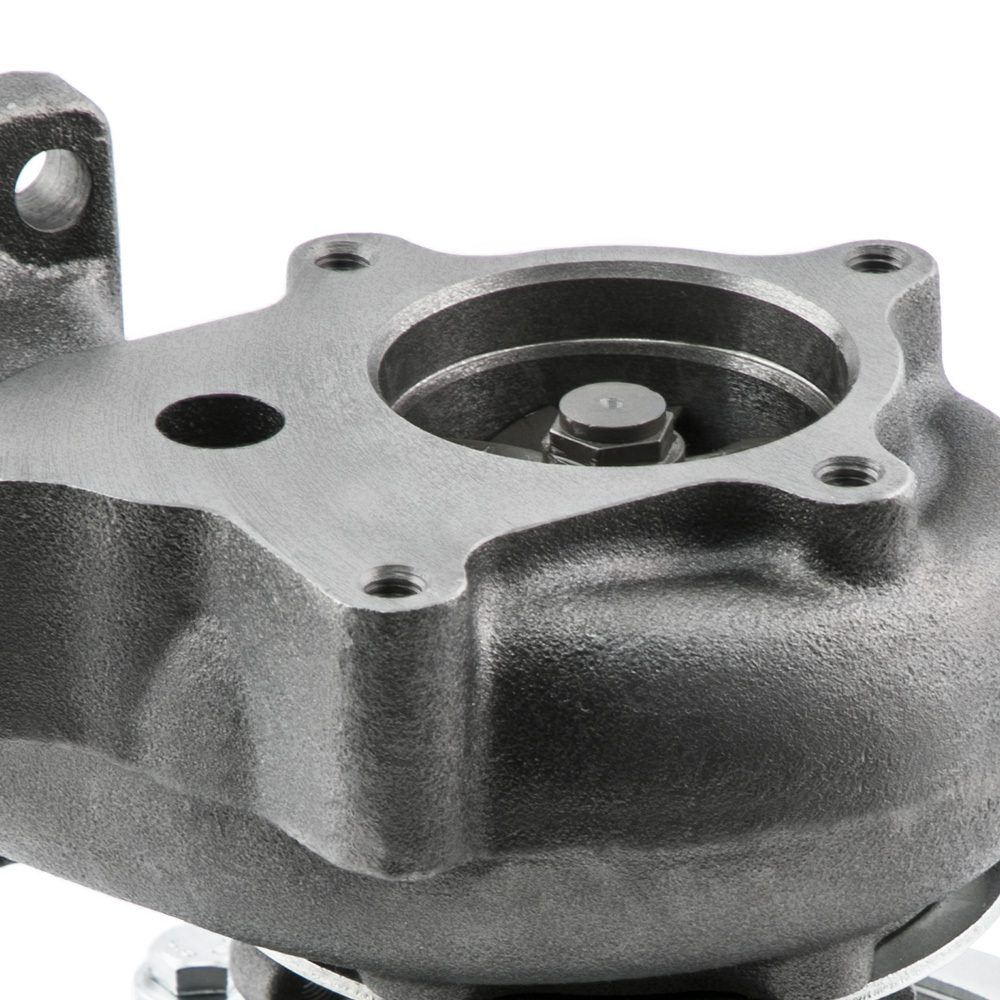

Exhaust Flange:  Standard T3 5 bolt flange pattern

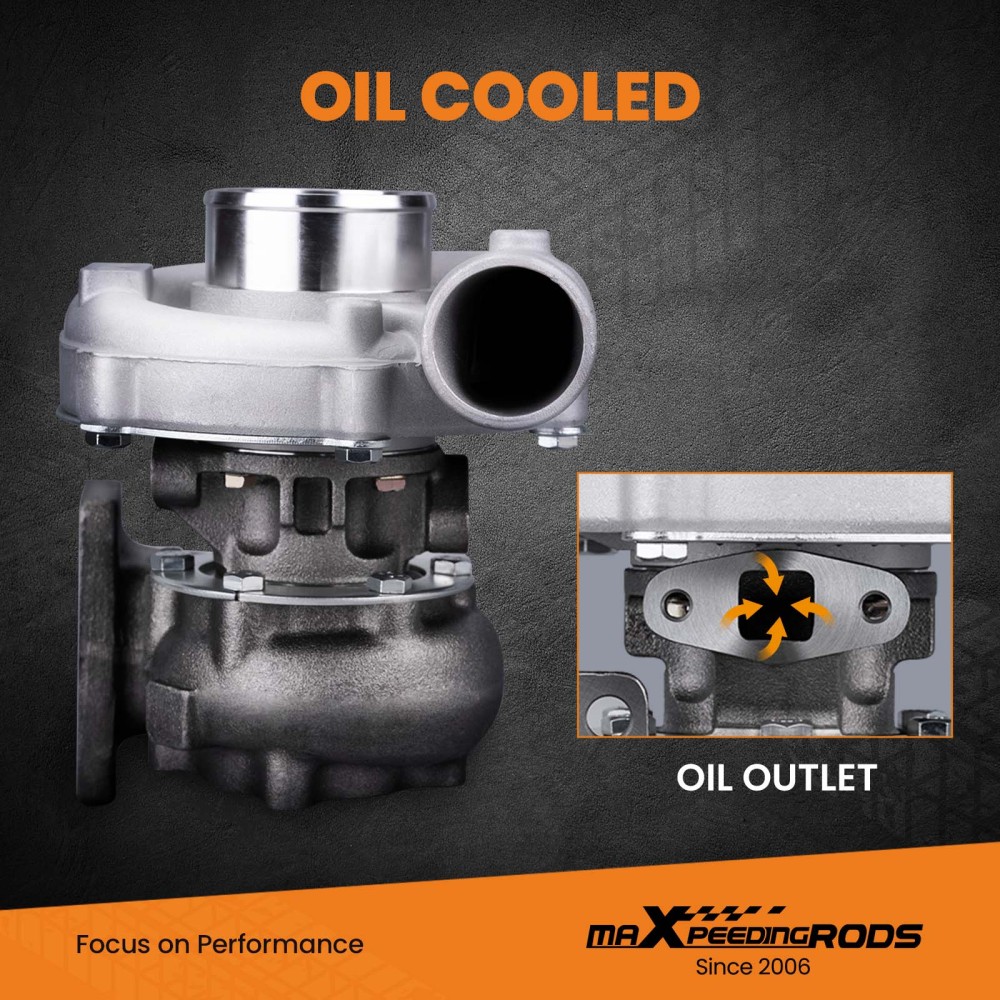

Cooling Type: Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 degrees
Horse Power: Up to 400 HP
Wastegate: W/O Wastegate
Actuator Type: W/O Actuator

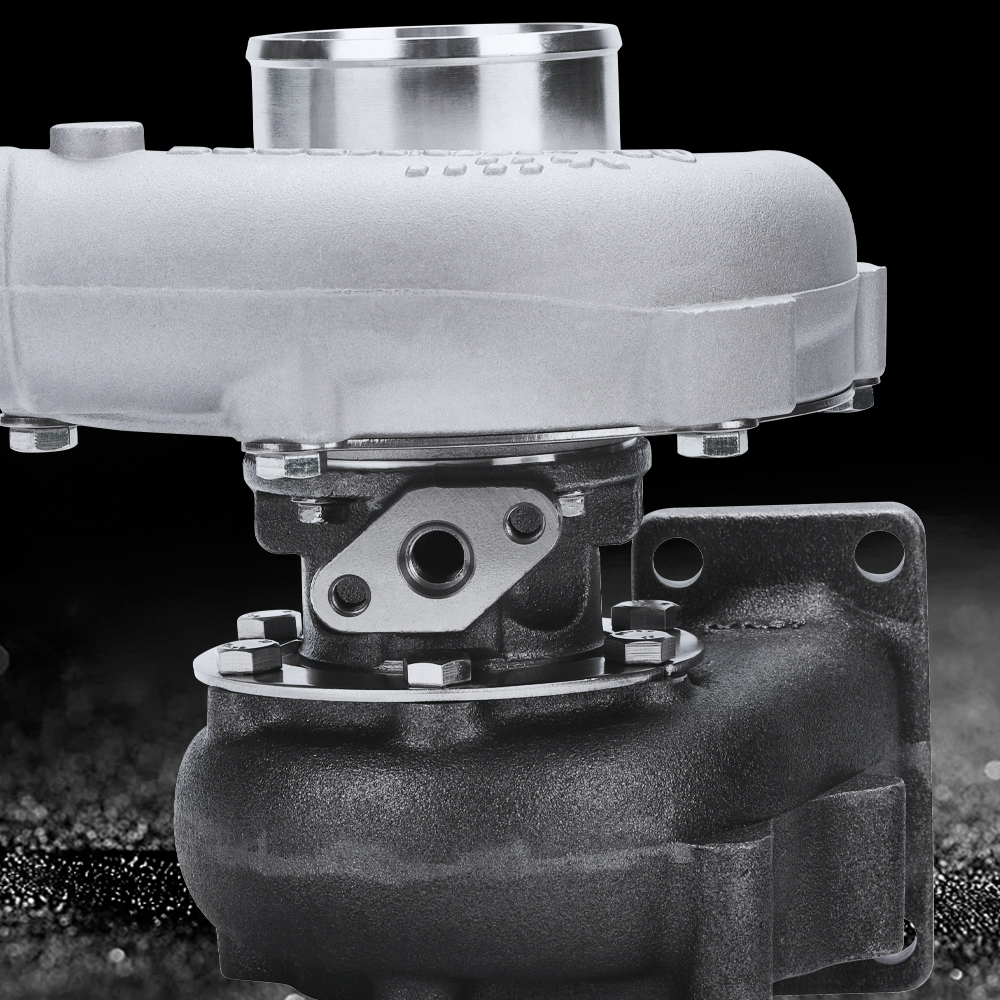

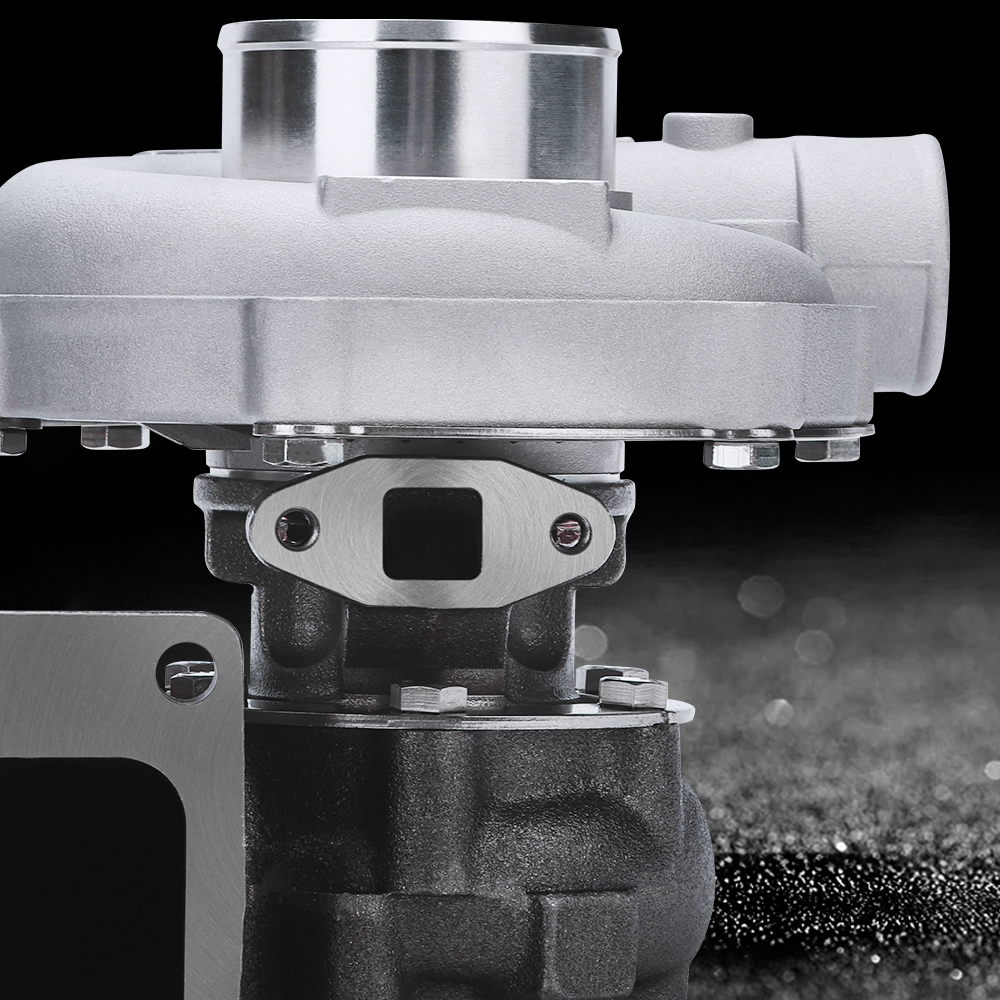

Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New

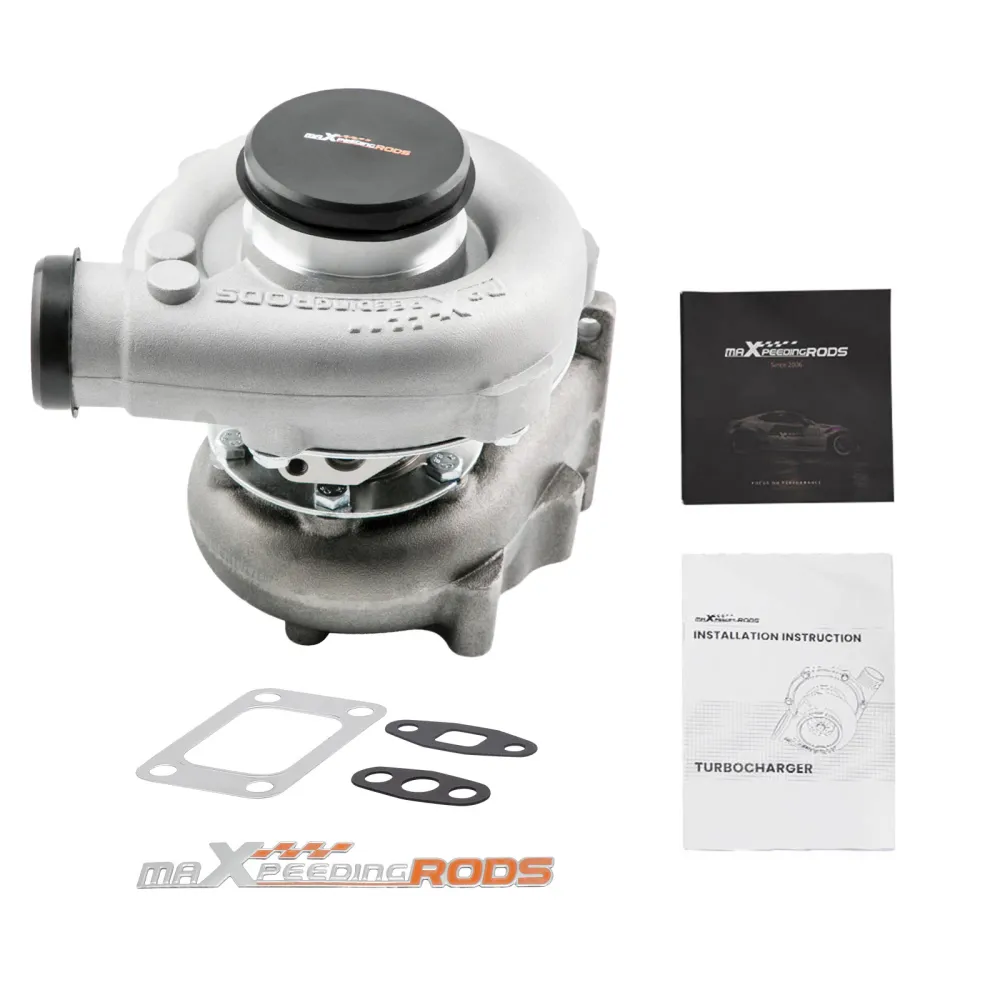

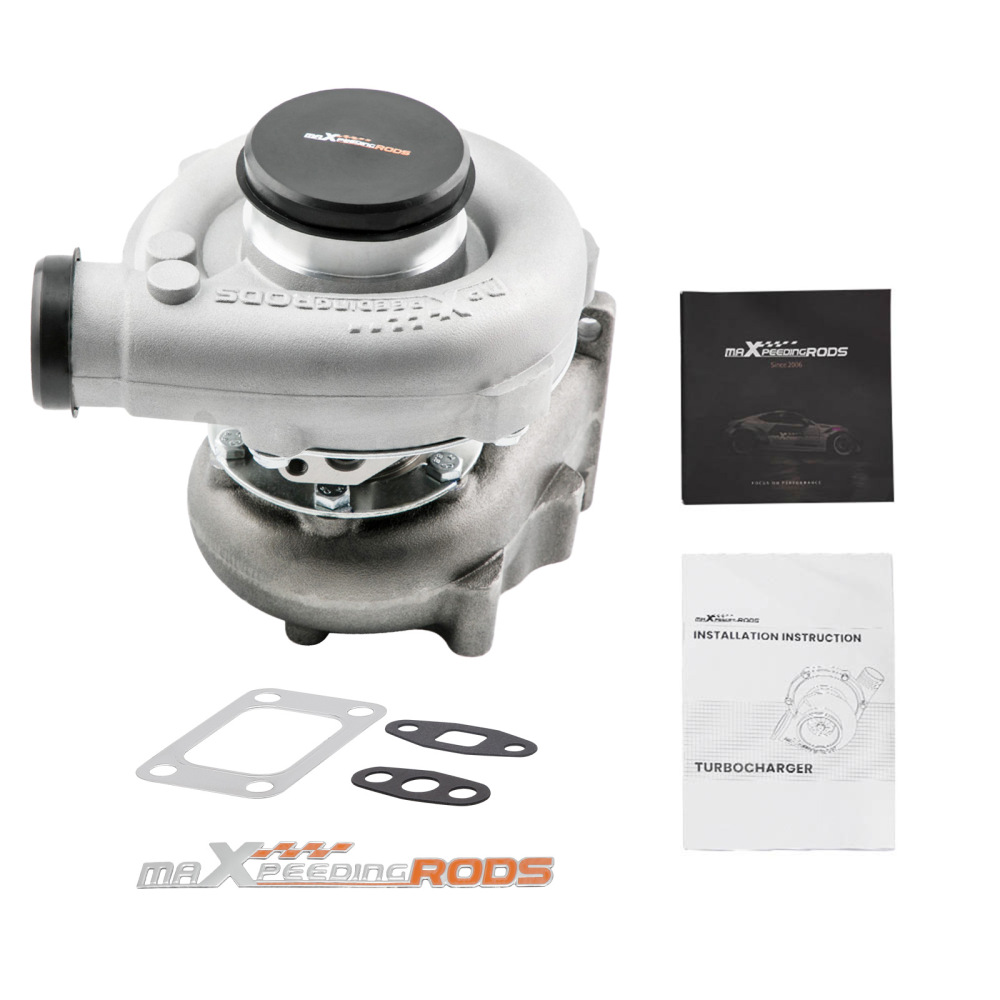

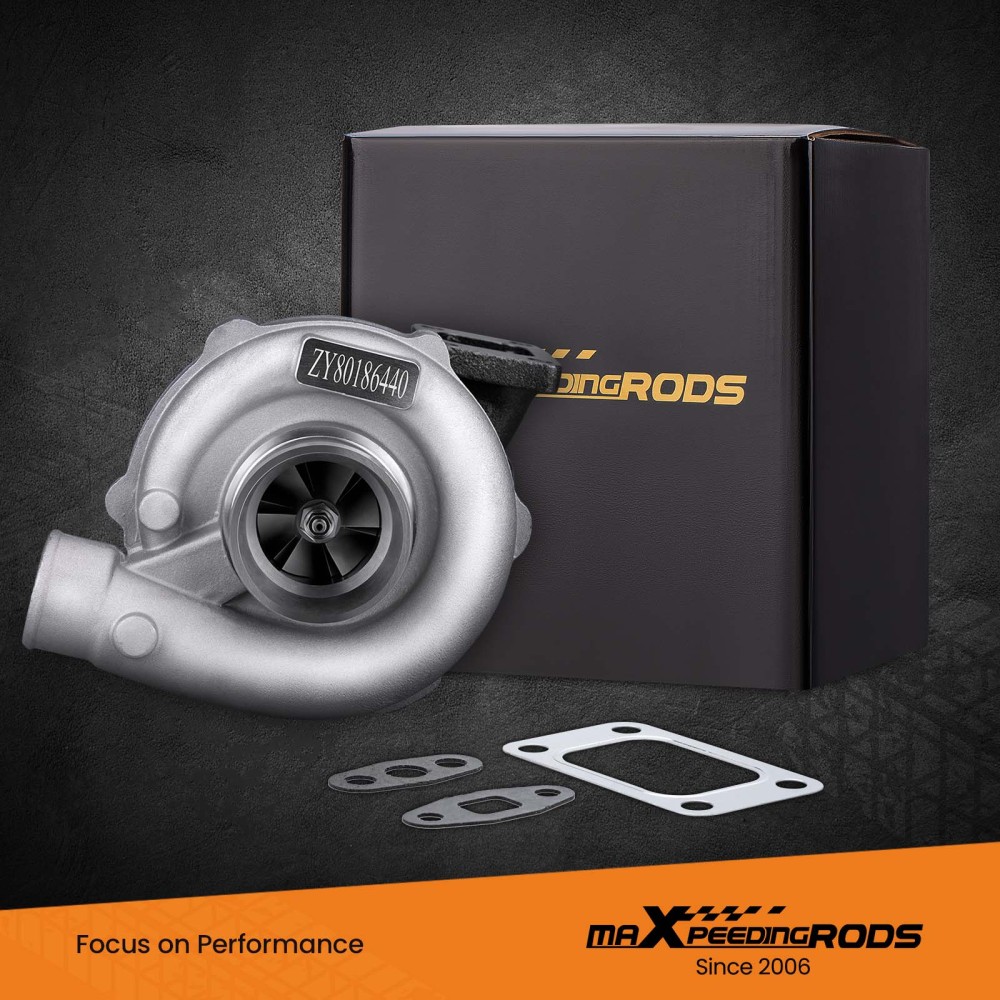

Accessories: You will get exactly as shown as picture above
Package Size: 27x 25x 24 cm
Package Weight: 7250g

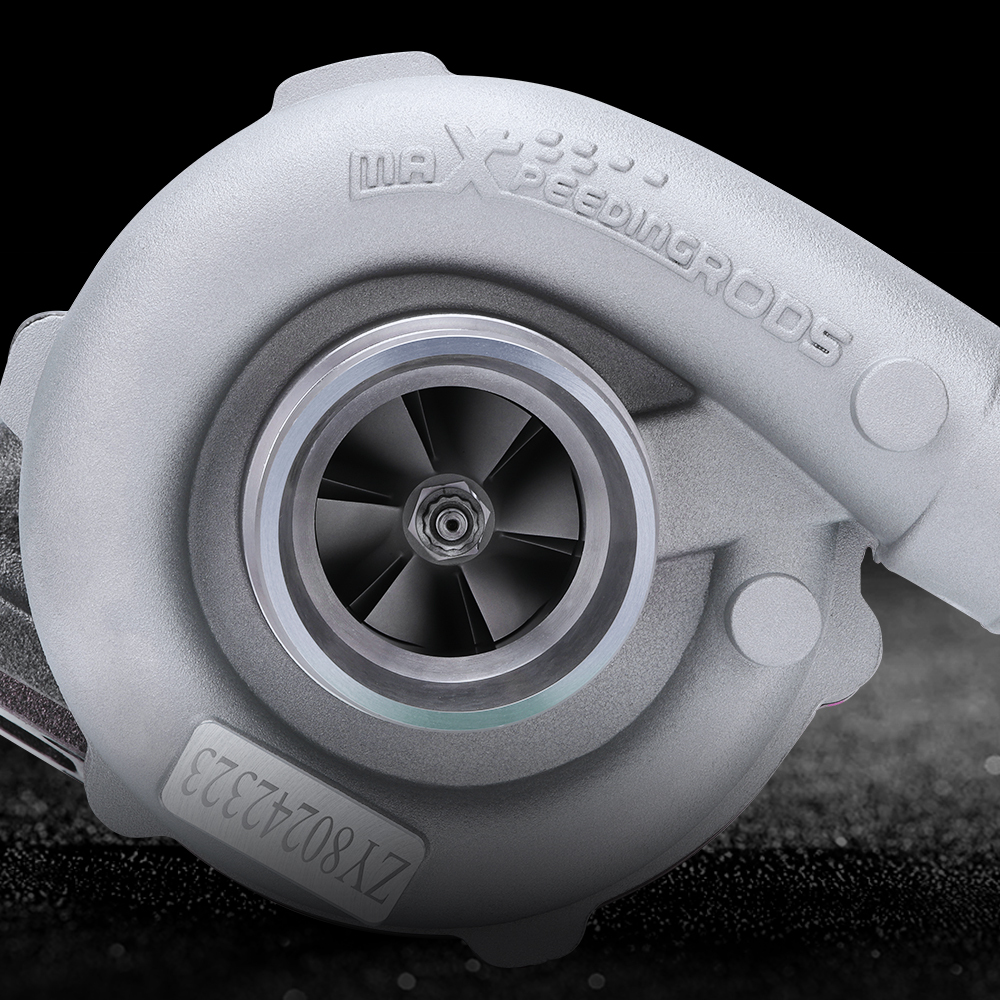

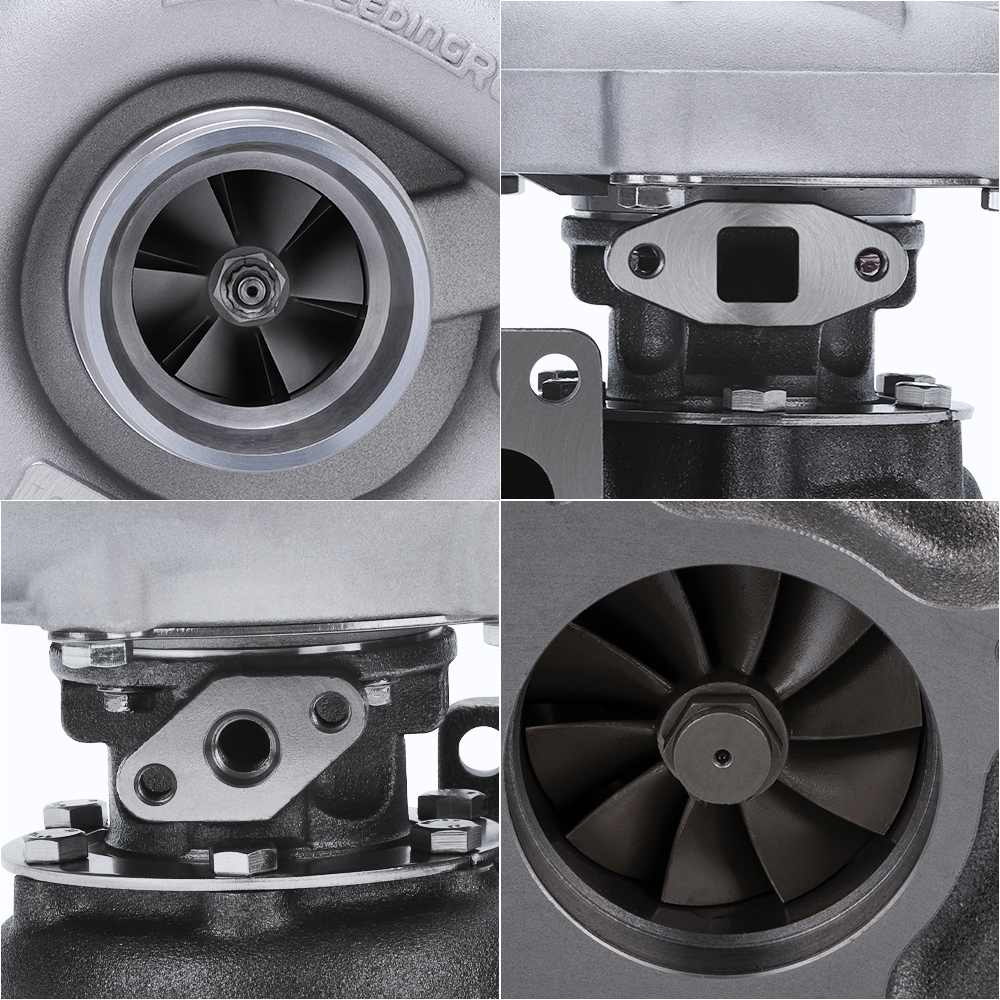

Compressor:
Trim: 44
A/R: 0.5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: 0.63
Inducer: 65.5
Exducer: 55.9



Features:

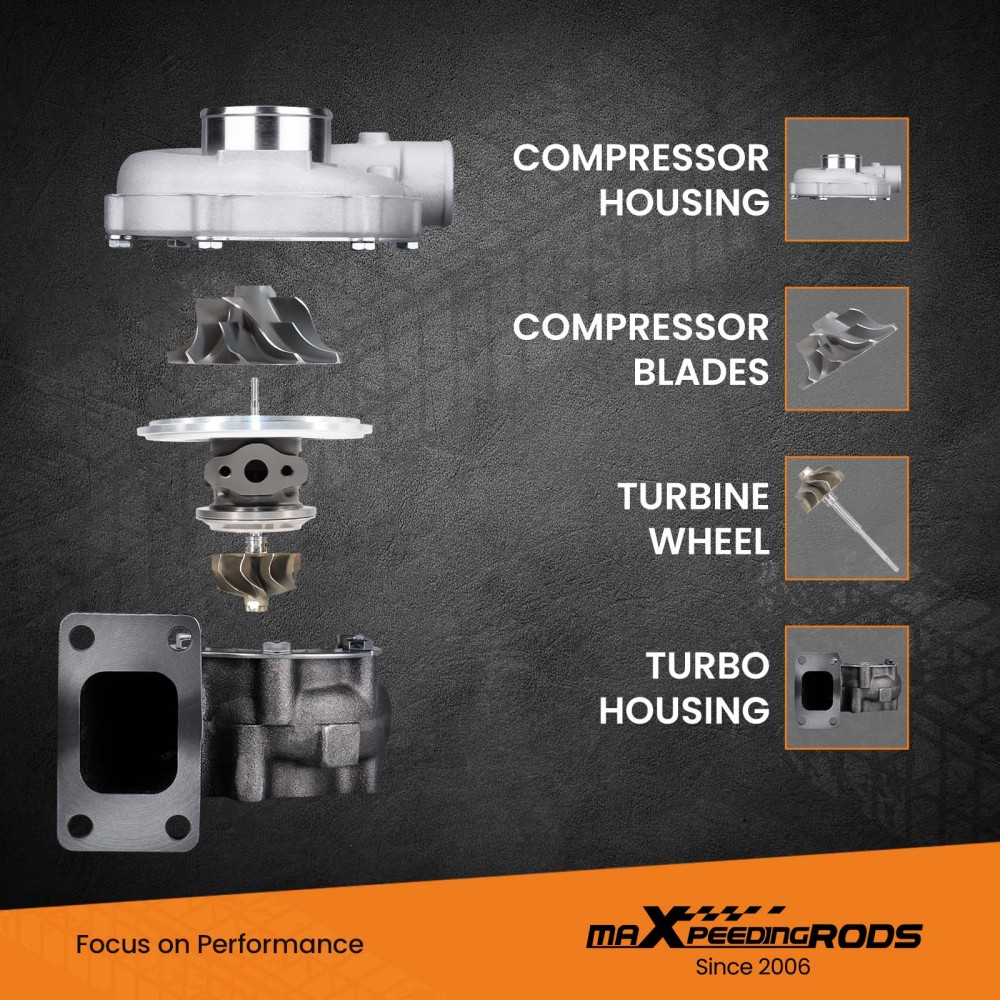

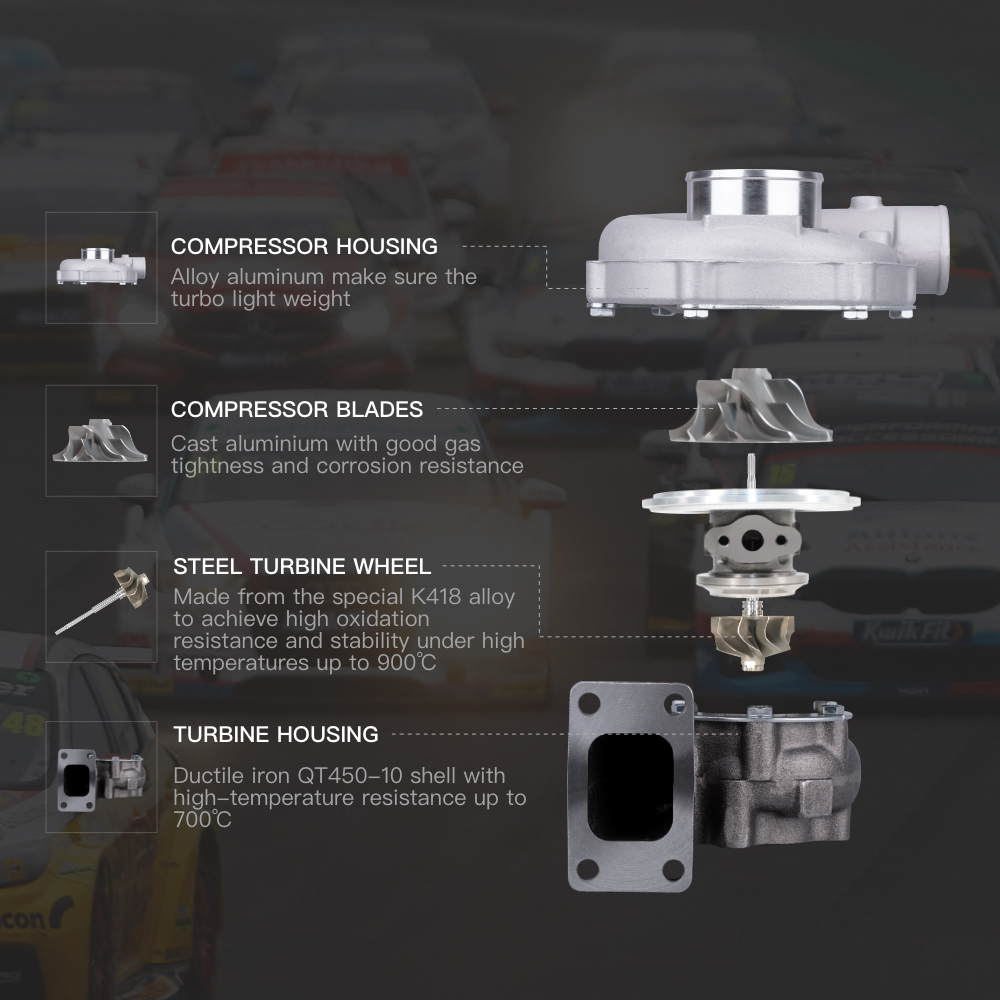

*Product Material
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

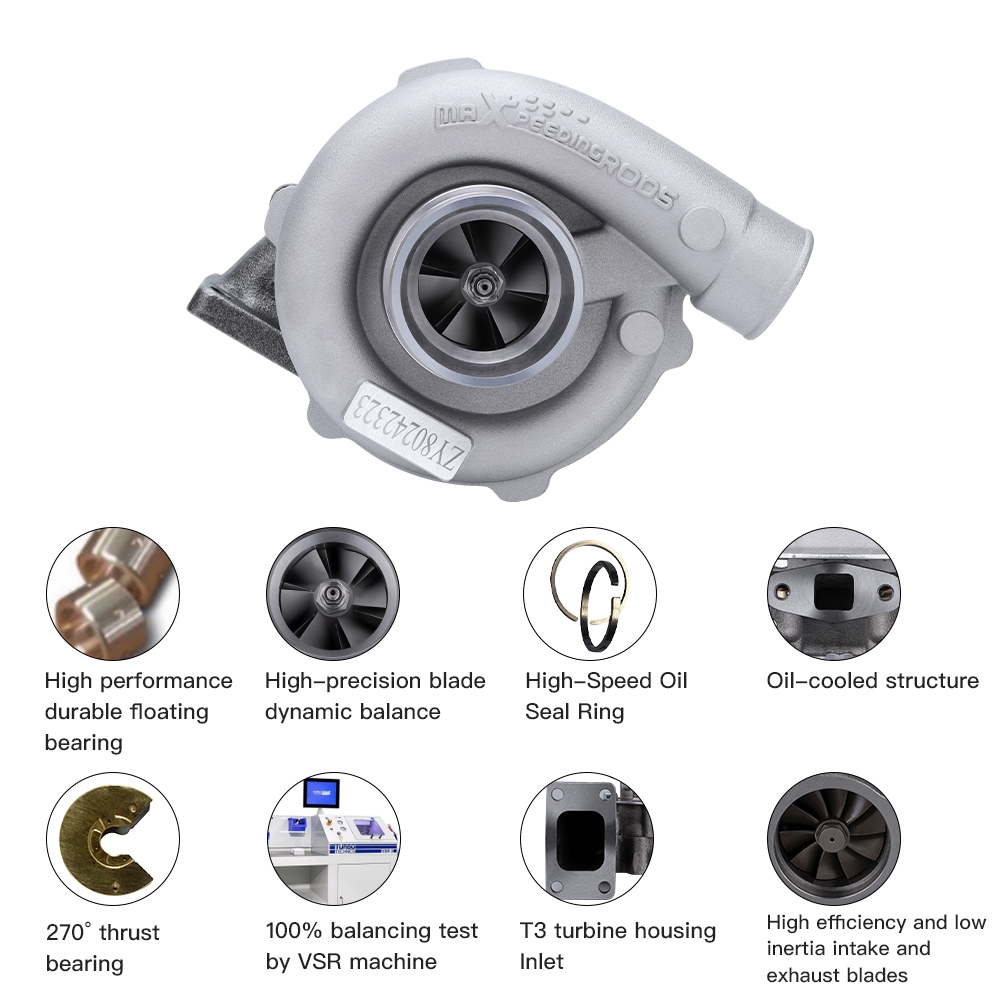

*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

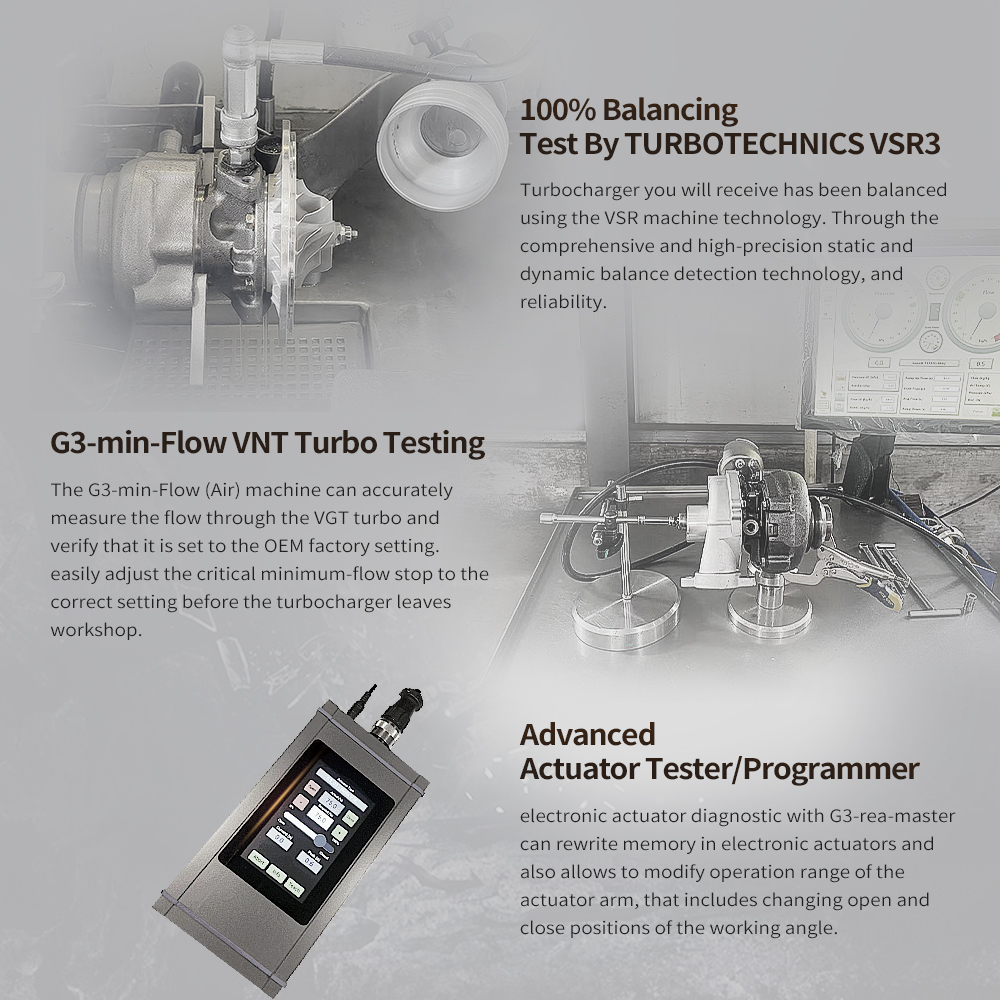

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer



NOTE:

* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
