T3 V-band Turbocharger Turbo .63 A/r W/ Internal Wastegate Universal 420HP

Notice

This turbo is an universal application turbo, some modification may be required based on individual vehicle.

The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Please confirm that there is enough space in your car to install this turbo before purchasing.

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Wastegate：With Wastegate
Thrust Bearings: 270 Degrees
Turbo Type: Individual
Condition:  Brand New

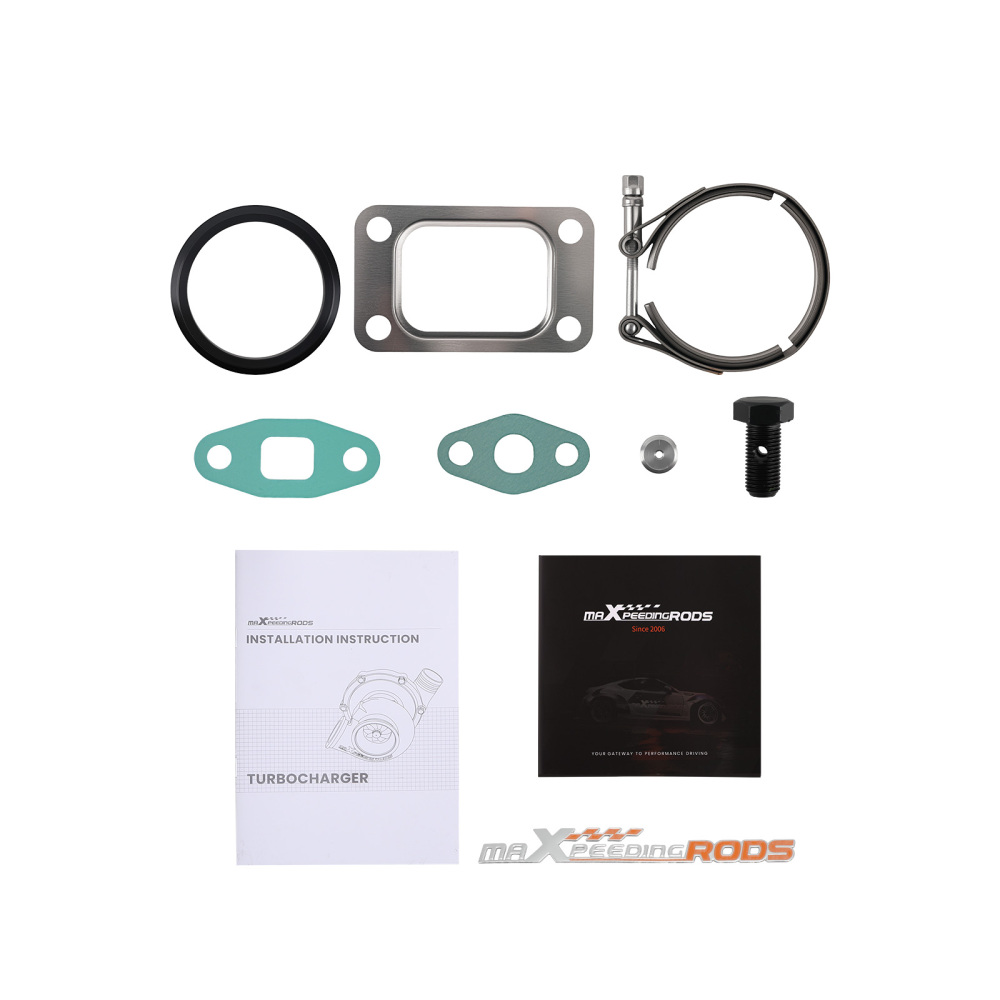

Accessories: You will get exactly as shown as picture above
Package Size:30x 28x 24 cm
Package Weight: 9180g



Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet  Flange: V-Band Flange  (ID/OD: 2.5"/3.1")
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Turbine exhaust  outlet : 79mm
Turbine exhaust inlet：44.7mm（length）/85.8mm（width）


Compressor outlet：78 mm
Compressor inlet：51.5 mm
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: one year


Feature

*Product Material
1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer


Notice

* This turbocharger is only for 1.5L -2.5L engine.

* Air filter is Necessary to complete the turbocharger. We will not be responsible for any damage which caused by disobey the 2 rules.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. If you are not sure about these information, please feel free to contact us.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended. (No Instruction Included)

*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
