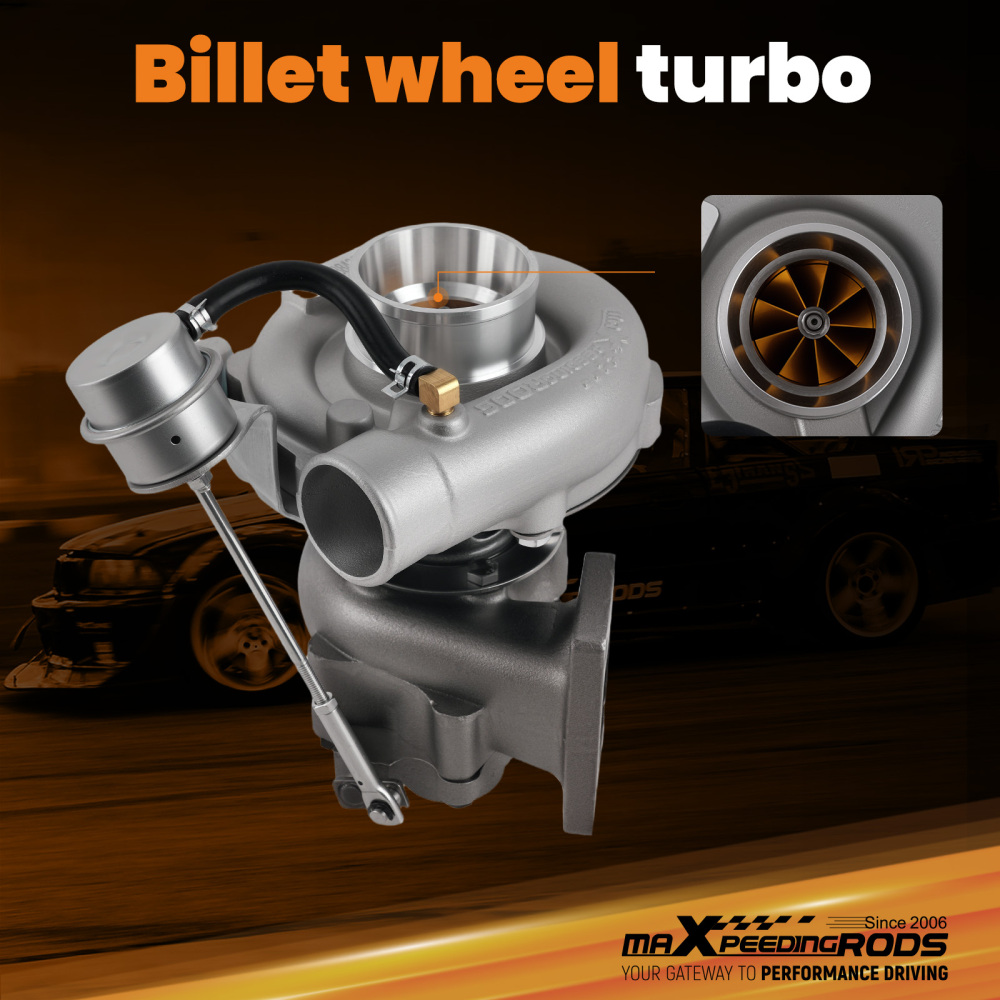

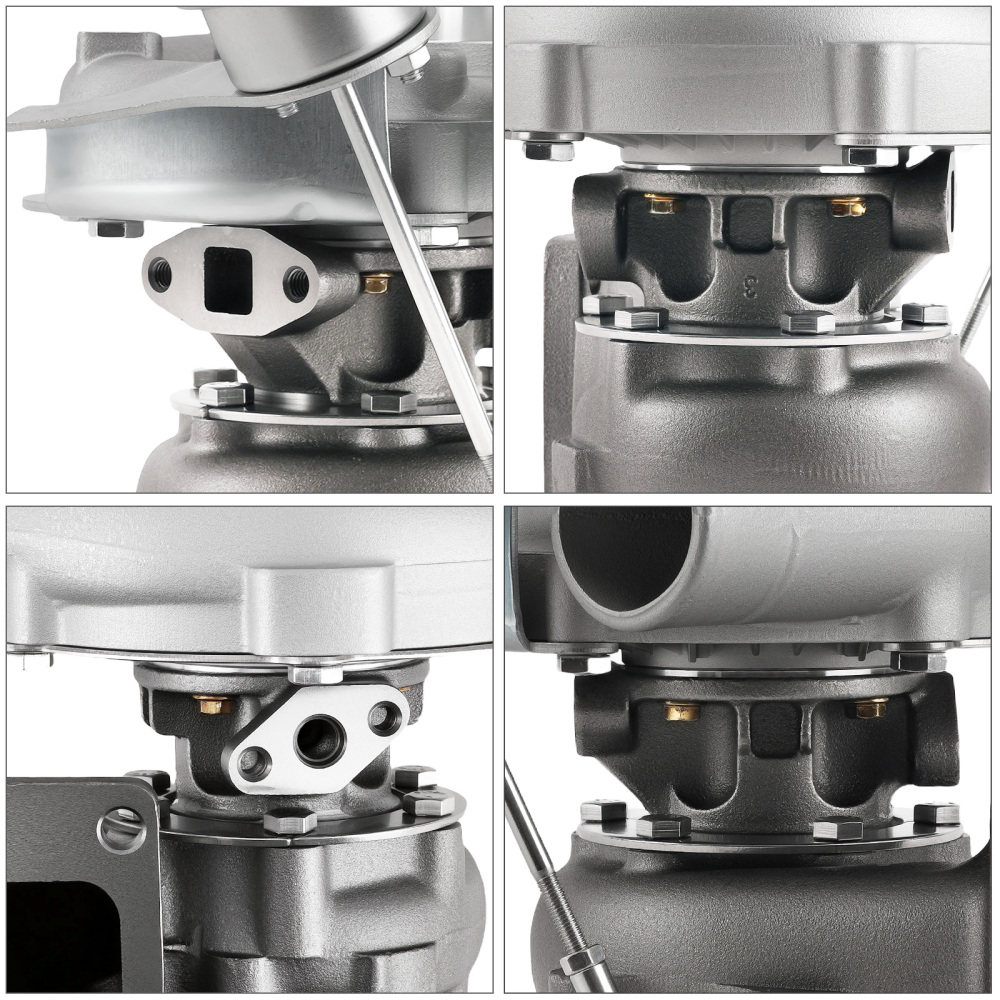

Universal Billet T3 Tubo Oil Cooled V-bandWet Float Fitfor 1.5-2.5L 4 6 Cyl

Notice:

This turbo is an universal application turbo, some modification may be required based on individual vehicle.

The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Please confirm that there is enough space in your car to install this turbo before purchasing.





upgrade billet compressor wheel

Silicon-Molybdenum Turbine housing





Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Wastegate：With Wastegate
Thrust Bearings: 270 Degrees
Hosepower:  Up to 420 HP
Universal Fitment: Yes
Condition: Brand New
Accessories: You will get exactly as shown as picture above
Package Size:30x 28x 24 cm
Package Weight: 9180g





Specification

Exhaust Inlet Flange: T3 4 bolt Flange
Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm（length）/85.8mm（width）

Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm





KEY FEATURES

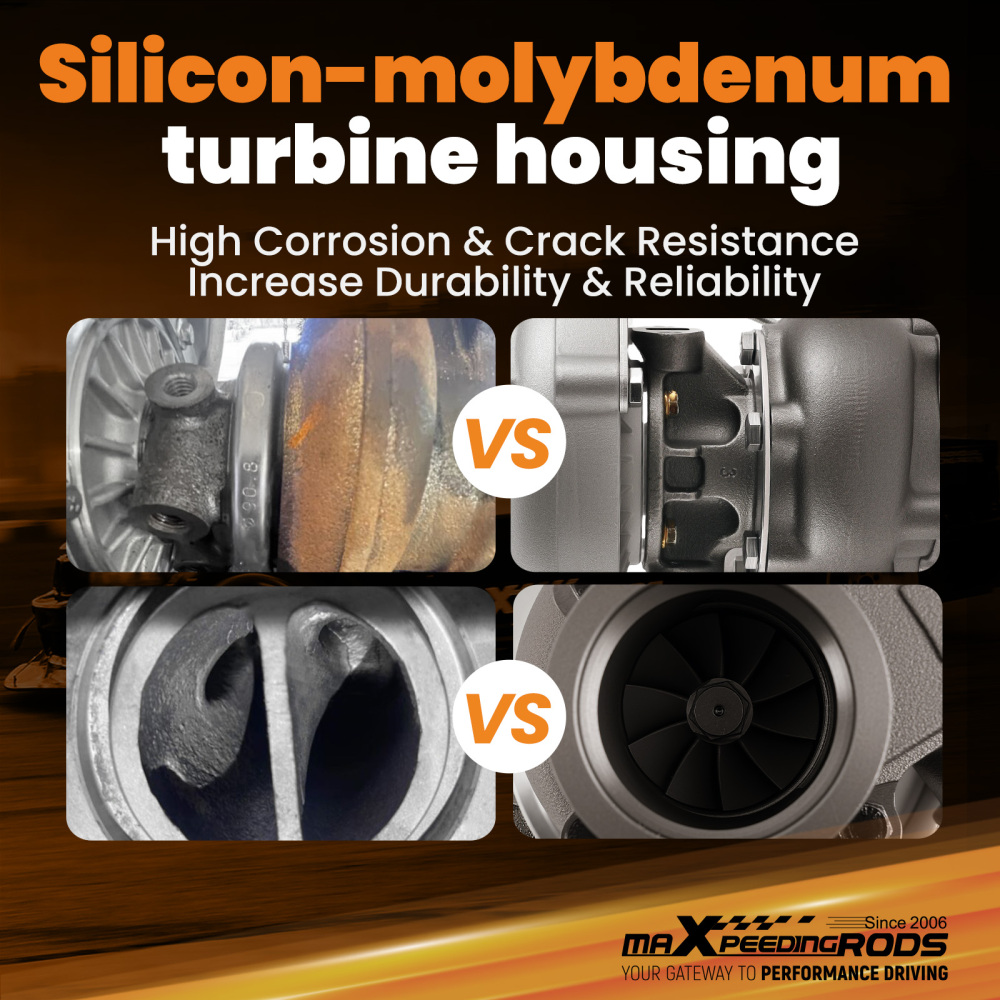

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

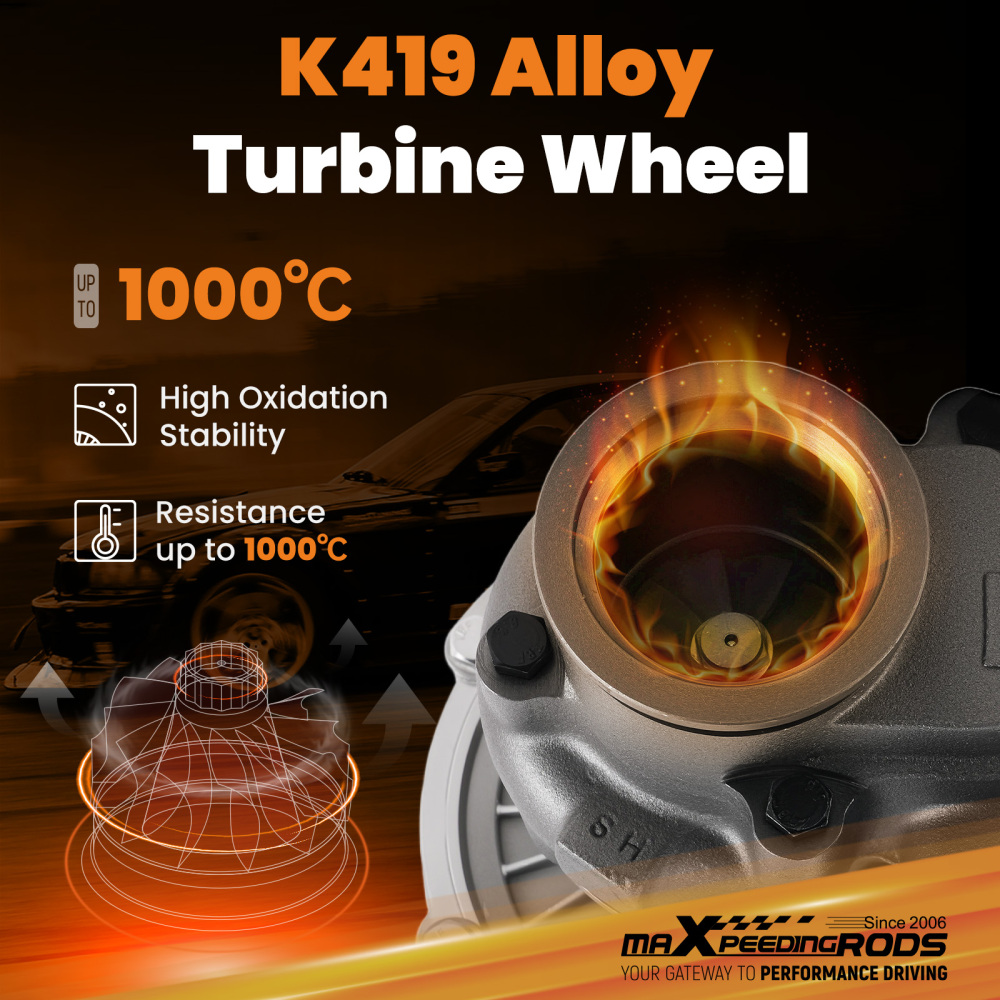

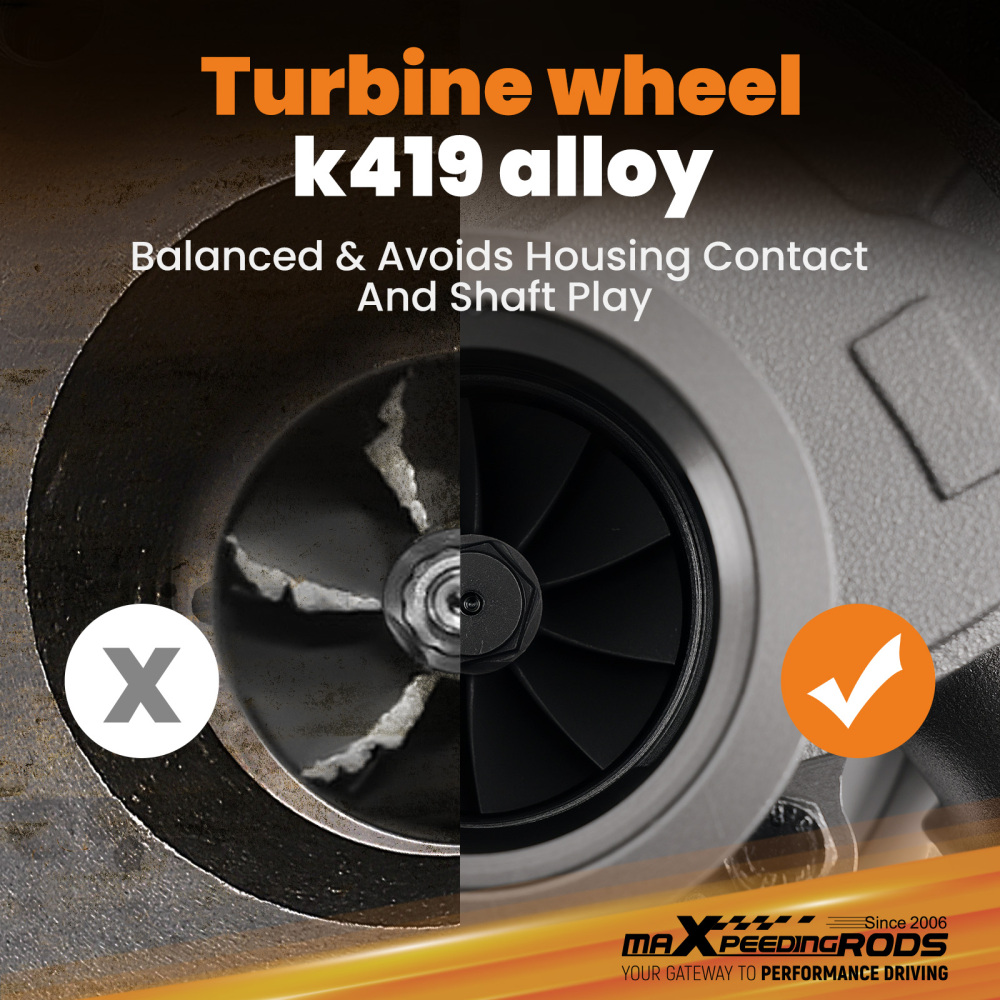

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

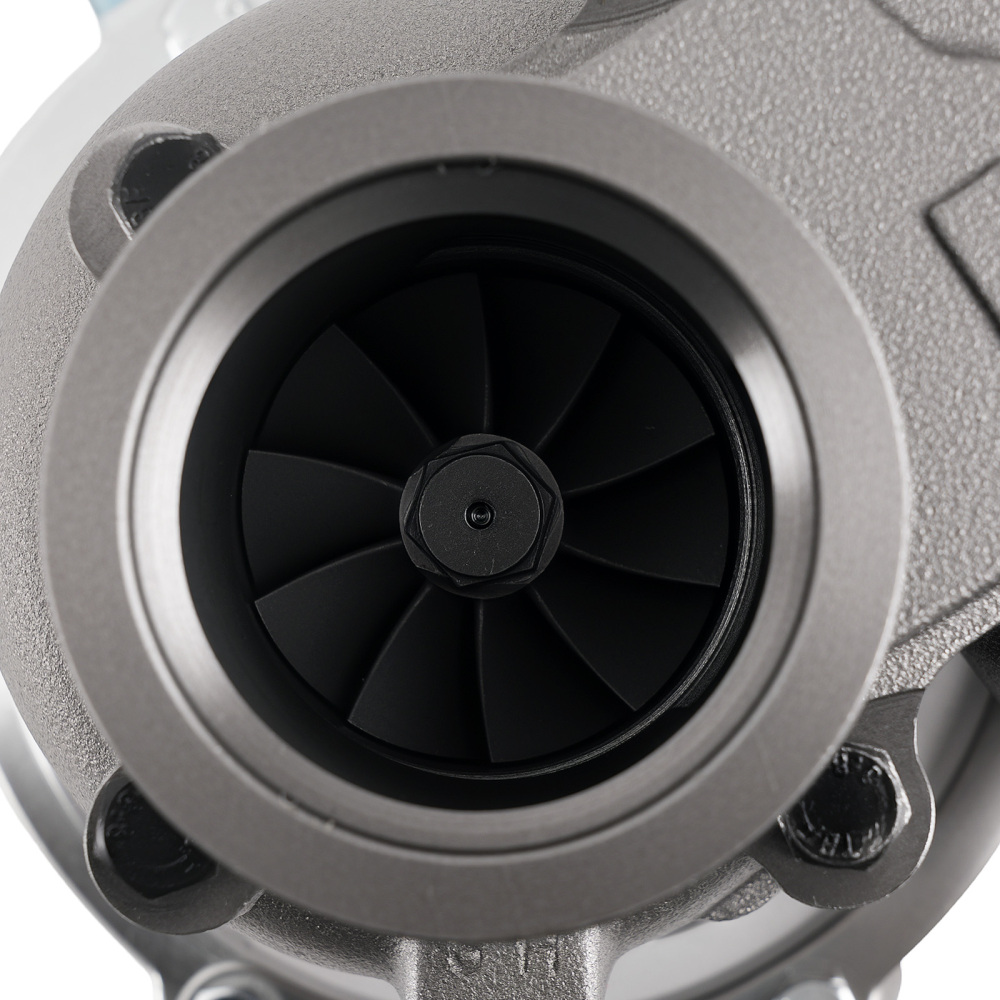

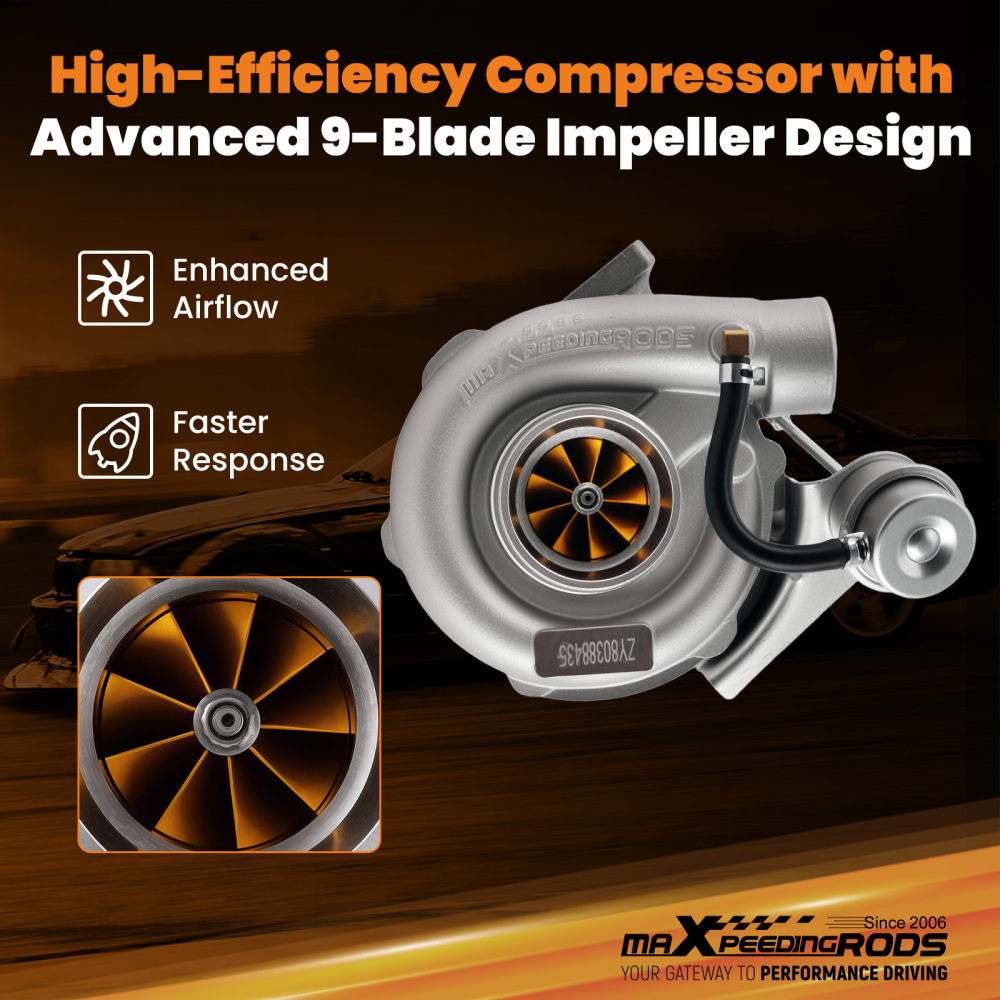

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

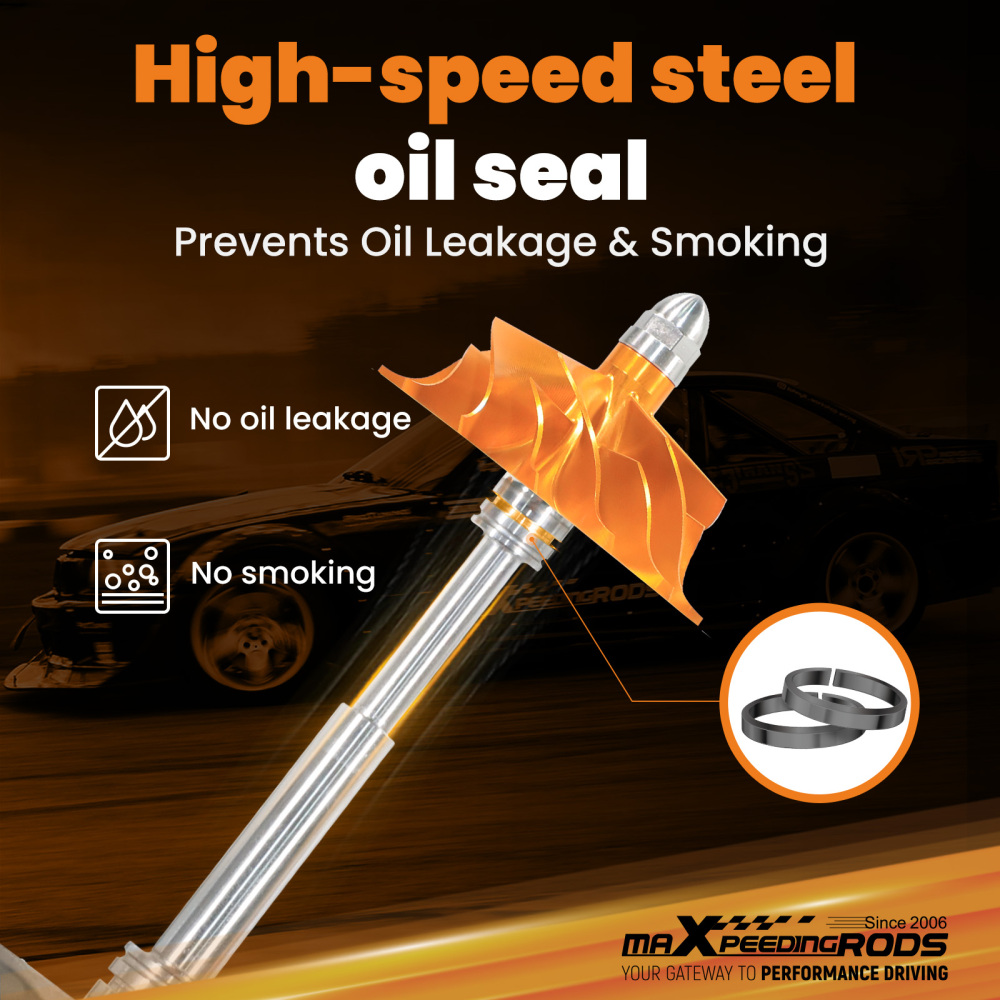

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.





Notice

* Air filter is Necessary to complete the turbocharger. We will not be responsible for any damage which caused by disobey the 2 rules.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order. If you are not sure about these information, please feel free to contact us.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended. (No Instruction Included)

*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
