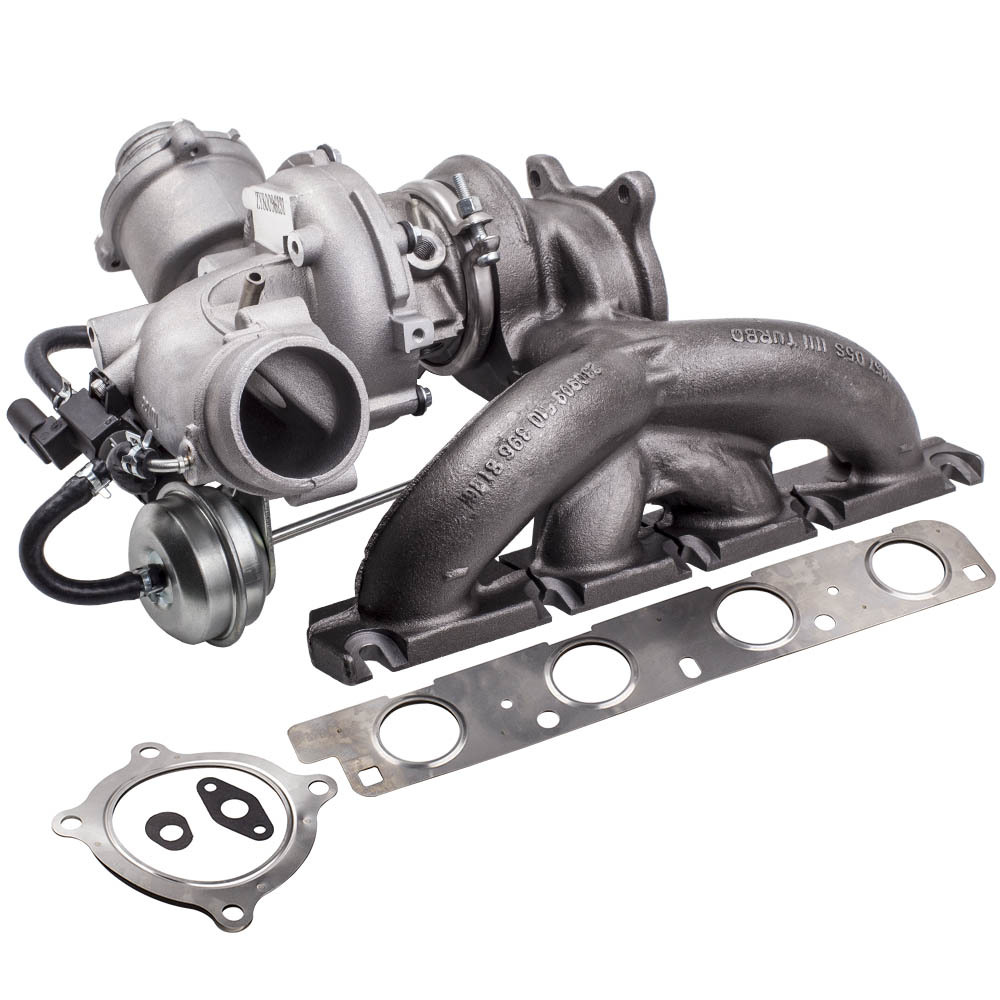

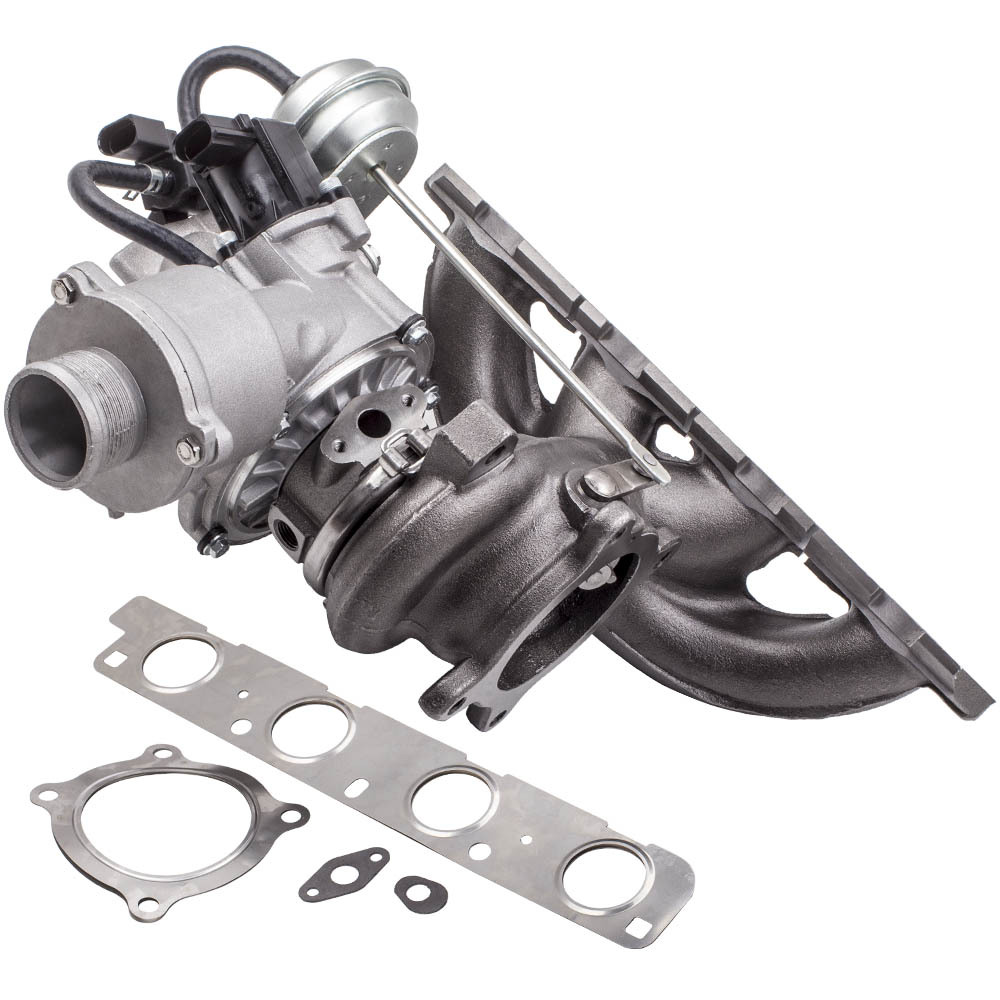

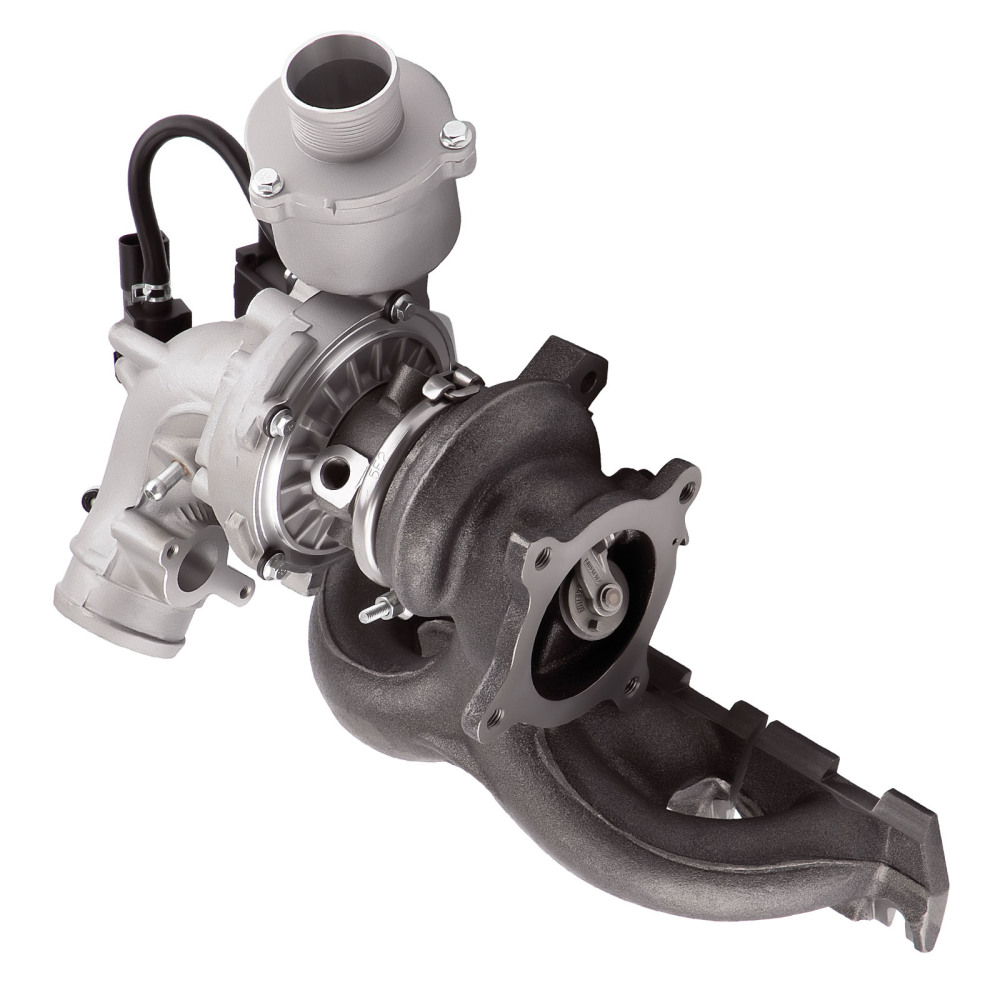

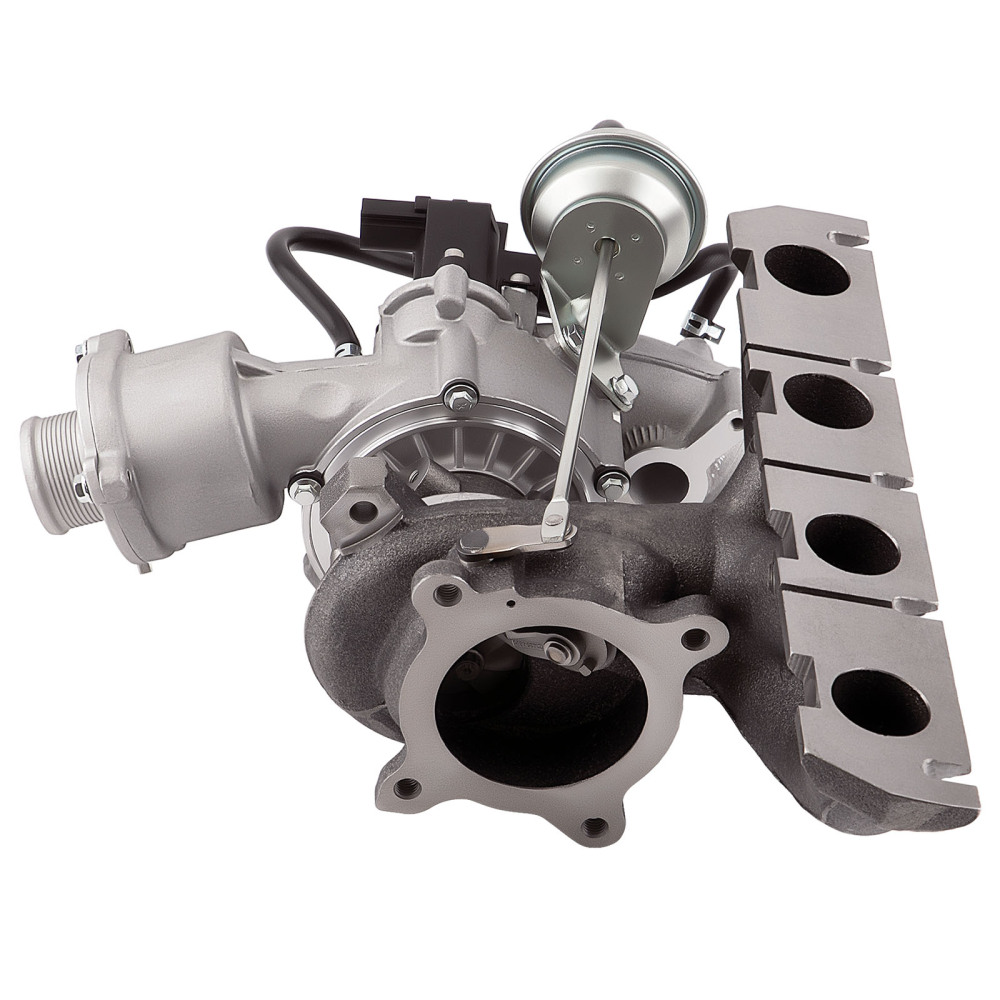

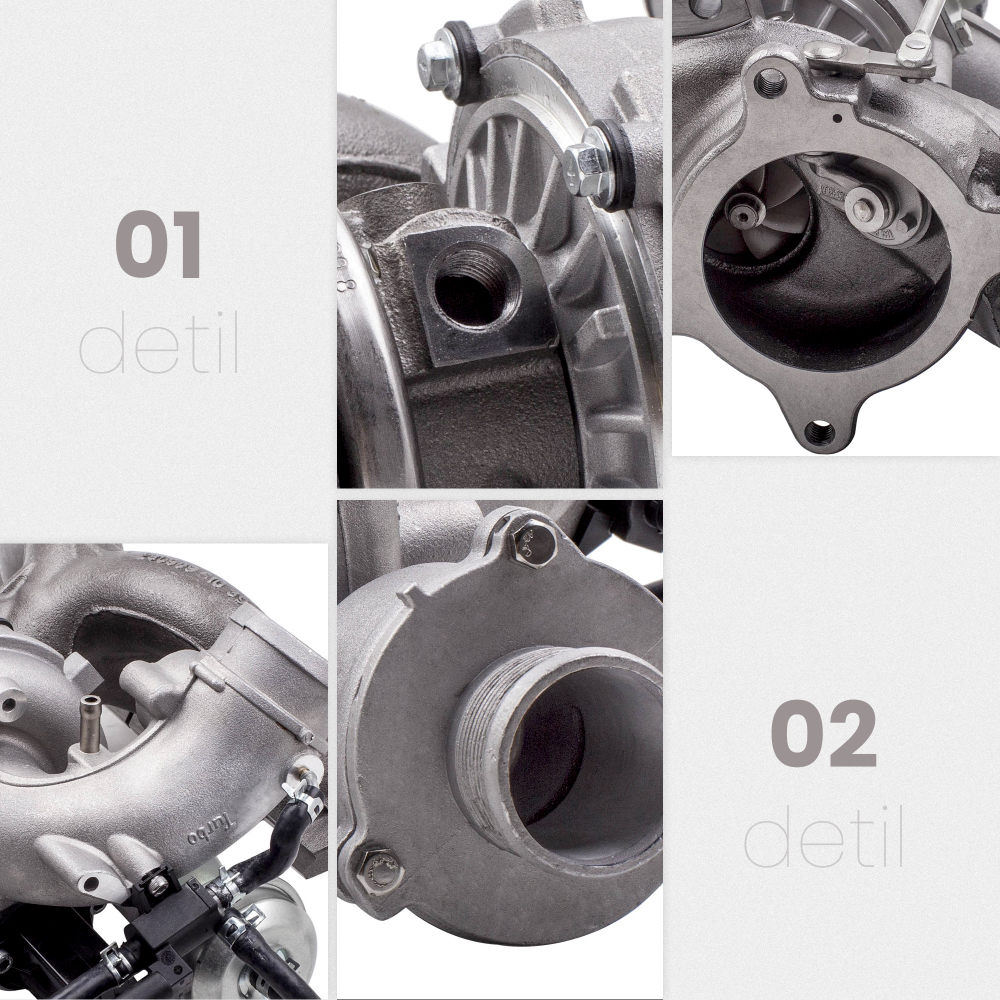

Turbocharger with Exhaust Manifold compatible for AudiA4 A5 A6 S4 S5 compatible for VW Volkswagen 2.0 TFSI 06H145702L

Stock In Stock
Item Number 3002050108

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G

Note

* Please confirm your original turbo PART NUMBER before Purchasing

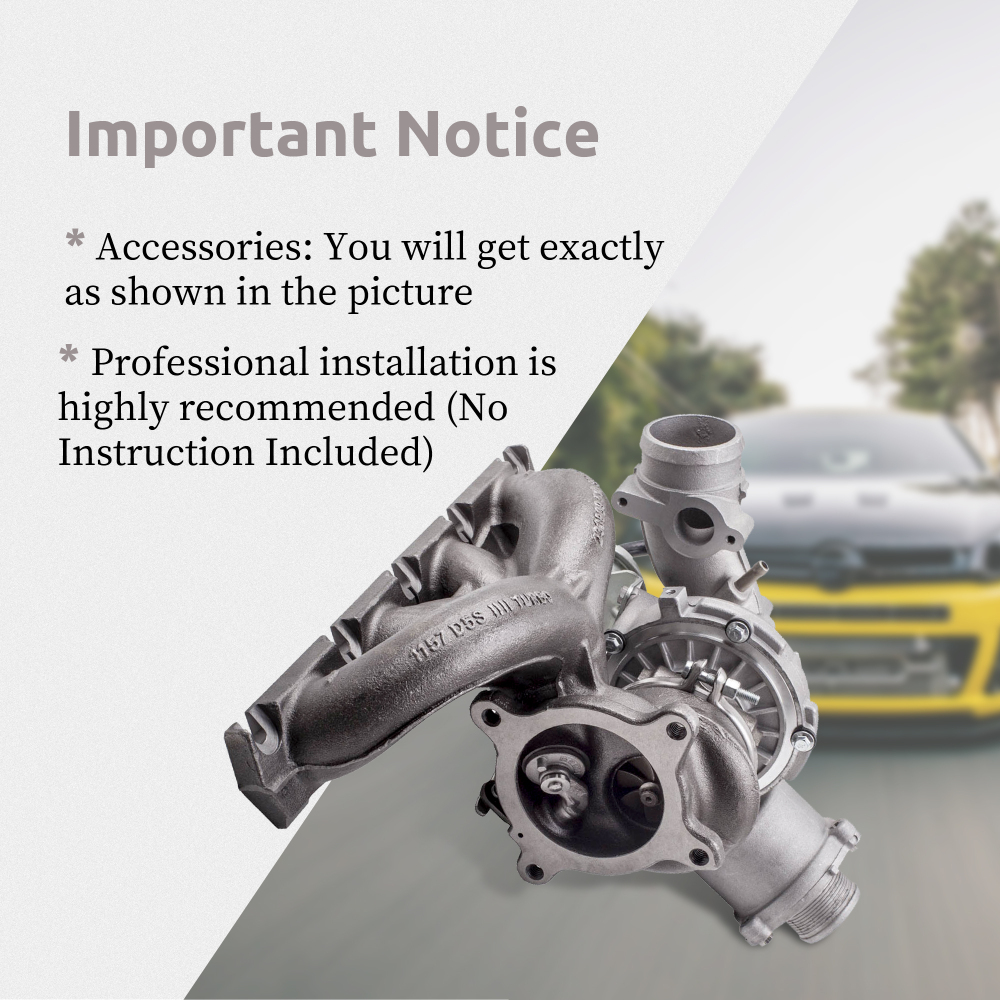

* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Application

2009-15 compatible for Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2009-15 compatible for Audi A5 Coupe, A5 Sportback with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2010-15 compatible for Audi A5 Cabriolet with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2009-15 compatible for Audi Q5 2.0L, S4 Avant, S5 Coupe, Sportback with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2008- Compatible for Audi A5 Coupe 3.2L with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A4, S4 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A5, S5 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A6 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Volkswagen Passat with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Seat Exeo with CDNB, CDNC, CAEA, CAEB, CFKA Engine

*this turbo is not compatible for Audi A4 Quattro Base Sedan 4-Door 2.0L 1984CC 121Cu. In. l4 GAS DOHC 2012

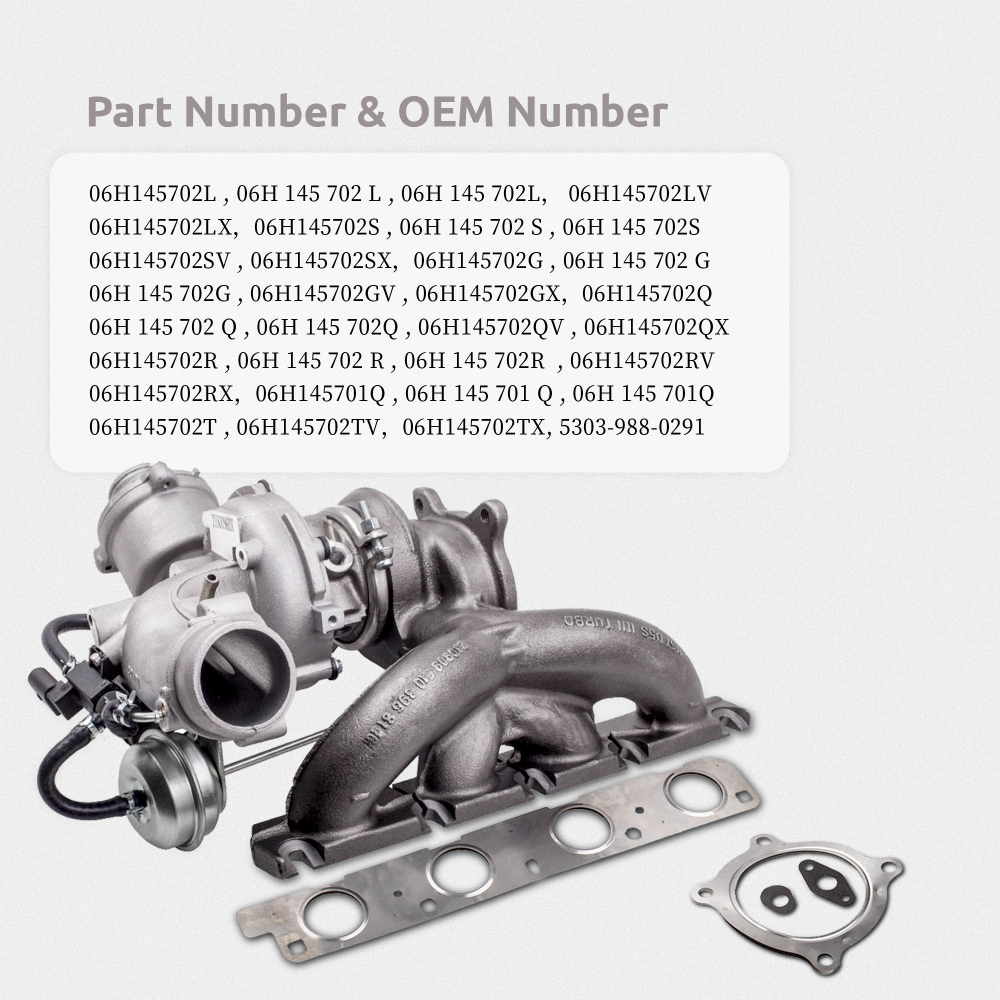

OE/Part number

06H145702L,06H 145 702 L, 06H 145 702L,
06H145702S, 06H 145 702 S, 06H 145 702S,
06H145702G,06H 145 702 G,06H 145 702G,
06H145702Q,06H 145 702 Q, 06H 145 702Q ,
06H145702R,06H 145 702 R, 06H 145 702R ,
06H145702T, 06H 145 701 T, 06H 145 701T ,
06H145702LV, 06H145702LX,
06H145702SV,06H145702SX,
06H145702GV,06H145702GX,
06H145702QV,06H145702QX,
06H145702RV,06H145702RX,
06H145702TV,06H145702TX,
53039700291, 5303-970-0291,
53039880291, 5303-988-0291,

Specification

Turbo Model: RHF5
Engine Code:CDNB, CDNC, CAEA, CAEB, CFKA, TFSI

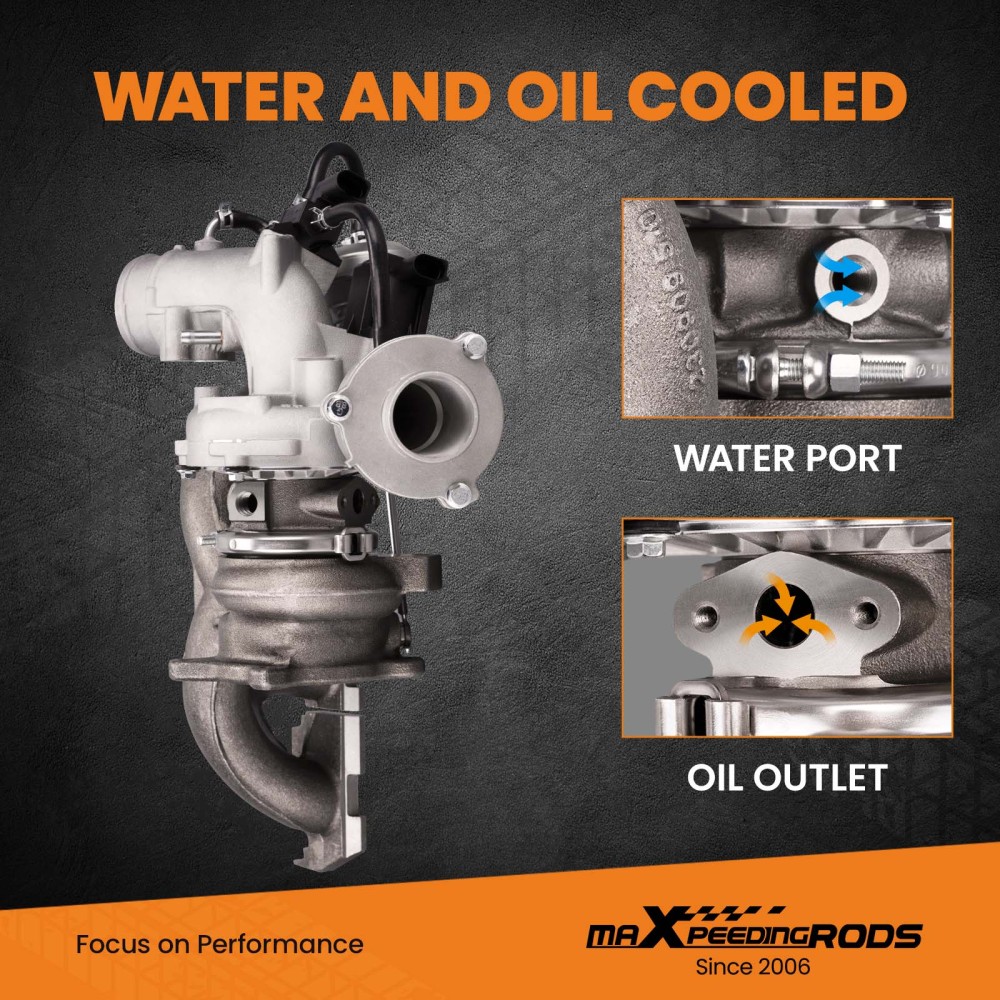

Cooling Type:Water Cooled

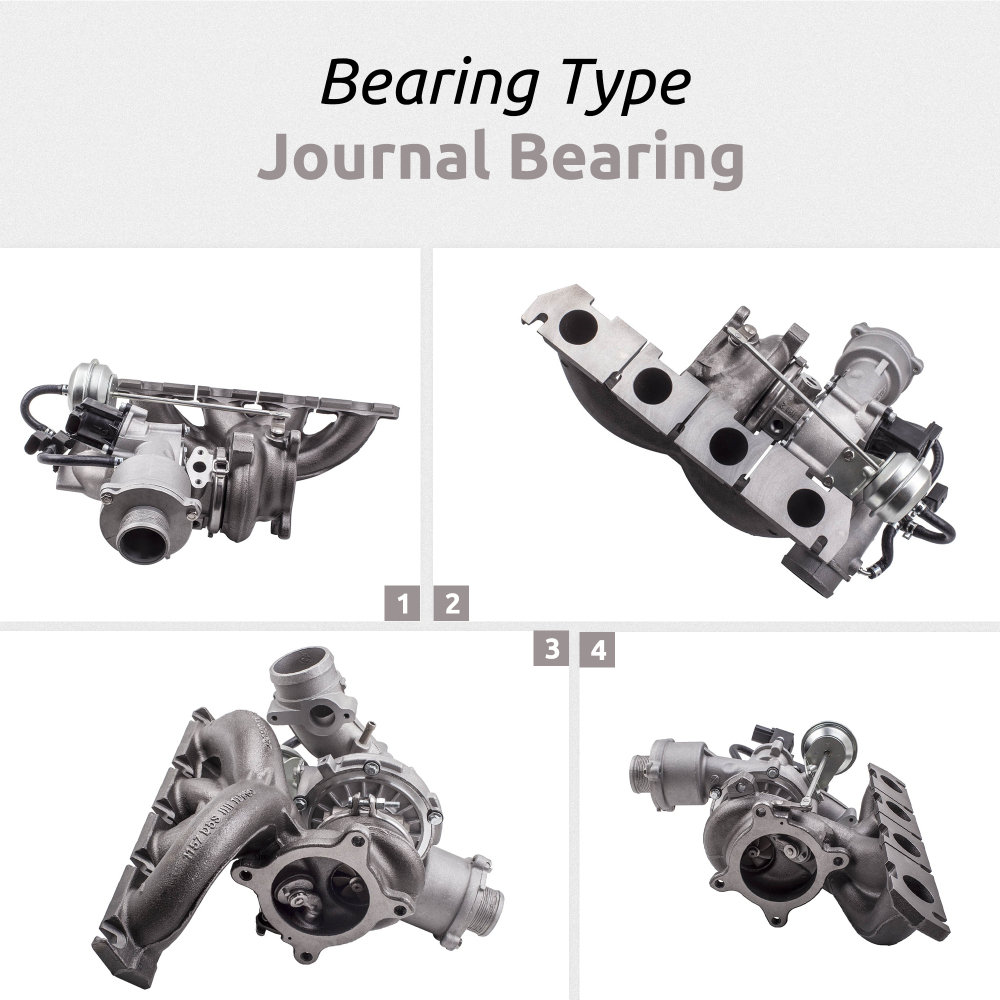

Bearing Type: Floating Bearing
Trust Bearing:360 degree
Hosepower: 155KW/ 211 PS
Turbo Type:Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size:49 x 38 x 26 cm
Package Weight: 12850g

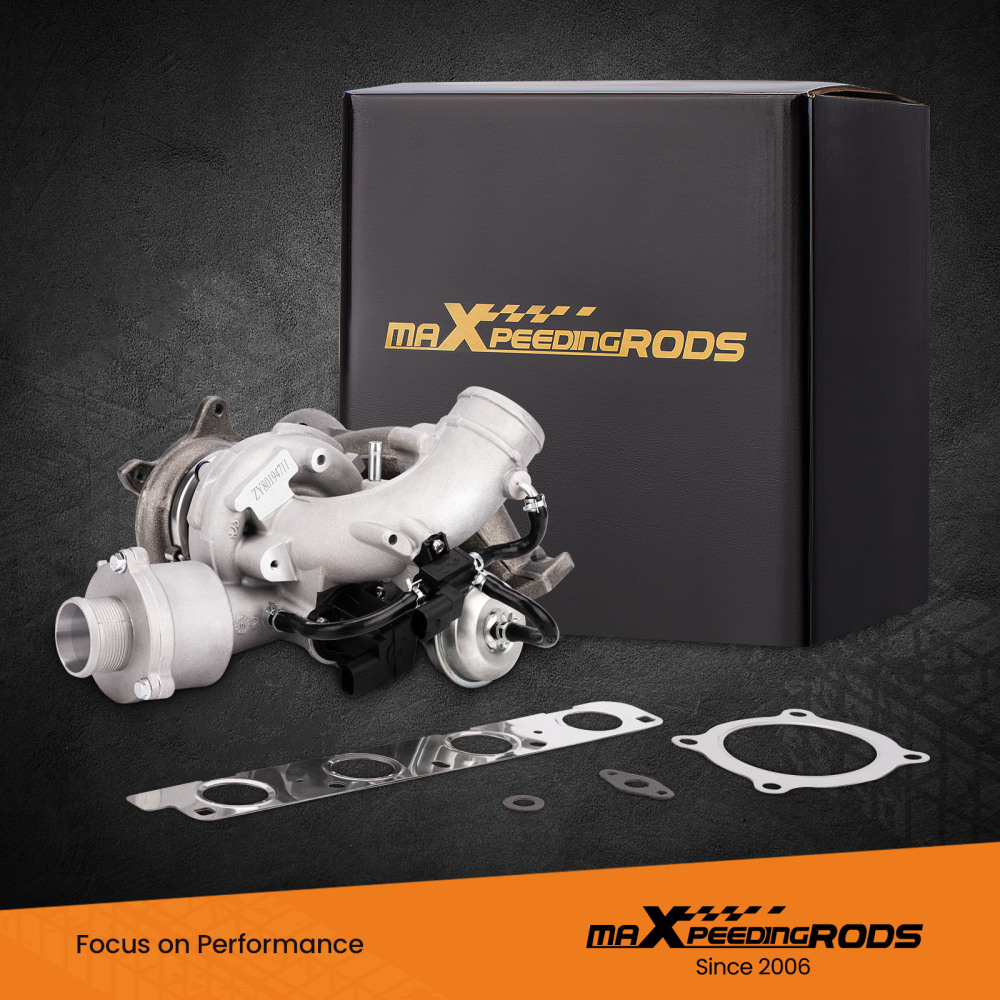

Package included

1xTurbocharger
1xFlange gaskets
2xOil/Water port gaskets
1xManifold gasket

Feature

* Product Material
1. Turbine housing :Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing:ZL104 aluminum with lightweight
4. Compressor wheel/blades:Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

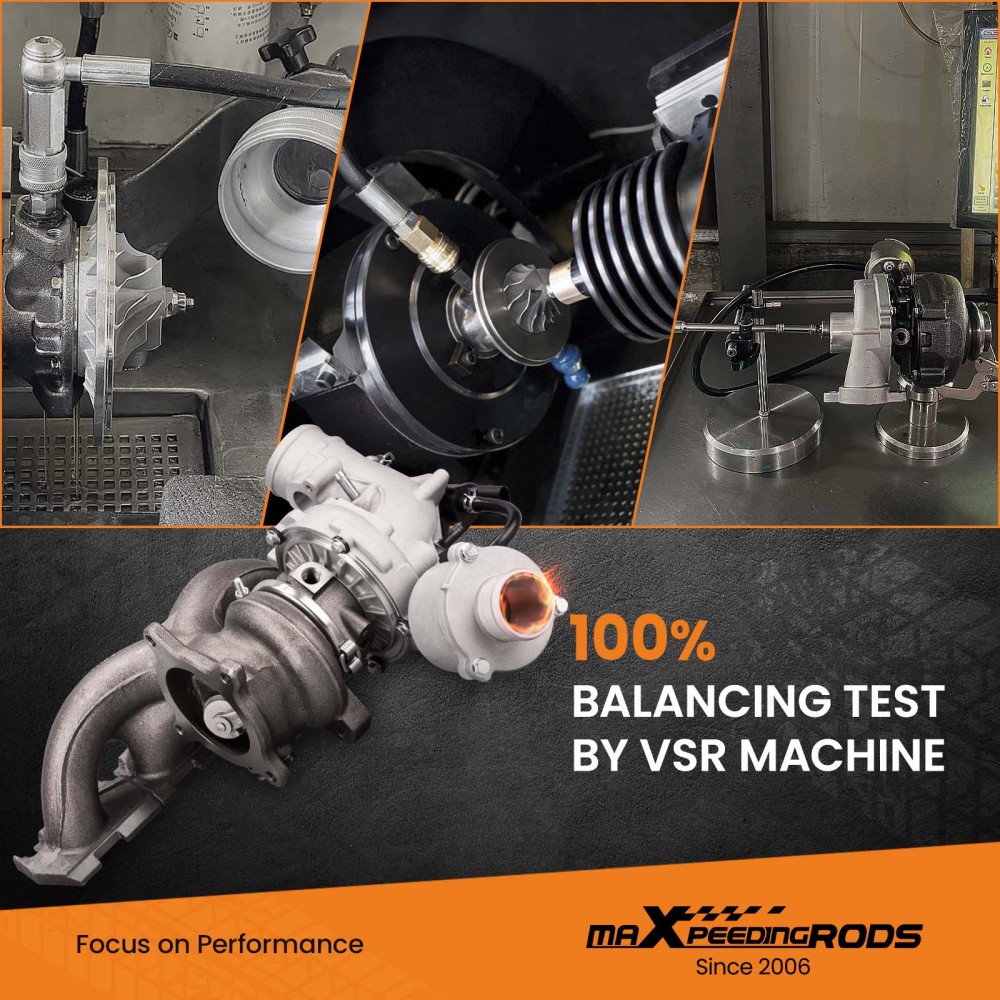

1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer


Warranty: one year warranty for any manufacturing defect
