Notice:
Pick up service is not available.
Turbo Model
RHF5
Applications
2009-15 compatible for Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2009-15 compatible for Audi A5 Coupe, A5 Sport back with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2010-15 compatible for Audi A5 Cabriolet with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2009-15 compatible for Audi Q5 2.0L, S4 Avant, S5 Coupe, Sport back with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2008- Compatible for Audi A5 Coupe 3.2L with CDNB,CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A4, S4 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A5, S5 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Audi A6 with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Volkswagen Passat with CDNB, CDNC, CAEA, CAEB, CFKA Engine
2008-15 compatible for Seat Exeo with CDNB, CDNC, CAEA, CAEB, CFKA Engine
P.S. Cannot compatible for fit for Audi A4 Quattro Base Sedan 4-Door 2.0L 1984CC 121Cu. In. l4 GAS DOHC 2012
Engine Code: CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
Engine Code:CDNB, CDNC, CAEA, CAEB, CFKA, TFSI
Cooling Type:Water Cooling
Bearing Type: Floating Bearing
Hosepower: Up to 160HP
Condition: Brand New
Warranty: one year warranty for any manufacturing defect

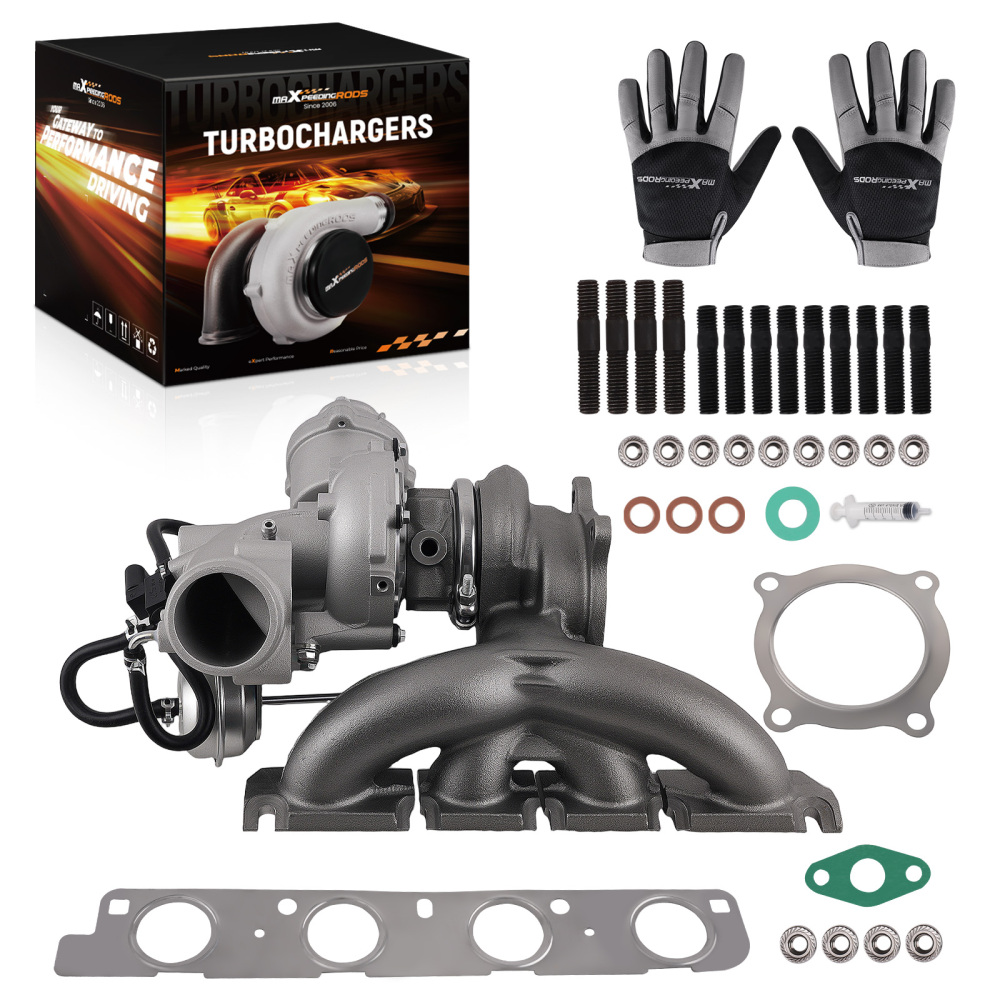

Accessories: You will get exactly as shown in the picture above
Part Number & OEM Number
06H145702L , 06H 145 702 L , 06H 145 702L, 06H145702LV ,
06H145702LX,06H145702S , 06H 145 702 S , 06H 145 702S,
06H145702SV , 06H145702SX,06H145702G , 06H 145 702 G ,
06H 145 702G , 06H145702GV , 06H145702GX,06H145702Q ,
06H 145 702 Q , 06H 145 702Q , 06H145702QV , 06H145702QX,
06H145702R , 06H 145 702 R , 06H 145 702R , 06H145702RV ,
06H145702RX,06H145701Q , 06H 145 701 Q , 06H 145 701Q ,
06H145702T , 06H145702TV,06H145702TX, 5303-988-0291,
53039700291, 5303-970-0291
53039880291, 5303-988-0291
Feature

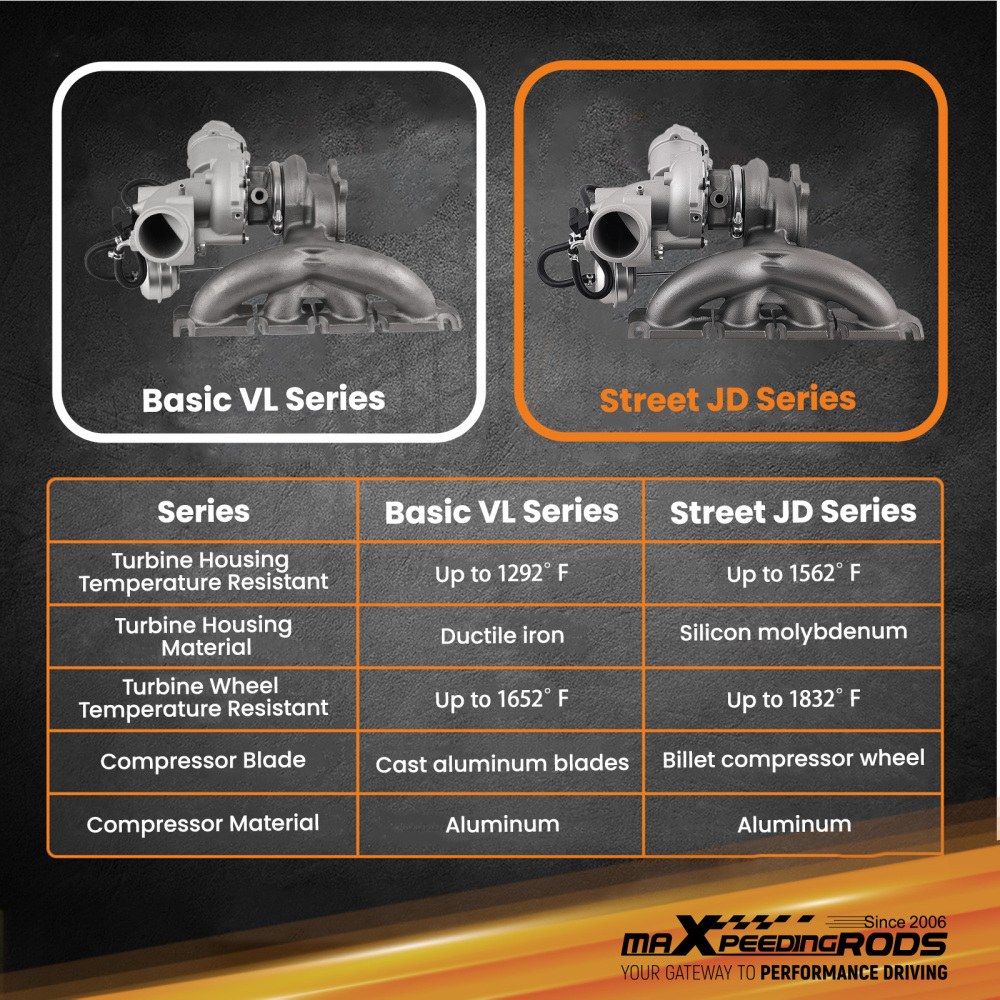

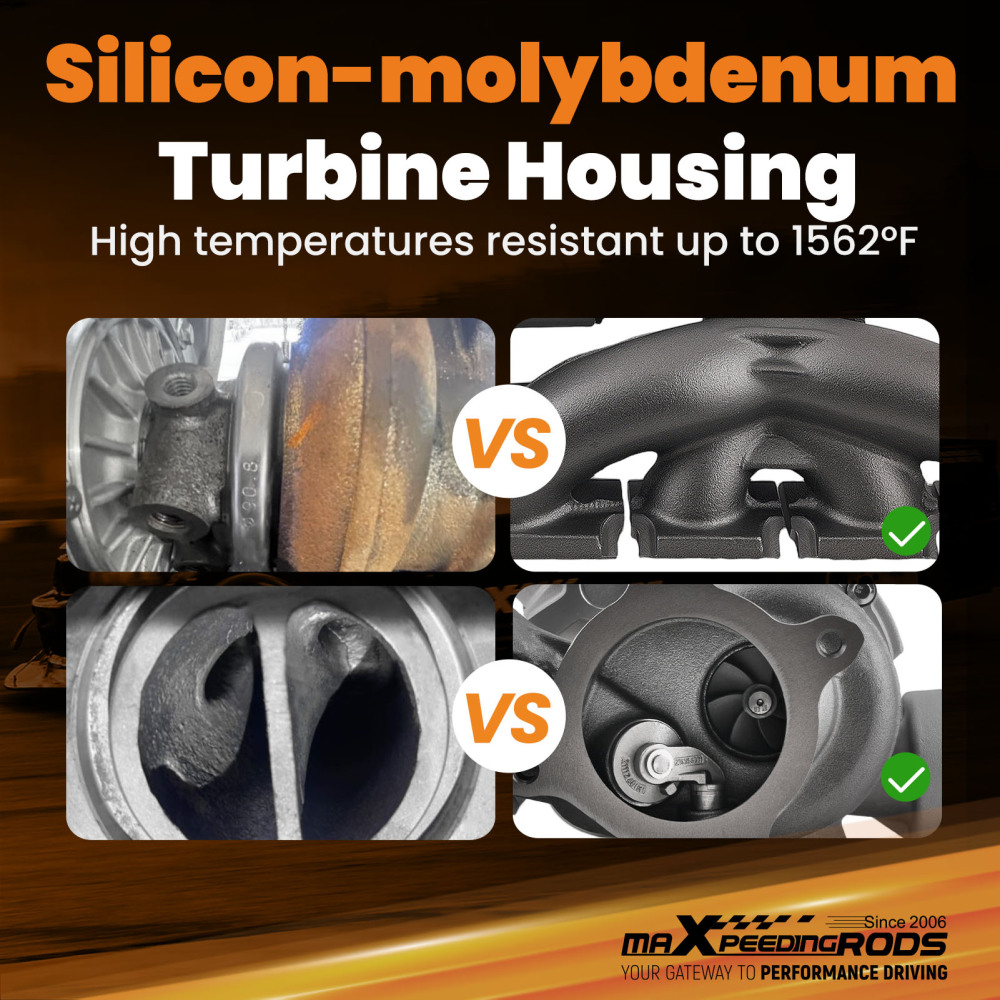

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

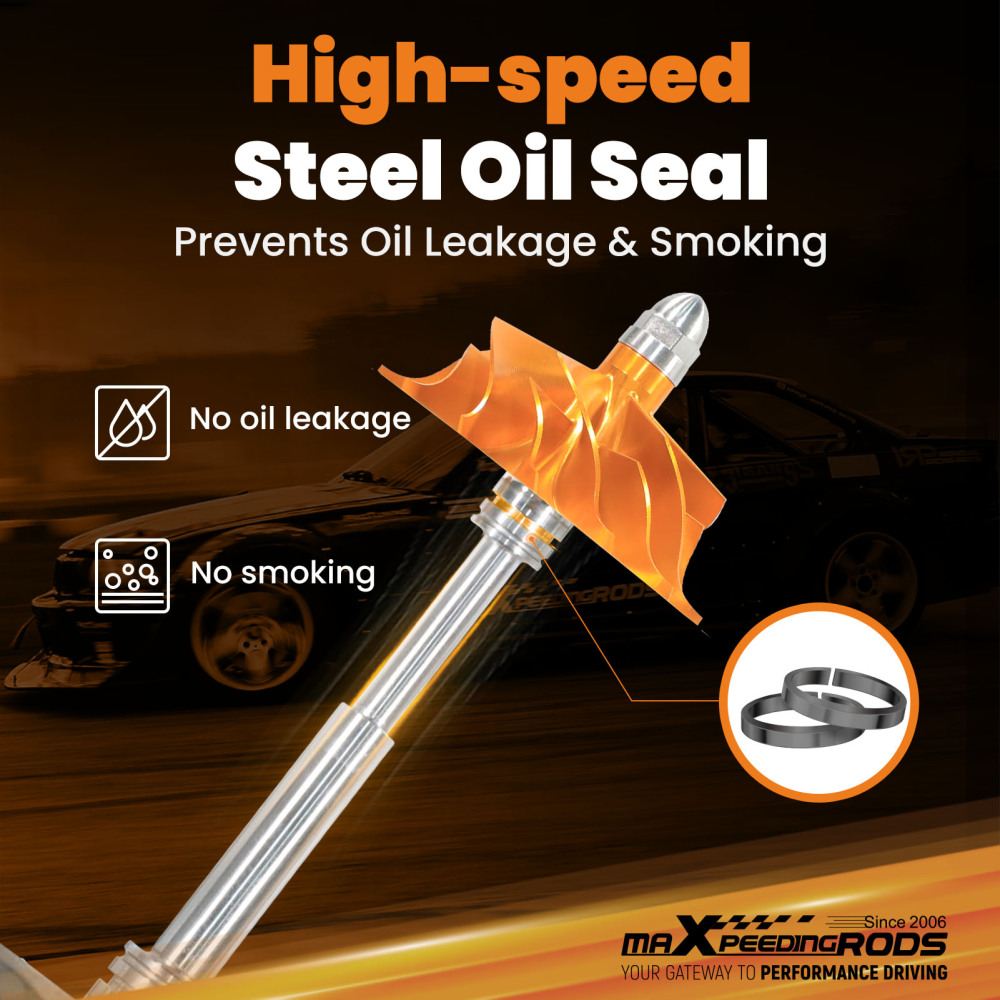

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
Important Notice
* Please double check your old turbo part number matches up with one of the part numbers above
* Professional installation and modification is highly recommended (No Instruction Included)
* If you are not sure about your item, please leave us your turbo number(on the turbo tag), we will check it for you.
* For any questions please contact with us.
