Compatible for Toyota Corolla 88-99 E90 E100 E110 AE111 Suspension Coilovers Spring Struts Lowering Kit

Application

Compatible for Toyota Corolla E90 1987–1992
Compatible for Toyota Corolla E100 1991–1998
Compatible for Toyota Corolla E110 1995-2002
Compatible for Toyota Corolla AE92 1987-1991
Compatible for Toyota Corolla AE101 1992-1998
Compatible for Toyota Corolla AE111 1988-2002
Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification

Quantity: 4PCS of Coilovers (2 piece front + 2 pieces rear)
Adjustable camber plate: Yes（front only）
Adjustable height: Yes (Front 306-396mm; Rear 341-481mm)
Spring rate front: 8 kg/mm (448 lbs/in)
Spring rate rear: 6 kg/mm (336 lbs/in)
Shock type: Twin tube
Spring preload: 7-10 mm
Color: Gloden
Warranty: one year warranty for any manufacturing defect
Daily driver, occasional autocross day or occasional track days，equally at home on street and track.
For those seeking a lowered stance as well as improved handling and response at a high value.

Feature

1. Lowered height adjustment from 1" - 3" which allows a lower center of gravity and also adds a more aggressive stance.

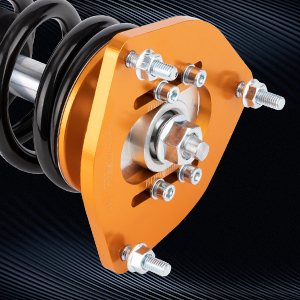

2. Camber plate top mounts help to eliminate the need for a separate camber kit.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for easy installation.

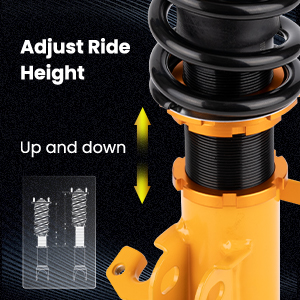

5. Separate height adjustment does not affect damper stroke and height can be adjusted with coil overs installed on the vehicle.

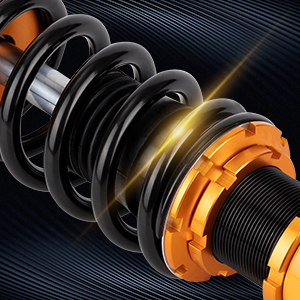

6. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves durability and performance.

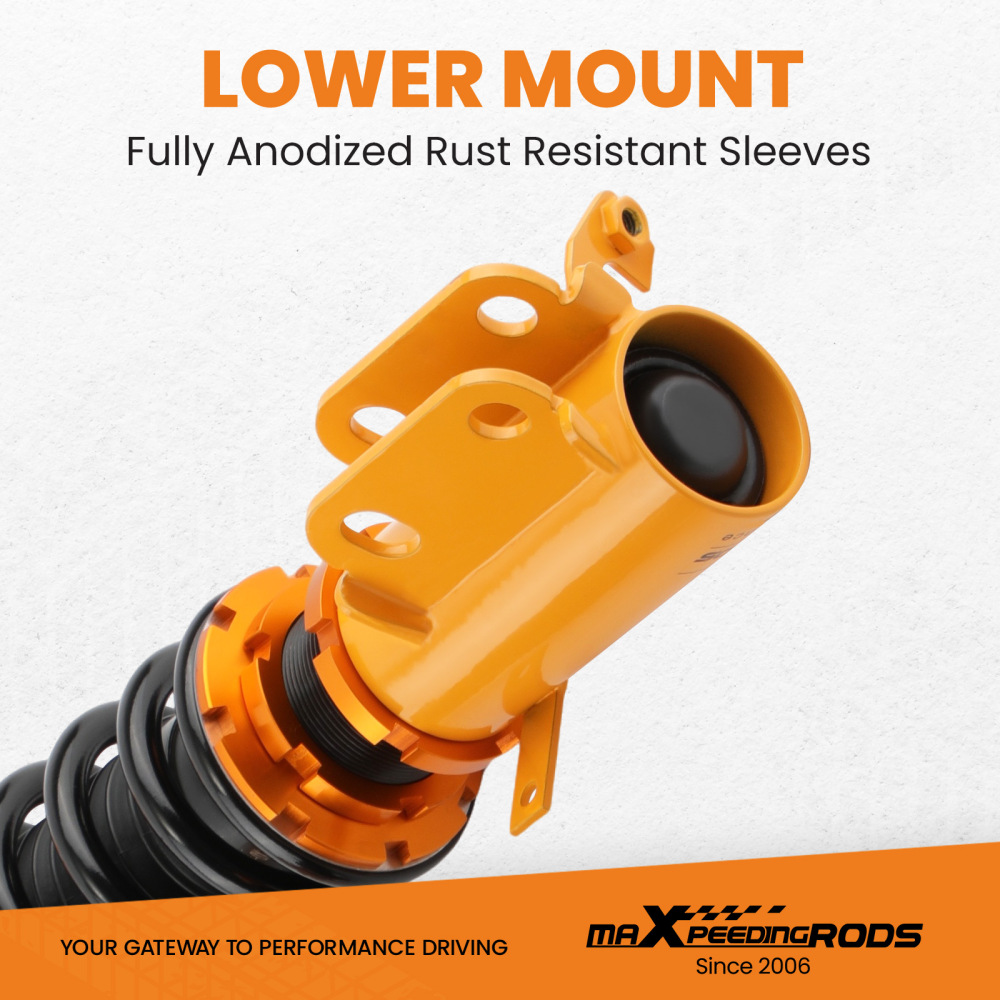

7. Most pieces in our Coilover systems, including mounts, collars, and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable, and rust-resistant components.
8. Steel shock bodies with a special surface treatment to improve durability.
9. Full rebuildable

Note

- No instruction included; Professional installation & alignment suggested.
- Please check our store for other auto parts you may be interested in.
- Please feel free to contact us for whatever we can help.
