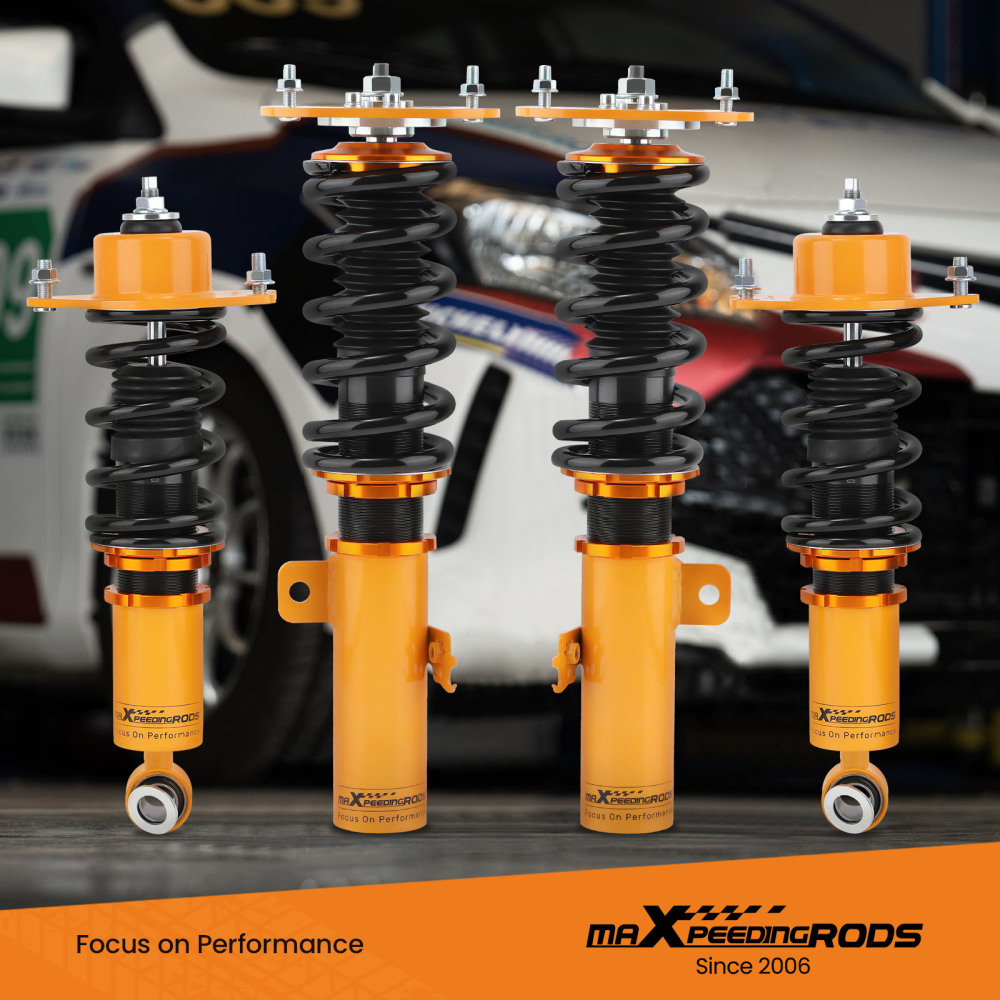

Racing Coilovers Kits compatible for TOYOTA MATRIX (E140) LE 2009-2014 Suspension Shocks

Introduction

MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for TOYOTA COROLLA (E140) AZE141L XRS 2009-2010
Compatible for TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013
Compatible for TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019
Compatible for TOYOTA MATRIX (E140) LE 2009-2014
Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification

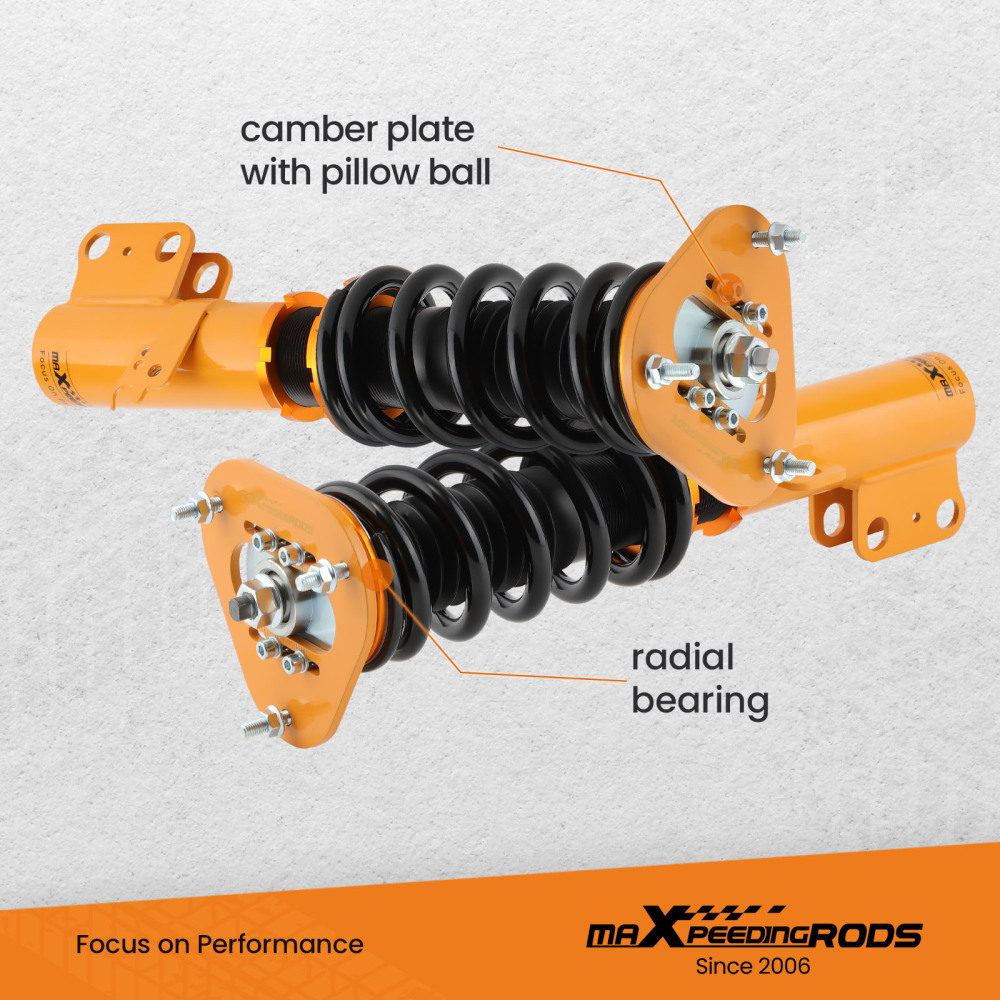

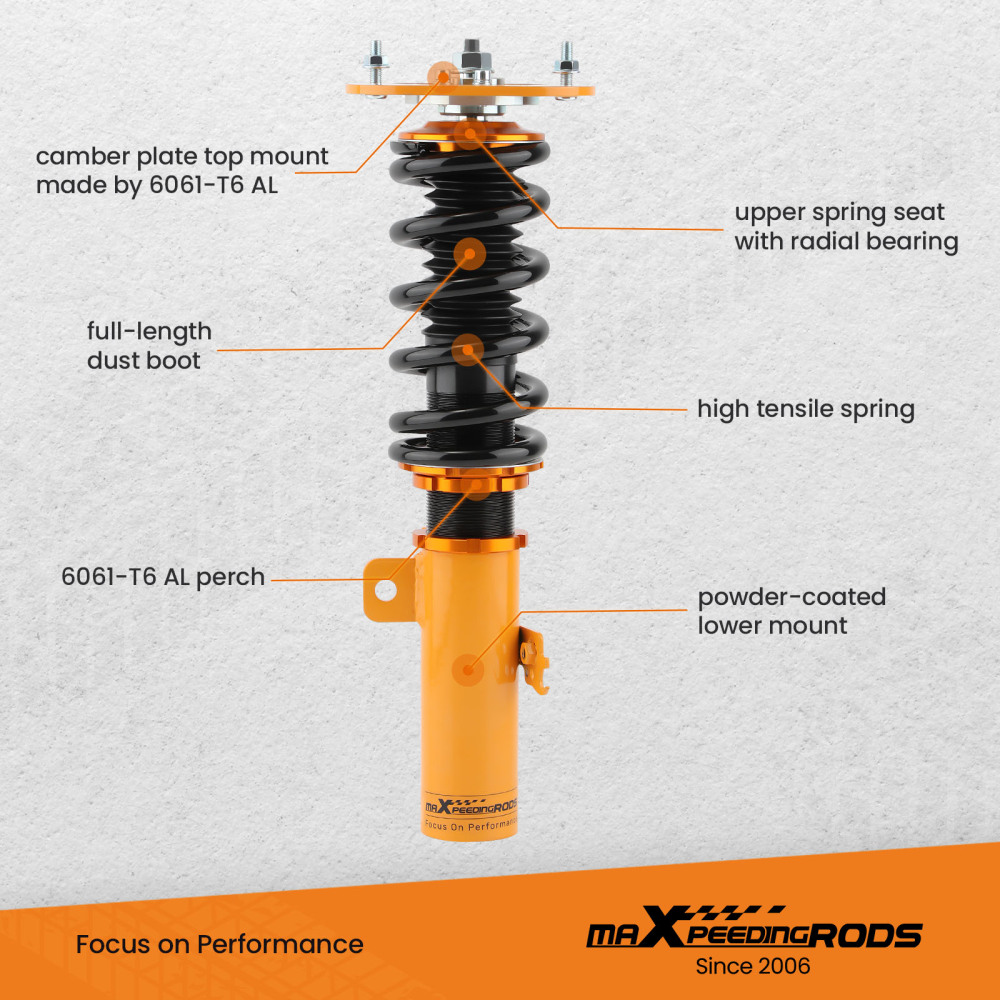

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear.
Damping: No adjustable damper force.
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 200mm
Spring length Rear: 160mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 360mm-455mm
Coilover overall length Rear: 313mm-370mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

Package included

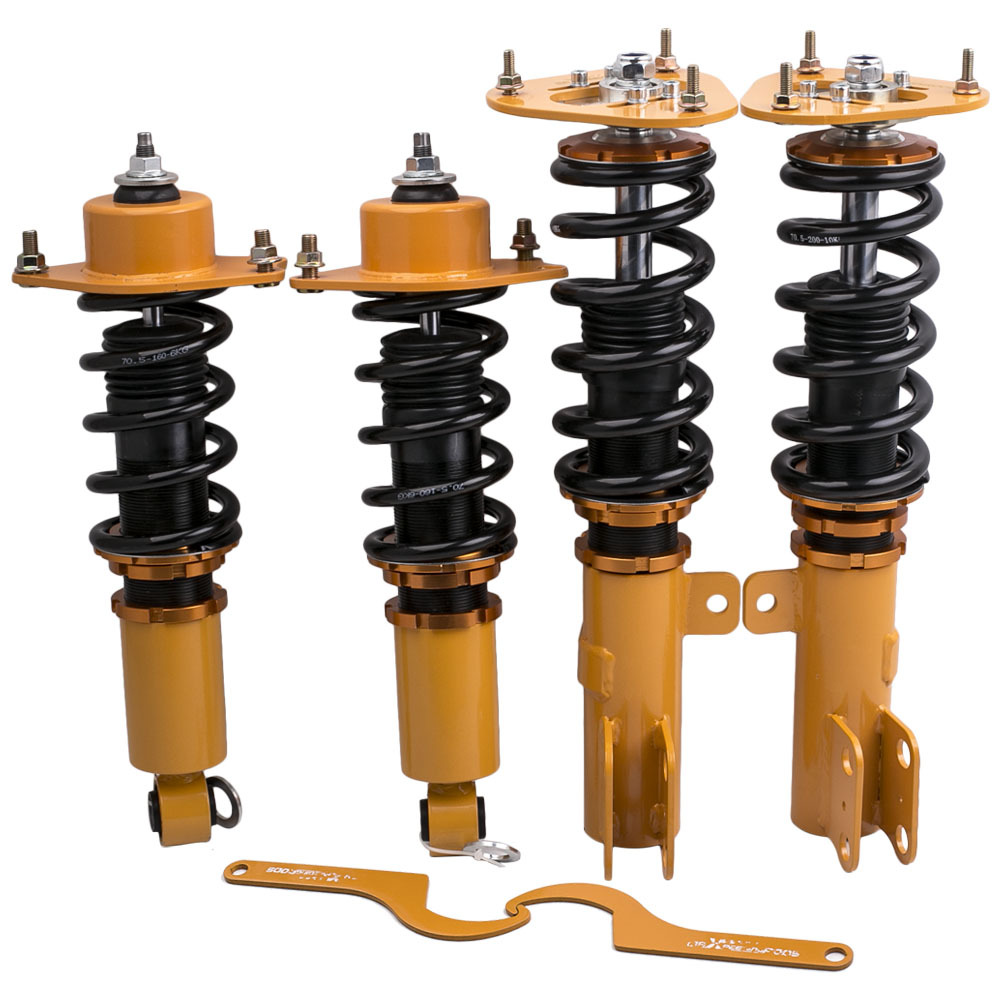

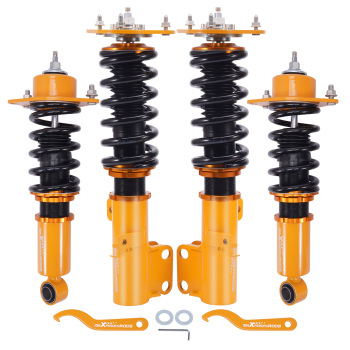

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 26.04kg
Package size: 62*51*21cm

Feature

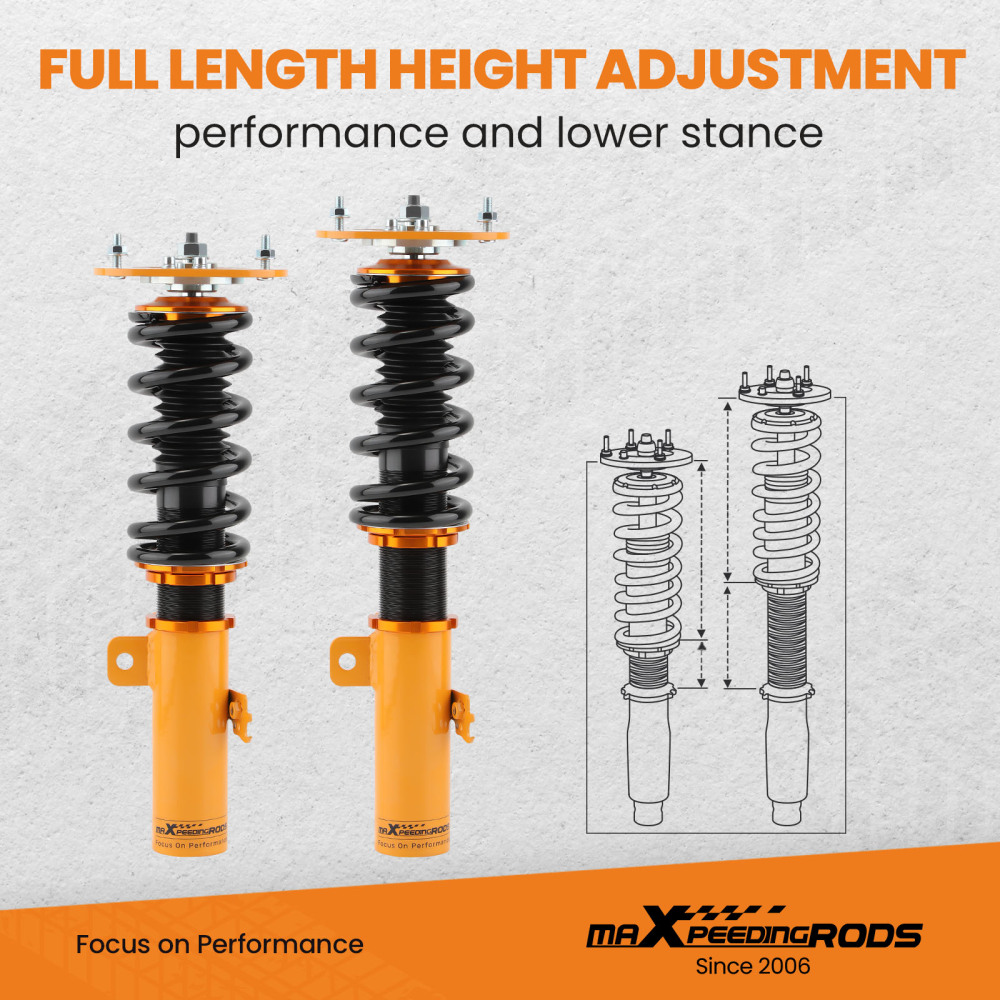

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

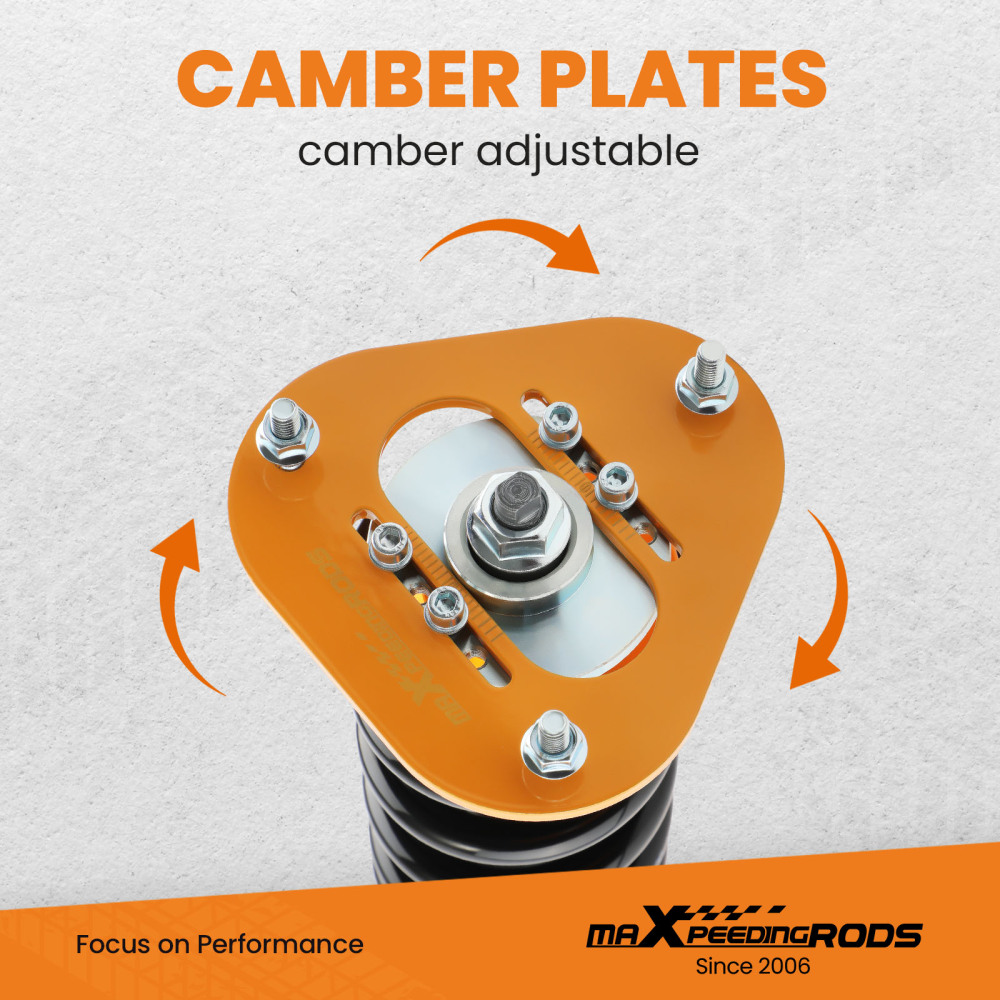

2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
3.Pillow ball top mount - It improves the steering feel and response.（Only Front)
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)
5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.

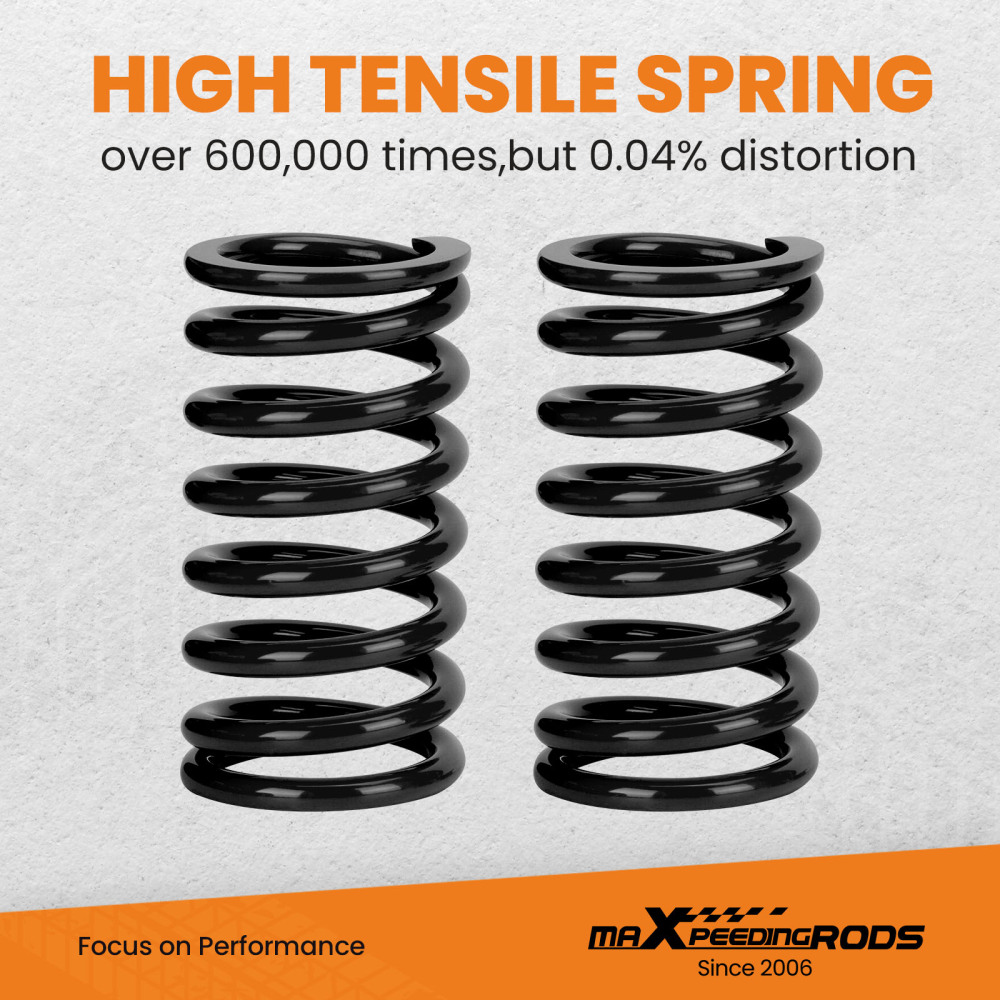

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.
