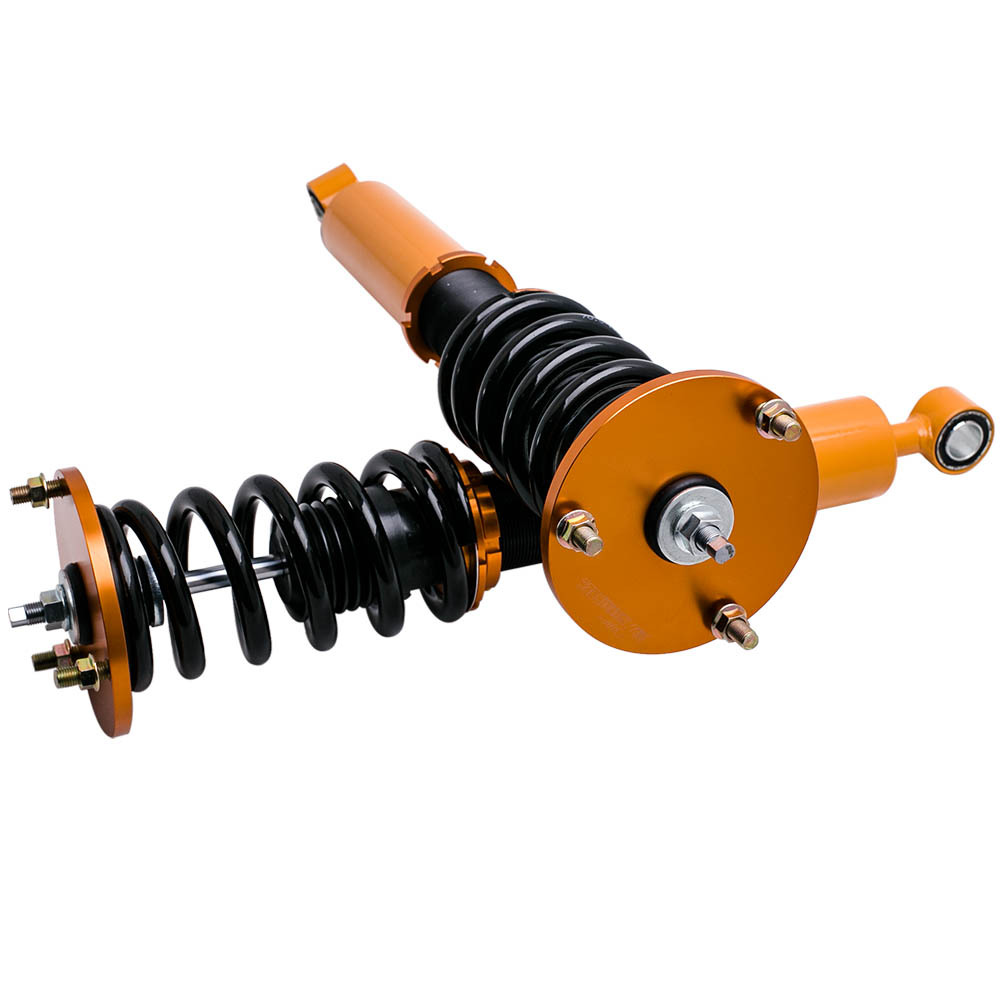

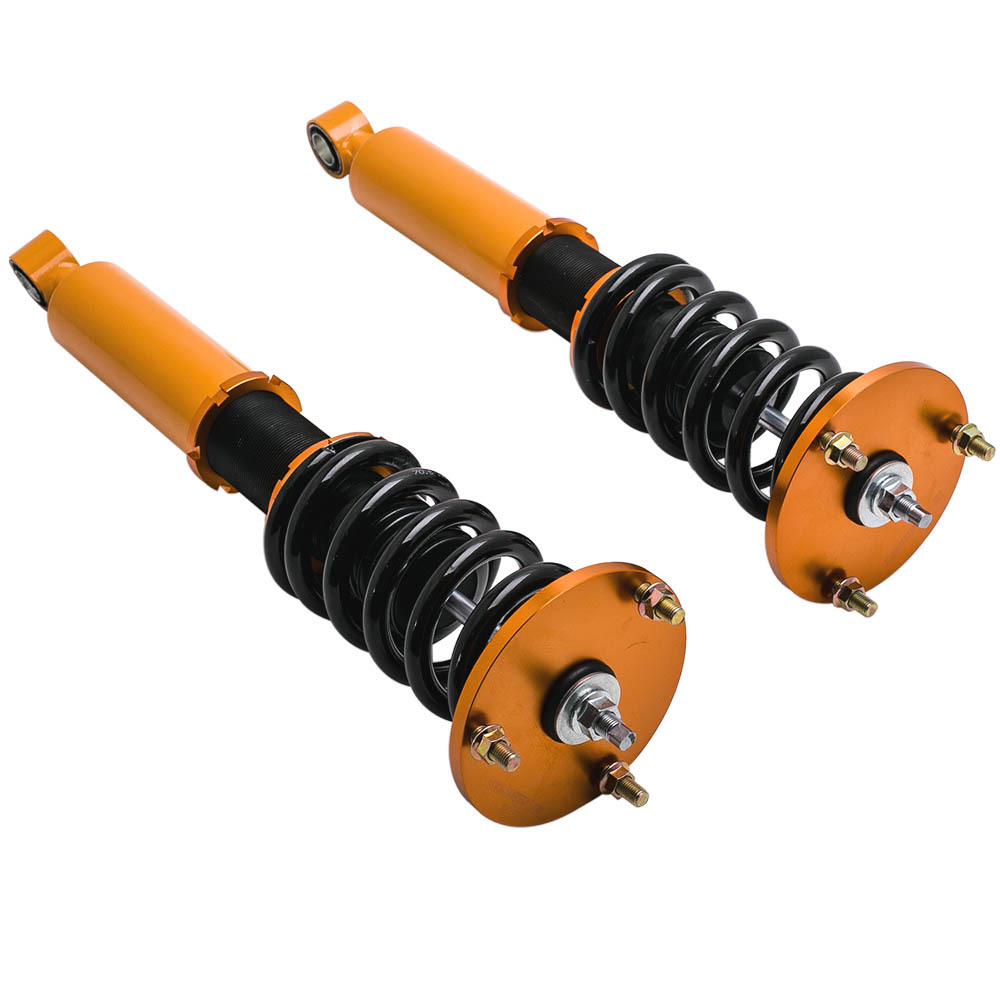

Racing Coilover Kits compatible for Lexus LS 430 LS430 UCF30 XF30 01-06 Adj. Height Shocks

  • * Fitment: The shock absorbers are compatible for Lexus LS 430 USF30(Europe)/XF30 2001-2006
  • * High-quality Spring: Front: 12 kg/mm (672 lbs/in), Rear: 12 kg/mm (672 lbs/in); The spring distortion is less than 0.04% under 600,000 times continuously tests
  • * Adjustable Performance: Adjustable ride height (lowering 1''-3''); Adjustable pre-load spring tension;
  • * Increased Hardness: Most components of the suspension parts are made from 6061 aluminum with T6 for increased strength and rigidity
  • * Notice: Please confirm your car model, model year and car chassis before purchase the coilover. If you have any question, please feel free to contact us
Stock In Stock
Item Number 3002035380

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CO-LEXL43-0106-G-NA
CO-LEXL43-0106-G-NA
1. Adjustable Height
1. Adjustable Height
Allowing you adjust the whole coilovers to your favorite ride heigt.
Adjustable lower mount allows maximum suspension travel
2. High Quality Components
2. High Quality Components
Camber plates and Collars are made from 6061-T6 Billet Aluminum to increase hardness
3.Hi-Tensile Performance Spring
3.Hi-Tensile Performance Spring
Under 600,000 times continuously test, the spring distortion is less than 0.04%. With the special surface treatment, the spring durability and performance are highly improved
4.Twin-tube Constructioneal
4.Twin-tube Constructioneal
Dust boot protects damper seal
Twin-tube shock design reduces oil leakage problems
FA Synthetic Shock Oil increase damper performance

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible For TOYOTA CELSIOR 2000.08-2006.05 JPN UCF30
Compatible For LEXUS LS430 2001-2006 USA UCF30

Specification

Adjustable camber plate: No
Damper: non-adjustable
Spring rate Front: 12 kg/mm (672 lbs/in)
Spring rate Rear: 12 kg/mm (672 lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 490mm-600mm
Coilover overall length Rear: 500mm-610mm
Color: Golden

Package included

complete coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension

Package size : 71*51*21
Weight: 26550g

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
