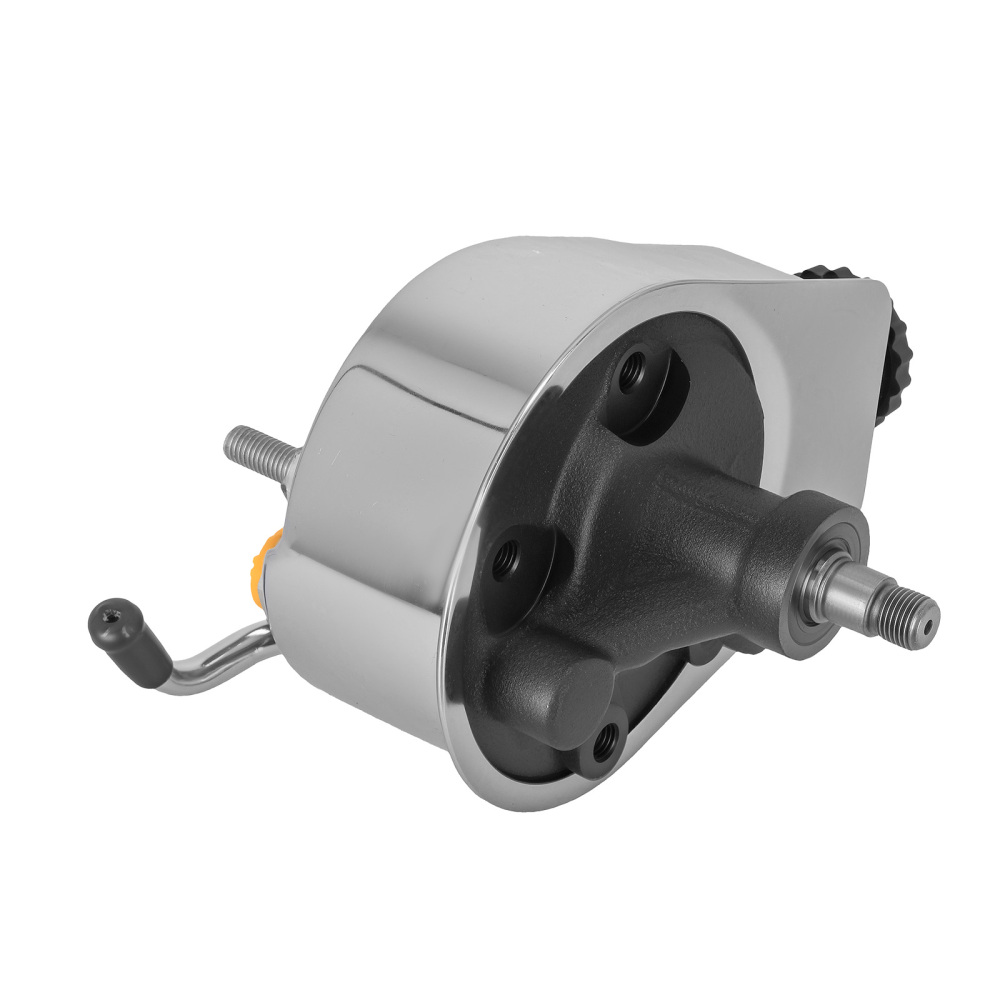

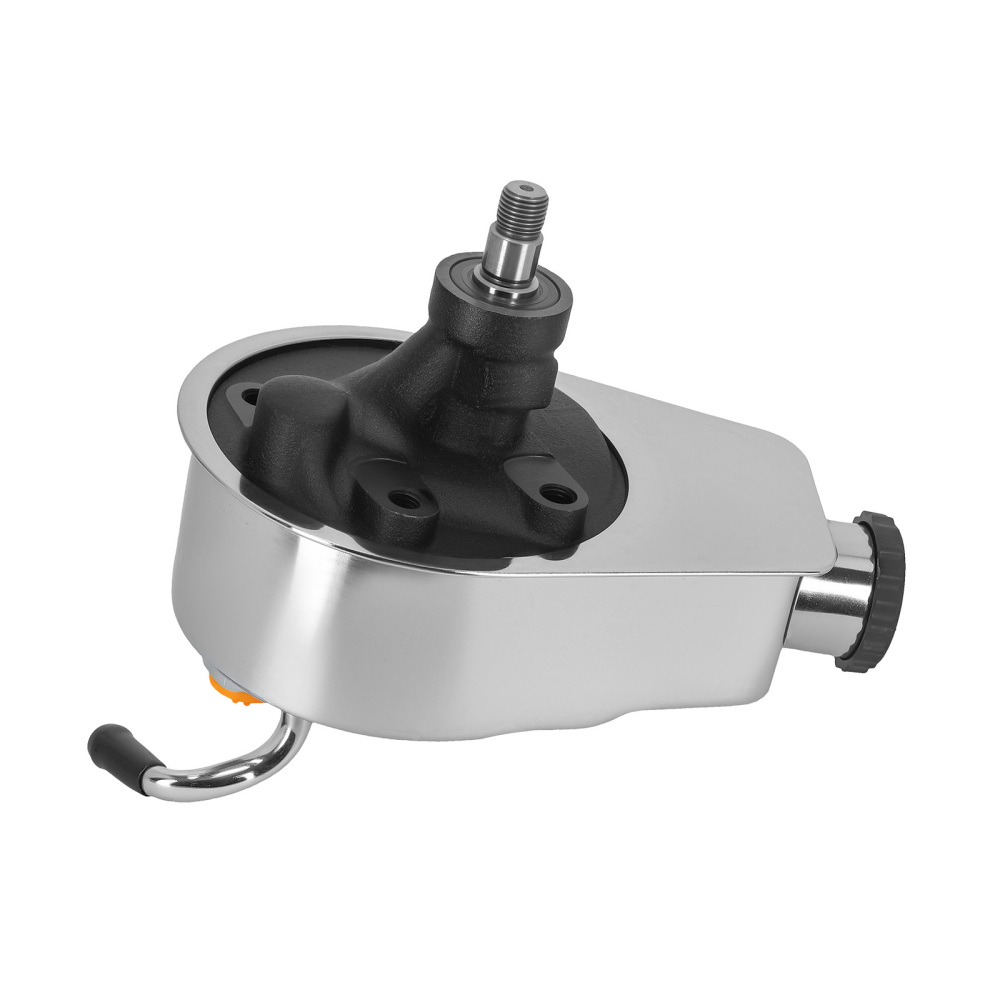

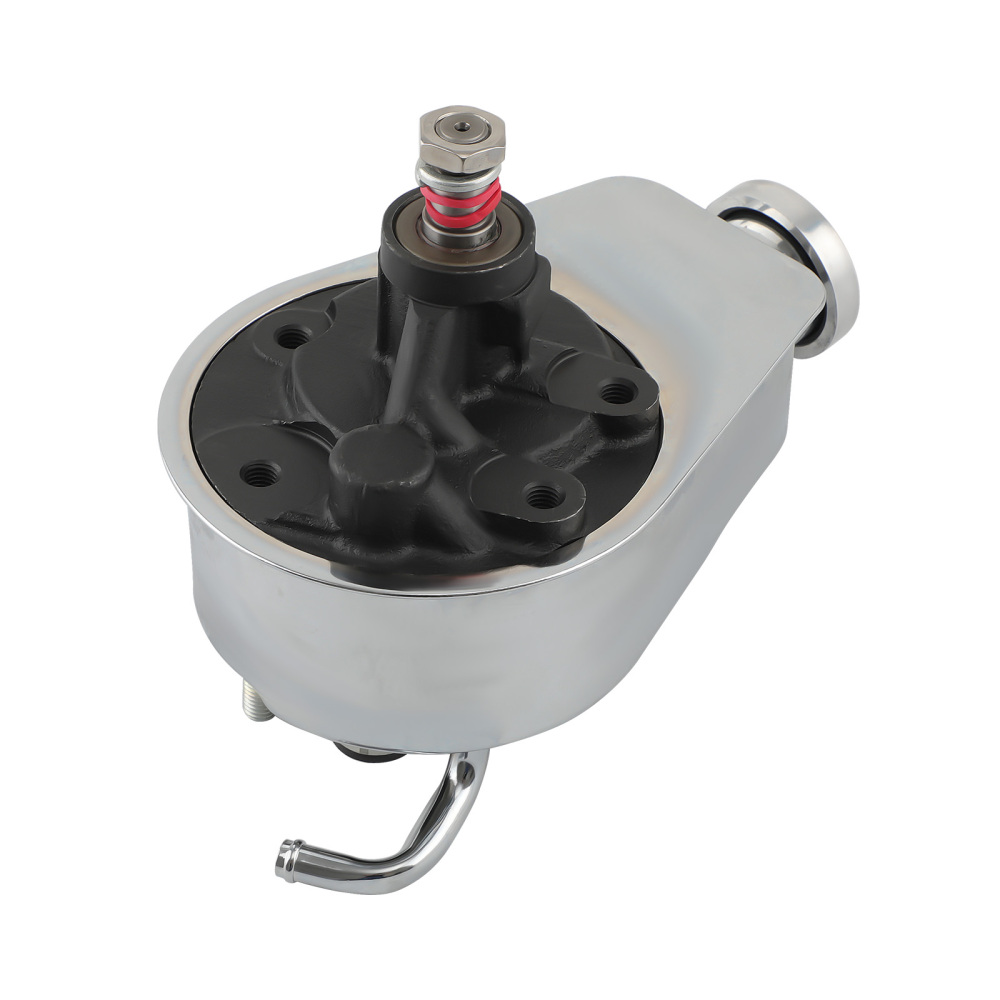

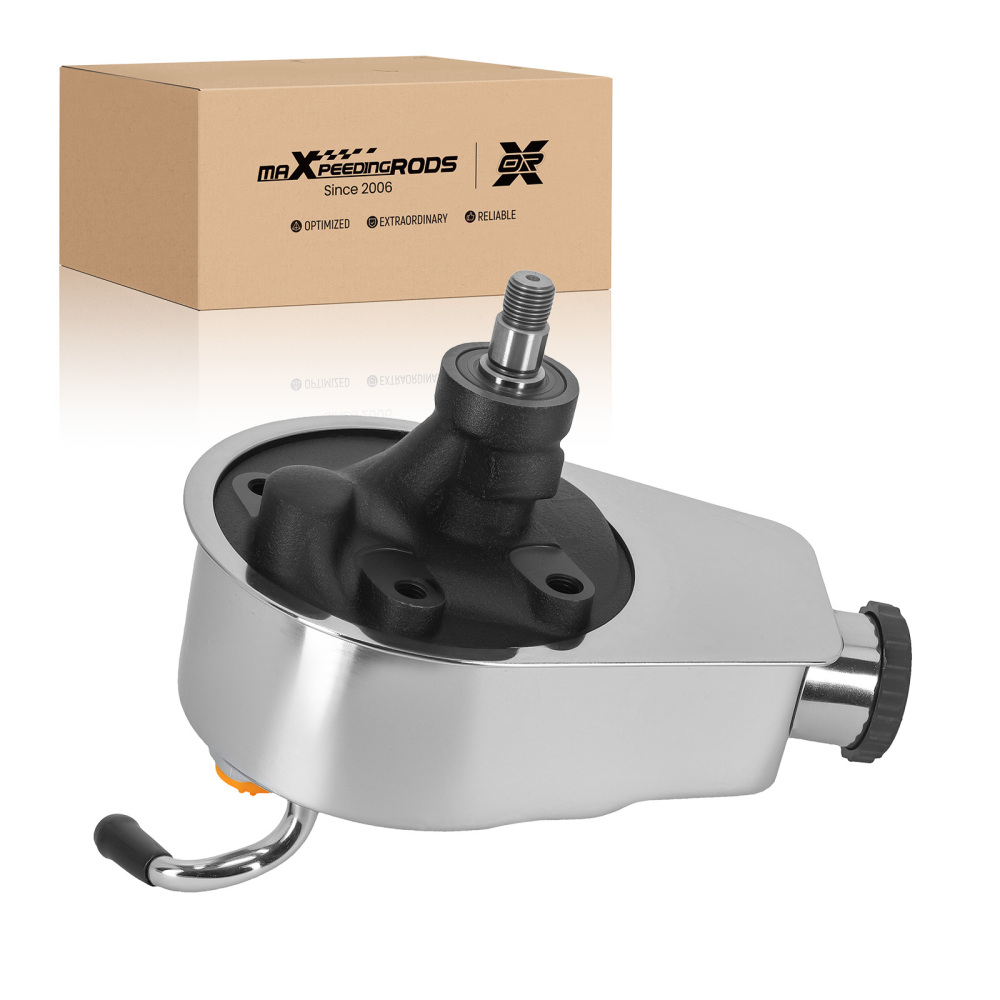

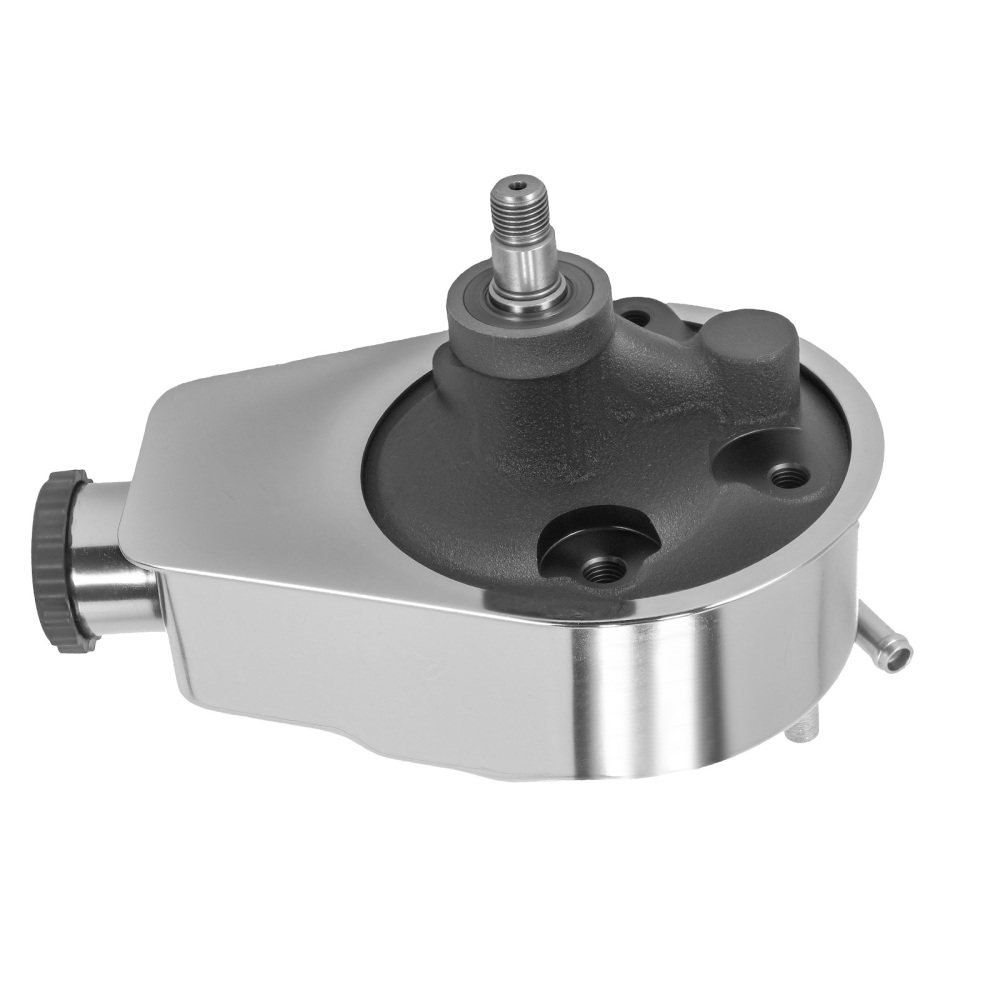

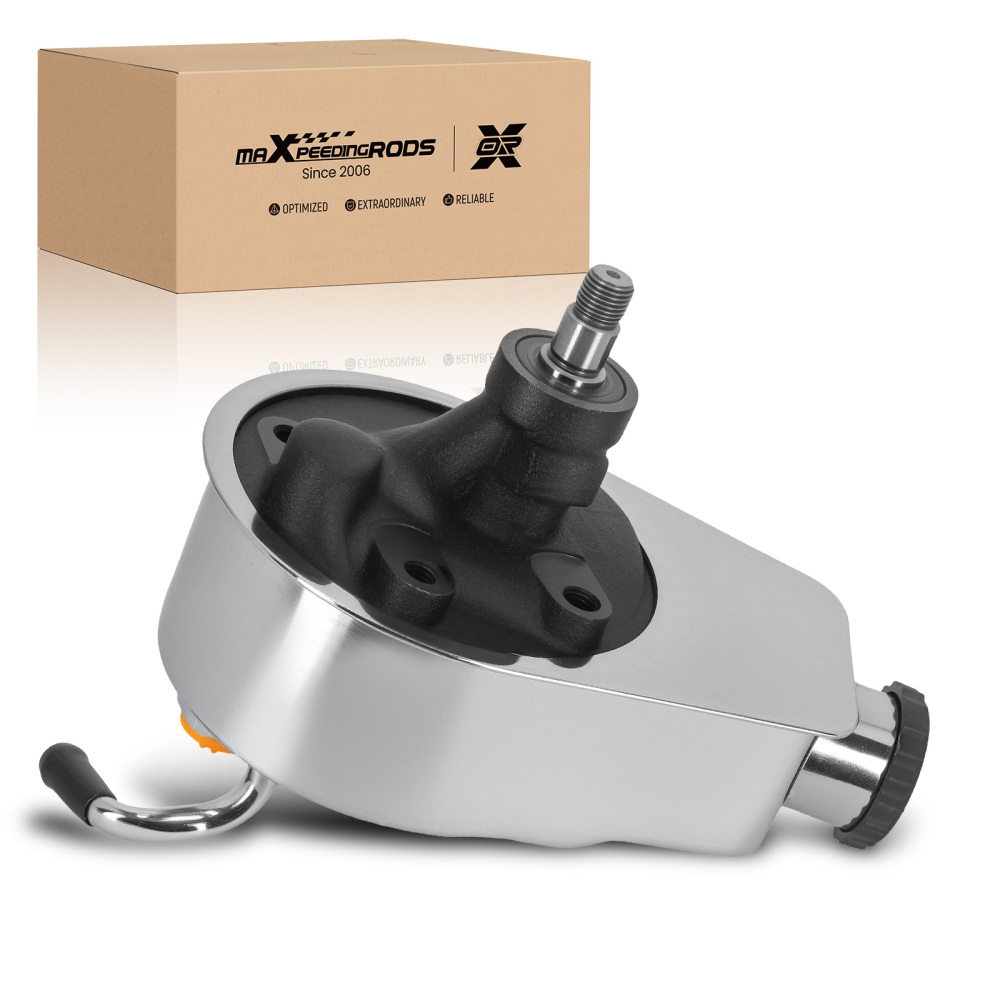

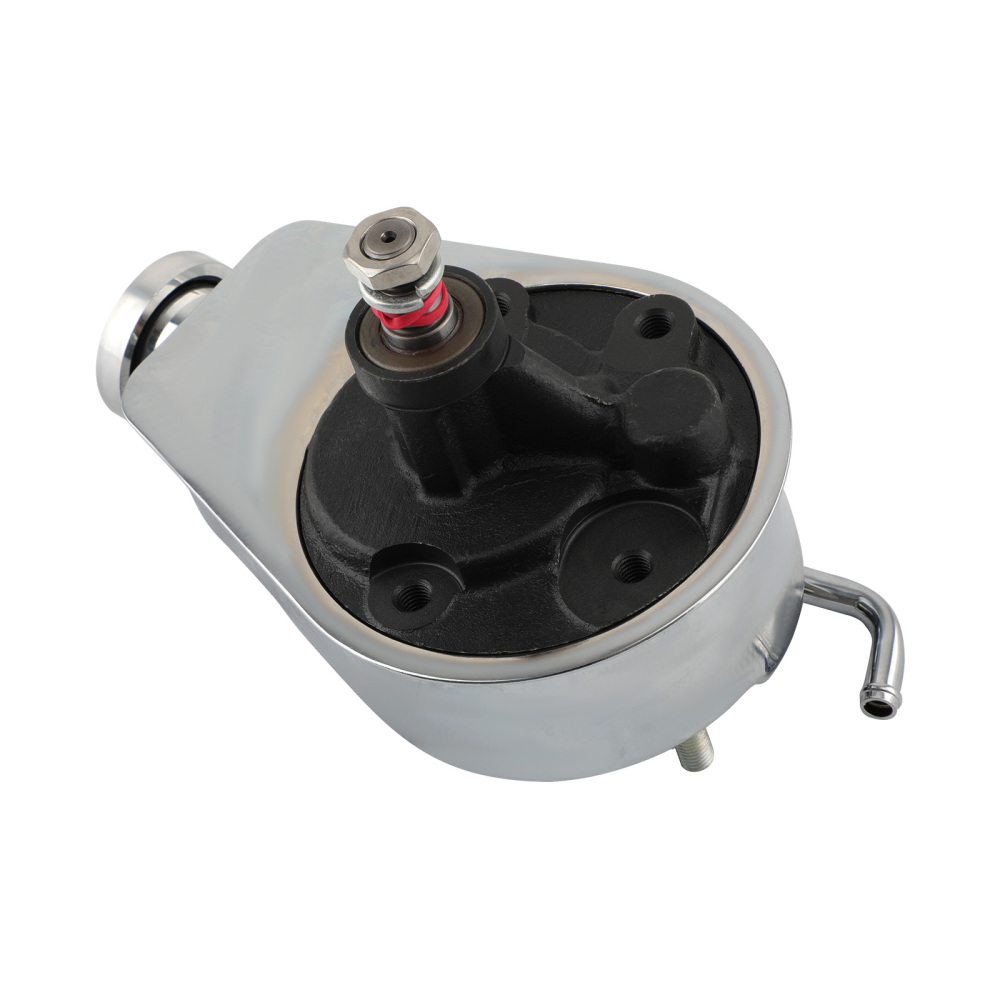

Power Steering Pump compatible for Chevy BBC SBC 350 454 Chrome Saginaw 5/8" 1966-1974

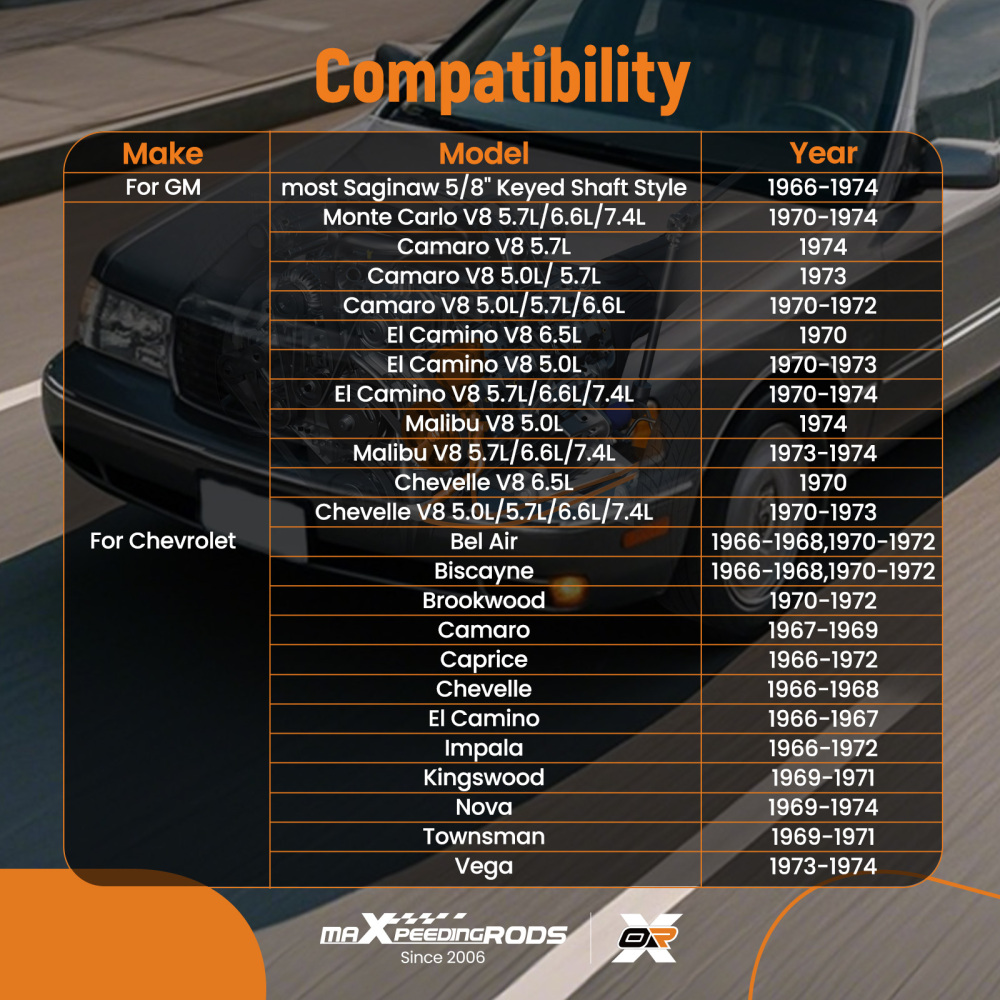

Application：

Fit for most compatible for GMC 1966-1974 Saginaw 5/8" Keyed Shaft Style.
Compatible for Chevrolet Monte Carlo 1970-1974 V8 5.7L / 6.6L / 7.4L
Compatible for Chevrolet Camaro 1974 V8 5.7L
Compatible for Chevrolet Camaro 1973 V8 5.0L / 5.7L
Compatible for Chevrolet Camaro 1970-1972 V8 5.0L / 5.7L / 6.6L
Compatible for Chevrolet El Camino 1970 V8 6.5L
Compatible for Chevrolet El Camino 1970-1973 V8 5.0L
Compatible for Chevrolet El Camino 1970-1974 V8 5.7L / 6.6L / 7.4L
Compatible for Chevrolet Malibu 1974 V8 5.0L
Compatible for Chevrolet Malibu 1973-1974 V8 5.7L / 6.6L / 7.4L
Compatible for Chevrolet Chevelle 1970 V8 6.5L
Compatible for Chevrolet Chevelle 1970-1973 V8 5.0L / 5.7L / 6.6L / 7.4L
Compatible for Chevrolet  Bel Air 1966-1968, 1970-1972
Compatible for Chevrolet Biscayne 1966-1968, 1970-1972
Compatible for Chevrolet Brookwood 1970-1972
Compatible for Chevrolet Camaro 1967-1969
Compatible for Chevrolet Caprice 1966-1972
Compatible for Chevrolet Chevelle 1966-1968
Compatible for Chevrolet El Camino 1966-1967
Compatible for Chevrolet Impala 1966-1972
Compatible for Chevrolet Kingswood 1969-1971
Compatible for Chevrolet Nova 1969-1974
Compatible for Chevrolet Townsman 1969-1971
Compatible for Chevrolet Vega 1973-1974

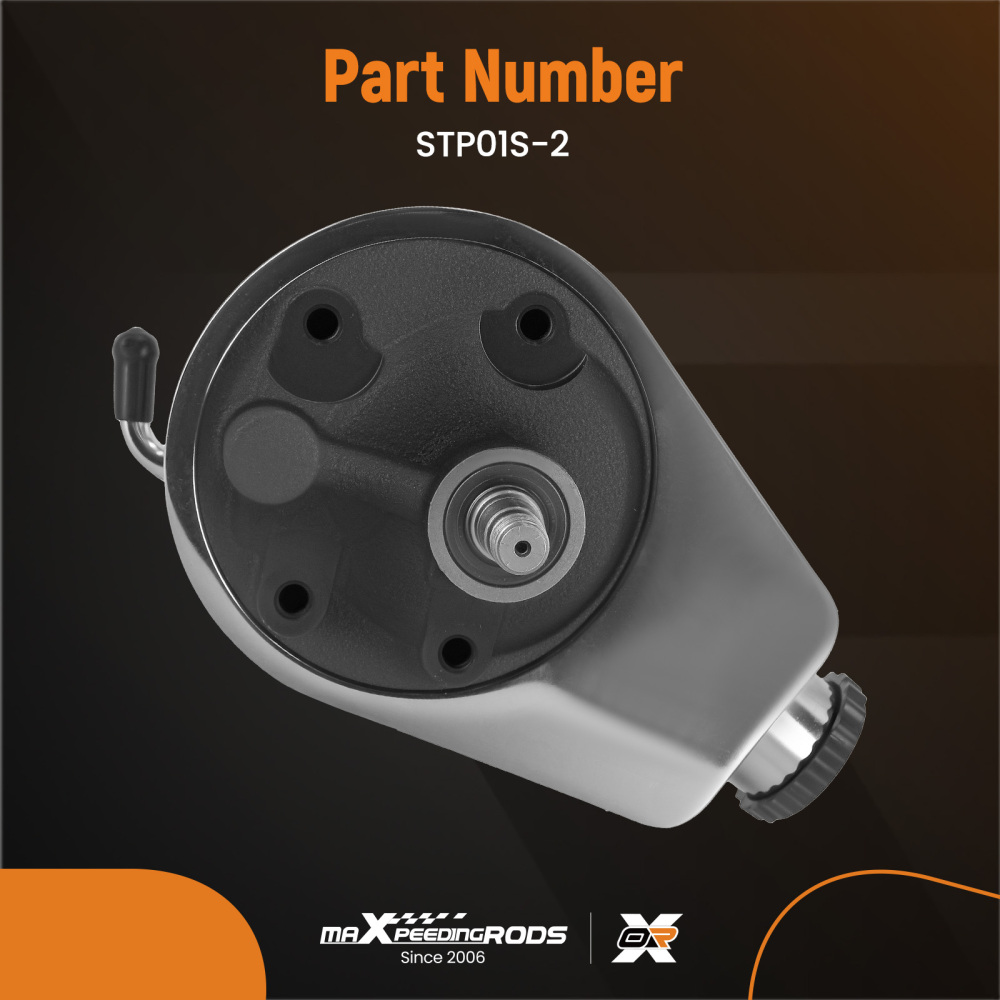

Part Number:

STP01S-2

Specification：

Type: Power Steering Pump
Color: Silver
Material: Iron, Chrome plated
Pump Pressure: 1200-1450 PSI
Flow Rate: 1.3-3.2 GPM
Placement on Vehicle: Front, Left, Rear, Right

Features:

1. The power steering pump is designed to converting power to the power steering fluid from the reservoir into the steering gear and keeps the wheels running in the right conditions.
2. The power steering pump is made of high-quality material for superior performance and durability, with excellent power conversion capability.
3. Easy to install, this power steering pump is an ideal replacement for your original faulty or leaking one.

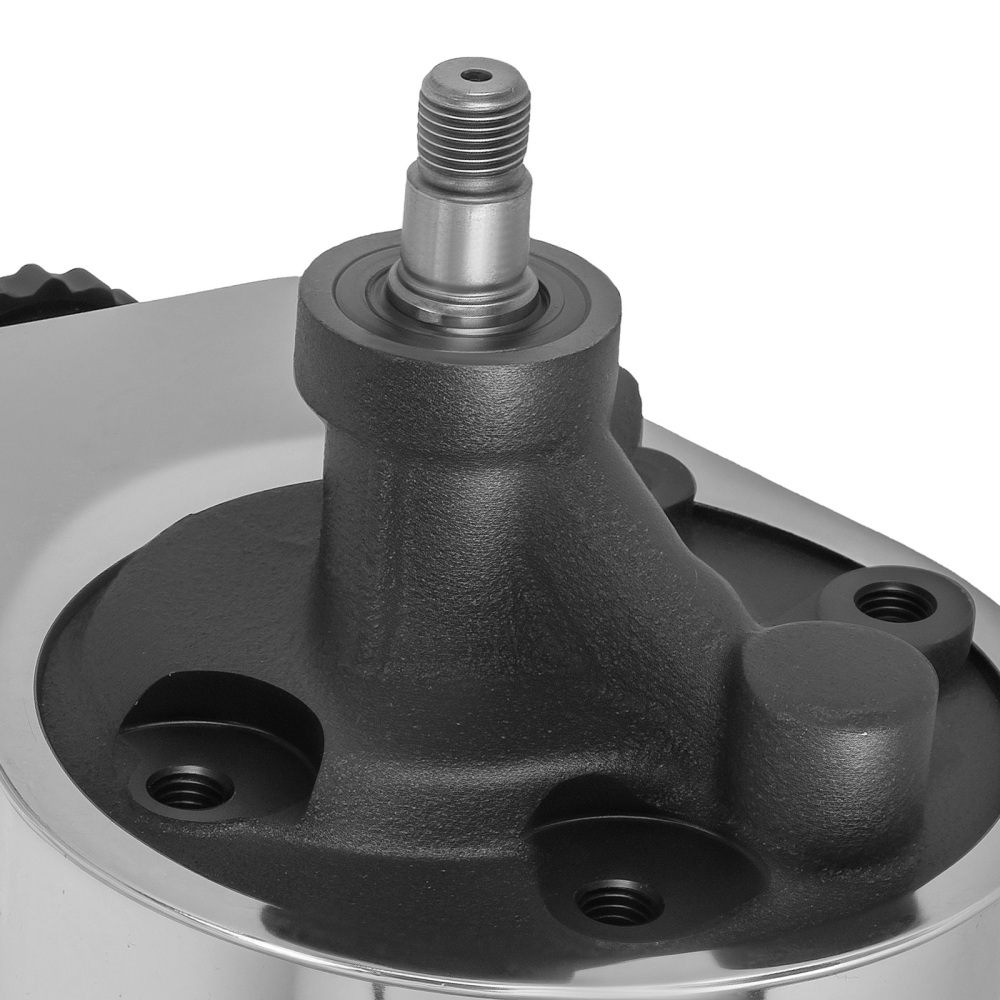

4. Desirable early style "Type 1" pump with threaded and keyed shaft for easy pulley installation.
5. Pump Pressure is 1200-1450 PSI with a 1.3-3.2 GPM Flow Rate.

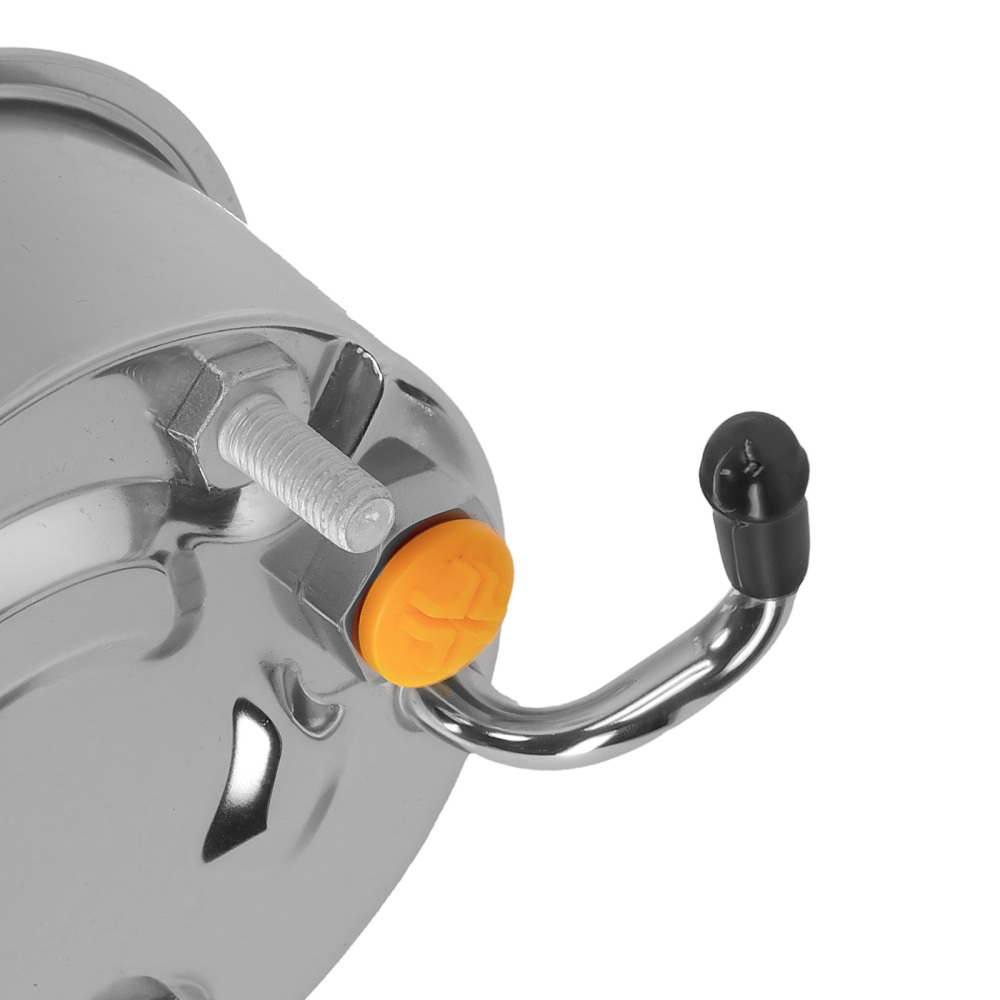

6. Have a 0.3" hose barb for the return line, a female M16*1.5 inverted flare fitting and  3/8 " mounting holes.

Installation Instructions:

- Begin by removing the power steering belt and disconnecting the pressure and return hoses from the pump. The fluid will drain out of the pump and lines, so have a waste oil container available.
- Emove all bolts that retain the pump and its mount brackets to the engine. Remove the pump assembly from the vehicle.
- Using a power steering pump pulley remover, remove the pulley from the pump. Remove the mounting bracket from the pump.
- Install the pump mount bracket onto the new pump. Install the pump pulley onto the pump.
- Attach the arm by removing the lower bolt and install the arm. Add washers as needed to keep the arms straight with the pump face.
- Tighten up all bolts and install the belt. Adjust for tension. Check that all bolts are tight and the pump is properly aligned.
- Line from hose barb to low-pressure port, then line from SAE inverted flare to high pressure.
- Add fluid into the inlet port, then start the vehicle, test the steering power.

Package Includes:

1 x Power Steering Pump

Notes:

* Please confirm your old part number matches up with one of the part numbers above.
*No Instruction Included, professional installation is highly recommended.
