Connecting Rods Conrod for A12 compatible for Datsun 1200 compatible for Nissan Sunny B310 Sedan Coupe 121.5mm

$539.00 $599.00
  • * H-Beam con rods compatible for Datsun A12 compatible for Nissan Sunny B120 C120 C22 A12
  • * Advertised Horsepower Rating: 600~800HP
  • * Material: Forged 4340 aircraft chrome moly quality steel
  • * Dimensions: Center to center length: 121.5mm; Big end diameter: 48mm; Small end diameter: 17.45mm ( tapered small end); Big end width: 24.3mm; Small end width: 21.6mm
  • * Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 3/8" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * Performance Con Rods
  • * Advertised RPM Rating: 7000-9000 rpm
  • * Fastener Tensile Strength (psi):200,000 - 230,000 psi
  • * Balanced to within +/- 1 gram per end
  • * The big end bores are honed to a +/-.01mm tolerance
  • * Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock(located in AU)
Shipping Fee:
Free for AU
Delivery Time:
3-7 Business Days
Warranty 1 Year
Item Number 3002906913

MORE OPTIONS

$599.00 $539.00

Application

Compatible for Datsun 1200 A12
Compatible for Nissan Sunny B120 all year
Compatible for Nissan Vanette C120 A12 C22 A12S
Don't fit for B310 A12 Van

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 121.5mm
Big end diameter: 48mm
Small end diameter: 17.45mm
Big end width: 24.3mm
Small end width: 21.6mm

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel

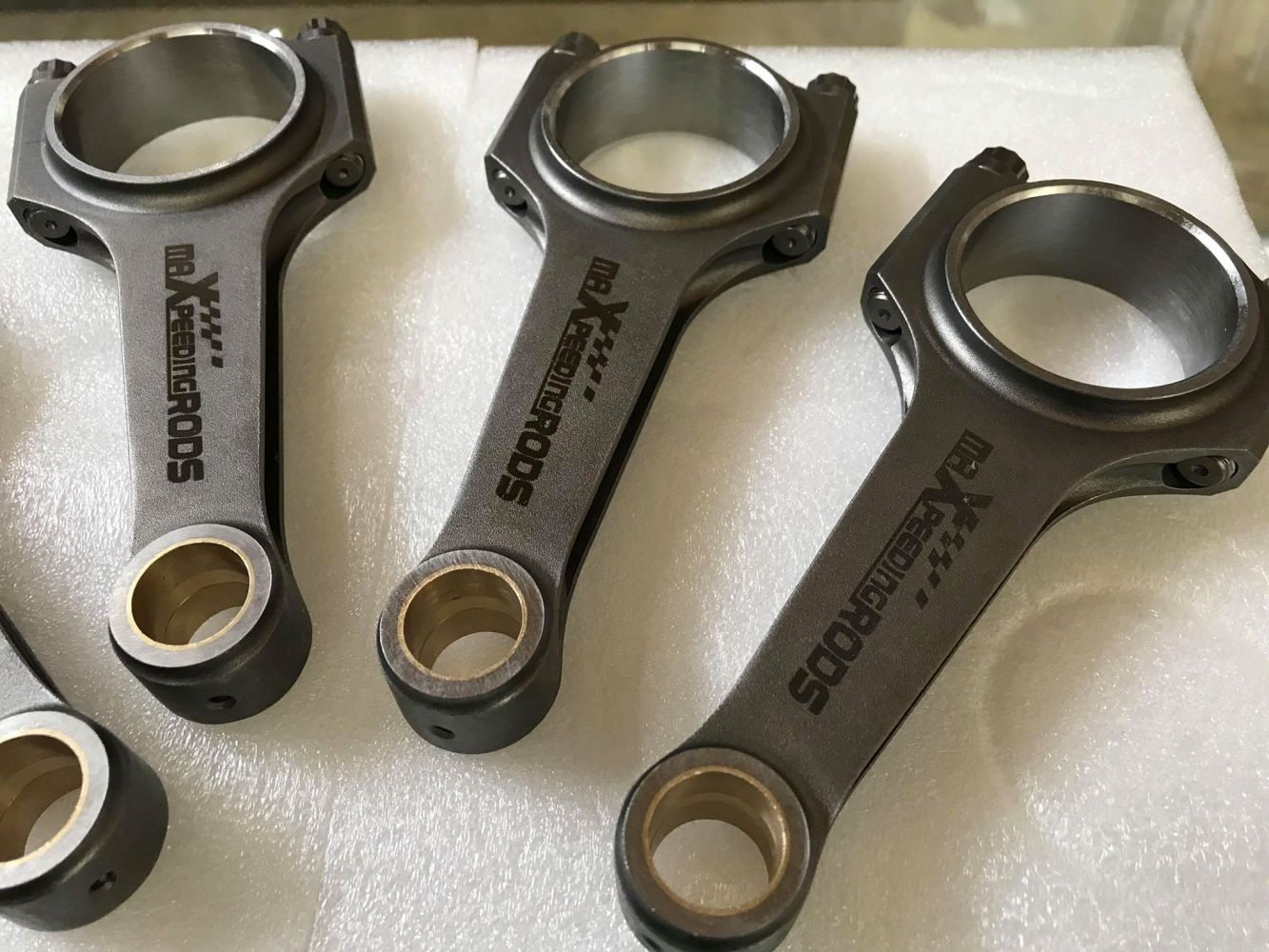

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm
warranty: one year warranty for any manufacturing defect

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE

Ohno Takashi 14/11/2020

Rods miked out perfect, machining was clean , motor is going together now.

Ohno Takashi 14/11/2020

Rods miked out perfect, machining was clean , motor is going together now.
