Shock Absorbers compatible for Mitsubishi EVO 7 8 9 CT9A Coilovers Struts Suspension Full Kit Lowering Kit

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Mitsubishi Lancer Evolution VII CT9A 2001-2003
compatible for Mitsubishi Lancer Evolution VIII CT9A 2003-2005
compatible for Mitsubishi Lancer Evolution Evolution IX CT9A 2005-2007
compatible for Mitsubishi Lancer Evolution IX WAGON CT9W 2006-2007

Specification

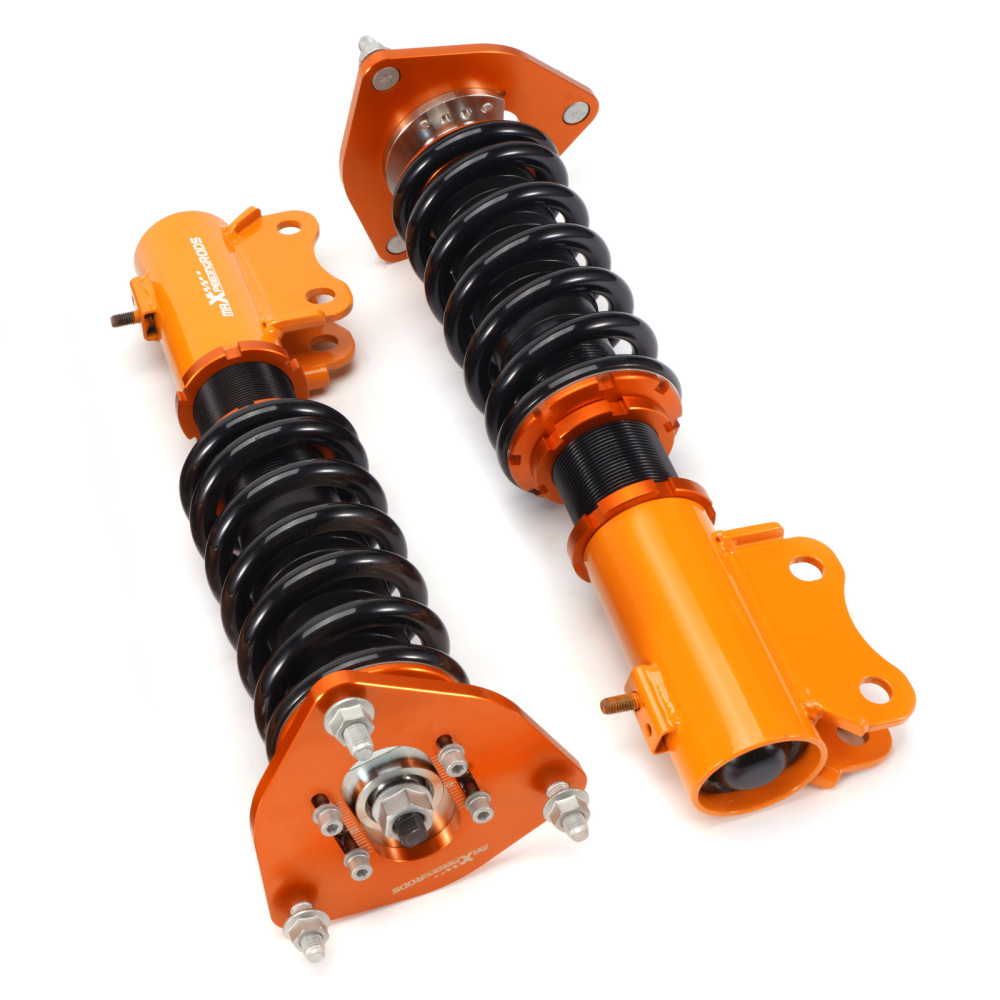

Top mount: Front camber plate；rear pillow ball
Damping: not available

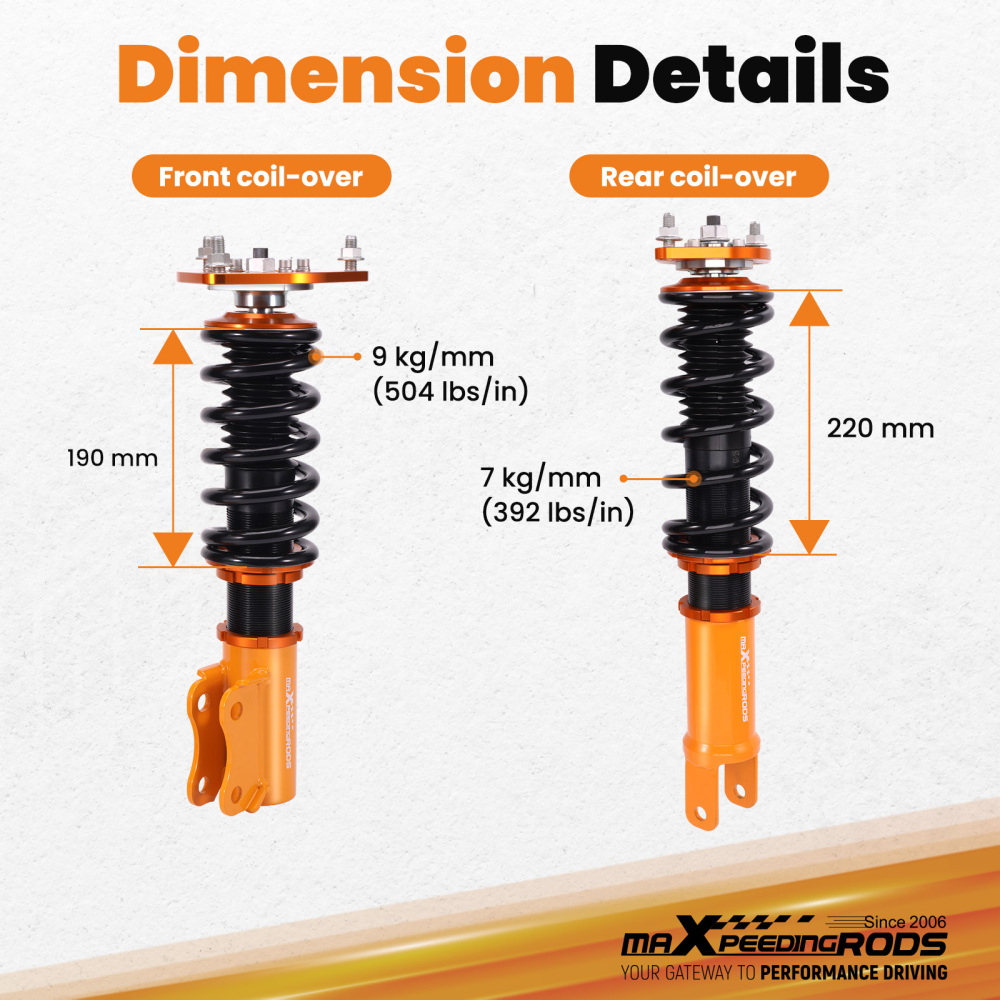

Spring rate Front: 9 kg/mm (504 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)​
Adjustable height: lowering 1-3 inch
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold body with black spring

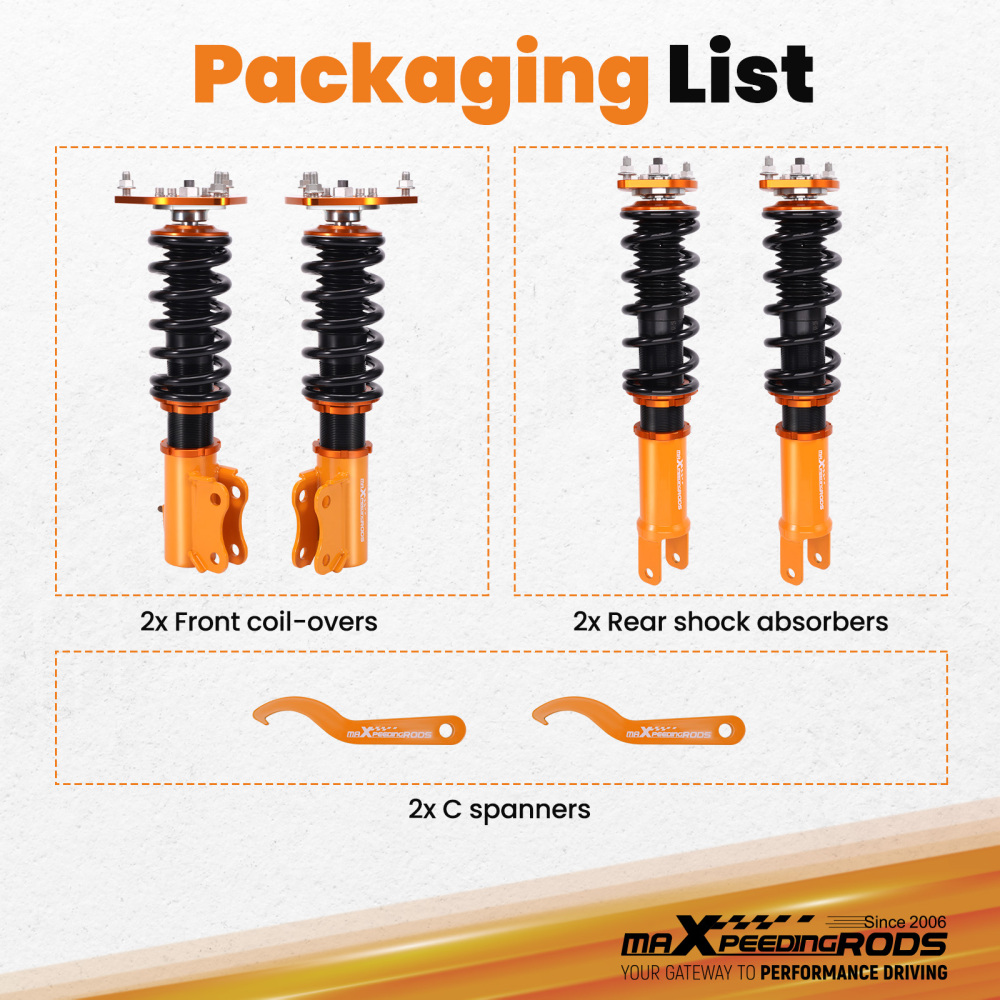

Package included

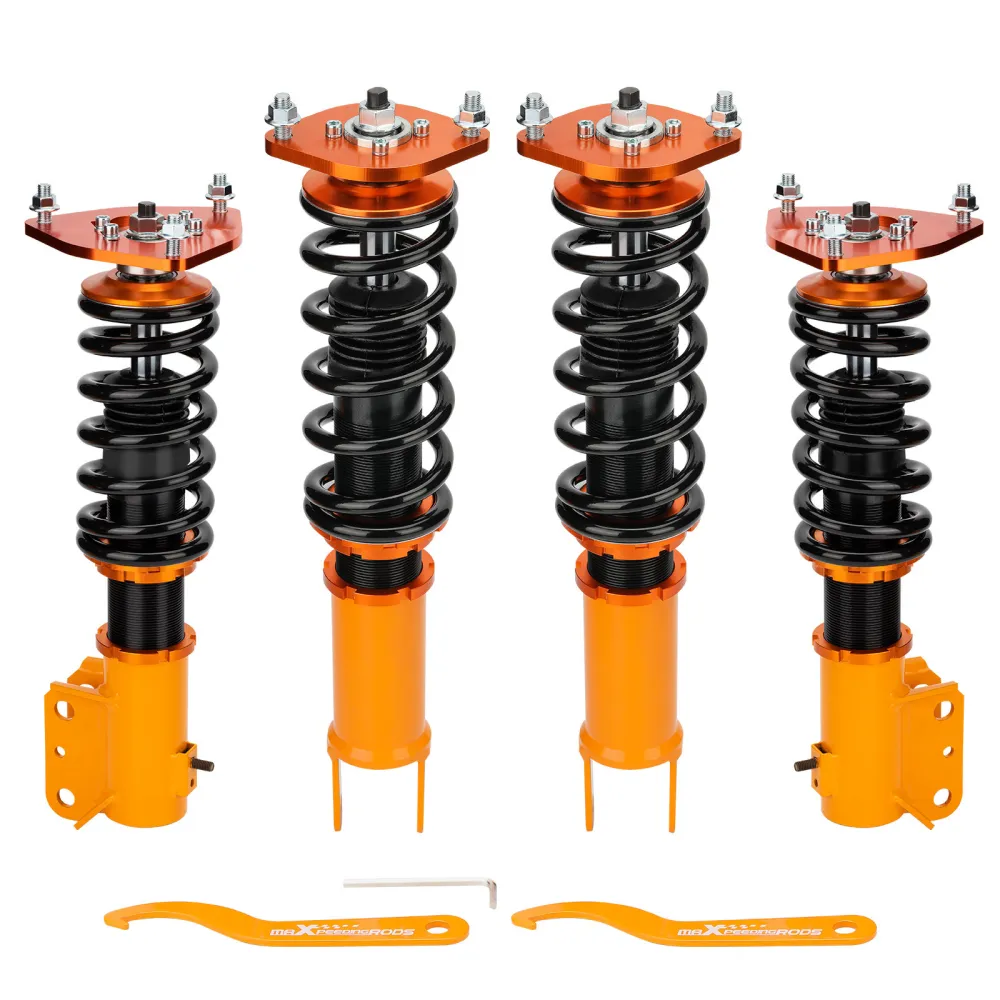

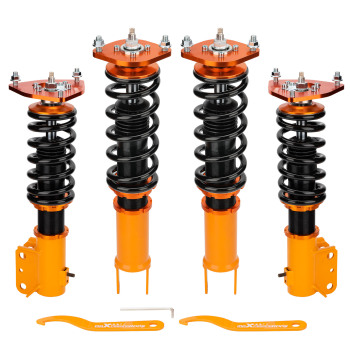

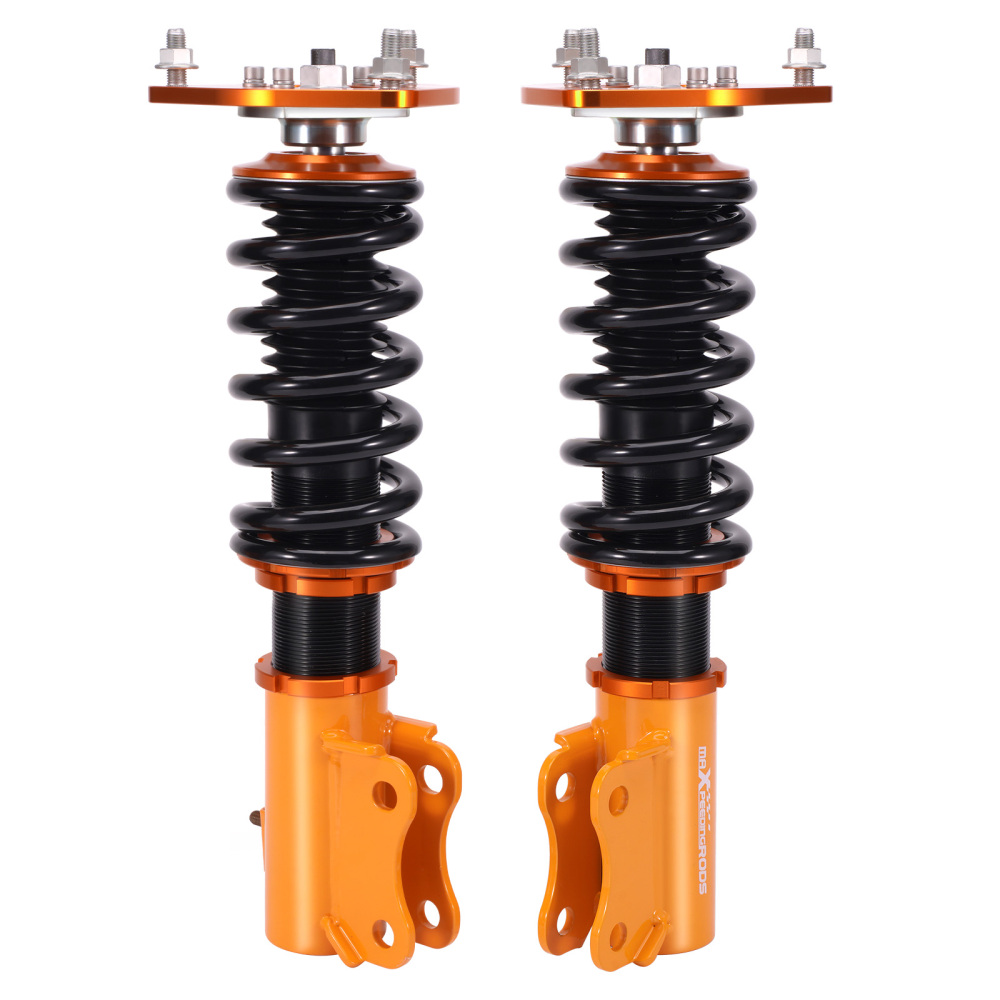

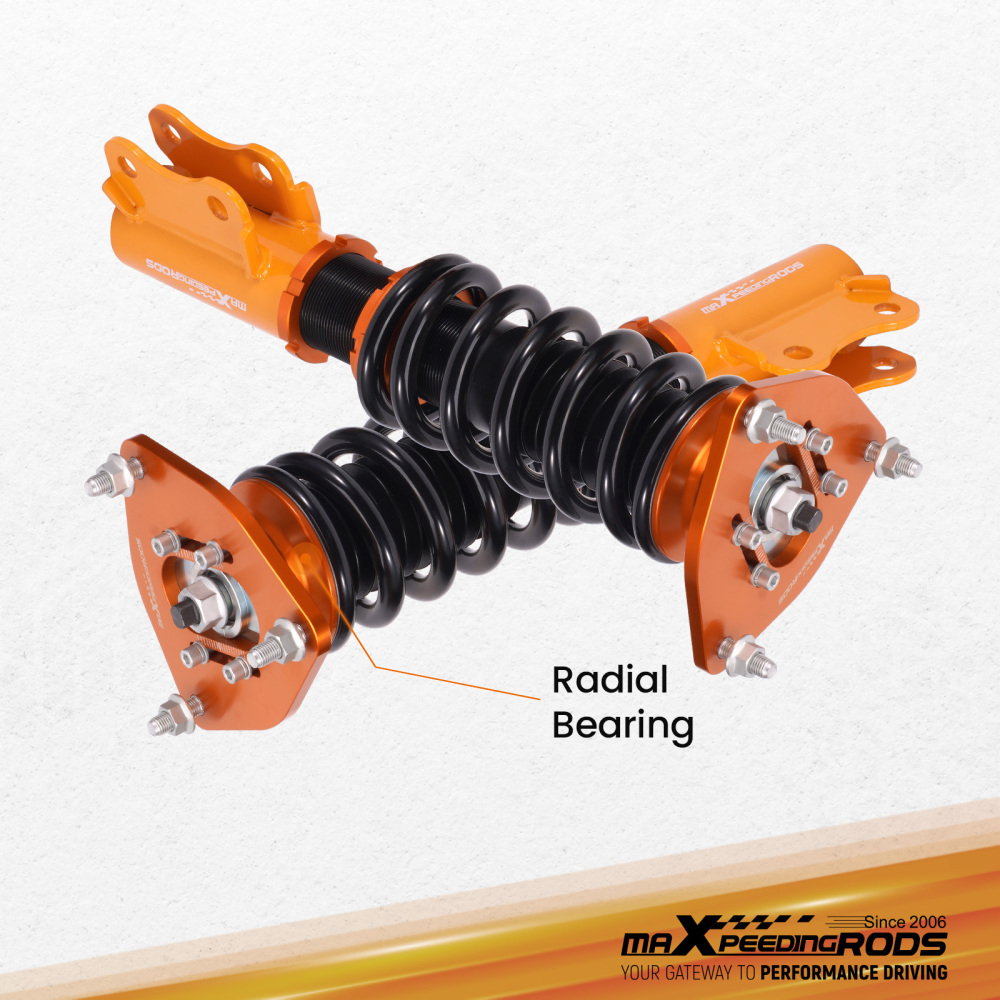

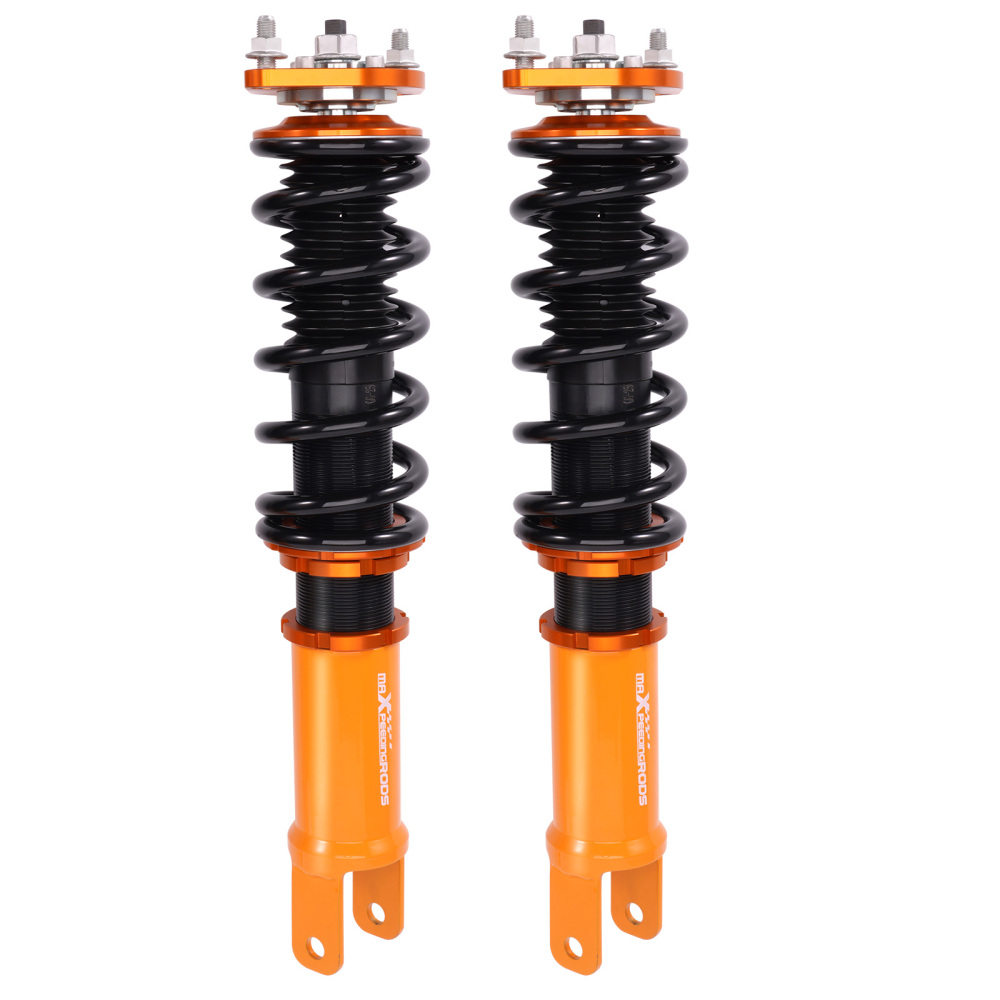

front and rear complete coilover assembly
A pair wrench for height adjustment

Dimension

Package dimension : 63*51*21
Weight: 27260g

Feature

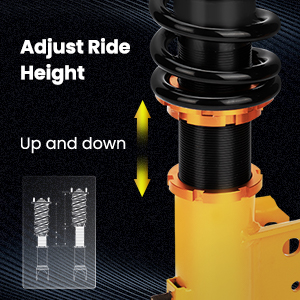

1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

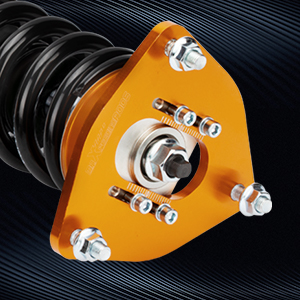

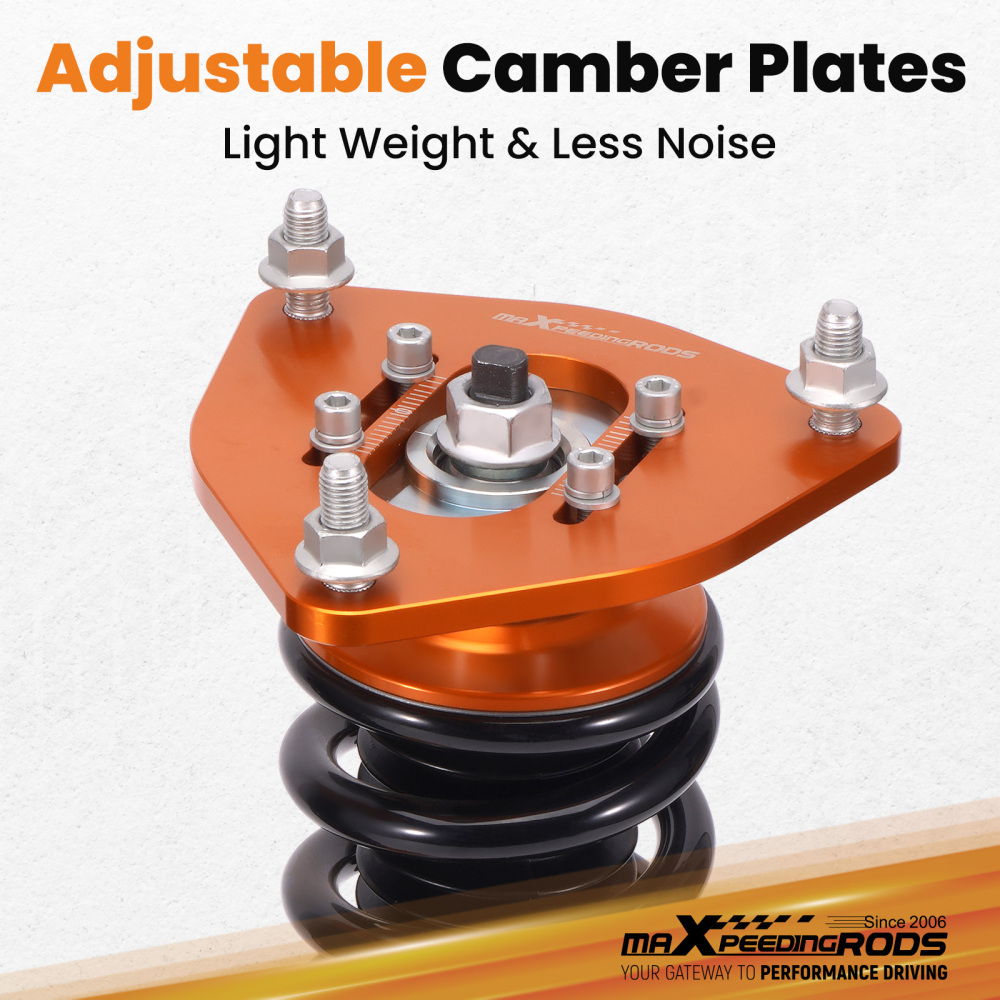

2.Camber plate top mounts help to eliminate the need for a separate camber kit.

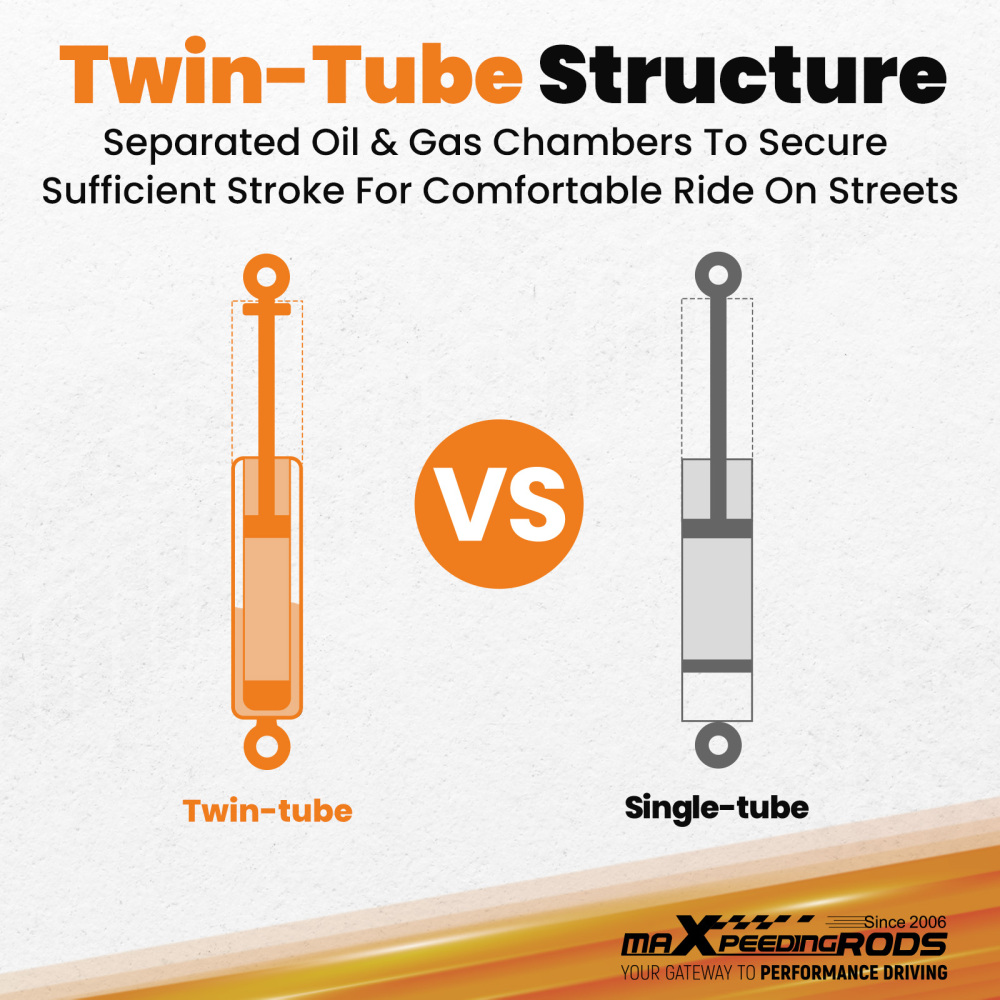

3.Twin-Tube structure allows sufficient stroke within the shock absorber.

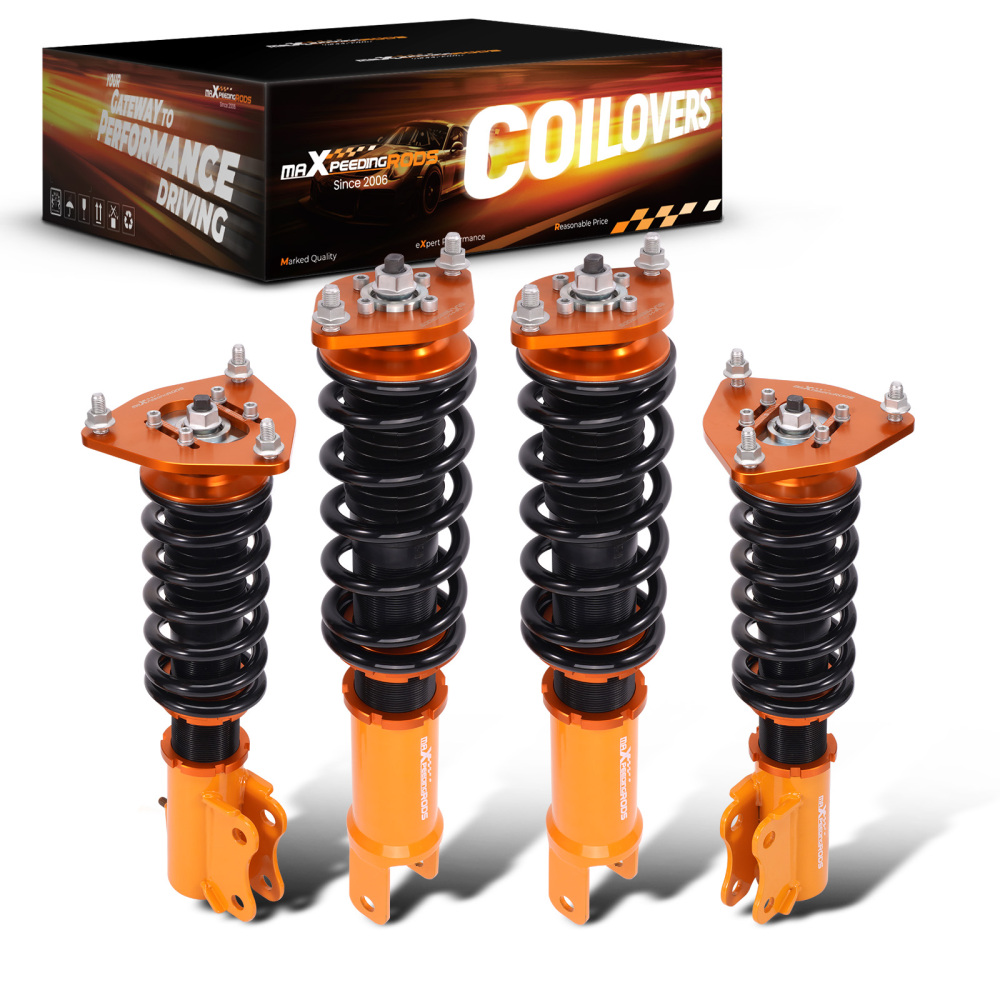

4.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

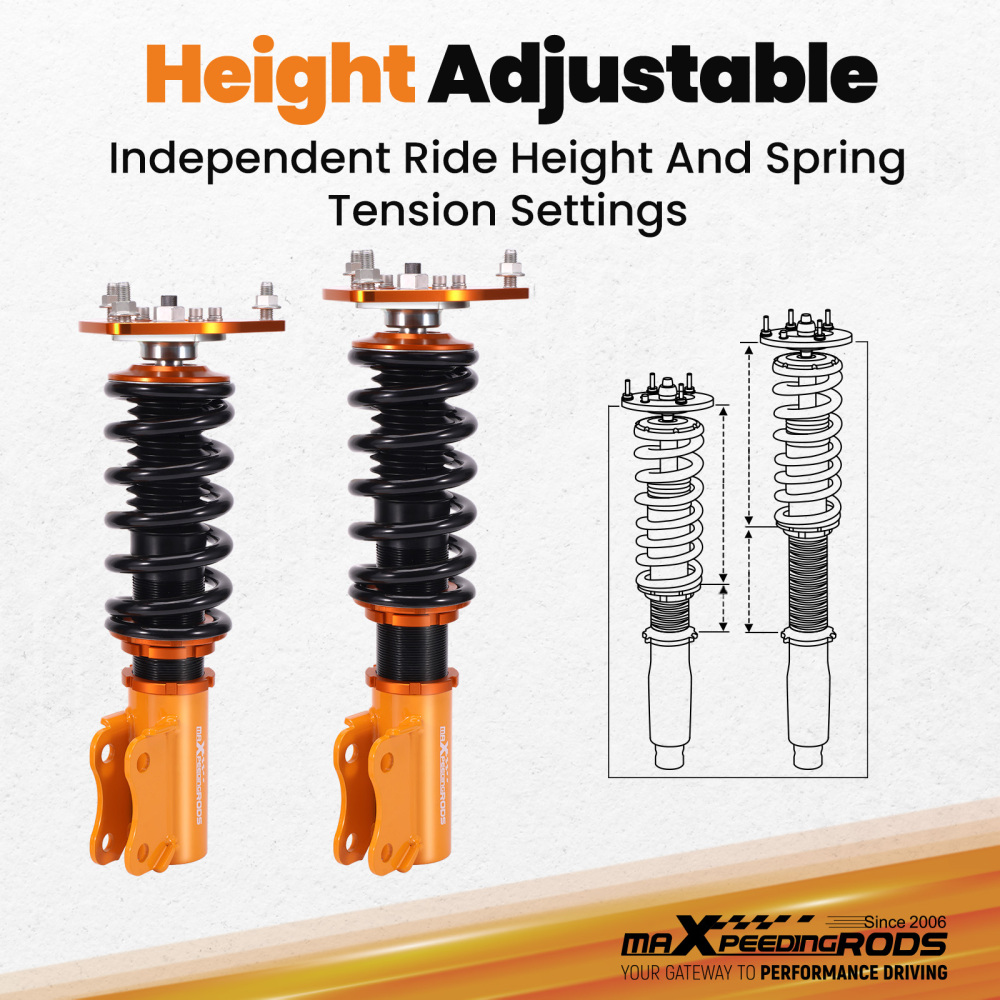

5.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

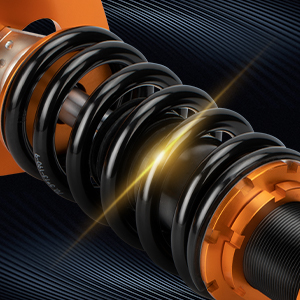

6.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

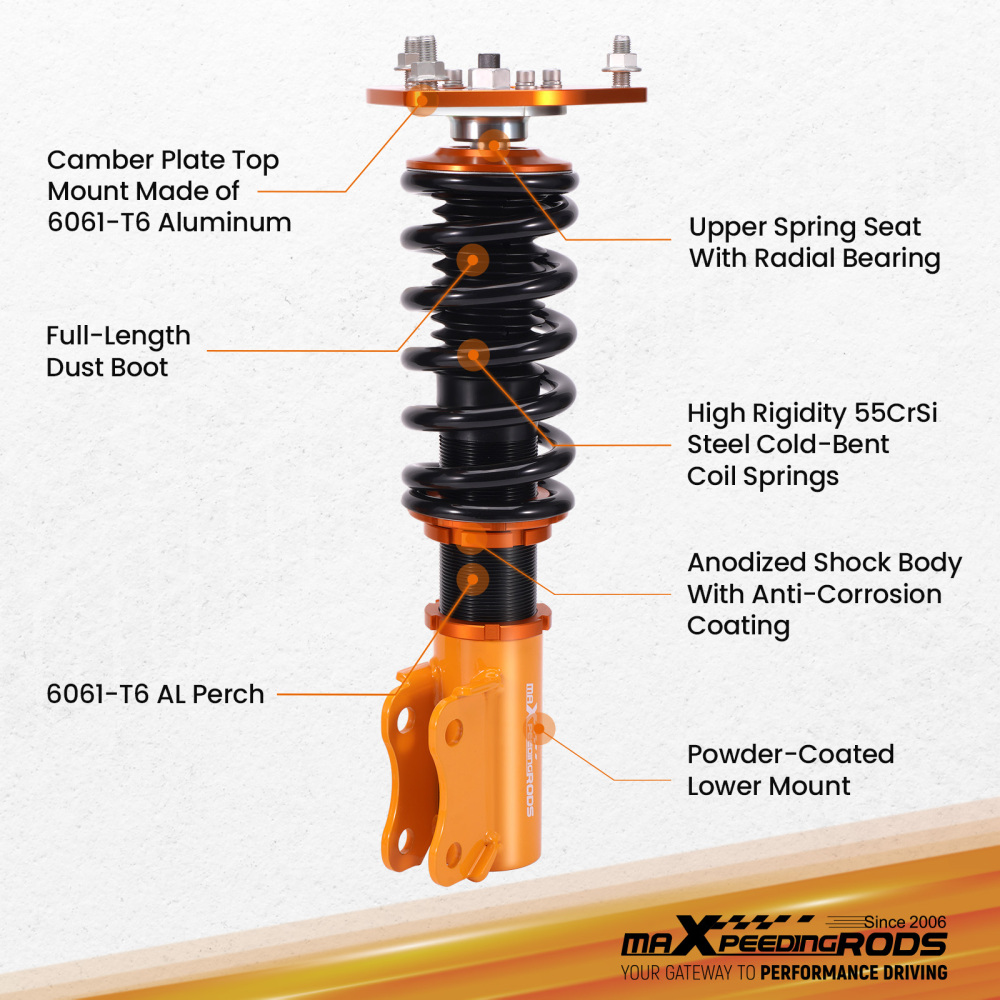

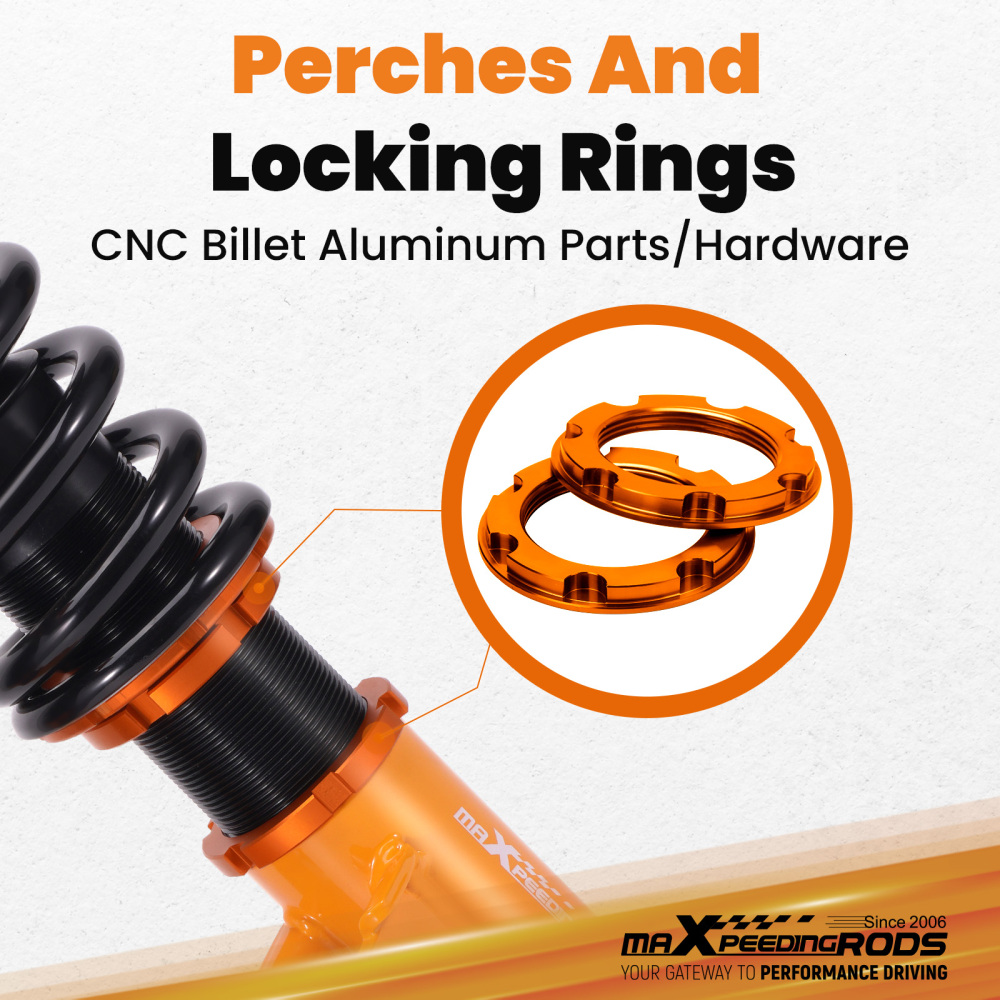

7.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8.Steel shock bodies with special surface treatment to improve the durability.
9.Full rebuildable
