For Gt45 Turbocharger T4 V-band 1.05 A/r 78trim 600+hp Boost+oil Feed Line Sets

Specification

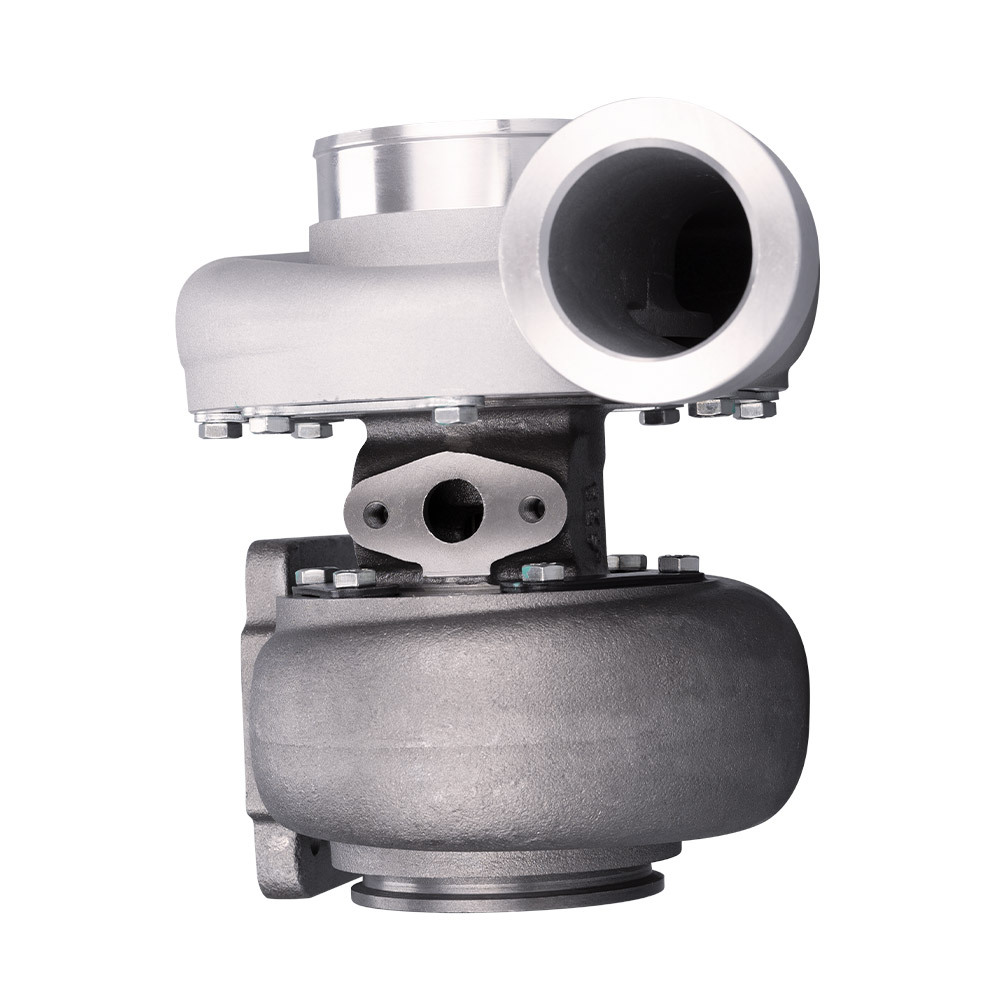

Turbocharger

This turbo is a universal application turbo, some modification may be required based on individual vehicle.

Perfect for all 4.0L-6.0L engine

Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange
Exhaust (Downpipe) Flange: V-Band Flange
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm

Compressor
Trim: 50
Inducer Diamter: 69mm
Exducer Diamter: 98 mm
A/R:0.66

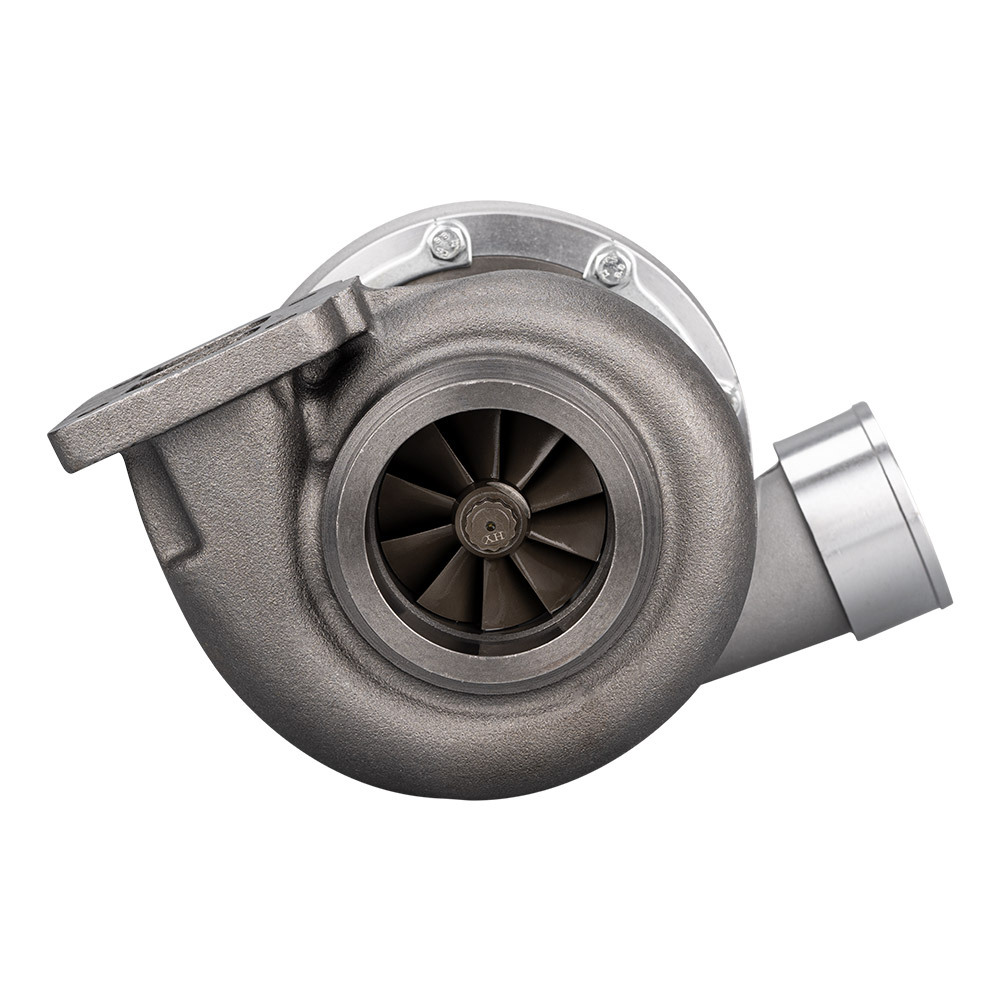

Turbine
Trim:78
Inducer Diamter: 88mm
Exducer Diamter: 77.5 mm
A/R:1.05

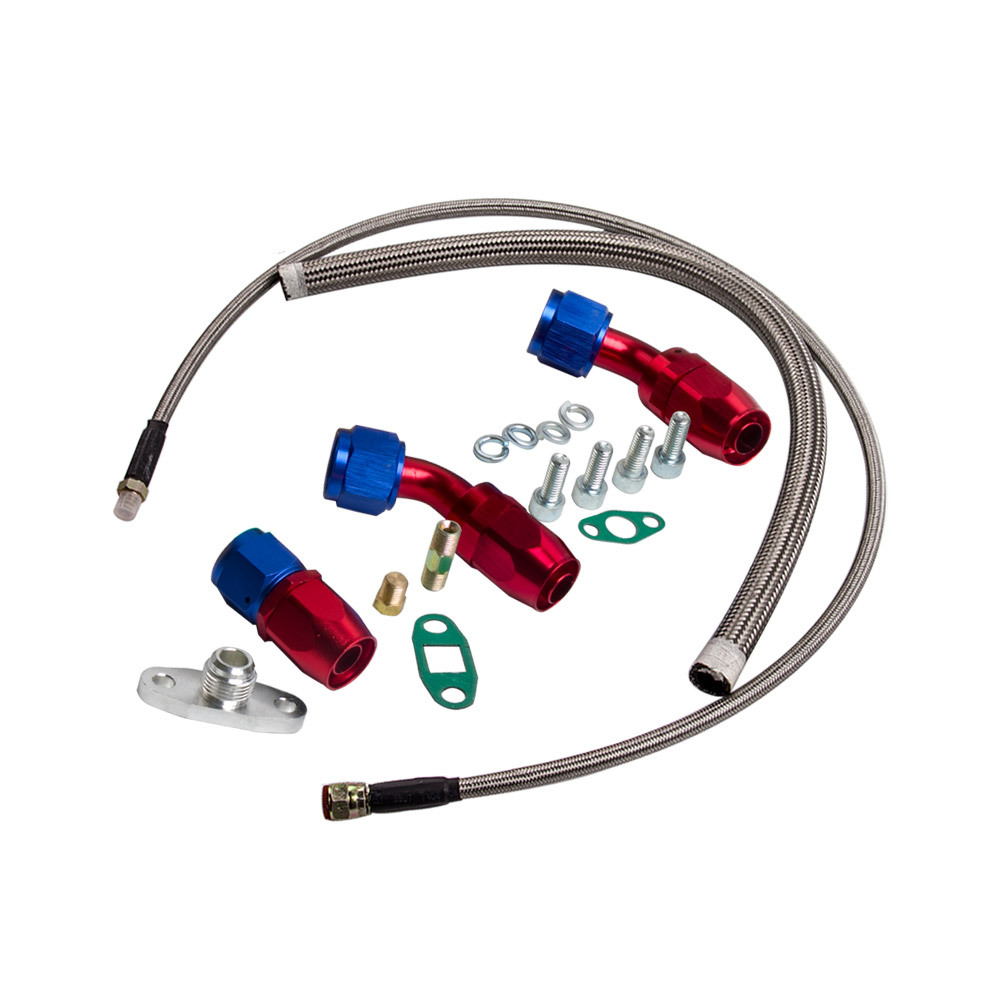

Oil Feed & Return Line

* Oil Return Line: Length: 550mm || Inner Diameter: 21mm
* Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm

* Oil Inlet: M9 & 2*M8*1.25

* Oil Outlet: M19 & 2*M8*1.25

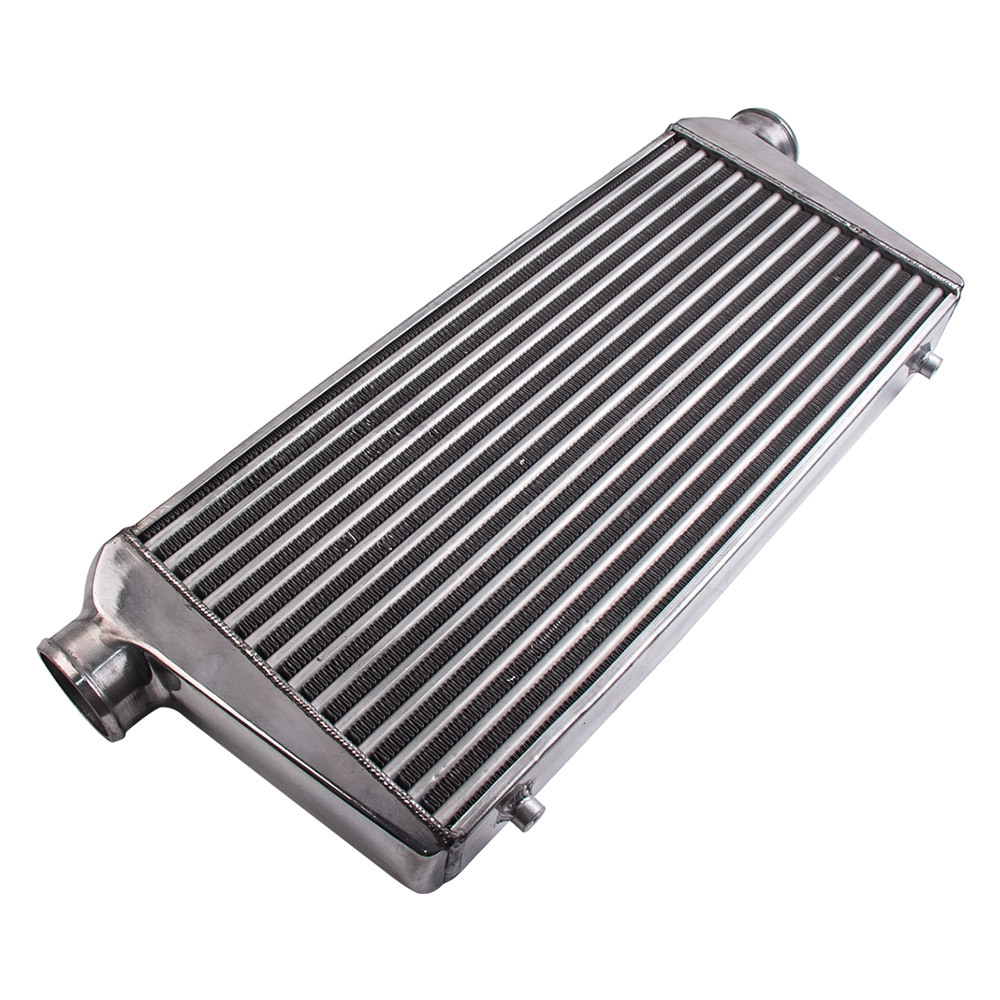

Intercooler

Inlet / outlet size :    3"
Core Size: 600 x 300 x 76mm / 24" x 12" x 3"
Overall Size: 780 x 330 x 76mm / 31" x 13" x 3"
Inlet/Outlet: 76MM
Core design:  Tube & Fin

Condition: New
Bearing Type: Floating Bearing
Warranty: one year warranty

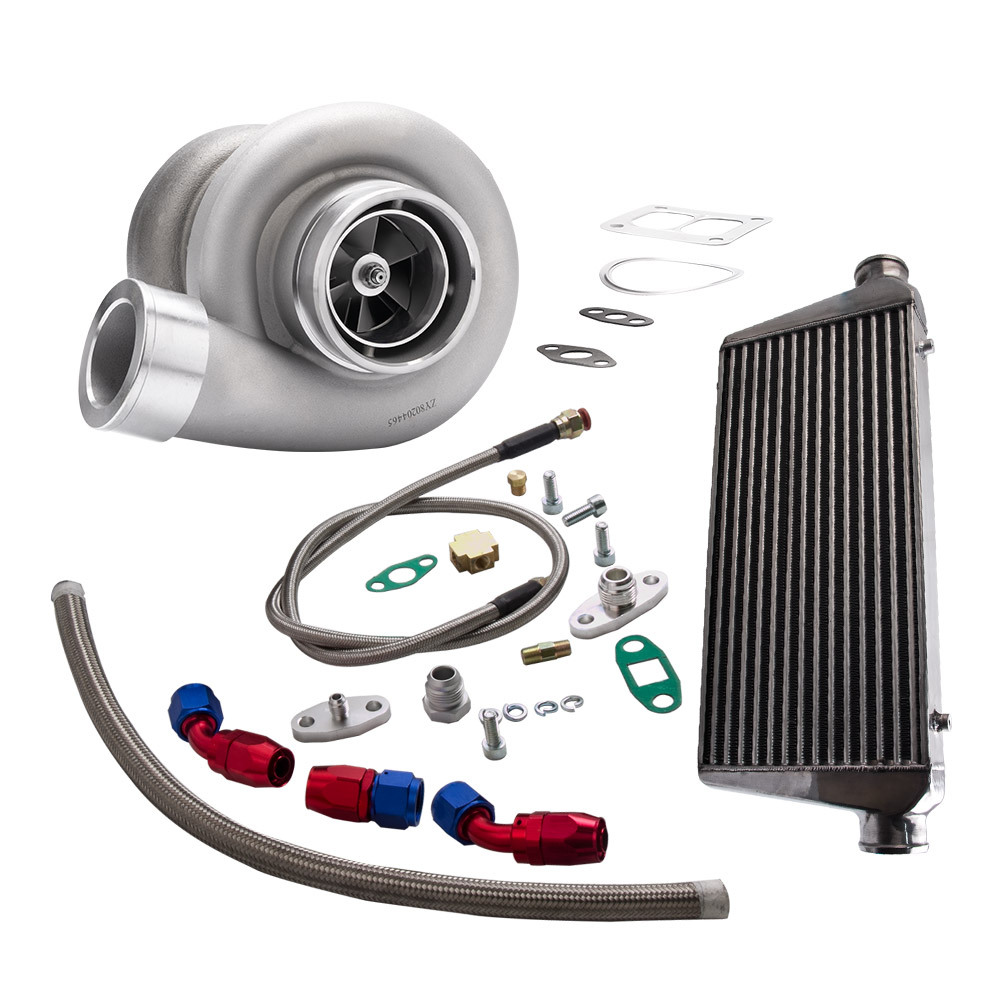

Accessories: You will get exactly as shown in the picture above

Notice

* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.
* This is universal application turbo, so modification might be required for some vehicles.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
