For GT3076R GT3037 GT30 4-BOLT Flange 500HP Turbo compatible for Charger 0.6 A/R 0.82 Turbine

Application

Perfect for all 4/ 6 cyl 2.5L-3.0L engines

Specification

Exhaust Inlet Flange: Standard T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Side:
Turbine Trim: 74.2
Turbine Inducer Diameter:64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Side:
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Compressor A/R:0.6

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5

Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil Cooled
Wastegate：Without Wastegate
Bearing: Journal Bearing
Thrust bearing: 270 Degrees
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 8750g

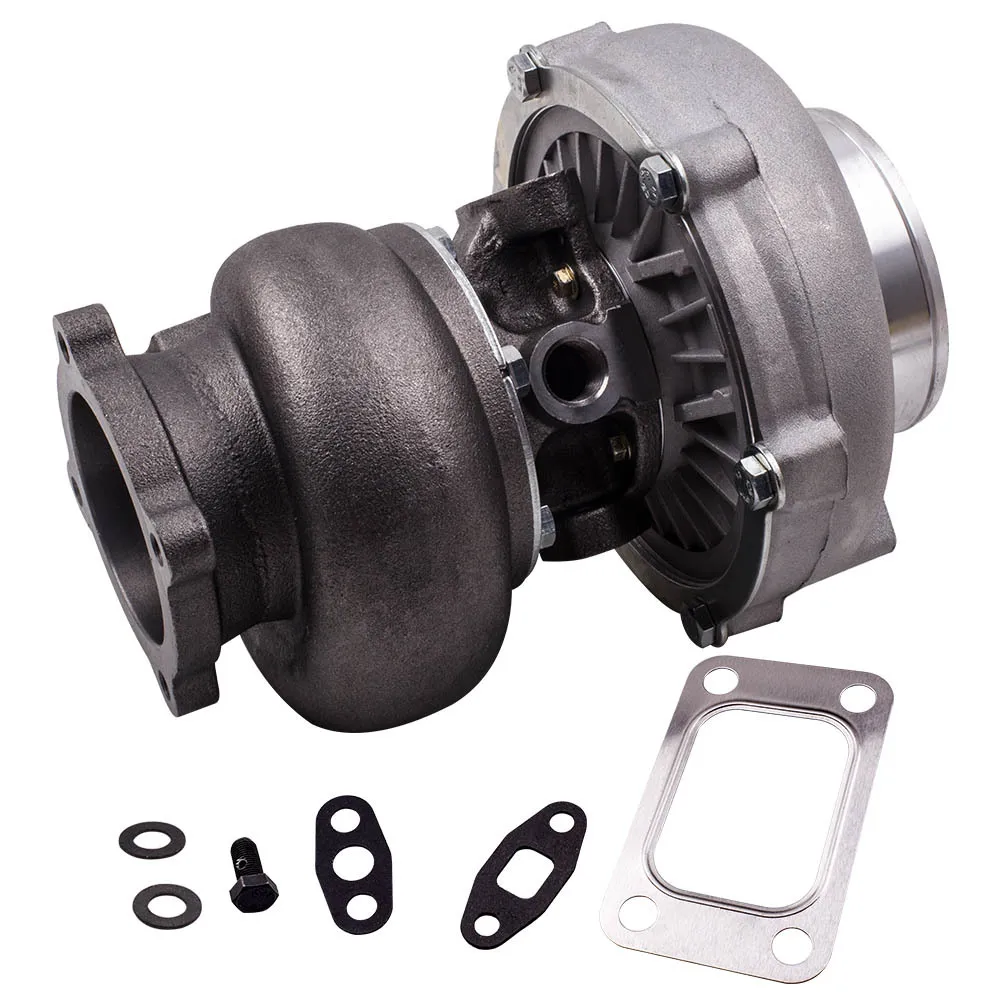

Package included

1xTurbocharger
1xFlange gasket
4xOil/water port gaskets
1xBolt

Feature

*Product Material
1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

ebay站点新增参数

Universal Fitment: Yes
Finish:Matte
