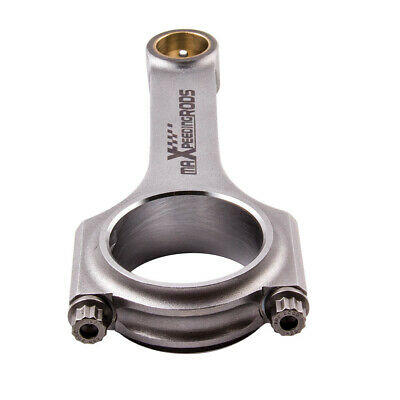

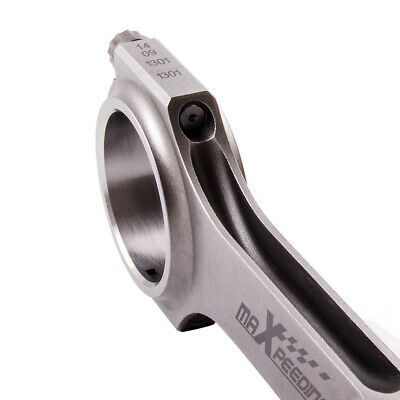

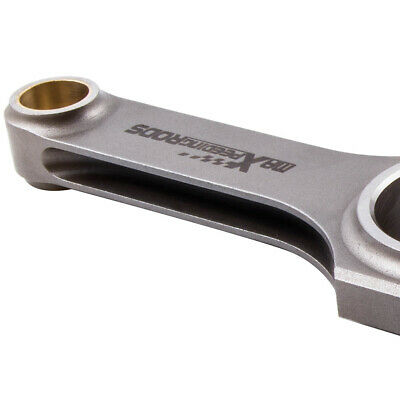

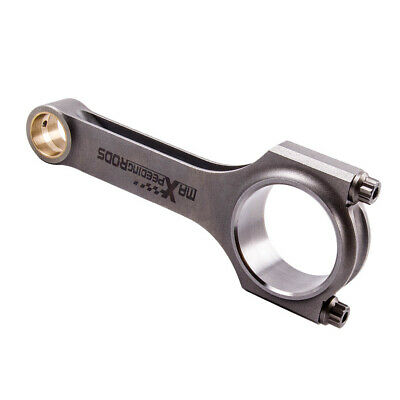

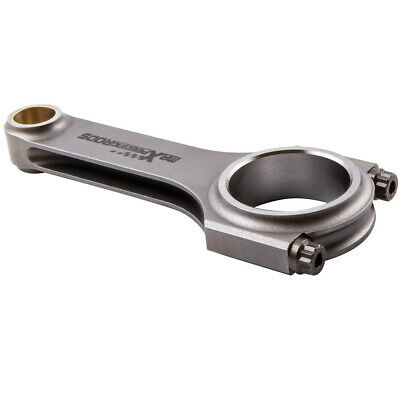

Forged 4340 Connecting Rods compatible for Honda Civic Si 1.6L B16A 1999-2000 H-Beam Conrod

Introduction:

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.

Application:

Compatible for Honda Civic B16A Engine

Compatible for Honda Civic Si 1.6L 1999-2000

Compatible for Honda Civic del Sol 1.6L 1994-1997

Specification：

*Type: Forged 4340 aircraft chrome moly quality steel for racing

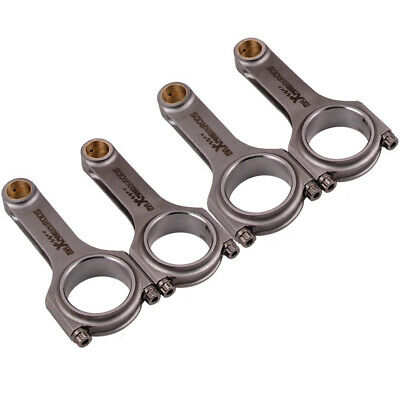

*H-beam Conrods Quantity: 4 Pieces as showing in picture

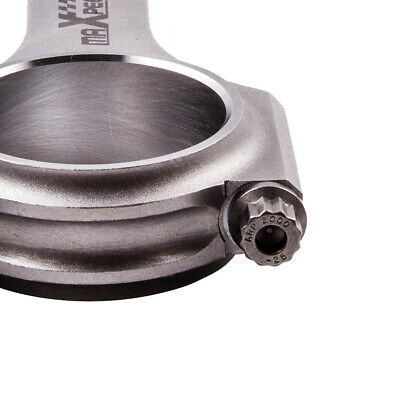

*Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)

*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

*Advertised Horsepower Rating: 200HP/piece

*Top acceleration: 9000rpm

*Package size: 28CM*21CM*10CM

Dimension:

Center to center length:134.36mm/5.29"

Big end diameter:48mm/1.89"

Small end diameter:21mm/0.827"

Big end width:23.75mm/0.935"

Small end width:21mm/0.827"

Feature:

1. H-Beam design reduces weight without compromising strength；

2. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

3. 100% CNC machined,Precision rod cap alignment dowels；

4. Bores finished to +/- .01 mm；

5. Balanced to within +/- 1 g per rod；

6. Each rod is magnetic particle tested to ensure free of flaws；

7. 100% X-rayed, sonic tested；

8. Custom-made Service.

Note:

*Professional installation is highly recommended；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
