Coilovers + Control Arms compatible for Honda Civic EJ EK EM EJ5 1996-2000 Rear fork type

Note:

For some vehiles, you will need sleeves and washers that already included in our package.


Specification For Coilover
Front and Rear top mount: Rubber
Damper: 24 levels rebound damping adjustable
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 5 kg/mm (280 lbs/in)
Spring length Front: 180mm
Spring length Rear: 180mm

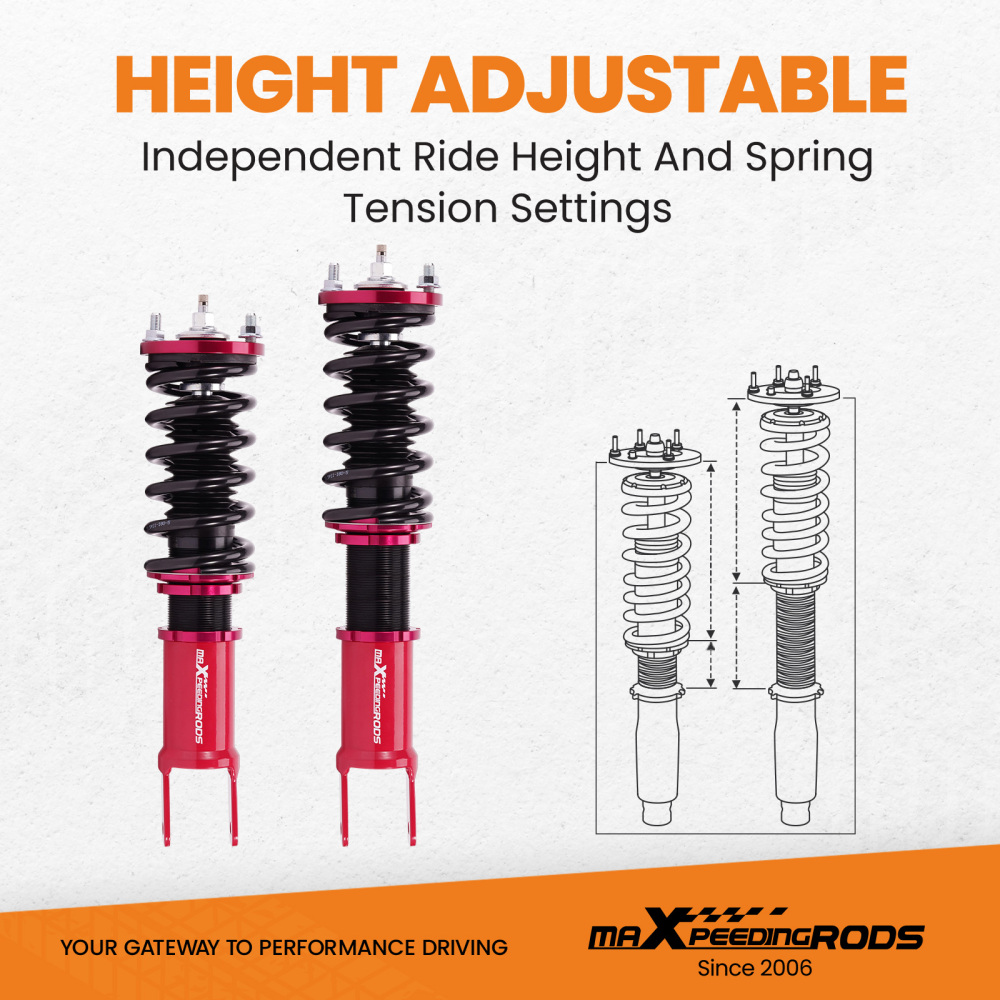

Adjustable height: lowering 1-3inch
Coilover overall length Front: 365mm-410mm
Coilover overall length Rear: 435mm-480m
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Red body with black spring
Package dimension : 71*51*21
Weight: 22260g






Specification For Control Arms
Placement on Vehicle: Left, Right, Front, Rear, Upper,Lower
Material: Aluminum Alloy
Item Weight:7.40kg
Package Dimension: 53*43*16cm
Color: Red

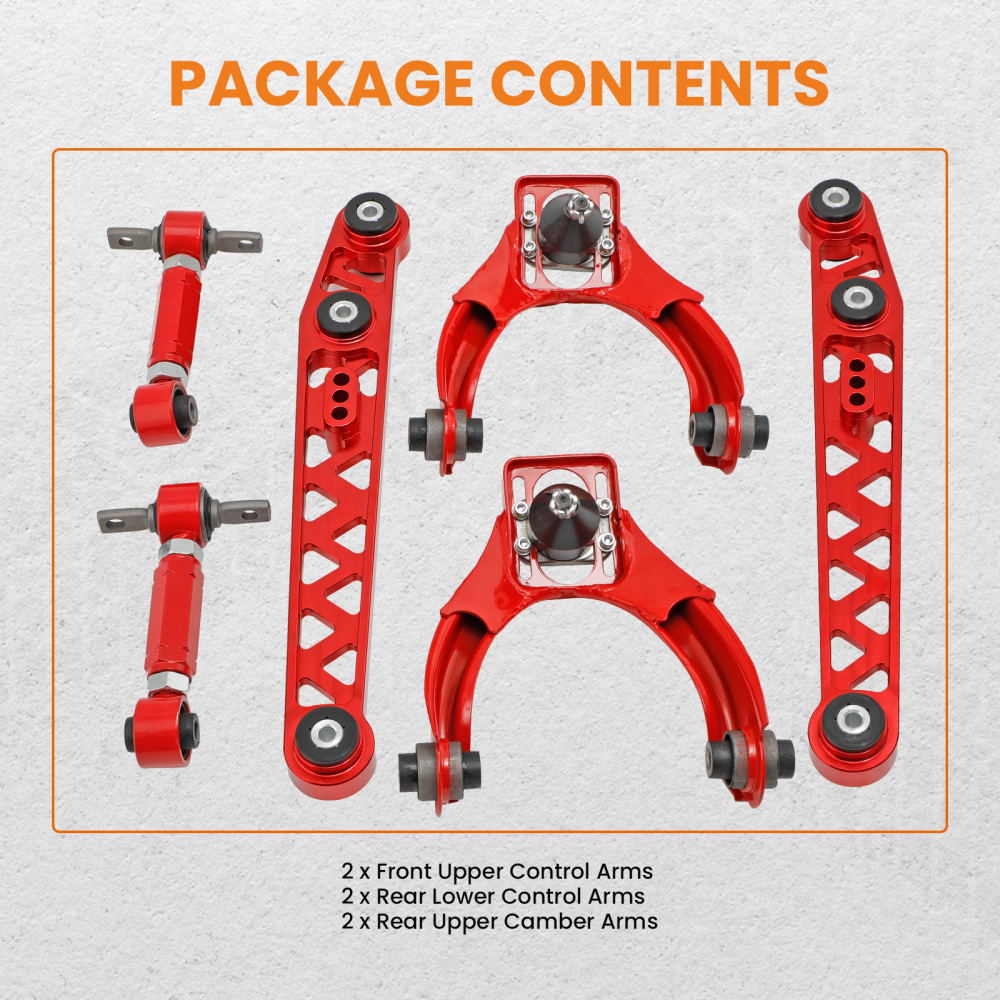

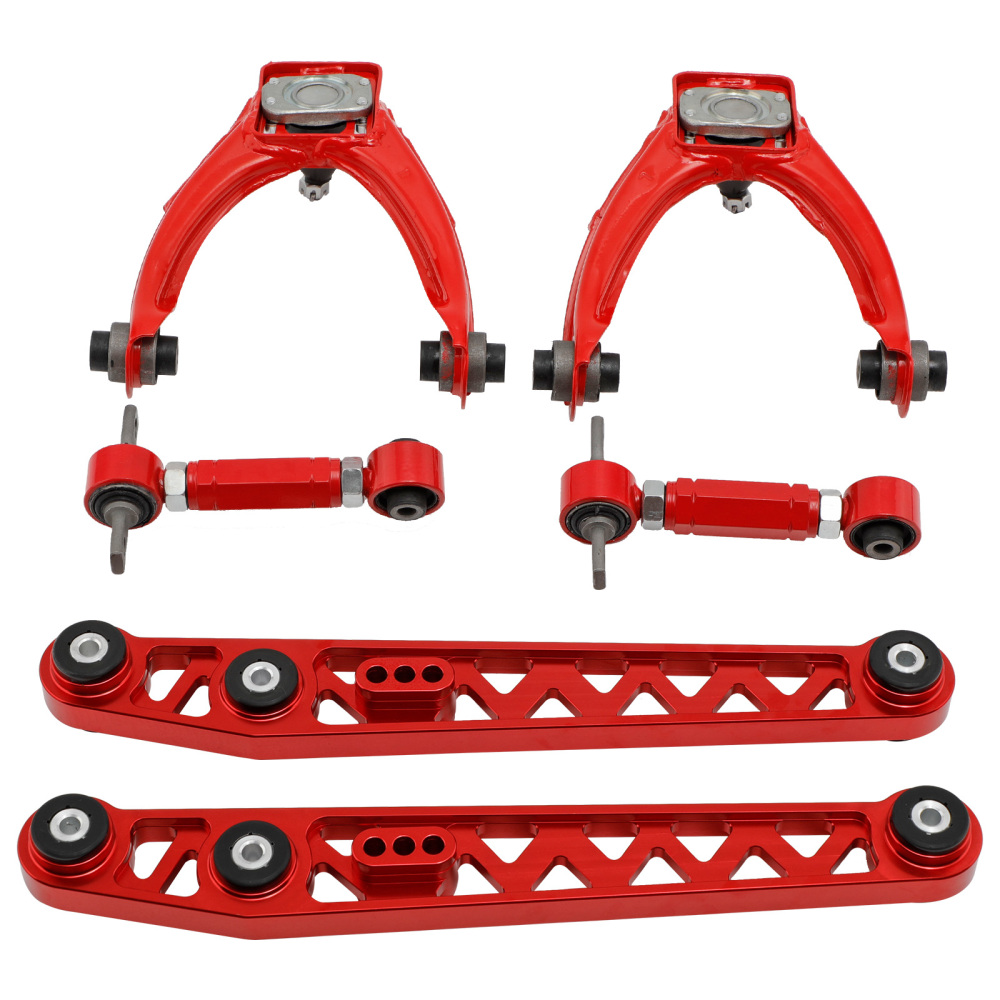

Package included
Complete coilovers assembly 2 front and 2 rear，A pair wrench for height adjustment
1 Pair Rear Lower Control Arms
1 Pair Front Upper Control Arms
1 Pair Rear Camber Adjustable Kit








Feature For Coilover

1. Quickly Install: Preload parameter is provided to save your 3-4 hours installation time.
2. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
3. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
12. Steel shock bodies with special surface treatment to improve the durability.
13. Full rebuildable.

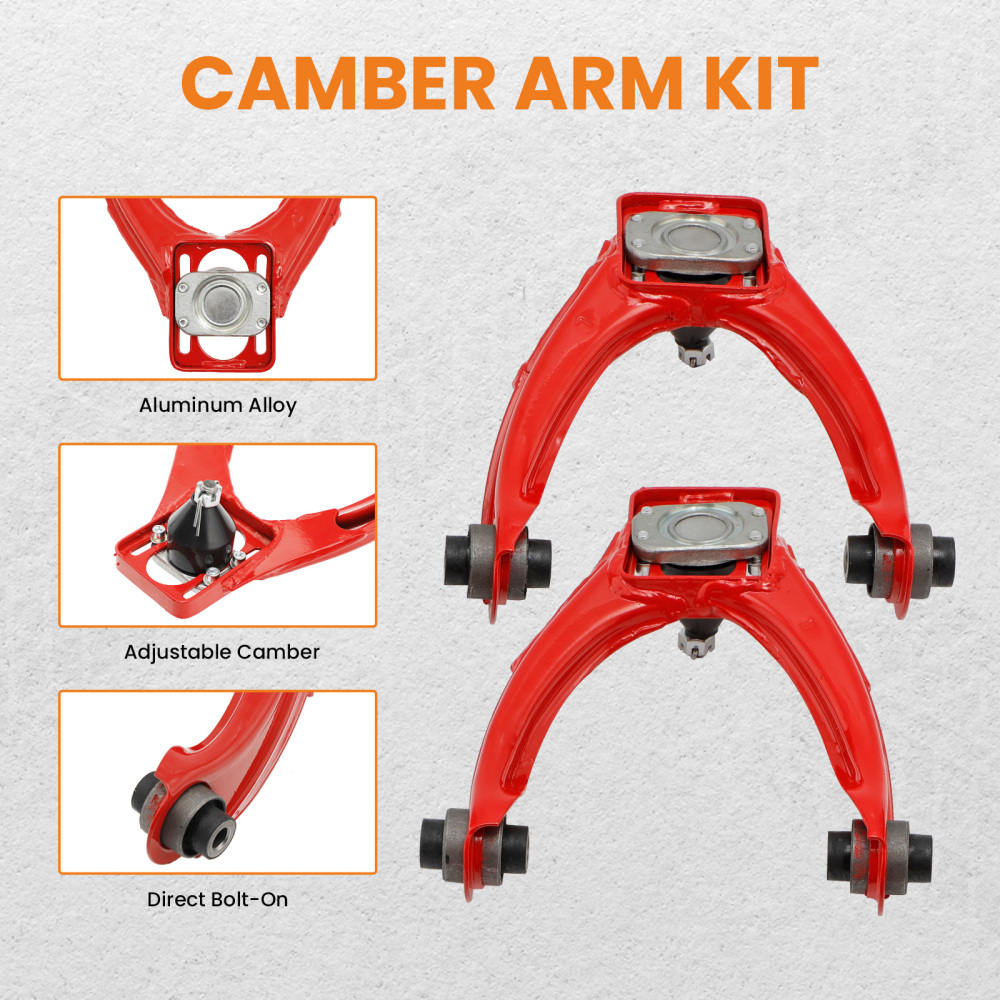

Feature For Control Arms
- Direct bolt-on, No Modification Required!
- Allows Approximately ~ +/- 3 Degrees of Adjustment.
- Polyurethane Bushings with Aluminum Rod Inserts.

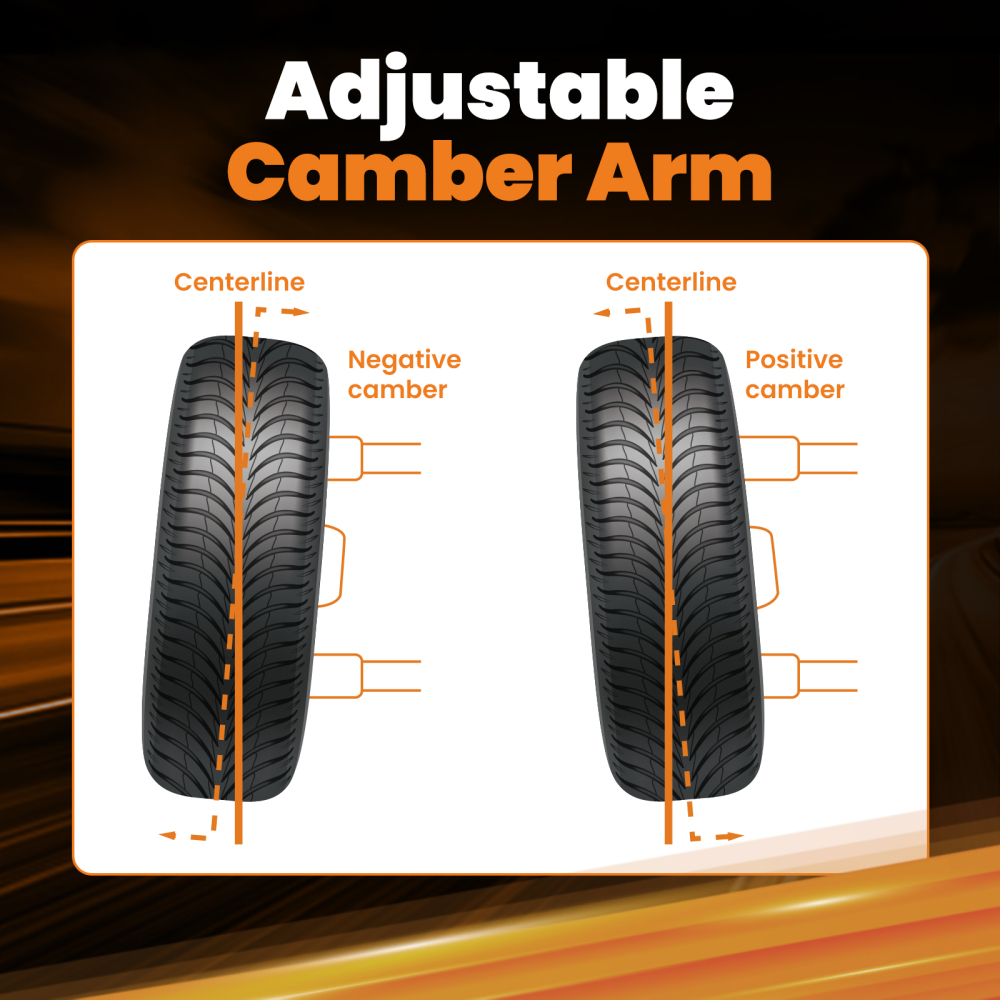

- 0.76'' thickness response and more positive feel.Help reduce the amount of camber when lowering your vehicle.(Lower Control Arm)
- Increase your vehicle handling,reduce your tires wear and tear.It will make a nice look on the back of your vehicle.
- Designed for comfortable use and best quality
- For high security & longevity
Note:  Vehicle Will Require Wheel Alignment After Installation To Help Fix Specs







Note
*  Professional installation & alignment suggested.
