Coilovers Spring Struts compatible for Subaru Impreza WRX STI GDB 2000 2001 2002 2003 2004

Application

Compatible for Subaru Impreza WRX 2000.08-2007.06 GDA GD9 GGA
Compatible for Subaru Impreza WRX STI 2000.10-2004.06 GDB (RIM P.C.D.=100)
Compatible for Subaru Forester SG 2003-2008
Compatible for Saab 9-2X 2005-2007 GGA GGE

Note: The coilovers kit will "Lower your car" and does not keep to the original ride height.

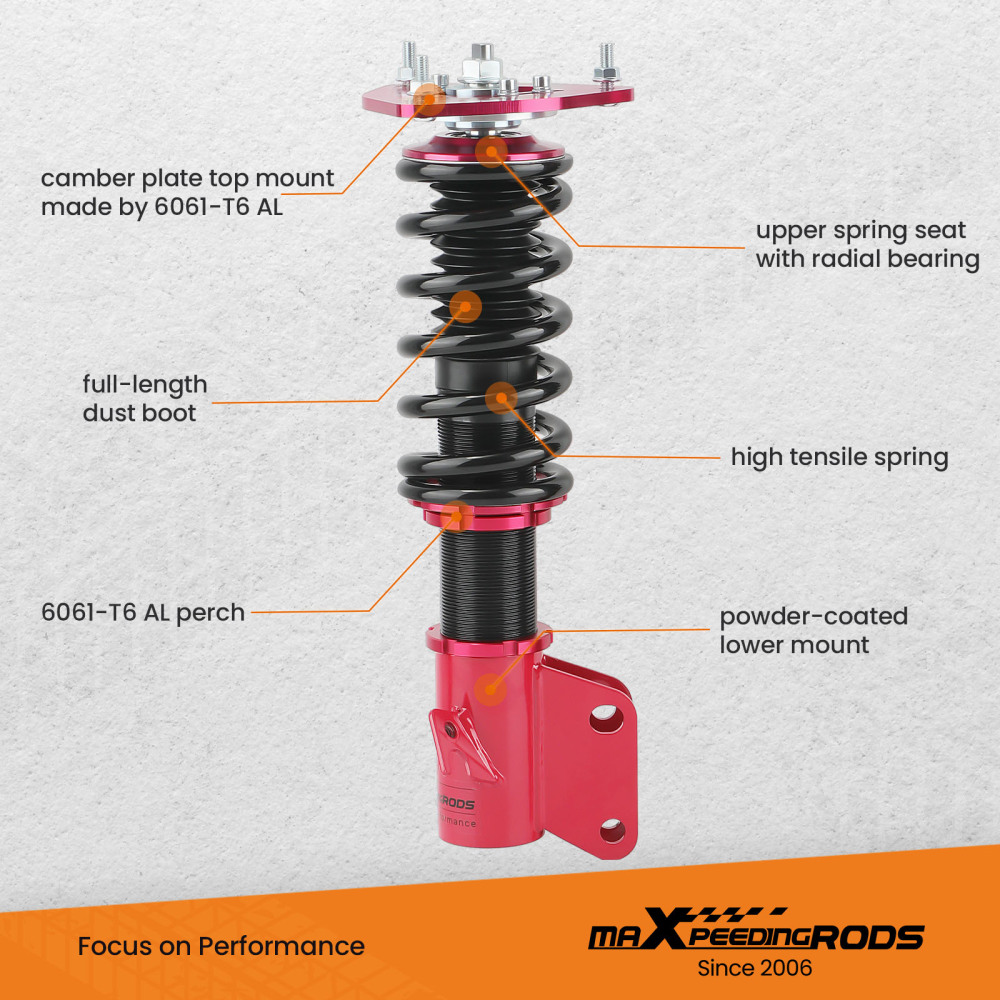

Feature

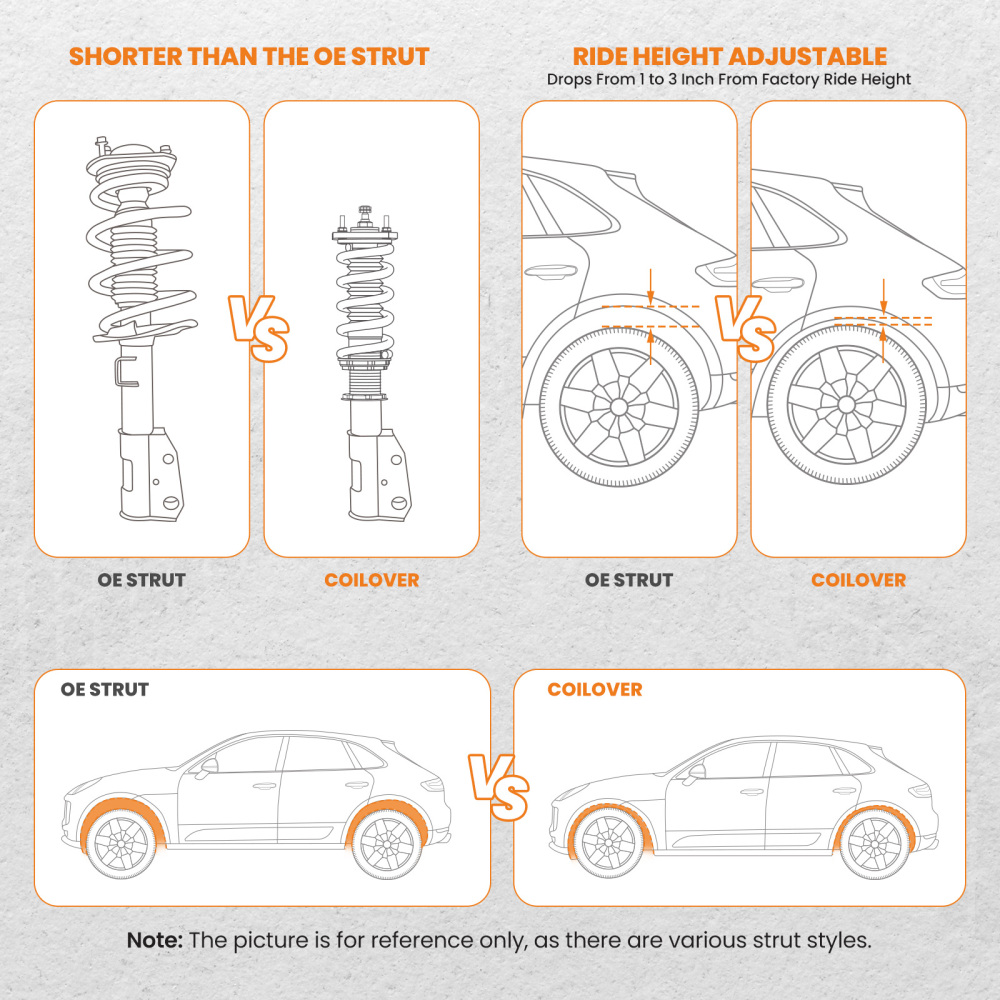

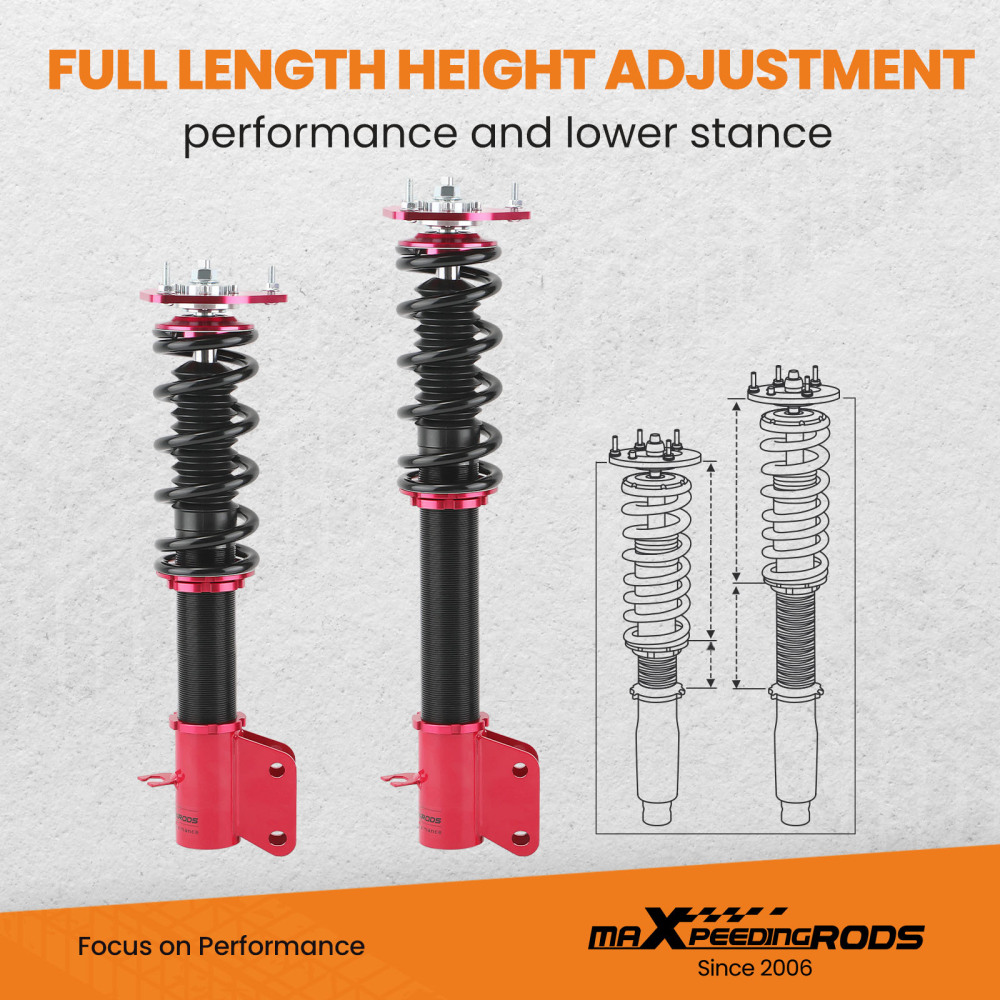

1. Lowered height adjustment from 25 - 75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

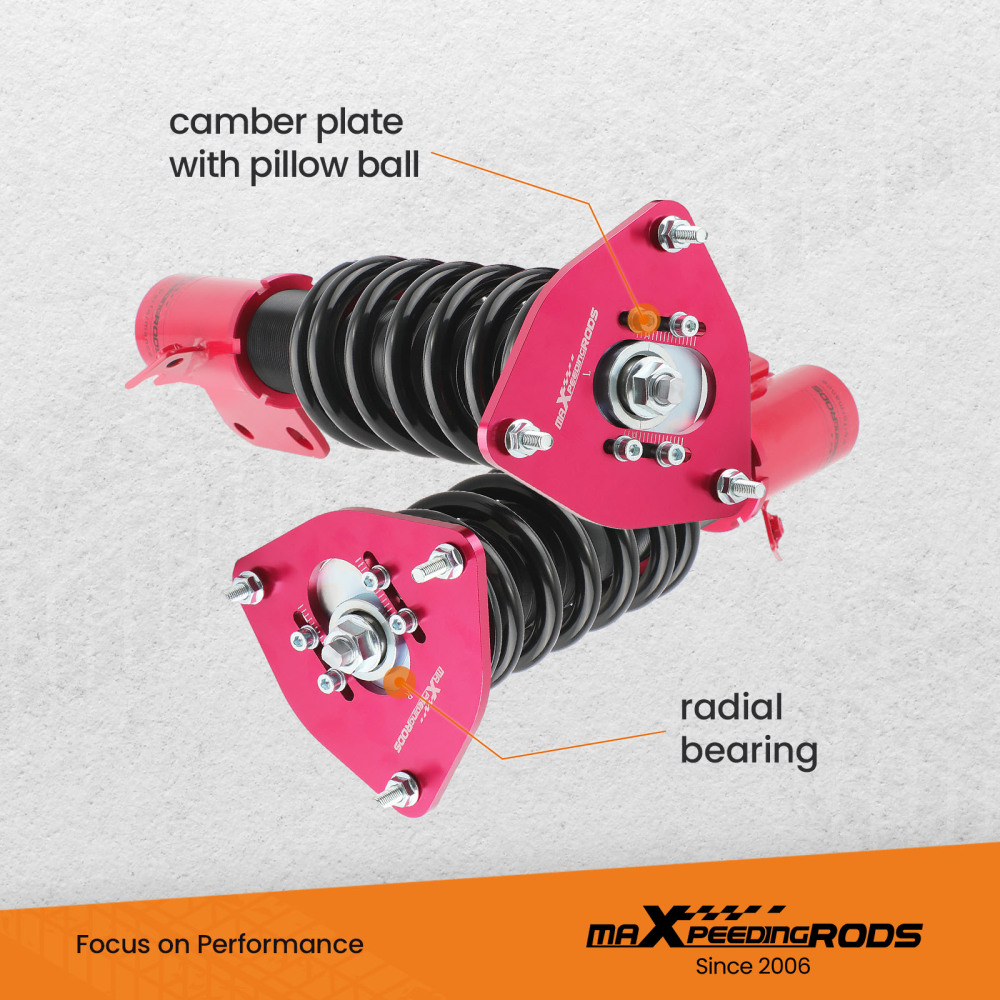

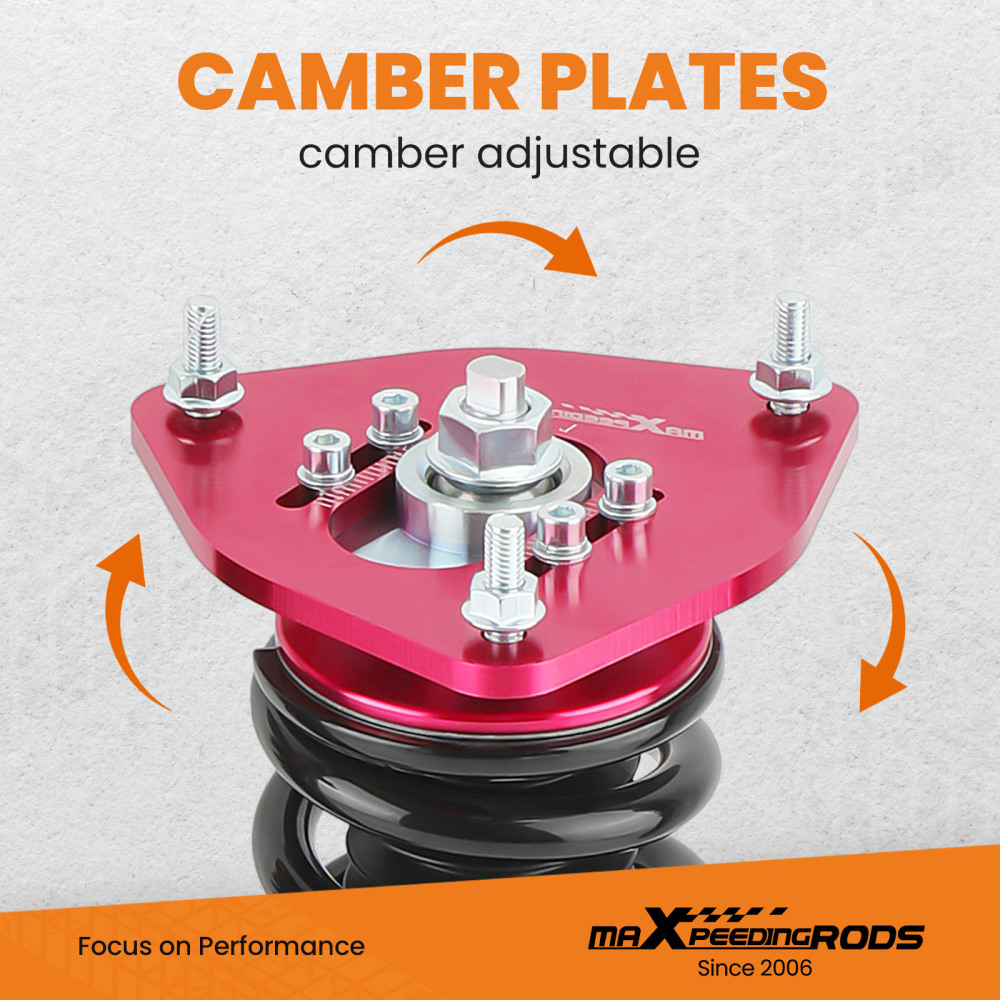

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

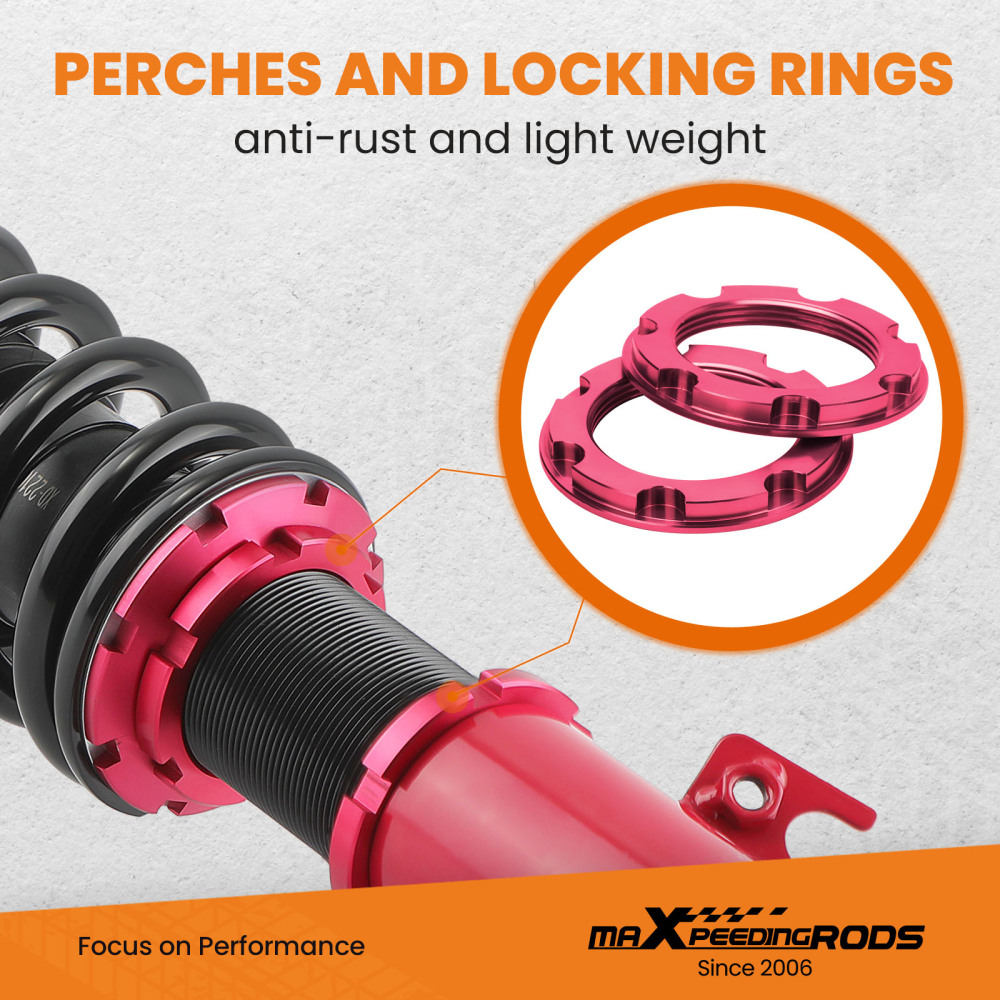

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

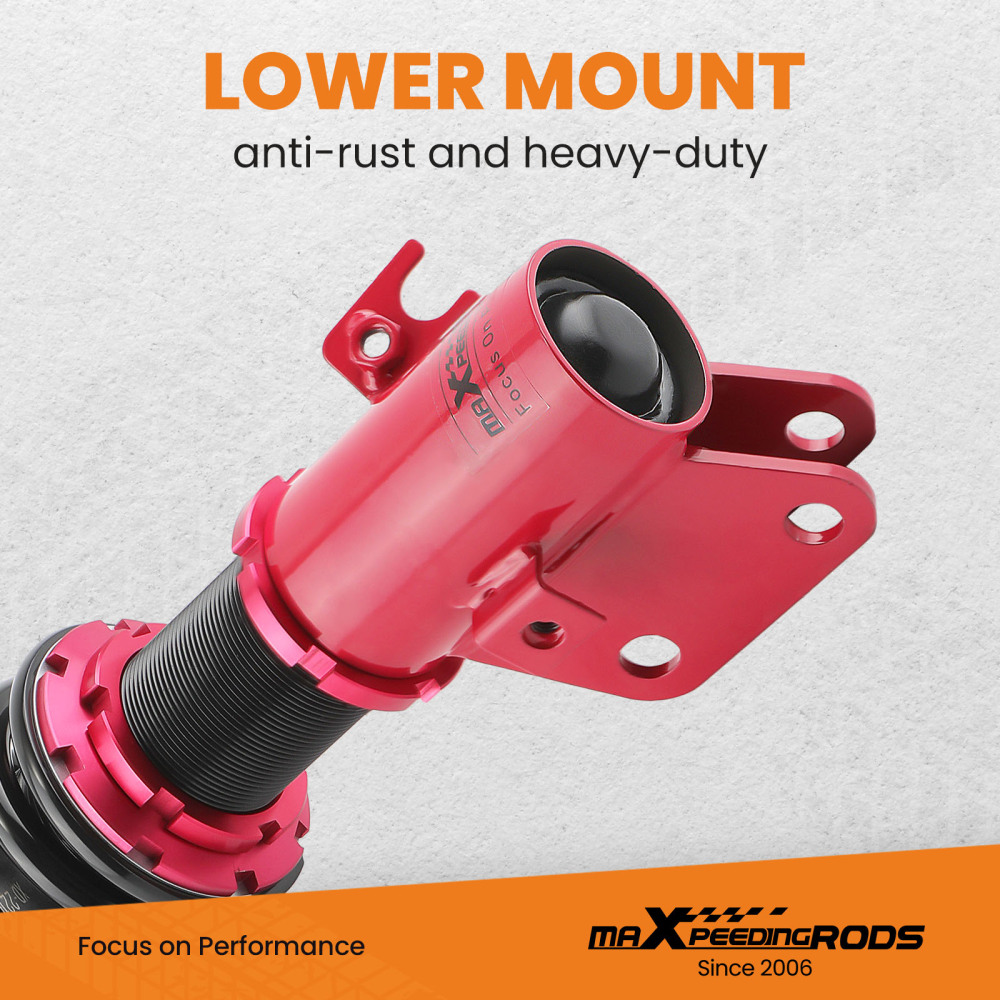

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

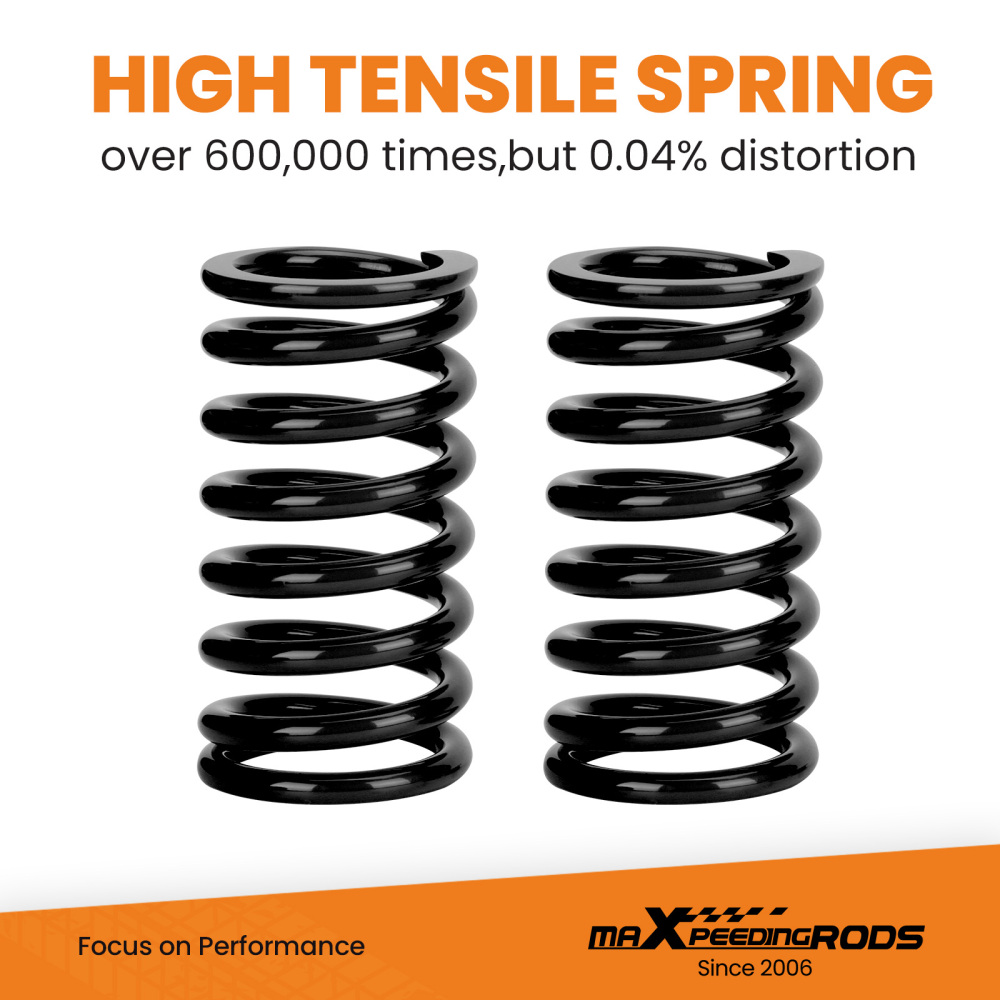

6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Specification

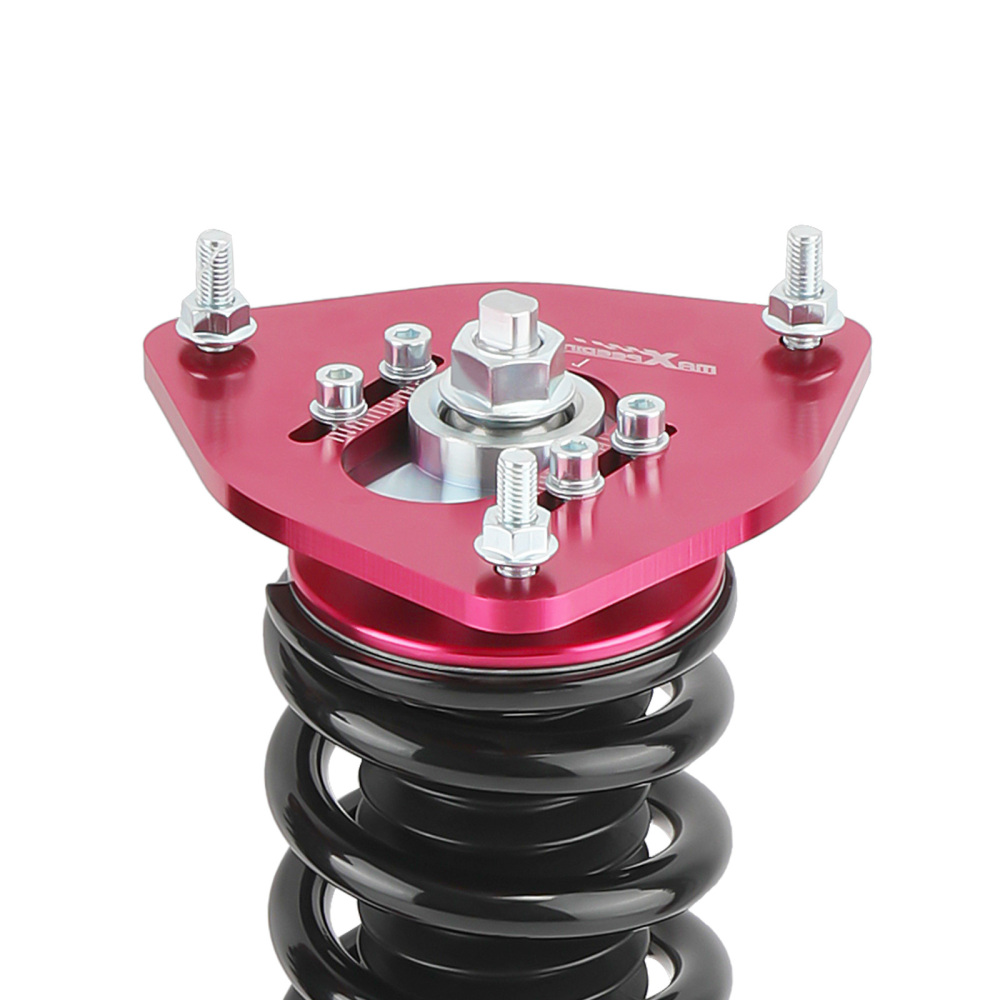

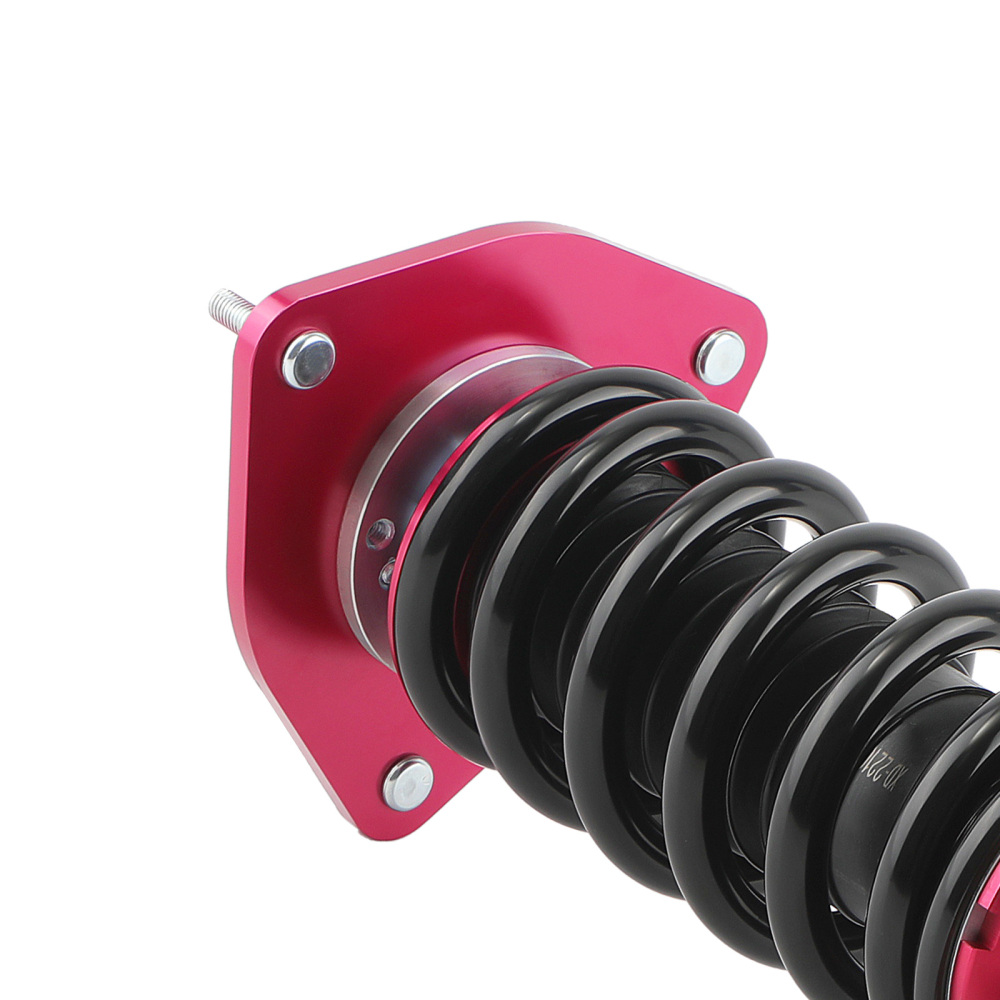

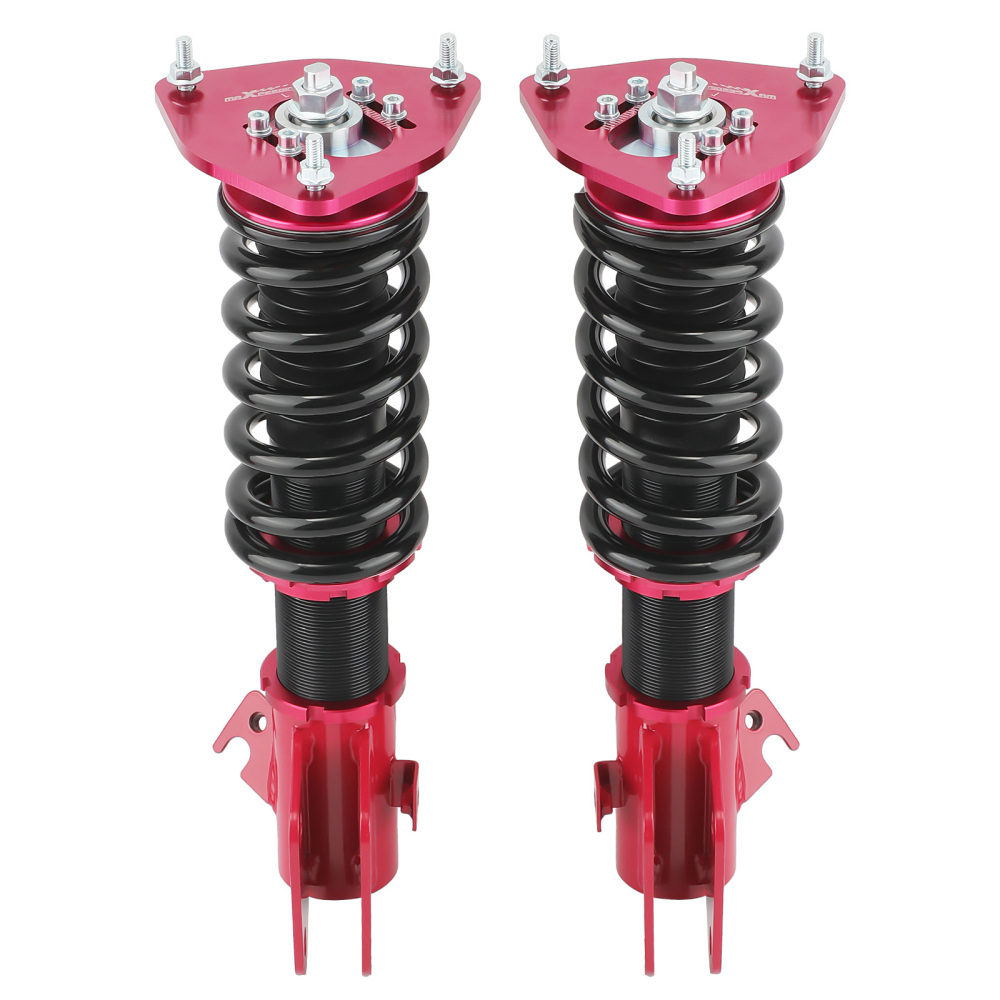

Front top mount: Pillow ball with camber plate
Rear top mount: Pillow ball
Damping adjustable: Not available
Camber adjustable: Available, front only
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 9 kg/mm (504 lbs/in)
Spring Rate Rear: 7 kg/mm (392 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 190 mm
Spring length Rear: 250 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

Package included

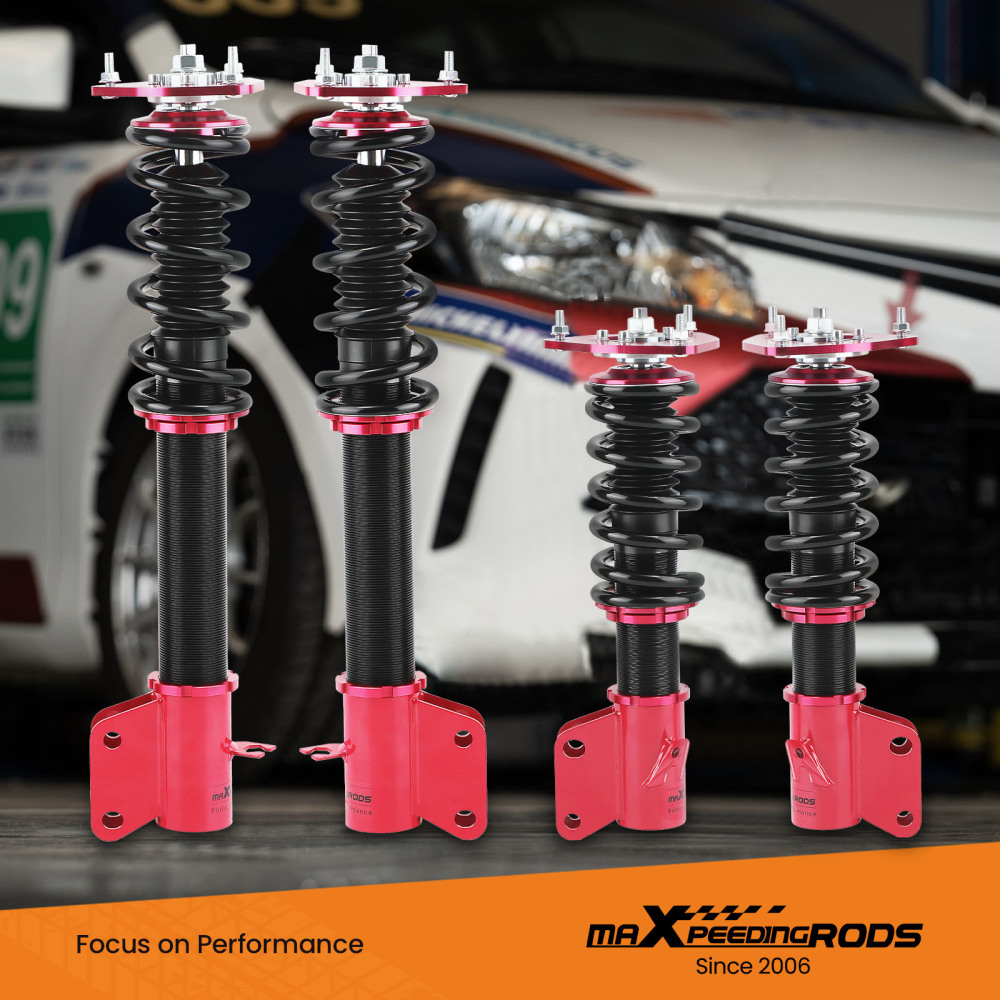

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Dimension

Package size : 71*51*21cm
Weight: 30500g

Notice

*The coilovers kit will "Lower your car" and does not keep to the original ride height.
* High performance aftermarket parts; professional installation is recommended.
