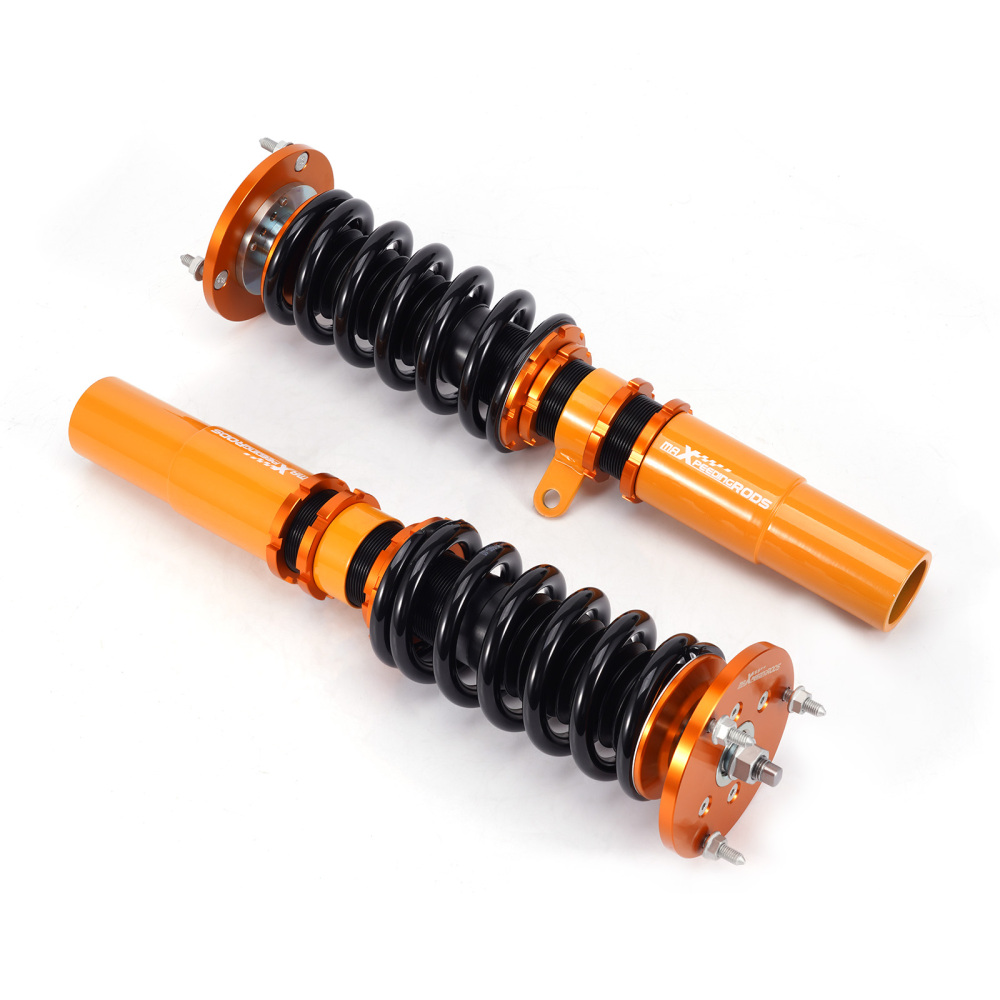

Coilover compatible for BMW E60 AWD xDrive Xi Model 2004-2010 Adjustable Height Shock Strut

Introduction

MaXpeedingRods-B2 series(also called MaXpeedingRods-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible For BMW 5 series (E60)2004-2010 Sedan AWD
model:525xi,528i xDrive,528xi,530xi,535i xDrive,535xi
Will Not Fit Models with Air Suspension

Specification

Top mounts: front - pillow ball top mounts
rear - rubber top mounts
Damping: not available

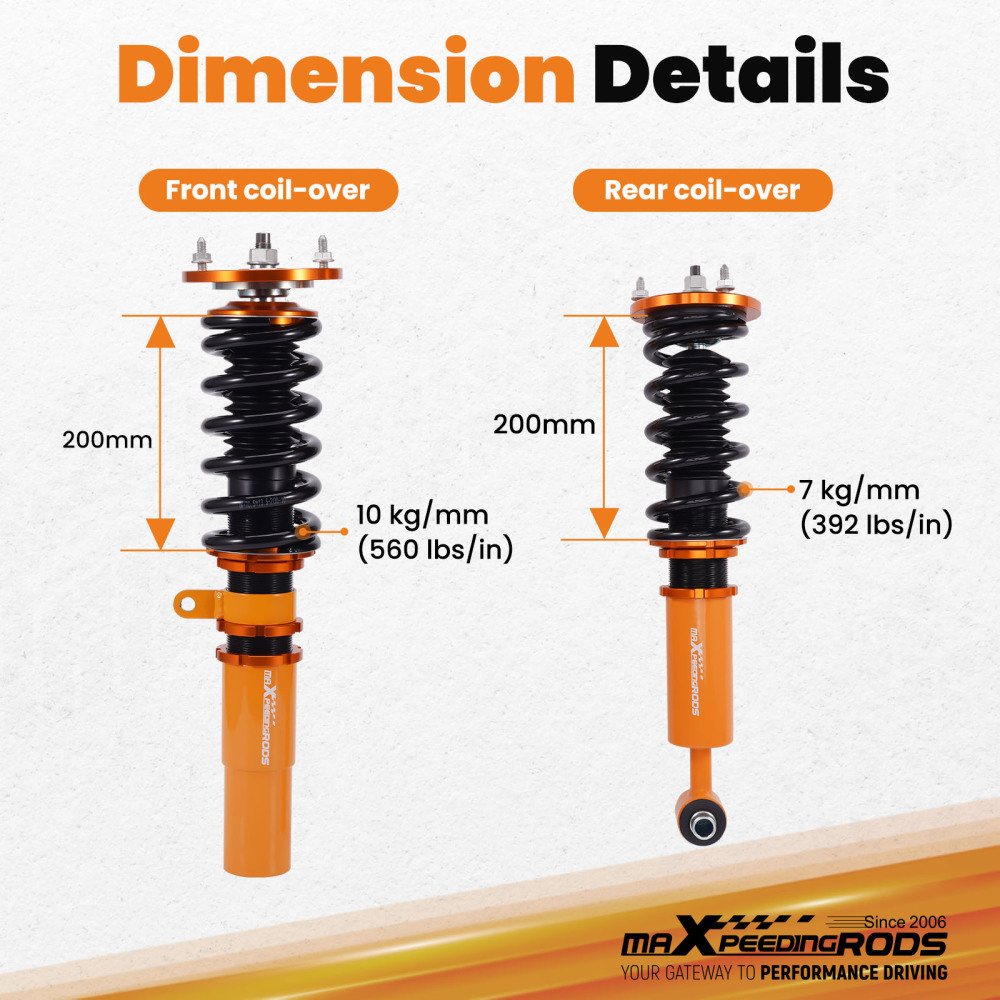

Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 200mm
Spring length Rear: 200mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 550mm-580mm
Coilover overall length Rear: 500mm-575mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

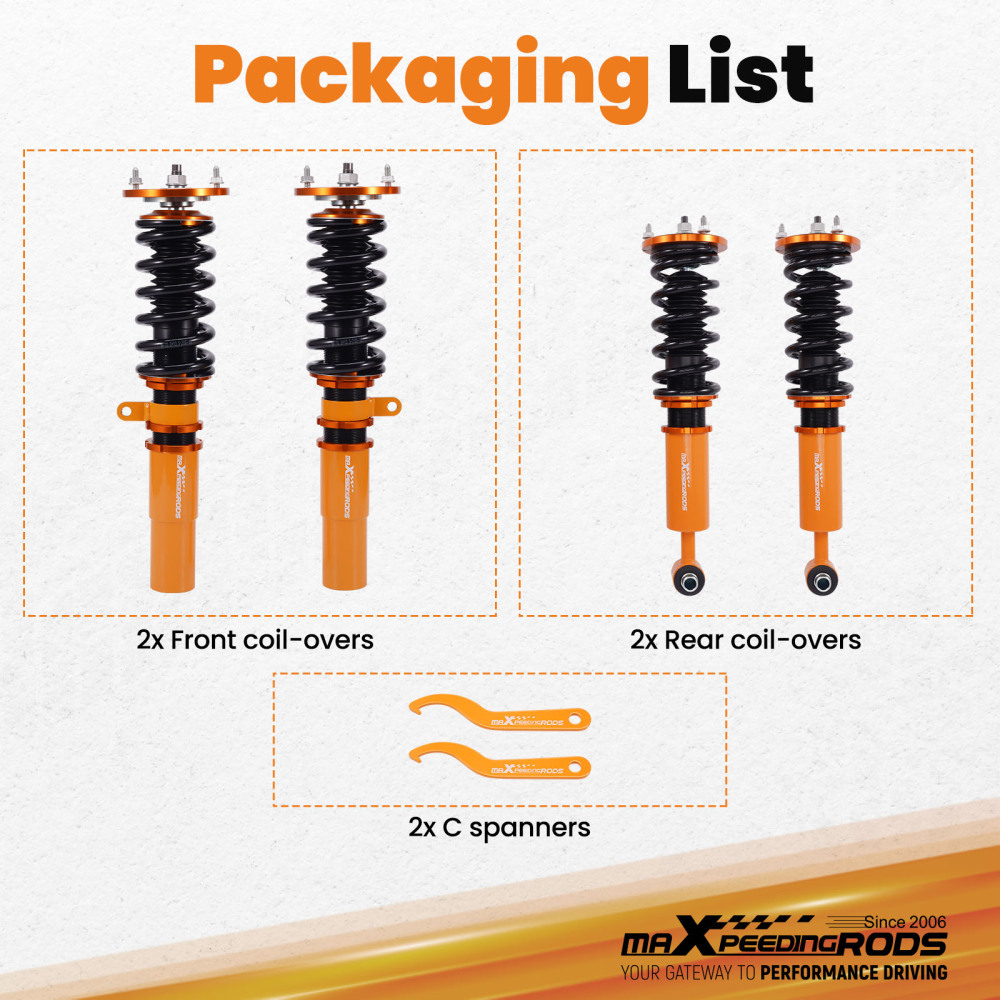

Package included

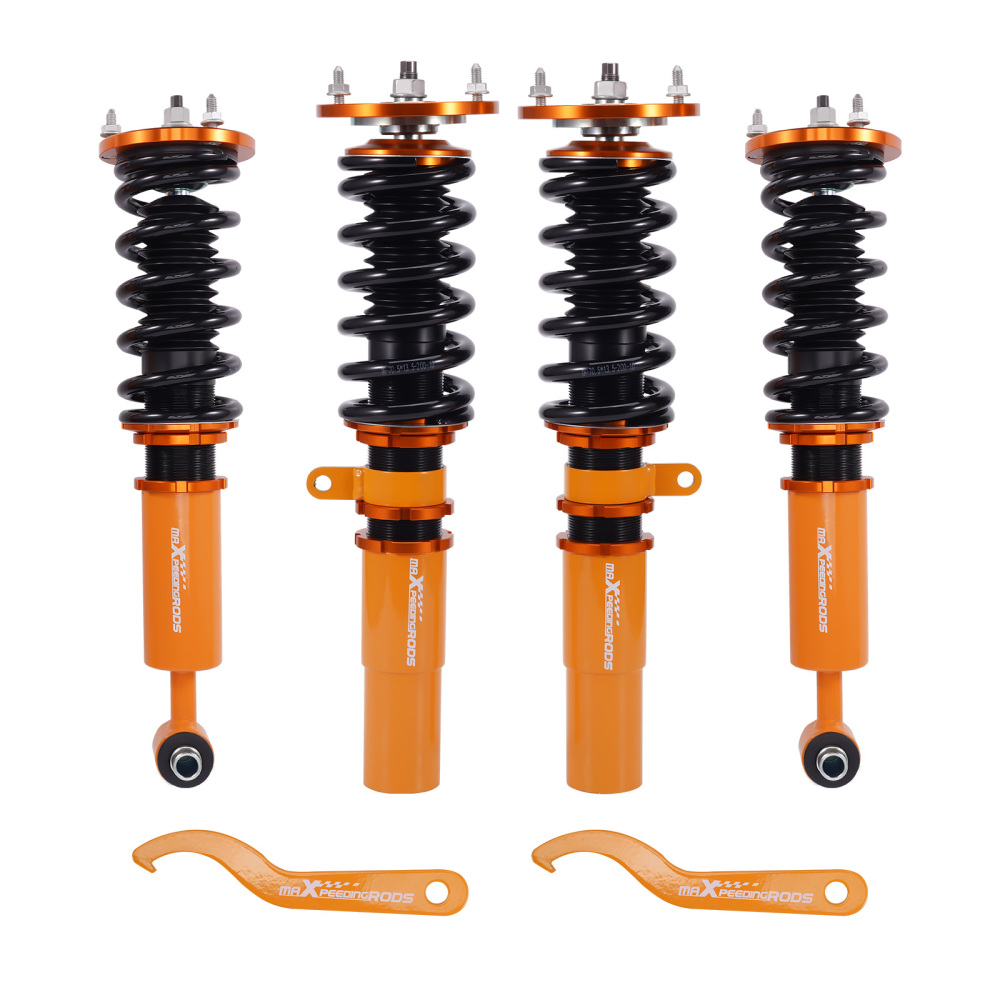

complete coilovers for 2 front and 2 rear
a pair wrench for height adjustment

Dimension

weight: 26500g
size: 71*51*21 cm

Feature

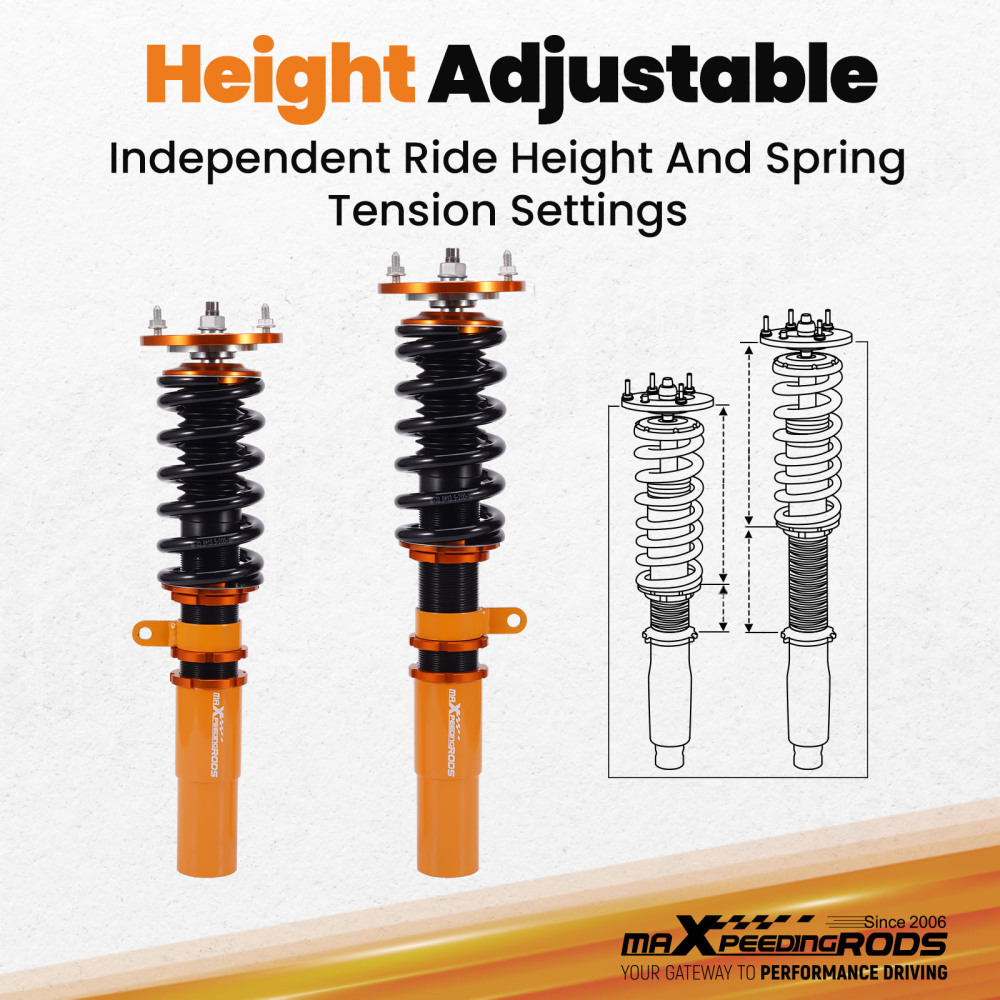

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Twin-Tube structure allows sufficient stroke within the shock absorber.
3. Separate height adjustment does not affect damper stroke.

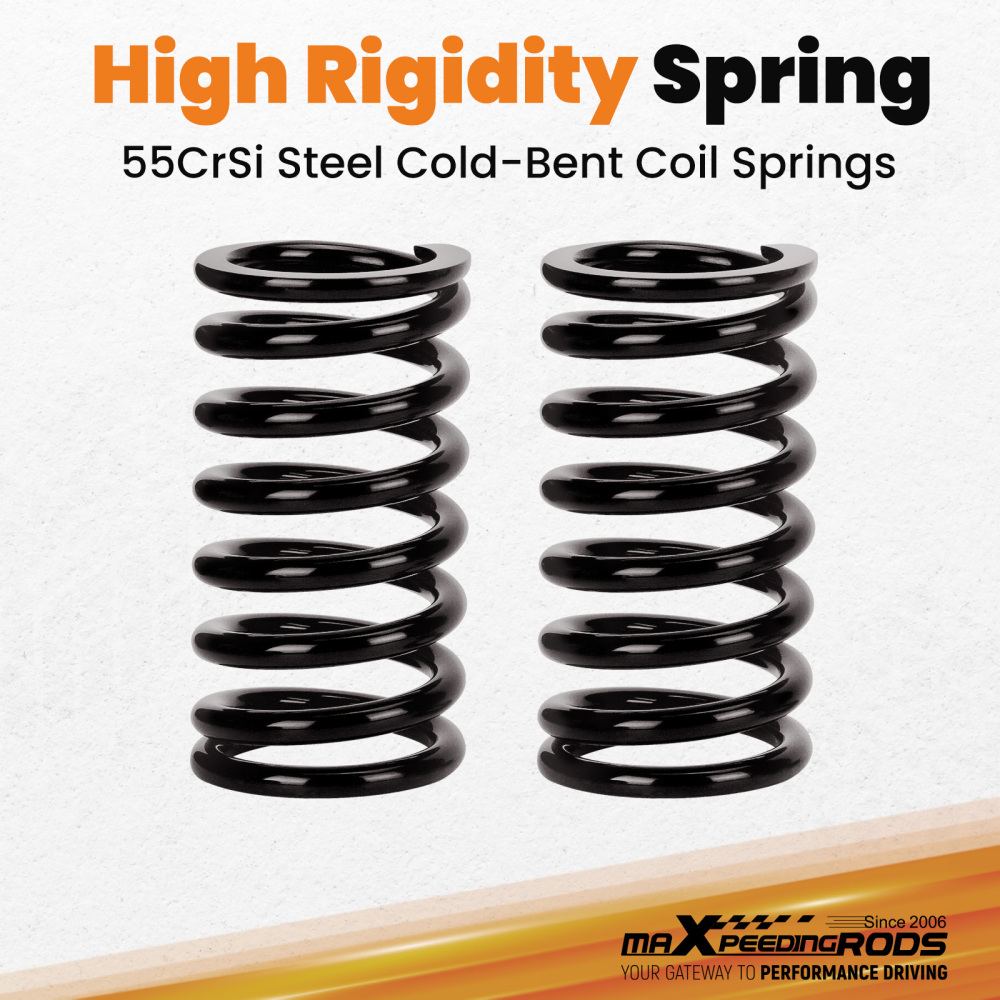

4. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
5. Height Adjustment tools included.

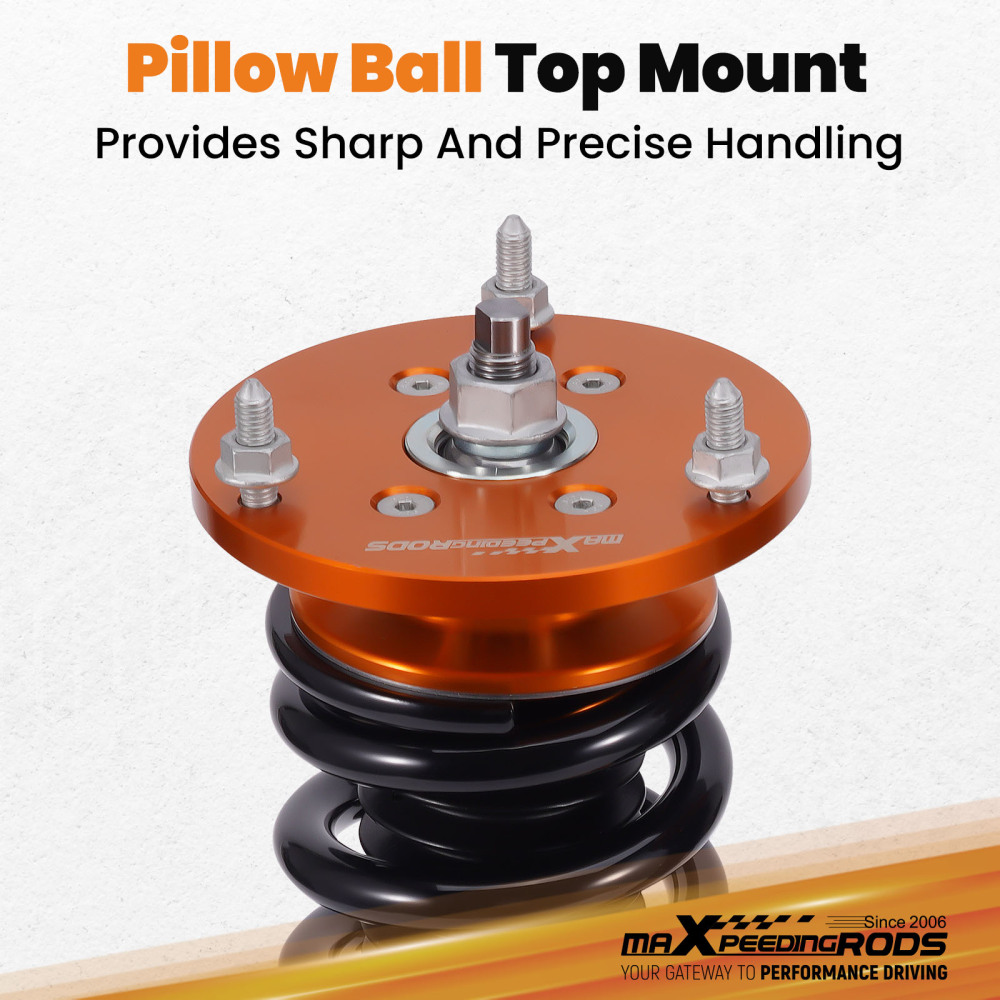

6. Pillow ball top mount - It improves the steering feel and response.
7. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
8. Steel shock bodies with special surface treatment to improve the durability.
9. Full rebuildable.

Notice

The front damper knuckle insert diameter is 49mm or with bushing 55mm.
