Compatible for Toyota Corolla 88-99 E90 E100 E110 AE111 Suspension Coilovers Spring Struts Lowering Kit

  • * Fitment: The shock absorbers are compatible for Toyota Corolla E90 E100 E110 AE92 AE101 AE111 1988-1999
  • * High Tensile Strength Performance Spring: Front: 8 kg/mm (448 lbs/in), Rear: 6 kg/mm (336 lbs/in); Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%
  • * Adjustable Performance: Able to lower ride height by 1''-3''
  • * Twin-Tube Shock Design: Used for low internal frictional resistance in order to increase efficiency and keep shock temps low
  • * Al6061-T6 Material: Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity
Item Number 3002101633
Stock In Stock

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CO-TOYCOR-G-NA-VG2
CO-TOYCOR-G-NA-VG2

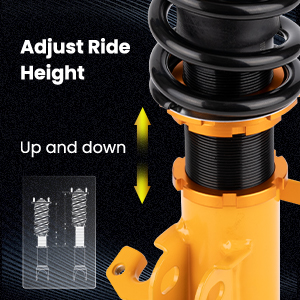

1. Adjustable Height
1. Adjustable Height
Able to lower ride height by 1''-3''; allows user to have a more aggressive stance and can adjust without taking coilovers out the car
2.High Quality Components
2.High Quality Components
Most components of the suspension parts are made from 6061-T6 aluminum to increase strength and rigidity

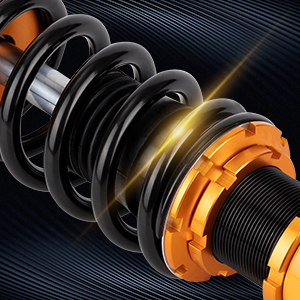

3.High Tensile Strength Spring
3.High Tensile Strength Spring
Tested under a 600,000 time continuous compression test, the spring distortion was less than 0.04%
4.Twin-tube Construction
4.Twin-tube Construction
Twin-Tube shock design is used for low internal frictional resistance and dust boot protects damper seal

Application

Compatible for Toyota Corolla E90 1987–1992
Compatible for Toyota Corolla E100 1991–1998
Compatible for Toyota Corolla E110 1995-2002
Compatible for Toyota Corolla AE92 1987-1991
Compatible for Toyota Corolla AE101 1992-1998
Compatible for Toyota Corolla AE111 1988-2002
Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specification

Quantity: 4PCS of Coilovers (2 piece front + 2 pieces rear)
Adjustable camber plate: Yes(front only)
Adjustable height: Yes (Front 306-396mm; Rear 341-481mm)
Spring rate front: 8 kg/mm (448 lbs/in)
Spring rate rear: 6 kg/mm (336 lbs/in)
Shock type: Twin tube
Spring preload: 7-10 mm
Color: Gloden
Warranty: one year warranty for any manufacturing defect
Daily driver, occasional autocross day or occasional track days,equally at home on street and track.
For those seeking a lowered stance as well as improved handling and response at a high value.

Feature

1. Lowered height adjustment from 1" - 3" which allows a lower center of gravity and also adds a more aggressive stance.

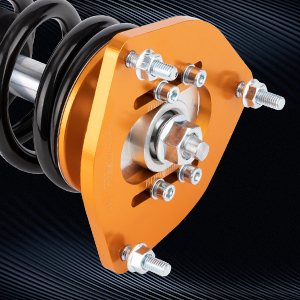

2. Camber plate top mounts help to eliminate the need for a separate camber kit.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for easy installation.
5. Separate height adjustment does not affect damper stroke and height can be adjusted with coil overs installed on the vehicle.
6. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves durability and performance.

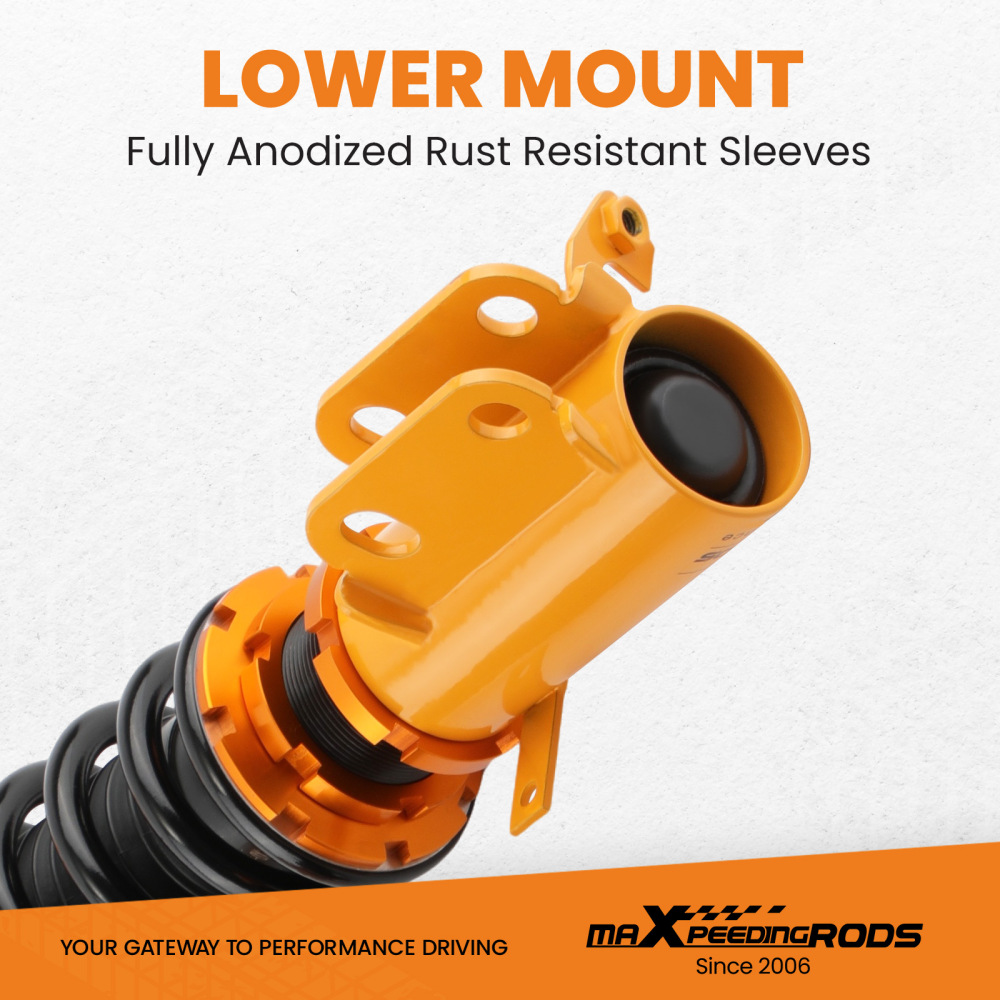

7. Most pieces in our Coilover systems, including mounts, collars, and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable, and rust-resistant components.
8. Steel shock bodies with a special surface treatment to improve durability.
9. Full rebuildable

Note

- No instruction included; Professional installation & alignment suggested.
- Please check our store for other auto parts you may be interested in.
- Please feel free to contact us for whatever we can help.
